2001 Custom Crosswater Passagemaker 49
“Island Hopper”
Description
Crosswater 49 - Island Hopper
An economical power catamaran passagemaker. With a range capability of 5000 nautical miles at 8 knots, Crosswater exemplifies the qualities of a true “passage-maker”.

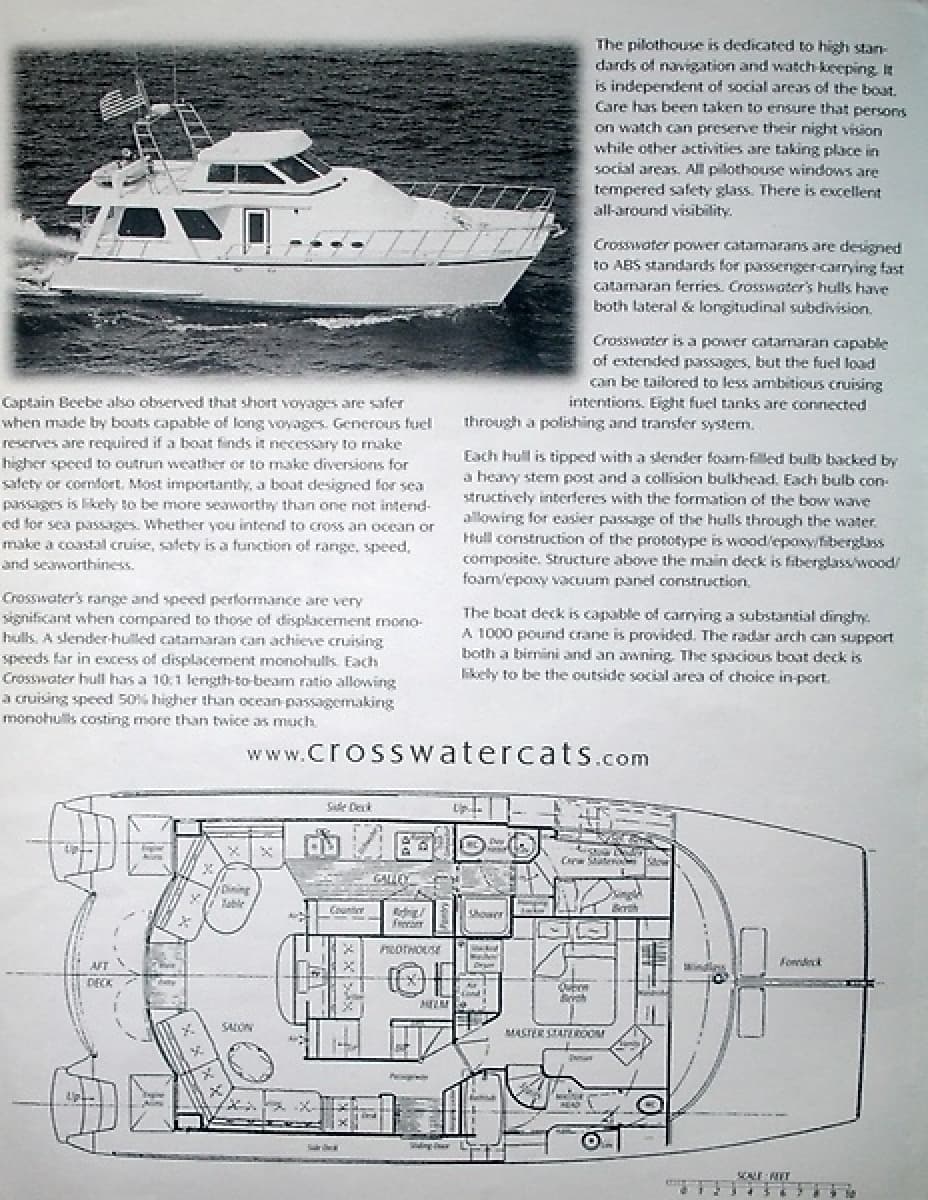

The pilothouse is dedicated to high standards of navigation and watch-keeping. It is independent of social areas of the boat. Care has been taken to ensure that persons on watch can preserve their night vision while other activities are taking place in social areas. All pilot house windows are tempered safety glass, there is excellent all-around visibility.
Crosswater is a power catamaran capable of extended passages, but the fuel load can be tailored to less ambitious cruising intentions. Eight fuel tanks are connected through a polishing and transfer system. This system can provide the two rear most tanks wit fuel for the engine on each side.
Each hull is tipped with a slender foam-filled bulb backed by a heavy stern post and a collision bulkhead. Each bulb constructively interferes with the formation of the bow wave allowing for easier passage of the hulls through the water. Hull construction is wood/epoxy/fiberglass composite. Structure above the main deck is fiberglass/wood/foam/epoxy vacuum panel construction.
The boat top deck supports Atlantic Towers fiberglass and aluminum top, carrying 10 solar panels, radar and KVH HD7 dish. The spacious boat deck is likely to be the outside social area of choice at anchor or in port.
Key Features
- Built for the Long Haul: The vessel features exceptional fuel capacity (up to 2,260 gallons), allowing for incredible long-distance endurance.
- Layout: Typically configured with 2 staterooms and 2 heads, including an owner's master suite with a queen-sized bed, ensuite head, tub, and shower, as well as a convertible guest stateroom.
- Mechanical: Powered by twin Yanmar 4LHADTE diesels (190 hp each) and often customized with heavy-duty off-grid features like large solar arrays (up to 3,000 watts) and 12.5 kW generators.
- Design: Each hull features a foam-filled bulb that constructively interferes with the bow wave, greatly increasing the boat's hydrodynamic efficiency.
- DimensionsOverall Length: 49 ft 11 inches
- Beam (Width): 23 ft
- Draft: 3 ft
- Displacement: 40000 lbs
Interior
- Heads (Bathrooms): 2
- Staterooms: 2
- Berths: 5
- PerformanceCruise Speed: 9 knots
- Max Speed: 12 knots
- Fuel Capacity: 2260 gal
- Water Capacity: 220 gal
- Holding Tank: 20 gal
- ConstructionHull Material: Composite
- Additional InformationTop deck lounge chairs with pads and covers
- West Marine folding lounge chairs
- Floating lounge mats
- 2 person inflatable towable with rope
- Air draft is 20’ 7” to the top of the KVH satellite dish; 18’ 4” with the KVH dish removed — important for bridge clearance on Great Loop cruising
Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Bluewater Yacht Sales. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Overview
Key Specifications
Weight & Measurements
Accommodation
Tankage
Registration & Documentation
Engines
Generators
Full Details

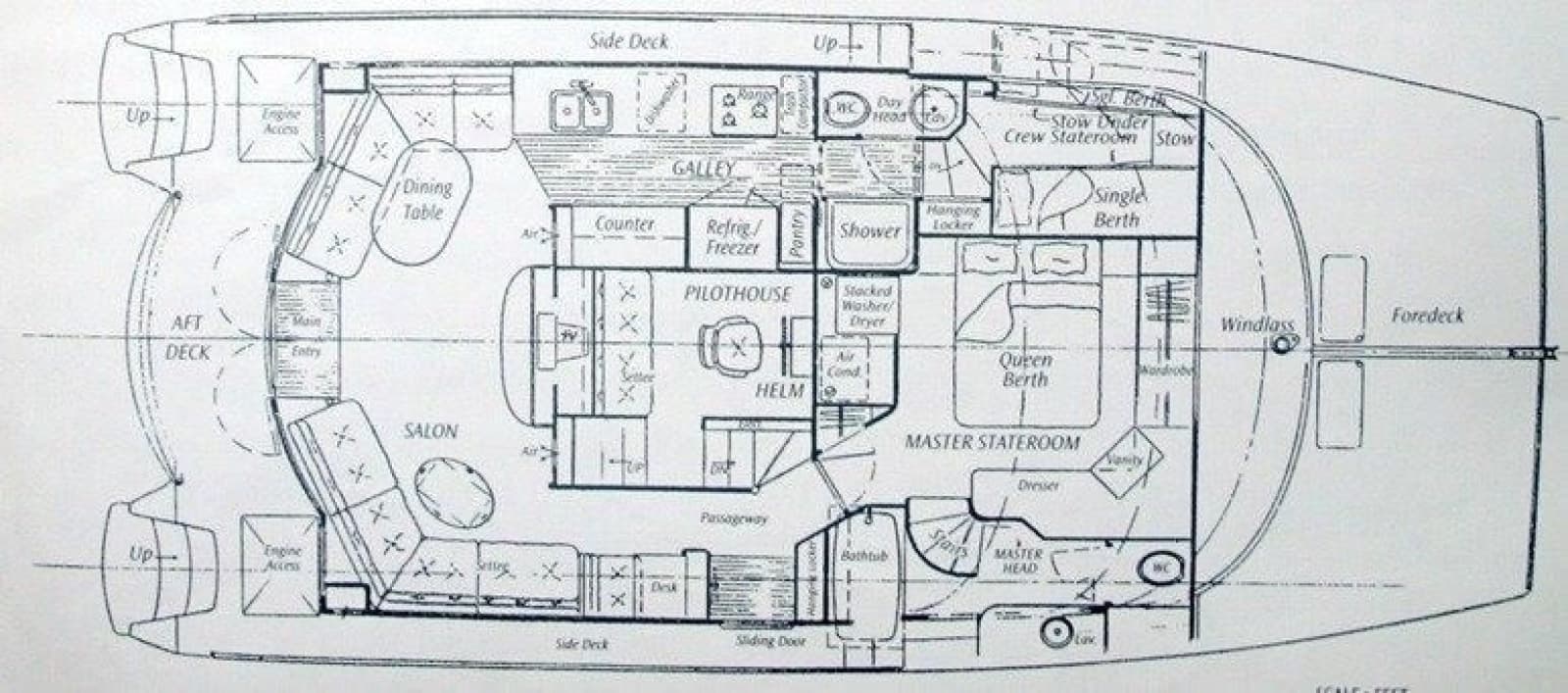

Accommodations
Master Stateroom
- Queen-size Select Comfort bed, ensuite head, tub & shower
Guest Stateroom
- 2 single berth converts to queen size ensuite head & shower
Additional berth on couch in salon
Galley
- GE dryer and Panda washer
- GE trash compactor
- IsEasy 3-burner propane cooktop with 2 – 20lbs propane tanks
- GE Advantium 120 microwave/convection oven
- LG 23 cu. ft. French door refrigerator/freezer with ice maker
- Miele dishwasher
- Magma outdoor grill with 20bls propane tank
Deck and Equipment
- Deck(10) heavy duty stainless steel cleats (15″ & 18″)
- 88 # Rocna anchor on tilting bow roller
- 200 feet of 3/8″ chain
- Fortress 55 anchor w/ 50’ chain and 200’ nylon rode
- Lewmar Concept 3 vertical axis anchor windlass
- Bow rails and side rails with safety lines
- Safety lines across aft steps to swim platform
- Mooring lines and fenders
- (3) large storage lockers in fore deck for mooring lines, fenders, spare anchor, and gas can for dinghy
- Winslow Inflatable Life Raft, Model 60SL/0
- (6) life jackets
- EPIRB
- Life ring
- Jim Buoy horseshoe life ring
- ACR Strobe light
- Flares/bell/horn
- Ditch Bag
- First aid Bag
- Manual bilge pump
- Dinghy2019 10’ Highfield
- 2019 15 hp Tohatsu 4-stroke engine with transom lift
- Lifting Sling
- Anchor
Electronics and Navigation
- Raymarine E120 Classic Plotter
- Raymarine 4 kw radar with 24″ radome
- Raymarine ST6000 Autopilot with remote
- Raymarine Depthfinder x 2
- Raymarine ST60 Speed
- Raymarine GPS
- ICOM VHF Radio x 2
- ICOM IC-M88 Handheld Radio
- Compass
- Vesper Watchmate XB-8000 Class B AIS with Monitor, GPS and VHF AIS Antenna
- Horn
- PA Horn
- Flood Lights x 2
- Starlink Gen 3
- MOFI cellular modem
- Aigean WIFI extender modem
- Raymarine LifeTag Man-Overboard Alarm System
- Main Salon: 40” Samsung smart TV w/ Sony DVD player
- KVH HD7 TrackVision with DirecTV satellite TV receiver
Electrical and Plumbing
Power:
- Genset -Diesel: 12.5 kw Phasor with sound cover
- Solar: 3000w – (4) 450w panels, (6) 200w panels
- (7) Victron charge controllers, Victron CerboS
- Inverter/Charger: Outback 2800w with remote panel
- House Batteries: 1200 amp-hrs at 12v with (6) L16 Lifeline AGM
- Engine Start: (2) Group 24 Batteries AGM with Victron Smart Sense Monitors,
- Balmar Duo Charge, Balmar Max Charge MC-614
- Shore Power: 50 amp, 220 v with 50 ft cable/connections, spare 50 amp and 30 amp cables
Air Conditioning & Heating:
- Four reversible heat pumps totaling 64,000 btu
Water System
- Tankage: Total of 220 gallons in 4 tanks
- Water Heater: 20 gallon
Waste System
- Commodes: (2) electric fresh water plumbed directly to waste tanks
- Black Water Tanks: (2) 35 gallon tanks with deck pumpout & lockable overboard discharge
- Gray Water Tanks: (2) 52 gallon tanks with deck pumpout & pumped overboard discharge
Bilge
- (4) 2000 gph bilge pumps
- (2) shaft sumps with pumps
Engine and Mechanical
Engines
- Twin Yanmar 4LHADTE Diesels (190 Hp each)
- ZF Mathers MicroCommander control station
- Four remote control input stations for ZF Mathers wired remote control.
- PSS Shaft Seals
- Hynautic Hydraulic Steering
Fire Protection
- Engine Rooms: Automatic fire suppression system
- Living Spaces: (5) fire extinguishers
Fuel System
- Fuel Capacity: 2260 gallons
- Tankage: (4) 430 gallon tanks, (4) 135 gallon tanks
- Tank Construction: .25 inch aluminum baffled with sumps
- Fuel Cleaning/Polishing System: Centrifugal filter and permanent magnet
- Fuel Transfer System: Any tank to any tank through the polishing system
- Final Fuel Filtering: Racor filters in engine room
