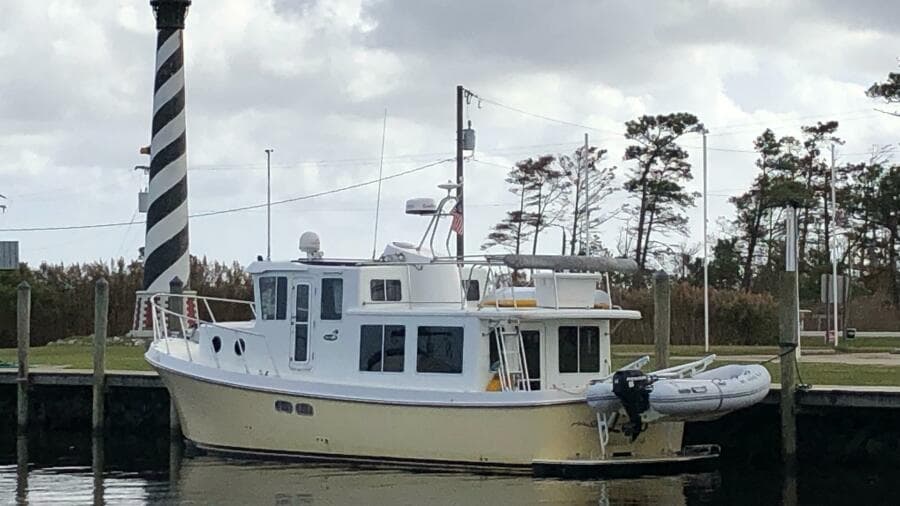

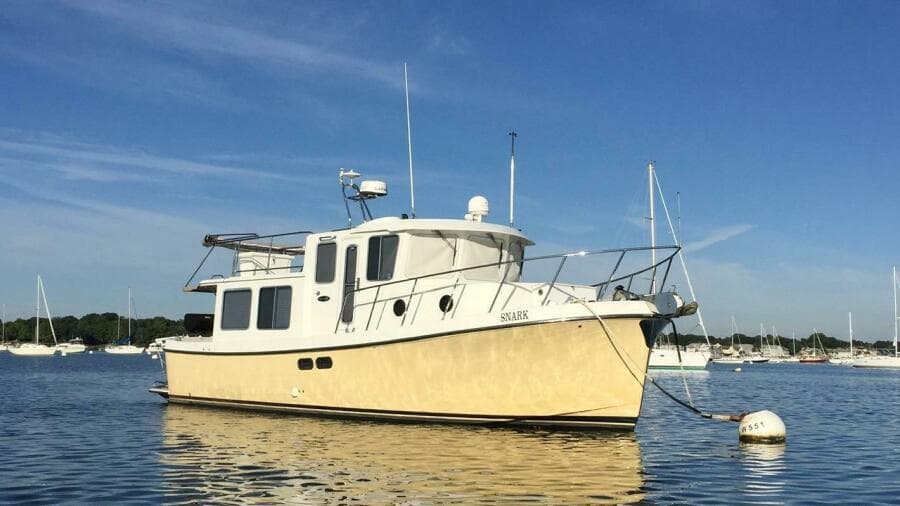

2001 American Tug 34

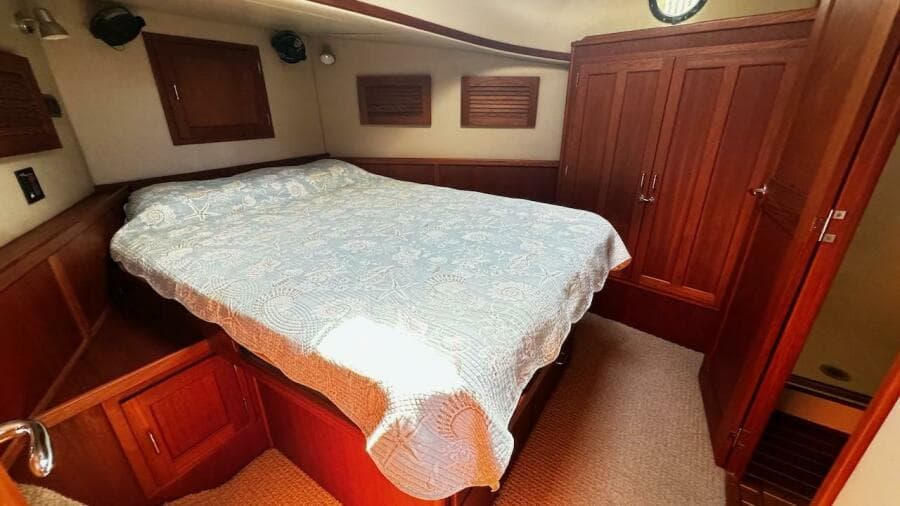

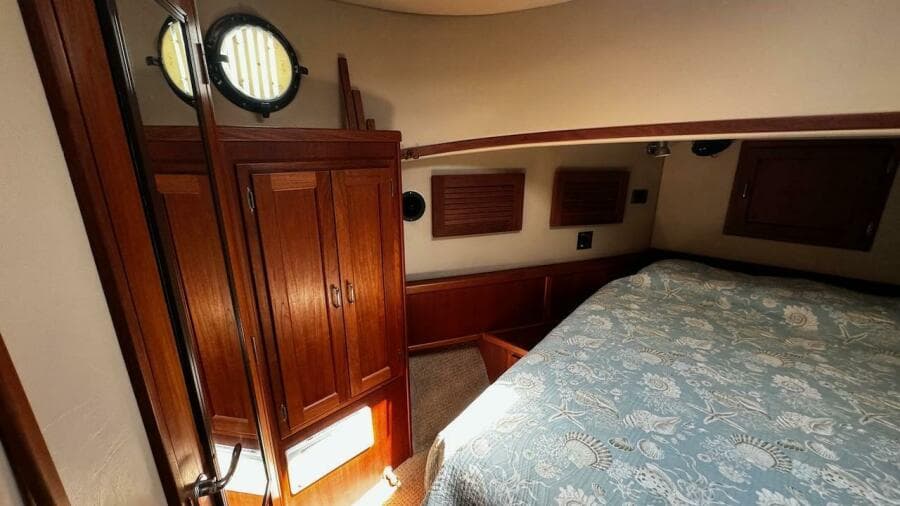

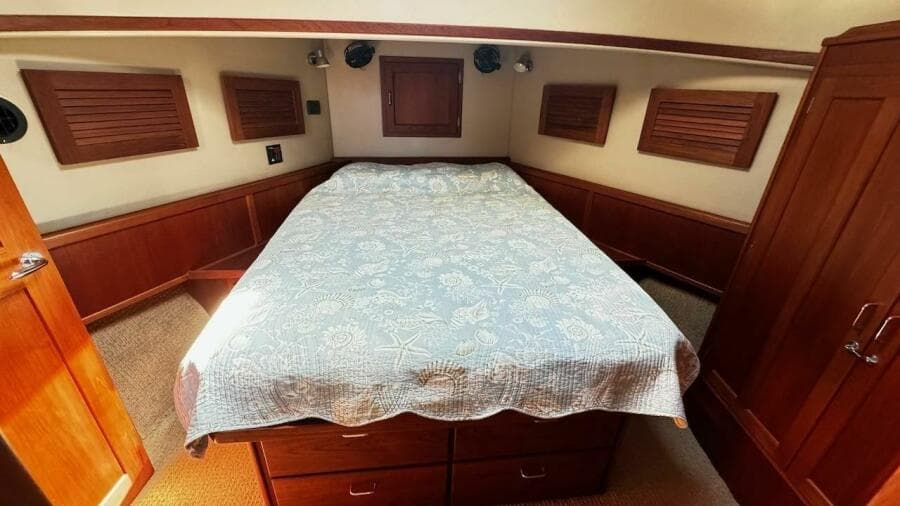

Starting forward is the Master Stateroom. This cabin features a center island queen berth (76"L x 57"W). There are four large drawers under the berth, a cedar lined locker to starboard and a locker with shelf to port. Over the bed are 2 reading lights and 2 fans.

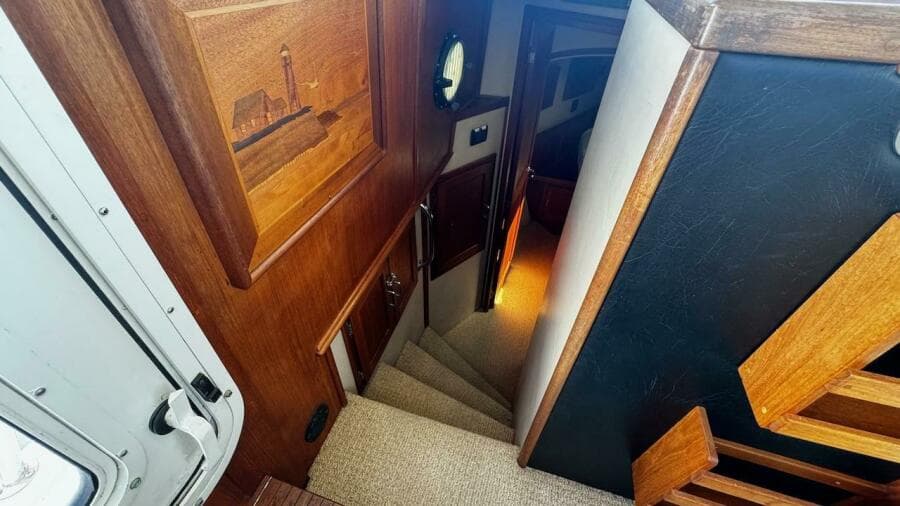

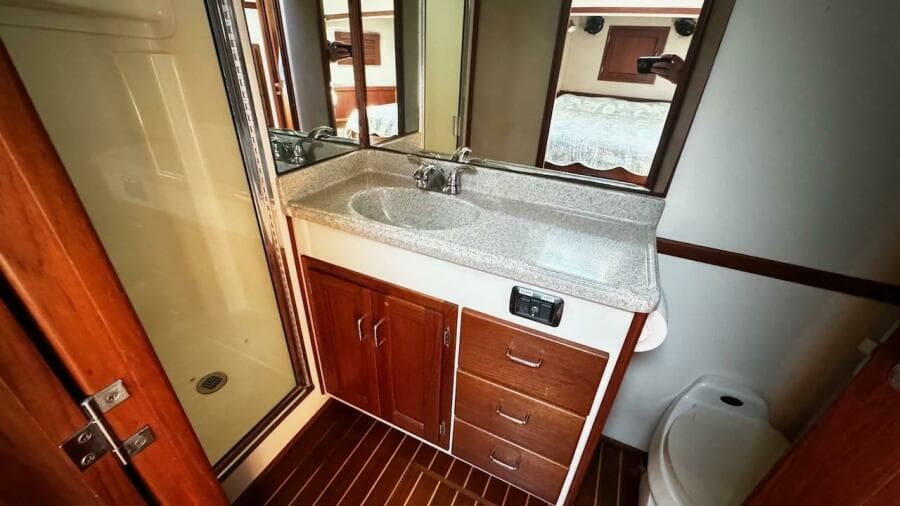

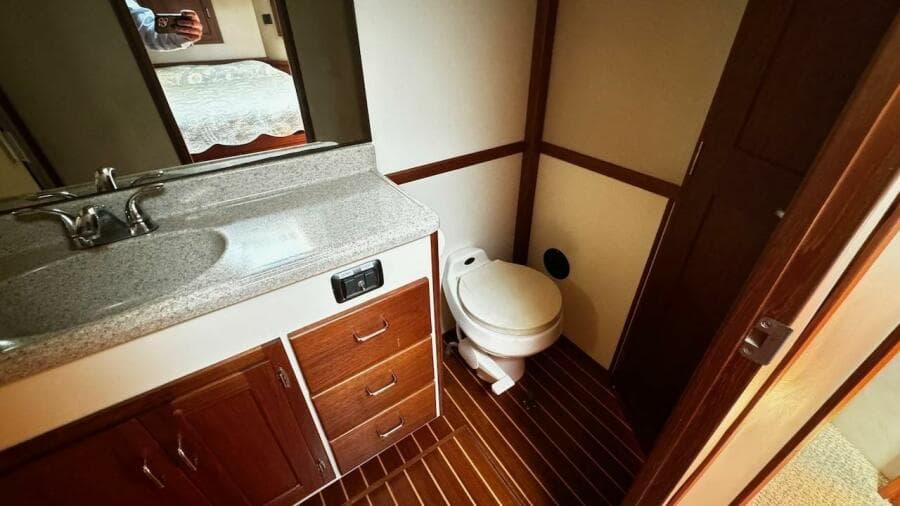

The head is aft of the master cabin, and is accessed from the bottom of the stairs from the pilot house or the private door from the master cabin. The head is a Vacuflush fresh water toilet. The vanity has great storage, mirrors and a Graincoat molded countertop with integral sink. The separate shower stall is molded fiberglass with a glass door.

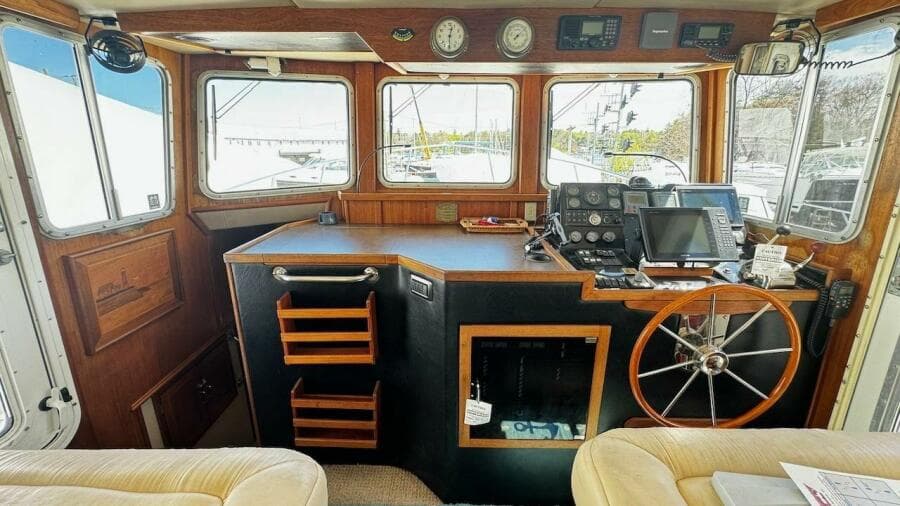

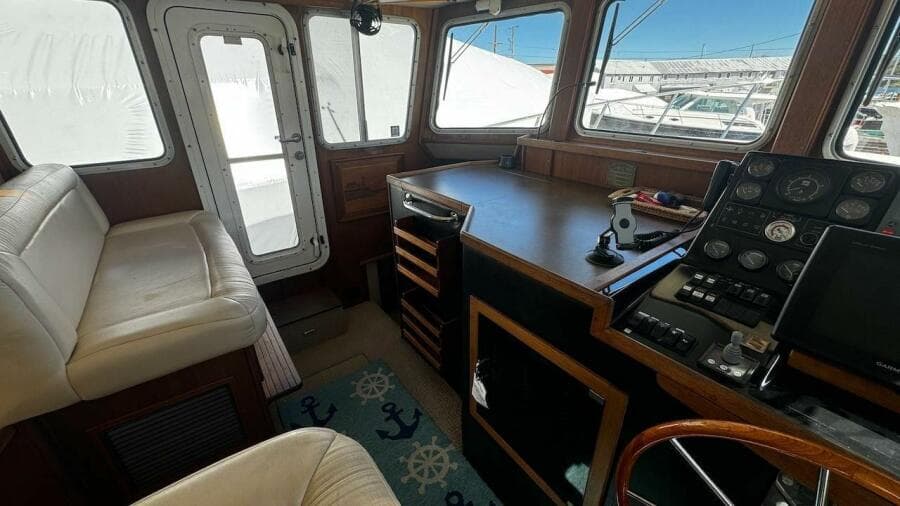

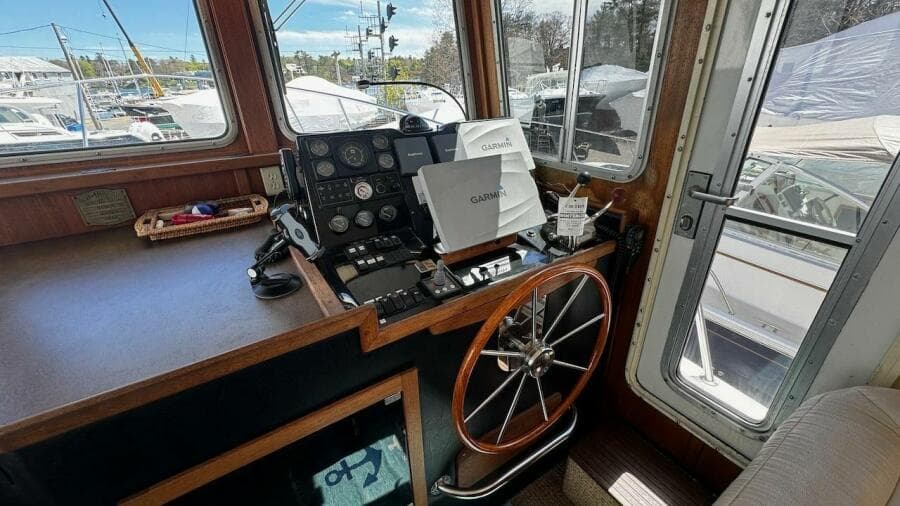

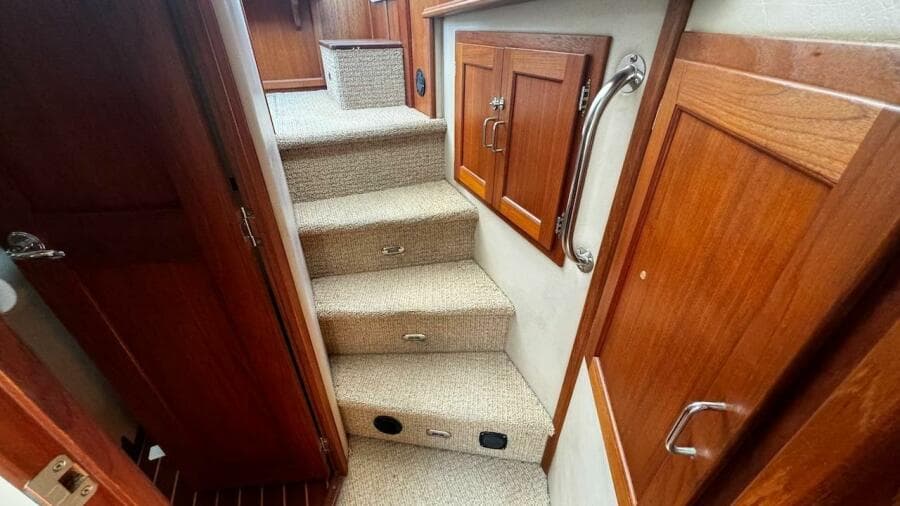

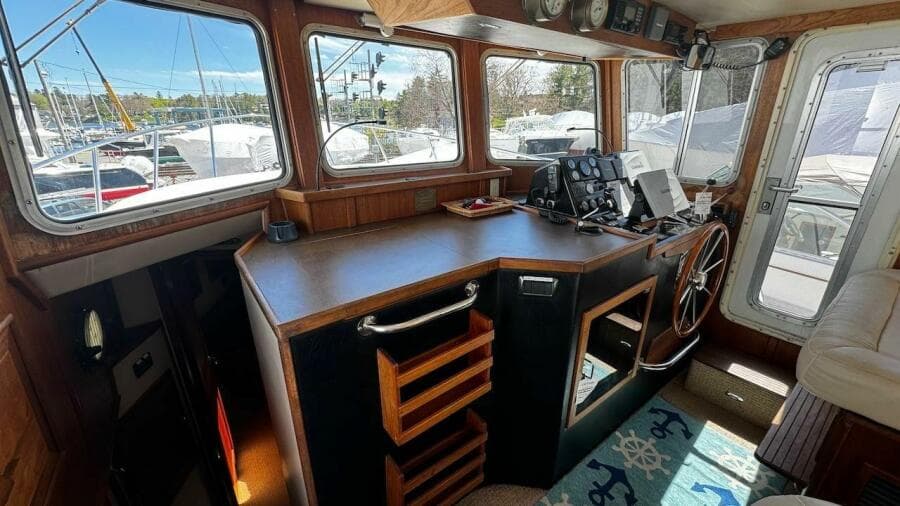

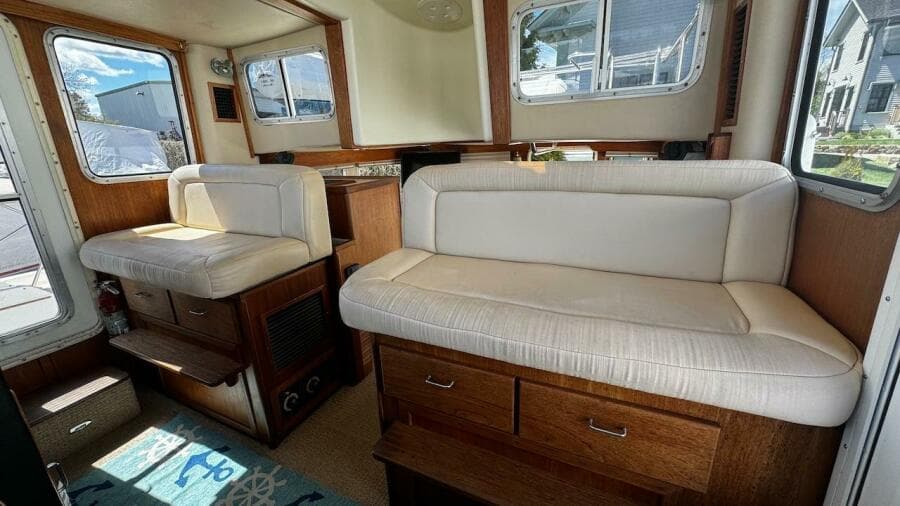

Up three steps is the Pilothouse. The pilothouse has entry doors and seating to port and starboard. The seats are upholstered in cream colored ultra leather. Three large windows provide excellent visibility. The windshield is fitted with intermittent wipers with washing system. Cantalupi lights provide overhead lighting. Red lights over chart table for night navigation.

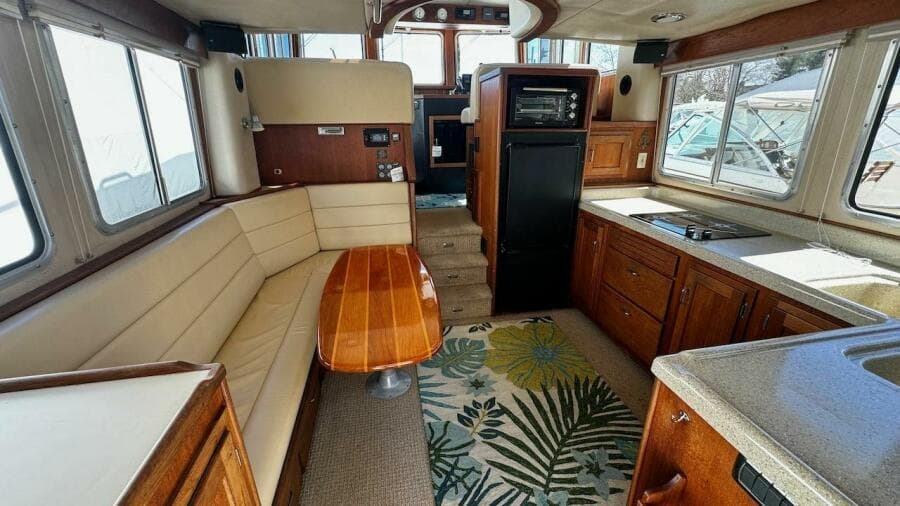

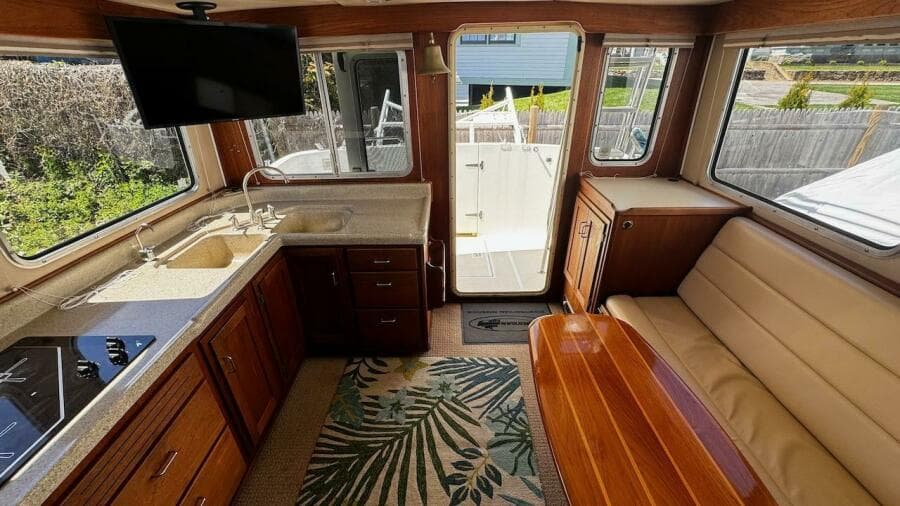

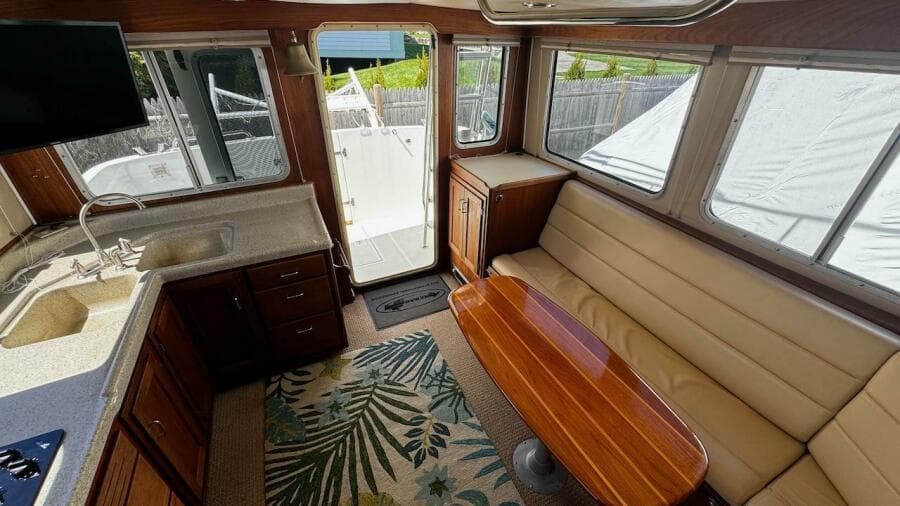

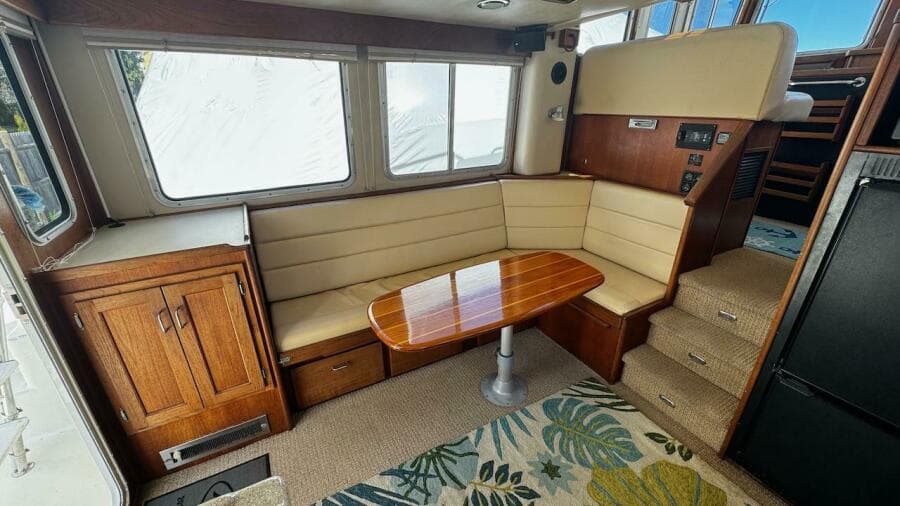

Down three steps and aft is the Salon and Galley. The salon is to port with an L-shaped settee that converts to a double berth. There is excellent storage underneath and in a locker at the foot of the settee. The settee is upholstered in cream colored ultra leather. The teak salon table is hi-lo. Cantalupi lights provide your overhead lighting. All the windows have pleated day-night shades. The ships stereo, a Clarion M 5675 CD/FM/AM with four speakers (2 in salon and 2 in pilothouse) is located next to this settee. The galley is found along the starboard side of the salon area

• Forward Cabin & Head
• Center island berth (76"L x 57"W)
• Hypervent pad under mattress
• Four large drawers under berth
• Cedar lined locker to starboard
• Locker with shelf to port
• Reading lights at head of berth
• 2 12V fans over bed
• Three-way switching for overhead lights
• Three round ports with screens
• 110v outlet Vacuflush fresh water toilet
• Vanity with storage and mirrors

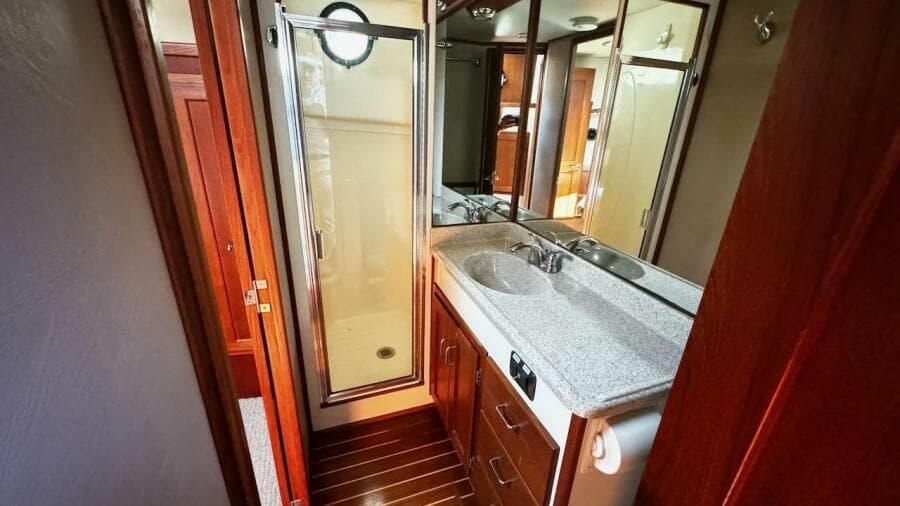

• Large fiberglass stall shower with glass door
• Grohe shower system with flow control valve
• Molded countertops with integral sink with faucet
• Teak and holly sole
• One round port with screen

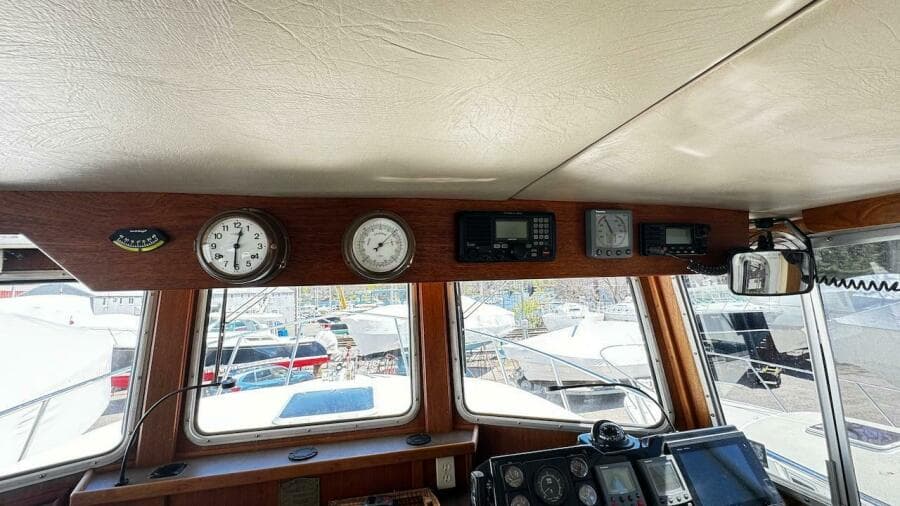

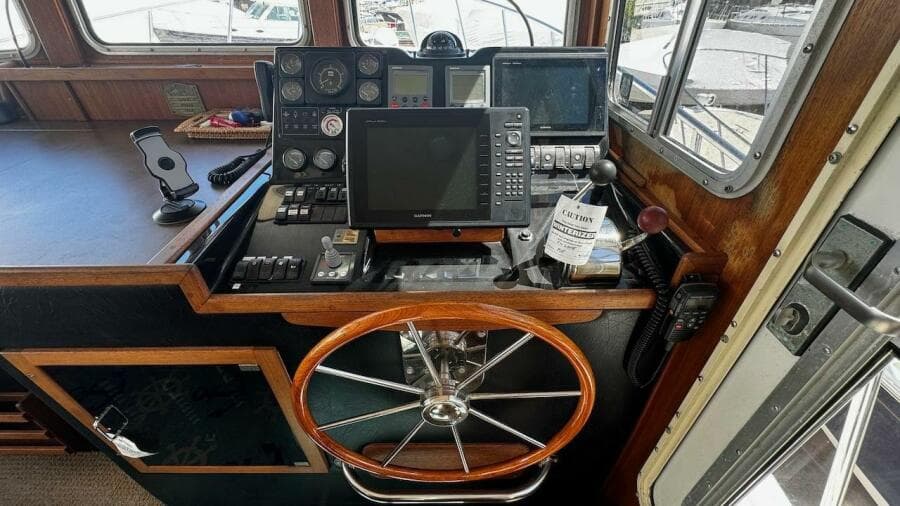

• Pilot House & Interior Finish
• Ultra leather covered seating for 4 with sliding helm seat
• Teak overhead console
• Lighted compass
• Stainless lights overhead
• Two reading lights
• Red lights over chart table for night navigation
• Chart storage compartment
• Intermittent windshield wipers with washing system
• Two stereo speakers
• Six opening windows with screens
• 12v and 110v outlets
• Teak paneling in pilothouse
• Teak valances in salon and pilothouse
• Overhead and walls in marine grade vinyl with foam backing
• Ultra leather upholstery in pilothouse and salon
• Cabinets trimmed in solid teak
• Electric defroster system (pilothouse windows)

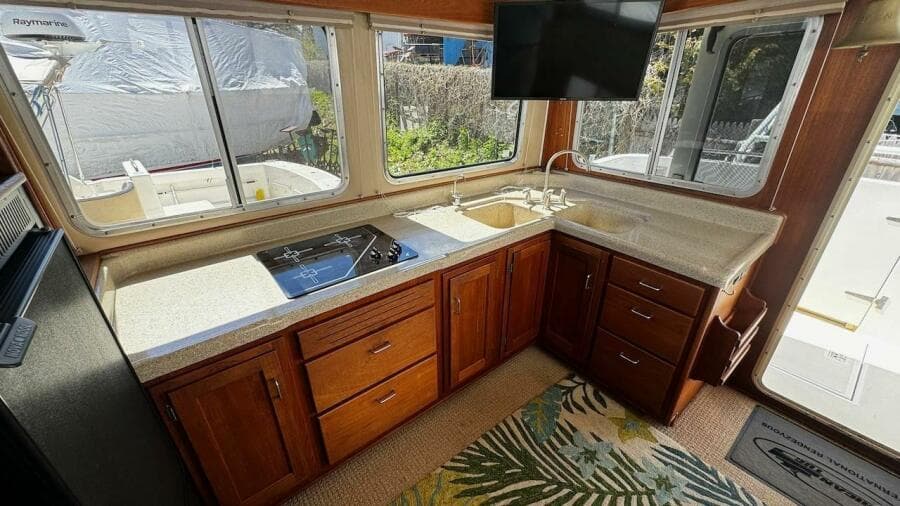

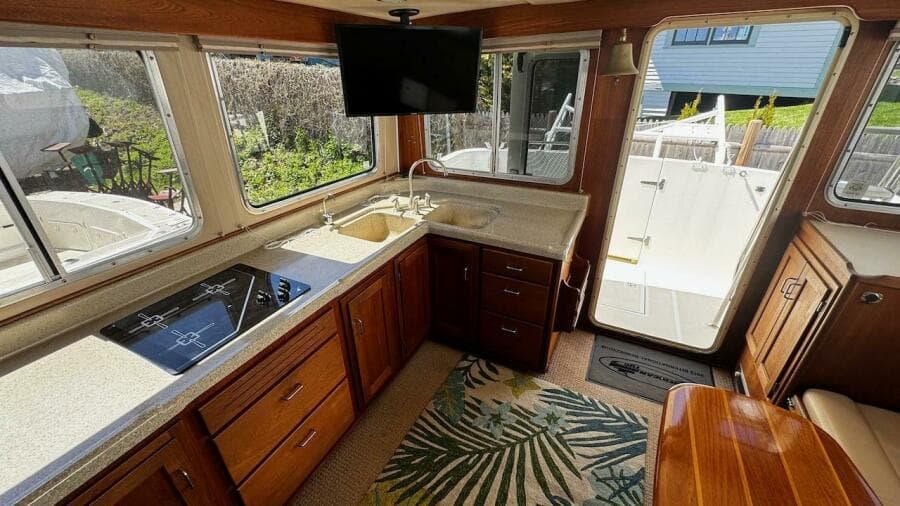

The galley offers plenty of counter top space, with a beautiful 360 degree view.

• Custom Ultra leather covered settee converts to double bed with storage under
• Hi-Lo teak table
• Port aft locker
• Teak magazine rack
• Stainless lights for overhead lighting
• Pleated day-night shades
• Clarion M5675 CD/FM/AM Stereo system w/ 4 speakers (2 in salon & 2 in pilothouse)
• 110v outlet in aft locker
• Force 10 (electric) 3 burner glass cooktop
• "Nova Kool" 12 Volt refrigerator / freezer
• Electric oven
• 32” LCD TV (2017)
• Molded countertop with integral double sinks
• Multiple 110v outlets

New San Mateo Wheat AwlGrip in 2008. Deck and house painted in AwlCraft White in 2010.

• Molded nonskid walking surfaces

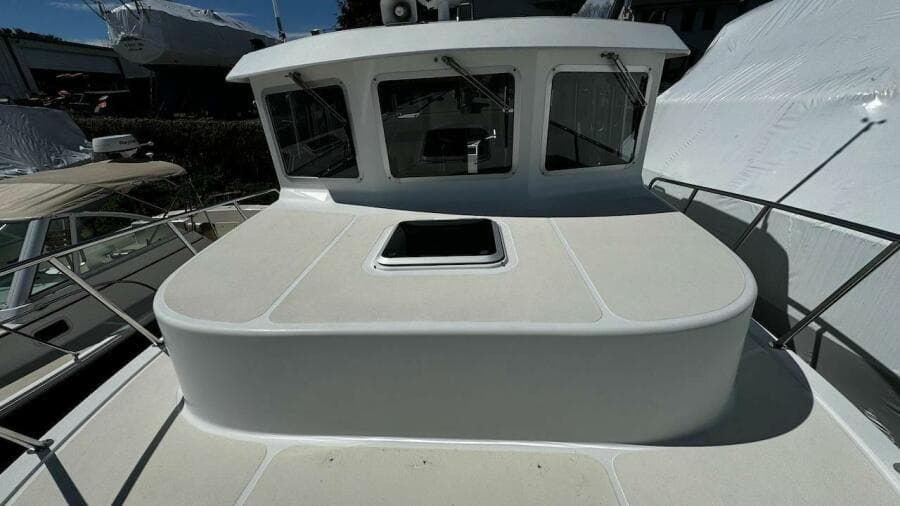

• Bomar hatch with screen in trunk cabin

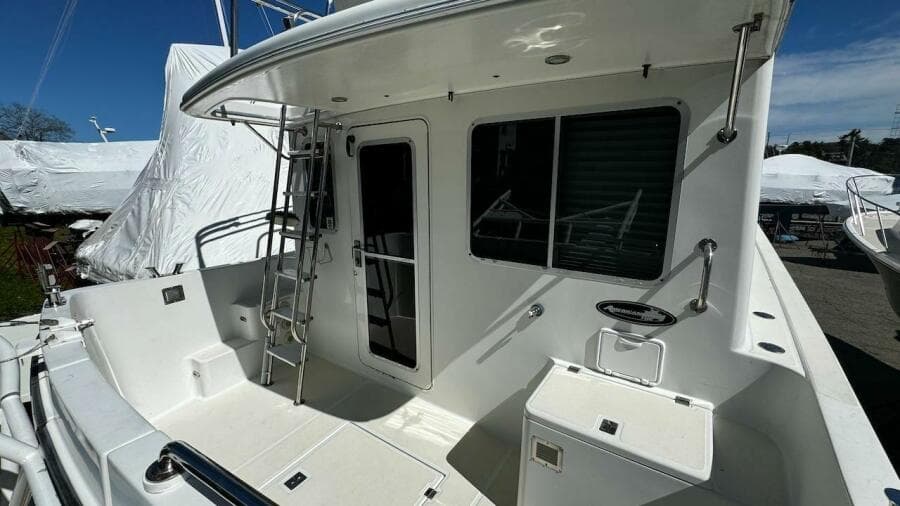

• Access hatch to lazaret in cockpit
• Deck box storage in cockpit
• Magma BBQ w Cover
• 48" Fbg Storage Box
• 45lb Delta Anchor
• Transom door
• Swim platform with 316 stainless steel edge guard
• Seawater washdown system at bow
• 2" fuel fills with pop-up lids
• 1 1/2" waste and water fittings with pop-up lids
• Two 15" 316 stainless steel hand grabs outside of pilothouse doors
• 316 stainless steel 1 1/4" bow rails
• 316 stainless steel 1 1/4" sundeck rails and ladder
• 316 stainless steel bow roller assembly

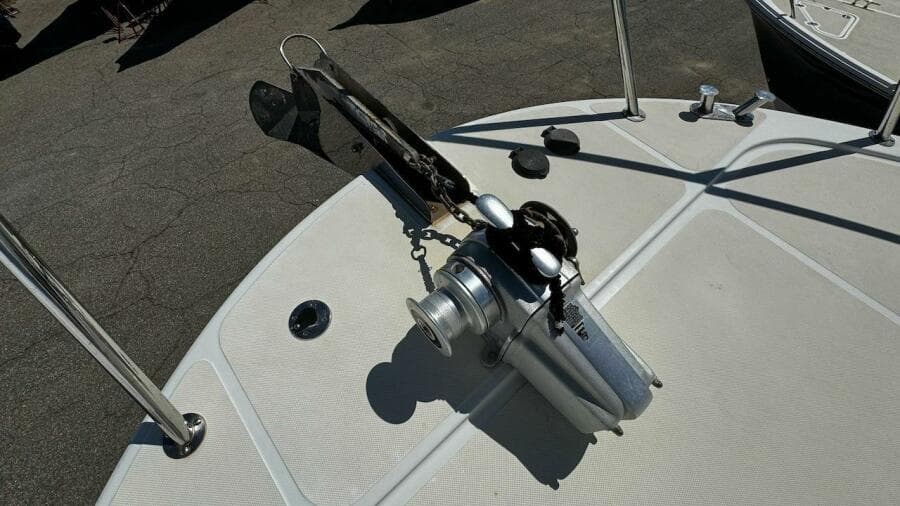

• Lofrans Tigres anchor windlass 1000w / 12v with 175' of 5/16" ht galvanized chain
• Spare Danforth anchor w/nylon rode & chain
• Four fenders w/ fender boards and mooring lines
• Two portable fire extinguishers
• Eight stainless steel mooring cleats
• Automatic fire extinguisher in engine room
• Molded composite skeg protects prop and supports rudder
• All windows have white Textaline window covers.
• Shore water, electric (2), and TV cable/phone connections in cockpit.
• 19 LED courtesy lights throughout
• LED Anchor/All Around light
• Line hangers in cockpit locker
• 1.25" S/S Bow rail

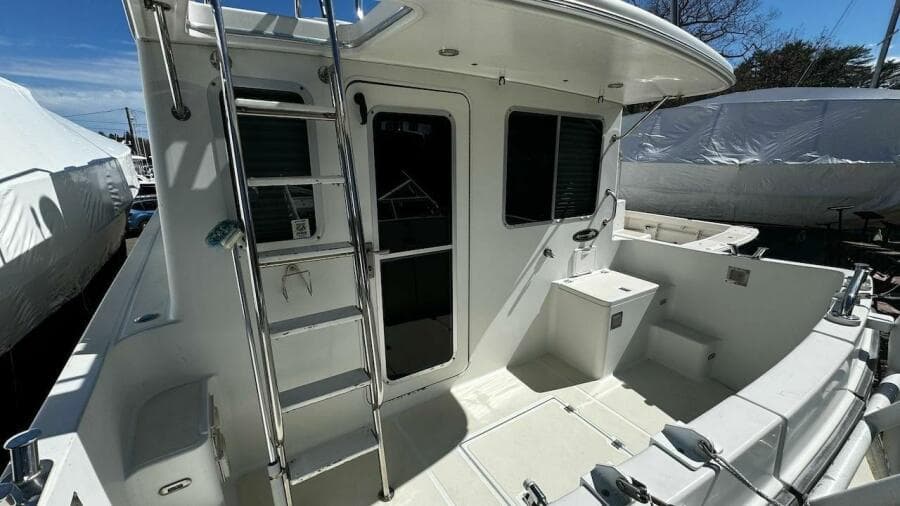

• 1.25" S/S Sundeck rails with ladder
• (4) S/S 15" hand rails
• Swim platform w/ Transom door
• Canvas cover for Aft deck area
• Electric dinghy davit system w/ remote
• 2008 Caribe RIB Dinghy w/cover & nav lights
• 2008 15 HP Mercury 4 Stroke Motor
• Flares
• Life jackets

• Garmin 1040sx chartplotter
• Garmin 18HD X4kw Radar
• Garmin GPS Map 7610xsv
• Raymarine S100 AutoPilot Remote
• Raymarine Rudder Position Indicator
• Raymarine SL70 Pathfinder Radar
• Raymarine ST60 Tri-Data
• Raymarine ST5000+ Autopilot
• ICOM 604 VHF with Cmd Mic
• Std Horizon Cmd Mic
• Standard Horizon VHF w/ AIS
• Airmar Sonar Transducer
• Shakespeare Automatic Radio Switch
• Analog and Digital TV Antenna

6 KW Northern Lights generator in a sound shield

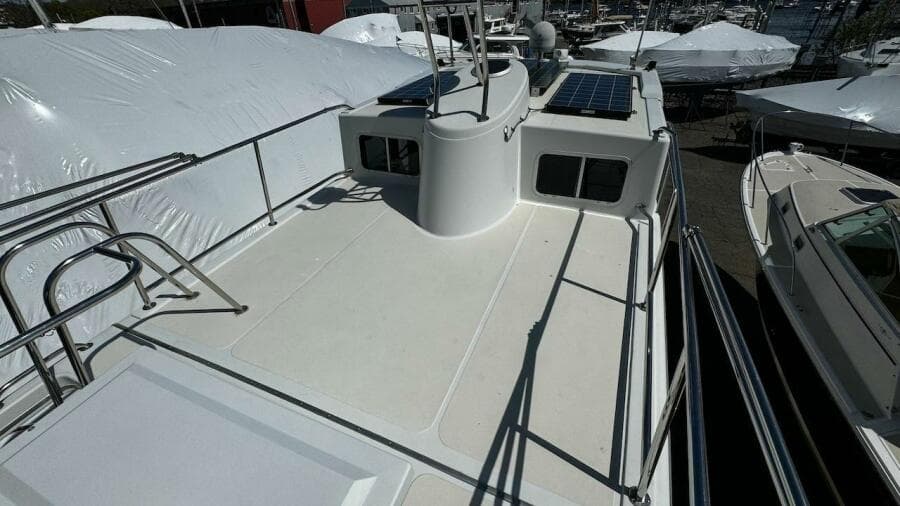

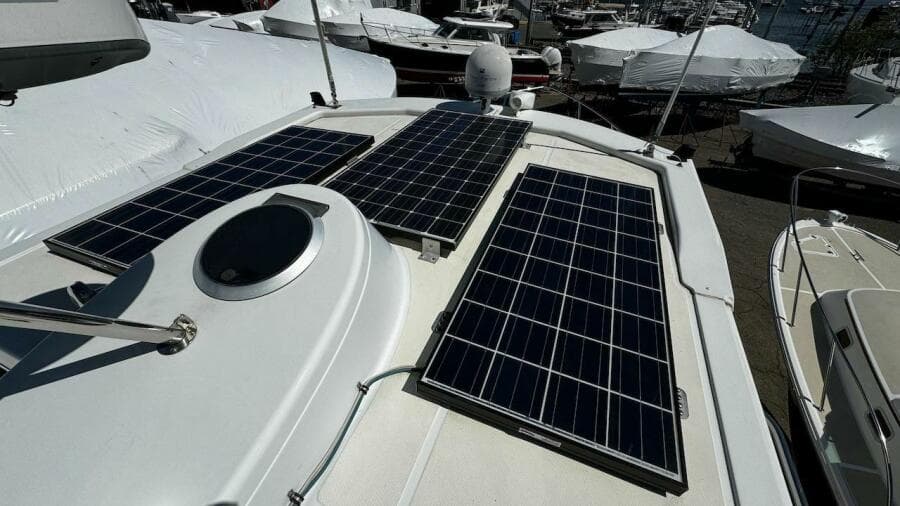

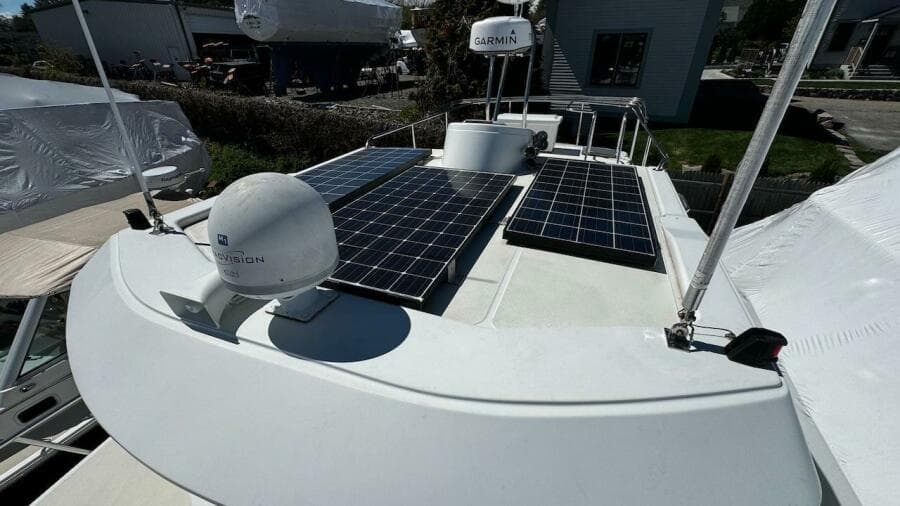

• 2 Kyocera 145w solar panels
• Panasonic 240w solar panel
• Blue Sea MPPT 50A Controller
• VictronConnect Bluetooth Dongle
• Blue Sea MPPT 30A Controller
• Blue Sea solar panel monitor
• Breaker Panel w/ Backlighting
• 40 amp Statpower Battery Charger
• New Inverter/Charger (2022)
• Xantrex Battery Monitor
• Two 4-D AGM House Batteries (2023)
• One 4-D AGM Battery Engine Start (2023)
• One Group 24 Battery Gen Set (2024)
• 30 amp Shore Power w/ 2 Cords
• Electric Horn
• Telephone/Cable TV Hook up

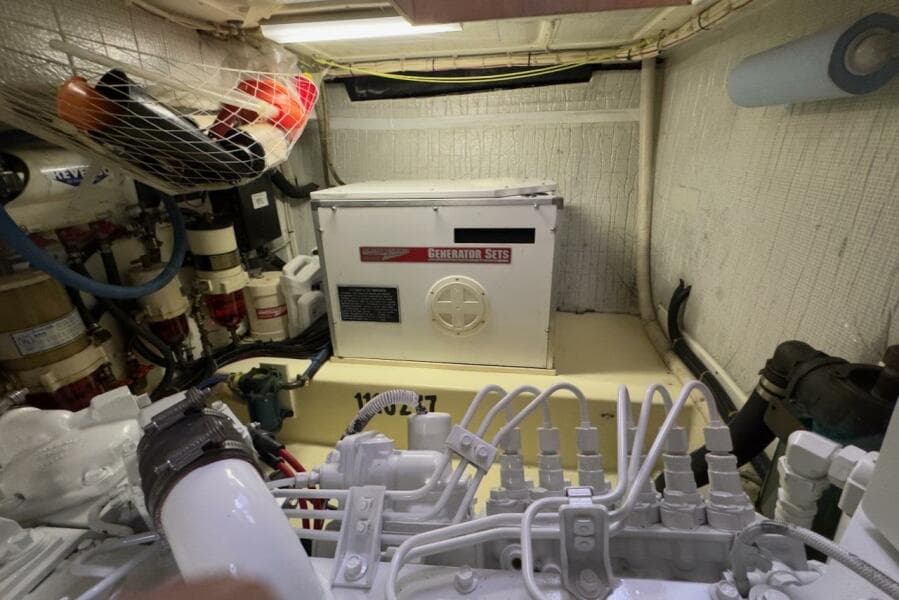

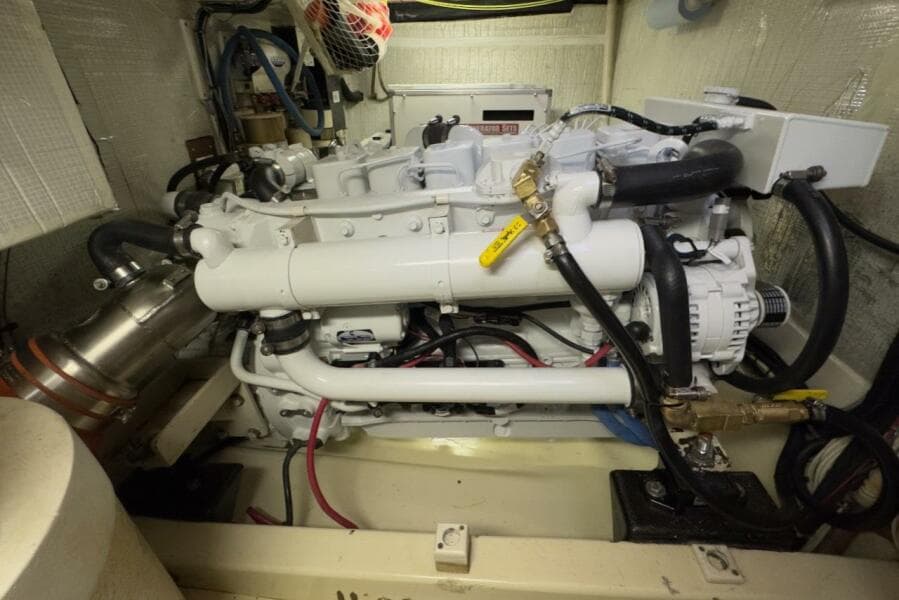

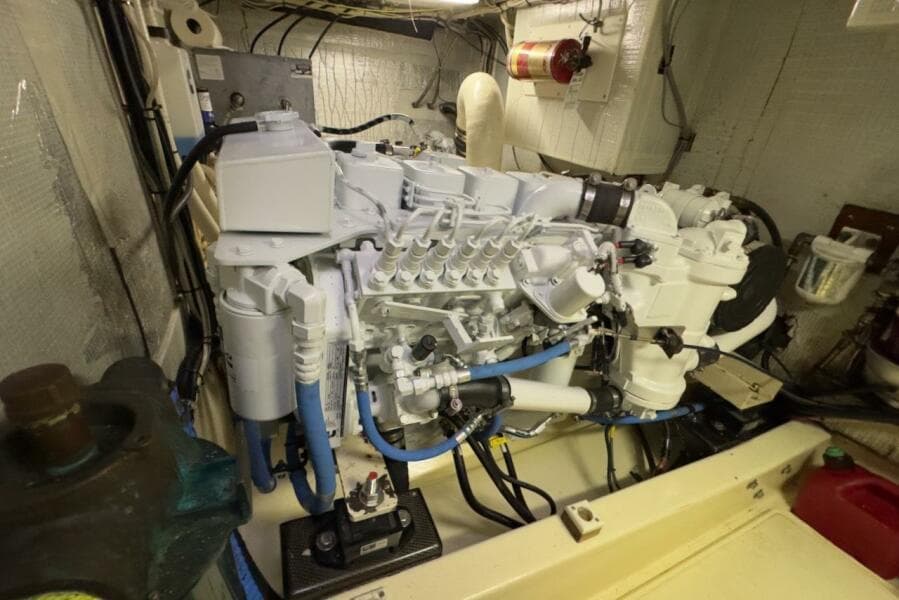

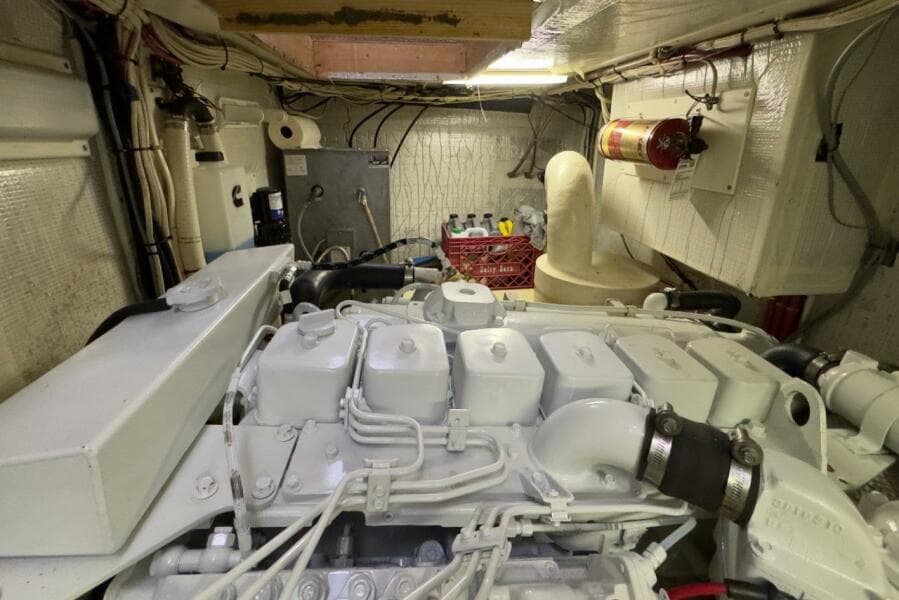

Single Remaunfactured Cummins 6BTA 370 hp diesel engine (0 hours) (2025)

• New engine panel, wiring harness, display (2025)
• New exhaust elbow (2022)
• 6.0 kw Northern Lights genset with sound shield (1400 hours)
• New genset coolant pump (2022)
• 6 hp twin prop bow thruster with joystick control
• Racor vacuum gauge at helm
• Transmission pressure gauge at helm
• New cutlass bearing (2020)
• New prop (2020)
• New shaft seal (2021)
• Composite rudder and skeg
• Reverso oil changing system (main, gear, genset)
• Wet / underwater exhaust system on main and genset
• Seawater strainers for main and genset
• Walker airsep system on main engine
• Shurflo automatic water pressure system
• Sound deadening in engine room and tank room
• Three 1500 gph bilge pumps with automatic float switches
• Rule 800 shower sump pump
• Waste discharge system
• 2 Air Conditioning zones: 16,000 & 10,000 btu, reverse cycle Ocean Marine heat / air conditioning system
• 150 gallons water with sight glass
• 21 gallon stainless steel encased water heater with heat exchanger or 110v heat
• Two 200 gallon fuel tanks, each with sight glass
• 45 gallon holding tank with gauge
• Stylized teak and stainless helm wheel
• Bronze tiller arm
• Hydraulic pump and cylinder
• Integral rudder port with bearing and dripless seal
• Waste discharge system with macerator

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
