Description

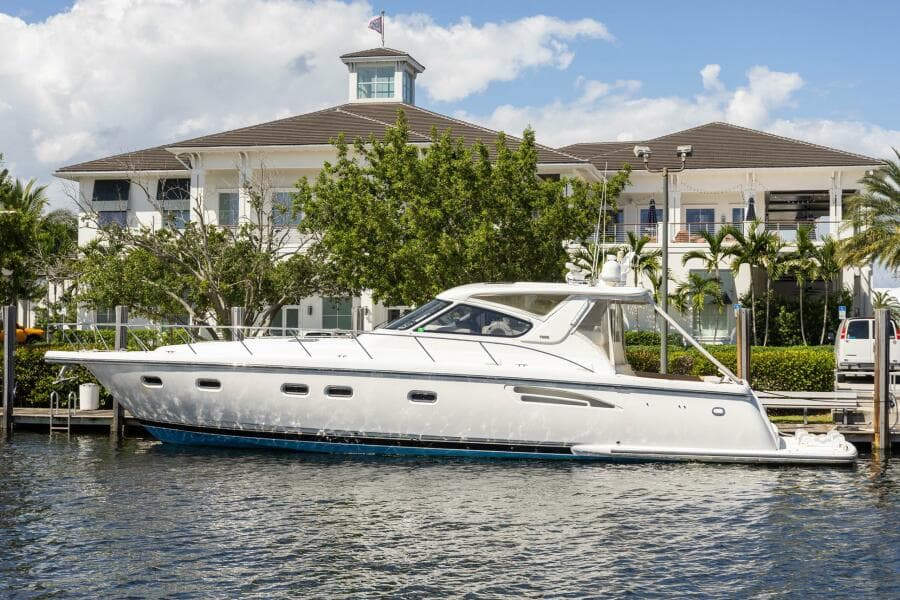

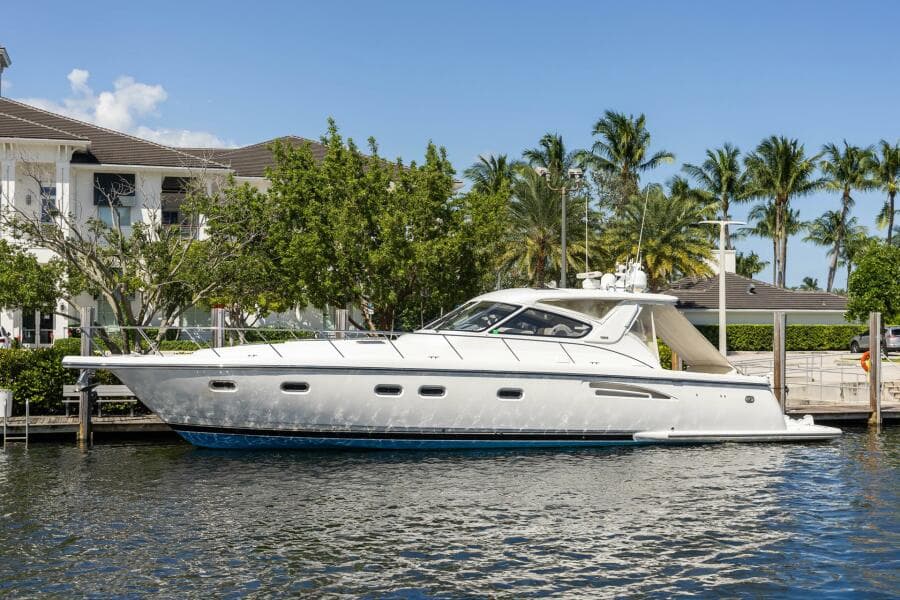

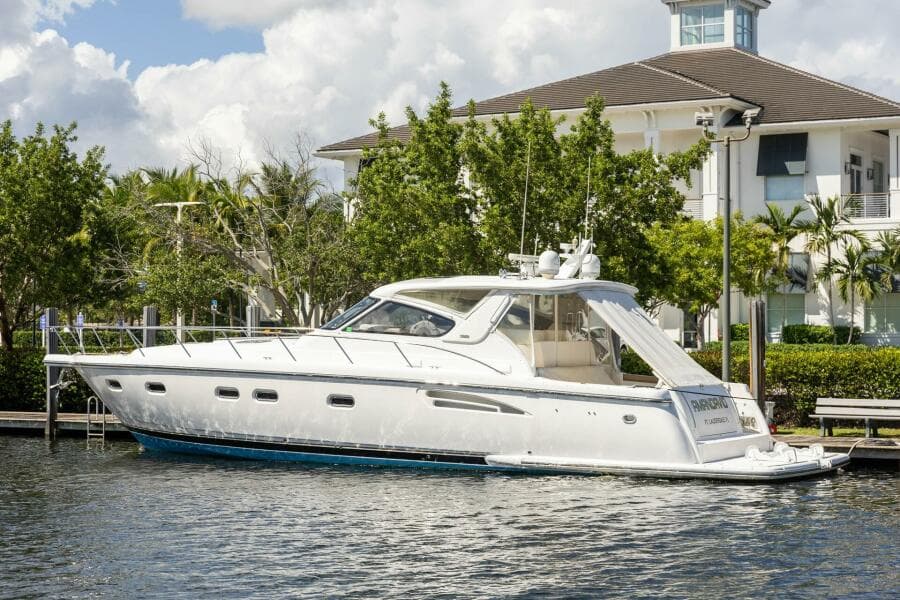

Step aboard this beautifully maintained 2000 Tiara 5200 Express, and you’ll immediately feel the craftsmanship and quality that define the Tiara name. Sleek, powerful, and unmistakably elegant, this yacht was built for those who appreciate both performance and luxury. From her graceful lines to her spacious, light-filled interior, she’s as comfortable cruising offshore as she is entertaining guests at the dock.

Inside, the warm cherry wood finishes and rich upholstery create an inviting, upscale atmosphere that feels more like a waterfront retreat than a vessel. The open salon offers plenty of room to relax, dine, or unwind after a day on the water, while the fully appointed galley makes extended trips effortless. Below deck, two beautifully designed staterooms provide privacy and comfort, each with its own ensuite head, perfect for family or guests.

Up on deck, the large cockpit is made for entertaining. With generous seating, a wet bar, and easy access to the swim platform, it’s the ideal space for sunset cocktails or morning coffee with a view. The hardtop and climate-controlled helm provide comfort in any weather, and her smooth, quiet ride makes every voyage a pleasure.

Lovingly cared for and kept in excellent condition, this Tiara 5200 Express represents a rare opportunity to own one of the most respected express cruisers ever built. Whether you’re setting out for a weekend getaway or an extended adventure, she’s ready to deliver unforgettable moments on the water.

Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Atlantic Yacht & Ship, Inc.. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

Overview

This 2000 Tiara 5200 Express is a rare find, well maintained, fully operational, and ready to cruise. Offering luxury, performance, and reliability, it is ideal for coastal getaways or extended trips. A standout value for its class and year.

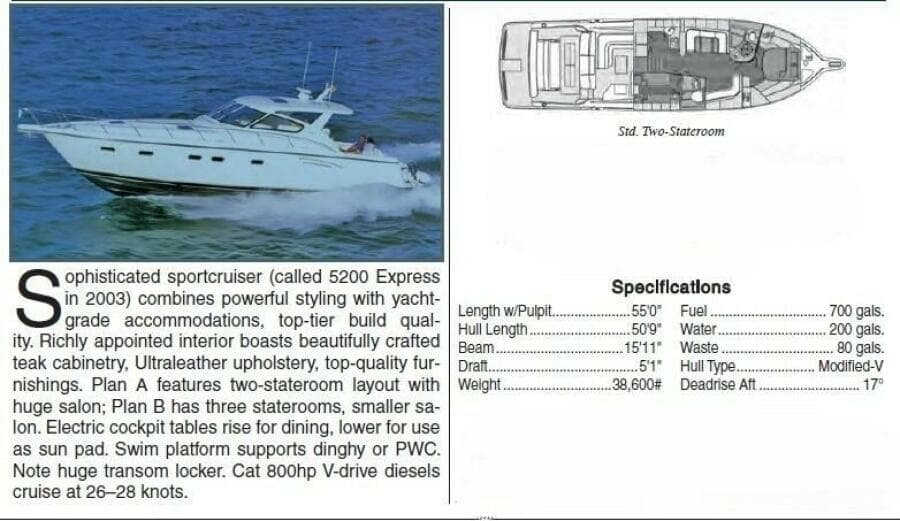

Key Specifications

LOA52'

Beam15' 11"

Draft Max5' 1"

TypePower

Hull MaterialFiberglass

FuelDiesel

Weight & Measurements

Dry Weight38,600 lbs

Accommodation

Cabins2

Heads2

Tankage

Fuel700 gal

Water200 gal

Holding80 gal

Engines

Caterpillar 3406EInboard

MakeCaterpillar

Model3406E

TypeInboard

Fuel TypeDiesel

Power800 HP

Hours2,460

Drive TypeDirect

Caterpillar 3406EInboard

MakeCaterpillar

Model3406E

TypeInboard

Fuel TypeDiesel

Power800 HP

Hours2,460

Drive TypeDirect

Full Details

Updates and Upgrades

2025

New helm and salon TV’s connected to boat’s network with Bluetooth audio output to helm and salon stereo systems
All batteries replaced
New Canvas/Polycarbonate
New Fusion audio system with dual amps, 6 speakers, 3 subwoofers
New Muir anchor windlass
EXTENSIVE engine and generator service
All four AC systems descaled, cleaned and services
Rebuilt both heads
Bottom job and new props
Fire system serviced
New aft deck ice maker and beverage cooler
All new eisenglass full enclosure at helm

2022

New Vanner 24v to 12v Battery Equalizer
Sur Flo Dry Bilge System for Mid Ship Bilge
New Auto Switches for Stern, Keel, and Mid Ship Bilge Pumps

2021

New Sea Strainer for Starboard AC unit
Tune Props, Dialed Shafts
New Balmar Alternator on Starboard Engine
New Generator Fuel Pump
Replaced Both A/C Water Pumps
Replaced Water Heater
Serviced A/C Units: Master, Salon, and Helm
Installed Underwater LED Lights

2020

Replaced Port and Starboard Aftercoolers
Remove Original 200 Gallon Water Tank and Replace with New Poly tanks

Accommodations and Galley

Accommodations

Teak and Holly Sole Throughout

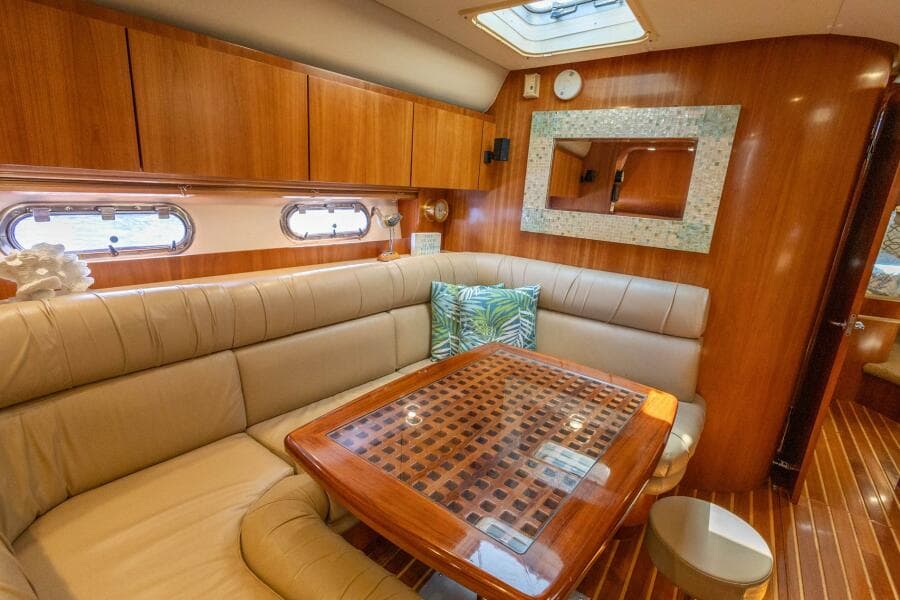

Salon

Air Conditioning with Digital Control
Overhead Lighting
Companionway Stairs with Splendide 2000Washer/Dryer Combo

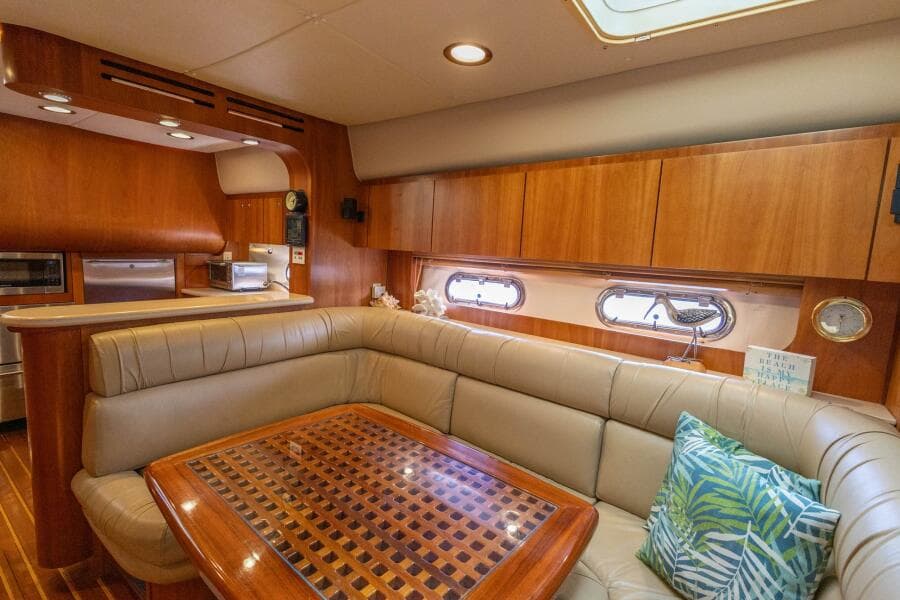

Large Leather U-Shaped Dinette with Storage Below
Teak Dinette Table with Glass insert top, Hi-Low Pedestal
Storage Lockers Above Dinette
Opening Portlights with Wood Blinds
(2) Opening Overhead Hatches

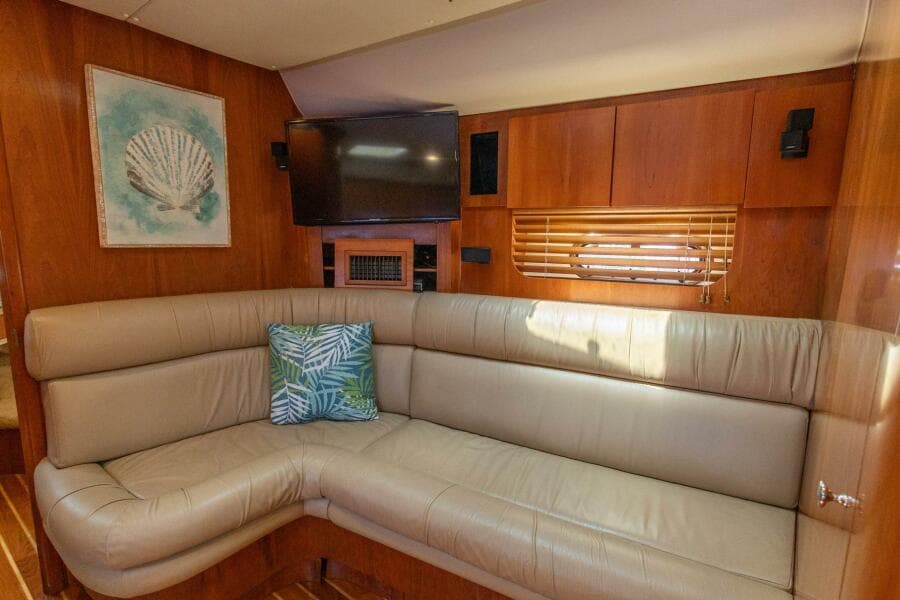

L-Shaped Leather Seating to Starboard with Storage Below
Starboard Electrical Locker with Wardrobe Storage below
Hisense Smart TV
Bose Surround Sound System
Storage Ottoman
(2) In Sole Storage Lockers with Access to Systems

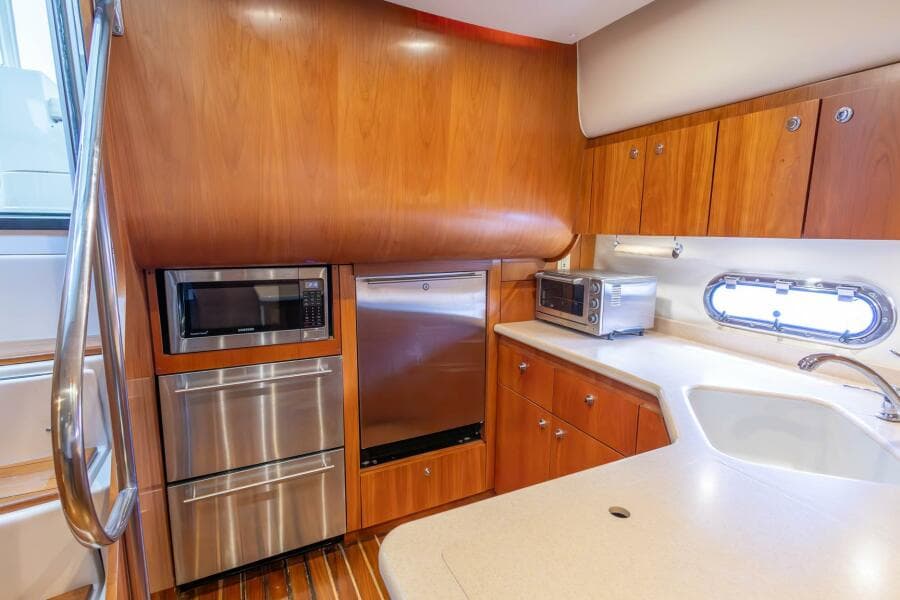

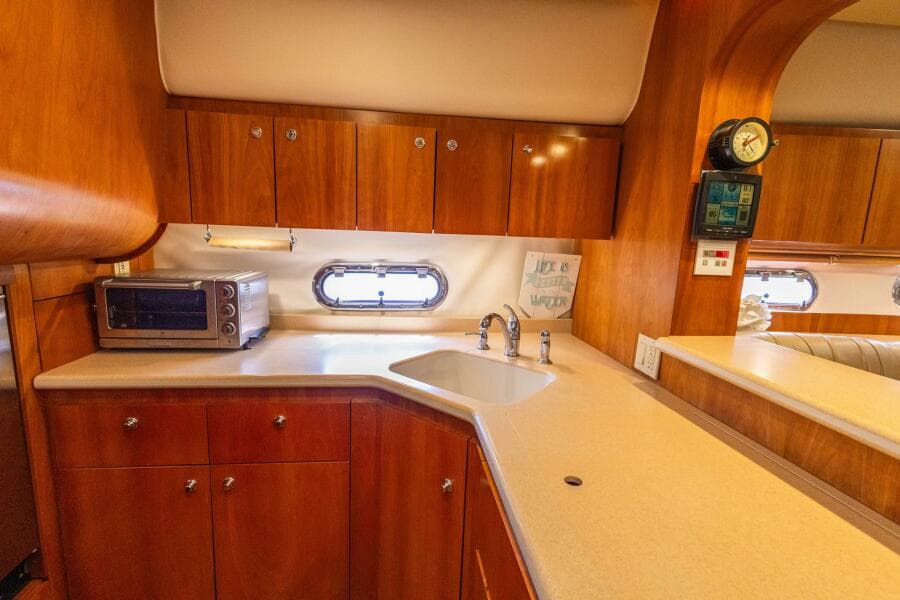

Galley, Aft to Port

Corian Countertop
Sink with Designer Faucet
Opening Portlight
Above and Below Counter Storage
Force10 Electric (3) Burner Range, Recessed Mounted in Counter with Cover
Samsung Microwave Oven
Over/Under Drawer Refrigerator/Freezer
Large Lockable Refrigerator

Forward Master Stateroom

Island Queen Berth with Storage Below
Flat Screen TV with Cover
Air Conditioning with Digital Control
Central Vac
110v Outlet with USB Ports
Vanity to Starboard with Mirror and Swing Out Pedestal
(3) Wardrobe Lockers
(2) Opening Port Lights
(2) Reading Lights
Port and Starboard Overhead Lockers

Master Ensuite Head

Roomy Head Area with Clever Use of Space
Vacu-Flush Head
Towel Bar
Hand Towel Ring
Opening Portlight
Ventilation Fan
Overhead Lighting

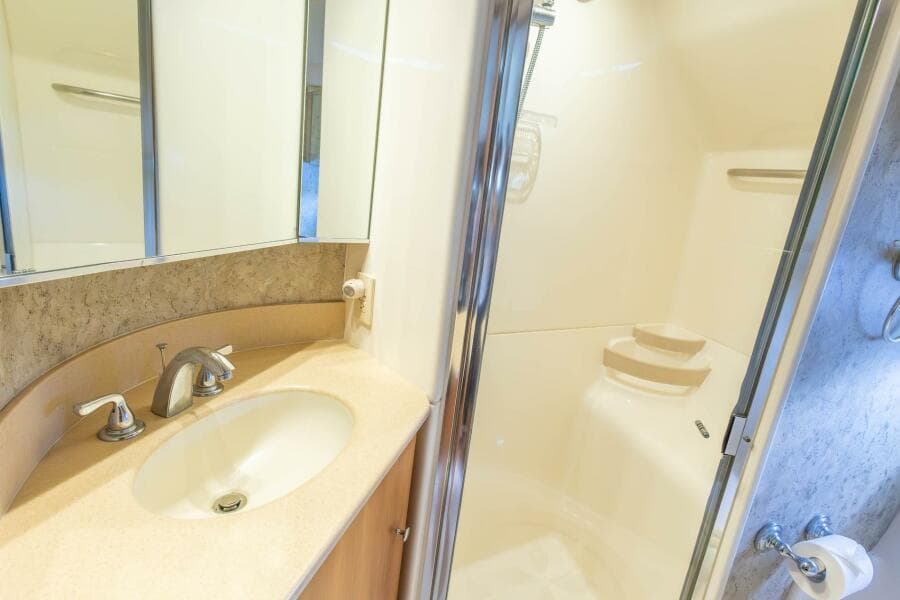

Enclosed Shower with Molded in Seating
Vanity with Mirrored Medicine Locker
Corian Countertop with Sink, Designer Faucet, and Storage Below
110v Outlet

Aft Guest Stateroom, to Starboard

Air Conditioning with Digital Control
Single Berths, Port and Starboard with Storage Below
(2) Reading Lights
Wardrobe Locker
Center Night Stand with Drawer Storage
Flat Screen TV with DVD Player
Opening Portlight
Lighting

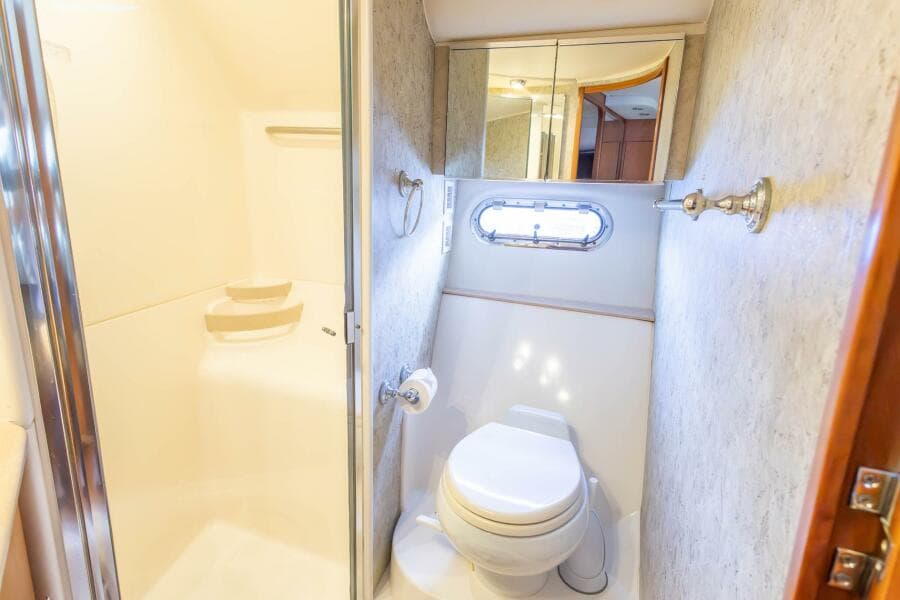

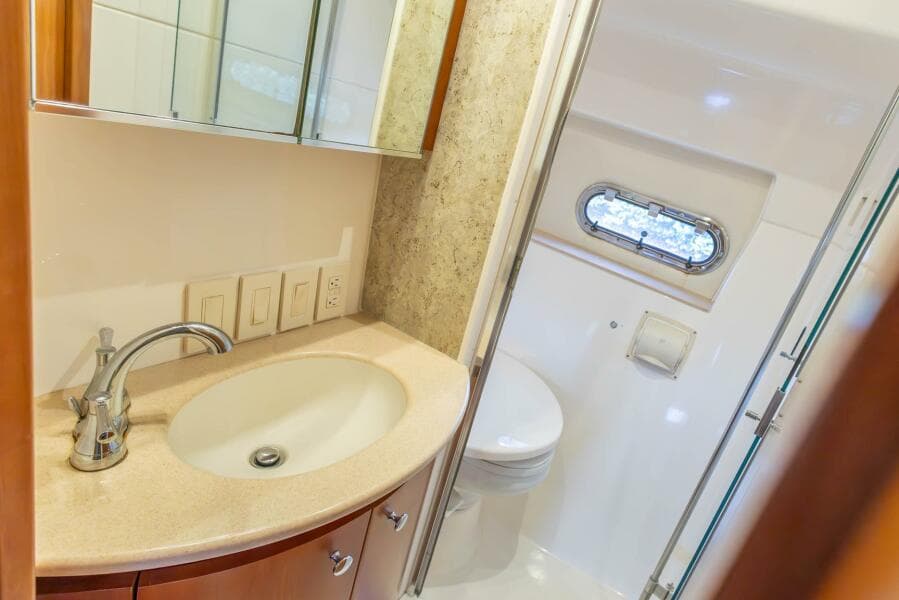

Guest Head

Clever Use of Space
Dual Entry from Salon and Guest Stateroom
Vacu-Flush Head
Enclosed Shower
Towel Ring
Opening Portlight
Ventilation Fan
Overhead Lighting
Vanity with Mirrored Medicine Locker
Corian Countertop with Sink, Designer Faucet, and Storage Below
110v Outlet

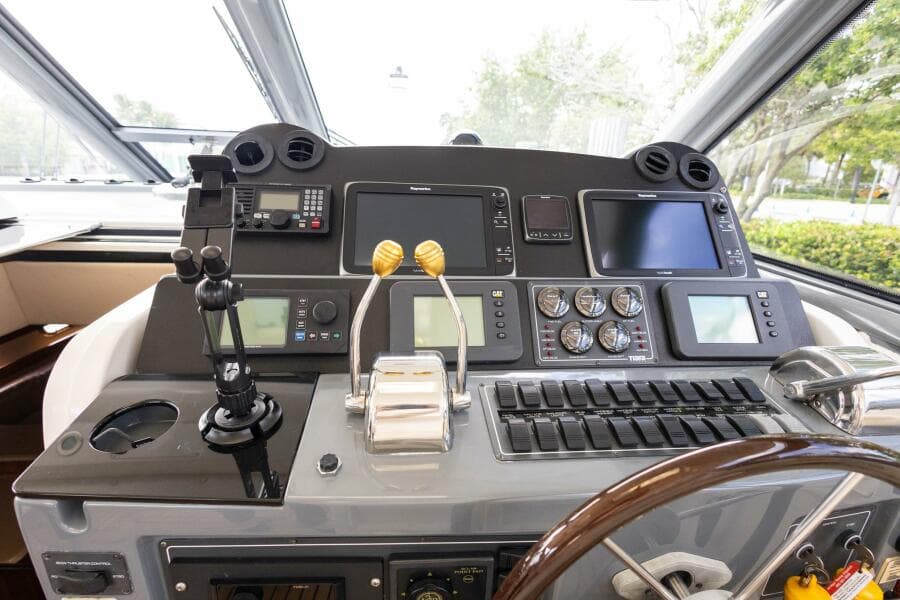

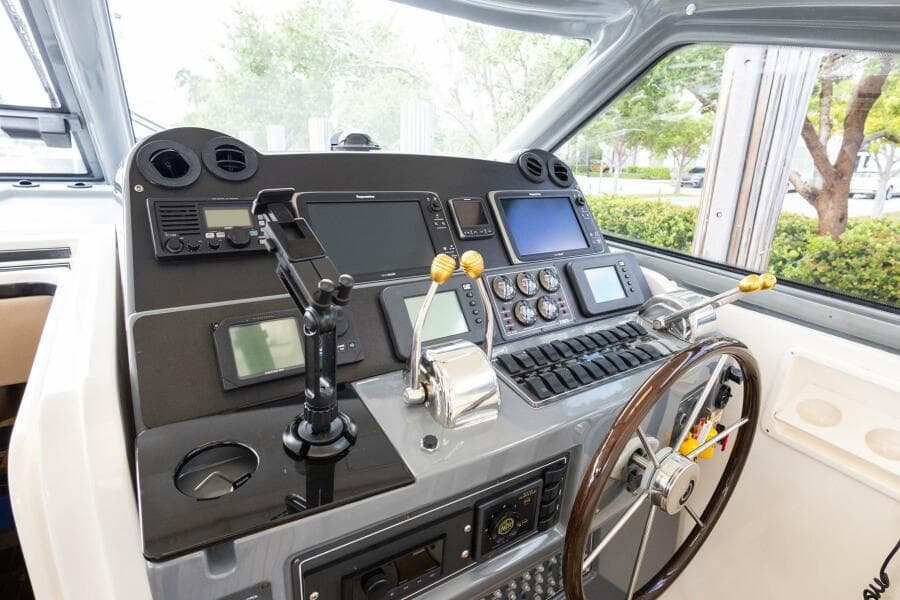

Electronics and Helm Features

Dual Raymarine e125 Hybrid Displays GPS/Chart/Radar/Fish Finder/Stern Camera Displays
Raymarine 4kW HD Color Open Arrary Radar
Raymarine i70 Display: AIS Map, Speed, Depth,
Raymarine DSM300 Depth Sounder
Raymarine AIS Class B Transceiver
Simrad Robertson AP20 Auto Pilot with Dial Control
Icom IC-M604 Marine VHF Radio
Icom Command Mic
(2) CAT Electronic Engine Monitors with Full Instrumentation
Hydraulic Steering
Trim Tab Controls
Bow Thruster

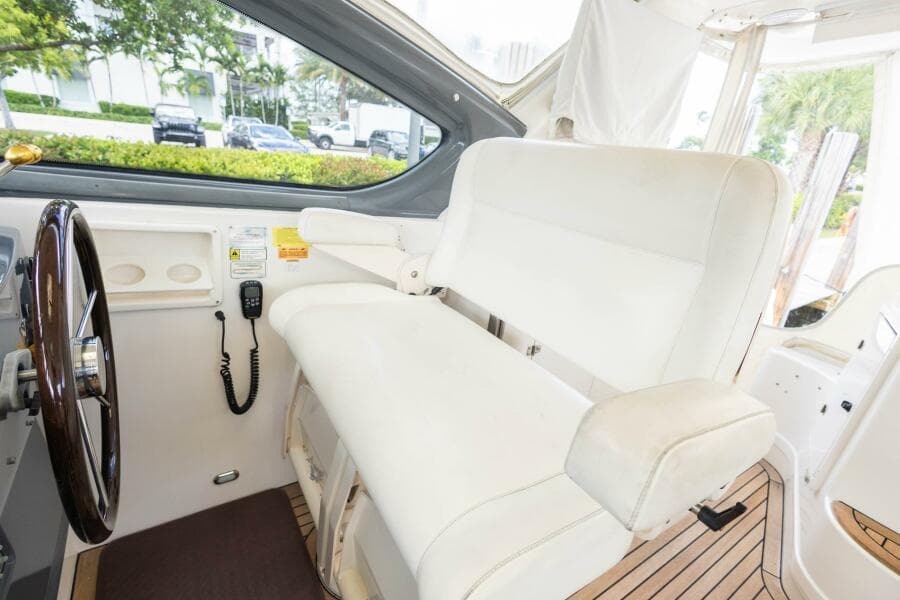

Stidd Captain’s Bench
Mahogany Destroyer Helm Wheel
Teleflex Shift Controls with Gold Knobs
Teleflex Throttle Controls with Gold Knobs
Fusion MS-AV700i Stereo System AM/FM/Bluetooth
Kisae Inverter Control
(2) Electric Overhead Hatches
(2) Cup Holders Port and Starboard, (4) Total
Forward Electric Power Vent

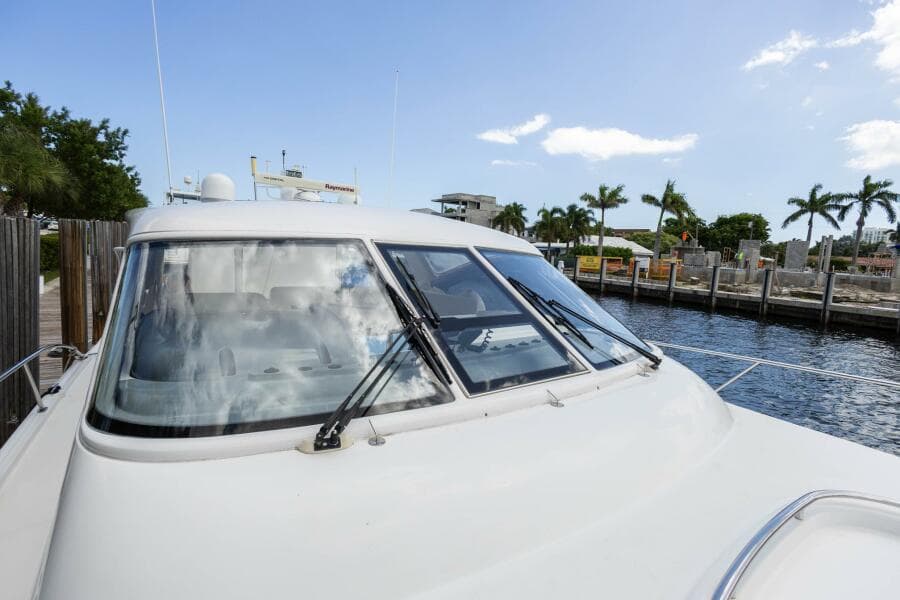

Windshield with Wipers
ACR Spot Light Control
12v Outlet

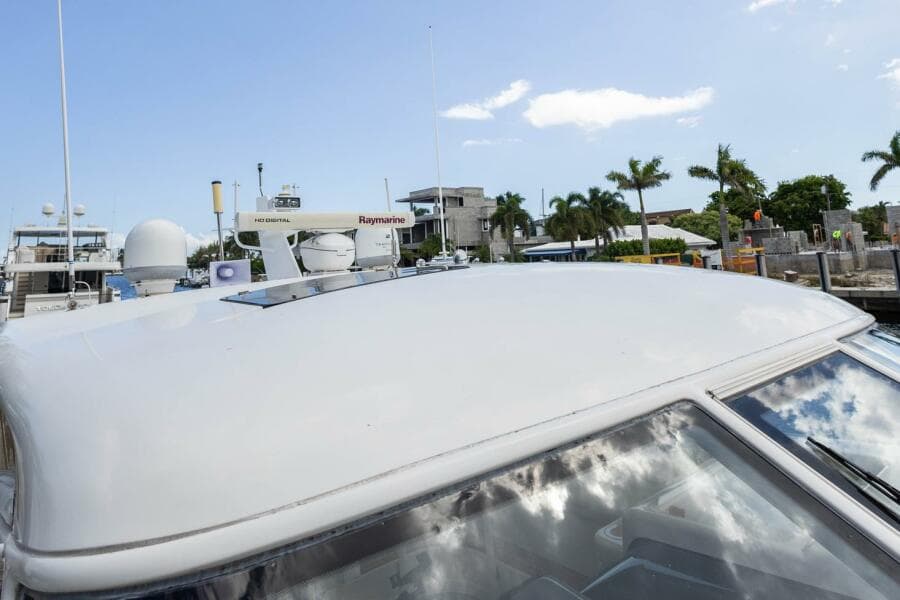

Tracvision M3 KVH Satellite Dome
Dummy Tracvision Dome houses AIS, Sat Radio, and GPD Antenna
(2) 8ft VHF Antennas

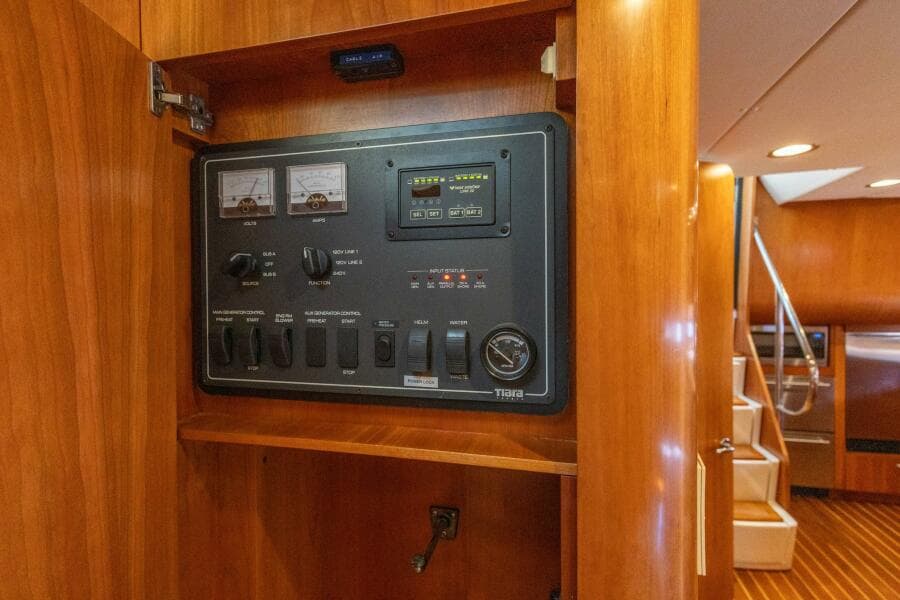

Tiara Ships Systems Monitor Panel:

Fwd and Aft Fuel Tank Gauges
Rudder Angle
Engine Battery Voltage
House Battery Voltage
Bilge Pump Monitors: (5) Total
Gen Running Light

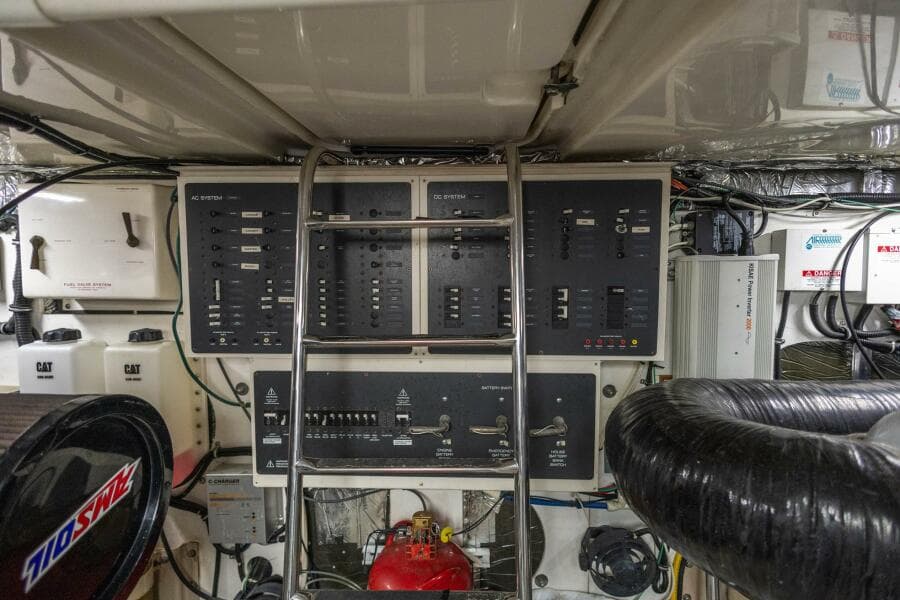

Electrical

21 kW Onan Generator, 2720 hours
50amp and 30amp Shore Power Service, Bow and Stern
Breakers for Shore Power, Bow and Stern
Glendinning Cable master for stern 50amp Power Cord
(12) Group 31 AGM Batteries
Wireless Control for CableMaster
Charles 24v Next Step Series Battery Charger
24v Main Engine Alternators
Kisae Power Inverter 2000w
Water Heater
Charles Power Isolator

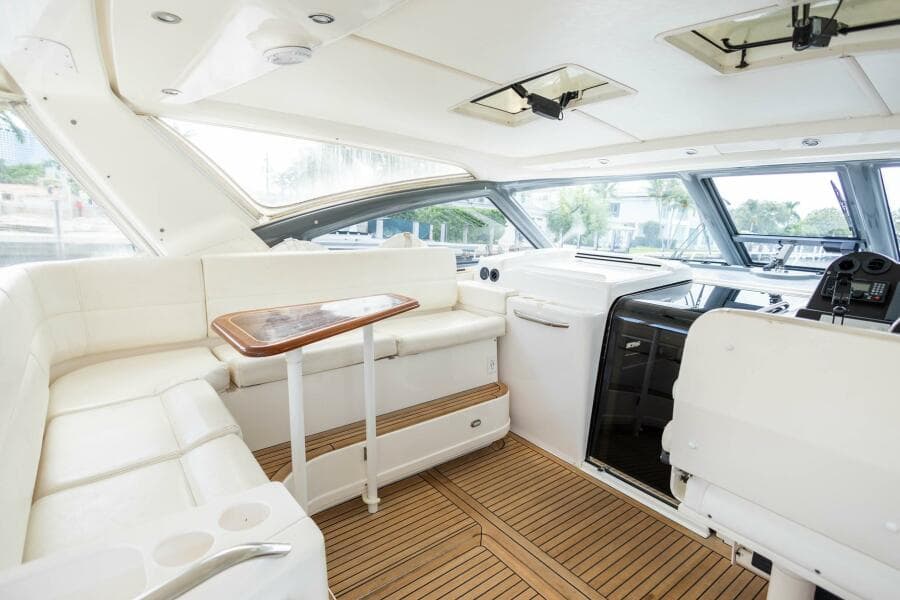

Helm Area

Air-Conditioned Helm Area with Digital Control
Factory Hard Top with (3) Sided EZ2CY Enclosure
Teak Sole in Cockpit

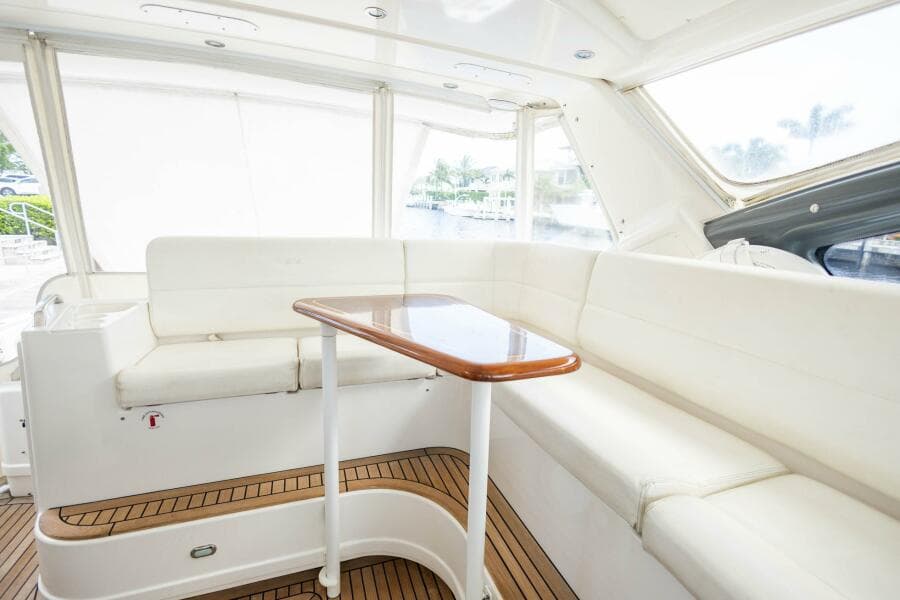

Large Raised L-Shaped Seating to Port with Cup Holders and Storage Below
Removable Table for Seating Area
Courtesy Lights
Overhead Lighting
Stainless Steel Grab Rails
110v Outlet with USB Ports
Hisense Smart TV with Cover

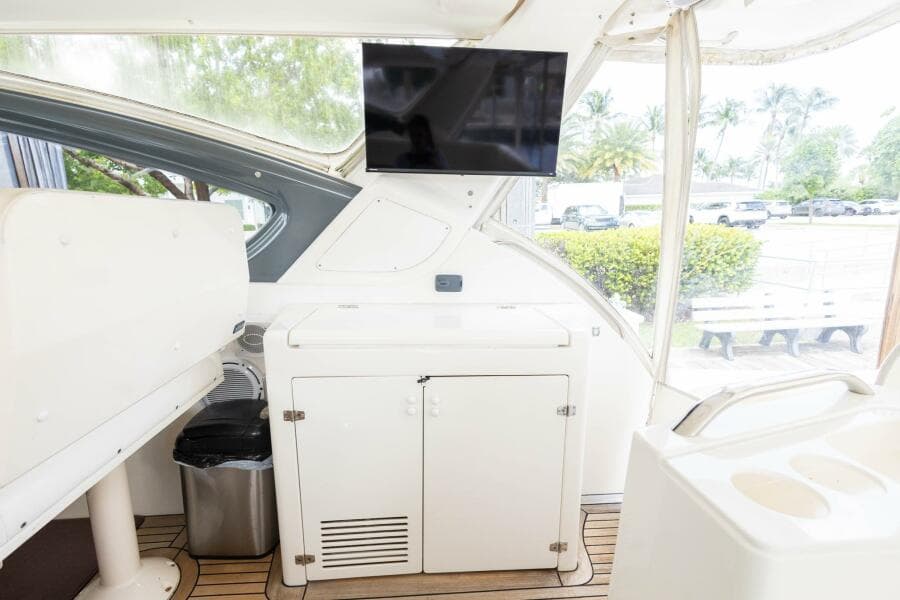

Wet bar:
Sink and Faucet
Fusion Stereo Remote Head unit
Cutting Board
(5) Cup Holders
Raritan Ice Maker
EdgeStar Refrigerator
110v Outlet

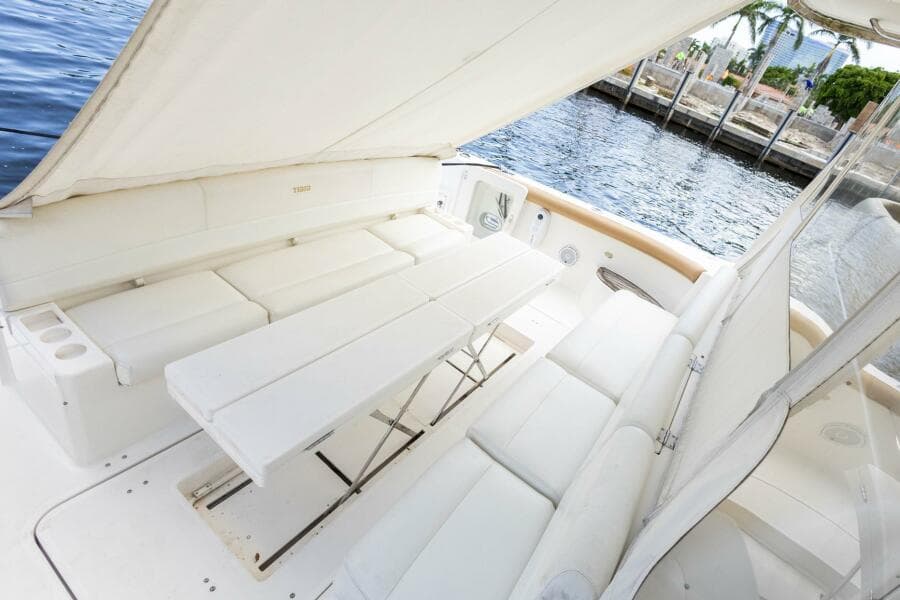

Cockpit

Port and Starboard Transom Entries with Clear Acrylic
Stern Seating for (4) with Cup Holders and Storage Below
Forward Seating for (4) with Center Access to Engine Room
Dual Hydraulic Pop-Up Tables with Folding Leaf
110v Power outlet
Courtesy Lights

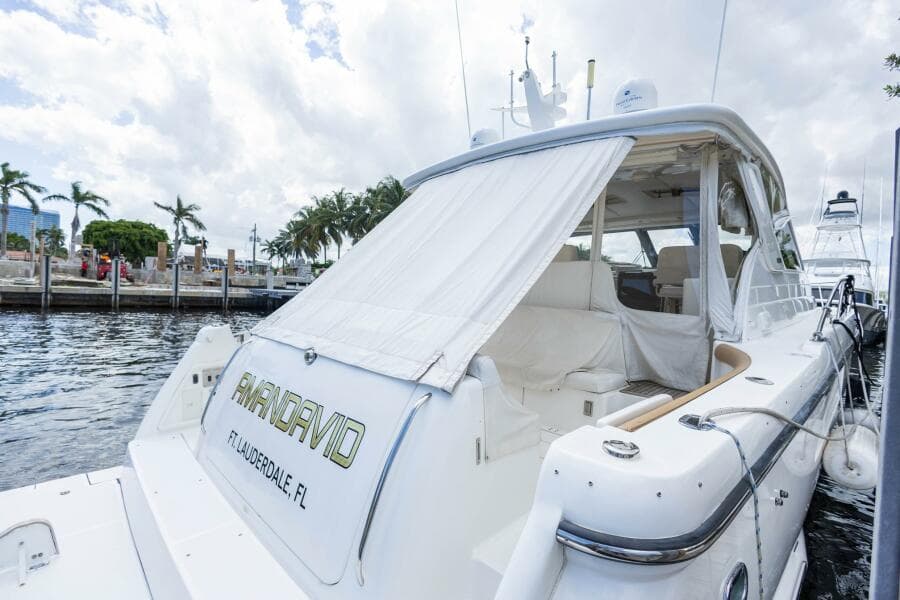

Overhead Sunshade with Makefast Strut Mount System
Tan Cockpit bolsters
JL Stereo Speakers
(3) Woofers/Sub Woofers
(2) Rod Holders

Deck Equipment

Swim Platform

Trunk with Hydraulic Hatch Cover
Stainless Steel Grab Rails, Port and Starboard of Trunk
Solar Led Courtesy Lights, Port and Starboard
Large Molded in Swim platform
Pull Out Ladder
Rub Rail with Stainless Steel Insert
Dinghy Chocks and Mounting Rings
Electric Dinghy Davit with Wired Remote
(2) Stern Stainless Steel Grab Rails

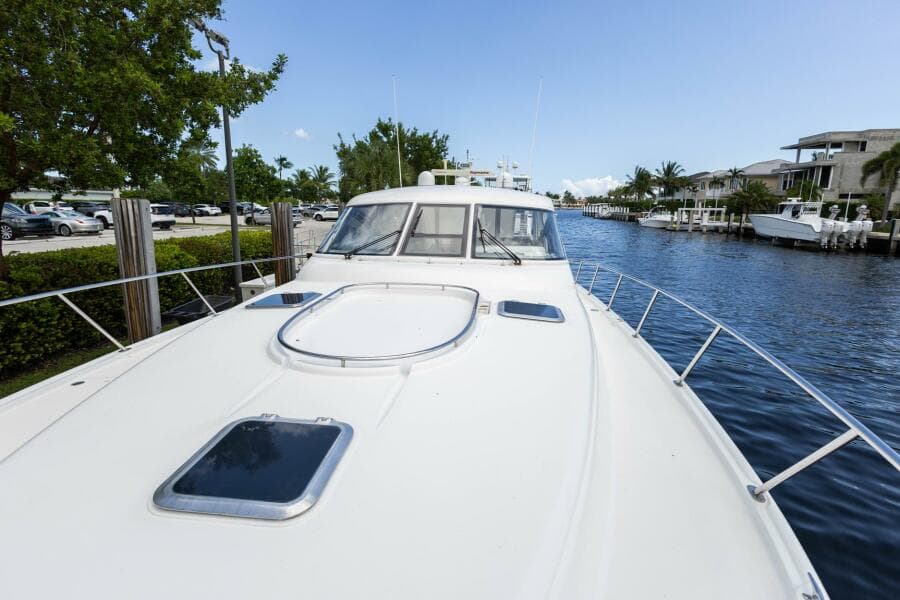

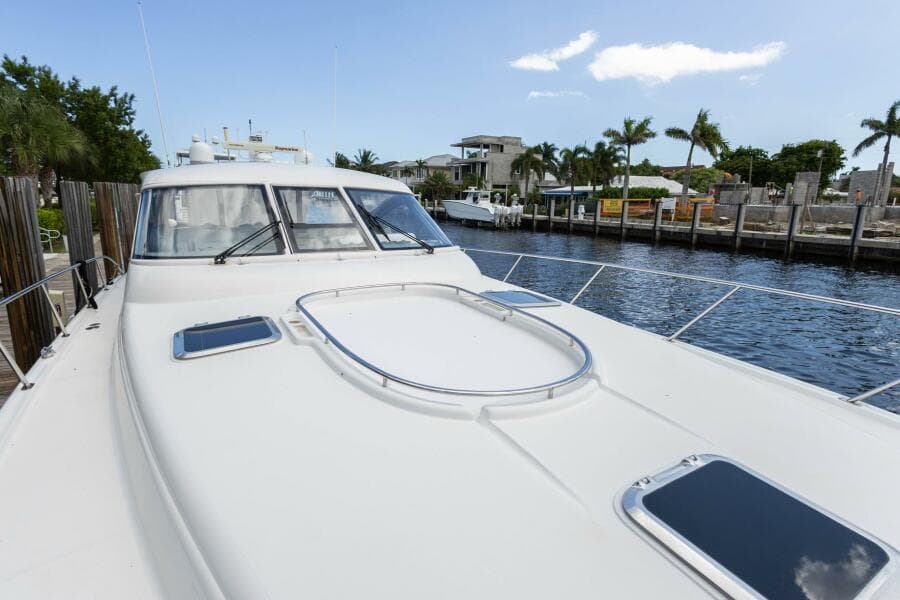

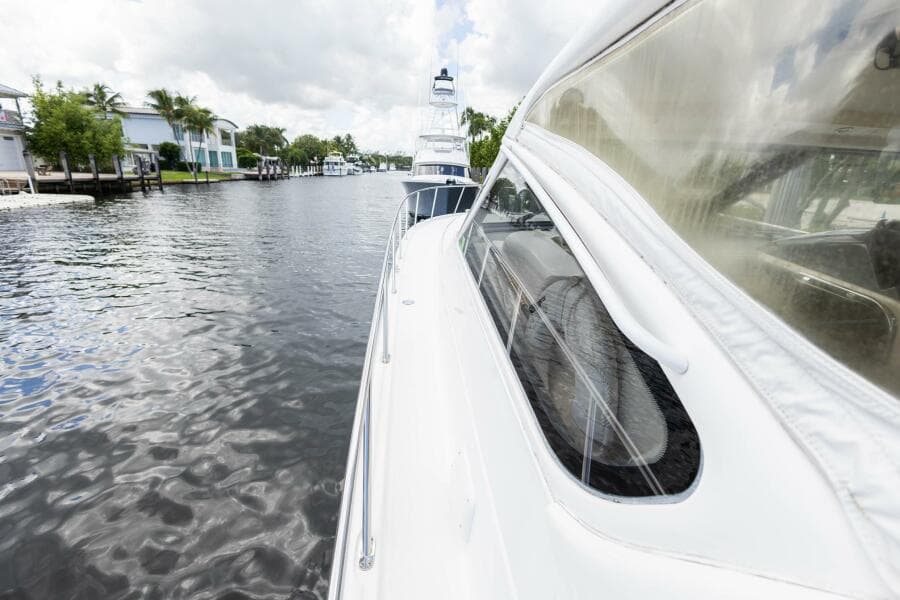

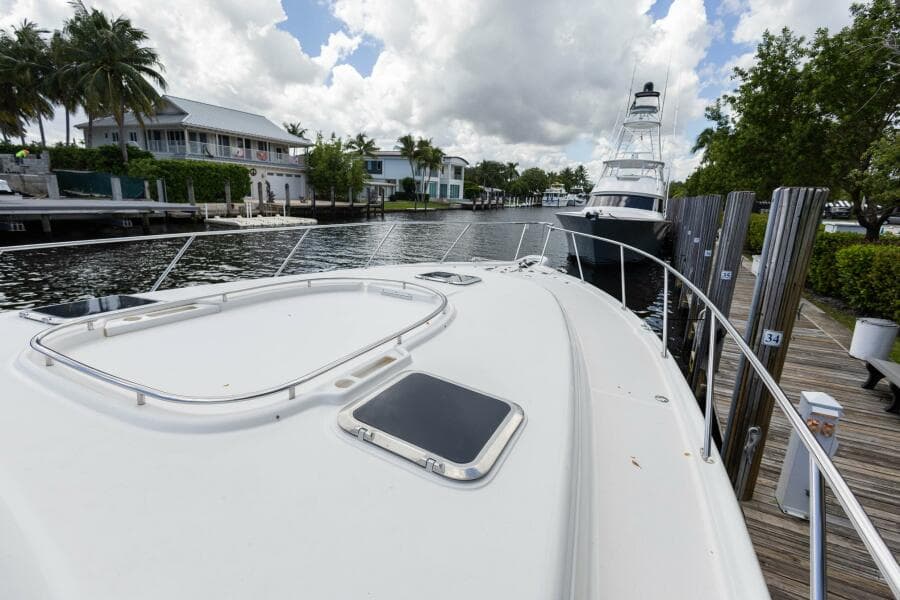

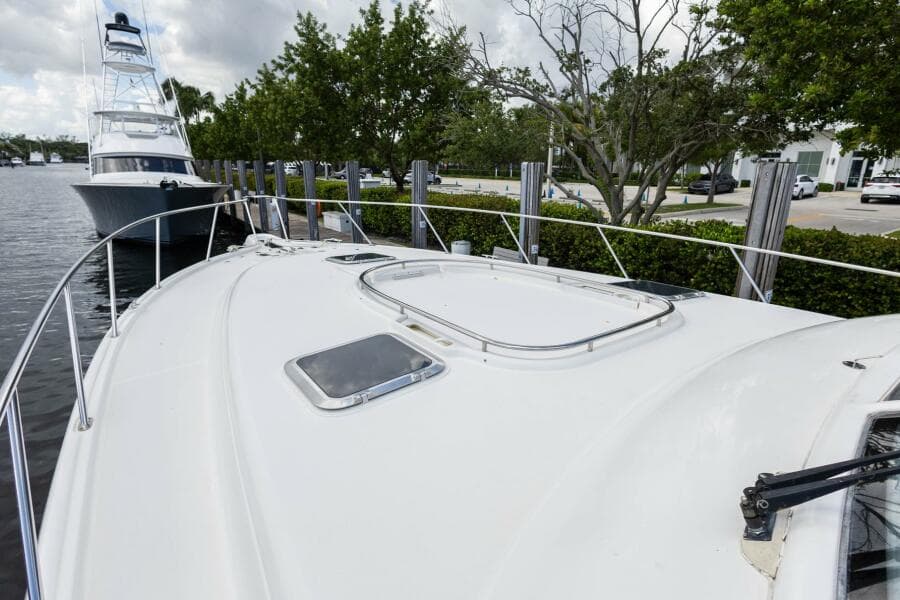

Deck

Recessed Walkaround with (3) Grab Rails Port and Starboard of Helm
Forward Sun Pad with 360 Stainless Steel Grab Rail and Cup Holders
Muir Electric Windlass with Helm and Deck Controls
Anchor Lockers
Washdown Connection
Rub Rail with Stainless Steel Insert
Stainless Steel Bow Rail
(12) Stainless Steel Cleats
Hawse Pipes for Stern Cleats
Bow Pulpit with Roller
Ultra Anchor 77lbs with Swivel

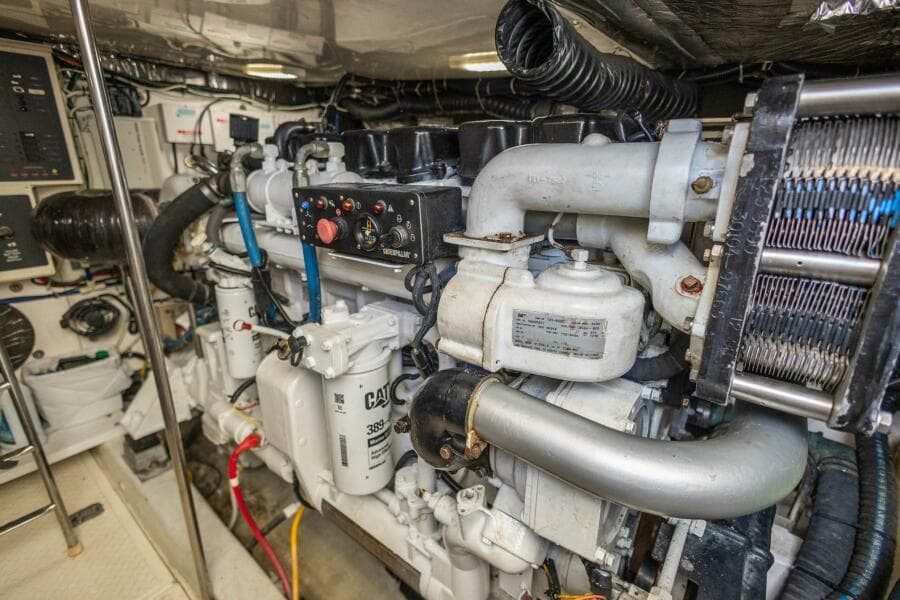

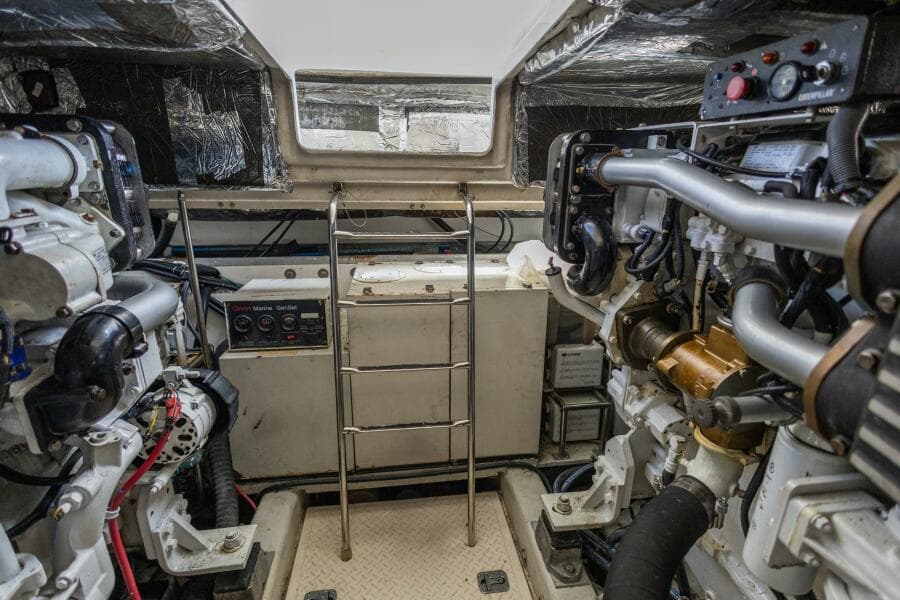

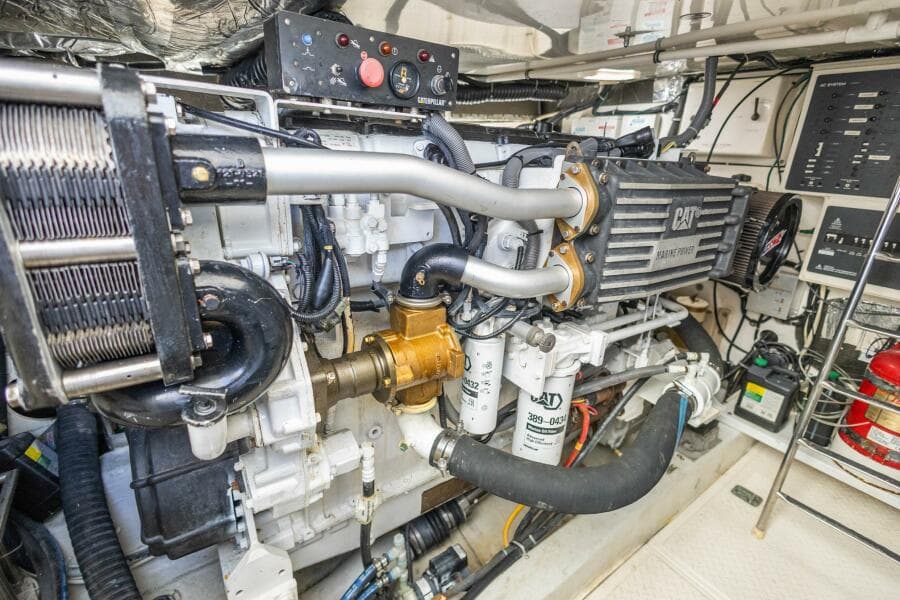

Engine and Mechanical Features

Dual Companionway Entries: Cockpit, Helm Area
Multiple Hella Directional DC Fans
Dual Racor Fuel Filters with Cross Over for Each Main Engine
Sea Strainers on Main Engines, Generator, A/C Pumps
Halon System

Engine Room Repairs and Upgrades

Engine Service- Sept. 2025

Perform Annual/Hourly Maintenance On Engine Port & Starboard Main Engines Per Cat Sepb2555-45, Including Zinc Replacement, Aftercooler Inspection And Reseal, Crankcase Breather Inspection, Coolant Inspection And Test, Oil And Filter Change, Fuel Filter Replacement, Air Filter Element Cleaning/Inspection, Raw Water Pump Impeller And Cover Seal Replacement, Hose And Clamp Inspection, Belt Inspection, Battery Voltage And Cable Inspection, Exhaust Riser And Turbocharger Inspection, Obtaining Downloads/Current Product Status Report, Disposal Of Used Fluids And Filters, And Test Run At The Dock

Full Sea Trial
Replace Zincs In Engine And Gear Cooler
Change Engine Oil And Oil Filters
Replace Primary And Secondary Fuel Filters
Replace Raw Water Pump Impellers And Cover Seal
Starboard Engine Secondary Speed Sensor Was Replaced
Starboard Engine Filler Neck Replaced
Starboard Engine Saltwater Pump Replaced
Several Engine Hoses And Clamps Replaced
Both Port And Starboard Coolant Bottles Were Replaced
Both Port And Starboard Engine Belts Were Replaced
Both Port And Starboard Thermostats Were Replaced
Both Port And Starboard Heat Exchangers (Grid Coolers) Overhauled
All Plate Seals Were Replaced Along With Secondary Seals

Cat 2000hr / Annual Service

Perform Annual/Hourly Maintenance On Engine Port & Starboard Main Engines Per Sepb2555-45
Replace Zincs In Engine And Gear Cooler.
Inspect Aftercooler Drain, Inspect And Reseal Aftercoolers Inlet And Outlet Pipes .
Inspect Crankcase Breather.
Inspect And Test Coolant And Check Level-Clean Overflow Bottle
Change Engine Oil And Oil Filters
Replace Primary And Secondary Fuel Filters
Clean/Inspect Air Filter Elements
Replace Raw Water Pump Impellers And Cover Seal
Obtain Downloads / Current Product Status Report
Test Run At The Dock And Top Off Fluid Levels
Full Sea Trial Accomplished
Starboard Engine Secondary Speed Sensor Was Replaced
Starboard Engine Filler Neck Was Replaced
Starboard Engine Salt Water Pump Replaced
Several Engine Hoses And Clamps Required Replacement
Both Port And Stbd Coolant Bottles Were Replaced
Both Port And Stbd Engine Belts Were Replaced
Both Port And Stbd Thermostats Were Replaced
Both Port And Stbd Heat Exchangers (Grid Coolers) Overhauled

Grid Coolers

Starboard: Removed Heat Exchanger, Raw Water And Fresh Water Pipes.
Clean Heat Exchangers Tubes, Sand Blast Heat Exchanger Tubes And Then Paint And Disassemble Tubes.
Cleaned Port Heat Exchanger Plates And Installed New Gaskets On Plates. Cleaned Stbd Heat Exchanger Cover And Rear Housing.
Cleaned And Re-Gasketed The Starboard-Side Heat Exchanger Plates.
Cleaned Port And Starboard Heat Exchanger Hardware. Installed Starboard Heat Exchanger Studs And Torqued To 45ft 1lns.
Installed Starboard Heat Exchanger Housing. Cleaned All Surfaces On Engines For Reassembly.
Torqued Starboard Heat Exchanger Plates. Installed Port Heat Exchanger Housing And Plates, Then Torqued To Specification.
Installed Port Thermostat Housing.

Operation: Generator

Change Engine Oil And Oil Filter
Replace Primary And Secondary Fuel Filters
Replace Raw Water Pump Impeller And Cover Seals/Gasket
Clean And Re-Seal Heat Exchanger
Replace Generator Coolant With Elc Type Coolant
Replace Engine V Belt

Generator Service

Change Engine Oil And Oil Filter
Replace Primary And Secondary Fuel Filters
Replace Raw Water Pump Impeller And Cover Seals/Gasket
Replace Generator Coolant With Elc Type Coolant
Replace Engine V Belt
Clean And Re-Seal Heat Exchanger
Check Battery Connections
Inspect Hoses And Clamps
Test Run At The Dock And Start/Stop The Unit To Insure All Air Has Been Purged From The Fuel System
Perform Annual Maintenance On Both Marine Gears As Part Of The Annual Service.
Change Oil And Clean Screen Or Replace Filter

Transmission Service
