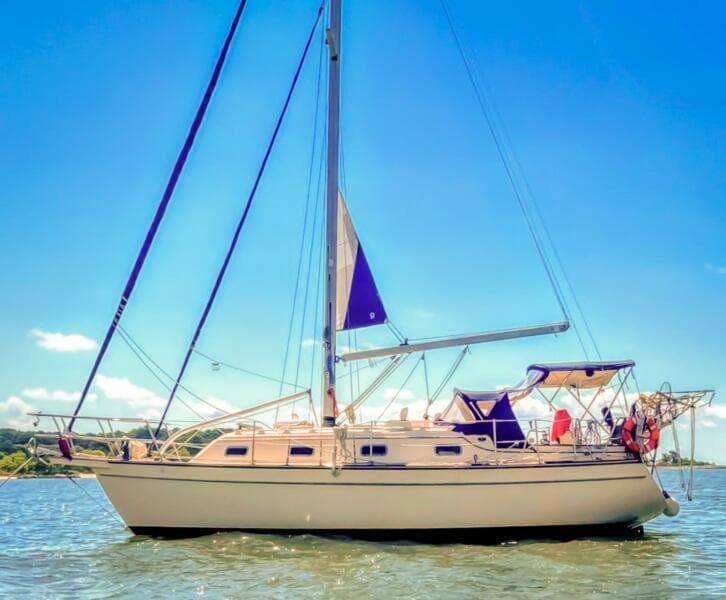

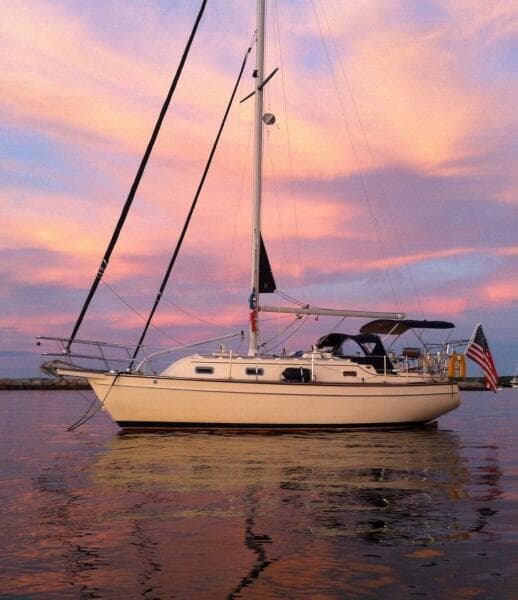

1999 Island Packet 320

• Hull: Fiberglass (One Piece Mold, High Modulus Tryaxial, Unified Interior Grid Structure)

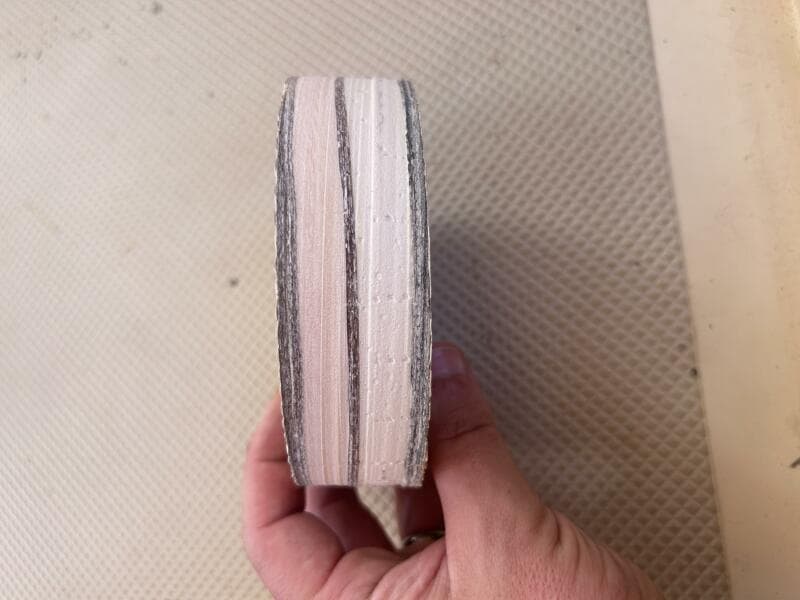

• Deck: Polycore (Fiberglassed/Polycore Microsphere and Resin Matrix)

• LOA: 33.25 ft/ 10.13 m

• Beam: 11.75ft/ 3.58 m

• LWL: 27ft/ 8.23 m

• Max Draft: 4 ft 3 in/ 1.27 m

• Max Bridge “Air Draft” 49ft /14.9 m

• Max Displacement: 13,500 lbs/ 6123.497 kg

• Dry Sling Weight 13,500 lbs/ 6123.497 kg

• Ballast (Encapsulated, Lead): 6000 lbs / 2721.554 kg

• Cruising Speed: 6.0 kts /11.1 kph

• Max Speed: 6.6 kts/ 12.2 kph

• Carrying Occupancy Capacity: 10 Persons + Equipment = 3767.7 lbs/ 1,709 kg

• S.A. / Displ.: 15.75

• Bal. / Displ.: 44.44

• Disp.: / Len.: 306.19

• Comfort Ratio: 27.15

• Capsize Screening Formula: 1.98

• Pounds/Inch2 Immersion: 1,133.57 pounds/inch

• Keel: Full “Long Keel”, “Full Foil Keel” (Sand skeg supported rudder shoe)

• Rudder: Barndoor

• Cabins: 3x

• Heads: 1x

• Headroom: 6.33ft/ 1.85928m

• Displacement: 13,500 lbs / 4.535mt / 6,123 kg

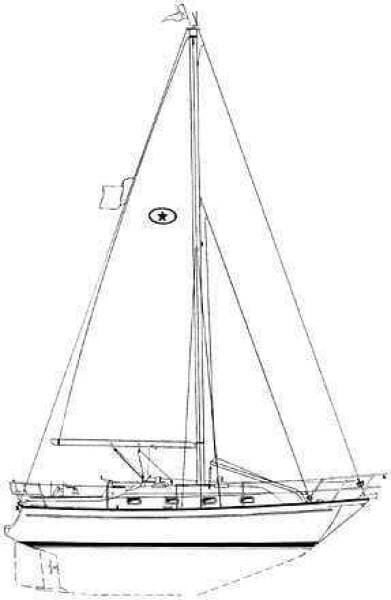

• Sail Plan: Cutter Rig

• Standing Rigging: Age 2018

• Sail Area: 556.00 sq. ft./51.65 sqm

• Mast Height: 48.08ft/ 12.3444m(Keel Stepped), (In Mast Furling Main System)

• Designer: Robert “Bob” K. Johnson

• Steering: Wheel (Edson), (Leather wrapped)

• Steering: Whitlock MechanismDirect Drive Rack Pinion (Bulletproof), (No Cables or Blocksto Break)

• Steering: Spare Stainless Emergency Tiller Bar (Easy Access Under Helm Seat)

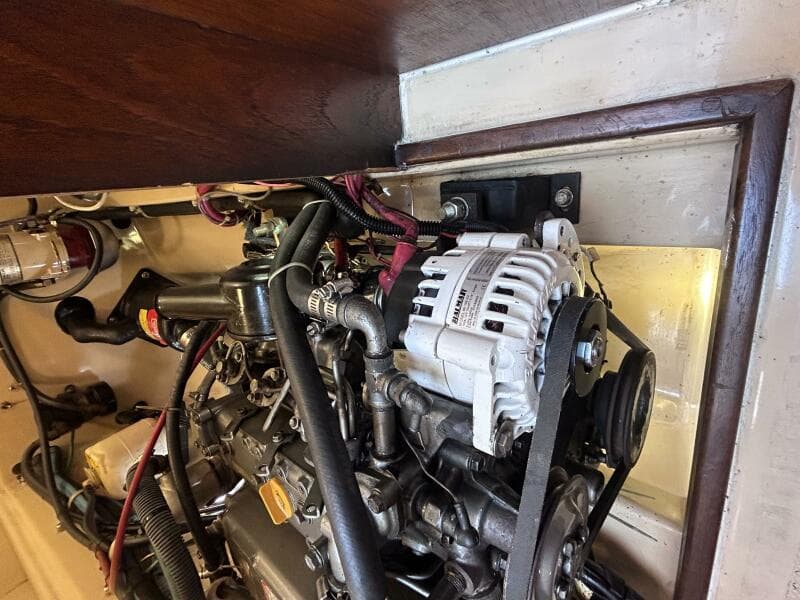

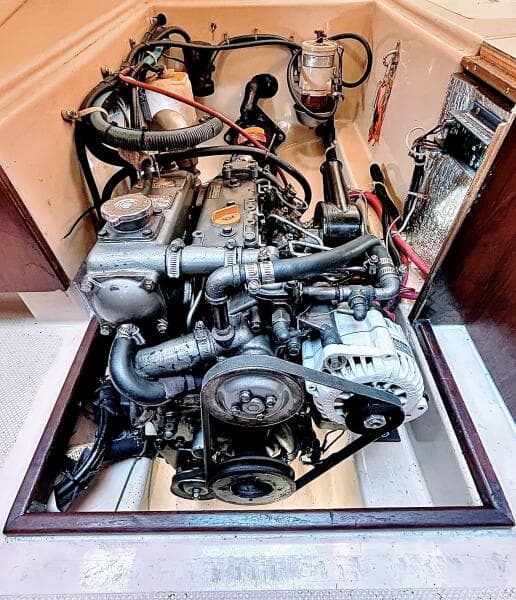

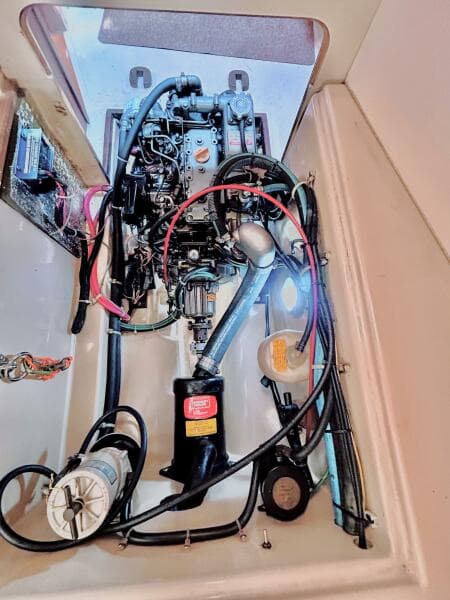

Engine: YANMAR 3GM30F 27hp (4153.4 Hours) - Upgraded/Rebuilt/Refurbished Engine 2022-2024

• New Starter / have working spare
• Heat Exchanger, Rebuilt Decalcified, Gaskets
• New Stainless Exhaust Elbow - New Gasket
• Polished Air Intake
• Water Pump Bearings
• New Oil Distribution Pipe
• Ignition Switch
• New Raw Water Supply Hose
• Leather Chaffing Protection
• Plastic Wire Chaffing Covering
• New Prime Belt/Water Belt “Tensioner”
• Coolant Antifreeze /Engine Oil/Transmission Oil, Water Pump Impeller, Oil/Fuel/Air Filters Summer 2025)
• Upgraded Balmar Alternator (100 Amp) New 2022)
• Replaced Motor Mounts 2022

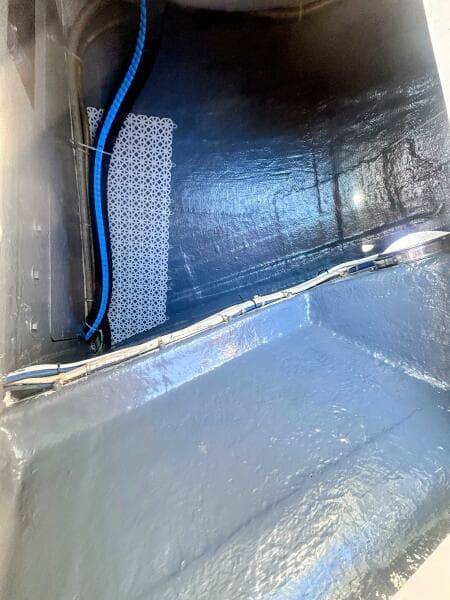

• Engine Gelcoat Drip pan/Tub Cleaned/Waxed 2024
• Transmission Upgraded 2010
• New Cutlass Bearing 2022
• New Groco Sea Strainer Summer 2024

Engine Horsepower: 27 HP at 3600 RPM

Fueled Range: ~350 Nautical Miles

Shafting: 1 1⁄4 inch Stainless (PTFE Flax/Packing Nut), (Inspected Fall 2024)

Zinc doughnut: Size 1 1⁄4 inch (Replaced Bi- Annually Summer 2025)

Electrolysis Protection: Wired zinc mass Over-the-Side, grounded to protect shafting doughnutzinc

Propeller: 3 Bladed Bronze

Cooling: Raw Sea Water Cooled (Freshwater Flush system Fall 2024)

All tanks were replaced in 2014

• Fresh Water Tanks Total: 75 Gallons/283.906l, (Stainless): Single Centerline Tank (Cleaned Fall 2024),” No Weird Taste”
• Fuel Diesel Tank: 38 Gallons/ 143.846l, (Aluminum 5052 Coated), (Tank Level Indicator) (Tank/Fuel Polished 2024), Tank regularly kept at 100% Tank Fresh Red Marine Diesel Summer 2025), (Regularly, stabilized and used additional additives, maintained atmax fill level to prevent moisture condensation)
• Holding Tanks: 17 Gallons /64.35l, New 2014, (Stainless), (Cleaned/ pickled Fall 2024)

• MarinAire 16,000 BTU Titanium Reverse Cycle AC System (New 2023),
• 4x New Louvers Cabin Sole Return Vent, Digital Display, Many Settings
• Handheld Remote Control Included
• Unit Serviced/Fins/Ducting
• Cleaned Spring 2025

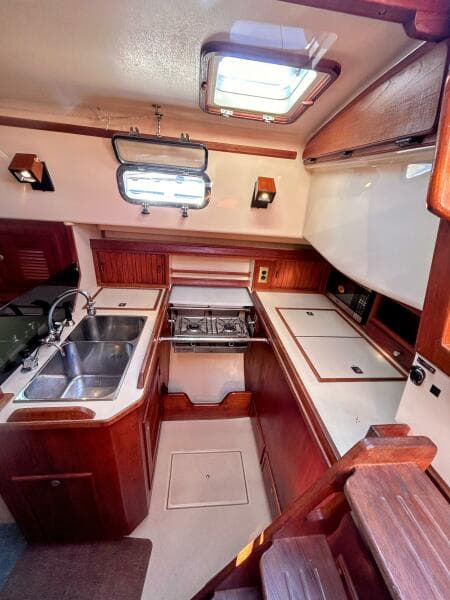

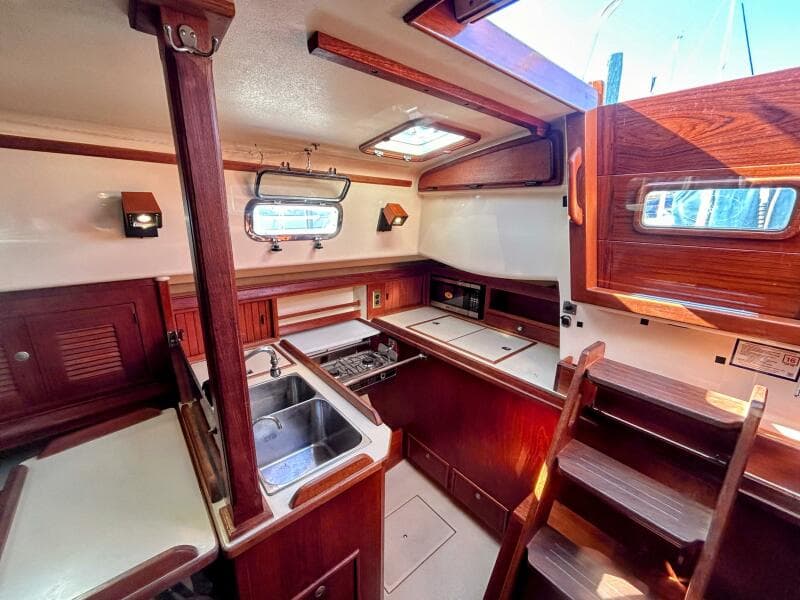

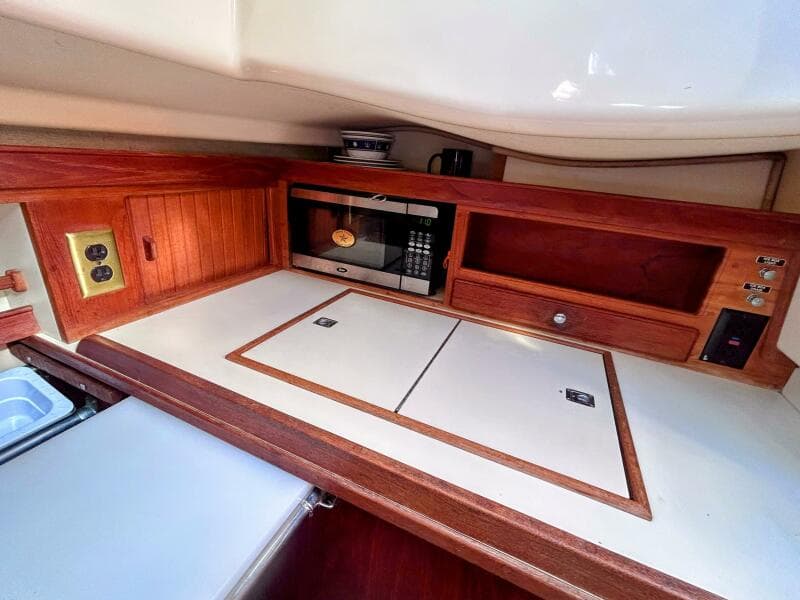

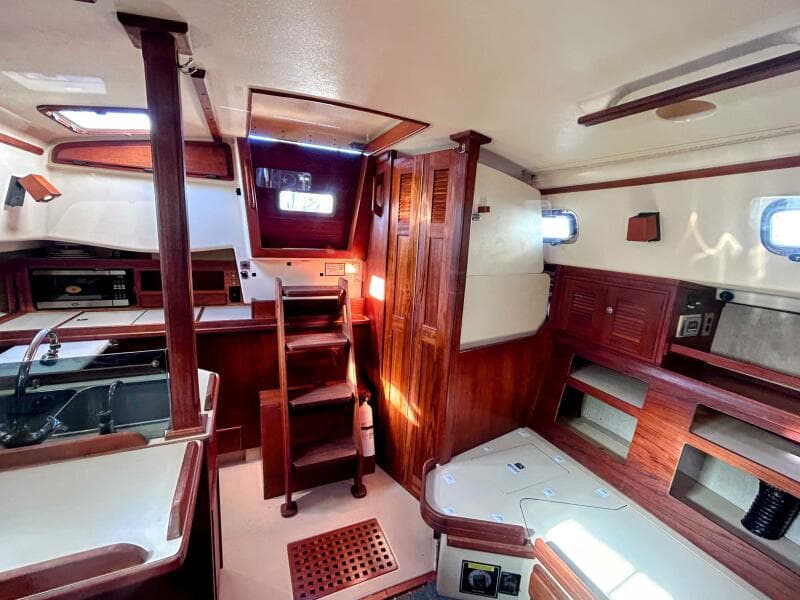

• U-shaped galley
• Frigo Boat, Refrigerator Evaporator Plate Design

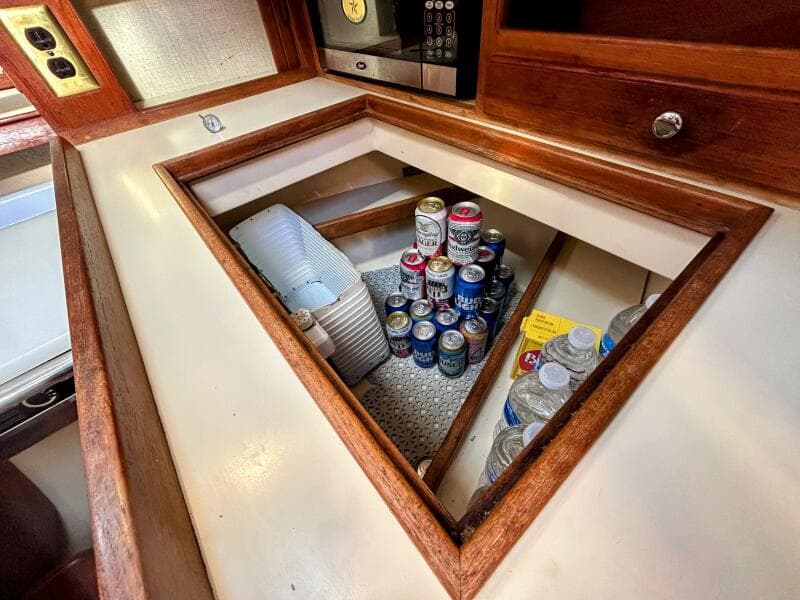

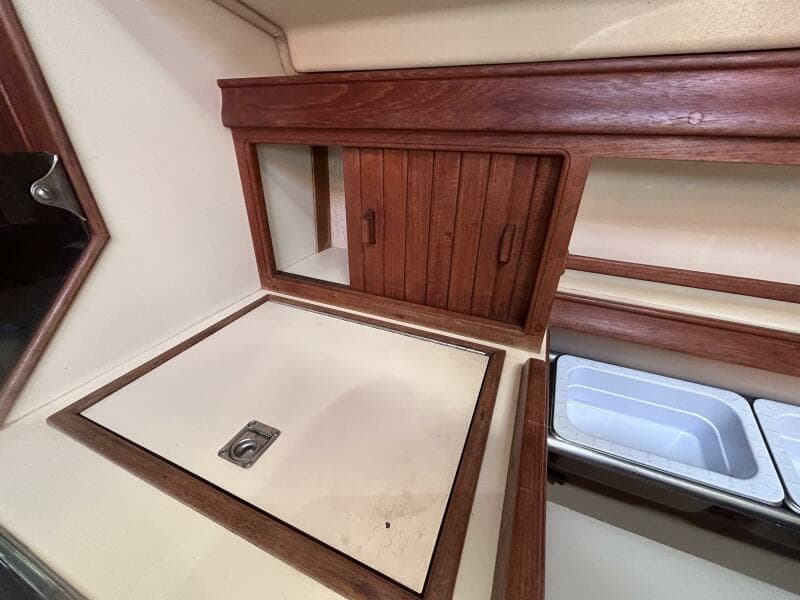

• Top Loading Large Refrigerator/Ice Box, Custom, Plastic Grating/shelving to improve airflow efficiency, Integral Lighting inside Refrigerator
• Double Stainless sink (Manual Pump Available “Not Plumbed”), Extendable Hand Dish Sprayer Wand
• Galley Sink (Frosted Plexi Glass Splash Guard New 2023)
• Trash (Rollaway Bin, under sink)
• Paper Towel Roller Under Companionway Steps

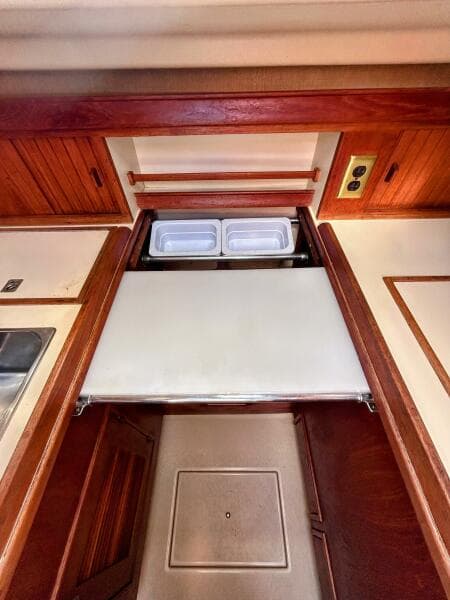

• Versatile Cooking Top Space: Custom Sliding Cutting Board, (Hidden Stowage Trays)

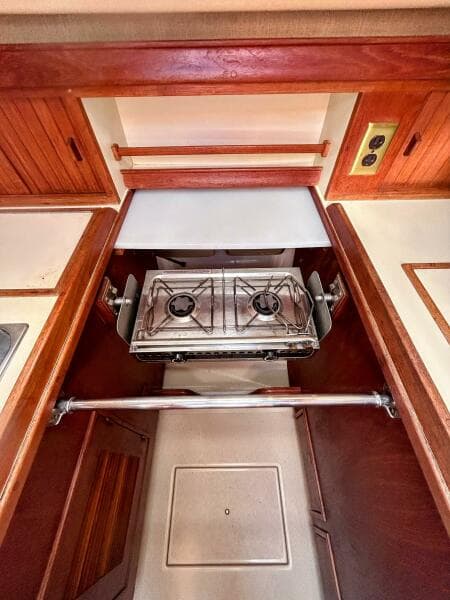

• Origo 3000 alcohol two-burner stove (Safer/Simpler Operation, 2023)
• Propane Cooktop/Oven Removed 2023 (Propane Locker and Pipe Fittings remain should new owner want to revert to propane system)

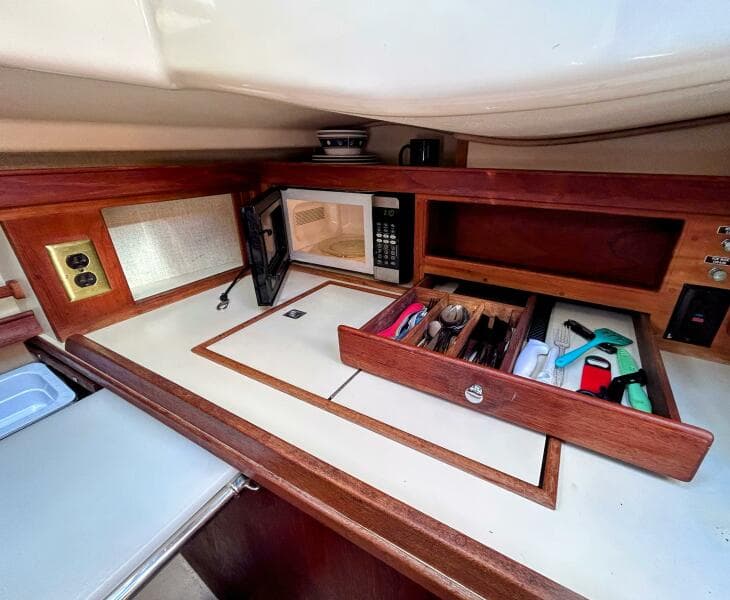

• Modern microwave, New 2022
• Hurricane Strap, New 2022
• Provisions Lockers, Ample stowage space for accessible
• Shurflo 3.5 GPM Fresh Water Pump ( Redundant Spare Available)
• Primary Automatic Electric Bilge Pump
• Secondary Manual Cockpit Bilge Pump (Flushed Serviced and lubricated Summer 2025 - Bi-monthly)

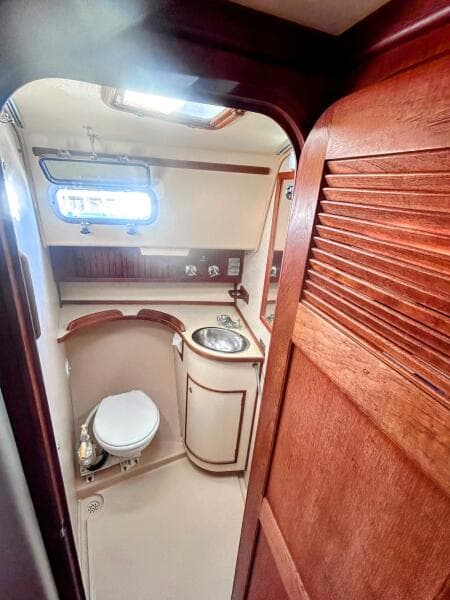

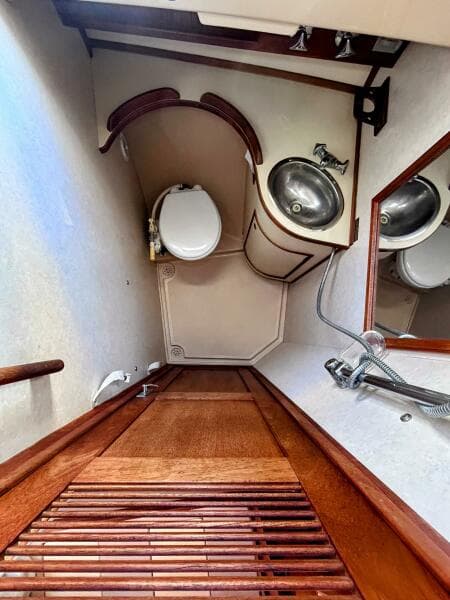

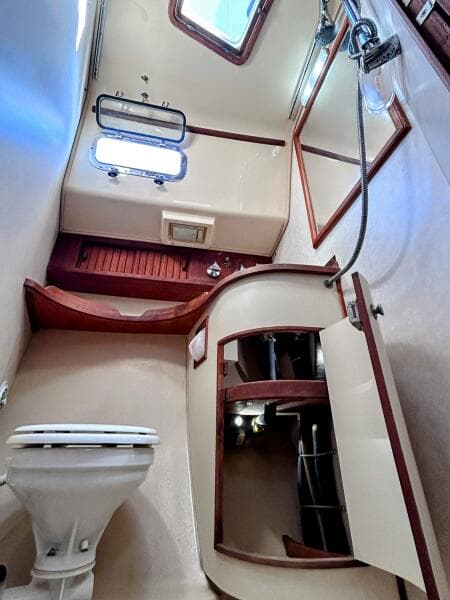

• Vanity/Head/Bathroom

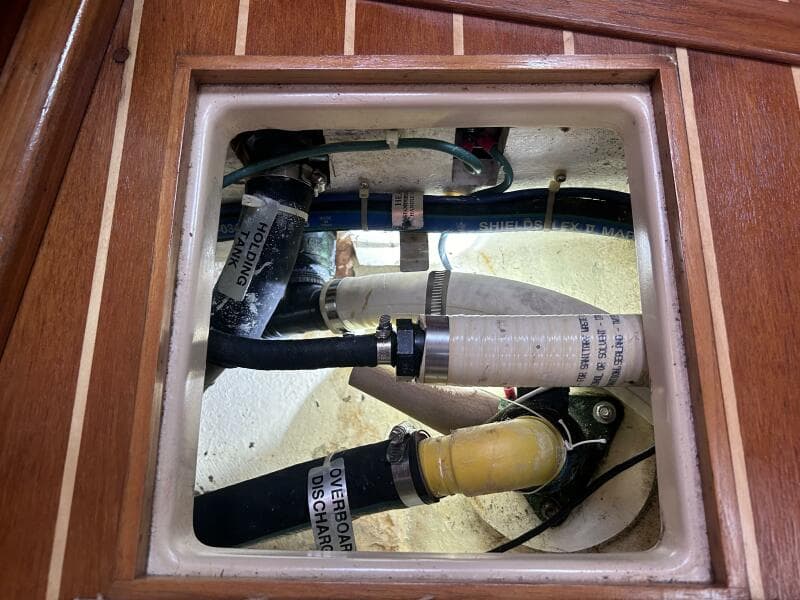

• Jabsco, Head. Holding Tanks
• 17 Gal Stainless New 2014
• Y-Valve, Tank/Overboard
• Cleaned/ pickled Summer 2025

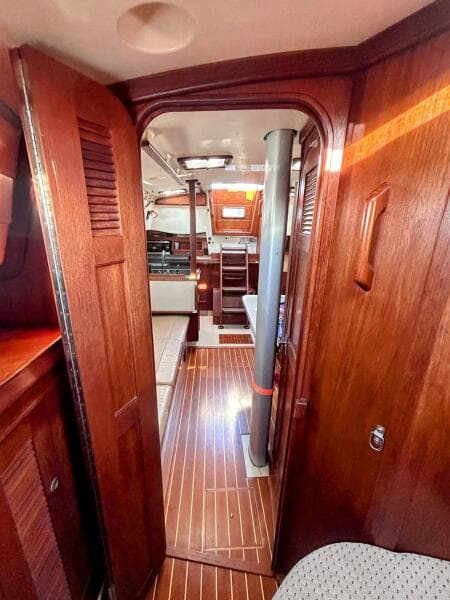

• All interior wood imported Teak (Joinery cabinets/Trim perimeter teak, including interior and exterior of lockers Covers, Fiddle boards, Tables, Doors, Bulkheads, ETC), (100% Teak Wood Refinished/Sealed/ Fall 2024)
• Weems and Plath Ships Bulkhead Chronometer

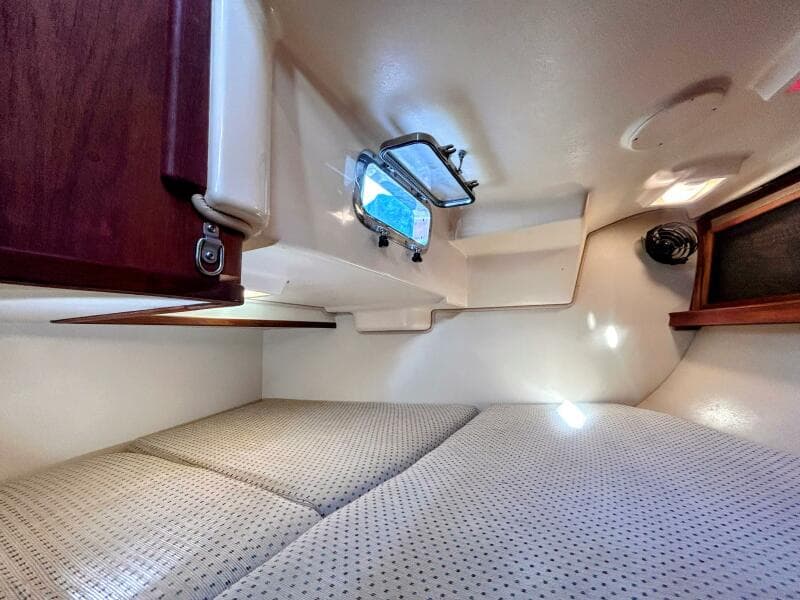

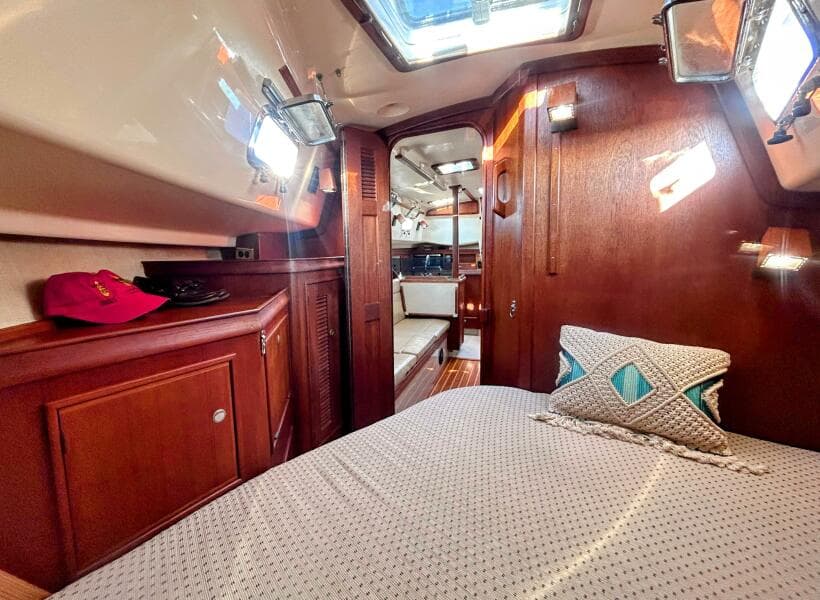

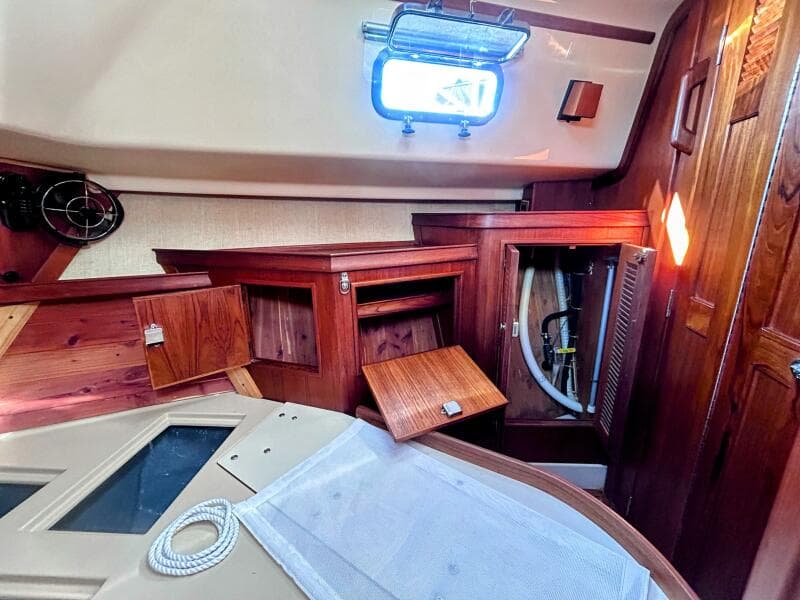

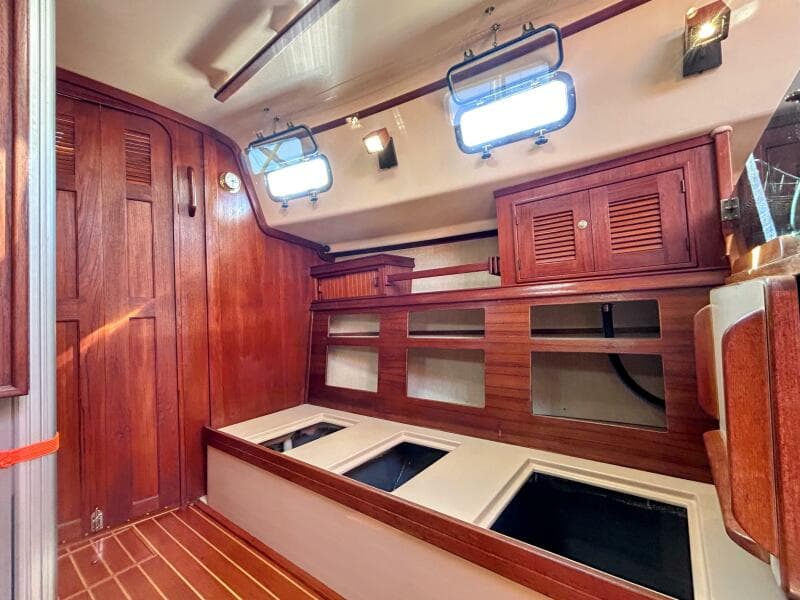

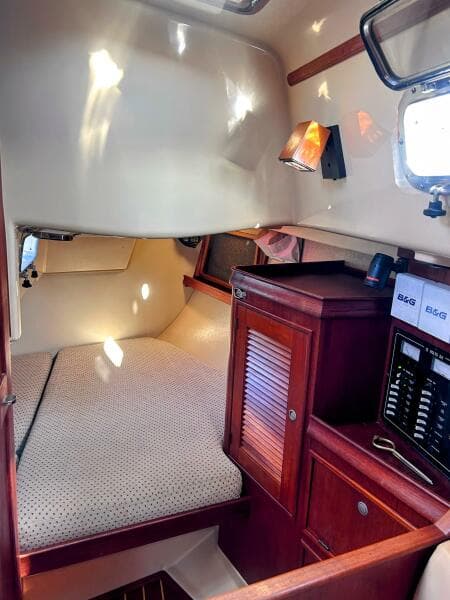

• Staterooms (1x Forward), (1x Quarter berth), (Both Fully Enclosable)
• 3x DC Fans Installed Stateroom Berths

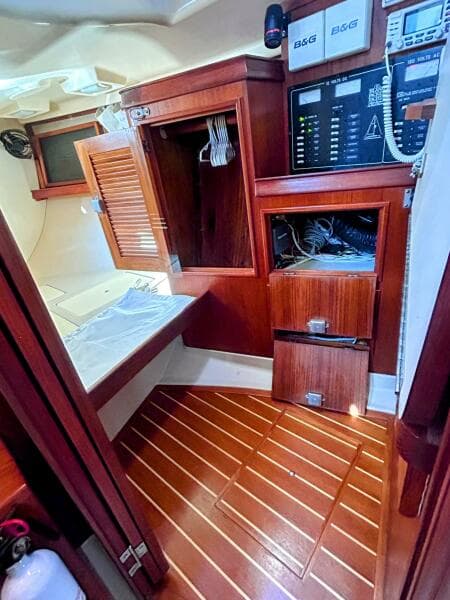

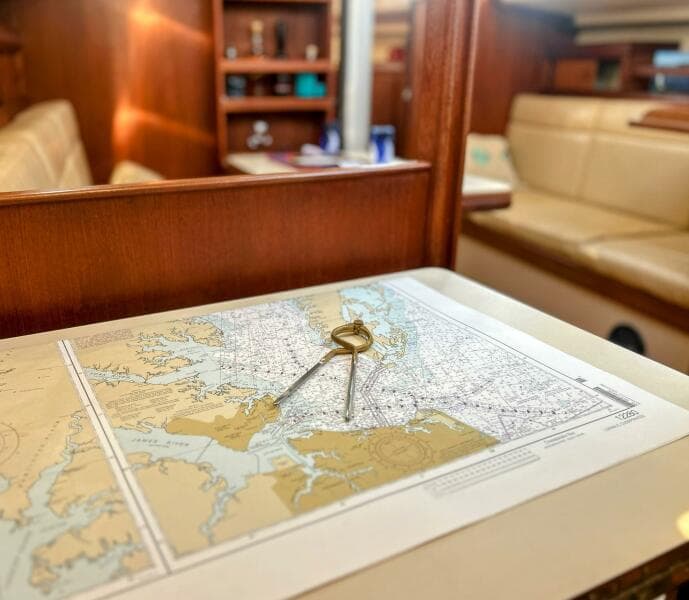

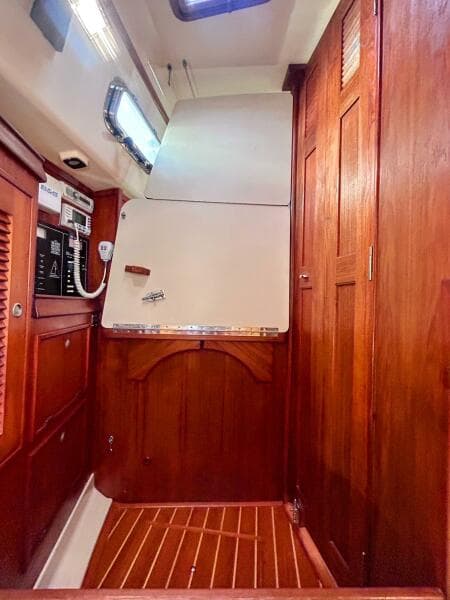

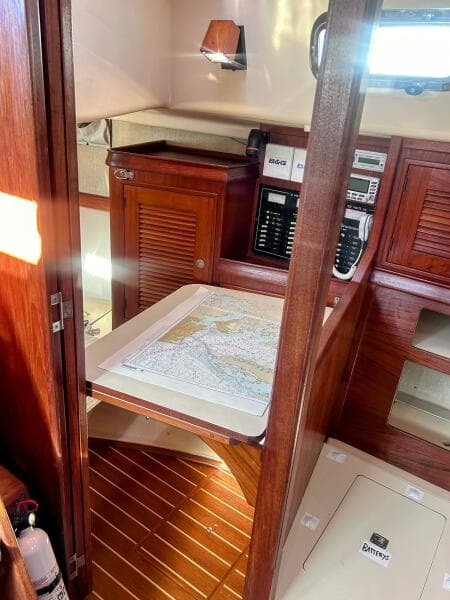

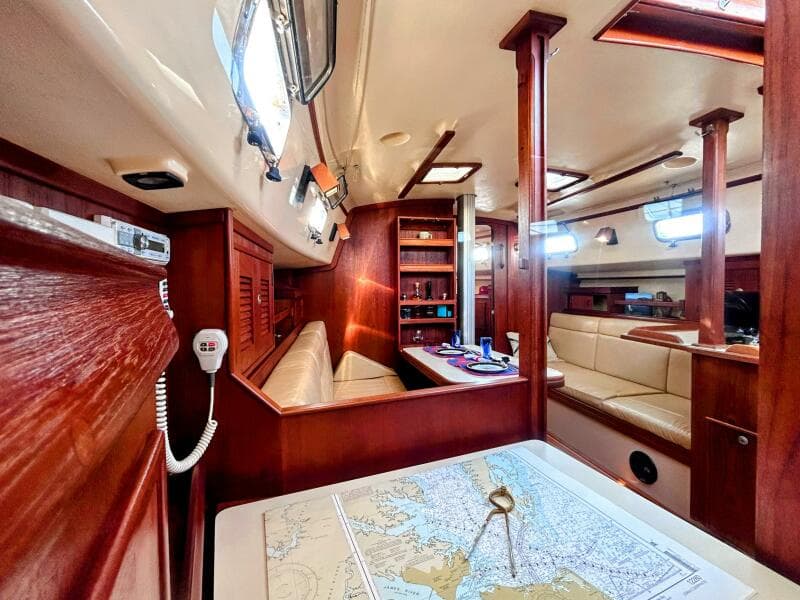

• Navigation Table (Stowable in Quarter berth)

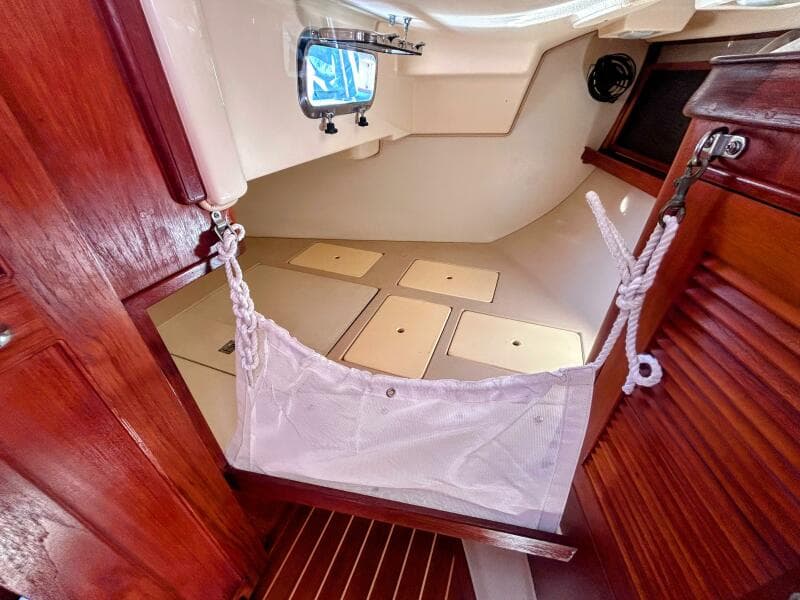

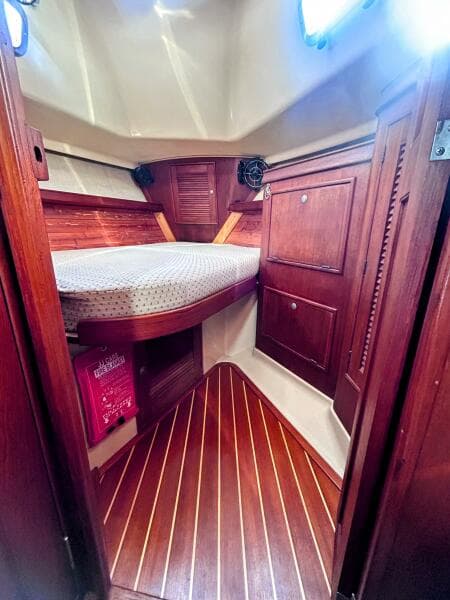

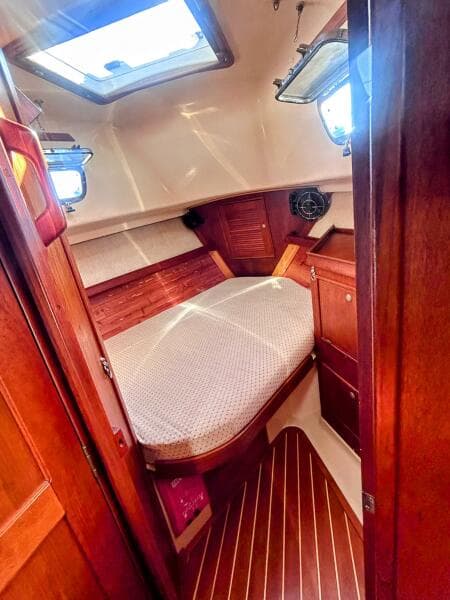

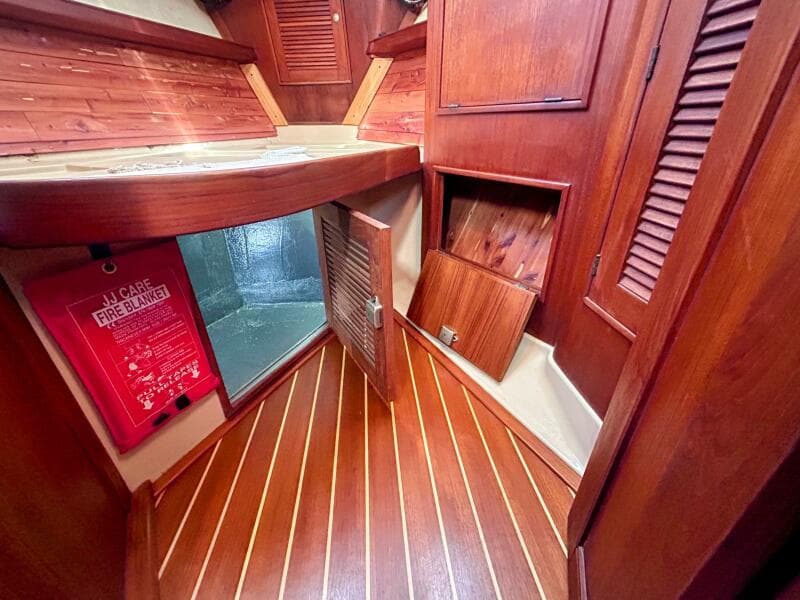

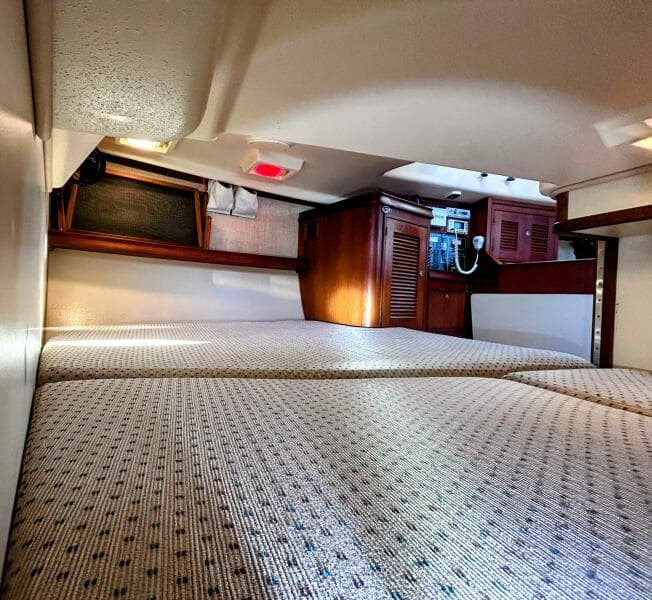

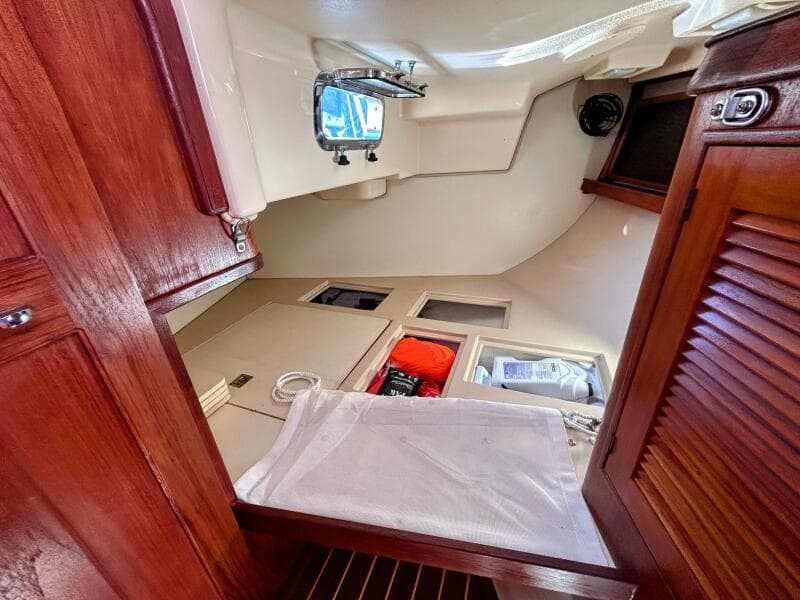

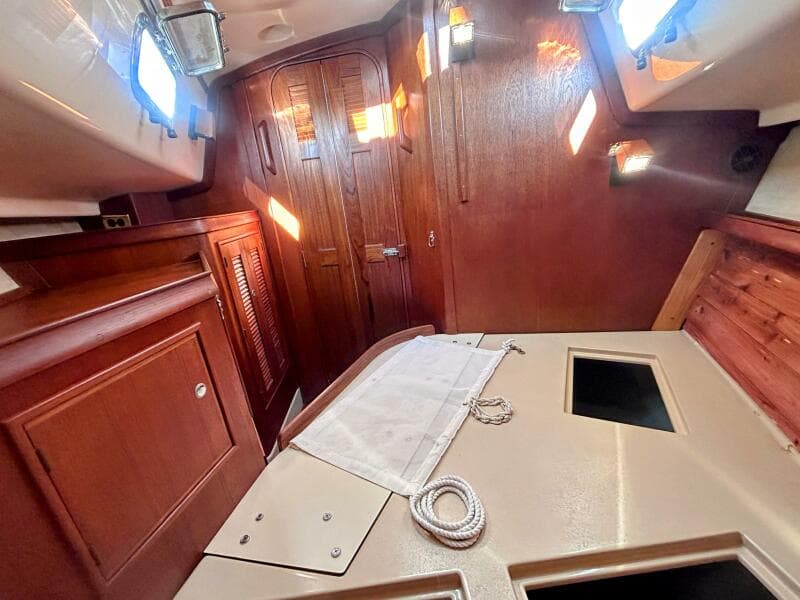

• Custom lapstrake cedar lined pullman V-Berth upgraded Fall 2024
• Hurricane/Lee Clothes (Safety/Stowage)/(Backed pad eyesUpgraded V-Berth/ Quarter berth New Fall 2024),
• Flip-up/Stowable Galley extension table (Teak Fiddles)

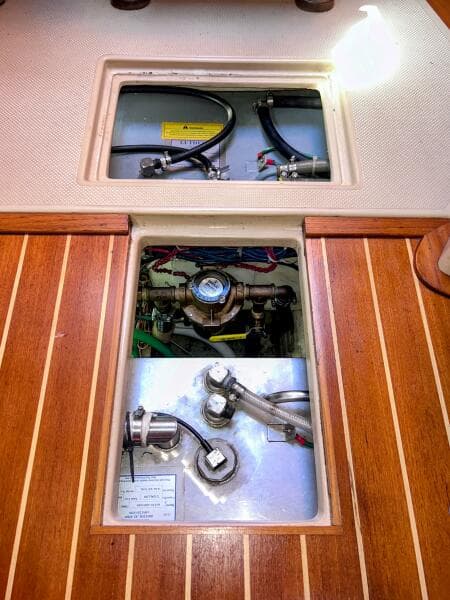

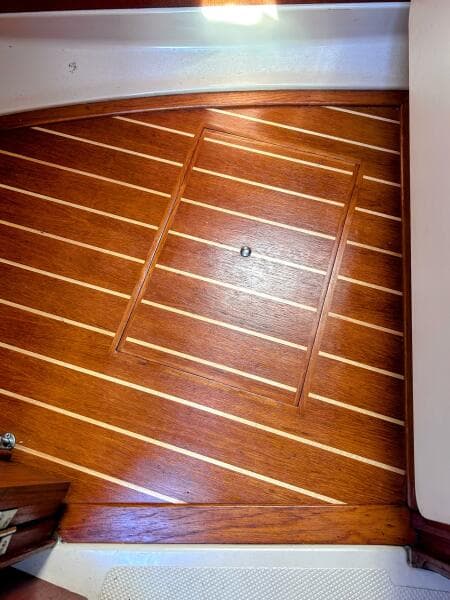

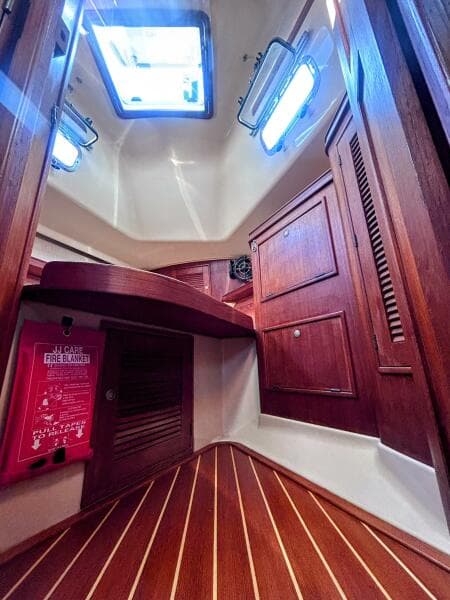

• Genuine Teak and Holly Cabin Deck Sole (New/ Replaced 2013), Custom Cut Jute Yoga Mats, Protect Sole, very comfortable to walk on, and protect the Cabin Sole (2022), (Companionway/Galley have fiberglass molded nonskid Deck for Durability and Ease of Cleaning)

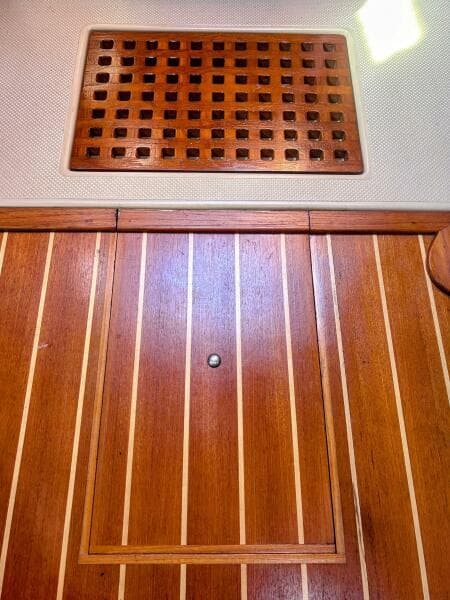

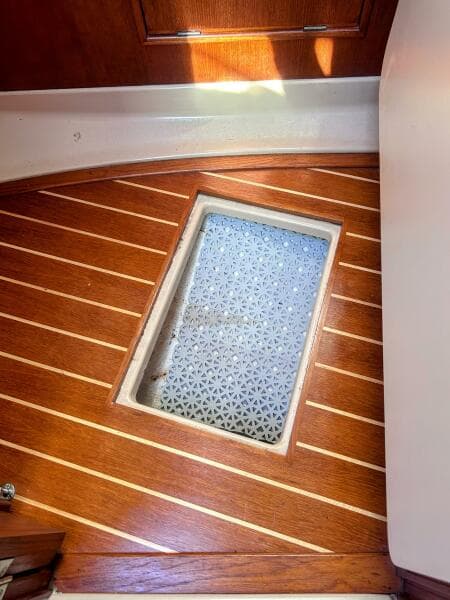

• Companionway Deck /Teak Grate Water/Dust Collection
• Mast Base Deck Collar/Ivory Starboard Upgrade new (2022)
• Clothing Lockers Cedar Lined Starboard Side of V-berth
• Locker Latches Service or Replaced (2023), (Have Spare Latches)
• Berth/Settee Cushions(Upgraded Trim for Settees), (Upholstery has been washed and is stored indoors in air-conditioning), (4" foam Cockpit cushions with durable fabric)
• 2x Teak Bi-Fold Privacy Doors for fore and aft berths.
• Quarter berth Storage/Hanging locker Cedar Lined

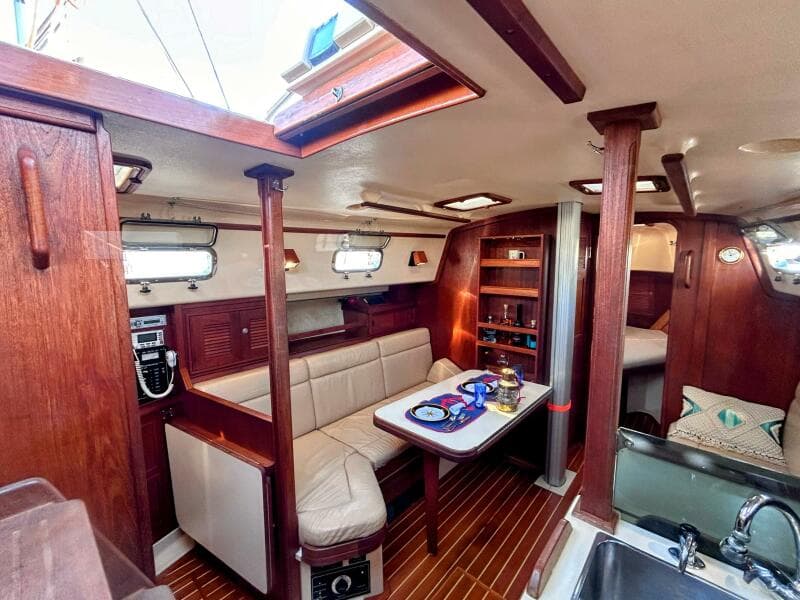

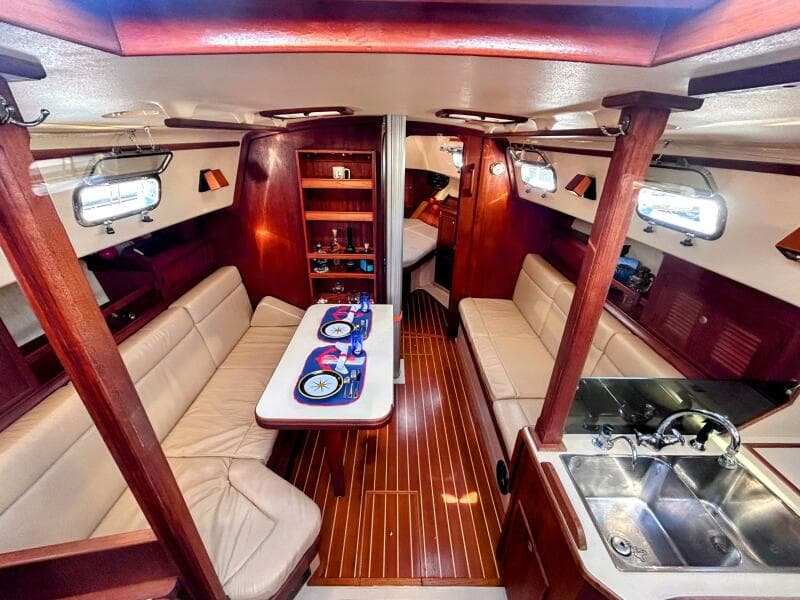

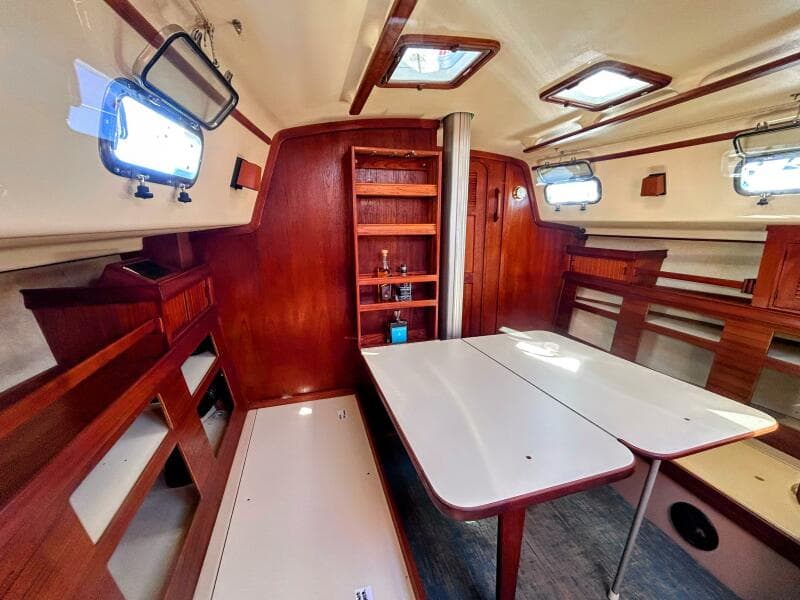

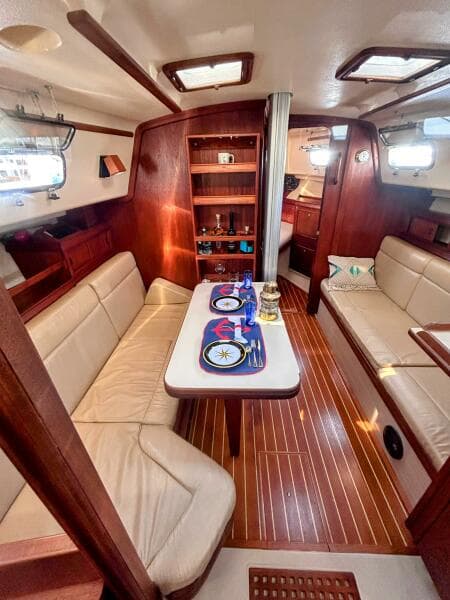

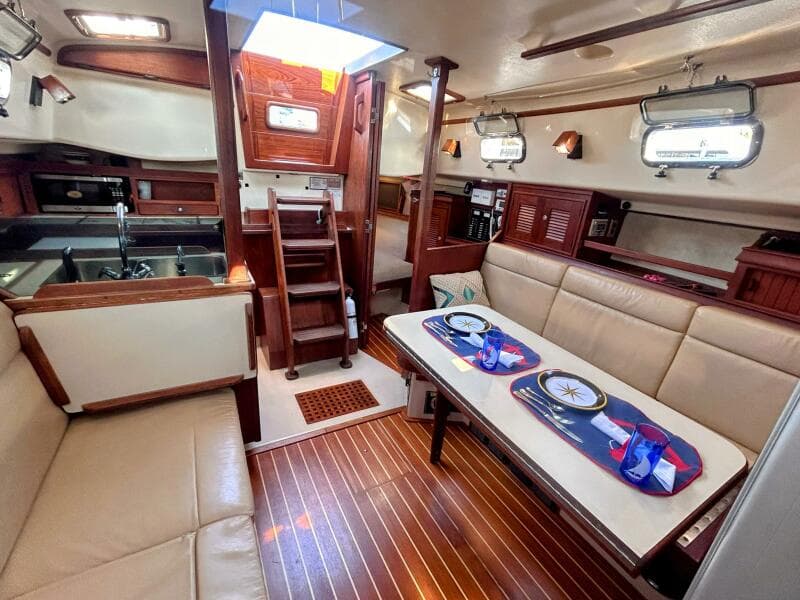

• Bulkhead-mounted fold-down double-leaf dining table
• Liquor Cabinet Integral to Teak Bulkhead Table
• Ample stowage for cruising provisions: Water/Food/Fuel/Equipment/Spares

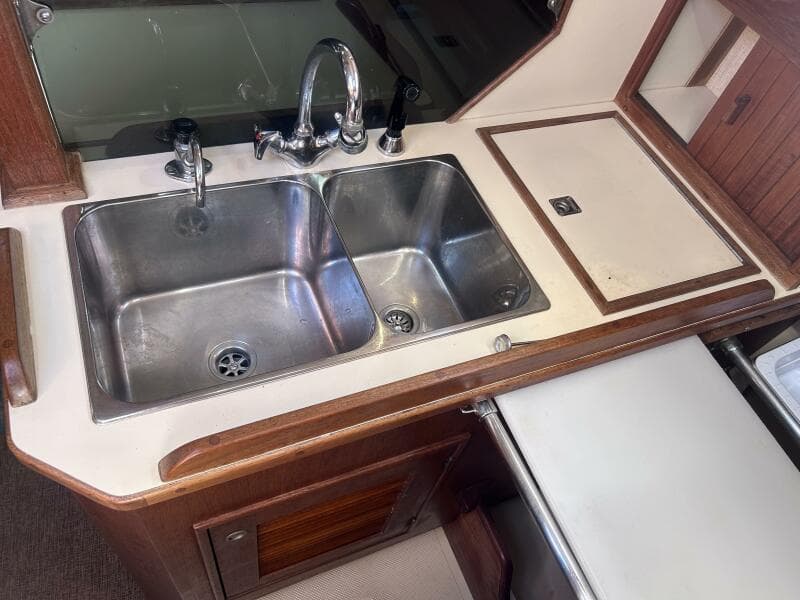

• Deep double Stainless Steel Sink Brass Faucet (Faucets and stem valves lubricated and replaced Summer 2024)
• All Cabin/Deck Hardware and Screws/Bolts Inspected/Tightened/Replaced (Summer/Fall 2024)

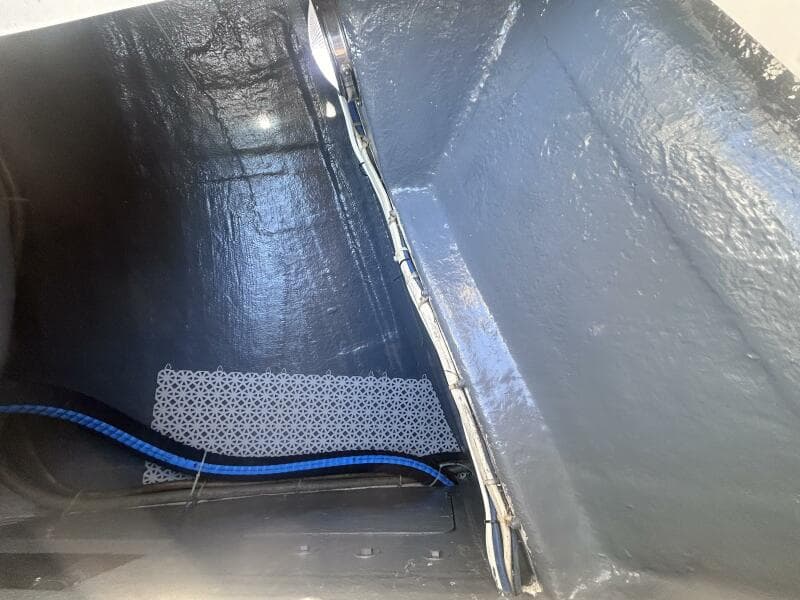

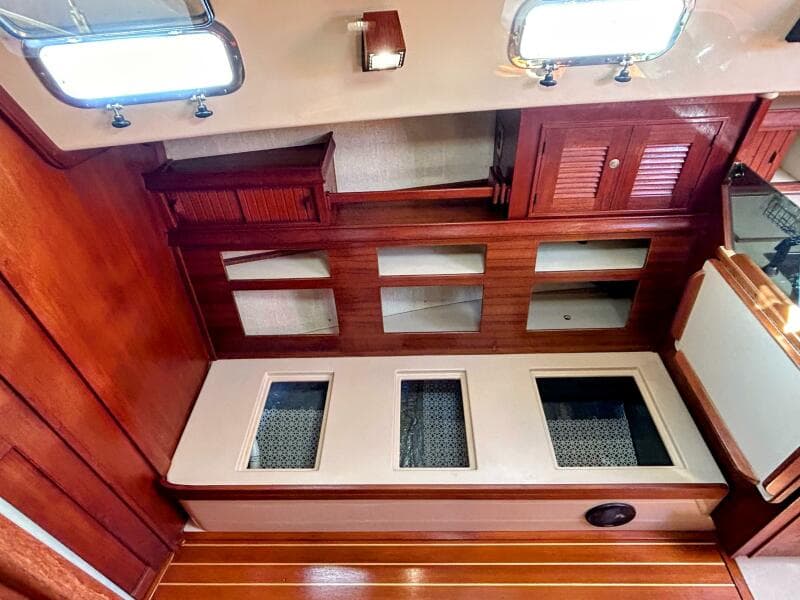

• Stowage Lockers Under Berths/Settees (80% Lockers Painted with Bilge Cote Battleship Grey 2023), (All Lockers fitted with Plastic Pool Deck Grating to protect and provide Air Flow between the Hull), (Labeled lockers for quick, visual understanding of access to primary systems within), (Locker Access Covers Painted Bilge Cote Ivory, 2023)

• Standing Rigging Stainless Steel Braided Wire: (Age 2018)
• Replaced Bobstay with Solid Stainless Rod Rigging, (New 2014)
• Chainplates: Original 316 L Grade Stainless, Top Grade Stainless: 316 L is not the same as the older yachts with reported issues that were constructed with thinner plates and with less corrosion resistant stainless 304, 304 L, 316, respectively.
• Rig Inspected Aloft 2024, (Rig Tuned 2022), (Mast Head Truck, Blocks Tackle, Seizing, Shackles, Spreaders, Clevis pins/Cotter pins, Shrouds,Stays, Deck Connections),(Rig Bi-WeeklyWashedwithFreshwater/ Special attention to Termination Swages/ Turnbuckles etc.)
• Twin Back Stays (Extra Mast Security/Better Load Distribution)

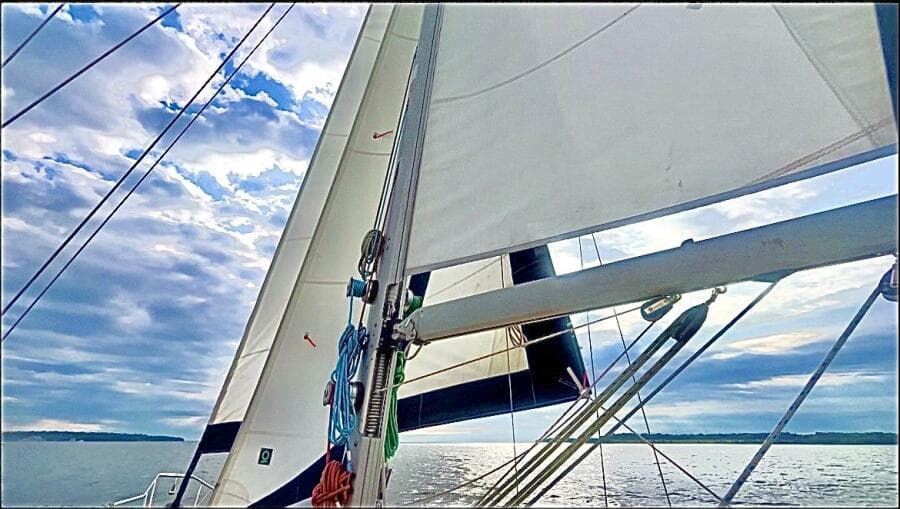

• Genoa: 130% Harken Furling, Charleston Spar, Quantum, 2011, 3 Reefs, Dacron, Good condition
• Staysail: 100% Self Tacking, Harken Furling, Charleston Spar, Hoyt Boom, Quantum, 2011, Dacron, Good condition
• Mainsail: In-Mast Furling Quantum, Recut in 2021, by North Sails, Dacron, Good condition

• Lubricated All Running Rigging Cars, Tracks, 3x Furlers, Gooseneck, load points, etc. (Summer 2025)
• Gennaker/ Cruising Asymmetrical Spinnaker - North Sails, Good Condition
• Main sheet led to the cockpit
• Spars: Mast, Booms, Spreaders, Anodized Aluminum
• Staysail sheet and traveler sheet (Led to Cockpit), (Good Condition)
• Genoa sheets Cockpit, Good Condition
• Reefing Lines all led to Cockpit New 2023
• Halyards at Mast Base
• Flag Halyard/ StormTrysail/ Riding Sail Halyard led to the cockpit.
• Running rigging lines (Sheets, Halyards, Topping Lift, Traveler Sheets (New 2023 “Dynamic”) Reefing lines (New 2023))
• Spare Running Rigging and lines are in Storage
• Mast Base Winches x3 (Spinnaker Halyard (Lewmar-8)), (Staysail Halyard (Lewmar-16)), (Headsail Halyard Lewmar-16)), (Rebuilt/greased 2022), (Hot water Flushed 2025)
• Flag/Burgee Halyards Port/Starboard Spreaders (Currently No Lines Reeved)

• West Marine Stereo/ Bluetooth Alpine Surround Sound (6x Speakers: 4x Cabin, 2x Cockpit)

• Windex (New 2020) Wind-Indicator (Mast head)

• RayMarine MN100-2Wind Anemometer Mast Head (Solar Powered) NMEA – 1083 Navigation/Electronics Interface

• B&G Depth Sounder (Nav Station Repeater), (Companion Way), (Hull-Mounted Internally No though Hull)

• B&G Log-Speedometer (Nav Station Repeater) (Companion Way), (Thru-Hull /Spin Wheel)

• B&G GPS (Nav Station Repeater), (Companion Way) GPS Plotter: Garmin “GPSMAP 742+” (2021) (Custom Protected Helm Mount)

• Standard Horizon Explorer VHF Radio w/RAM MIC (x2 handsets) (NAV Station/ Helm Seat)

• Compass Integrated in Helm (Richie Power damp), (Red/Green Night Illumination)

• Shakespeare VHF Antenna/New Coax in Mast (New 2018)

• Simrad Robertson AP22 Autopilot

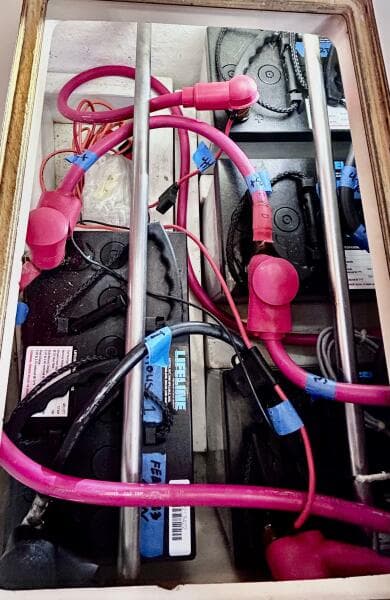

• House Batteries (Four Lifeline AGM deep cycle batteries New 2023)
• AmpHours(Total 400, Deep Cycle 300, Starter 100)
• Emergency Battery Parallel “Cross Connector” Switch
• Battery Box (Cleaned 2023)
• Engine Control Panel Rebeded 2024 (New Key/Ignition Switch 2024)
• New Frosted Plexi Glass Gauge Pannel (Splash /Kick Protection)
• Electrical Pannel/Breaker(Cleaned Inspected 2024), (Main Wiring Harnessistidy and organized)
• Circuit breakers- DC 12V - electrical panel
• Dual Circuit Breakers - AC 115V - electrical Panel (2x), (1x Stand alone for MarinAire AC/Heat System), (1x Load Distribution Source)
• Installed Battery Charger Controller (Charles Raritan B30 Amp Automatic Charger), (Ignition Protection)
• 115V AC (9x Total), (4x Outlets), Port (5x Outlets), Starboard (Upgraded AC 115 receptacles covers polished brass 2022)
• 12V DC Outlets: (5x Throughout Cabin/Cockpit “Cigarette Lighter Plugs”)
• 19x Interior Cabin and Locker Lights (Upgraded to LED White/Red New 2023), (Serviced/ lubricated cabin light switch’s 2024)
• Running Lights Port/Starboard Bow (Portable)/Stern (Installed)
• Mast Head Anchor(Operational)
• Mast Steaming Light (Operational)
• Mast Deck Illumination Light (Not Operational), (Have Spare Bulb)
• Shore power cords(x2, 50 feet length) (30Amp)
• Shore Power Surge Protector
• Shore Power cord Protective Cover for Deck/Dock/UV/ Chafe Damages

Propane/Multipurpose locker: Starboard Deck (Vented/Plumbed Overboard)

• Polished Topside Stanchions/Pulpits (2024)

• Rigid Vinyl Rub rail (Stainless Strakes)

• Inspected All Deck Screws/BoltsInterior/ Exterior/ Torqued/Tighten/Snugged (2024) (Inspected forleaks after adjustments)

• Stainless Dual Bow/Anchor Roller

• 1x ROCNA 33kg Anchor

• Primary Chain 100 ft 5/16 High Test + Rode

• Secondary Chain 15 ft + Rode

• V1 Lewmar Powered Electric Windlass (New 2010) (Used Duct Seal to prevent Rain and Bow spray water infiltration)

• Remote Anchor Windlass Switch (Next to Helm in cockpit)

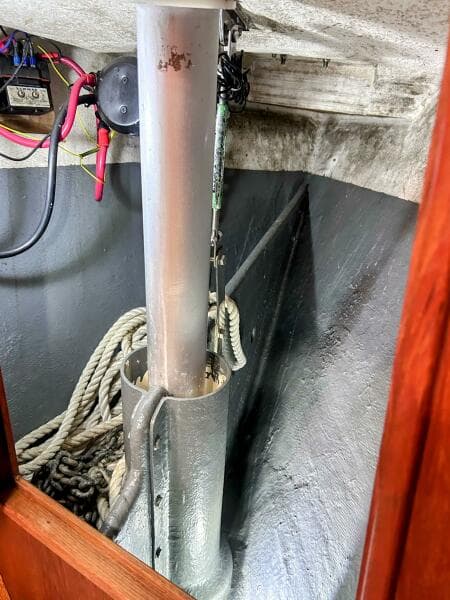

• Anchor Locker repainted Bilge Cote Battleship Gray (2023)

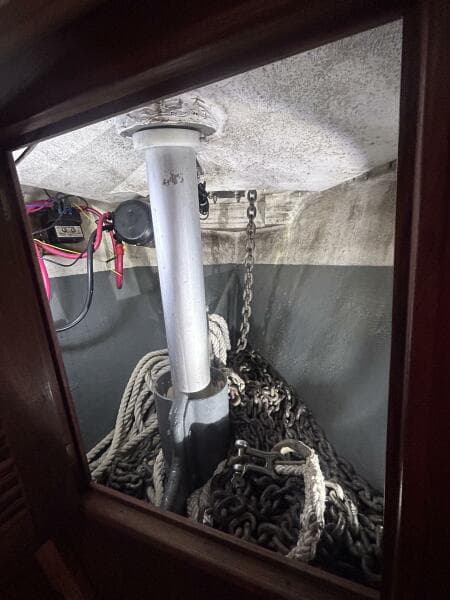

• Anchor Locker x2 separate Anchor Chain and Rode Compartments

• Each Anchor Rode has two separate Hawse pipes leading to Anchor Locker

• StainlessDodger Frame (New 2017), (Stowed/inspected for Winter) (All Inspected and retreated with Waterproofing/UV Protectant, Stitching Waxed Fall 2024)

• Stainless Bimini Frame (New 2010), (Stowed/inspected for Winter), (All Inspected and retreated with Waterproofing/UV Protectant, Stitching Waxed Fall 2024)

Rub strakes Upgraded More Installations (Winches/Cleats/Companionway),

• (Stainless Rub strakes New 2024), (Engine Cover Fiddle Recalked 2023)

• Stainless Sampsons Post(Upgraded robust New 2023), (Properly Backed)

• 2x Starboard (Marine plastic) Anchor Chafe Guards (New 2023), (Originals convey and are Varnished Teak and in excellent condition, can be easily reinstalled if desired)

• 6x 10” Cleats (FWD, MIDSHIP, STERN)

• 6x Open Chocks

• 1x Outboard Motor Mount (Push pit)

• 2x Stainless stern cleats &stern chocks (Stainless Rub Strakes New 2019)

• Stainless Grab Rail Coach Roof (Rebedded Port and Starboard 2024)

• 4x aluminum combing Cleats x2 Port/Stbd

• Headsail Tracks and Cars (Lubricated 2024)

• Primary Main/Staysail Winches (x2 Lemar 30 self-tailing), (Chromed Bronze), (Rebuilt/Regreased 2022)

• Primary Genoa Sheet Winches (x2 Lemar 40 self-tailing), (Chromed Bronze), (Rebuilt/Regreased 2022)

• Aluminum Main Sheet Cabin Top Traveler (Inspected and worn traveler car shackles upgraded 2022), (Rebeeded Track 2023)

• All Deck Pad Eyes(Rebedded 2023, Additional Stainless Eyes added for redundancy/ Snatch Blocks)

• Jib Sheet Cars (New 2018)

• 6x Aluminum Lexan deck hatches (Gaskets Serviced and Inspected Spring 2025), (Integral/removal swing up Bug Screens), (Serviced Hinges Spring 2025), (Polished Plexiglass Spring 2025)

• 9x Stainless opening portlights (Gaskets Serviced and Inspected Spring 2025), (All Dog, Knobs Replaced 2023)

• 10x Custom Fitted/ Tinted Frosted Plexiglass Portlight Privacy Shades

• 9x Factory Bug Net Screens for Stainless Portlights

• Custom Teak Companion Way Bug Screen

• 3x Dorade ventilators(Cleaned Summer 2025), (Rebeded 2024)

• 1x Stainless hawse pipe cover (Used Duct Seal to prevent Rain and Bow spray water infiltration)

• Deck mounted screwssnaps and clips for Dodger/Bimini (Rebeded 2024)

• Bow Pulpit Stainless(Safety Bar/Structure upgradeNew Summer 2024)

• Stern pulpits Stainless

• Deck Stanchions Stainless

• Double (Top/Bottom) Stainless Lifelines (Plastic Covered), (Swage/ Turnbuckle Pelican Hook)

• 4x Cockpit Safety Personal Harness Padeyes (Stainless)

• “Catbird Seats” Fiberglass Cockpit Seatsmounted to Stern push pulpit

KATO Dinghy Davits(CustomStainless Supports Added for Rigidity /Load Distribution (Transom Mounts), (Mechanical Block & Tackle Purchase)

• Folding Swim/Dinghy Ladder Transom Mounted

• Cockpit Table Folding Leaf not used (Good Condition in storage)

• Cockpit Fresh Water Washdown/Shower (Water Heated by Engine) (DC Water Pump)

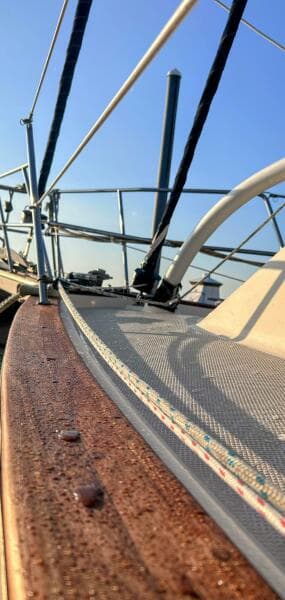

Brightwork: Teak Toe/Cap Rail, Bowsprit, HelmSeat, Eyebrow etc. (All bright work striped and refinished (Semco), (New Fall 2024), (Touched up Summer 2025)

• Deck Waxed and Buffed Spring 2026

• Teak Companionway rails and teak Cockpit combings (Sikkens Cetol Oil), (Touched up Summer 2025))

• Integral Raised Hull Form Bulwarks Forward (Safety At Sea and Anchoring)

• Teak Combing (Storage Lockers for Misc. Lines /Winch Handles)

• Cockpit Scuppers (Large Self Bailing Offshore /Drains)

• Helm Cover(Weatherproof Green Canvas)

• Binnacle Sturdy (Stainless/fiberglass/powder-coated aluminum)

• Covers: Sunbrella Dodger, Bimini, Full Cockpit (Enclosure Vertiglass, BugScreen),

• Covers/Sail Covers etc. (All Inspected and retreated with Waterproofing/UV Protectant, Stitching Waxed 2024)

• 5x Weather foam cushions with durable fabric custom fitted to cockpit

• Built-In Cockpit Seat Cooler/Wet Locker

• Deep Sail lockers/Lazarettes Port and Starboard Side (Repainted Bilge Cote Battleship Gray 2023)

• Companionway hatch Seahood (Repainted Ivory 2024)

• High Bridge Deck Companion Way (Safety, minimized water ingress)

• Teak Companionway drop boards(Custom Island Packet Etched Star Glass) (Sikkens Cetol Oil),

• Teak companionway framing (Sikkens Cetol,Oil) (Touched up Summer 2025)

• Hull: Soda Blasted 2022

• Hull: Multiple Epoxy Barrier Coats (2022) (Interux)

• Hull: Red Ablative Paint Anti-fouling (Spring 2026) (Interlux)

• Internal encapsulated molded Lead ballast (6000 lbs.)

• Rudder (New Rudder 2022/Glass, Repairs Etc “FOSS FOAM INC”)

• 1-1/8" solid stainless rudder shaft post (Replaced New 2022)

• Full long keel (Attached Barndoor rudder Sand Skeg Rudder Shoe)

• 8x Bronze Seacock Valves: Various(3x Below the Waterline, 5x at the Waterline),(Valve Systems Exercised Monthly)

• 8x Through hulls Bronze (Cleaned Fall 2024)

• Cutlass Bearing (New 2022)

• Shaft Packing Gore-tex (New 2022)

• Stuffing Box Lubricated/Serviced (Fall 2024)

• Shaft Polished (2023)

• Shaft/Engine Alignment (2022)

• Shaft (Upgraded Manual Collar Lock, 2023)

• Hull Cleaned/Inspected Quarterly, Monthly/Summer Season “Fast Growth” (Cleaned and inspected)

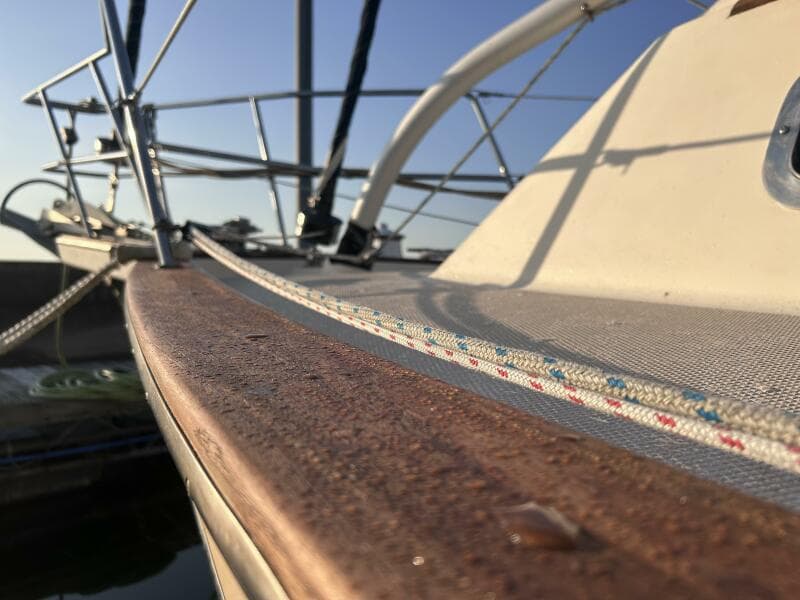

• Stainless rub stakes on toe rail

• Freeboard Hull Acid Washed/Waxed/Buffed 2020

• Interior gelcoat hull liner waxed Fall 2024

• Grounding Plate (Large Surface Area)

Assorted Logs/Manuals/Records ETC...

• Type IV PFDs

• Fire Extinguishers

• Assorted USCG Safety Equipment (Flares, Signaling Devices, Ditch Kit)

• Various Life Jackets

• Radar Reflector

• Running Rigging

• Dock Lines

• Fenders

• Misc. Galley ware (Pots, Pans, Plates Bowls)

• Misc. Safety Equipment

• Misc. Hardware

• Misc. Replacement Parts

• Misc. Spares

• Misc. Equipment

Listing MLS by Yachtr.com
