Name: 1994 Nautor Swan
Brand: Nautor Swan
Price: 941600 USD
Availability: InStock

Description

Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Northrop and Johnson. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

Overview

Key Specifications

LOA77' 1"

Beam19' 8"

Draft Max11' 1"

Draft Min3' 1"

TypeSail

Hull MaterialGRP

FuelDiesel

Cruise Speed10 Knots

Max Speed12 Knots

Weight & Measurements

Gross Tonnage57

Displacement51 lbs

Accommodation

Cabins4

Sleeps8

Heads4

Tankage

Fuel460 gal

Water367 gal

Registration & Documentation

Registration PlaceLondon

Engines

Cummins QSB 6.7

MakeCummins

ModelQSB 6.7

Power0 HP

Full Details

GENERAL DESCRIPTION

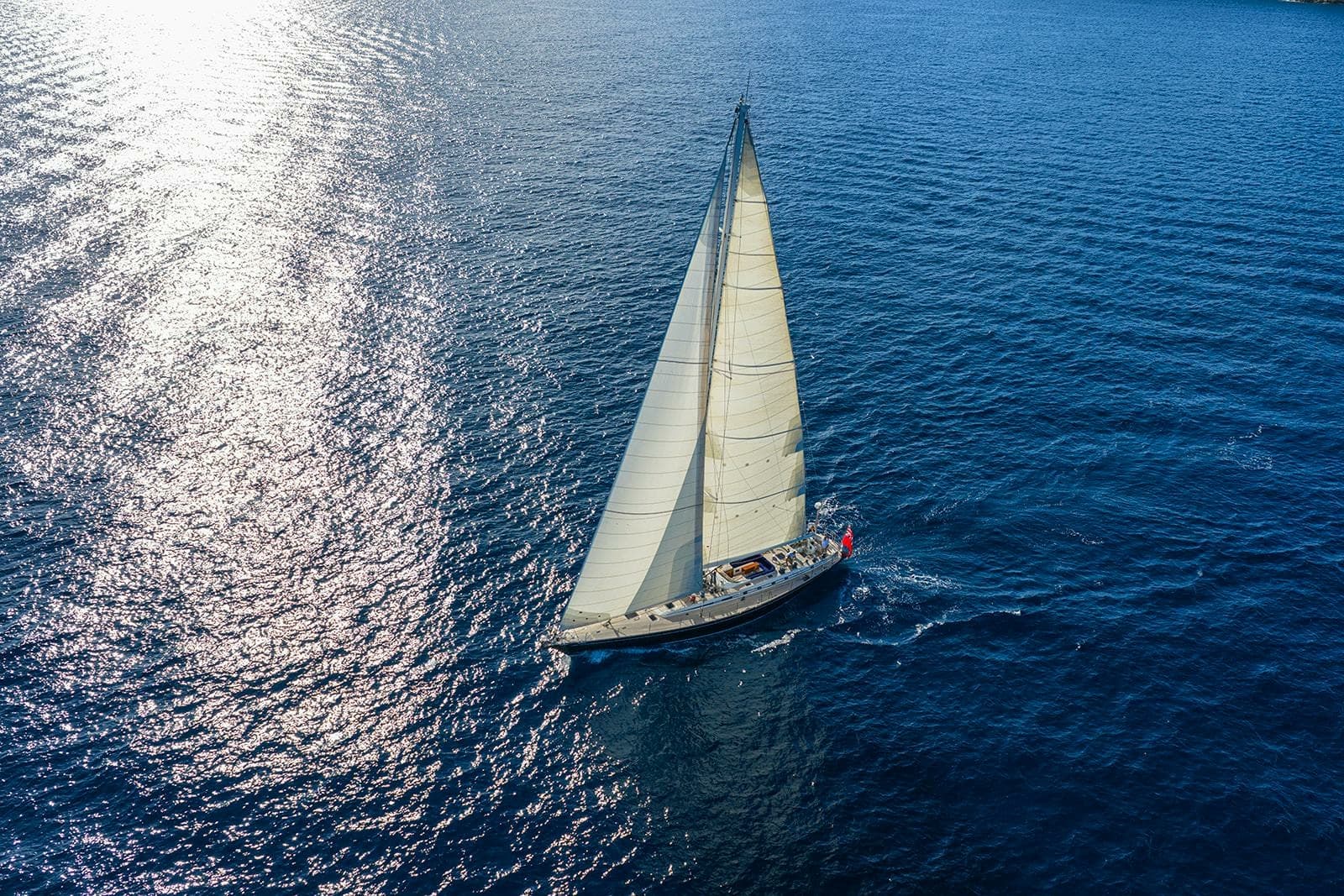

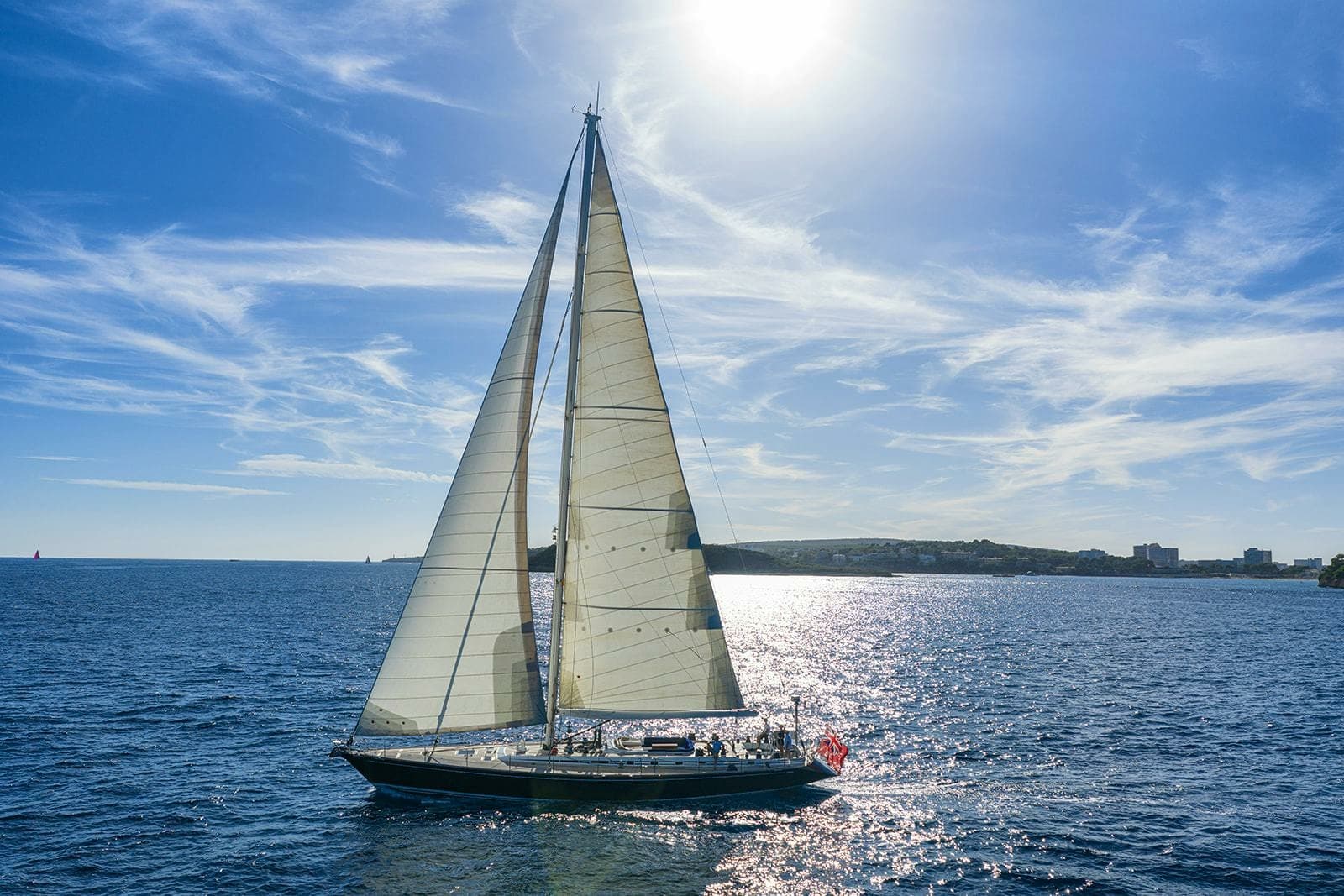

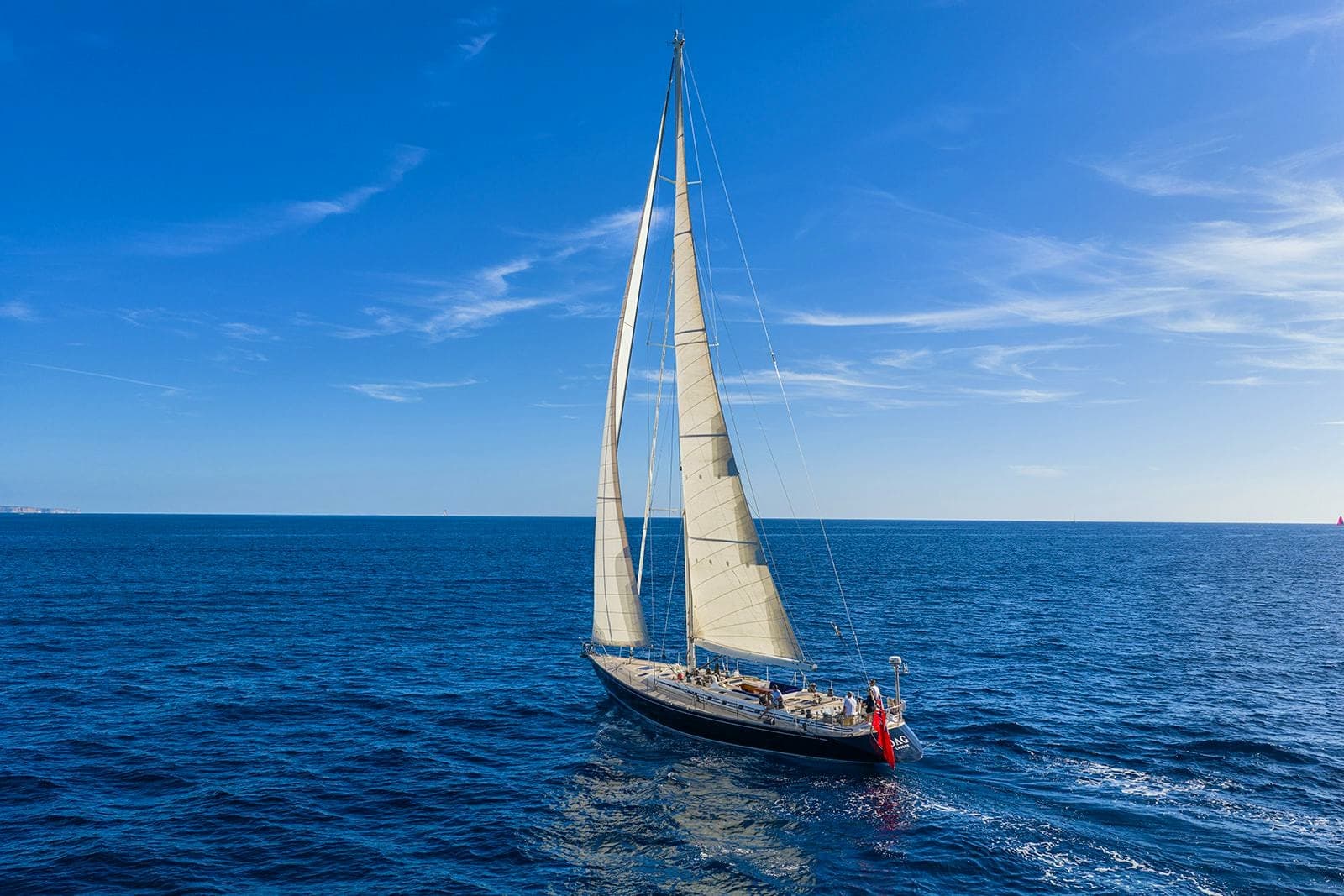

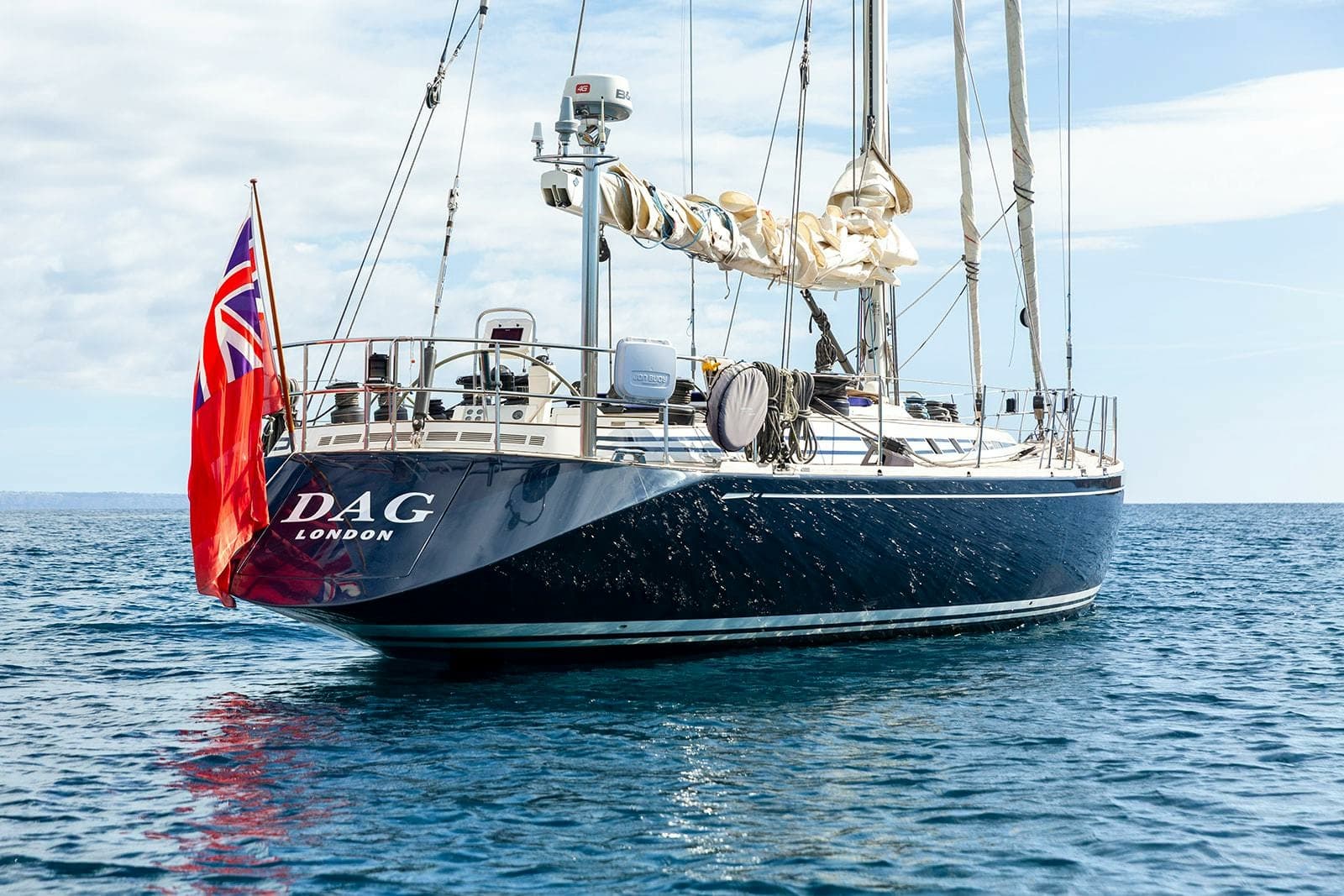

DAG, the 23.60-metre Nautor Swan 77, is hull 4 of the acclaimed 77 Swan series. She was built in 1994 and is celebrated as a potentially most elegant Swan crafted by designer Frers. It boasts numerous recent upgrades including a new engine in 2022, and new generator and teak deck in 2023 and 2024 respectively. Further improvements made in 2024 include new rod standing rigging and overhauled winches and a new teack deck. The yacht is equipped with a carbon mast and boom, and features a sophisticated navigation and communication system by B&G, including chartplotter, radar, and AIS. With a VAT fully paid status, the Swan 77 also includes a variety of modern amenities such as air conditioning throughout, high-end galley appliances, internet Wi-Fi, an entertainment system with a flat-screen LCD TV, and several audio options. Cabin comforts are accentuated with features like a refrigerated wine cellar, a washing machine, dryer, and dishwasher. She accommodates 8 guests in 4 cabins.

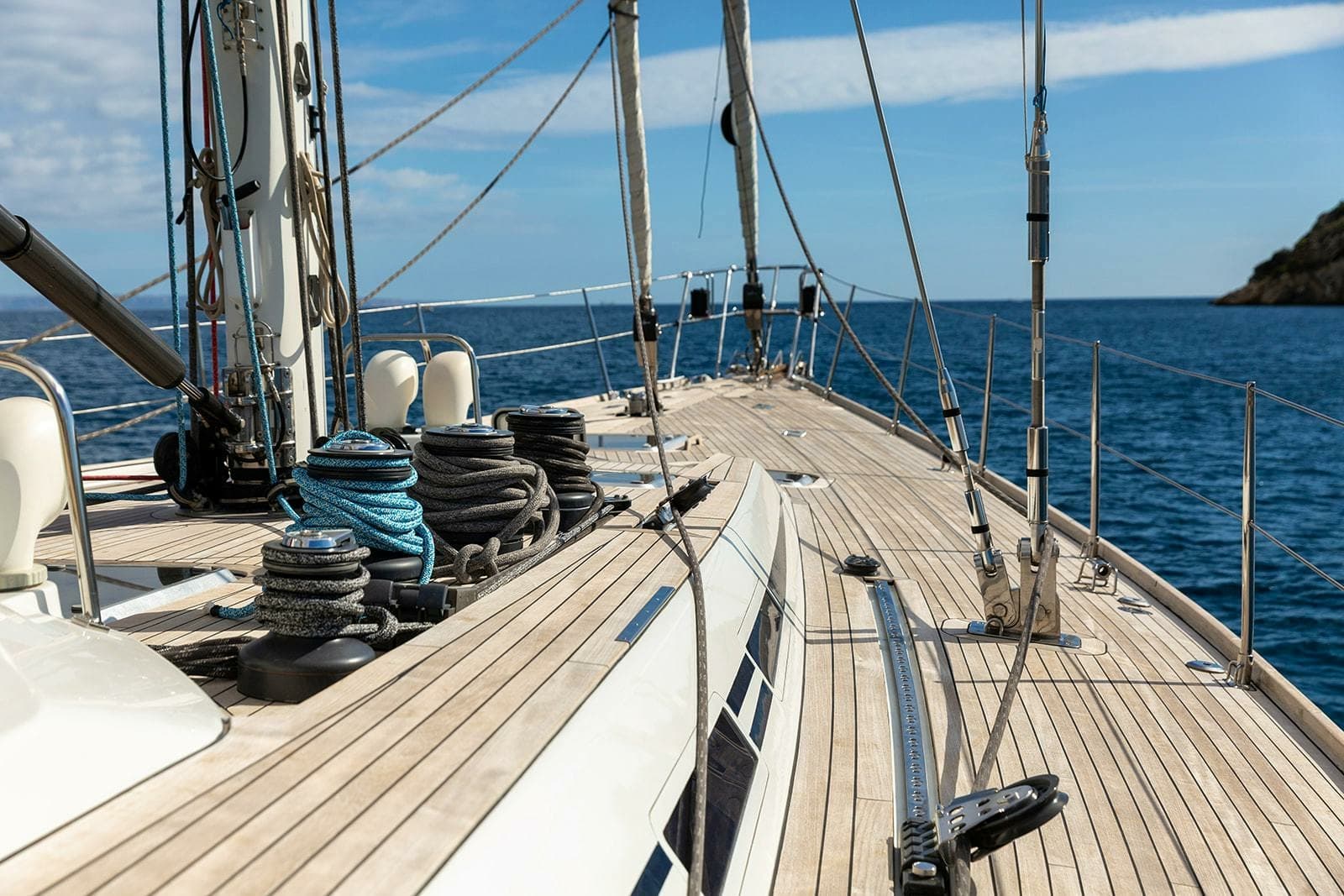

DECK EQUIPMENT

Bow stainless steel pulpit with sit and gate
Stainless steel stanchions with port and starboard gates
Stern radar and tv antennas stainless steel pole
6 ballards (2 stern, 2 amidship, 2 bow)
2 stern openable fairleads
8 bulwark fairleads

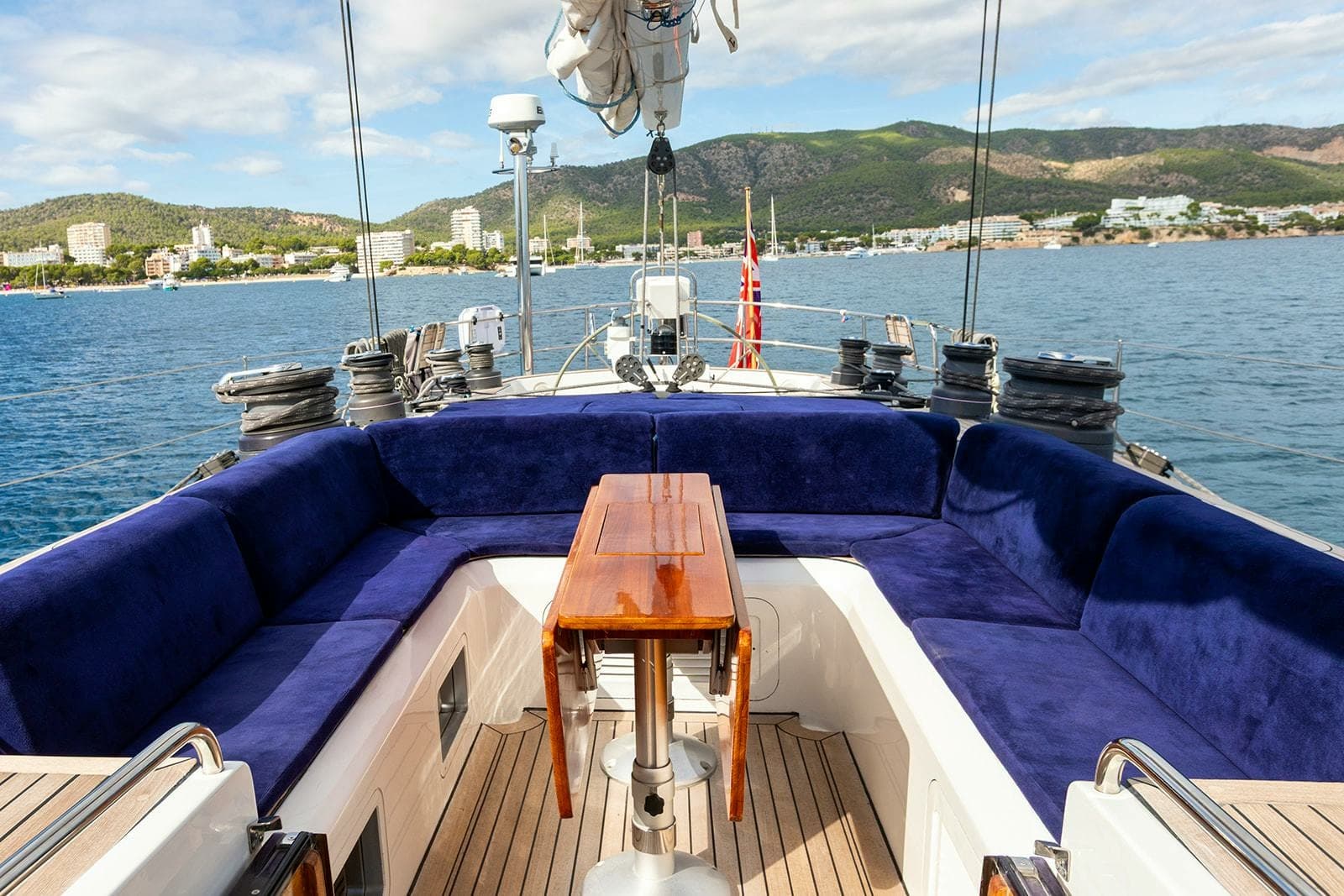

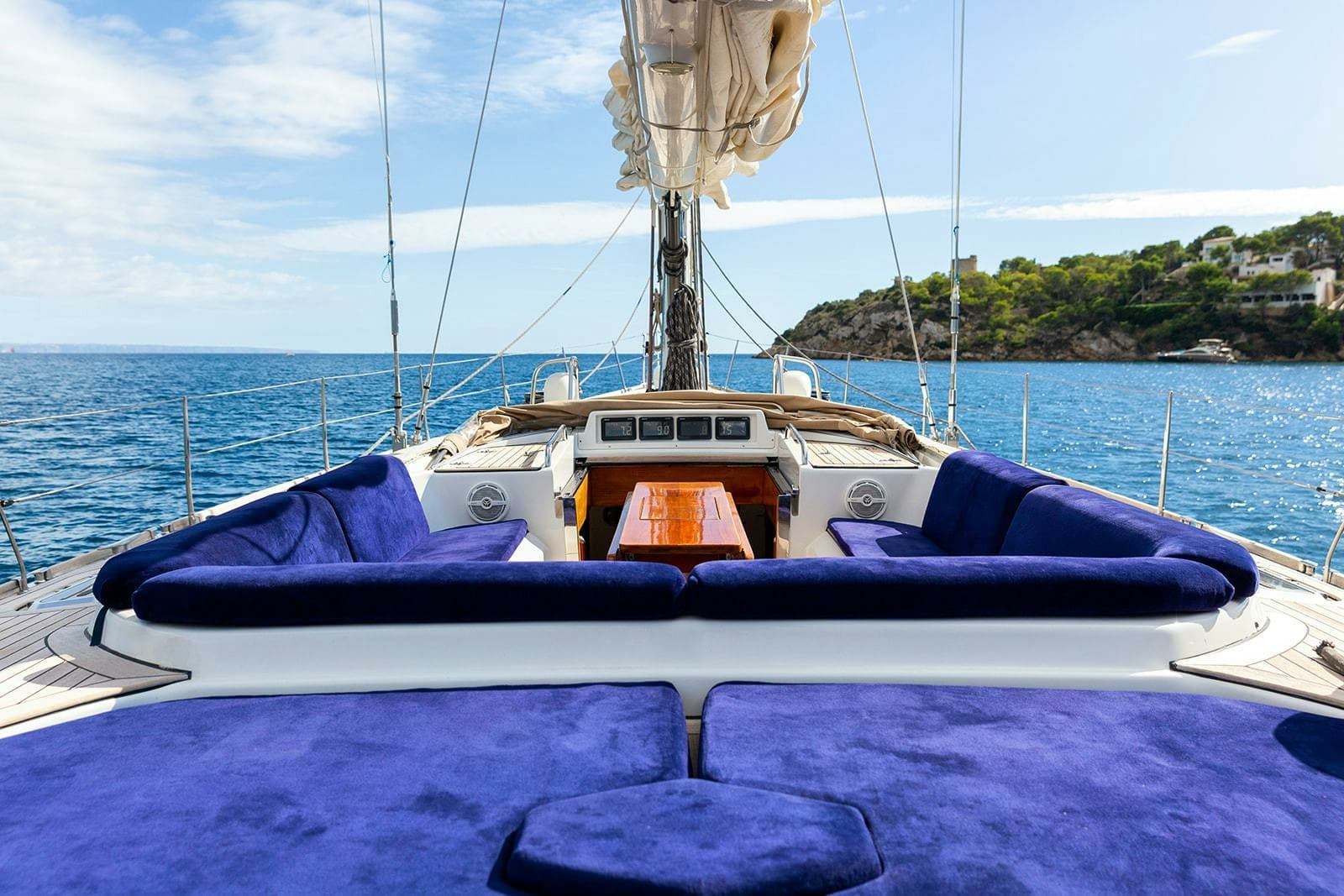

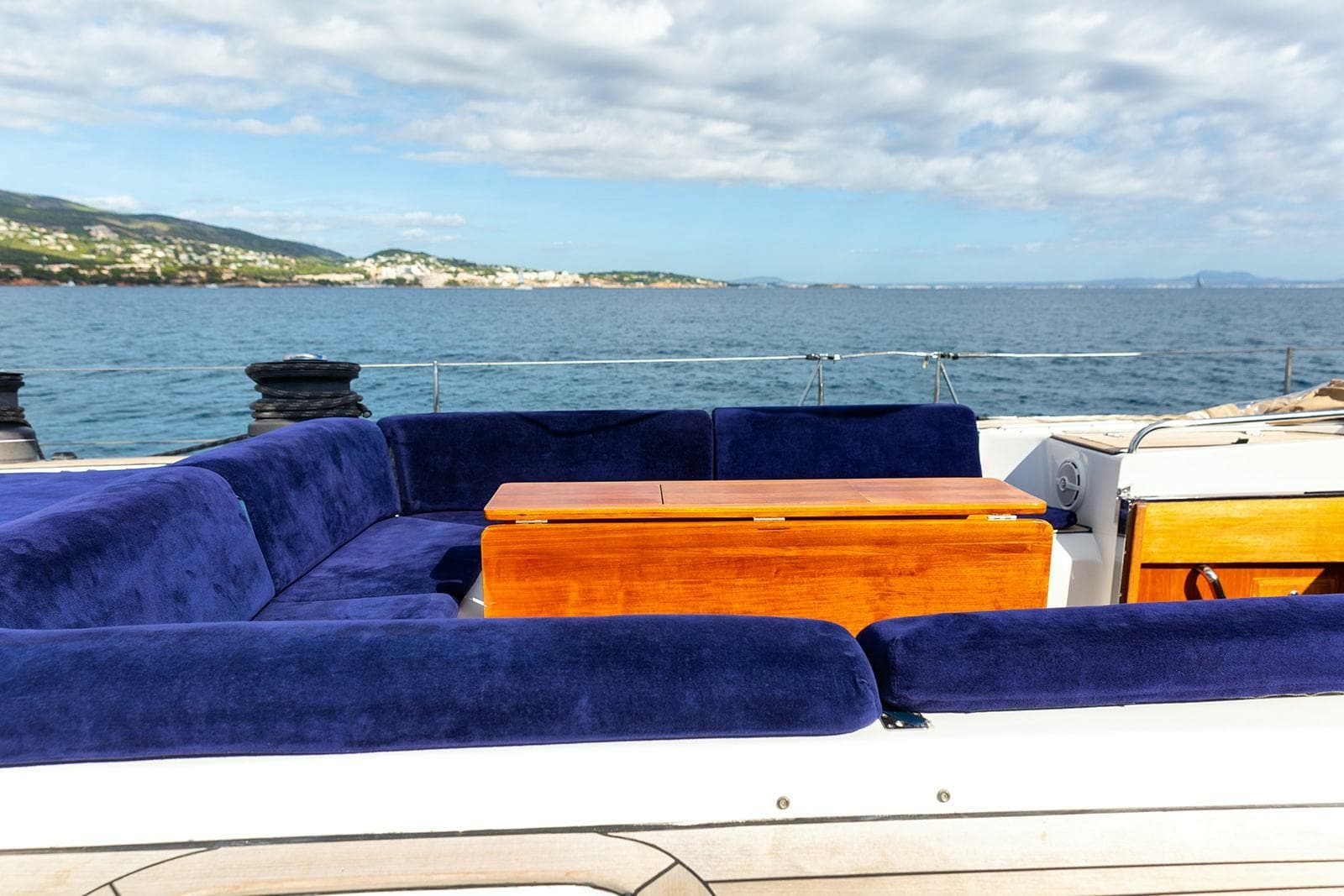

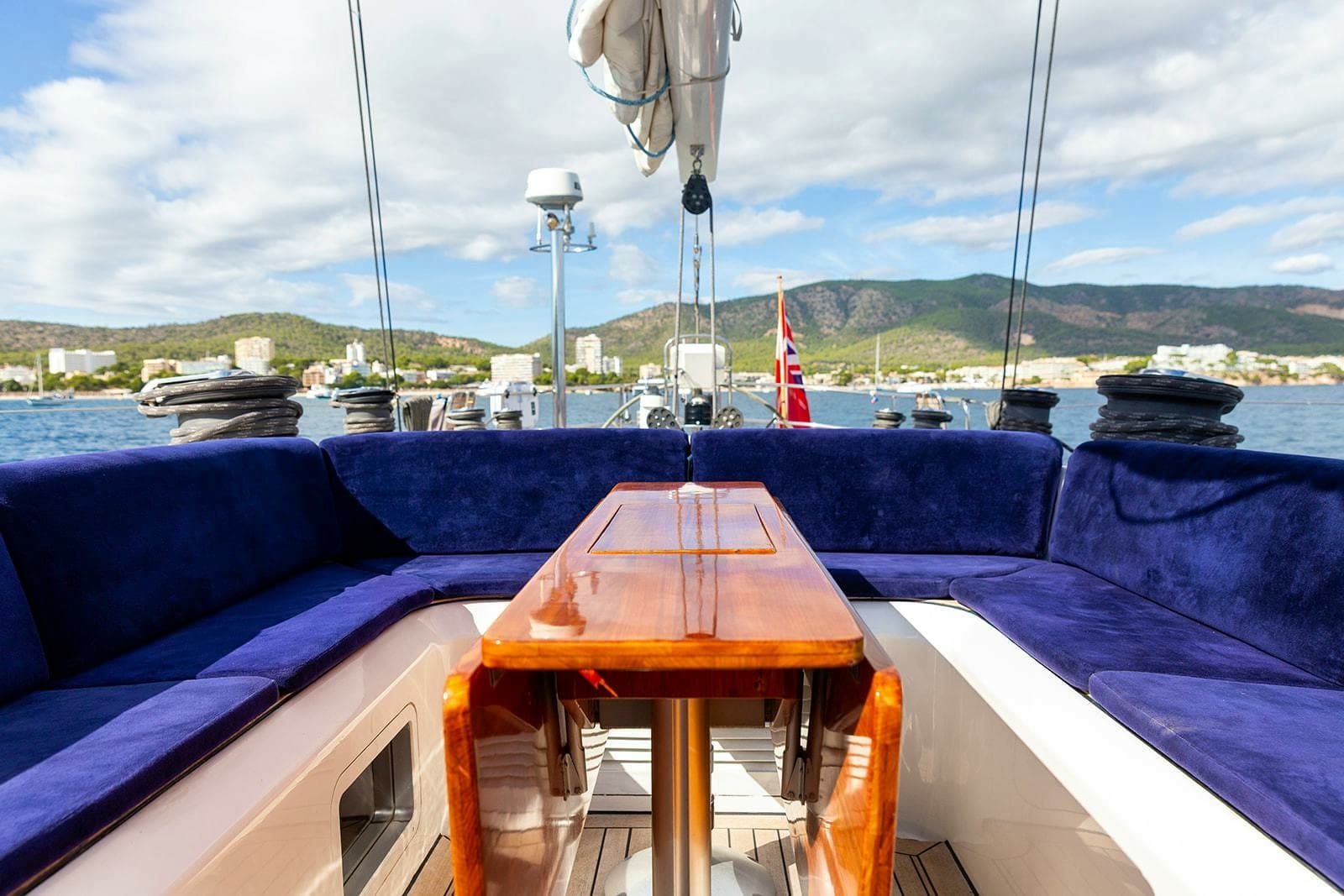

Fore cockpit folding table
Dodger
Fore cockpit cushions

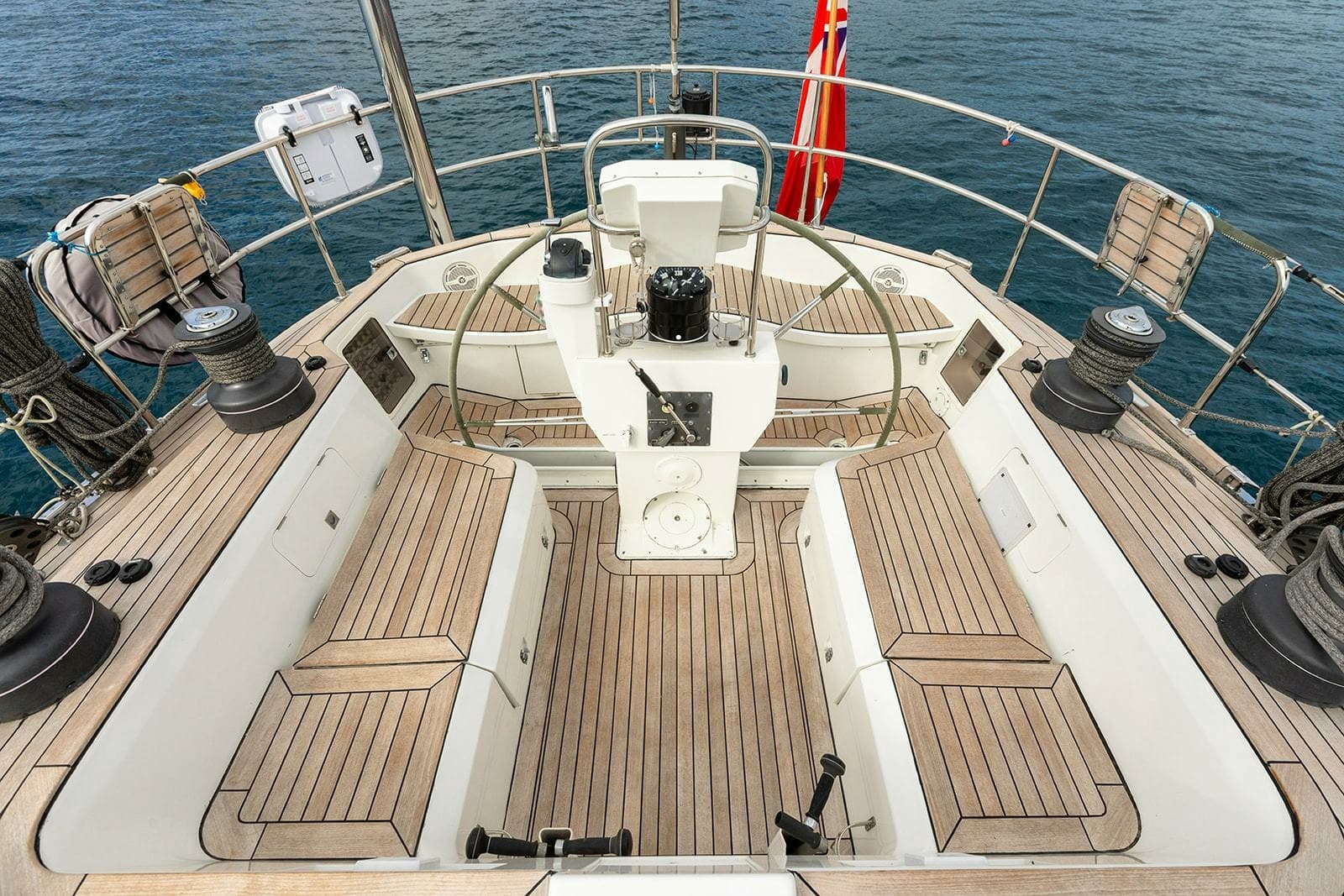

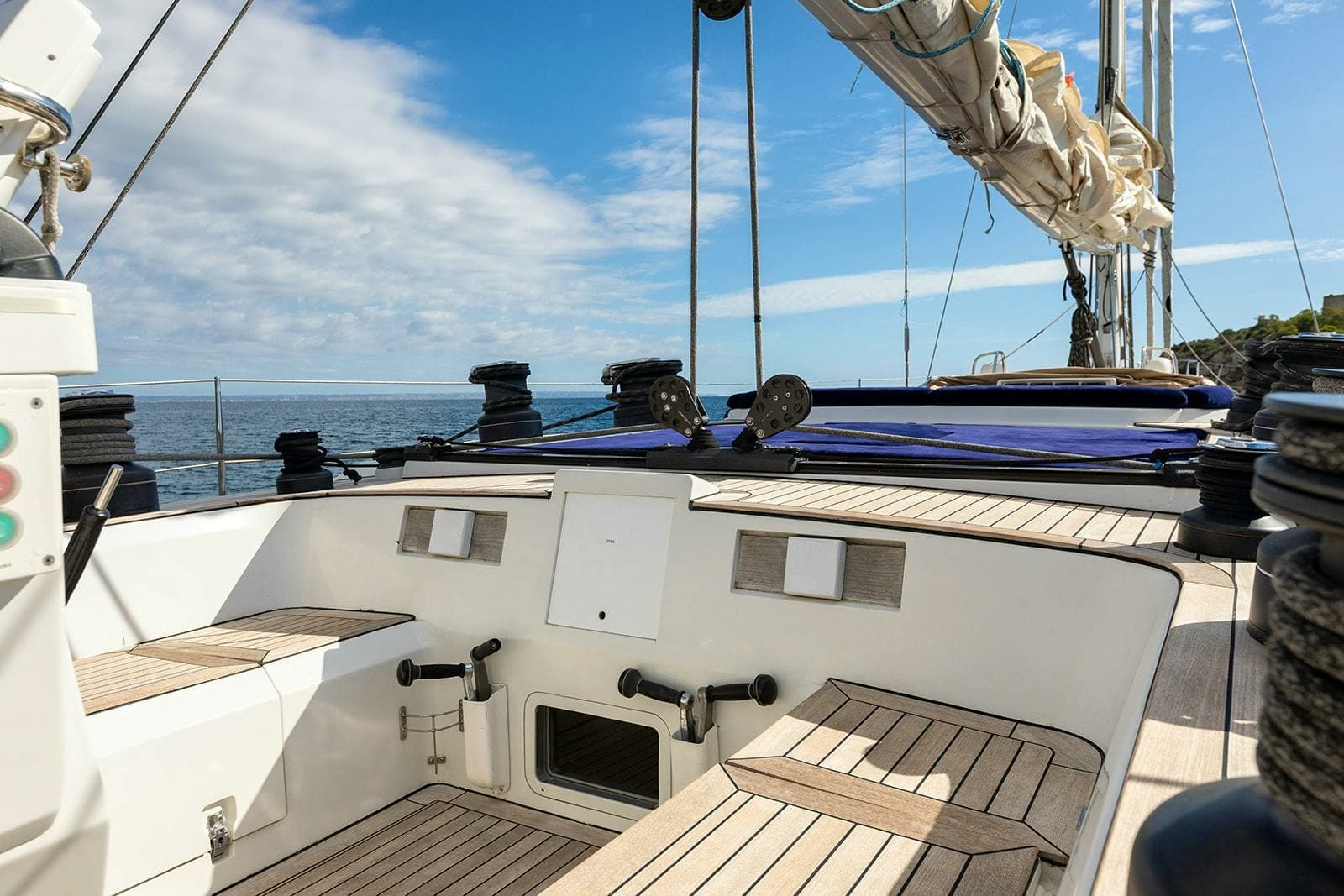

Aft cockpit cushions Wheel Cockpit: Instrument dashbord with plotter/radar display, autopilot control, bow thruster control, electronic engine trottle, engine display, hydraulic fore furlers controls
70 inches wheel elk leather covered
GRP rudder filled with foam, hardened rudder shaft
Stern ventilated gas locker
Hydraulic transom hatch Instruments on deck: 4 B&G H2000 displays above the companionuccio di entrata
Simrad NSE 8, B&G FFD plotter/radar

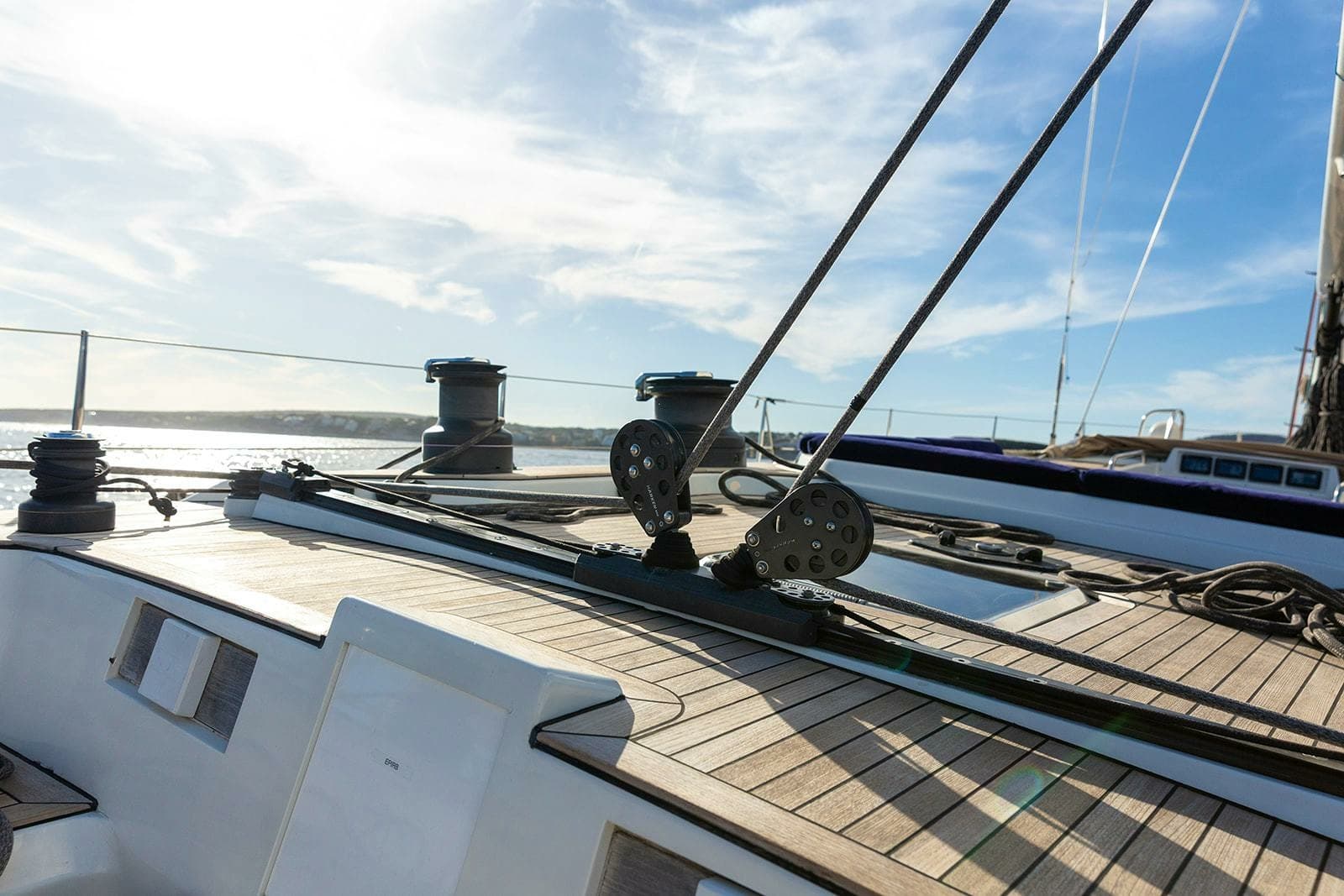

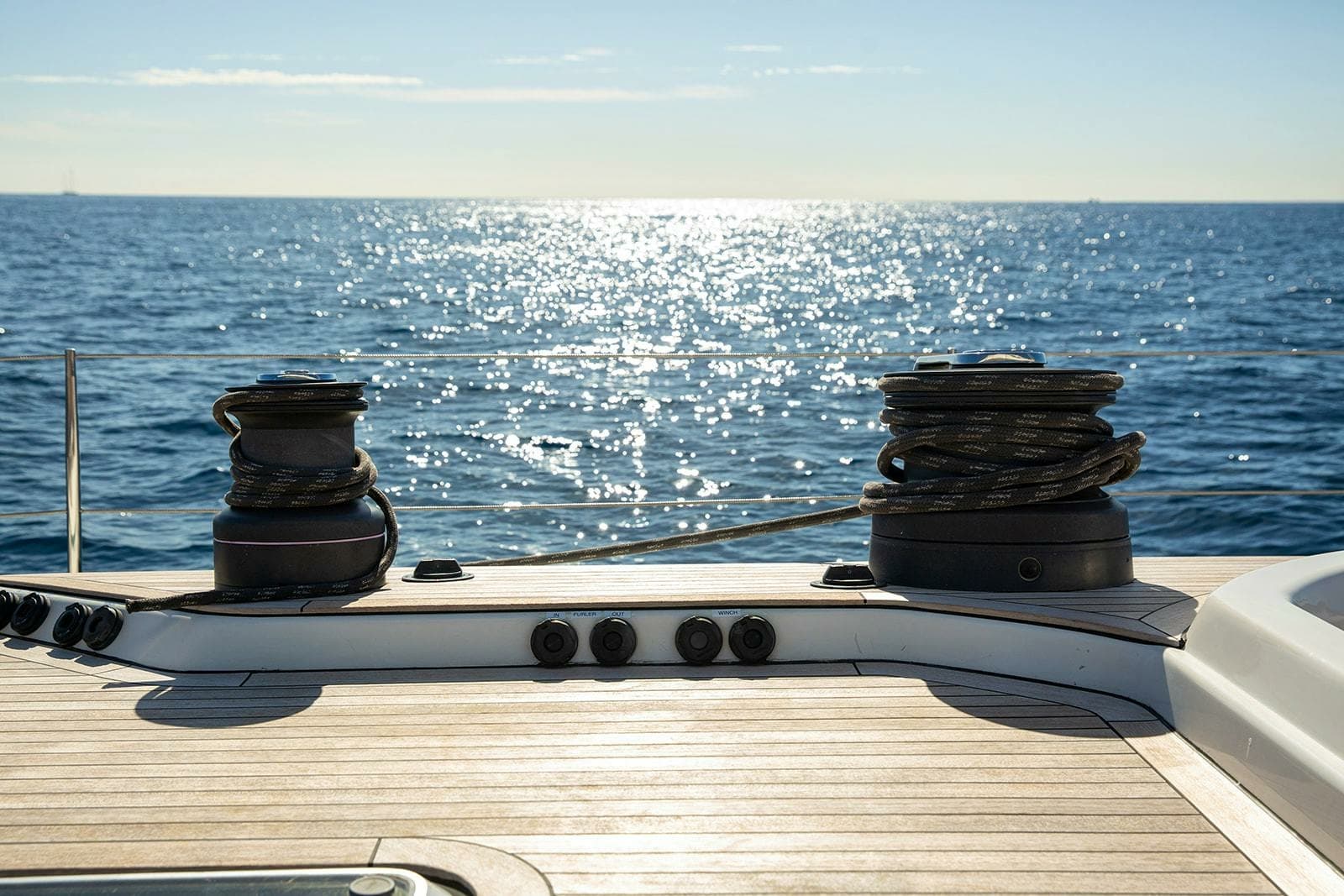

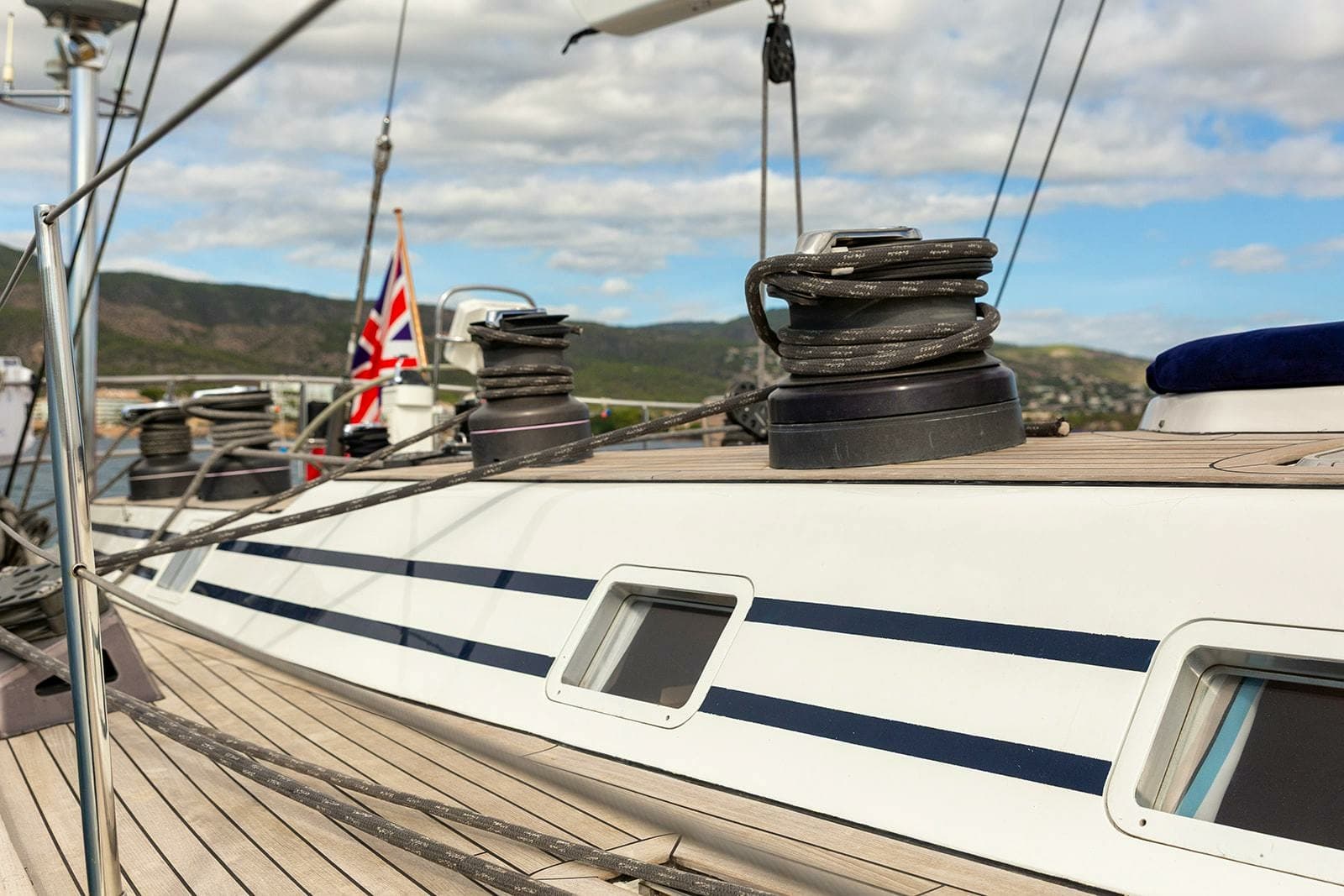

Electric panel Winches: 2 mainsail Harken 42.2 ST
2 downhaul Harken 53.2 ST
4 reef Harken 66.2 ST

RIGGING, MAST AND SAILS

Rigging and mast
Carbon mast
Triple spreader with led lights
Separated storm mainsail Harken rail
Nitronic 50 stainless steel rod shrouds (replaced in May 2015)
Carbon boom Standing rigging
Brands: Harken, Spinlock, Nautor.
Genoa jib and staysail sheet stainless steel Harken rails
Main sail Harken rail
3 + 3 + 2 reef Spinlock jammers

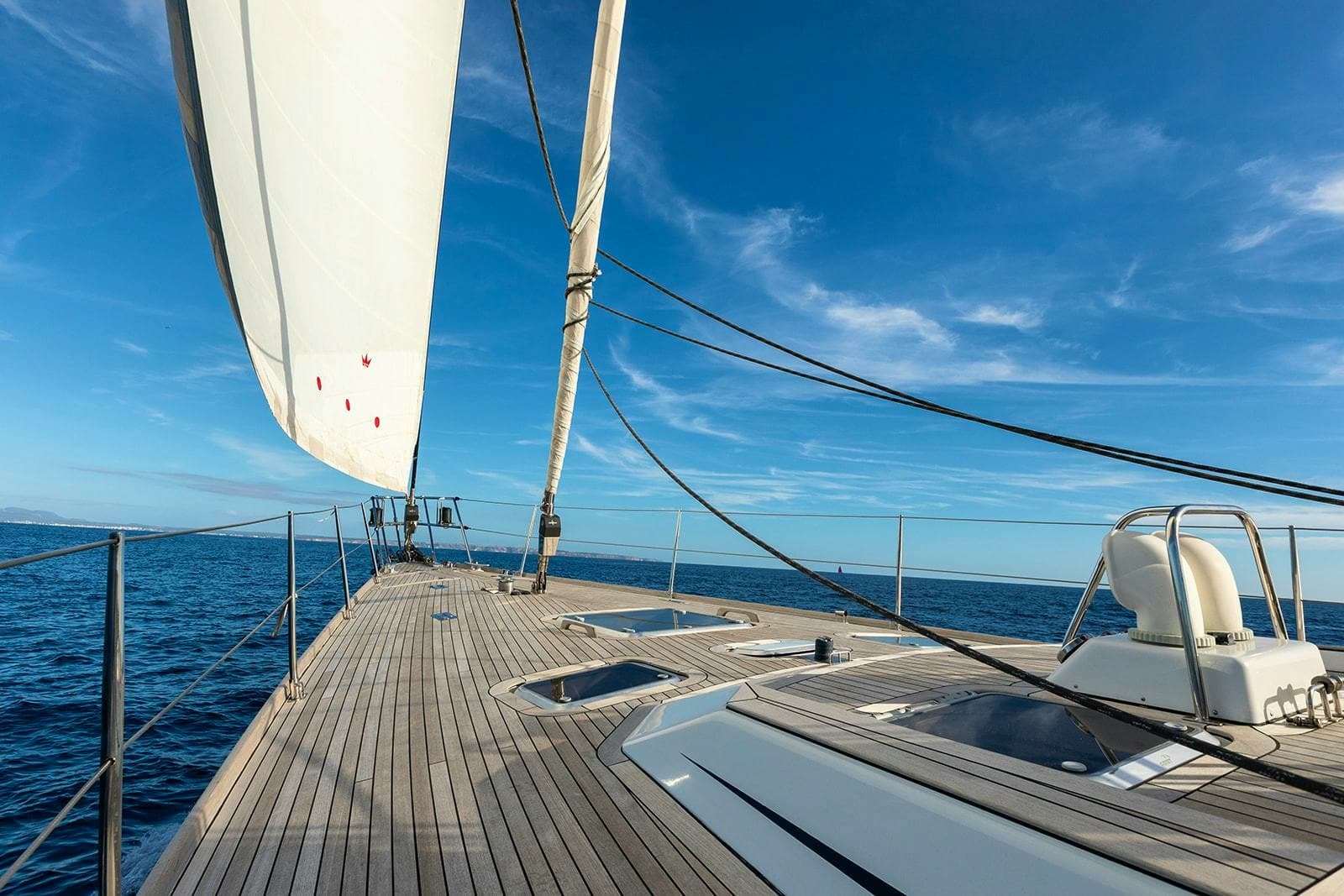

Sails (cutter rig)
1 dacron Elvtröm full batten mainsail
1 dacron Elvtröm jib
1 dacron Elvtröm staysail
1 gennaker Elvtröm with sock
1 dacron Elvtröm storm mainsail

I = 30,00 m

J = 9,10 m

P = 27,40 m

E = 9,10 m

Fore triangle = 136,5 m²

Main sail = 124,7 m²

100% jib = 136,5 m²

Spinnaker = 491 m2

ACCOMMODATIONS & INTERIOR

Owner:

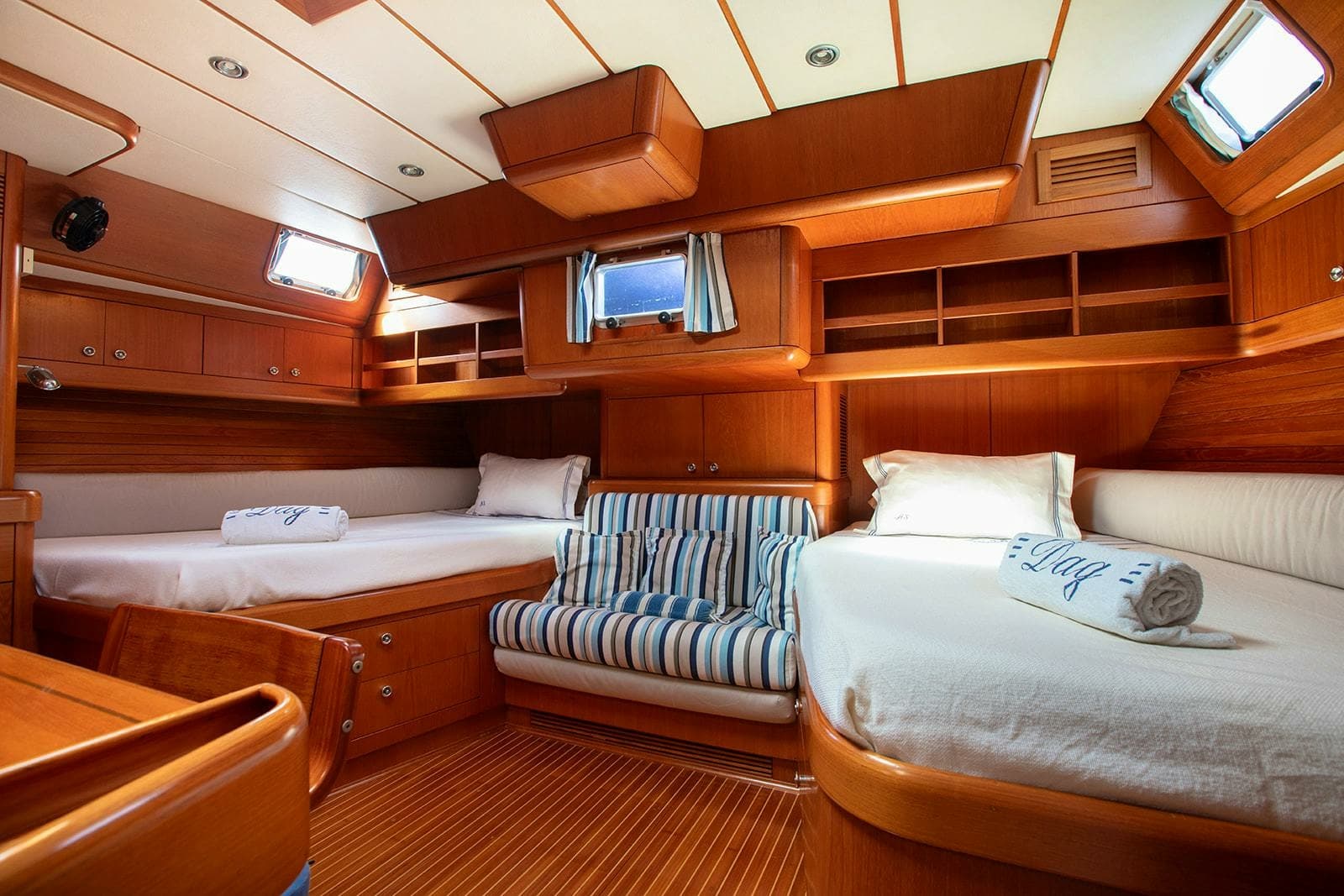

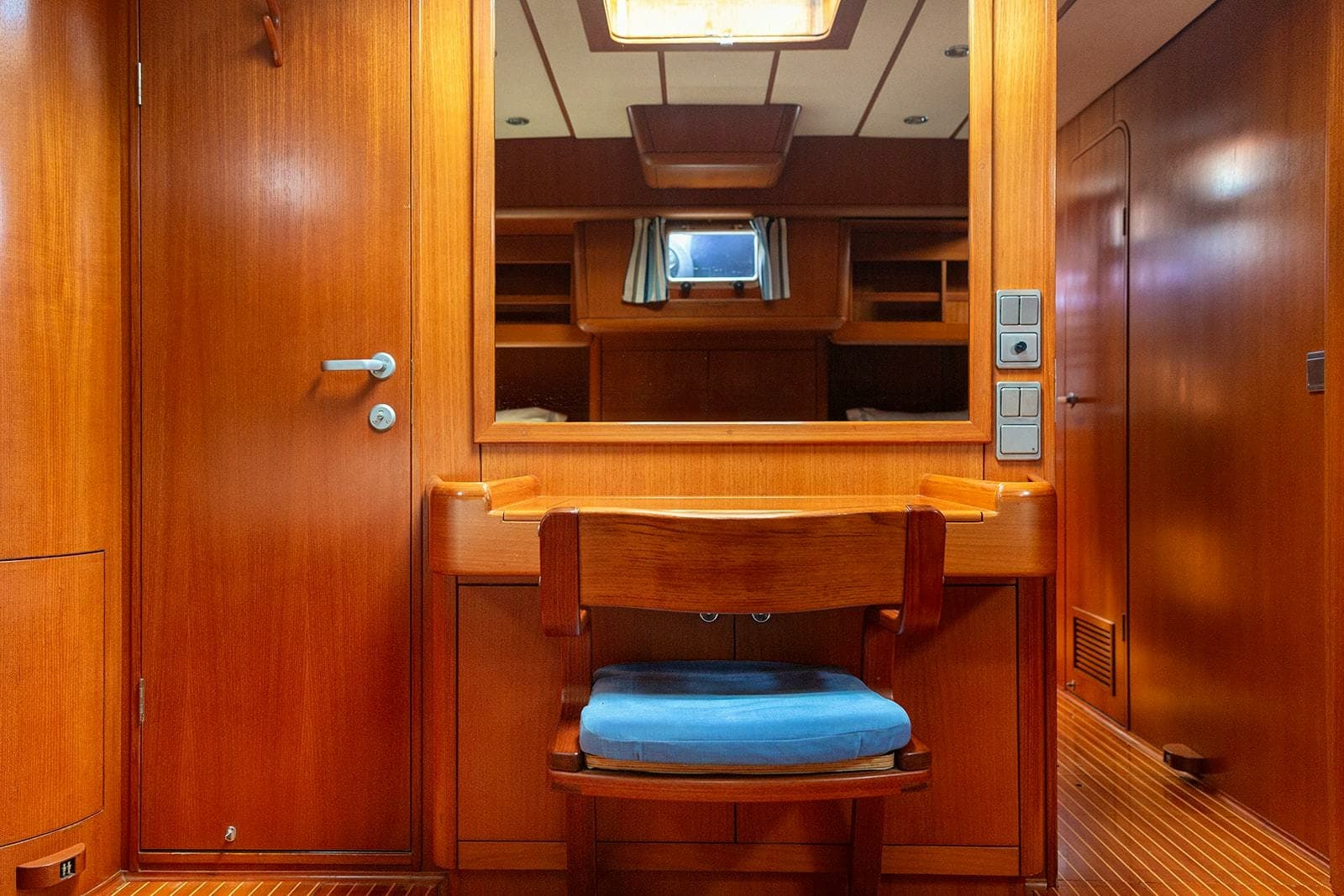

Master cabin aft with two queen doubles. Forward facing sofa. Owners study with classic Nautor Swan chair and desk. Lots of natural light through three portholes. Two hanging wardrobes and lots of additional storage in drawers under beds and head height cupboards.

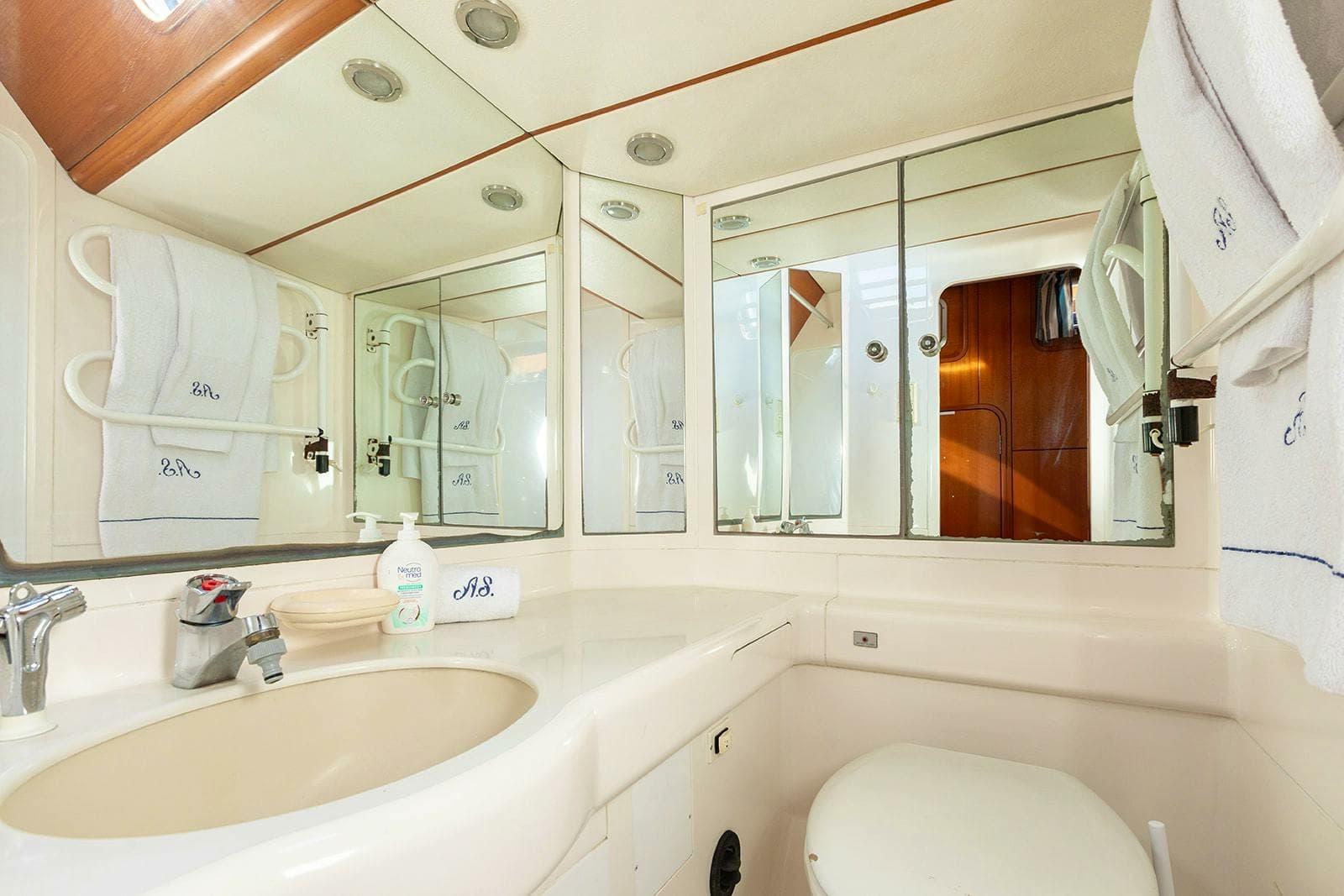

Ensuite with large shower.

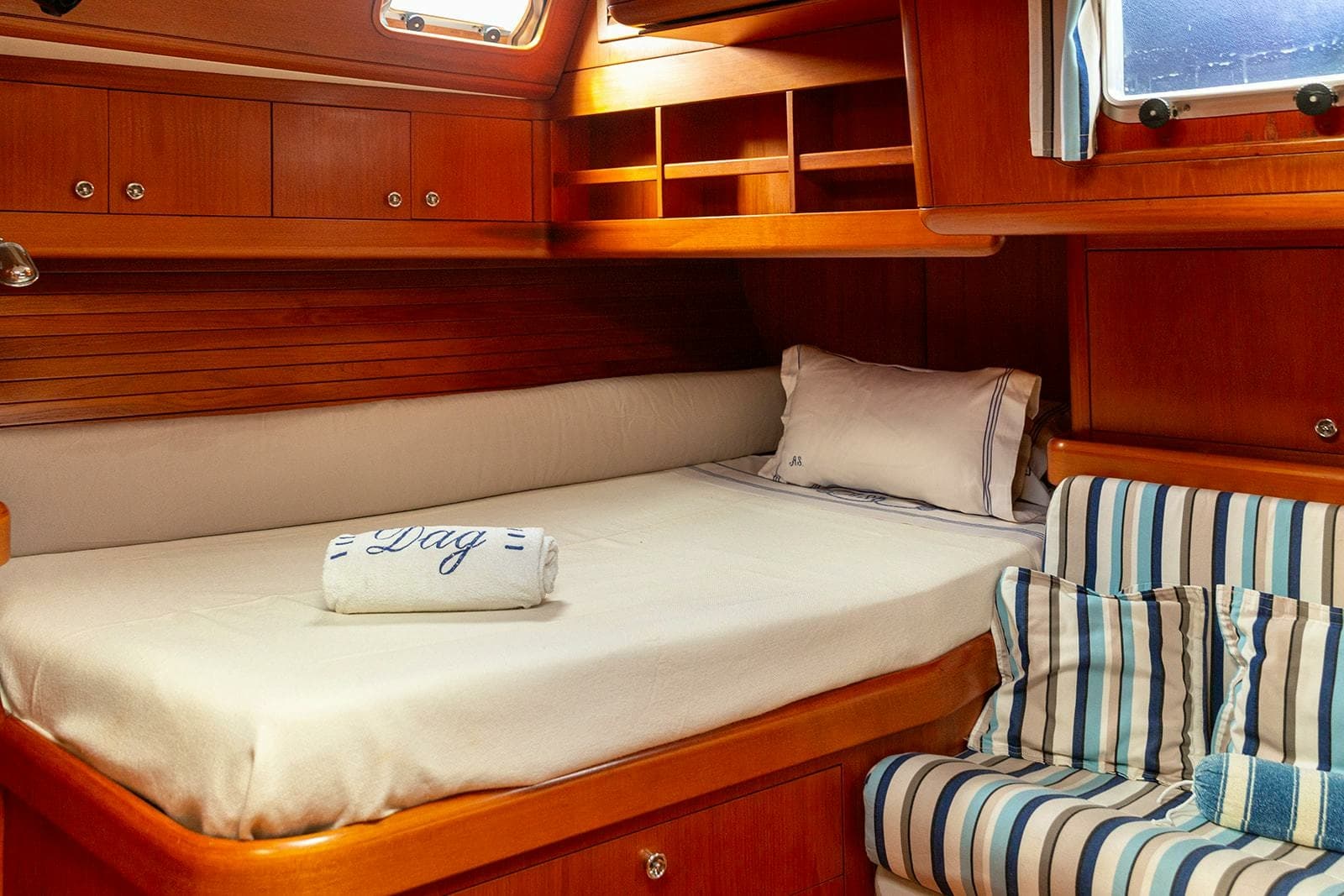

Guests:

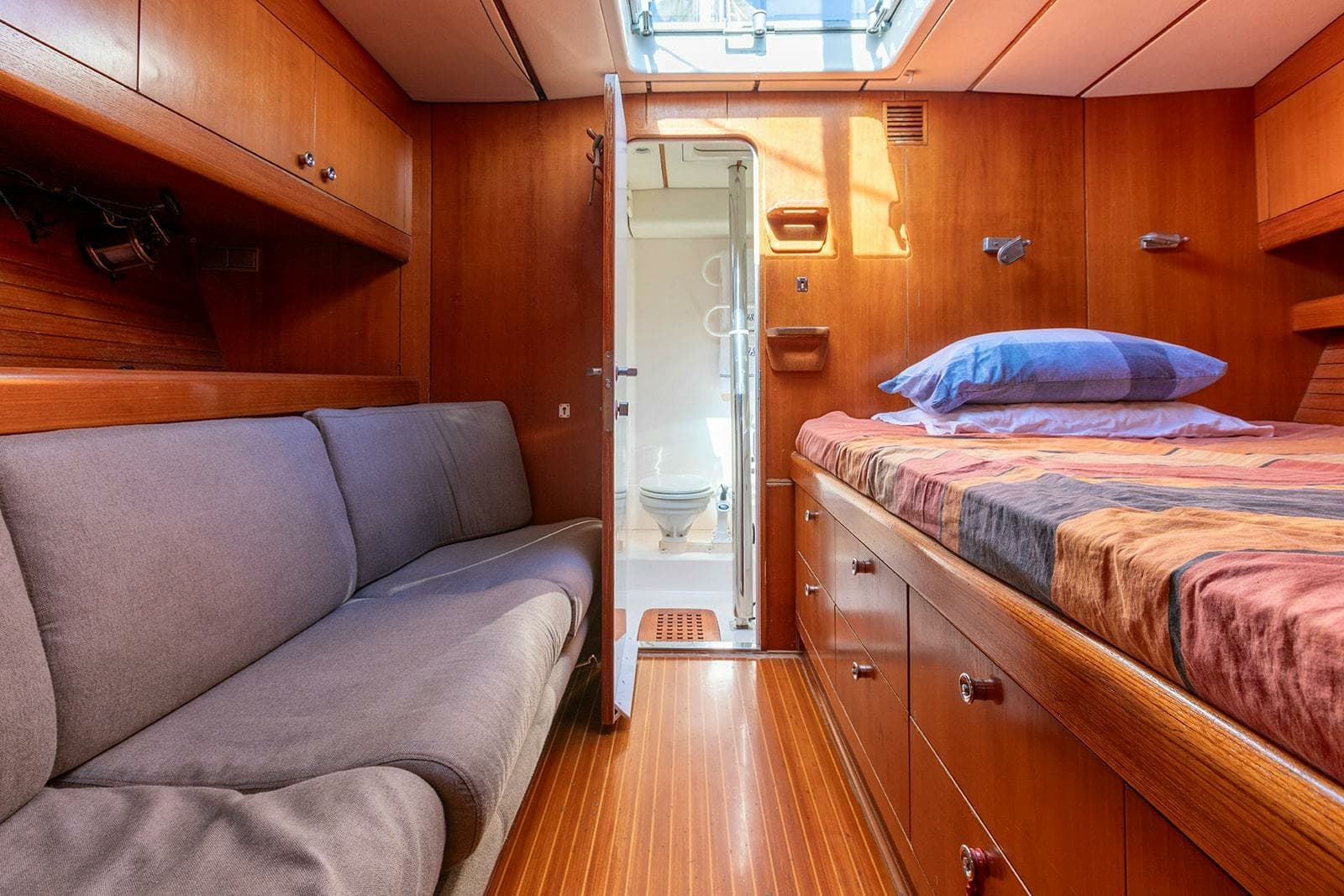

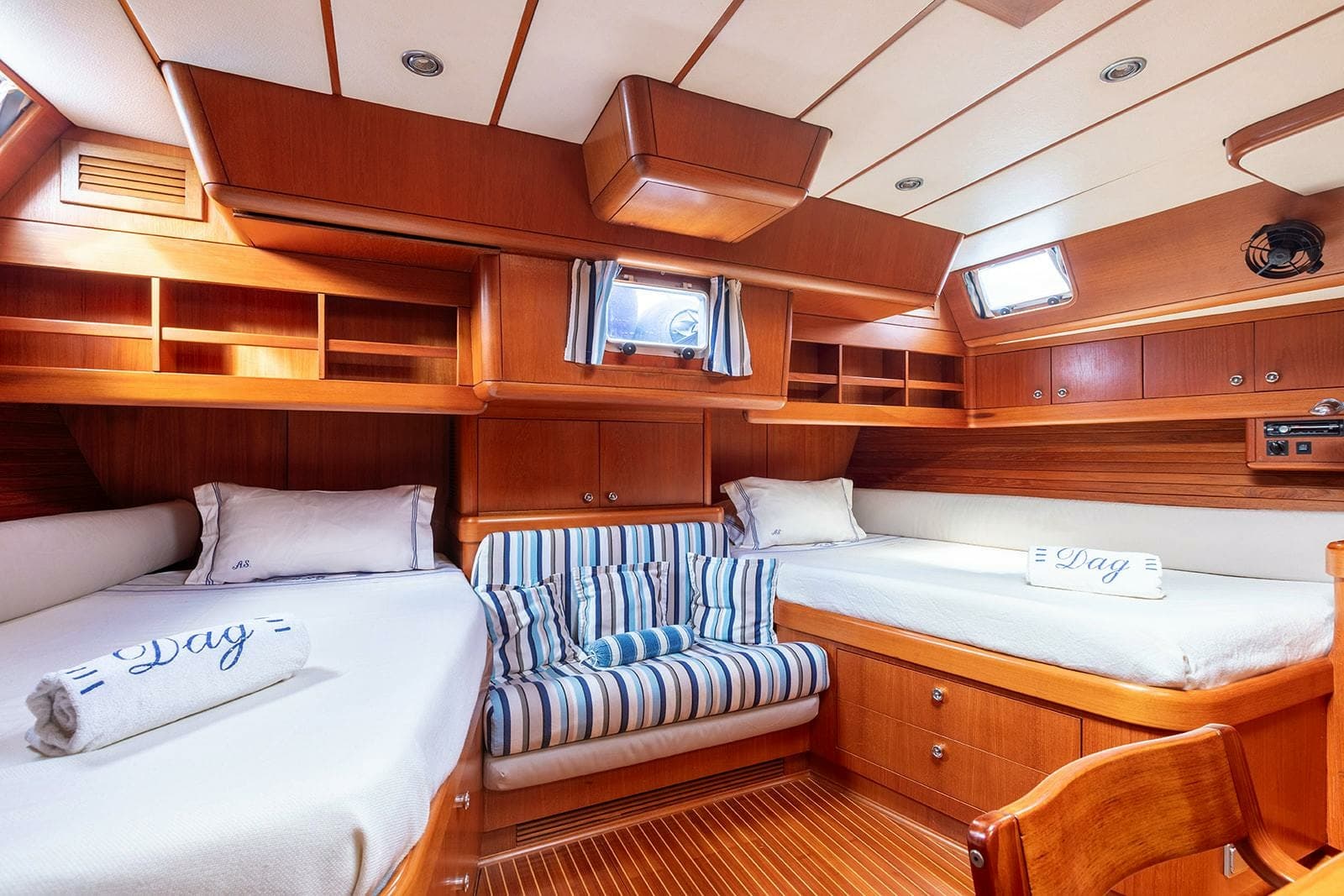

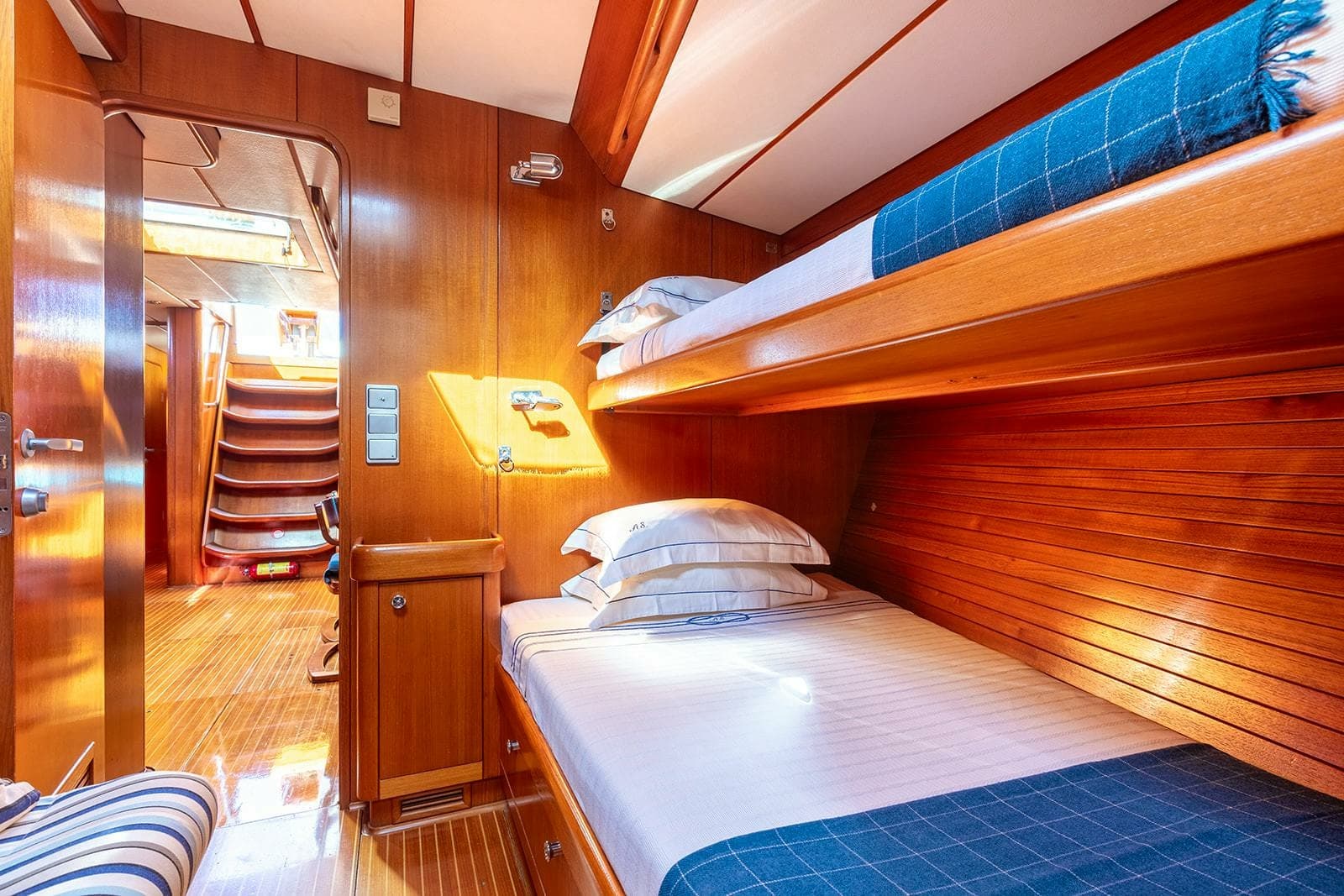

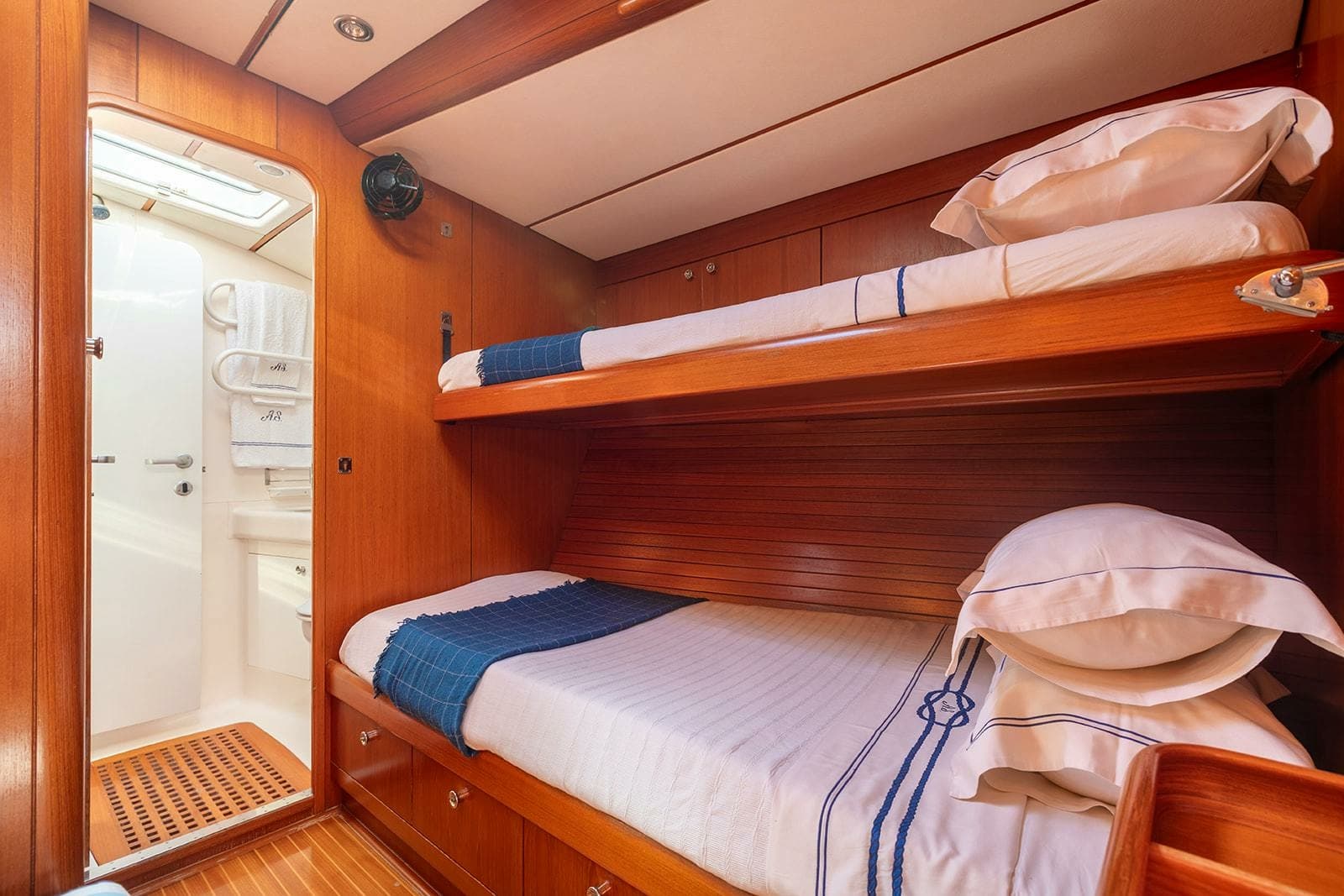

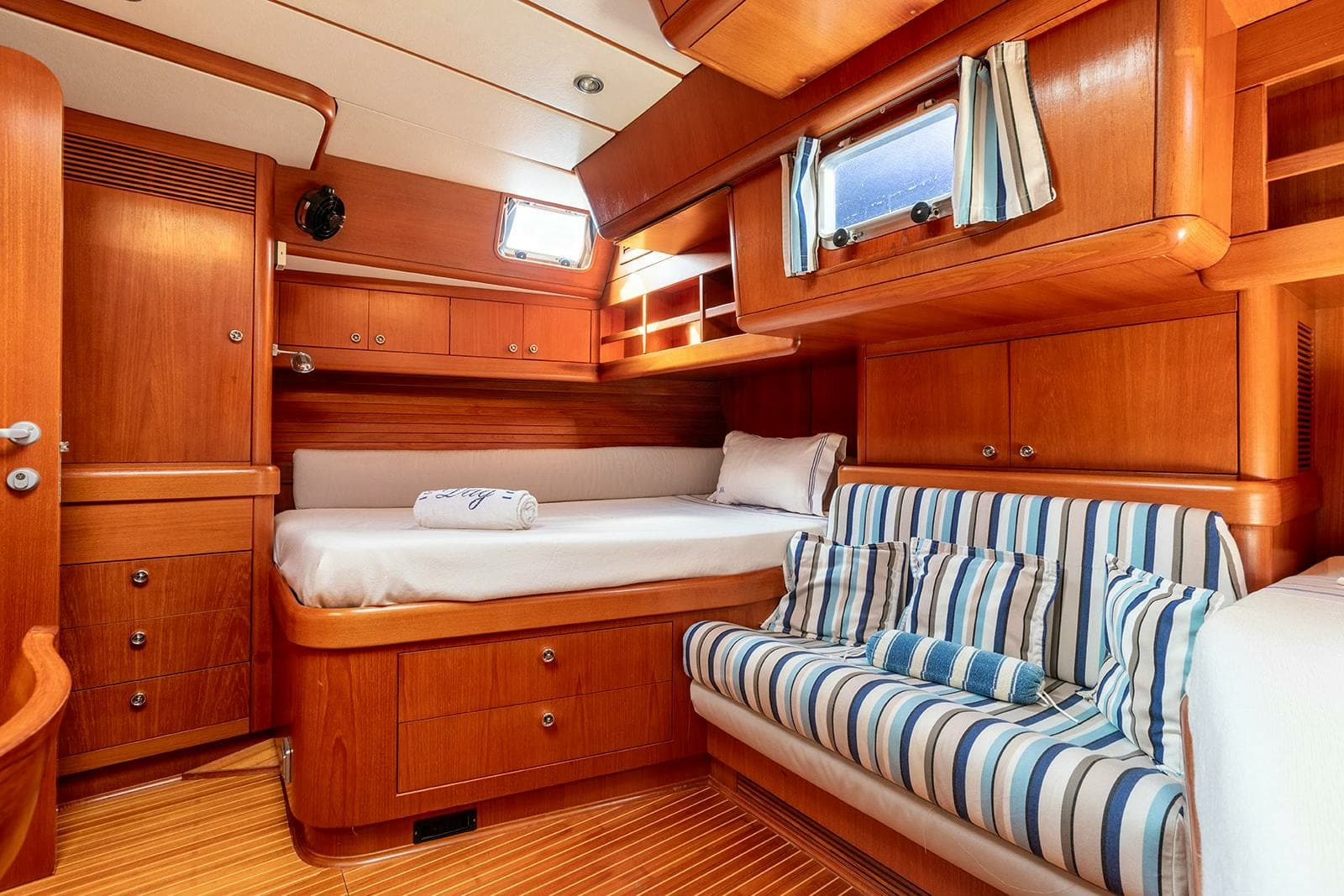

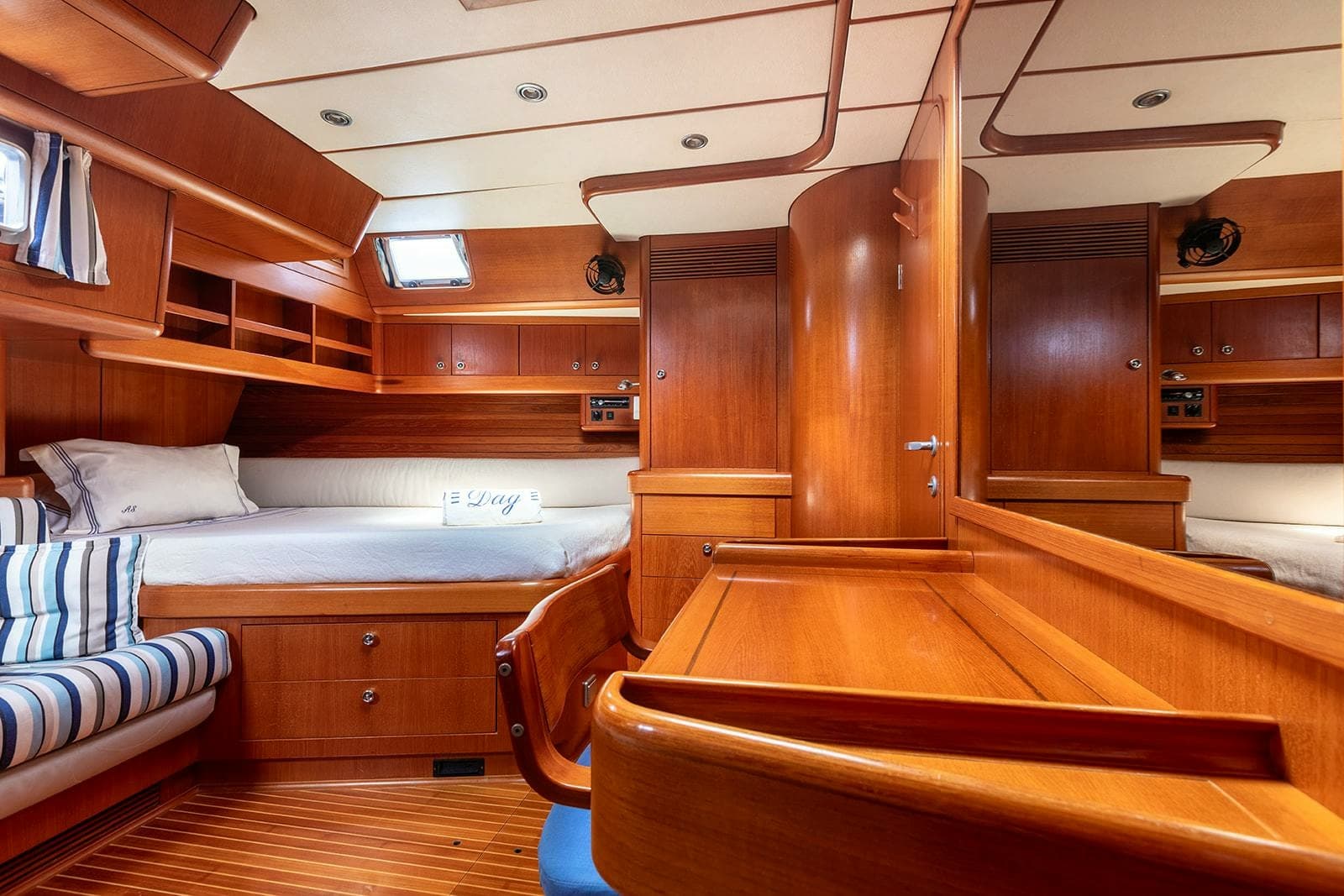

Two mirror image ensuite guest cabins midship with large lower beds and upper bunks. Hanging wardrobes, large dress mirror and sofas. Lots of natural light through large deck hatch.

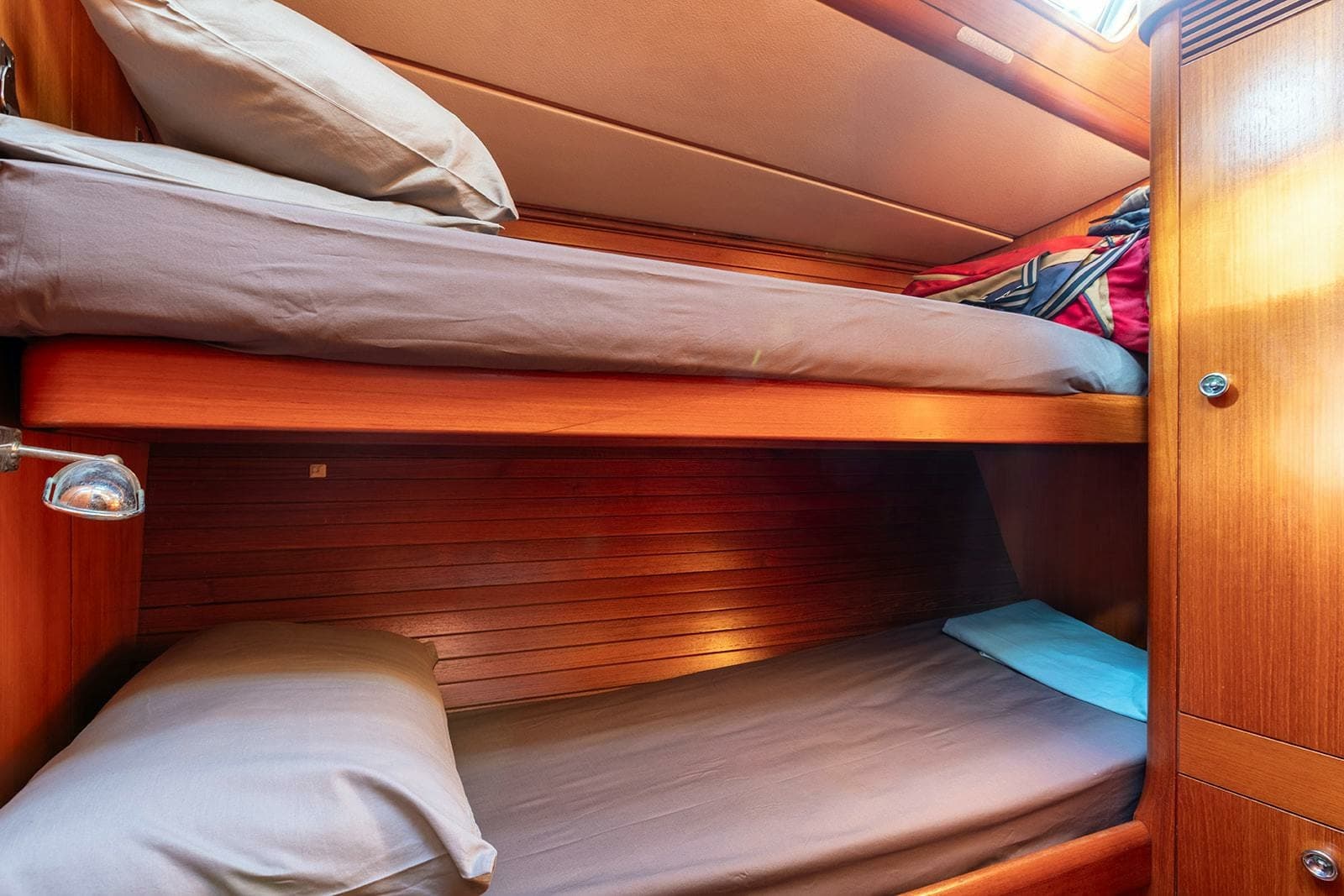

One smaller bunk cabin aft-starboard. Uses day-head as it’s ensuite.

Crew:

Crew area forward with large double bed and sofa. Hanging wardrobe and lots of extra storage forward. Main entrance through ensuite and second entrance through foredeck hatch via teak steps.

INTERIOR:

Classic Nautor Swan varnished teak interior with exceptional workmanship.

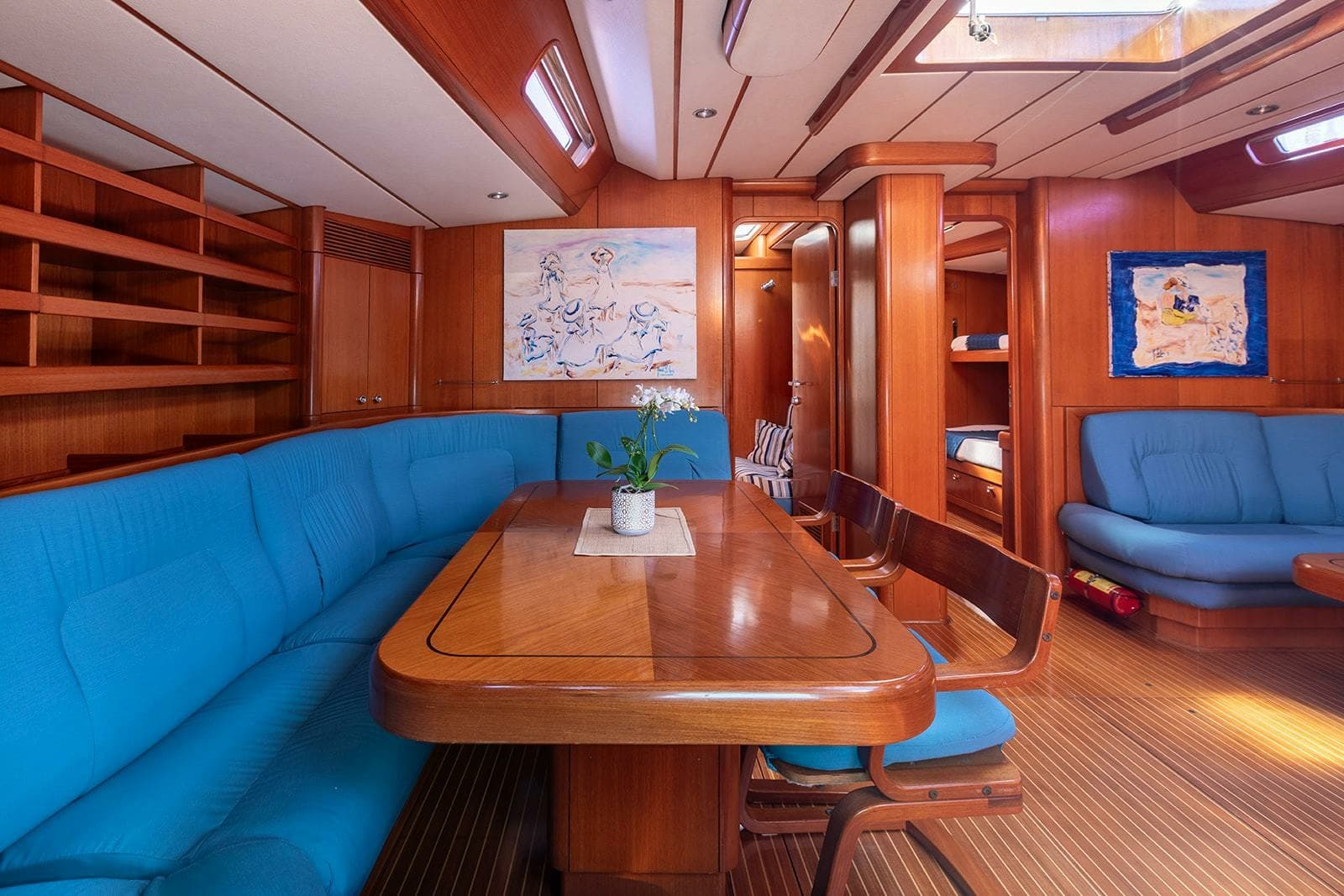

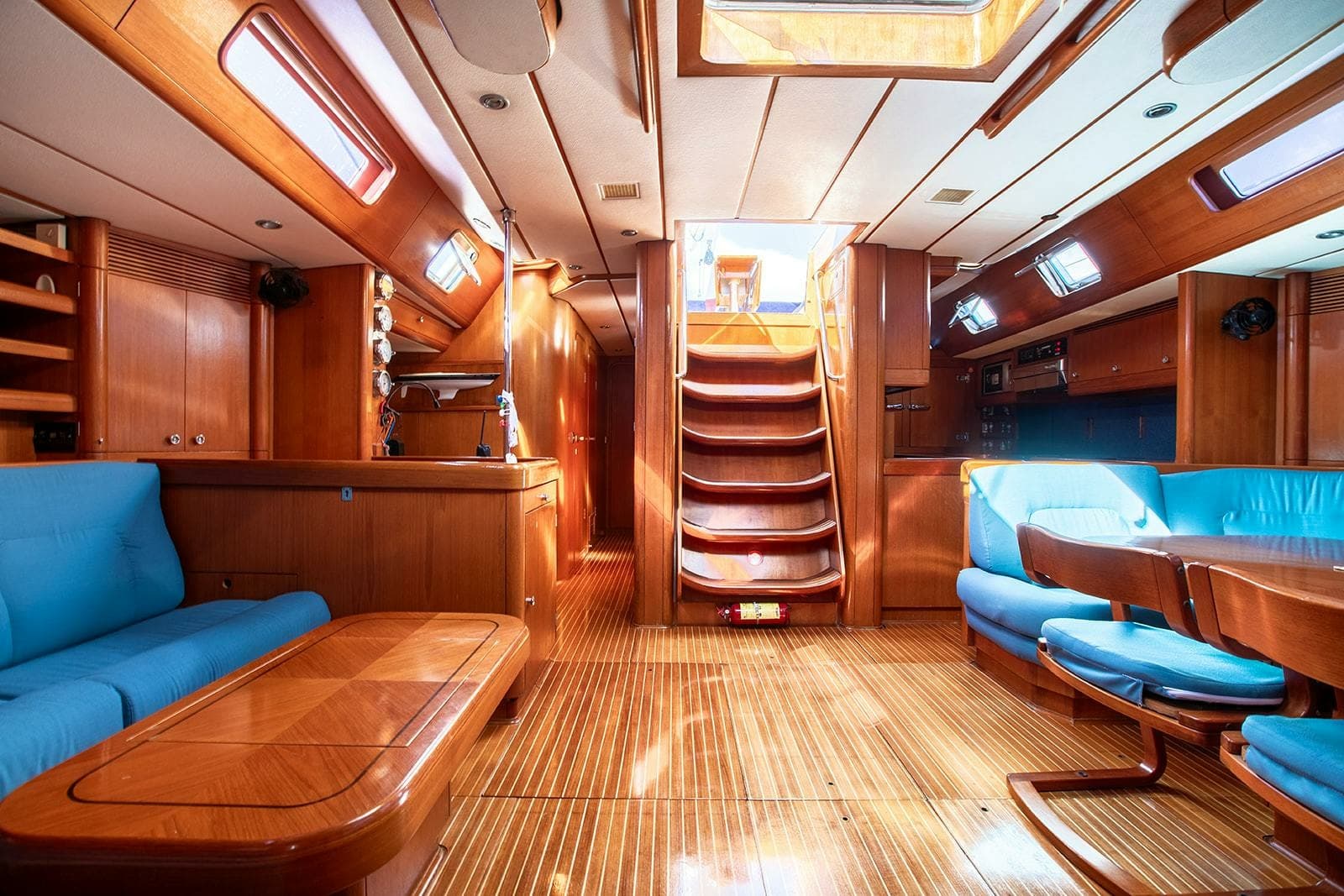

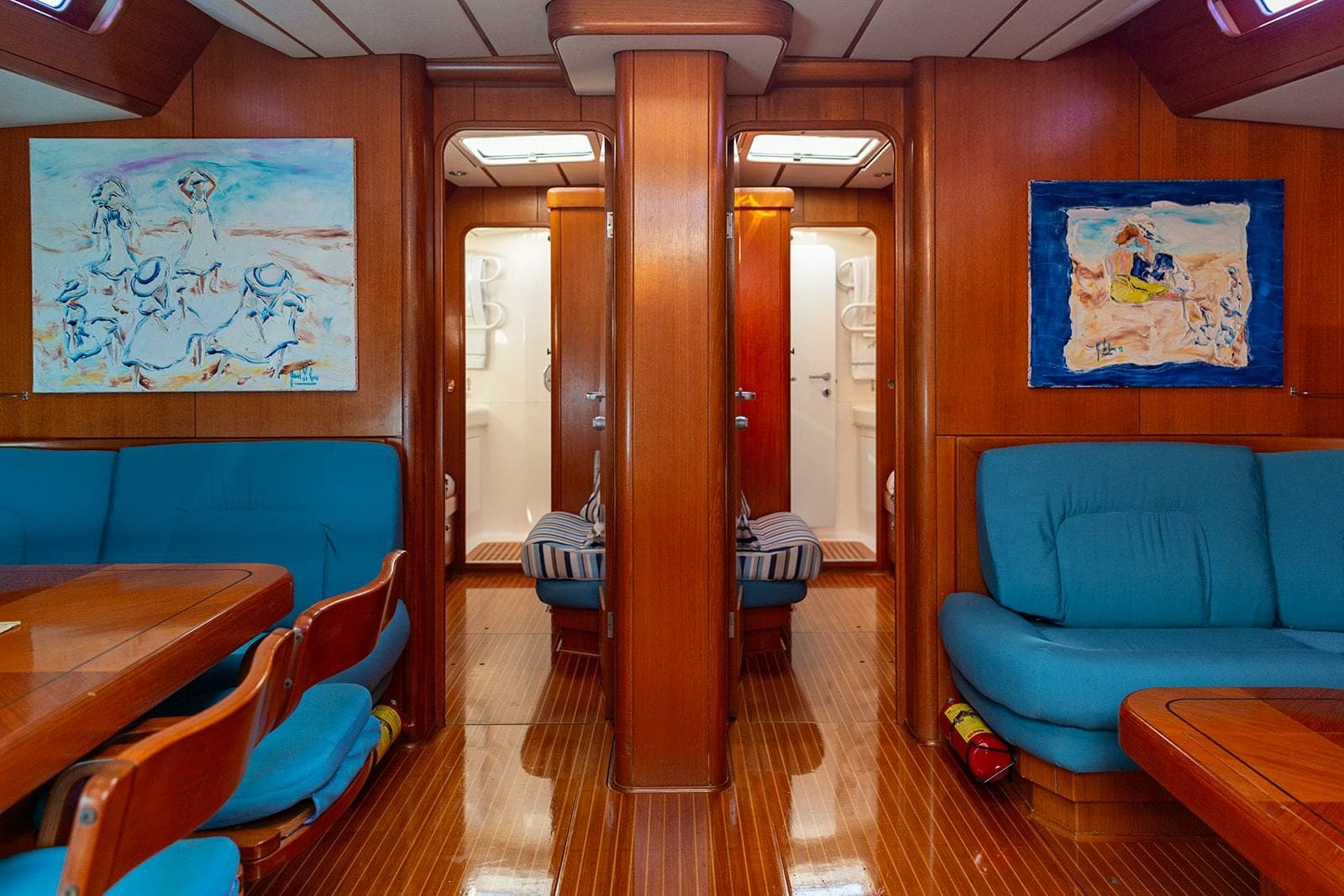

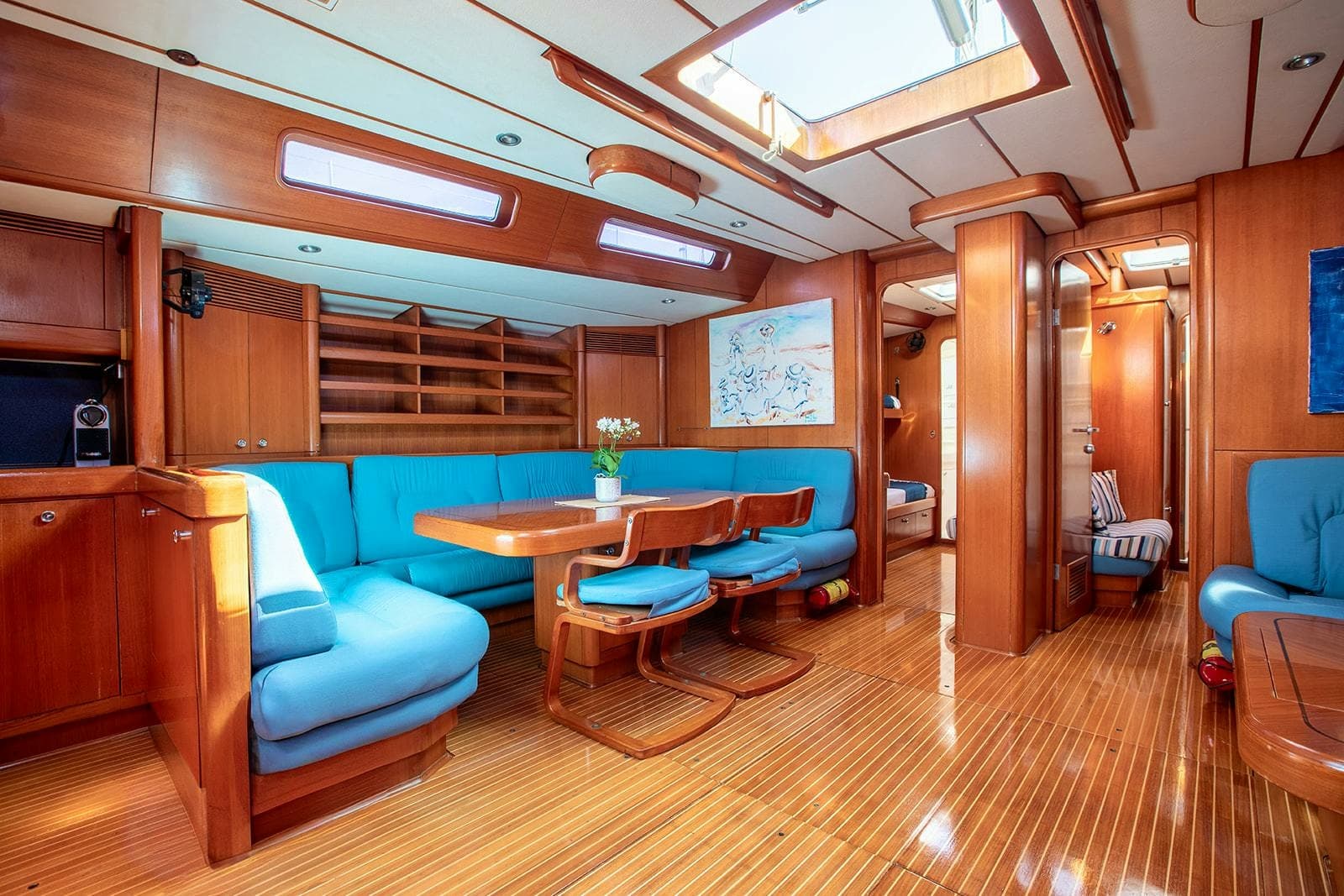

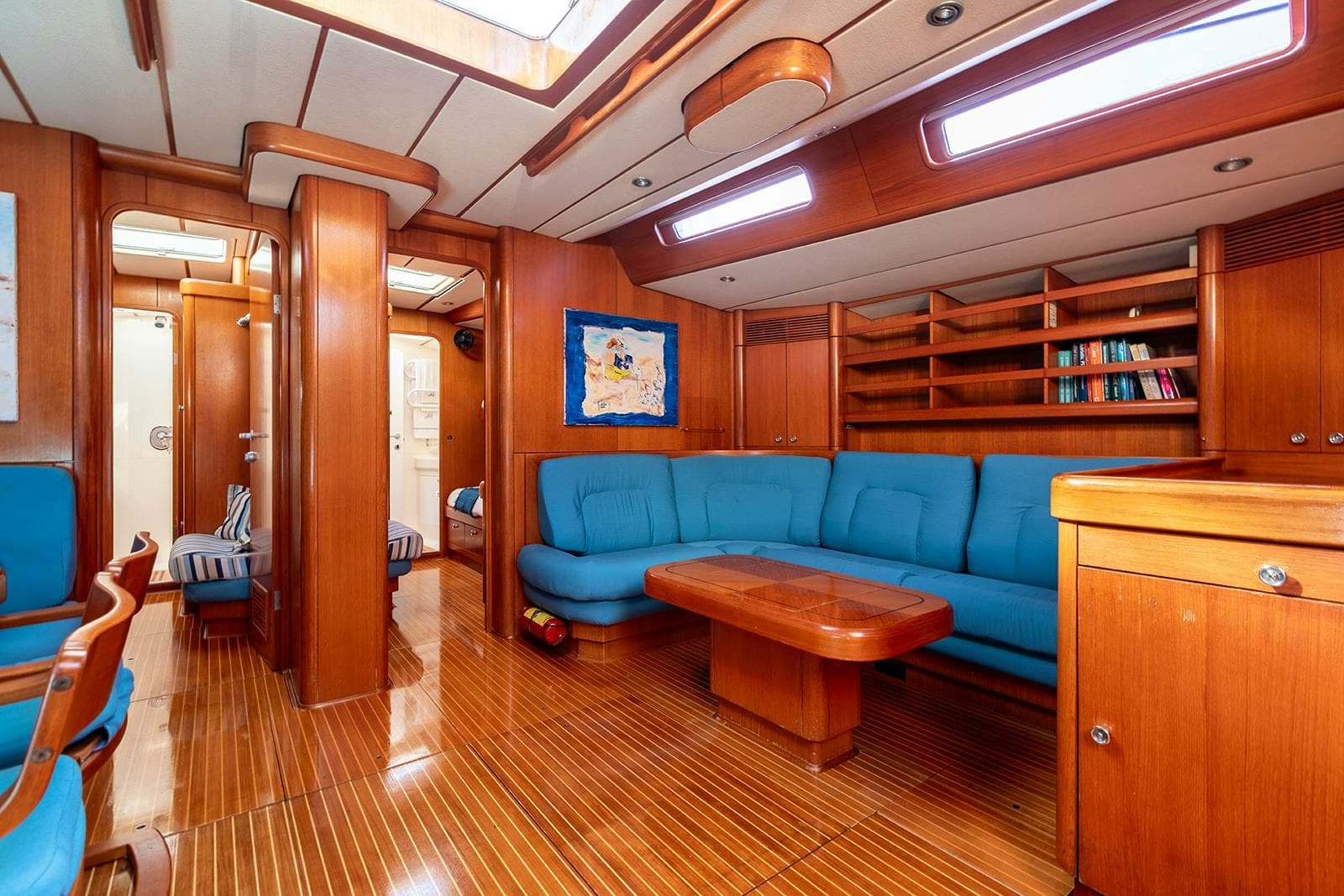

Main Salon/dining:

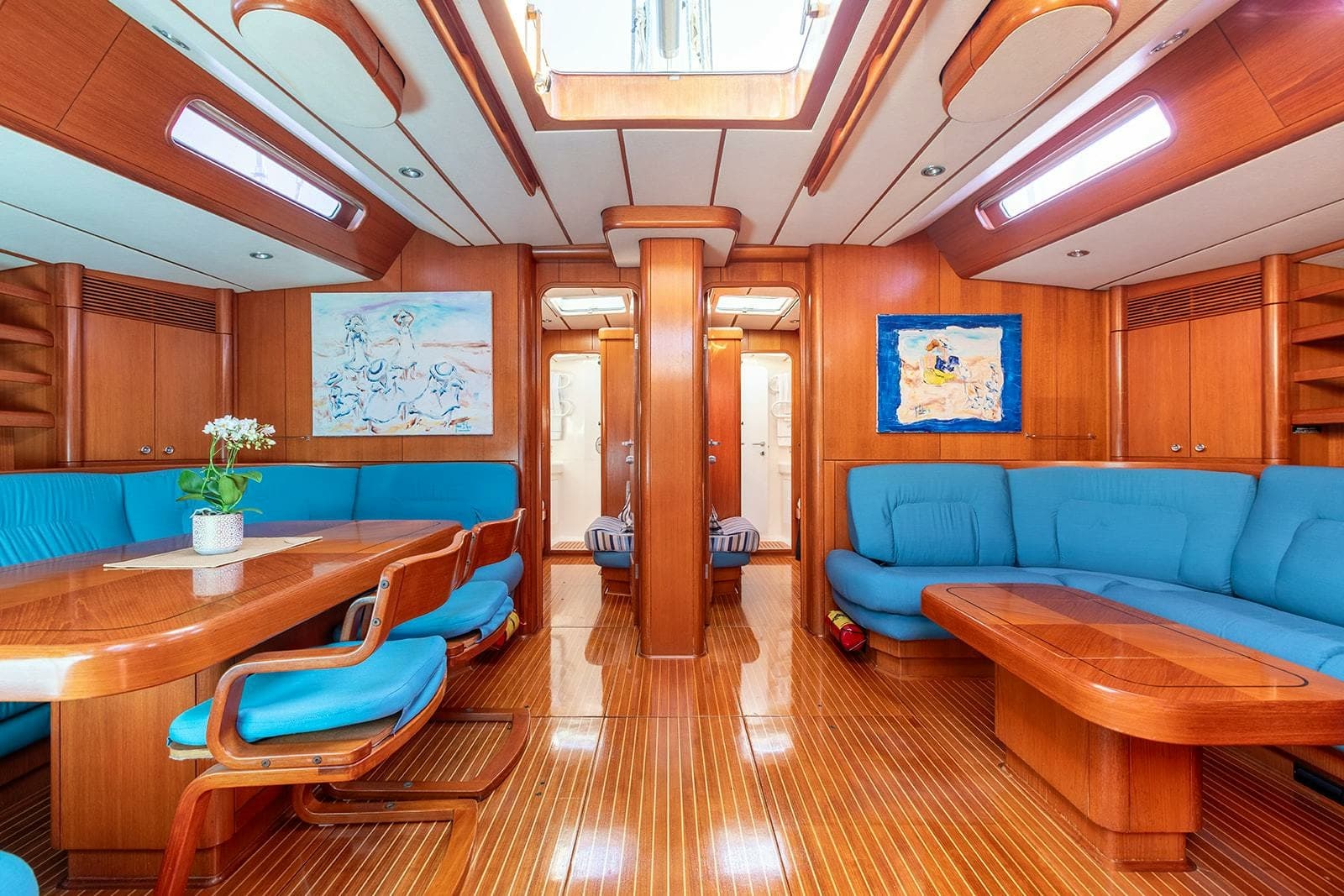

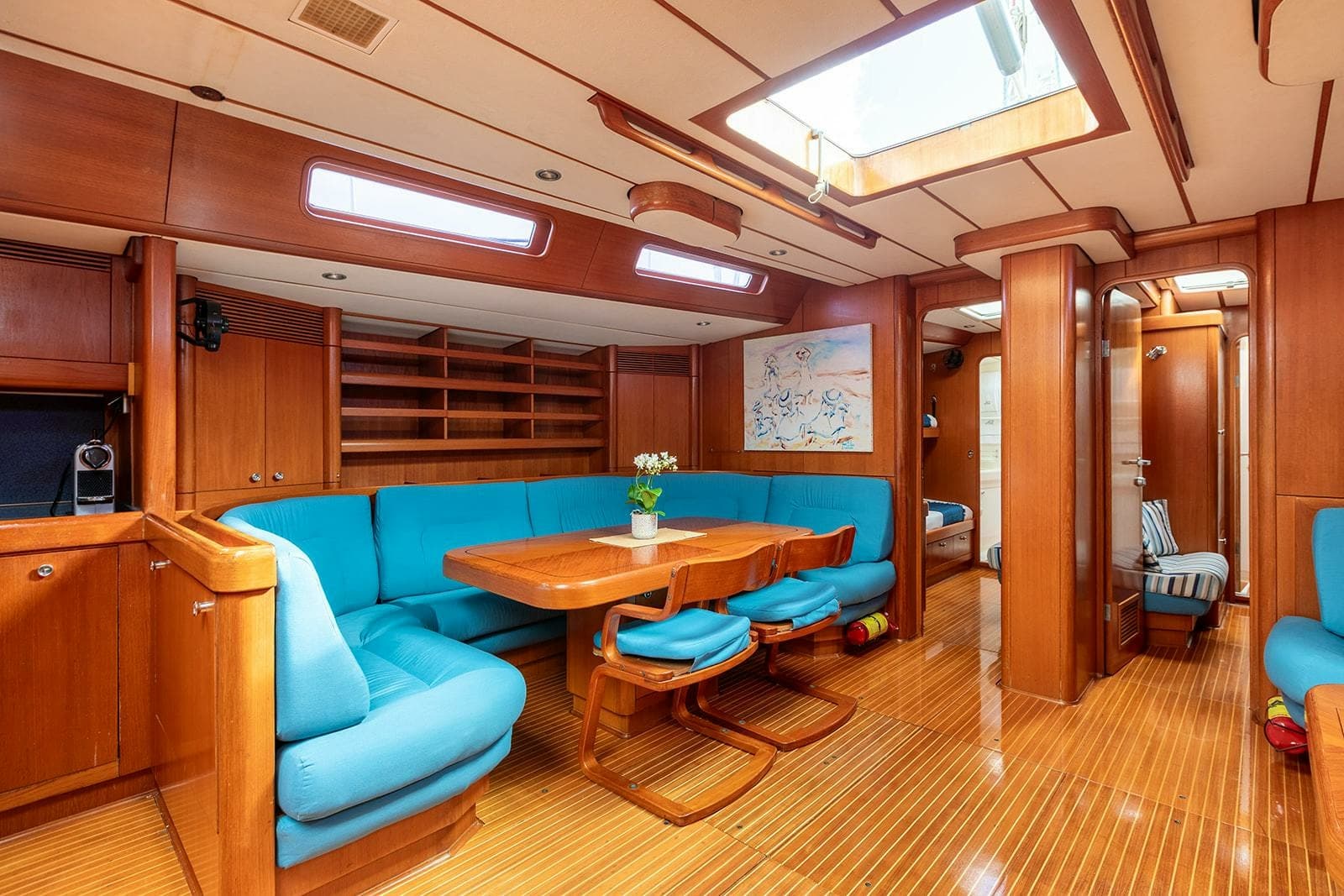

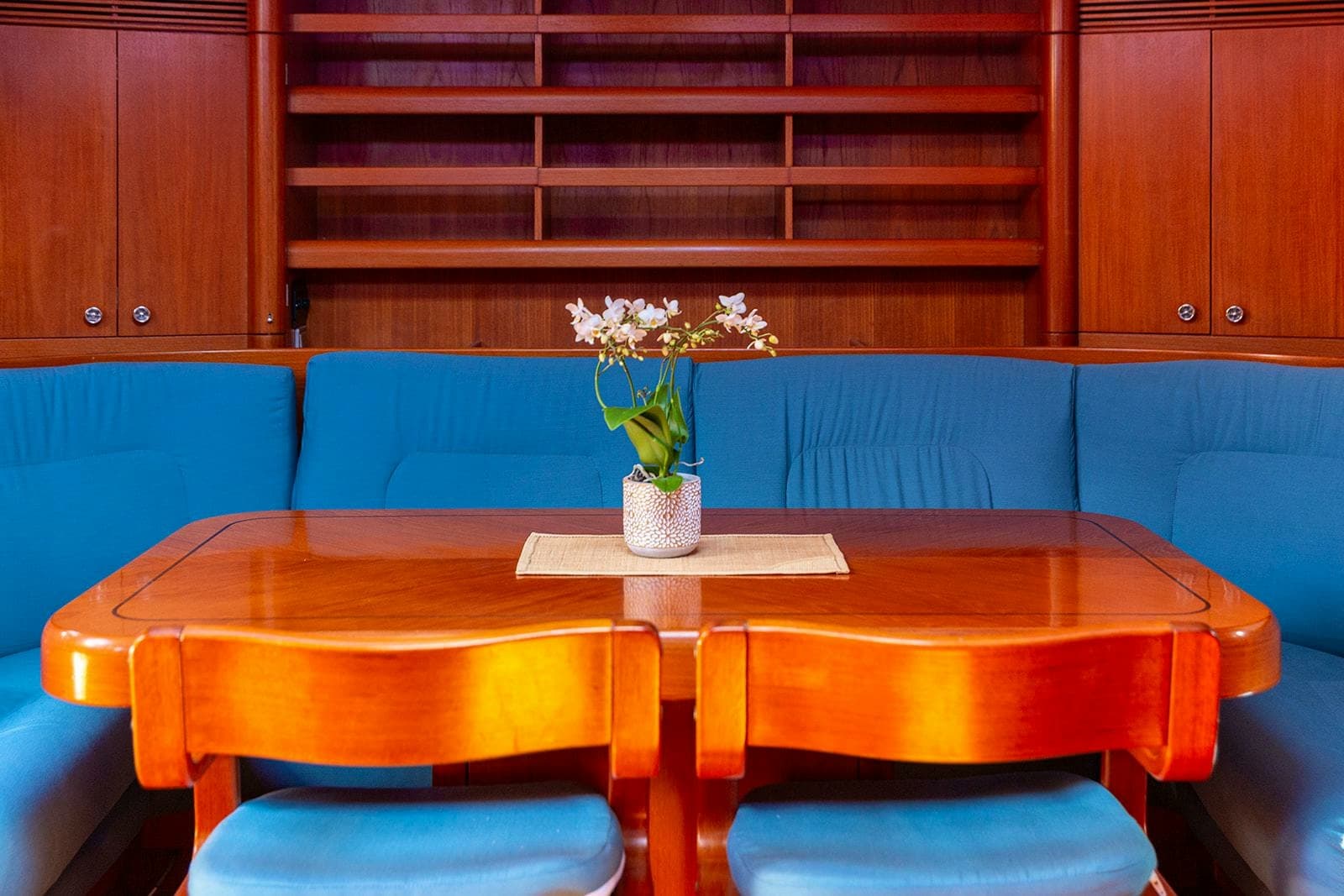

Large saloon split with dining table to port and lounging sofa to starboard. Flat screen TV, audio and wi-fi. Navigation desk aft-starboard side facing forward. Wine fridge and ice maker.

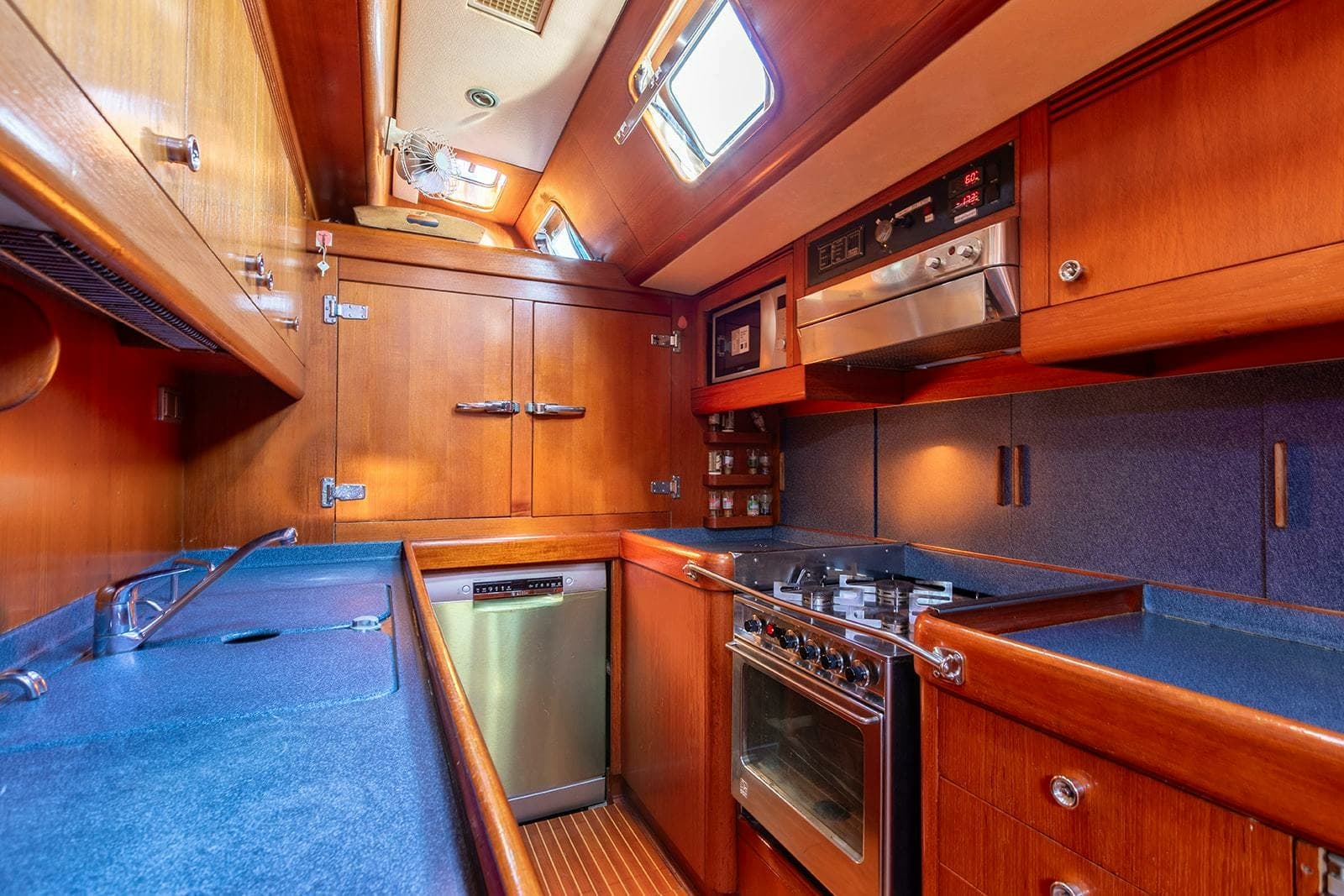

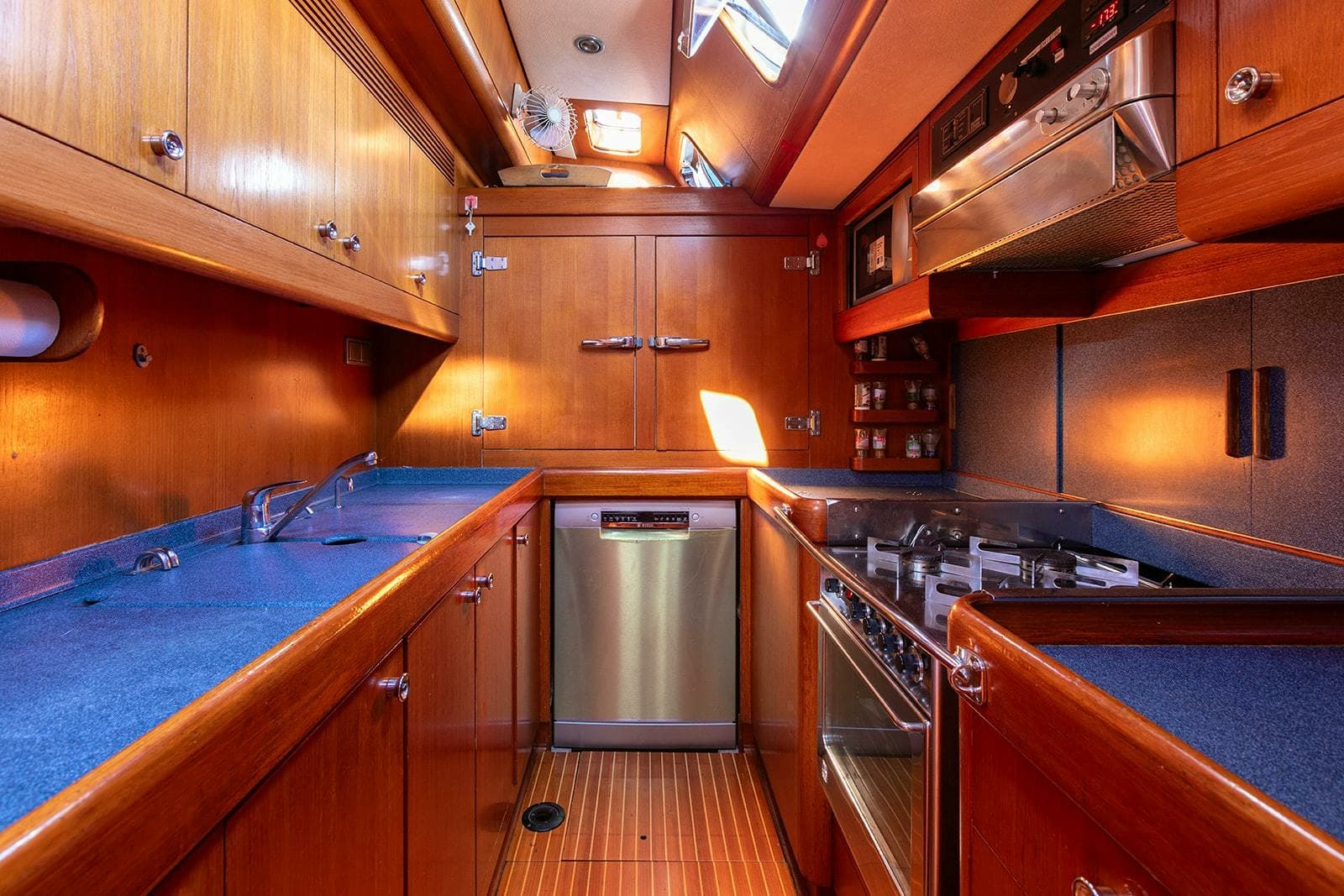

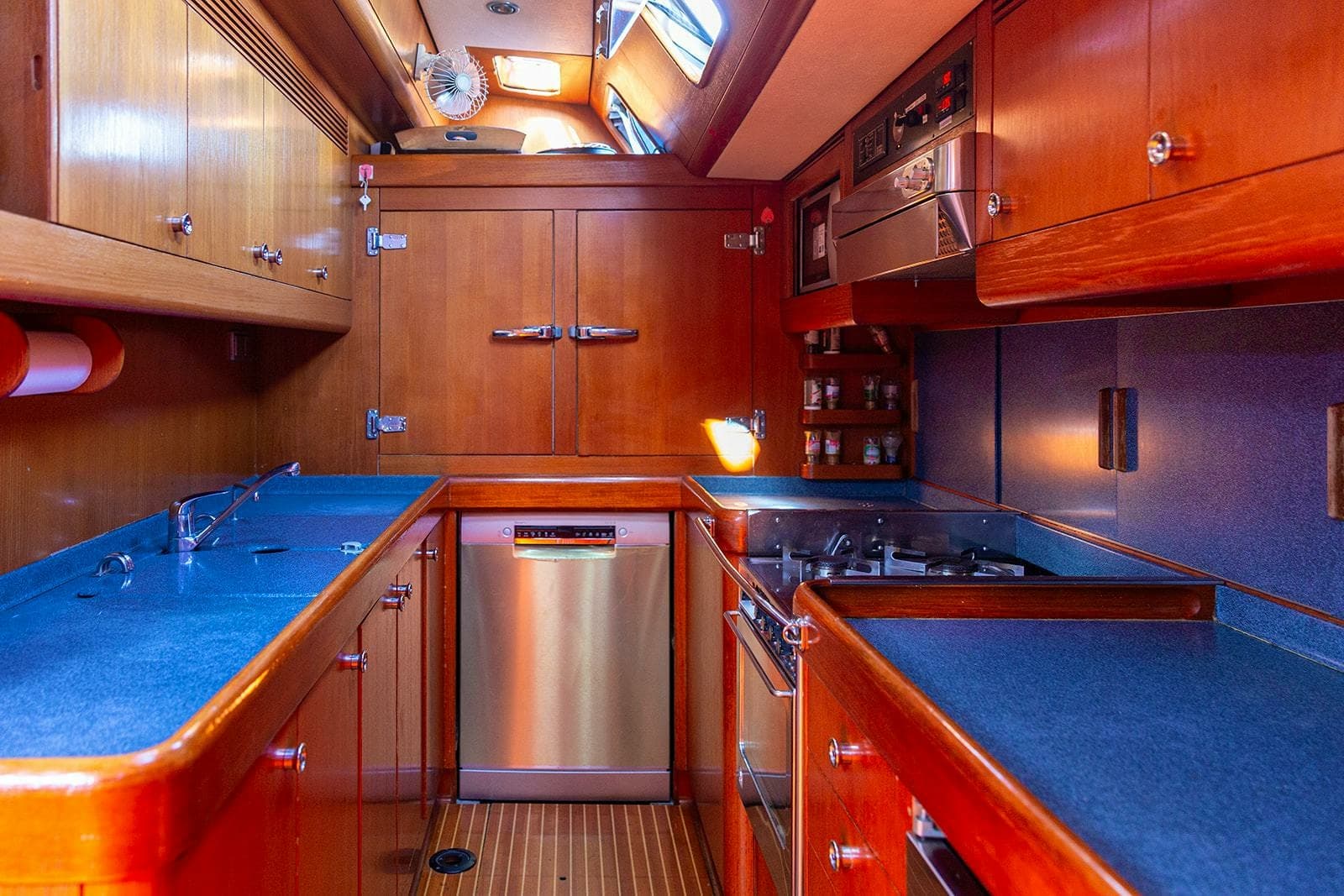

Galley:

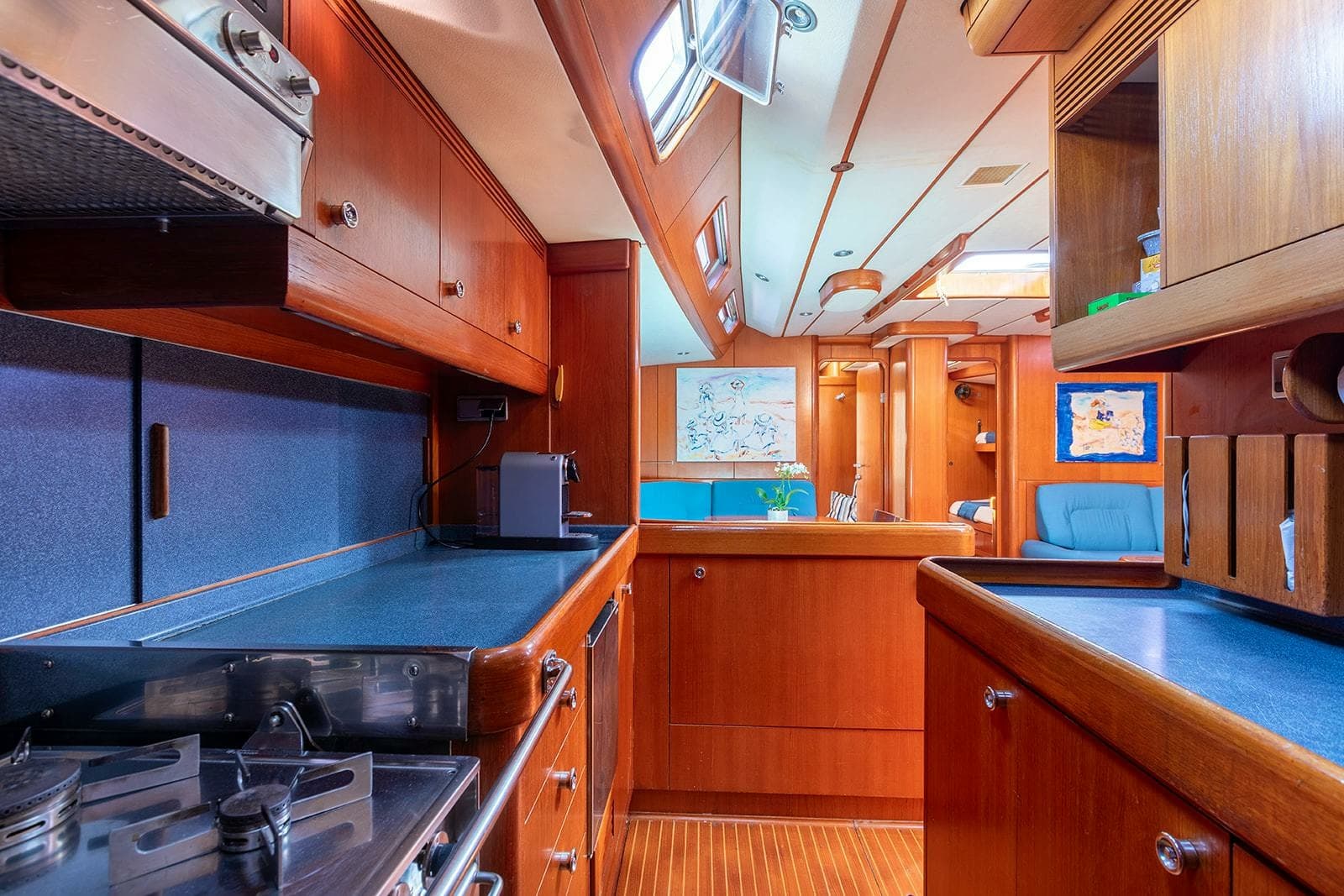

Spacious and functional U-shaped galley well laid out with modern amenities and plenty of fridge and freezer space. 5 burner gas hob. Bosch Dish washer, Miele Washer drier.

GALLEY & LAUNDRY EQUIPMENT

Appliances
Miele washing machine
Miele dryer
Bosh dish washer

MACHINERY

Engine
Cummins QSB6.7355HOI 355 hp (replaced in December 2020)
ZF trottle (replaced in December 2020)
Brunton 4 blades propeller (replaced in May 2021)

Generator
Onan MDKDV 19 kw (replaced in October 2022)

NAVIGATION & COMMUNICATIONS

Navigation electronic equipment
B&G 2000 Hercules power unit
3 B&G GFD displays
4 B&G 20/20 displays
2 analogic displays
B&G Hercules Pilot
Barometer
Angle of helm display
B&G stanilized compass
B&G MHU wind station
b&G Chartplotter/Radar
4G B&G radar
B&G AIS

Computer
1 ASUS MINIVIVO pc with MaxSea software
HP 15’ monitor
EPSON WIFI Deskjet printer
Internet WIFI

Communications
2 B&G DSC VHF
1 Icom handy VHF
MC MURDO epirb

ELECTRICAL SYSTEMS & BATTERIES

DC electric plant
Service batteries 24 V 800 Ah
Rdio batteries 24 V 400 Ah
Engine batteries 24 V 135 Ah
Generator battery 12 V 90 Ah

AC electric plant
Shore power 115 V 50 A 60 Hz tramite (with 6 kVA transformer)
Shore power 230 V 50 A 50 Hz tramite (with step up / step down 12 kVA transfromer)
3000 W 230 V 50 Hz MASTERVOLT inverter (installed in 2019)

Batteries charger
2 Mastervolt 24/75 220 V for servce batteries
1 Mastervolt 24/50 220 V 50 A for radio batteries
1 220 V for main engine
1 220 V for generator

PLUMBING SYSTEM AND TANKAGE

Fuel tankage
2 stainless steel tanks 870 liters each (1,740 litres total)

Fresh water
1,390 litres in 2 stainless steel tanks
SPECTRA 24 V watermaker (120/130 l/h)
2 24 V Jabsco fresh watre pumps
220V 100 liters boiler
Hot water also from main engine
Hot and fresh water shower on swimming platmorm and aft cockpit

Bilge pumps
2 electric submerged with alarm
1 bilge pumps in the fore bilge
2 Whale Titan emergency manual pumps
1 emergency manual pump in the chain lock

HYDRAULICS

Hydraulics
Harken power pack 8.12 unit
2 running backstays Harken 66,2 ST winches
2 mainsail sheets Harken 66.3 ST winches
2 genaojibs Harken 980.3 ST winches
2 gennaker /spinnaker Harken 1120 ST winches
2 halyard Harken 66.3 ST winches
1 hydraulic transom haych control
2 fore sails hydraulic Reckmann furlers (overhauled in May 2015)
Hydraulic power from generator’s PTO
1 x Lewmar 300S bow thruster
1 Navtec control unit
1 mainsail base hydraulic Navtec piston
1 backstay hydraulic Navtec piston
1 forestay hydraulic Navtec piston
1 vang
