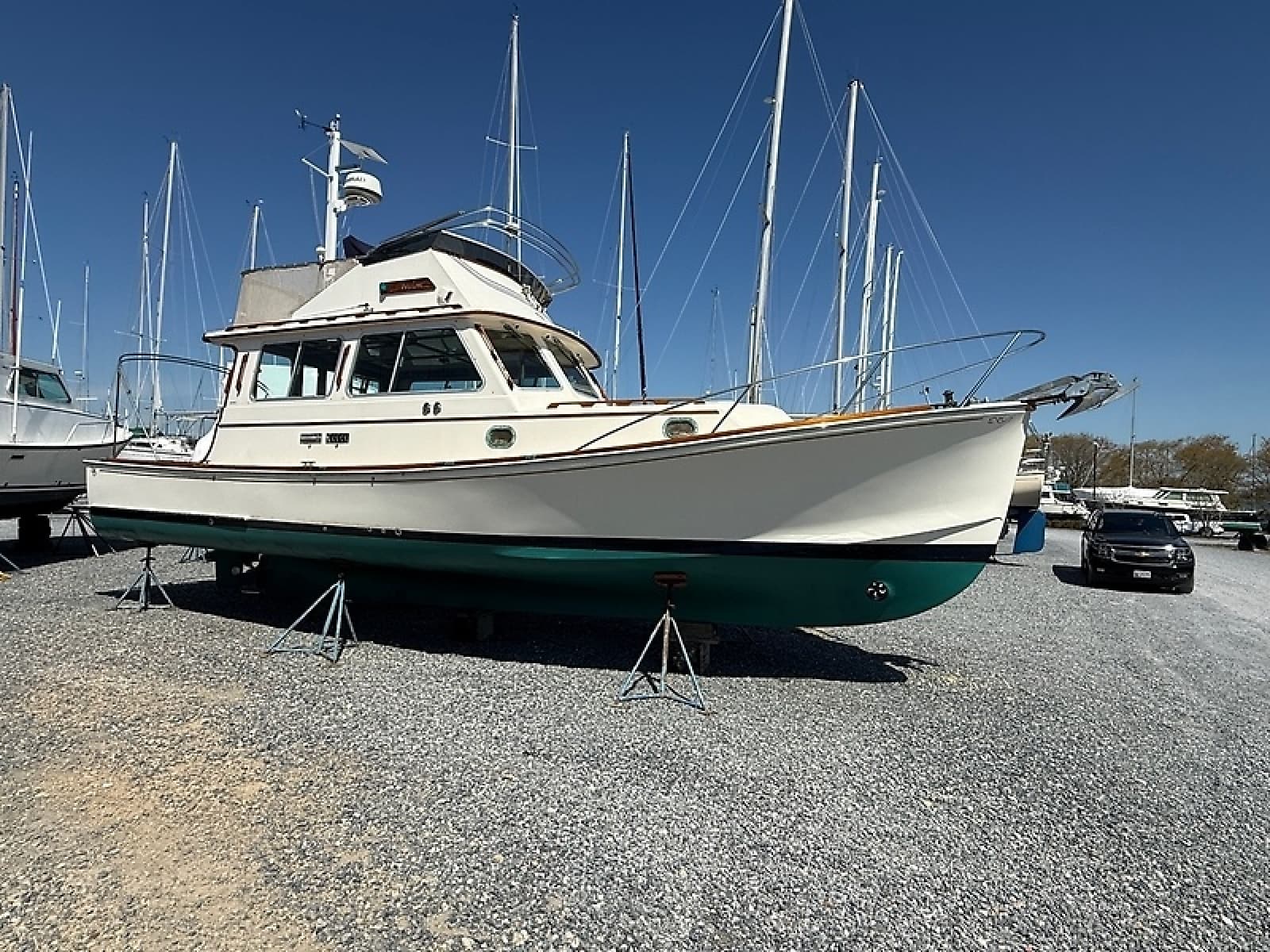

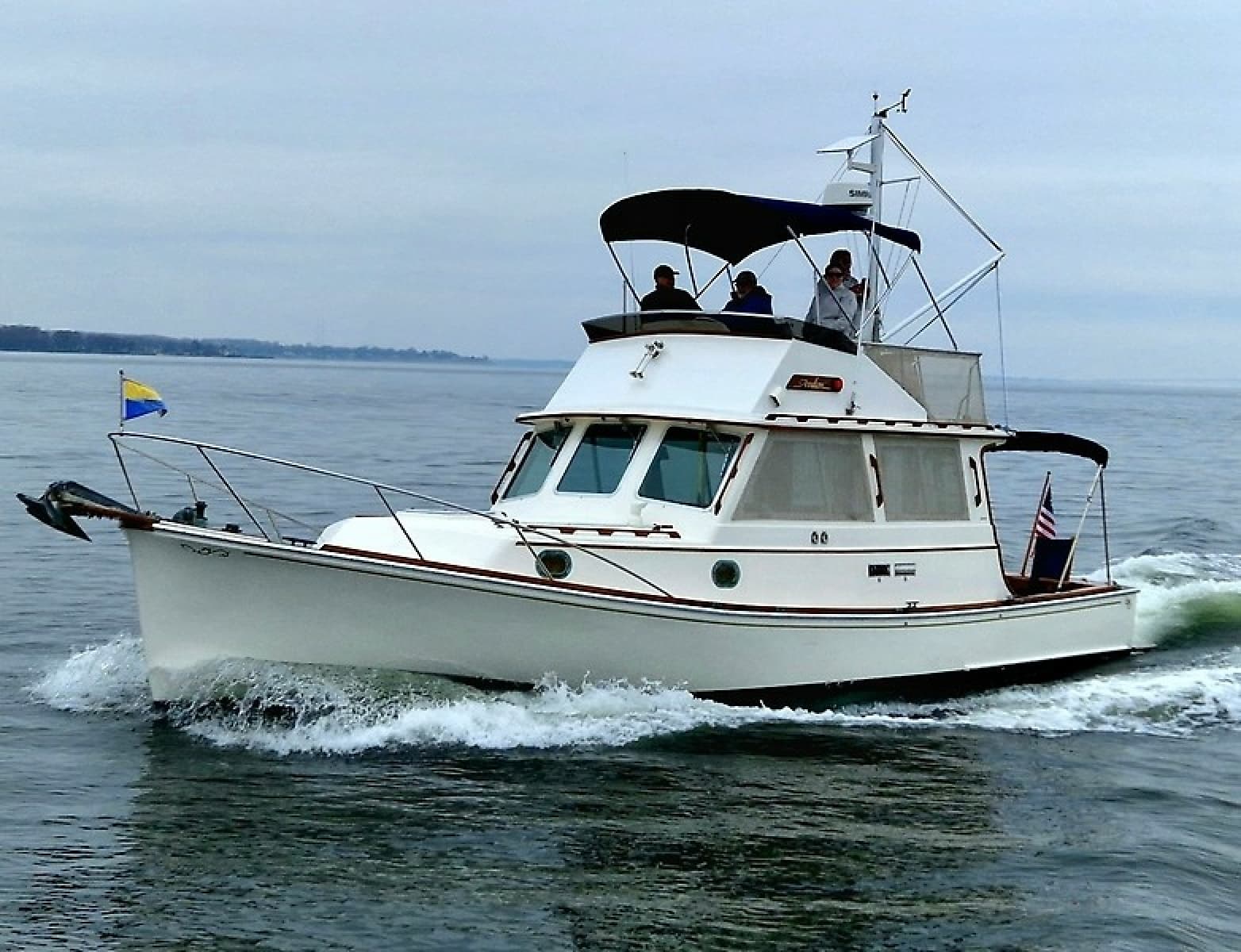

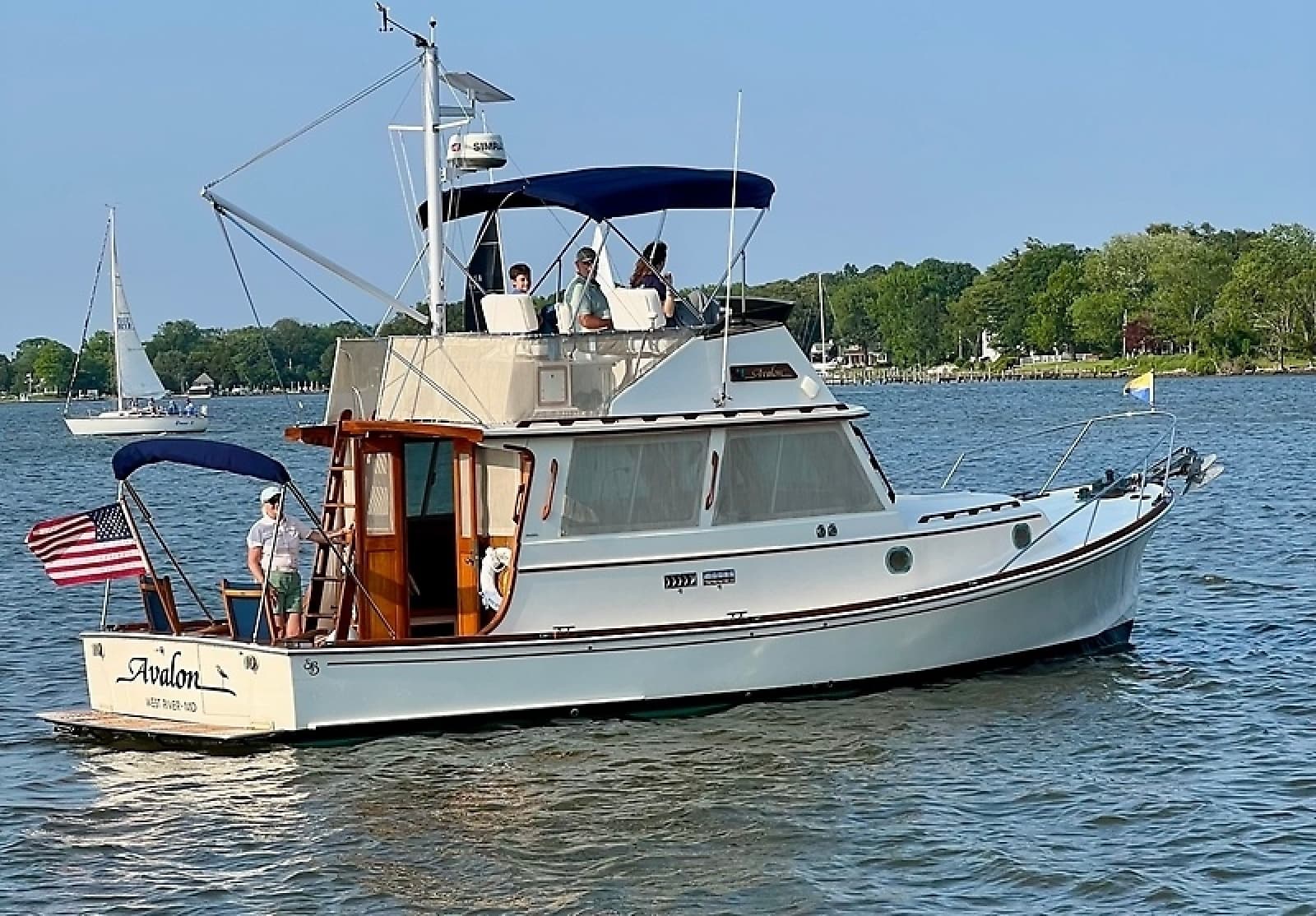

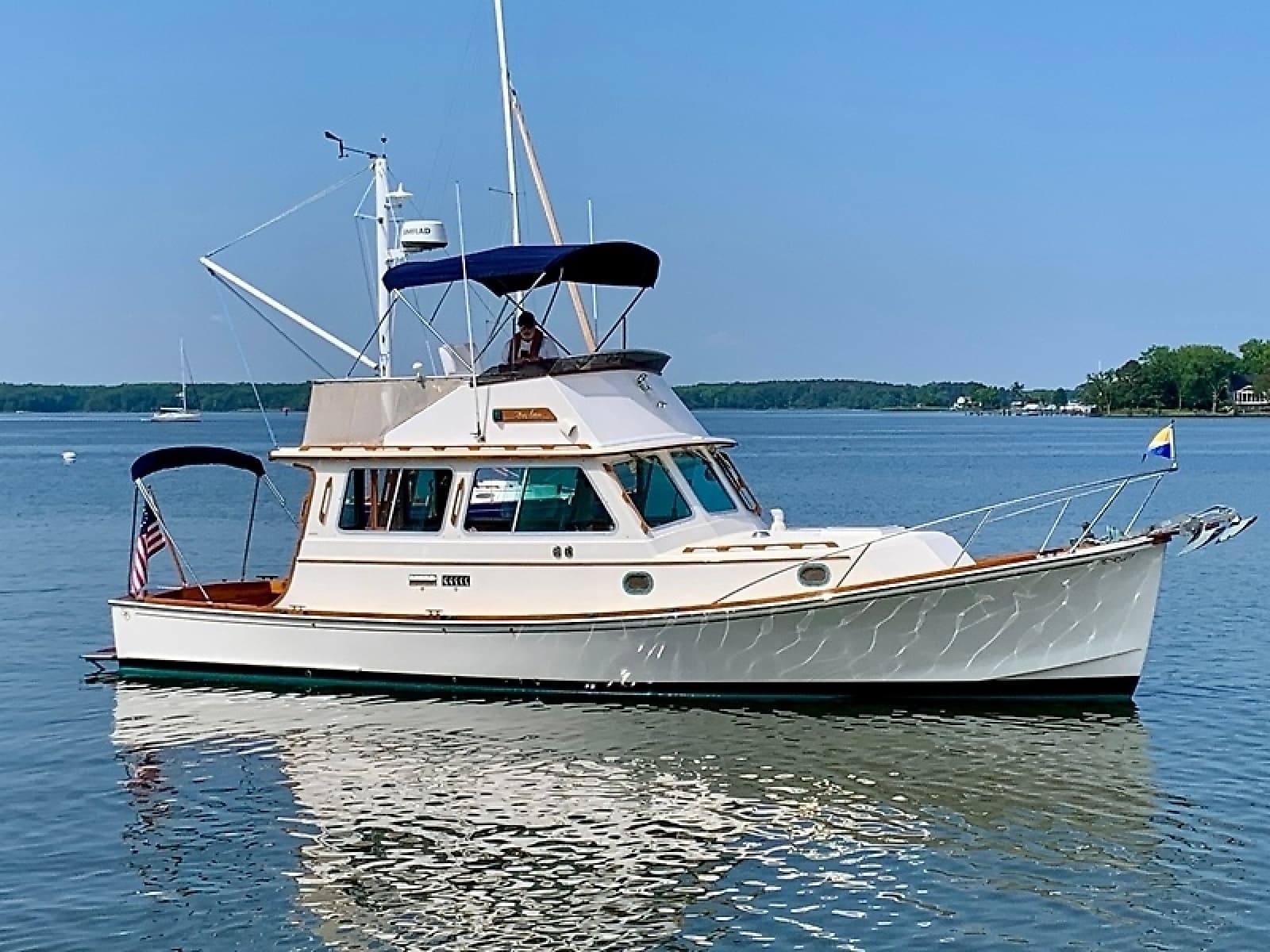

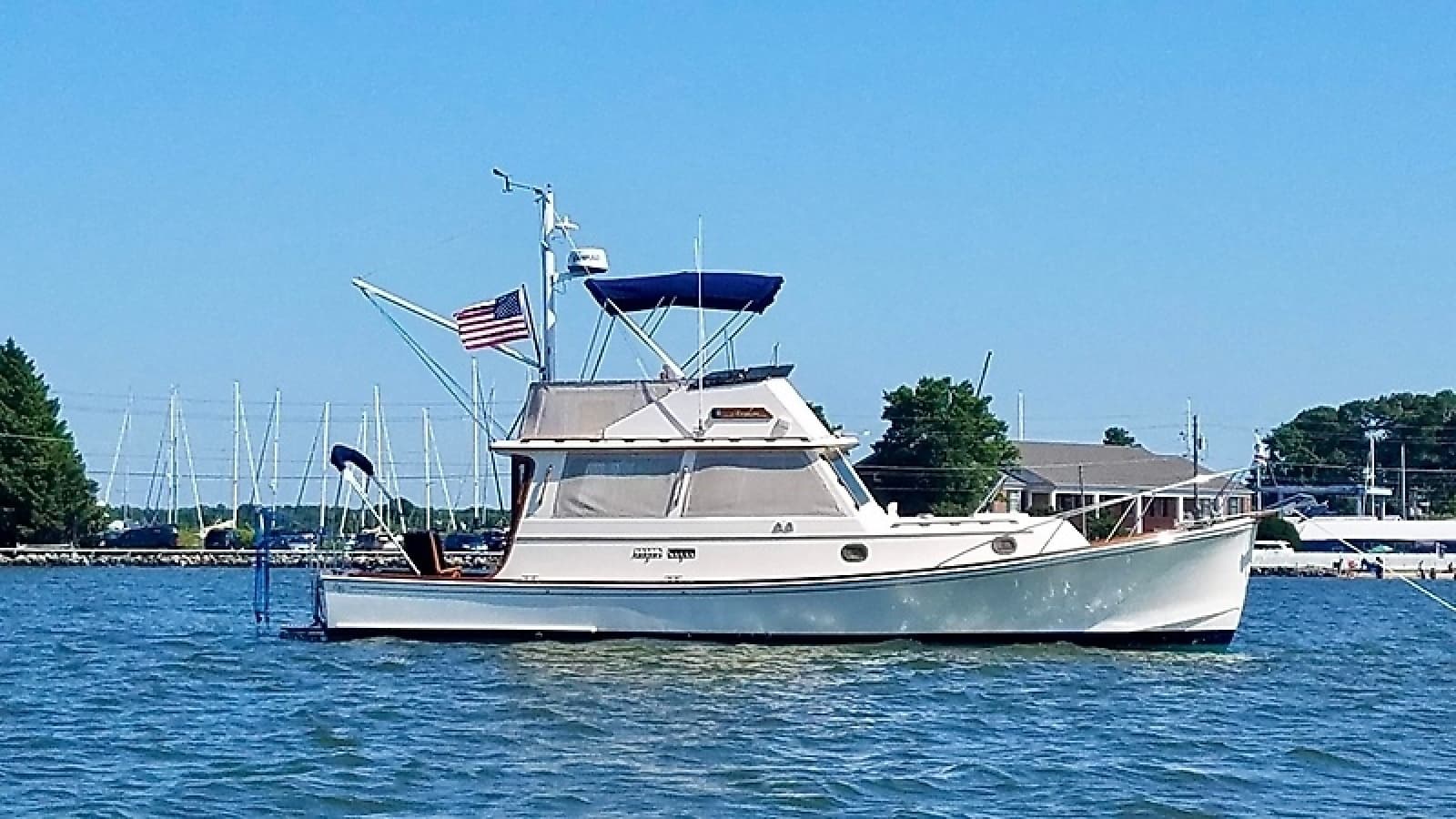

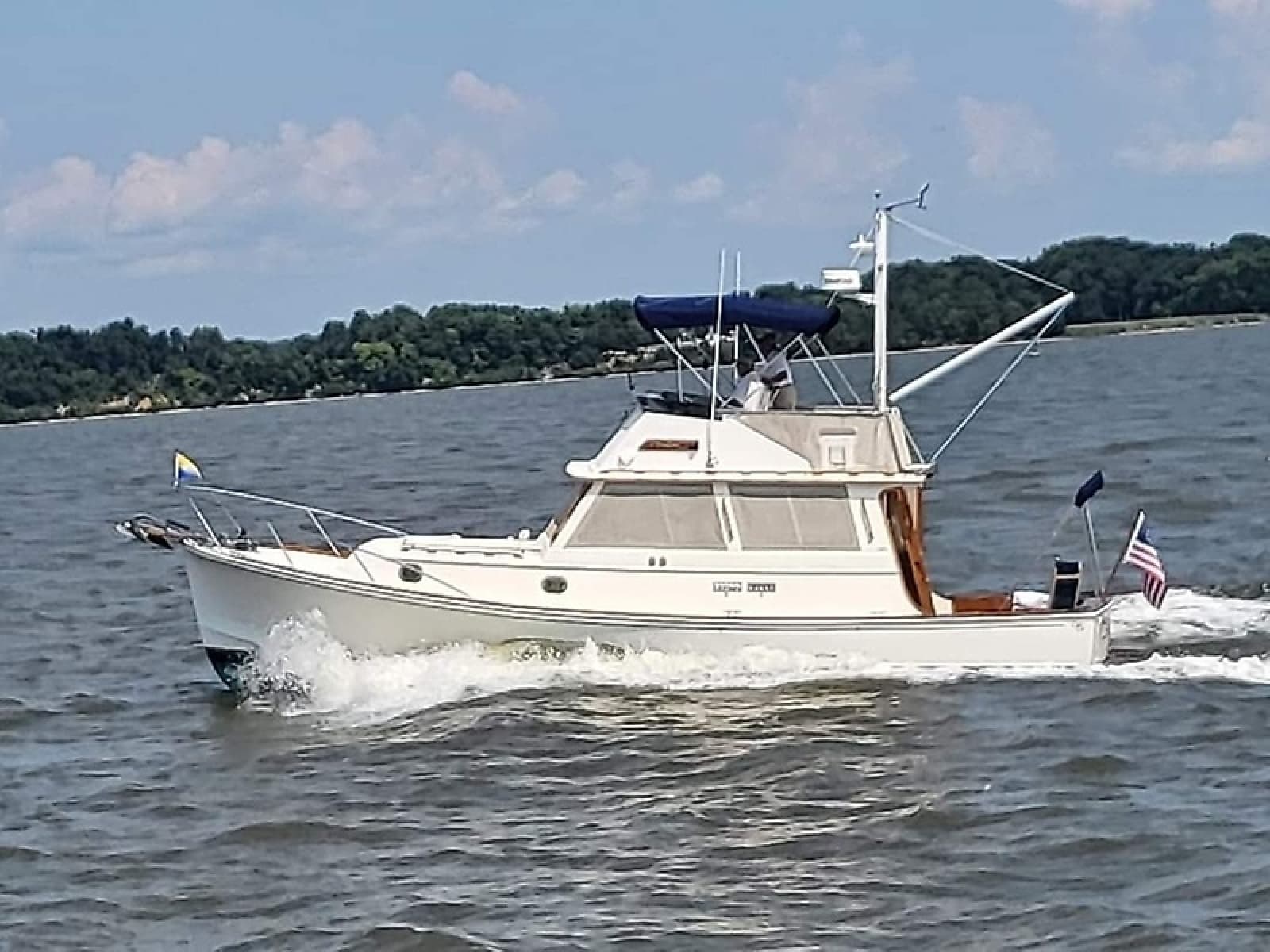

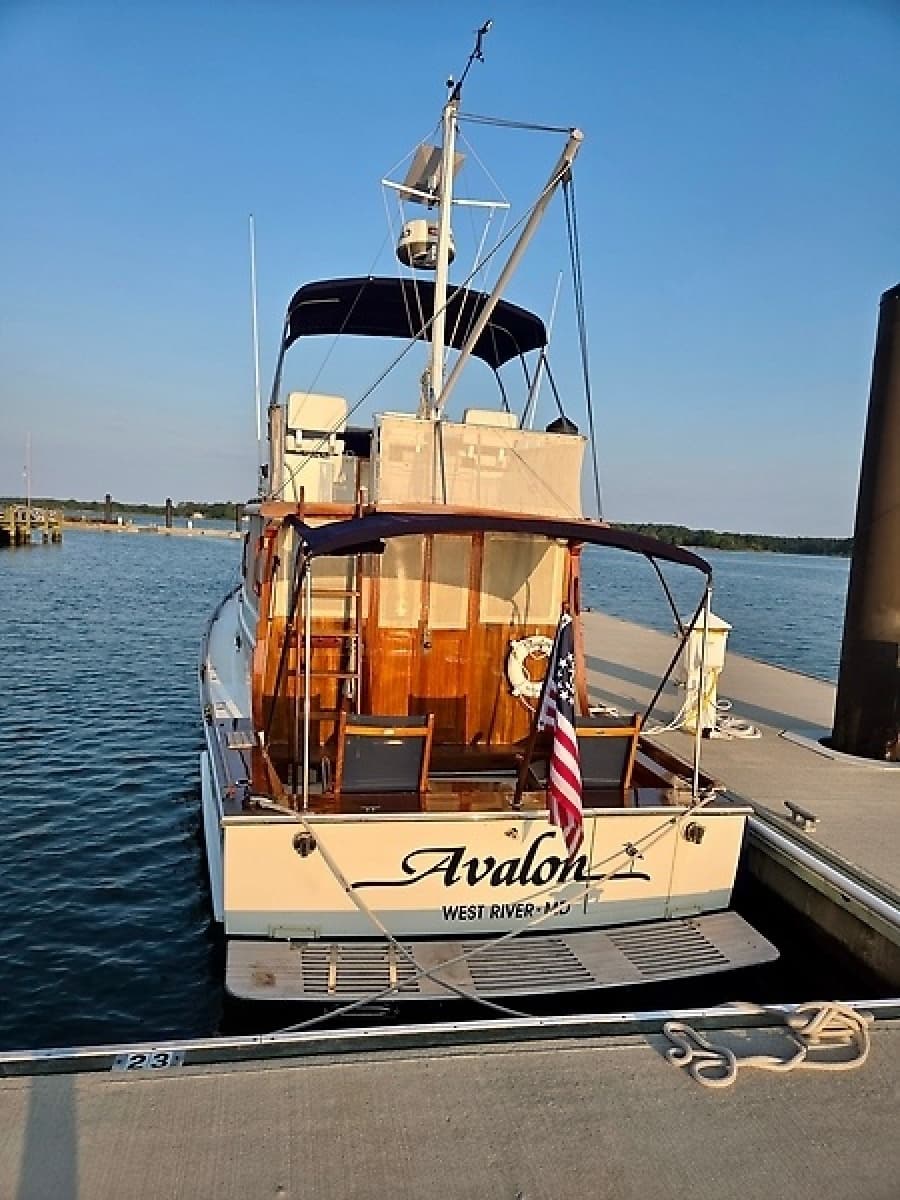

1993 Shannon Custom Downeast 36

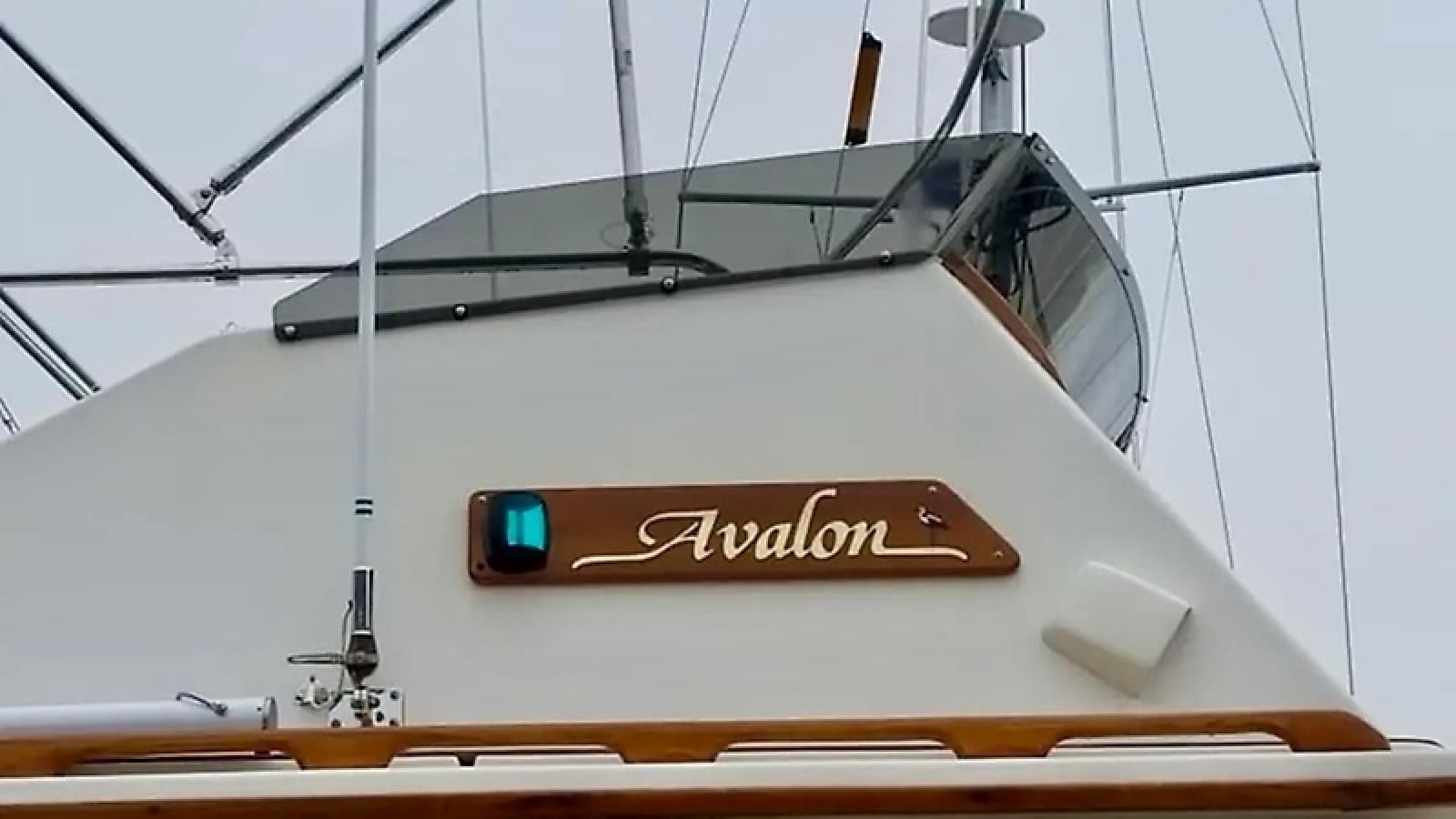

“Avalon”
Description
"Avalon" was custom built by Shannon Boat Company in Bristol, RI. She was designed by Royal Nowell. By previous builders this design was know as; Bruno Stillman 35, Harris Cuttyhunk 36 and the Nauset 36. Nauset improved and modified the original hull design by adding a molded forward chine/spray rail.
Her bottom is solid fiberglass layup below the waterline and cored above. Her chines are round in the stern, her propeller is protected with a fiberglass keal and bronze shoe that connects the keel and rudder in proper New England Lobster boat fashion.
The interior is handcrafted. It is done in the classic style of white surfaces mixed with varnished hardwood joinery. (note: The cabin sole is not veneer. It is solid wood that is screwed and bunged) Every space available has been made accessible to maximize storage with drawers, doors and lockers.

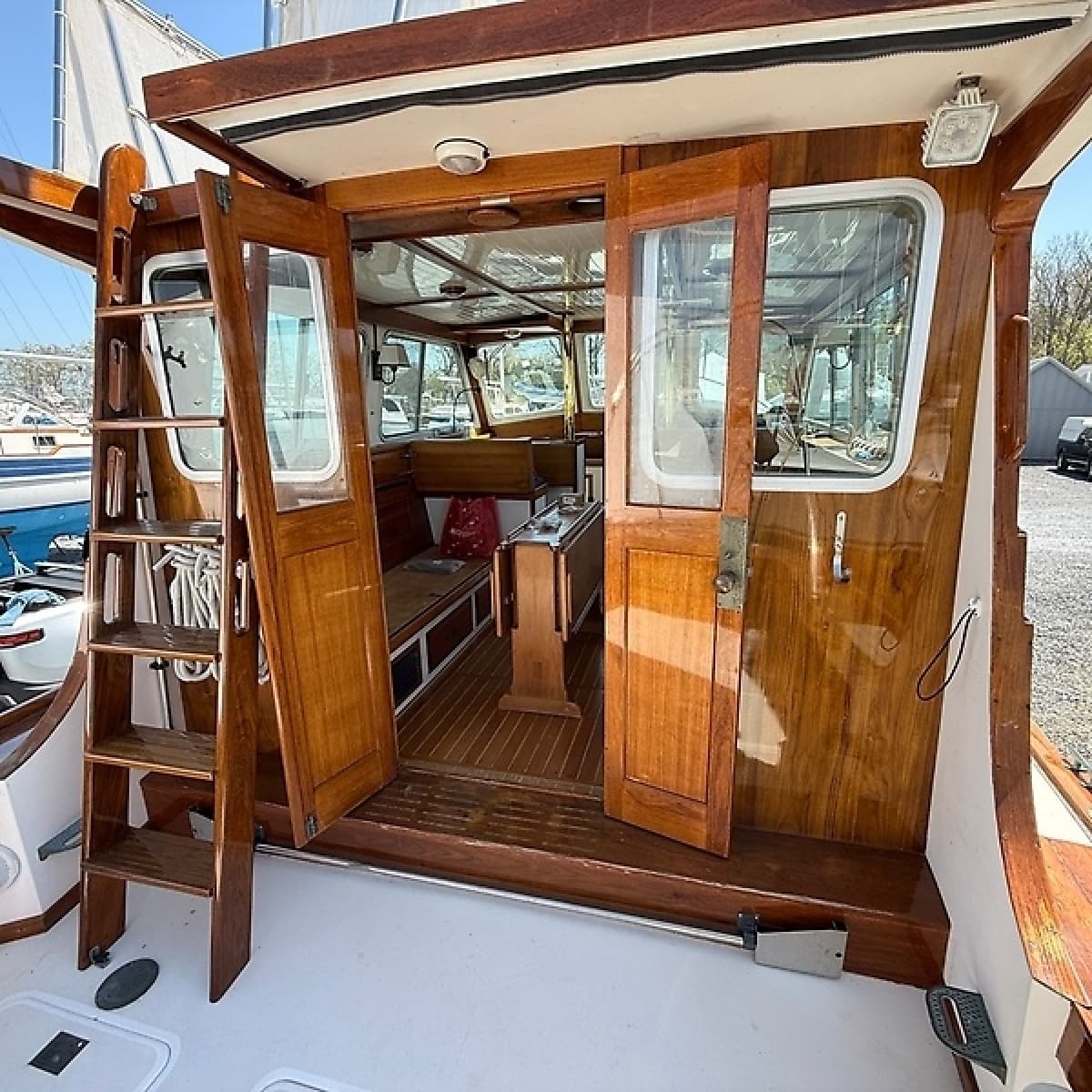

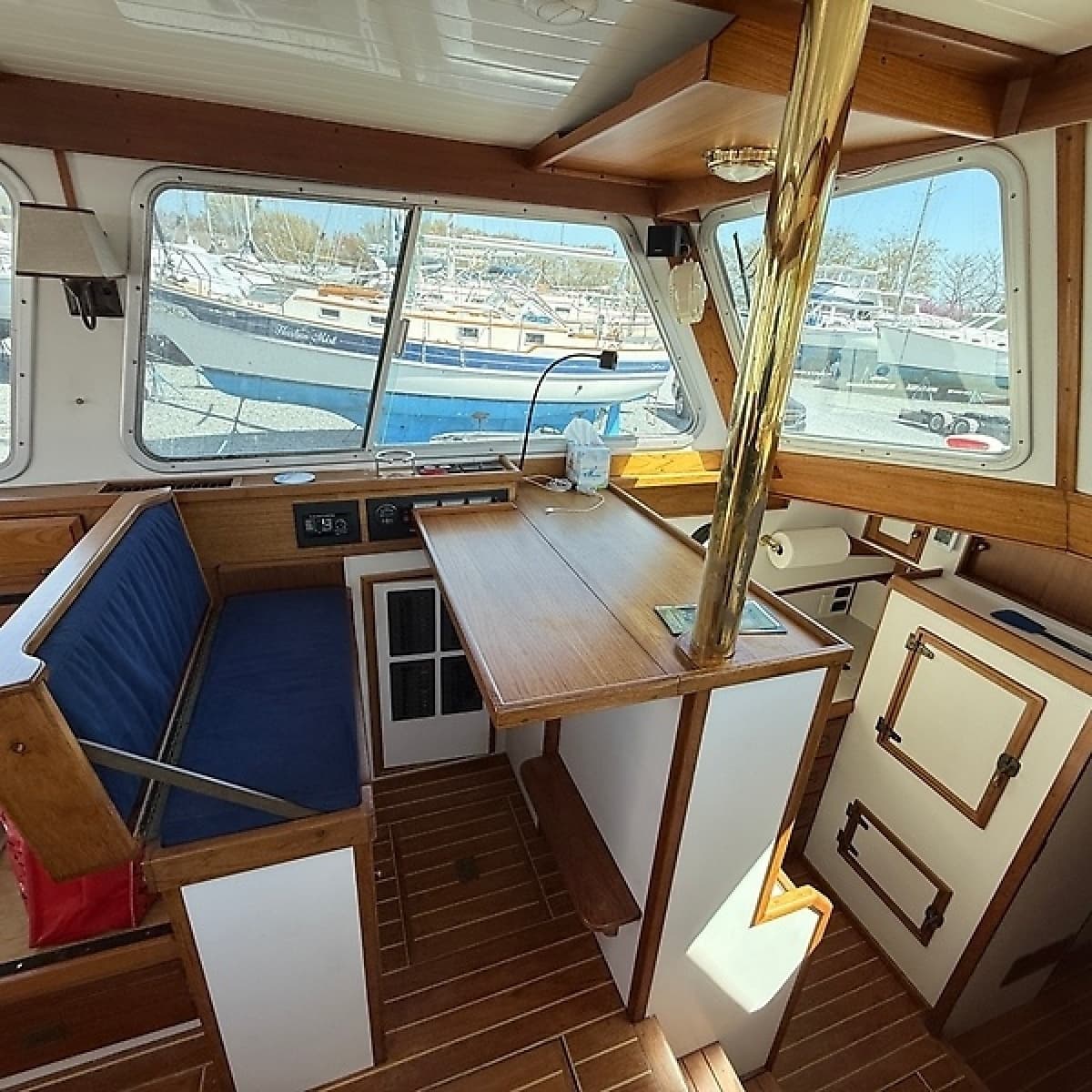

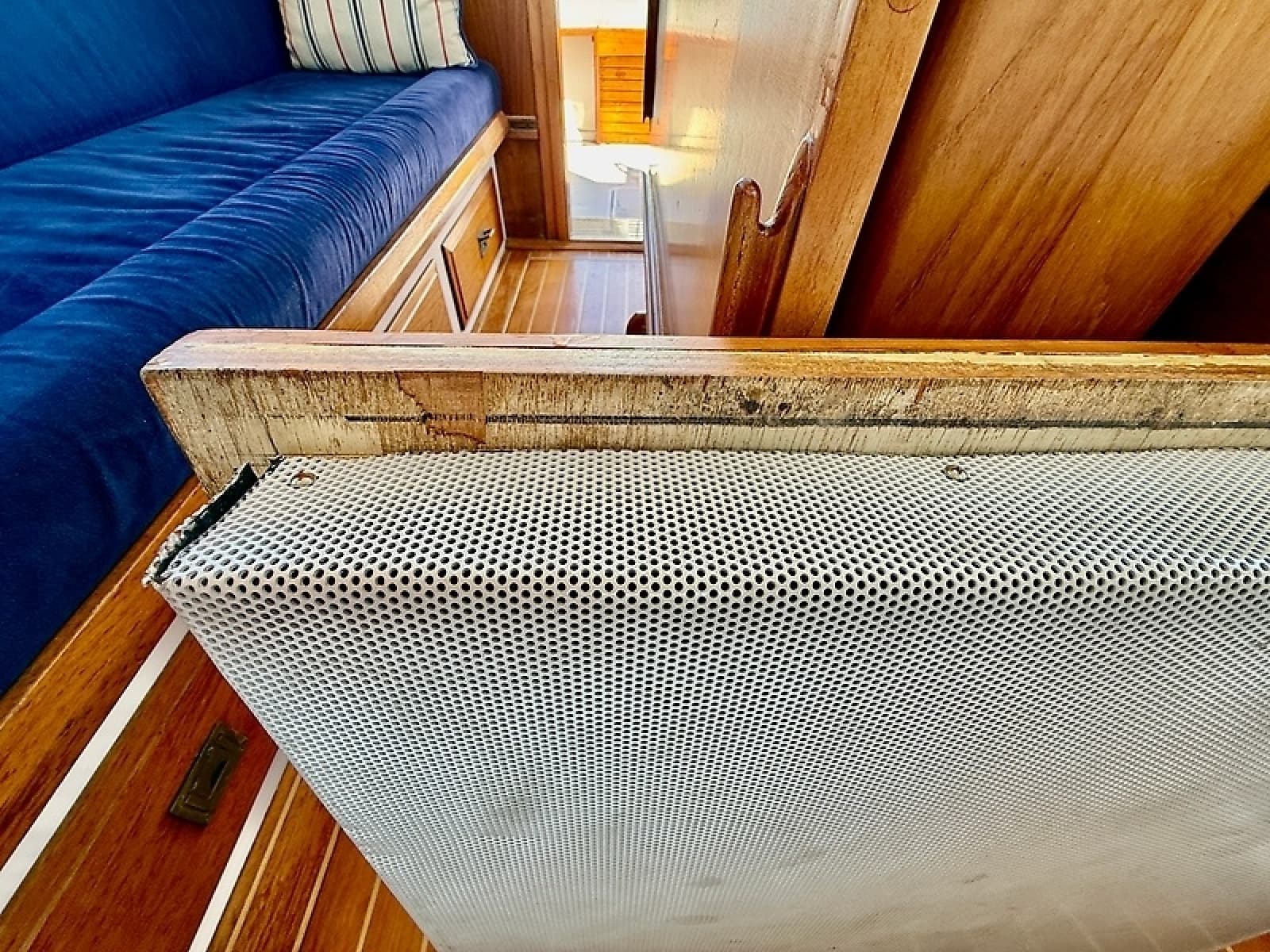

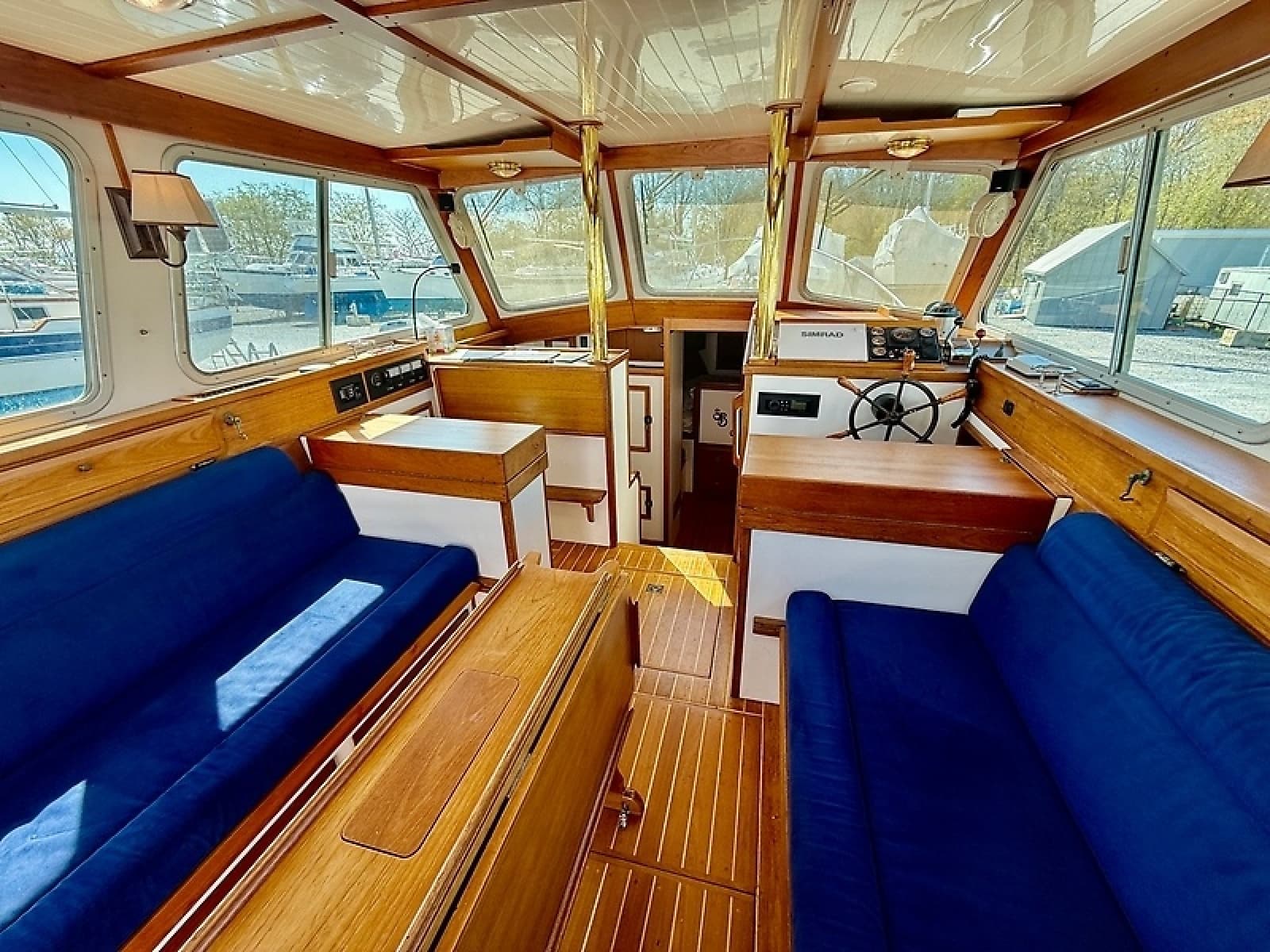

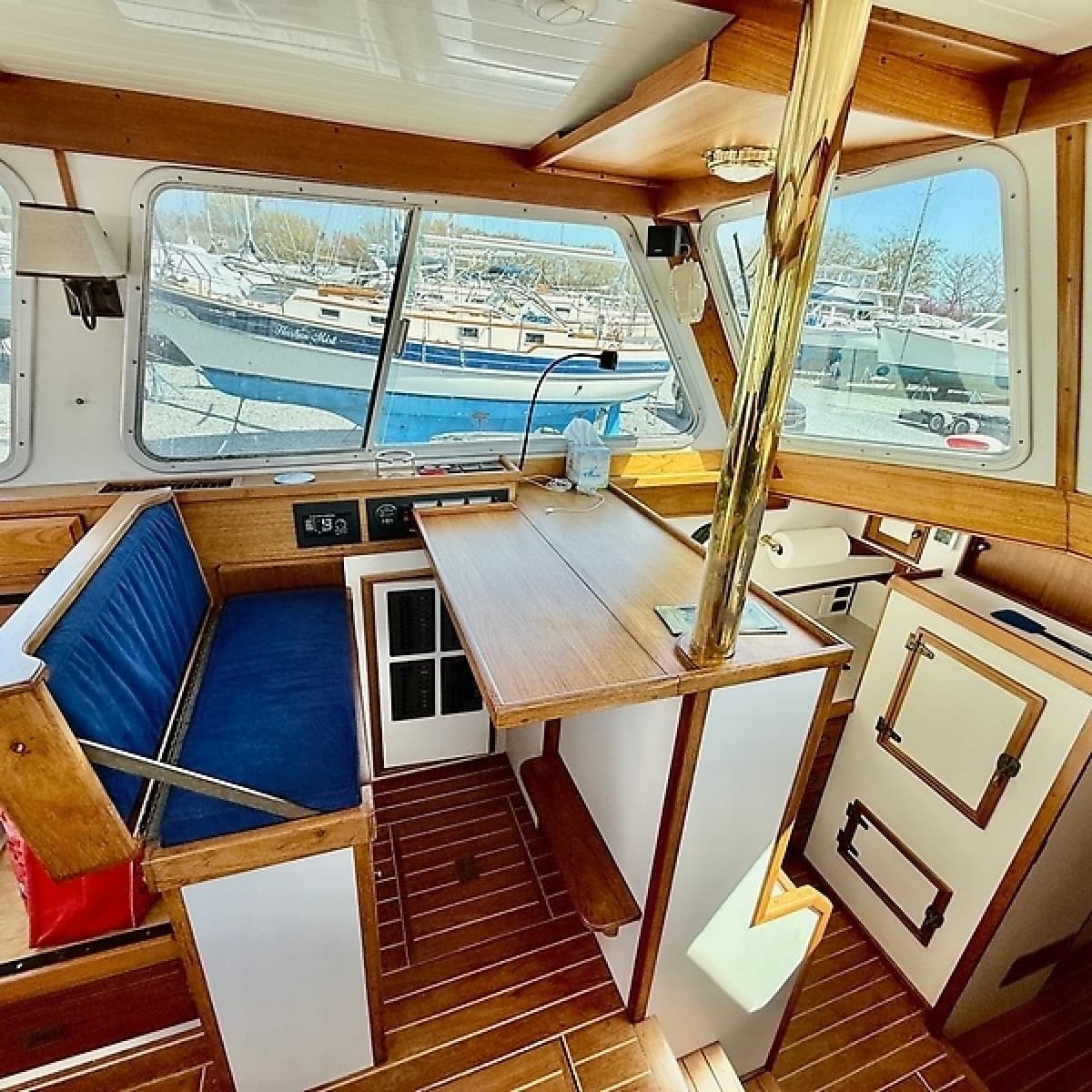

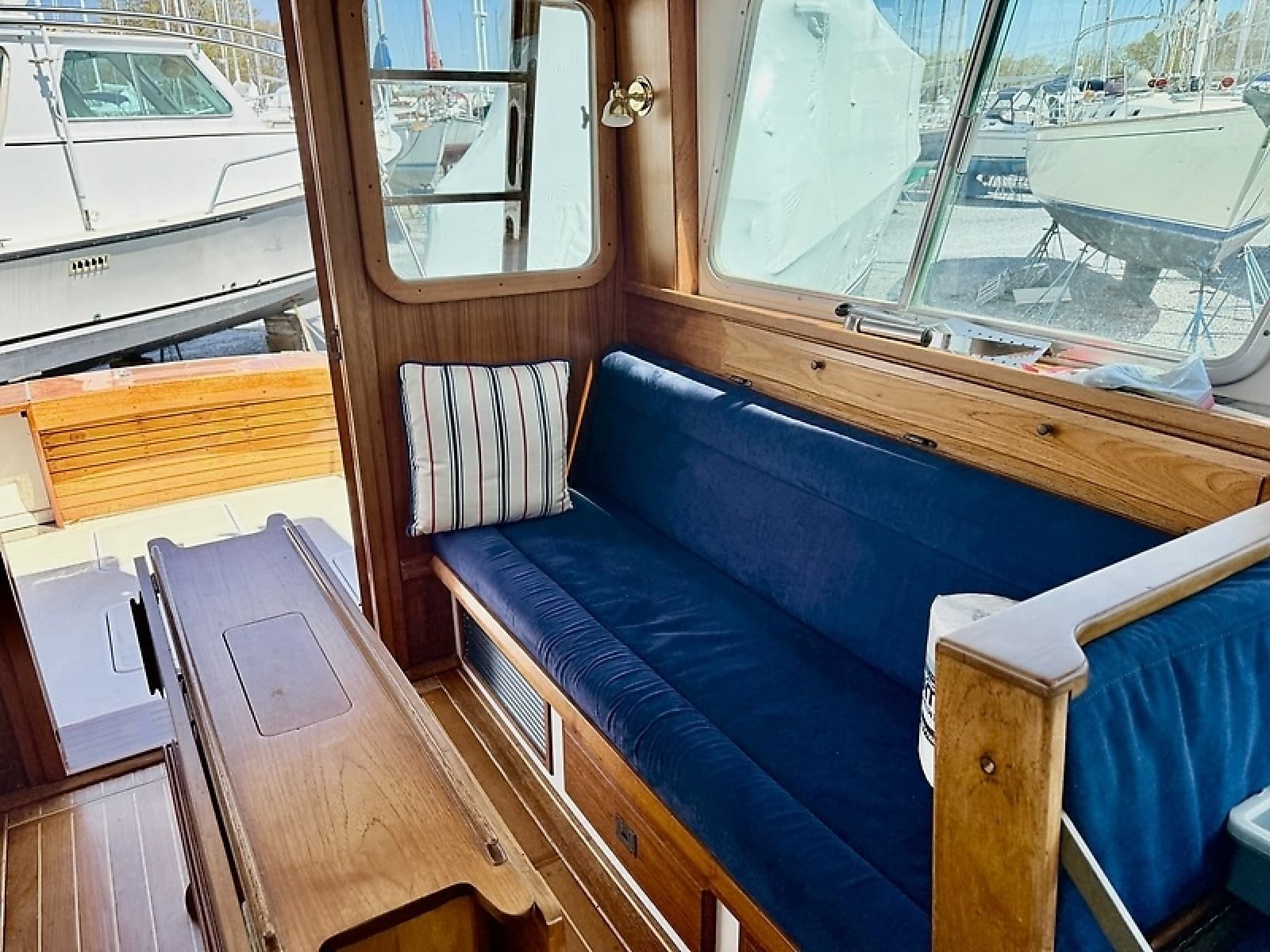

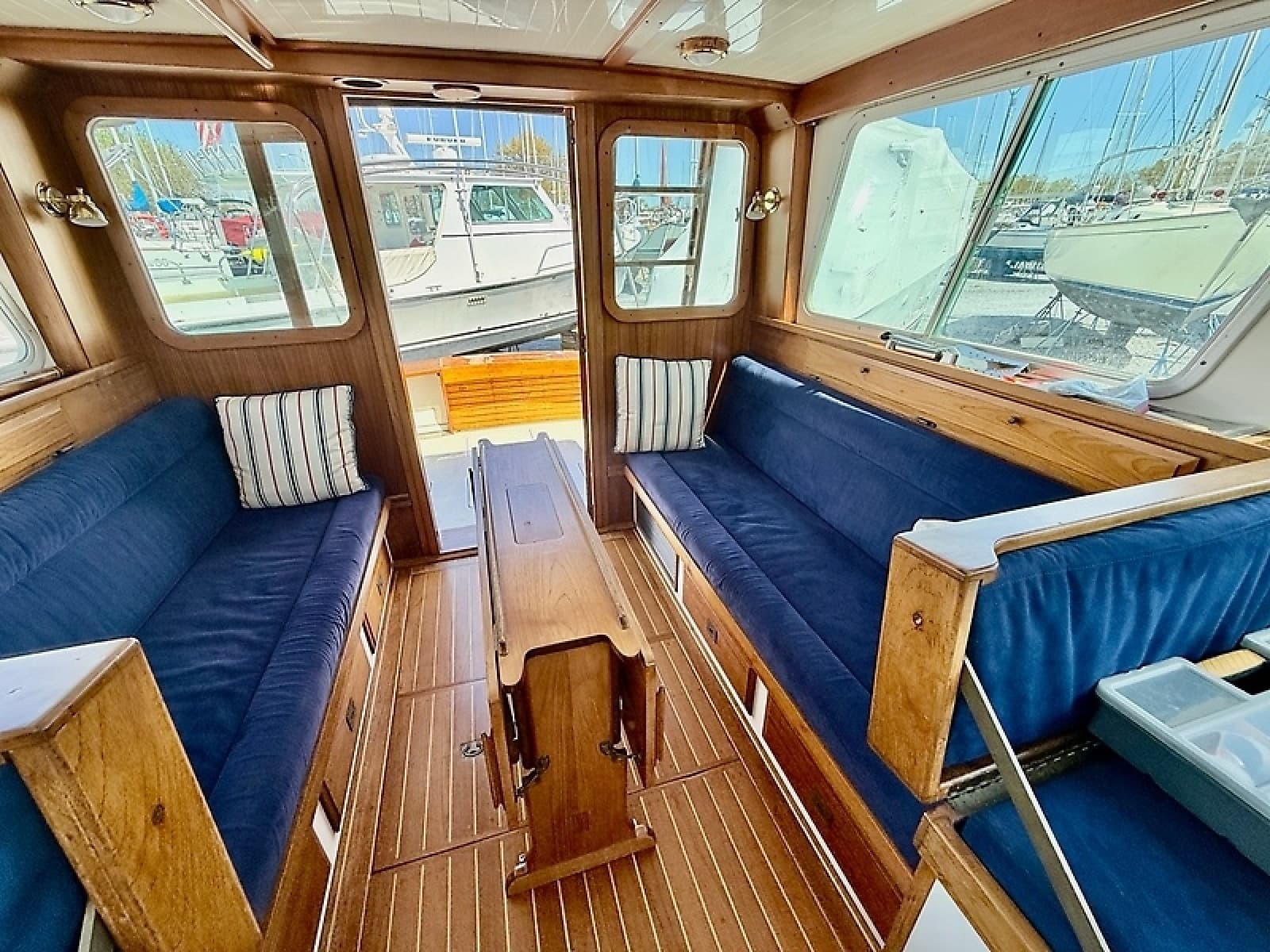

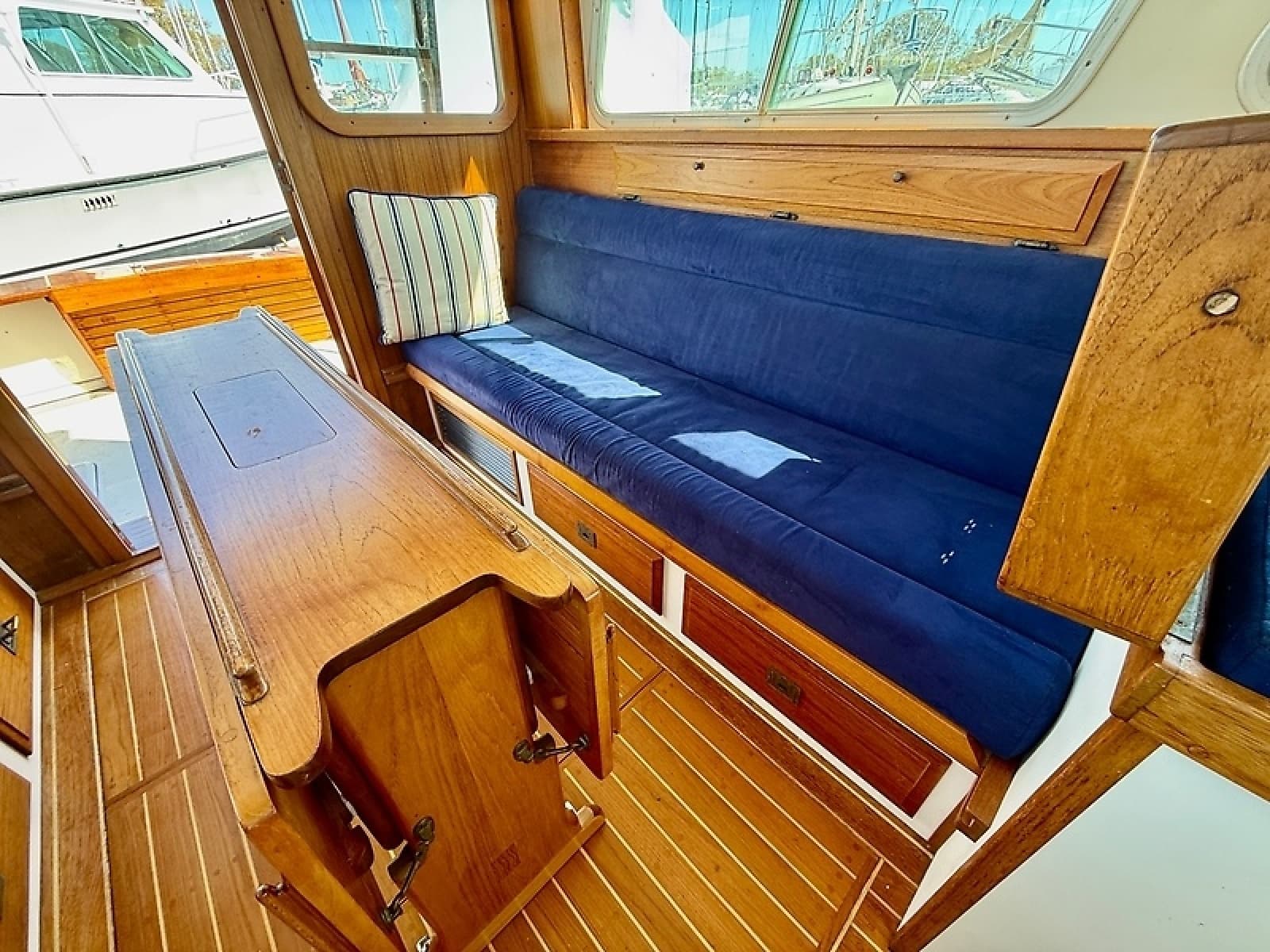

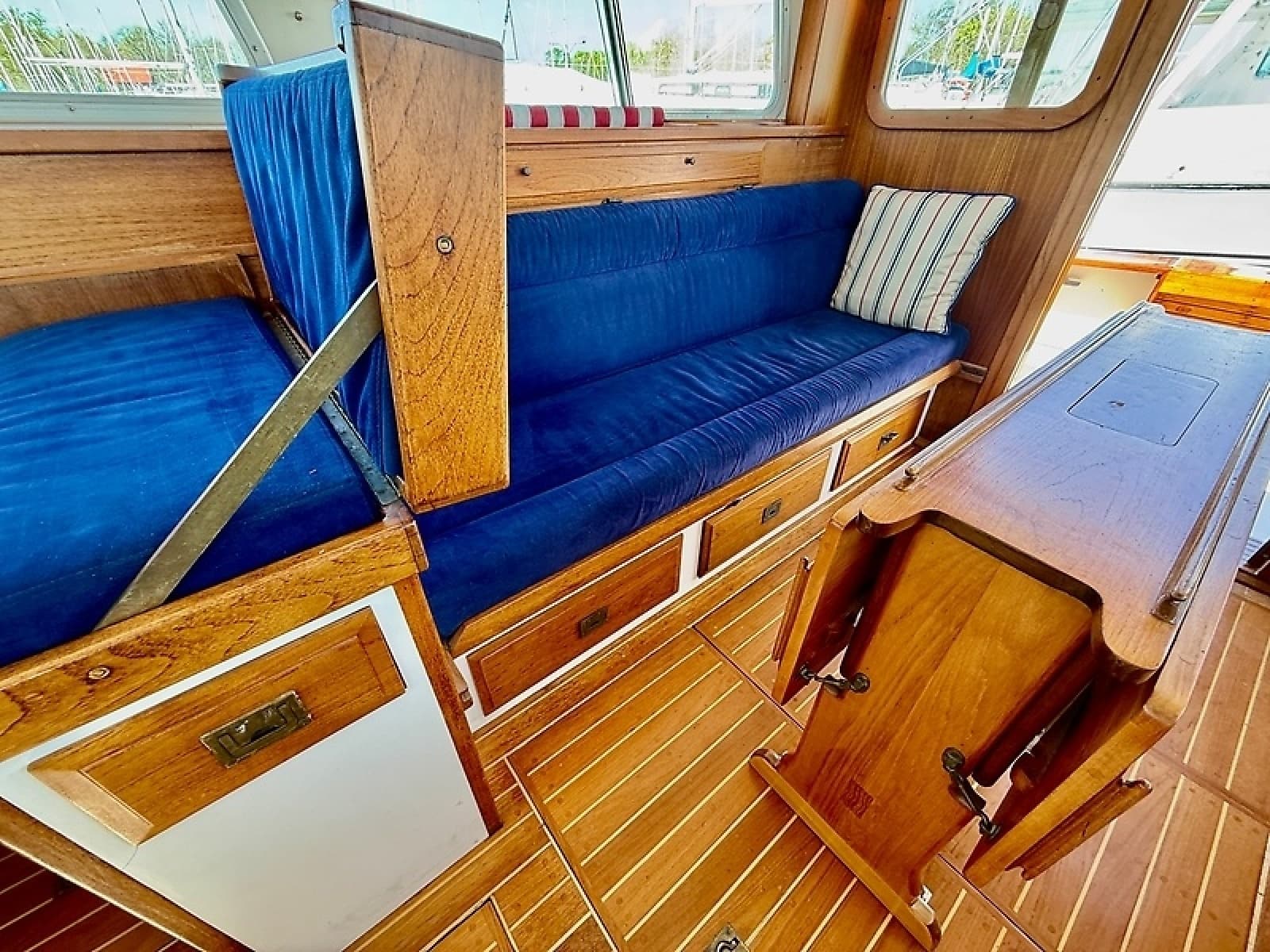

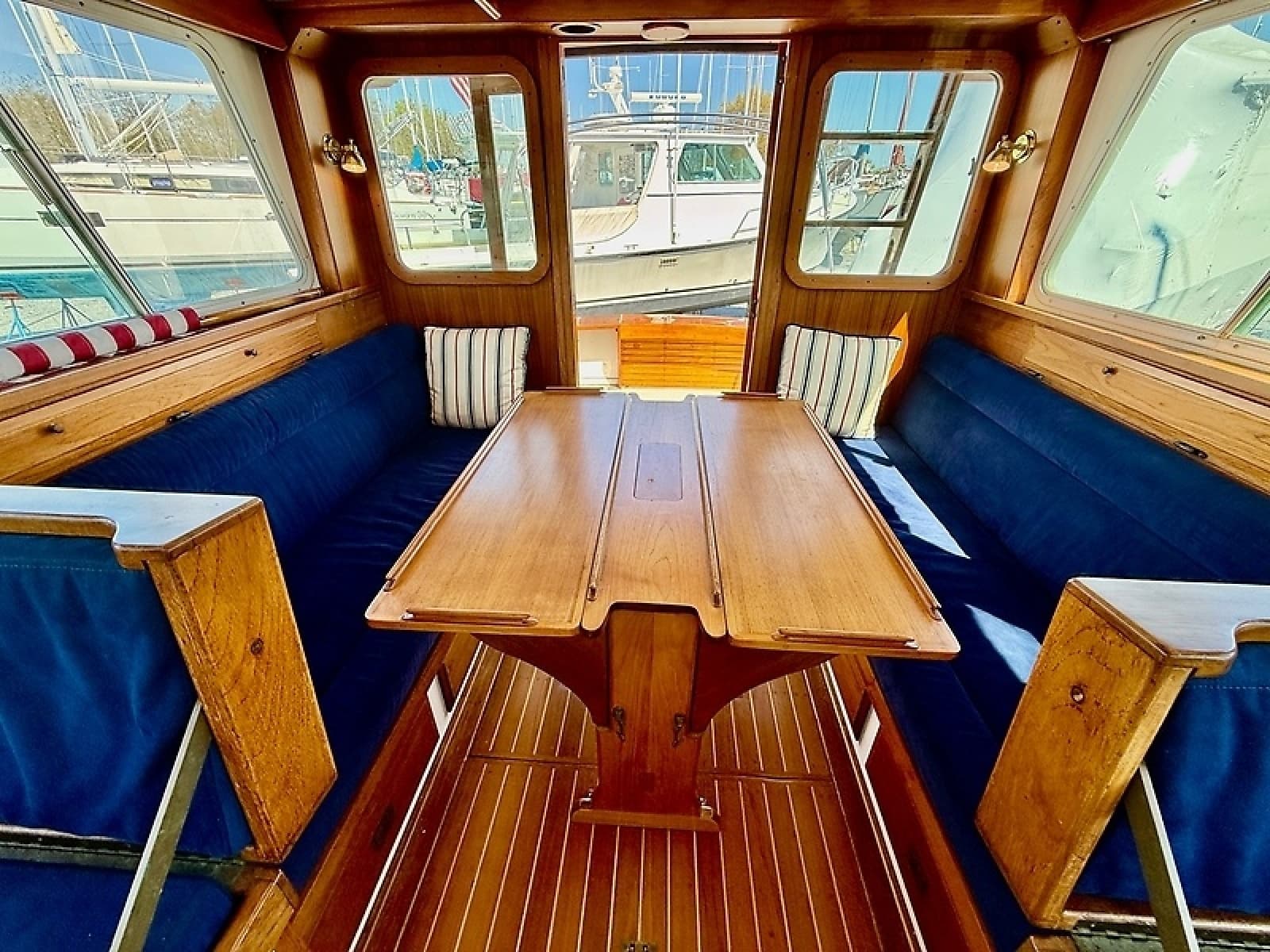

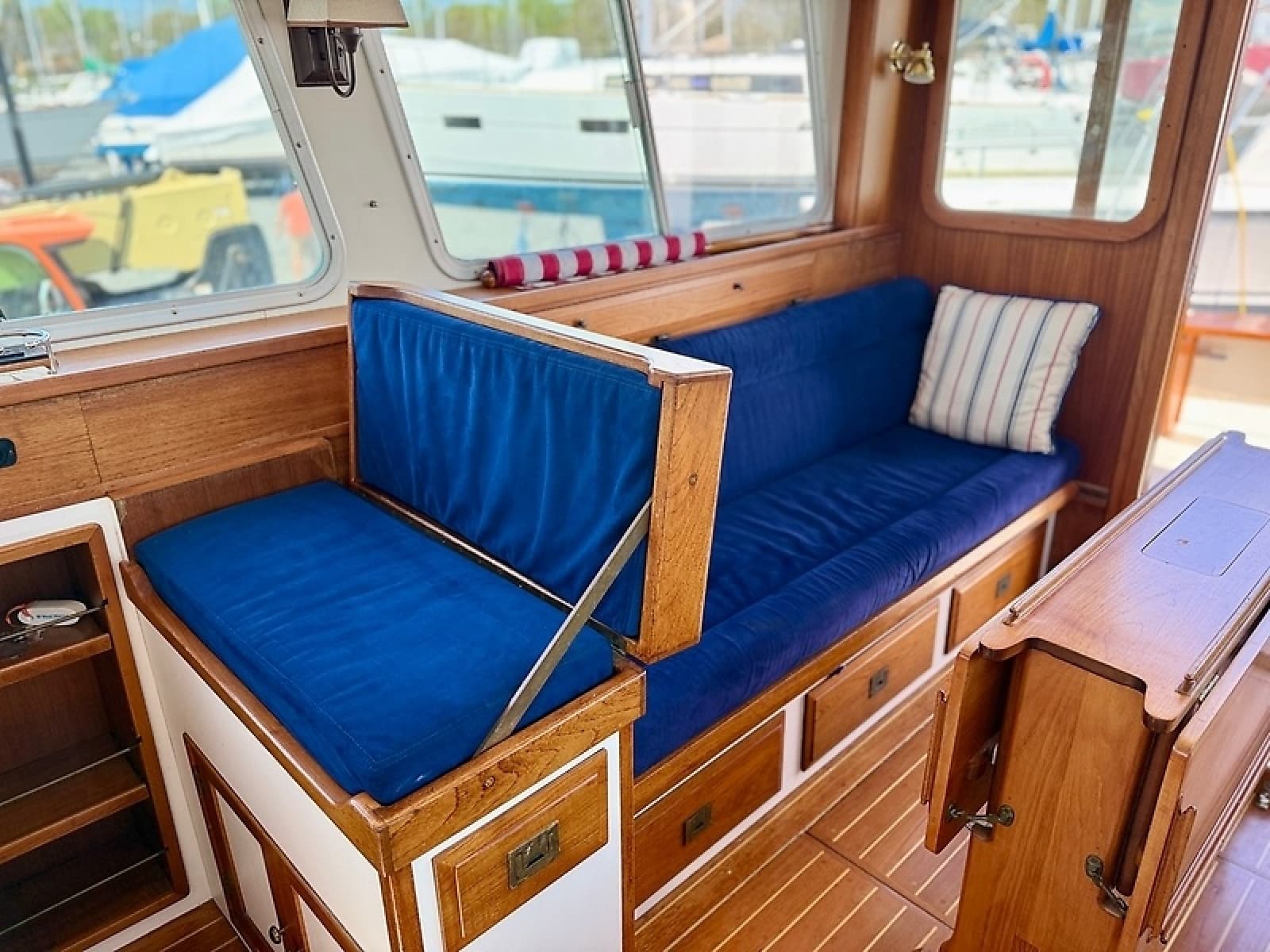

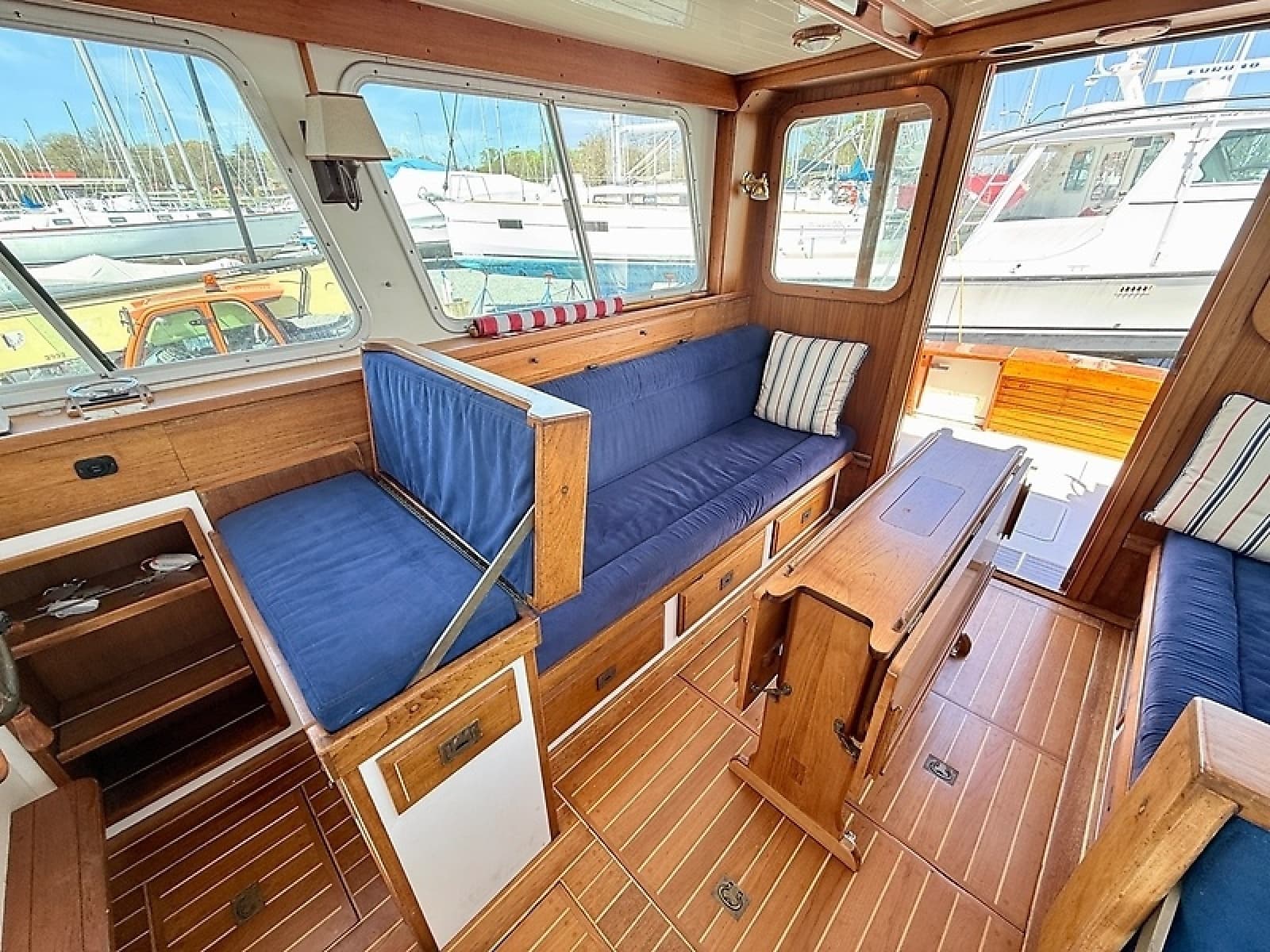

Entering the main cabin the salon has port and starboard settees with a centerline drop-leaf table. Both settees extend for that little extra room for when they are used for sleeping.

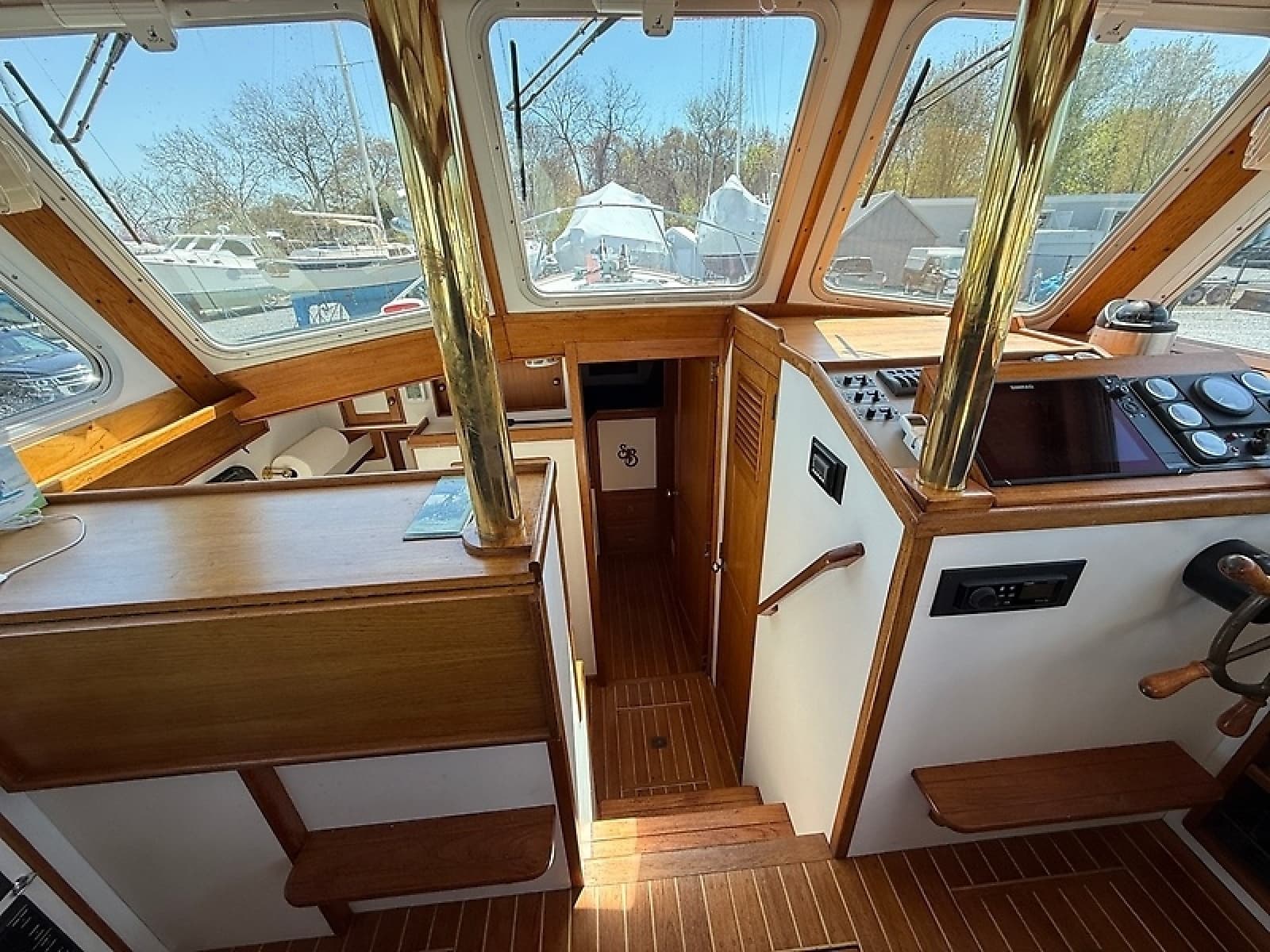

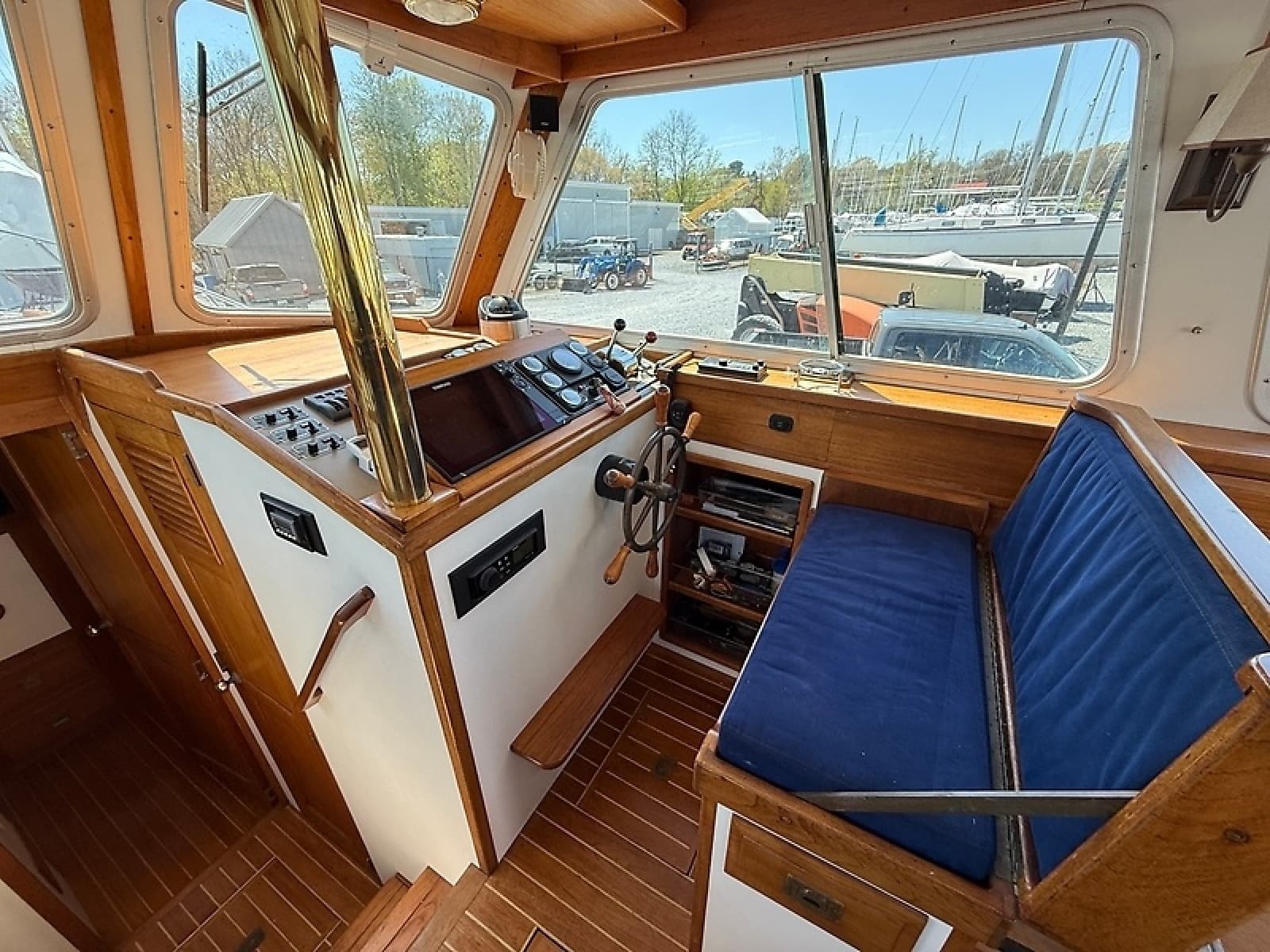

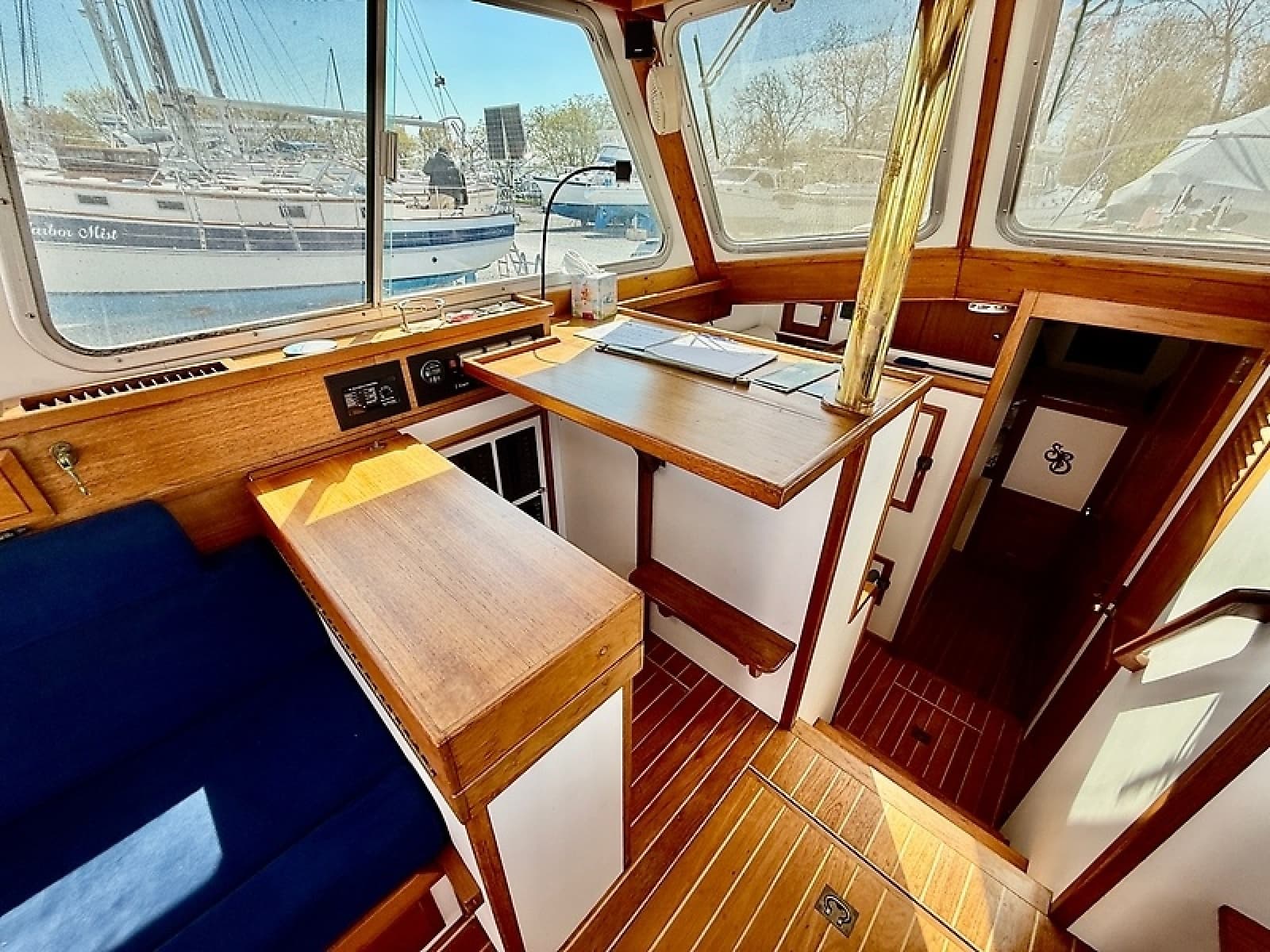

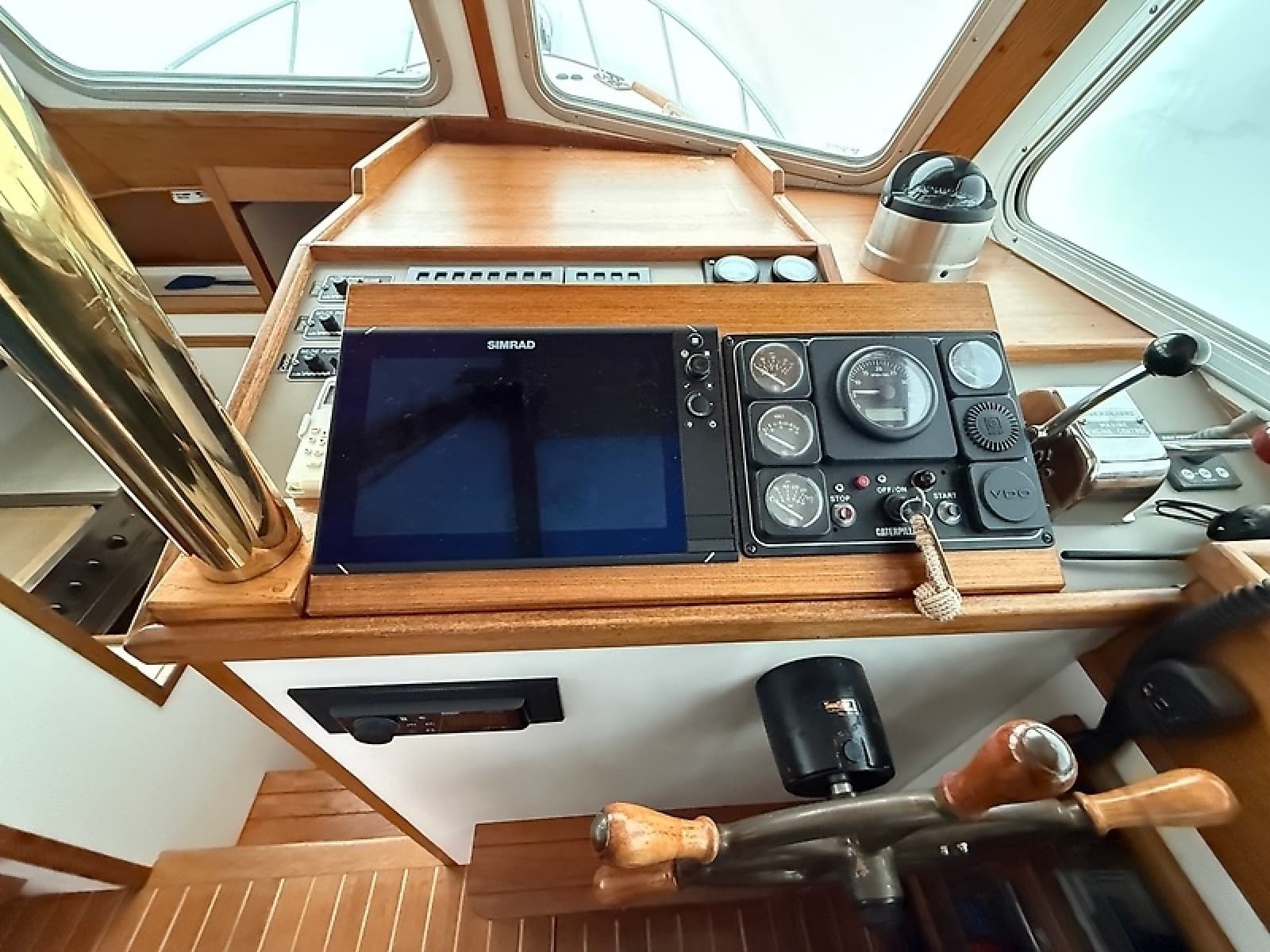

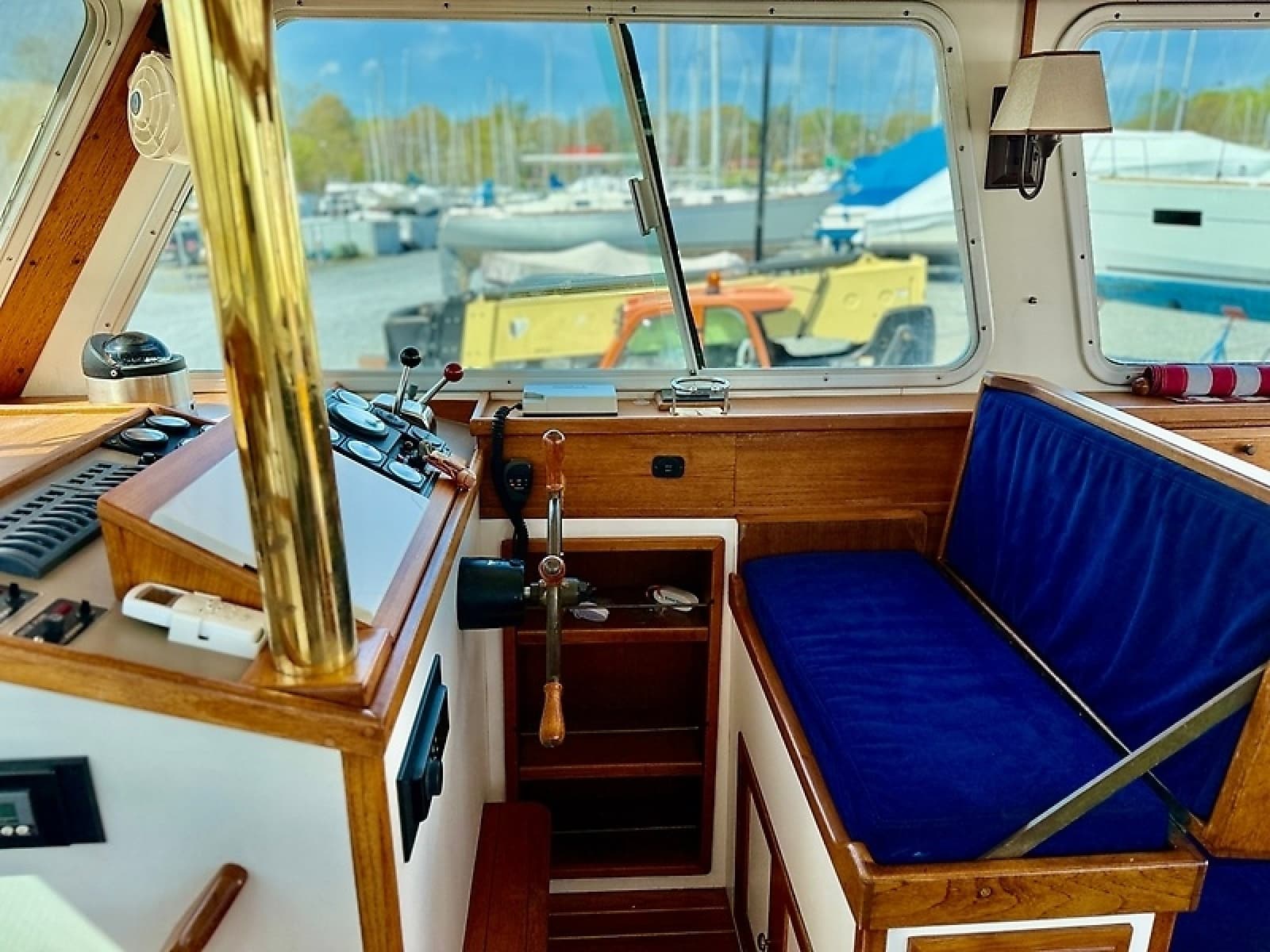

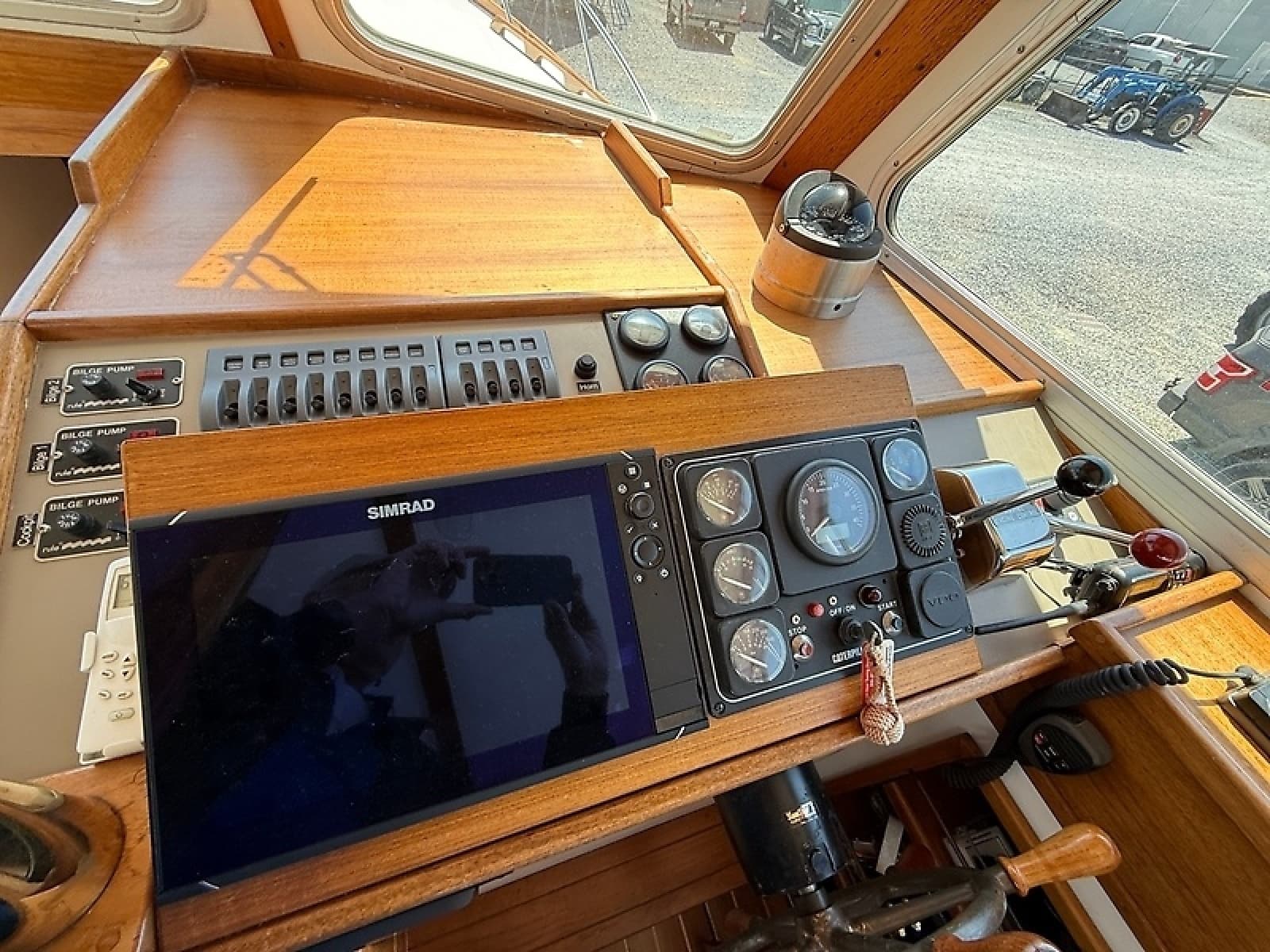

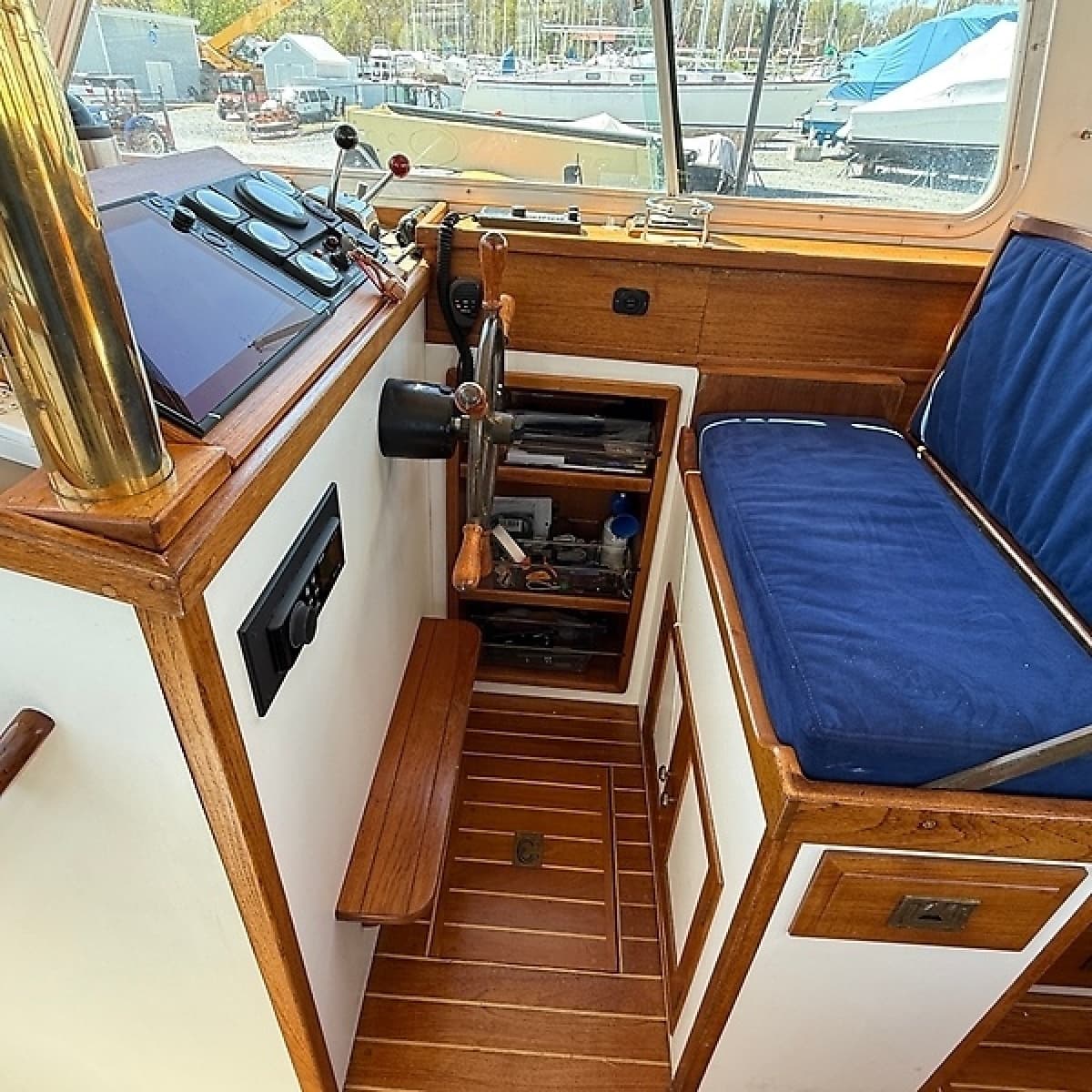

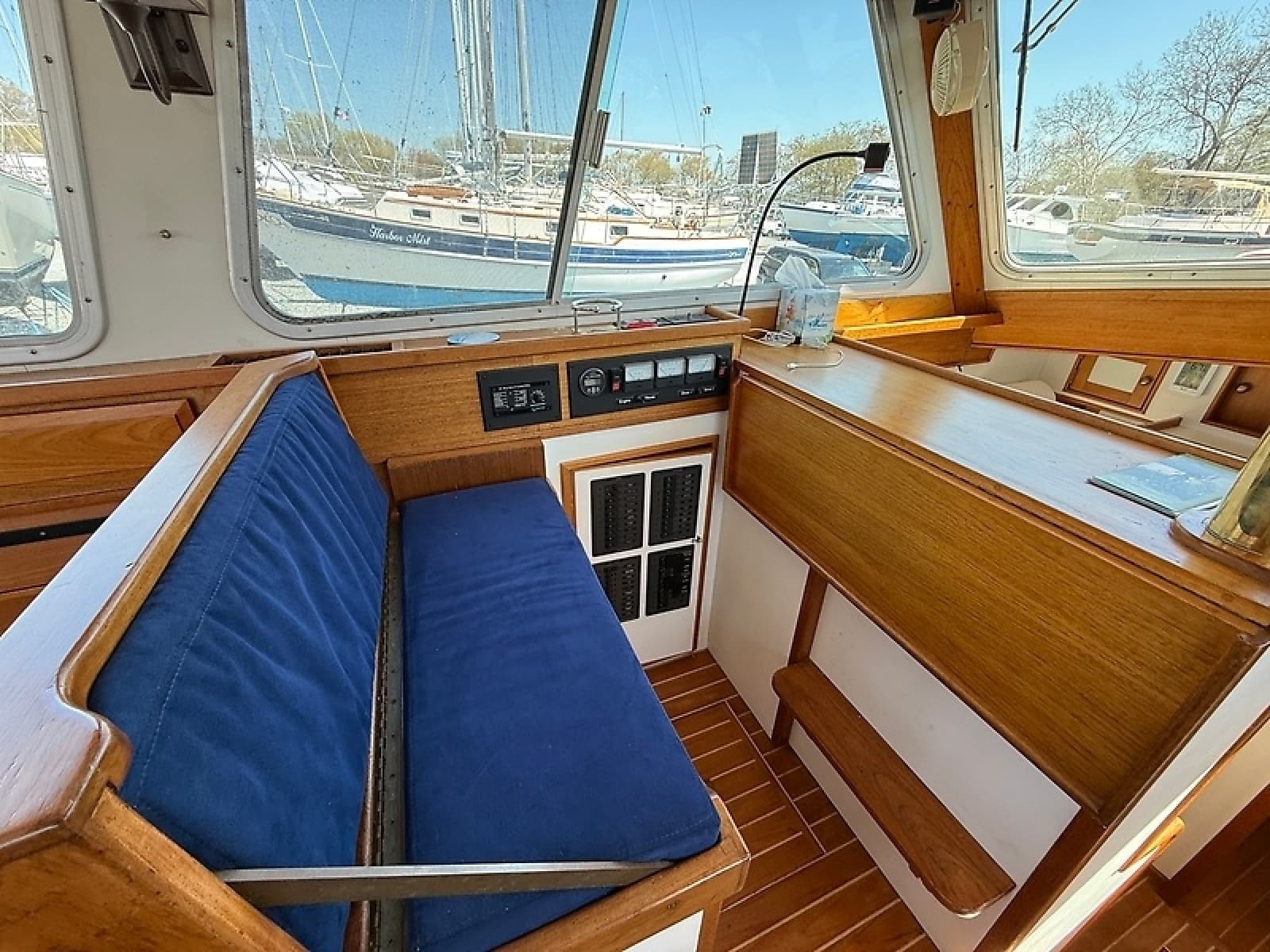

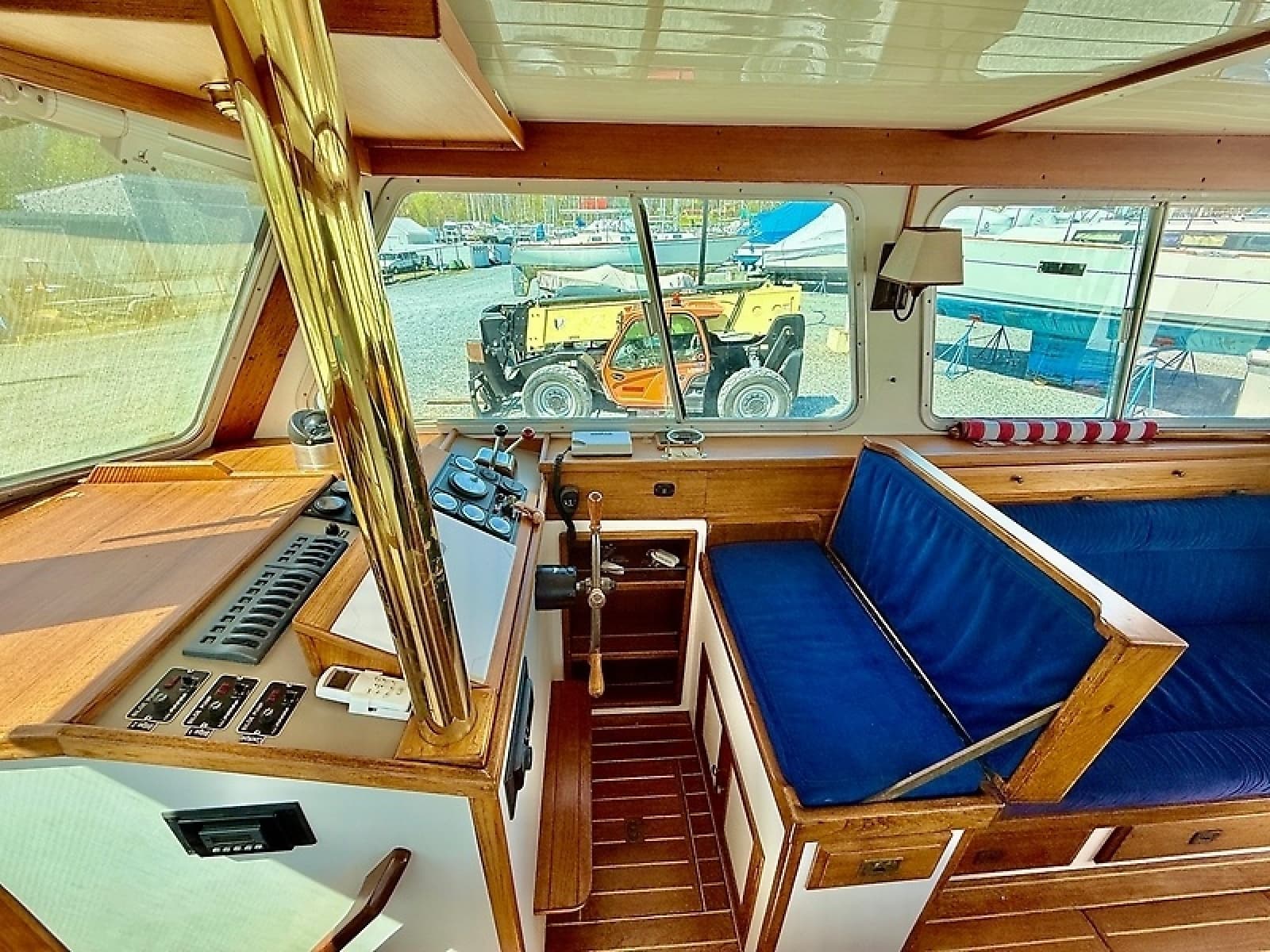

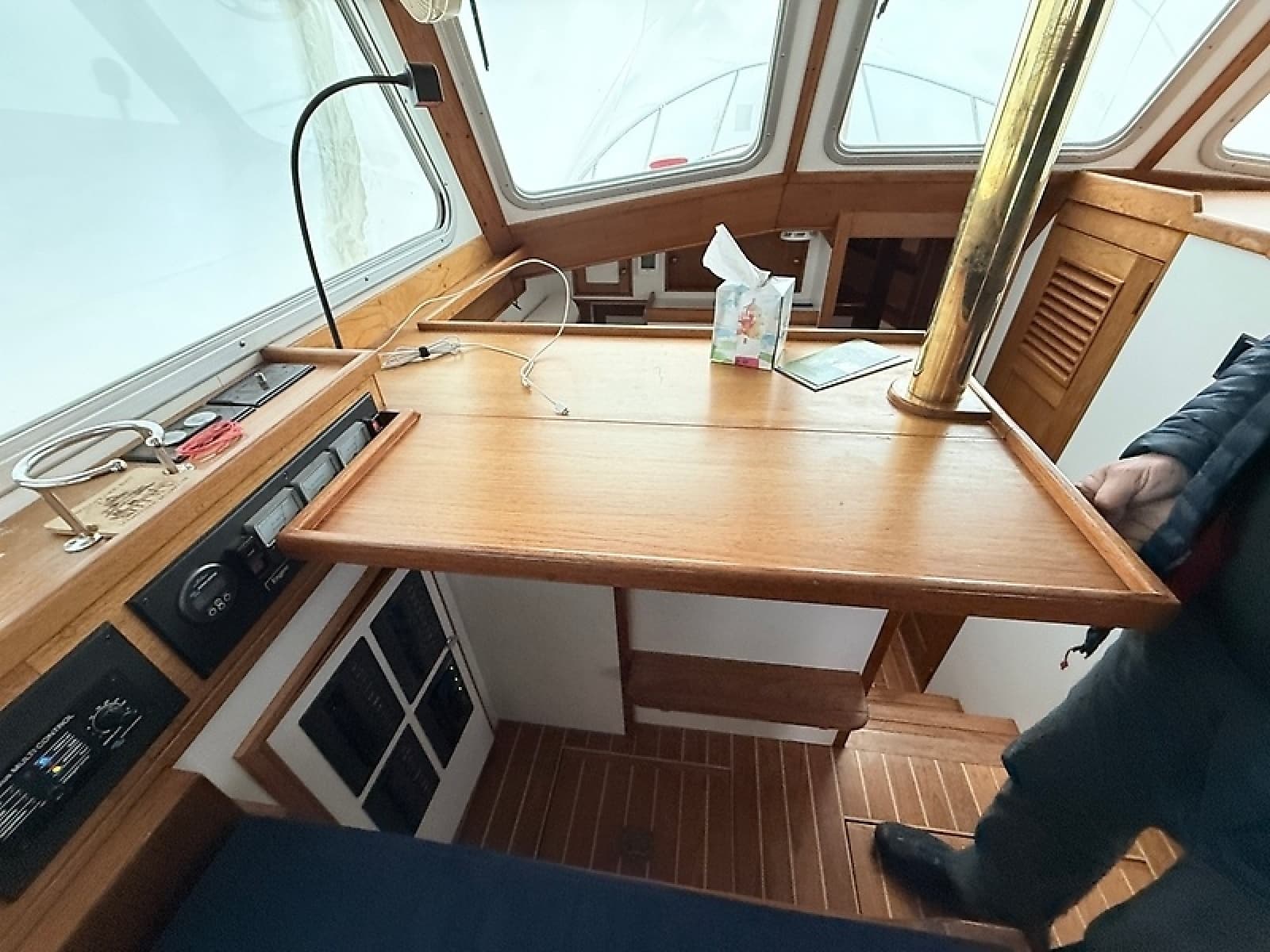

Forward in the salon is the lower helm station with seat to starboard and the companions navigation seat with flip-up chart table. Both of the seat-backs fold down for addition flat surfaces for use when entertaining or just lounging.

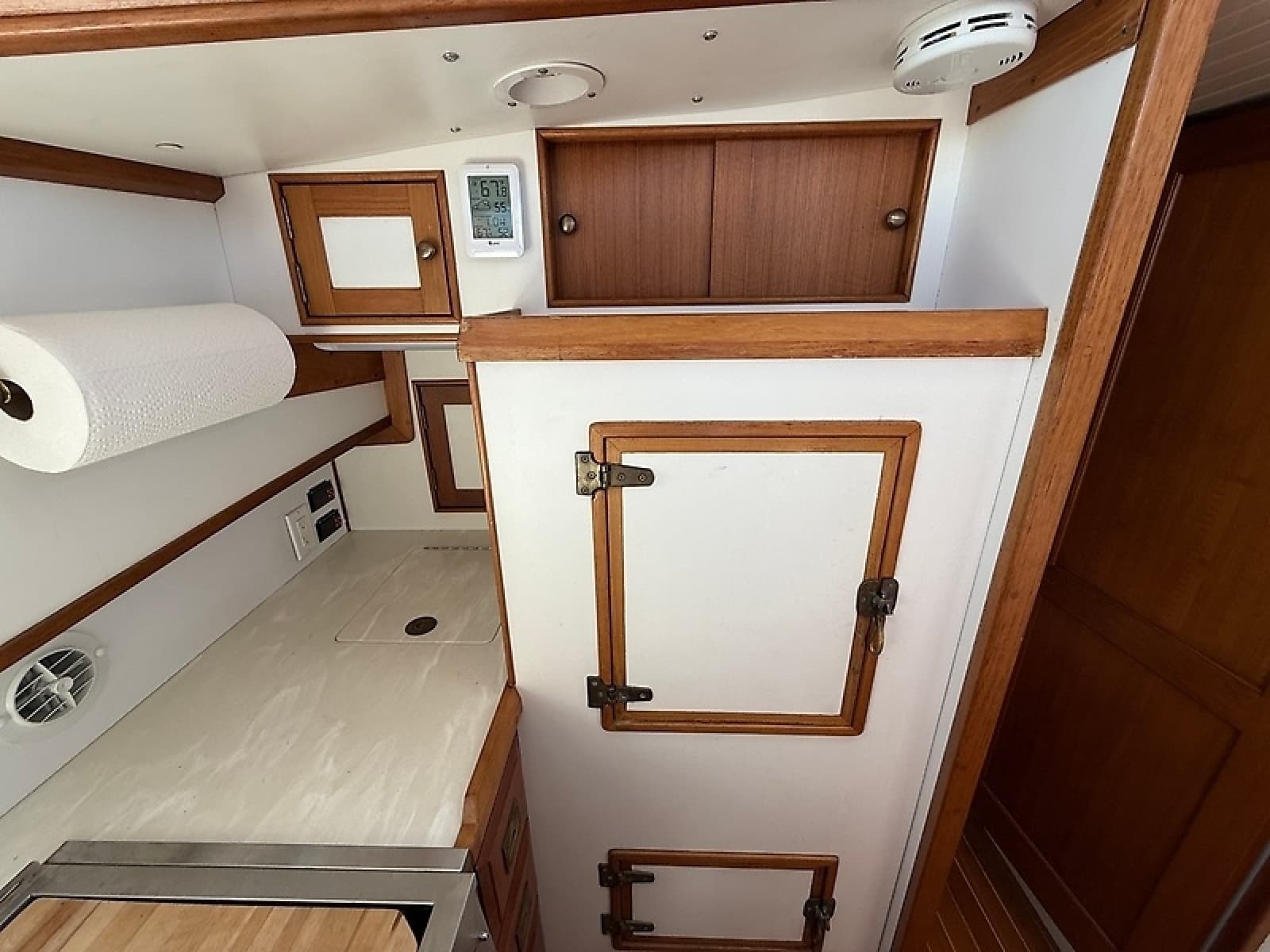

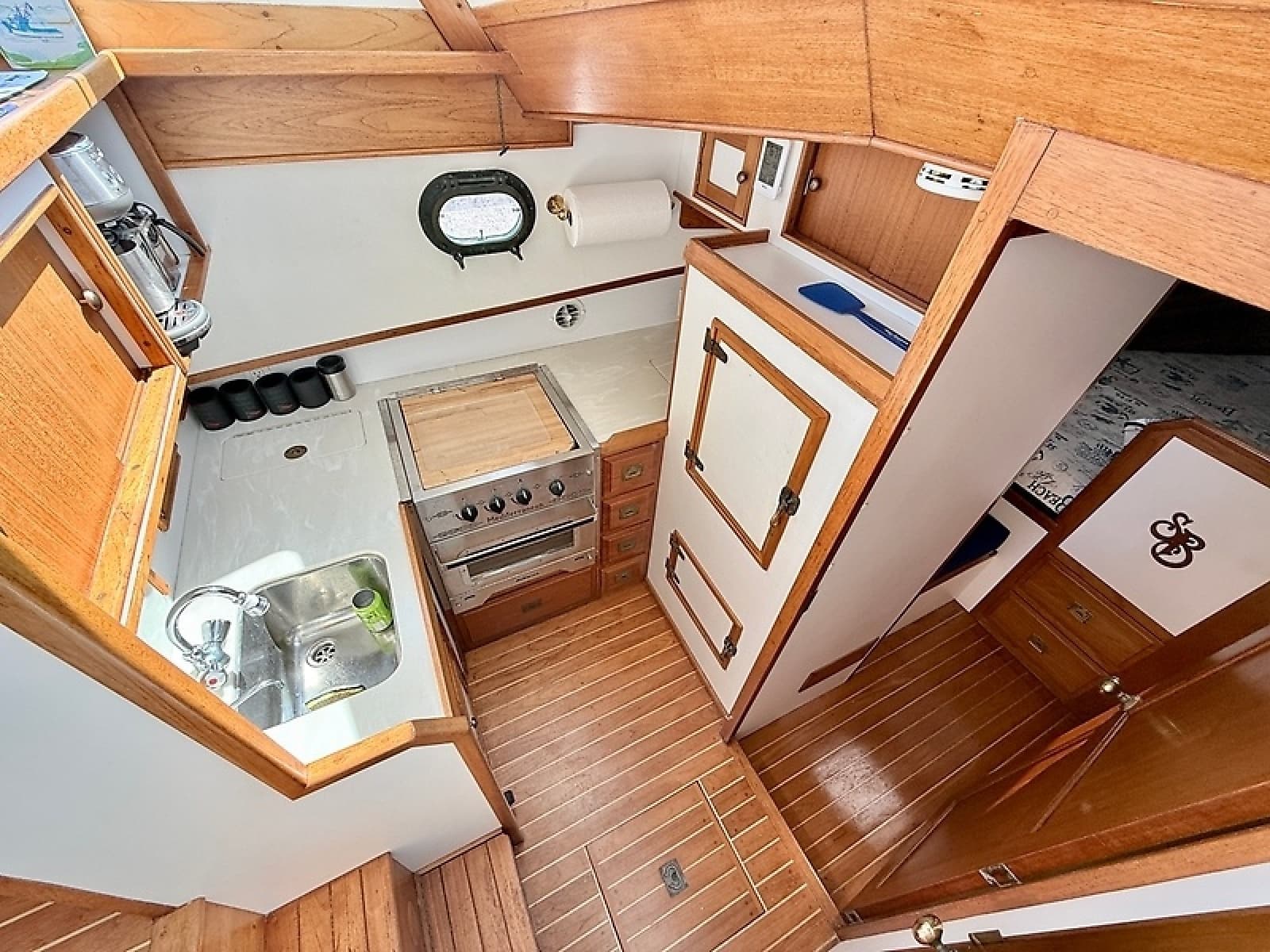

The galley is down and to port. However, it is not so low as too feel isolated from the main cabin. It is U-shaped and very efficient.

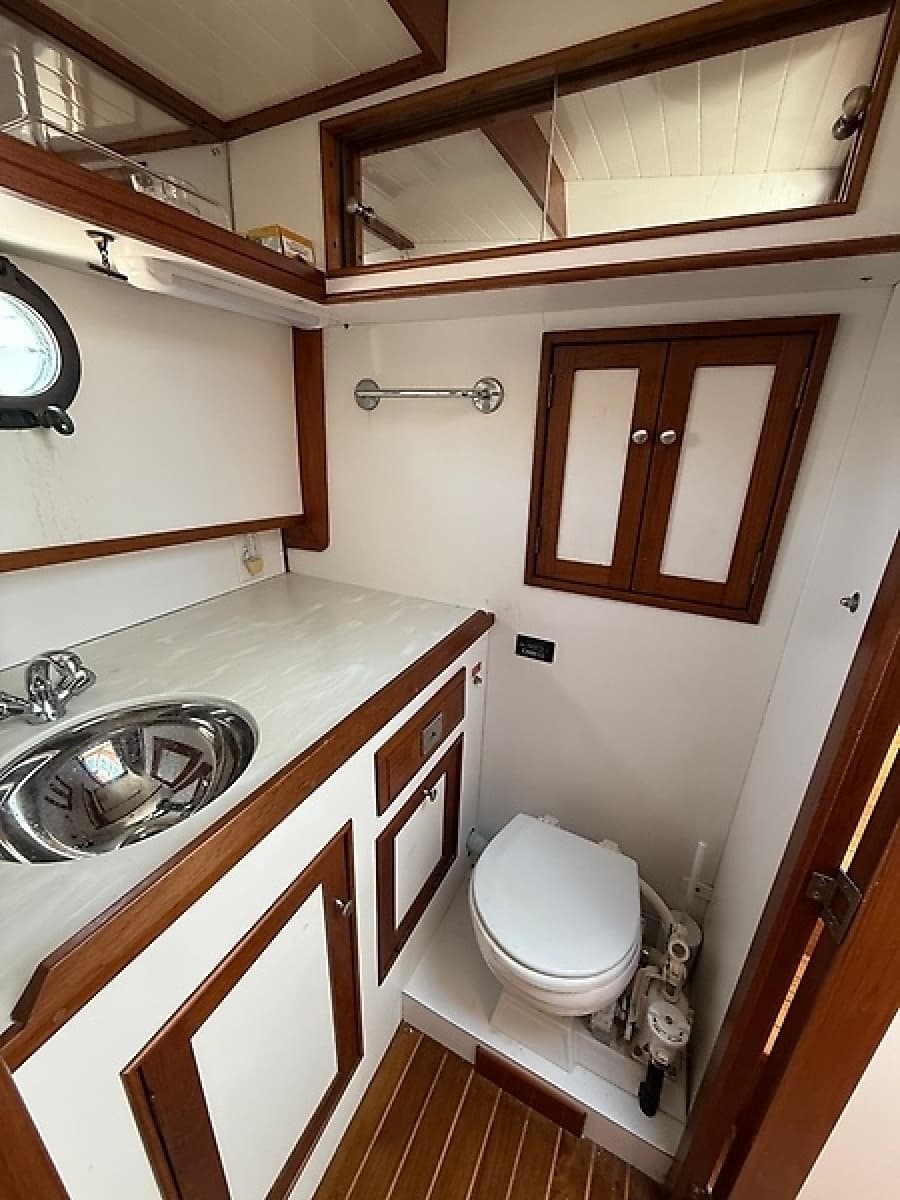

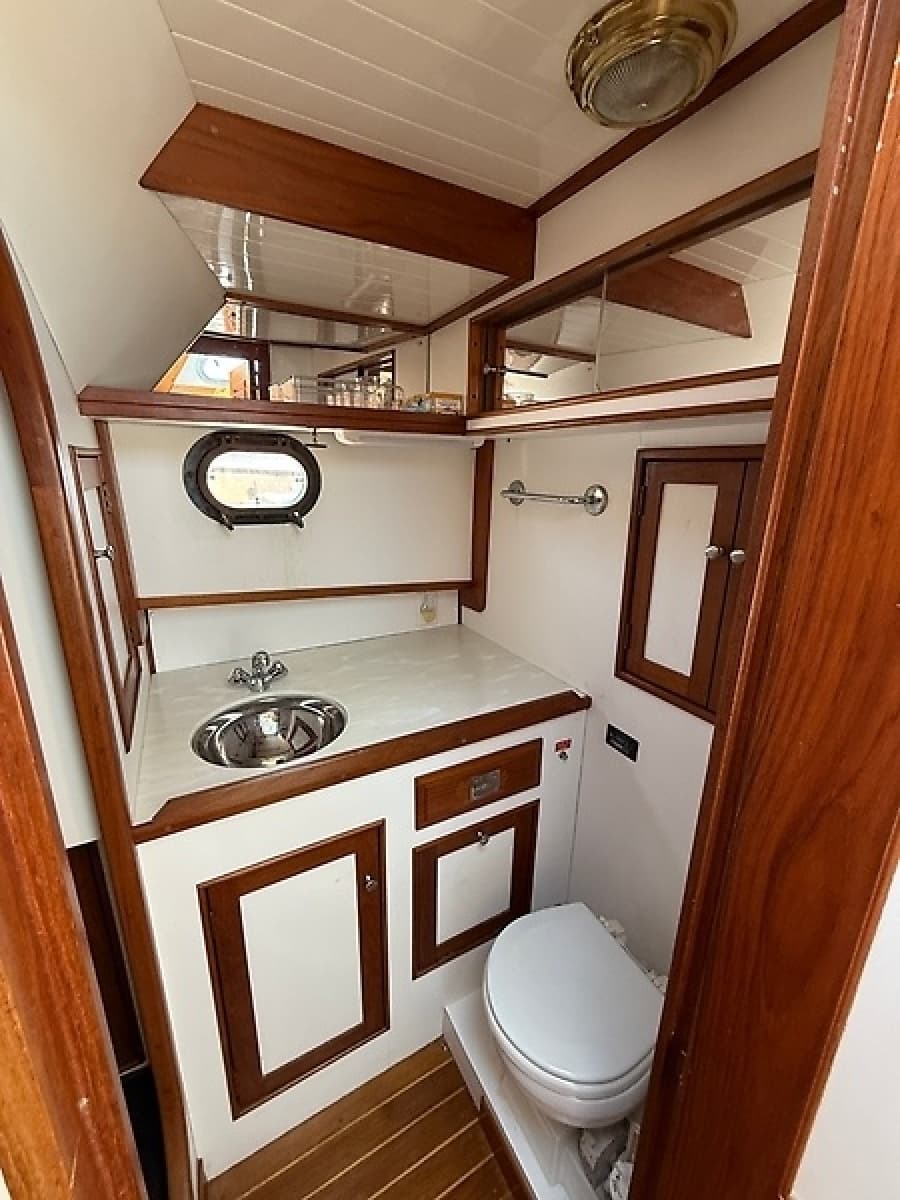

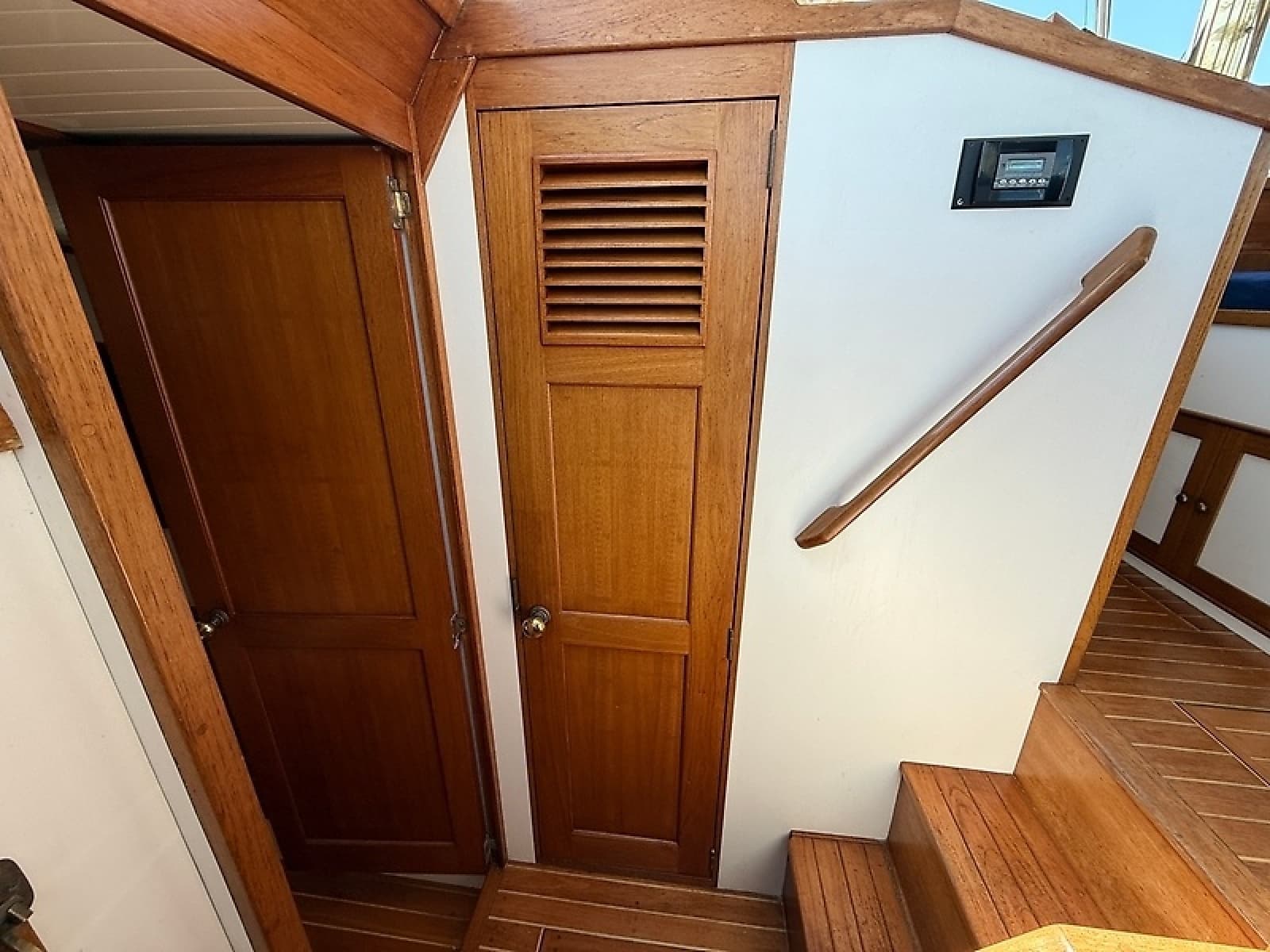

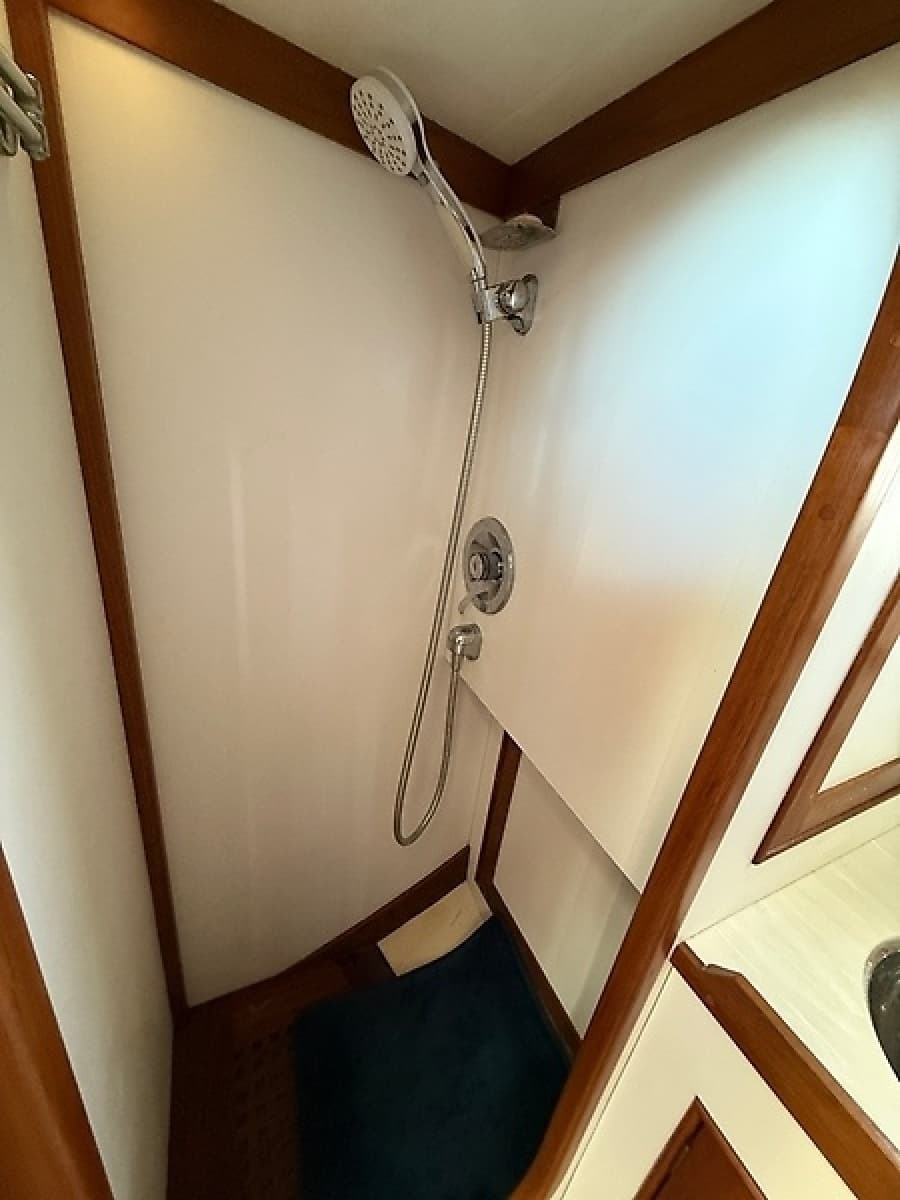

Across from galley is an enclosed head that unique in a boat of this size. It has the typical head, sink, vanity but it also has a separate stall shower.
- Head is both electric or manual
- Shower sump 12v
- Y-valve with macerator for holding tack

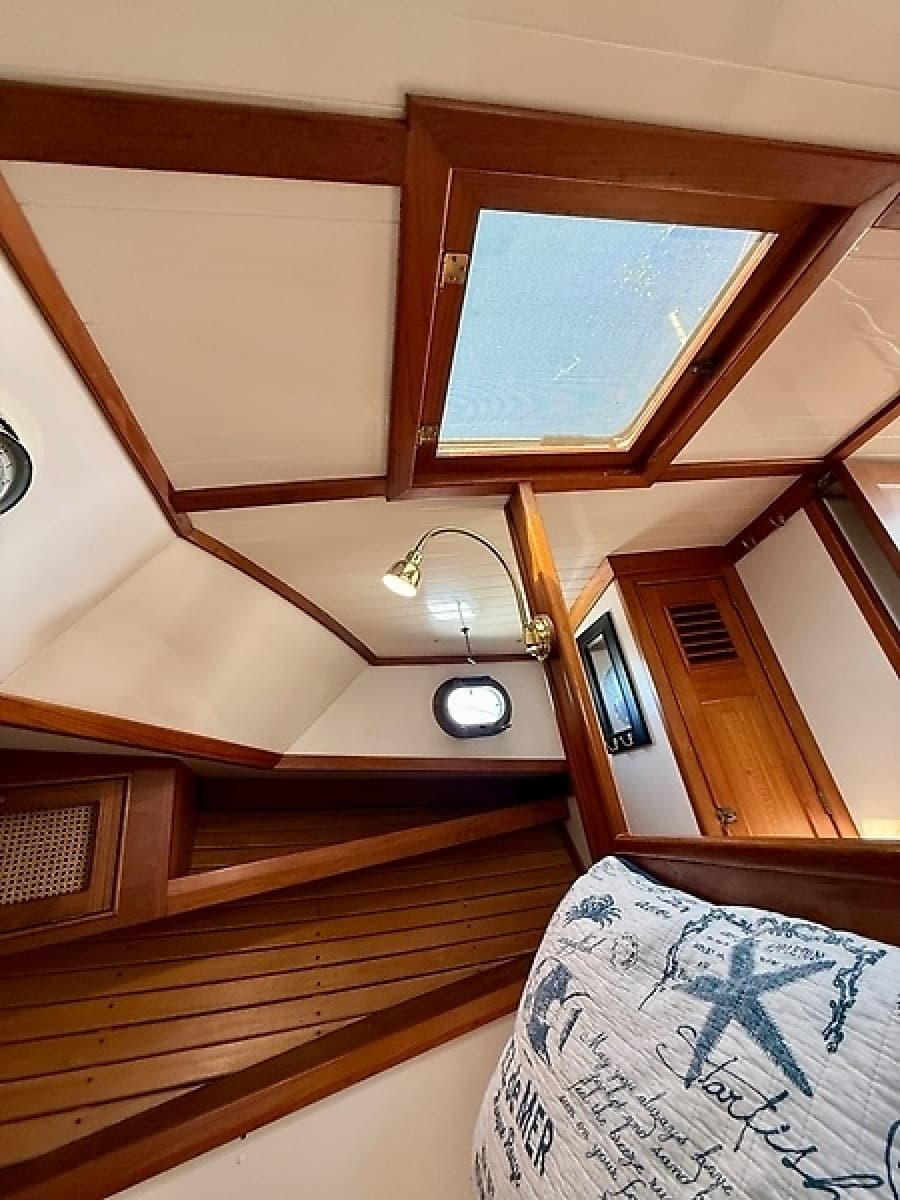

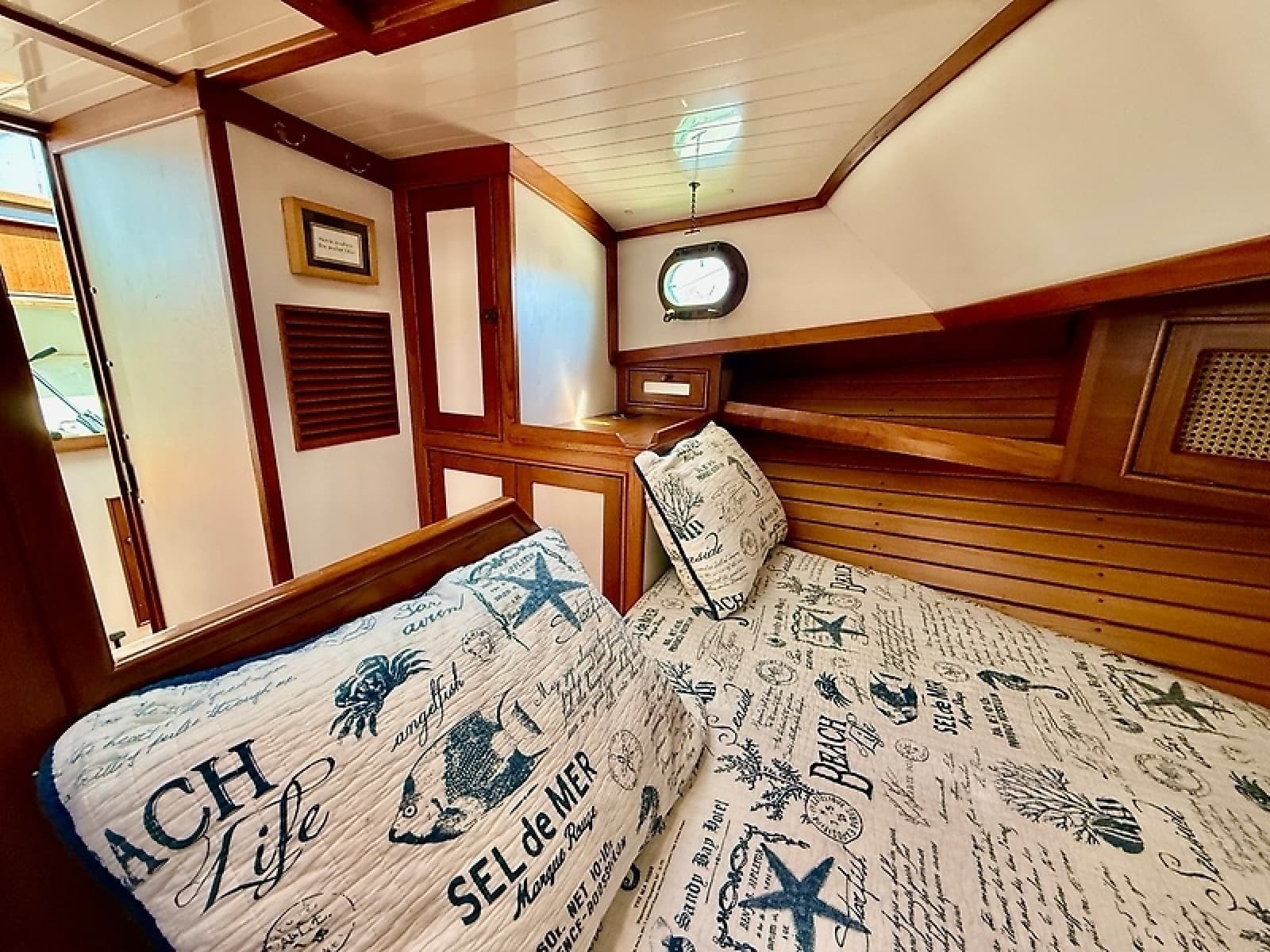

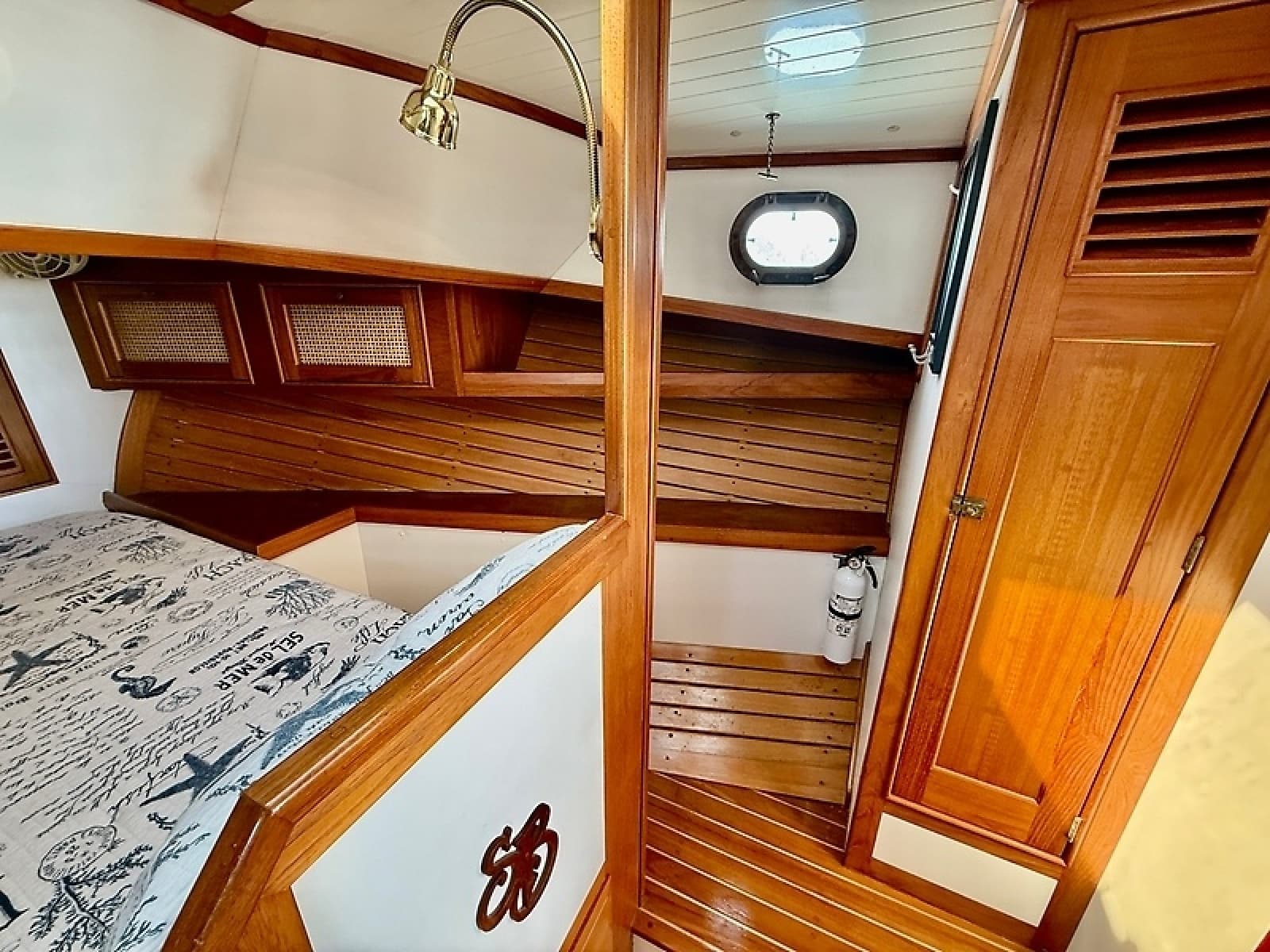

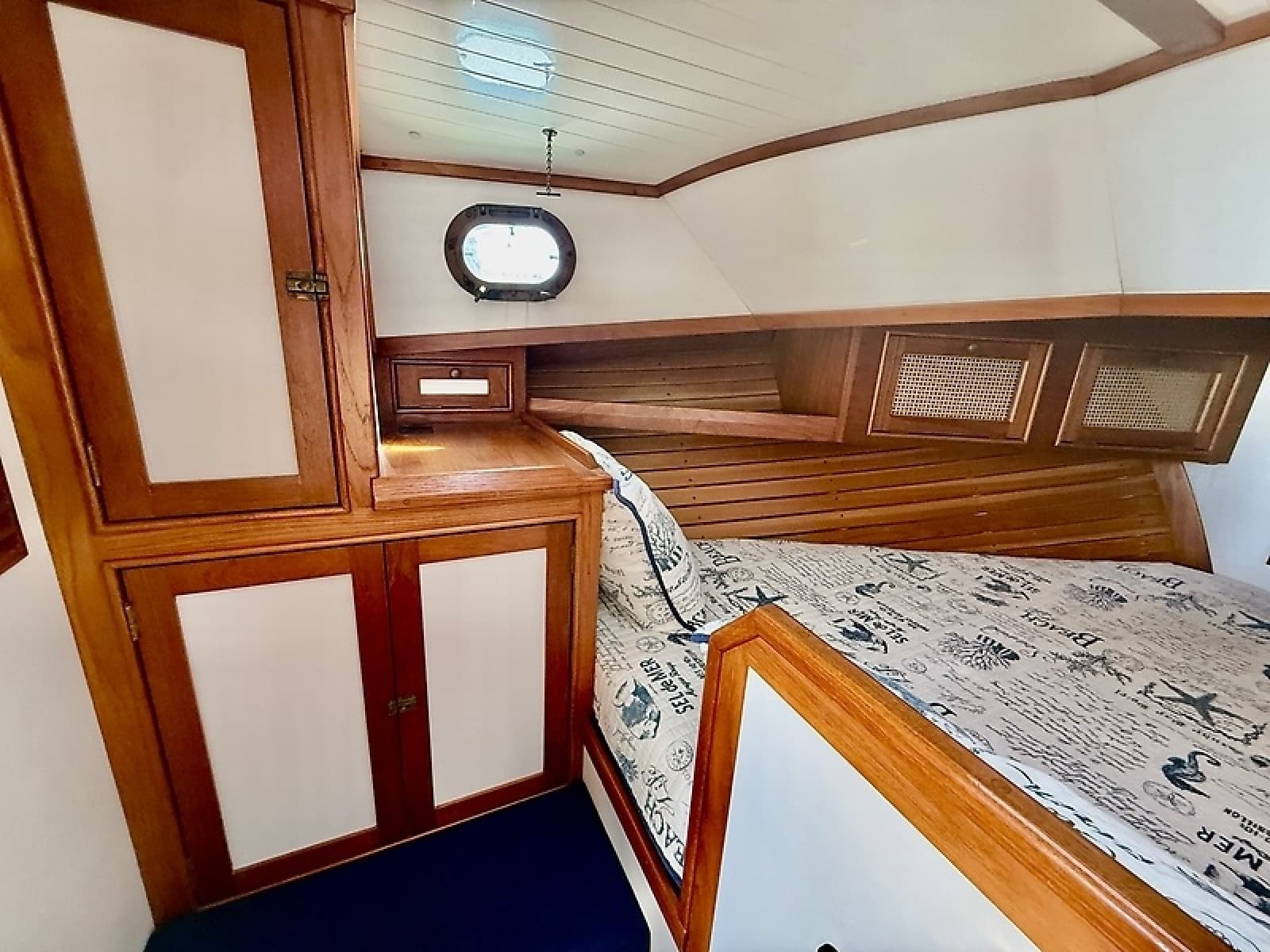

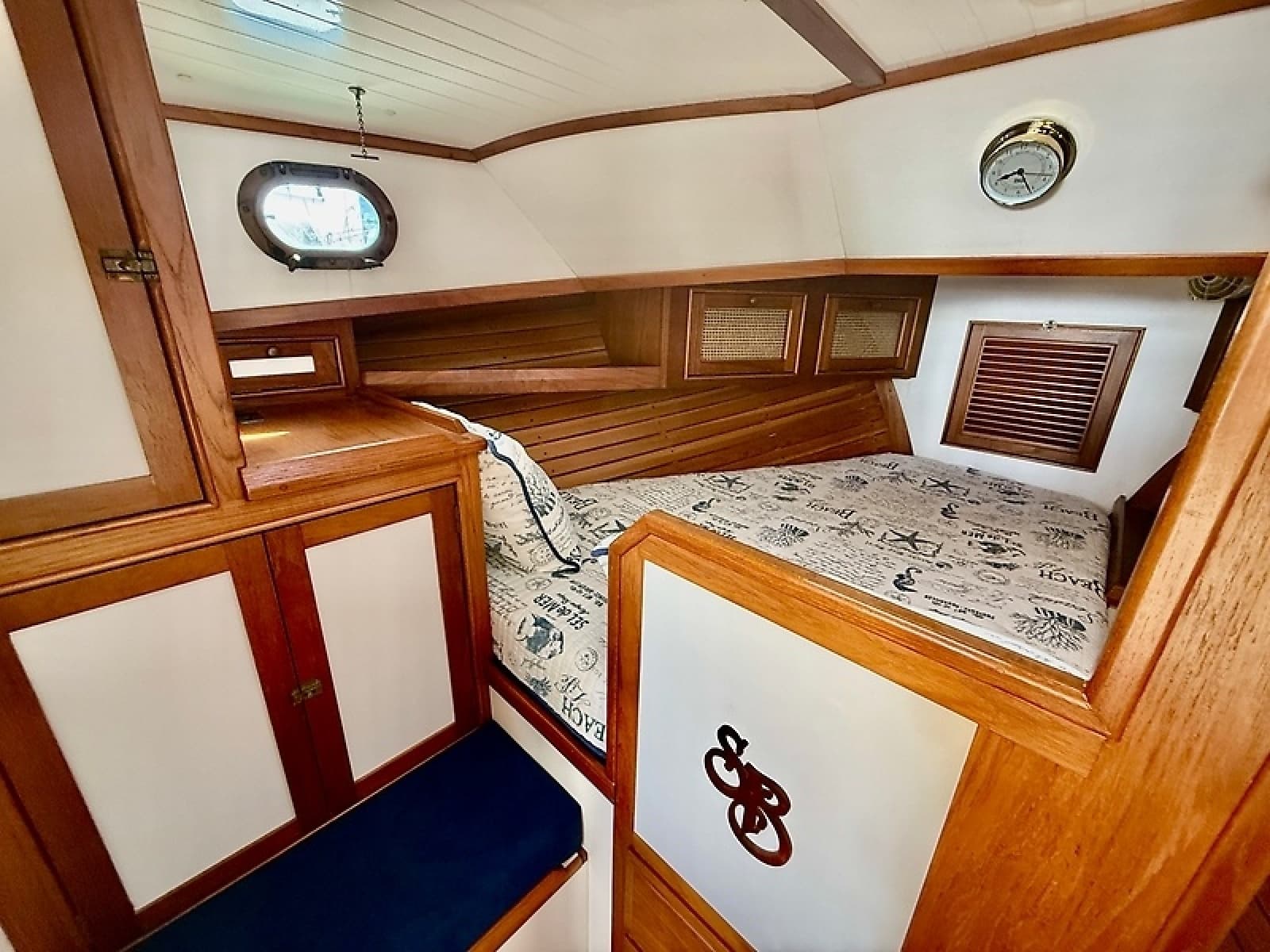

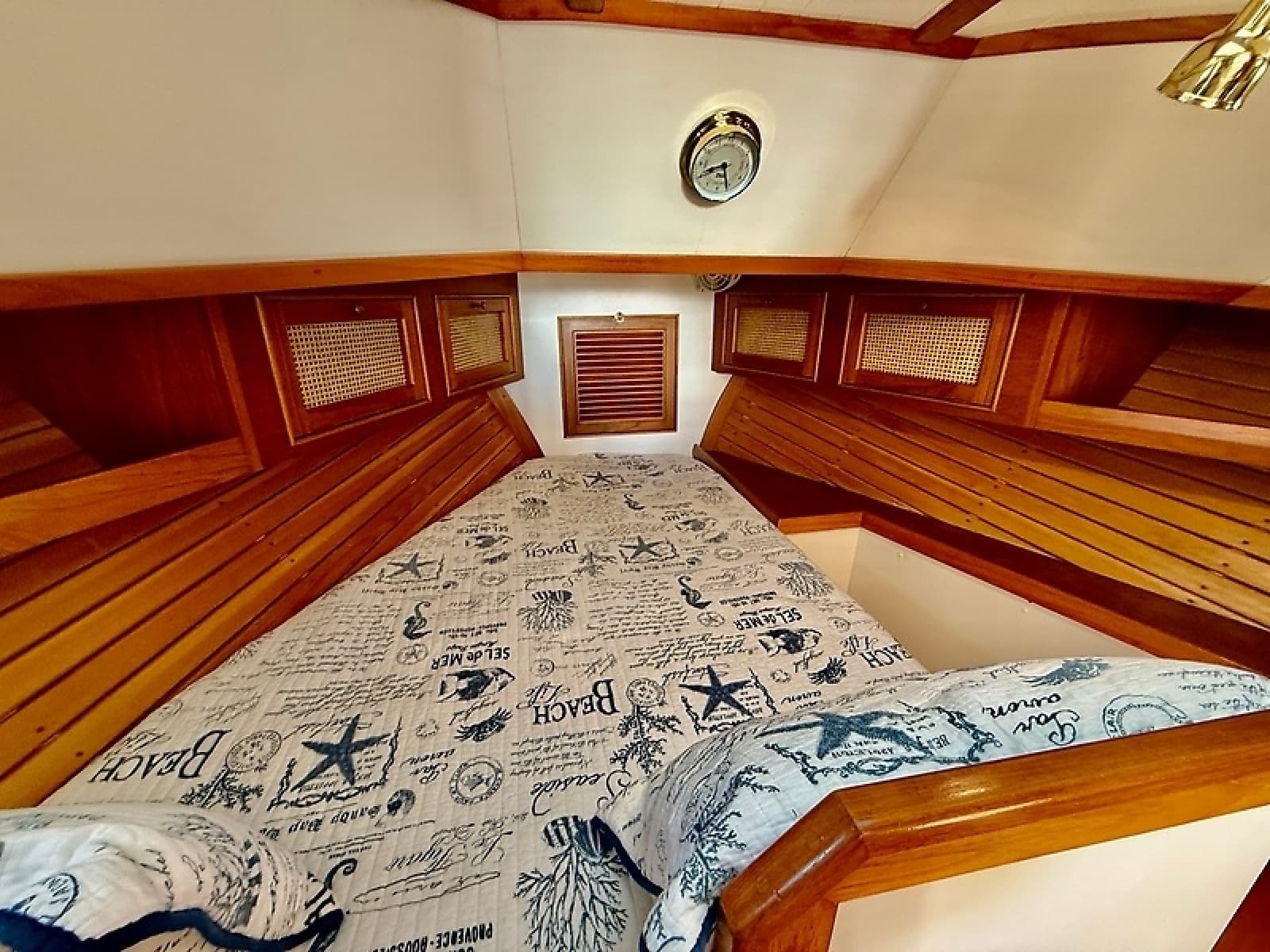

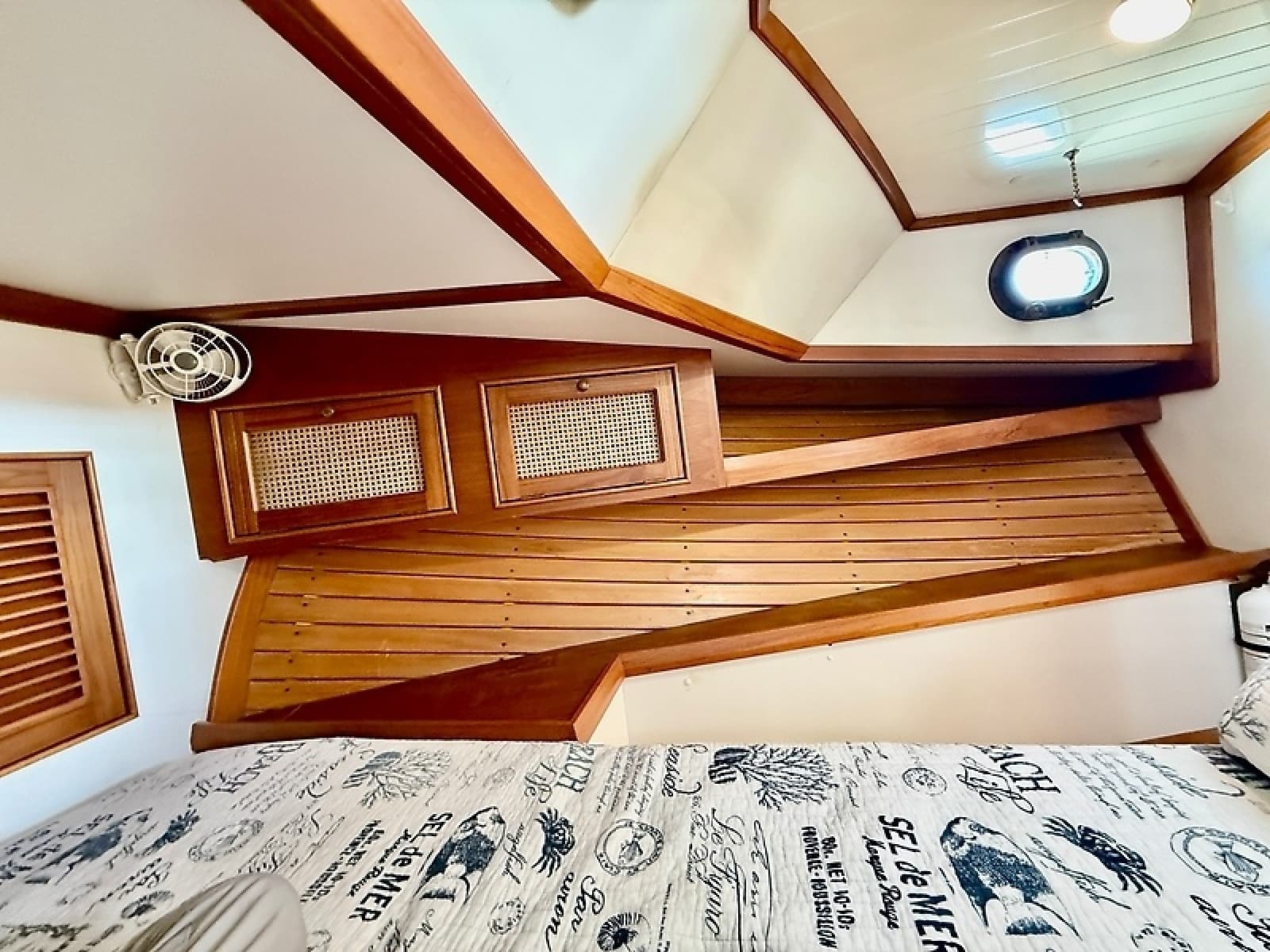

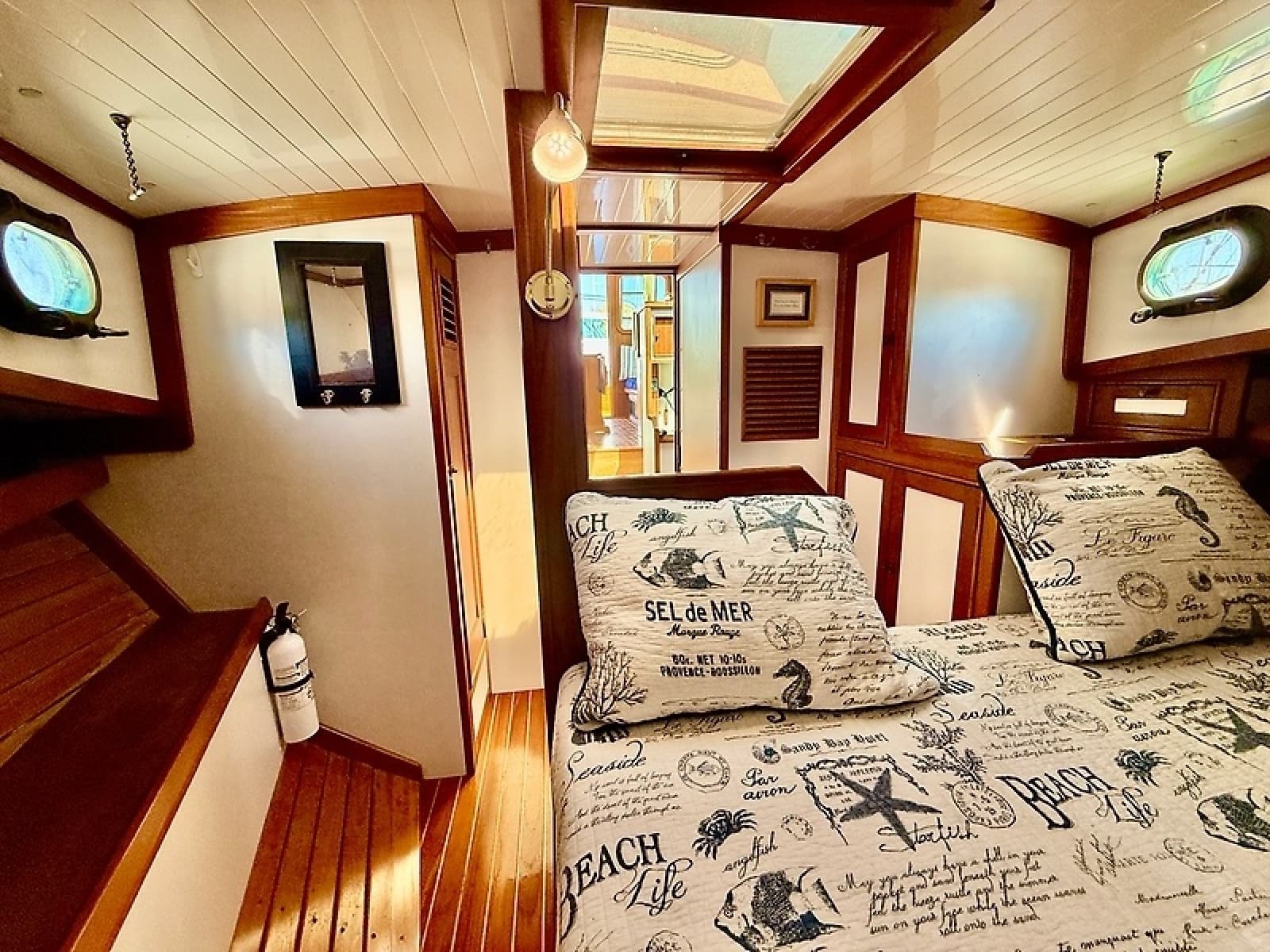

Forward is the owners cabin with an offset double berth, Hanging locker, drawers, shelves and lockers.
- Custom Mattress and linens
- Brass Clock
- New upholstery and exterior canvas in 2018
- Screens for opening ports and overhead hatch
"Avalon" is a multiple platinum winner at the Chesapeake Bay ACBS (Antique & Classic Boat Society) annual event held at the Chesapeake Bay Maritime Museum in St Michael's, MD.
Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Bluewater Yacht Sales. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Overview
Key Specifications
Weight & Measurements
Tankage
Registration & Documentation
Engines
Full Details

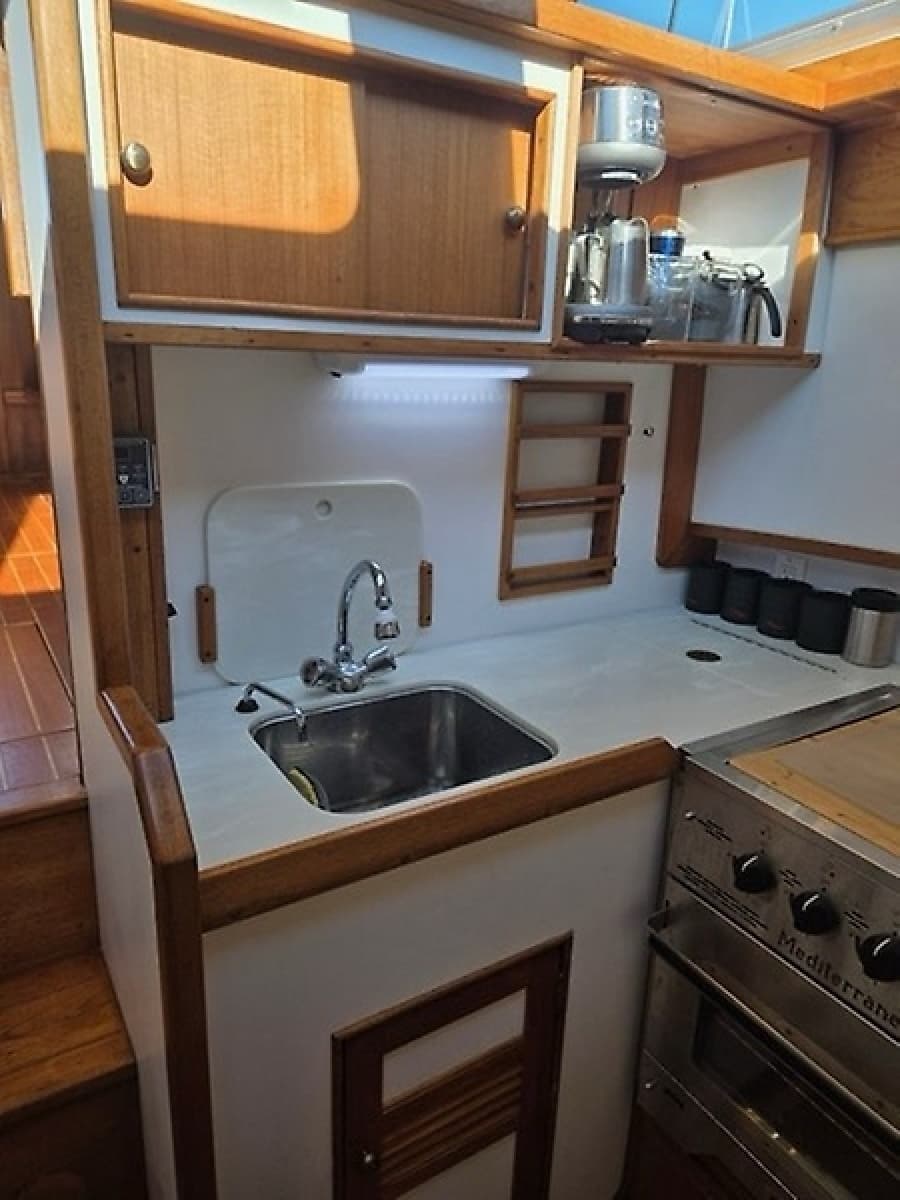

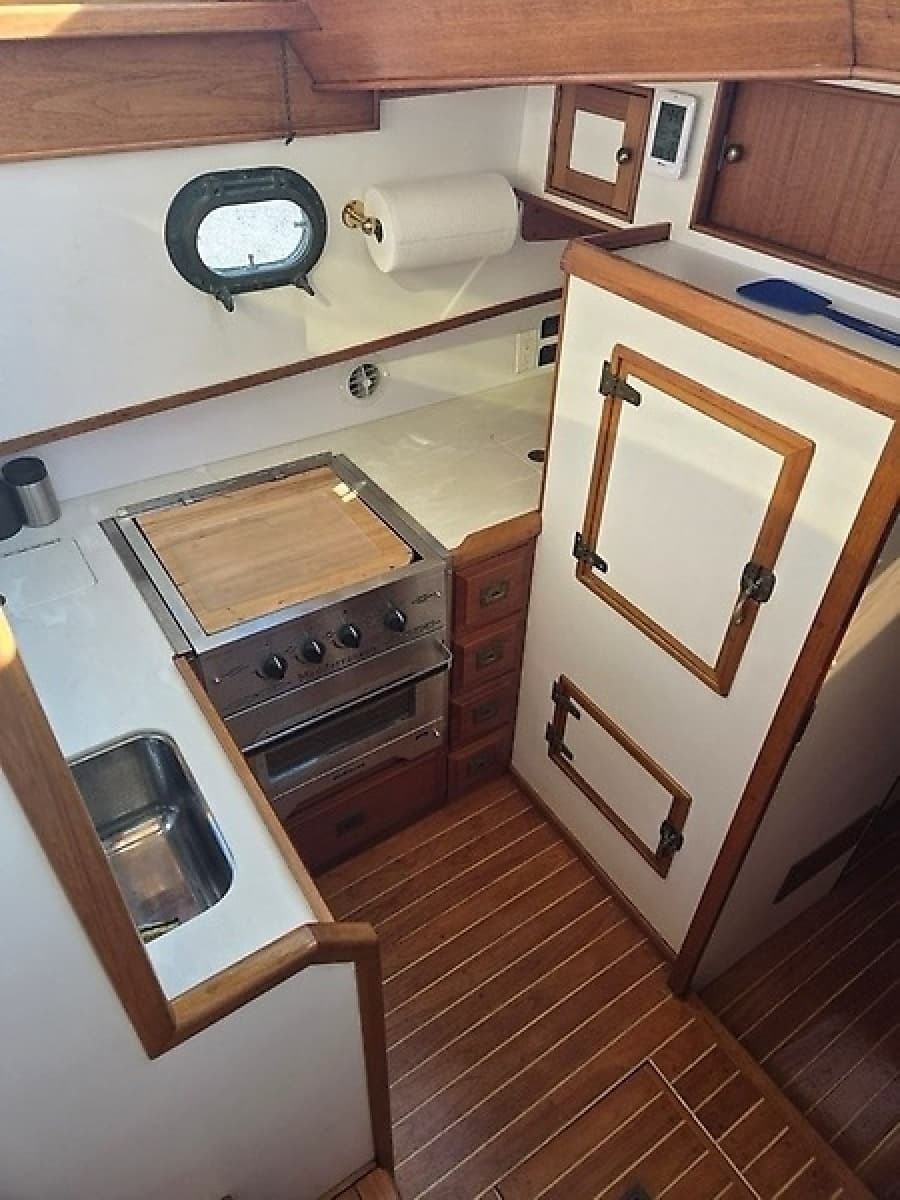

Galley
- U-shaped
- Sink with pressure and manual water pumps
- Separate Refrigerator and Freezer 12v
- Dickison 3 burner propane stove w/ oven and broiler (2025)
- Corian counter tops
- Abundant storage
Mechanical

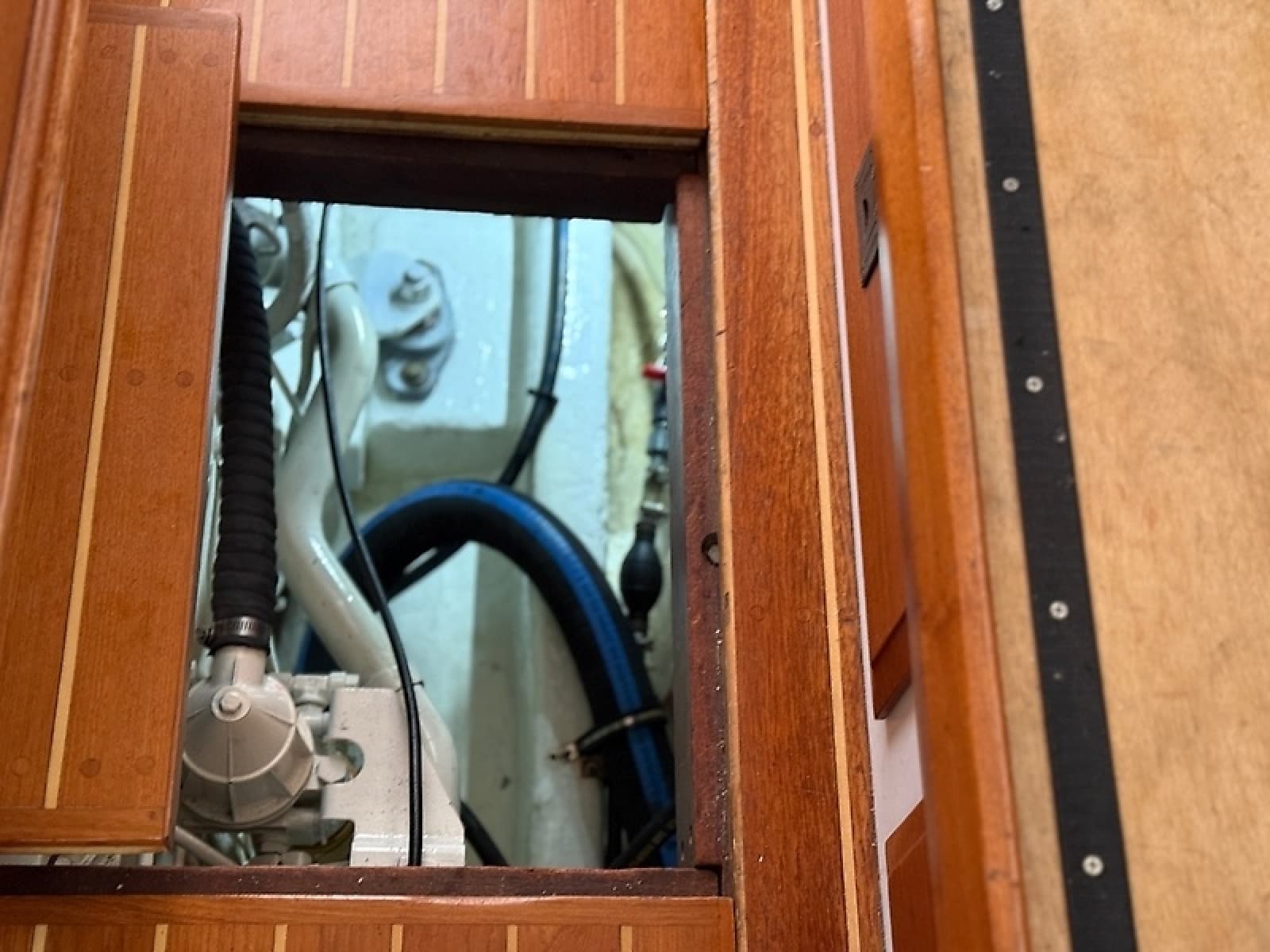

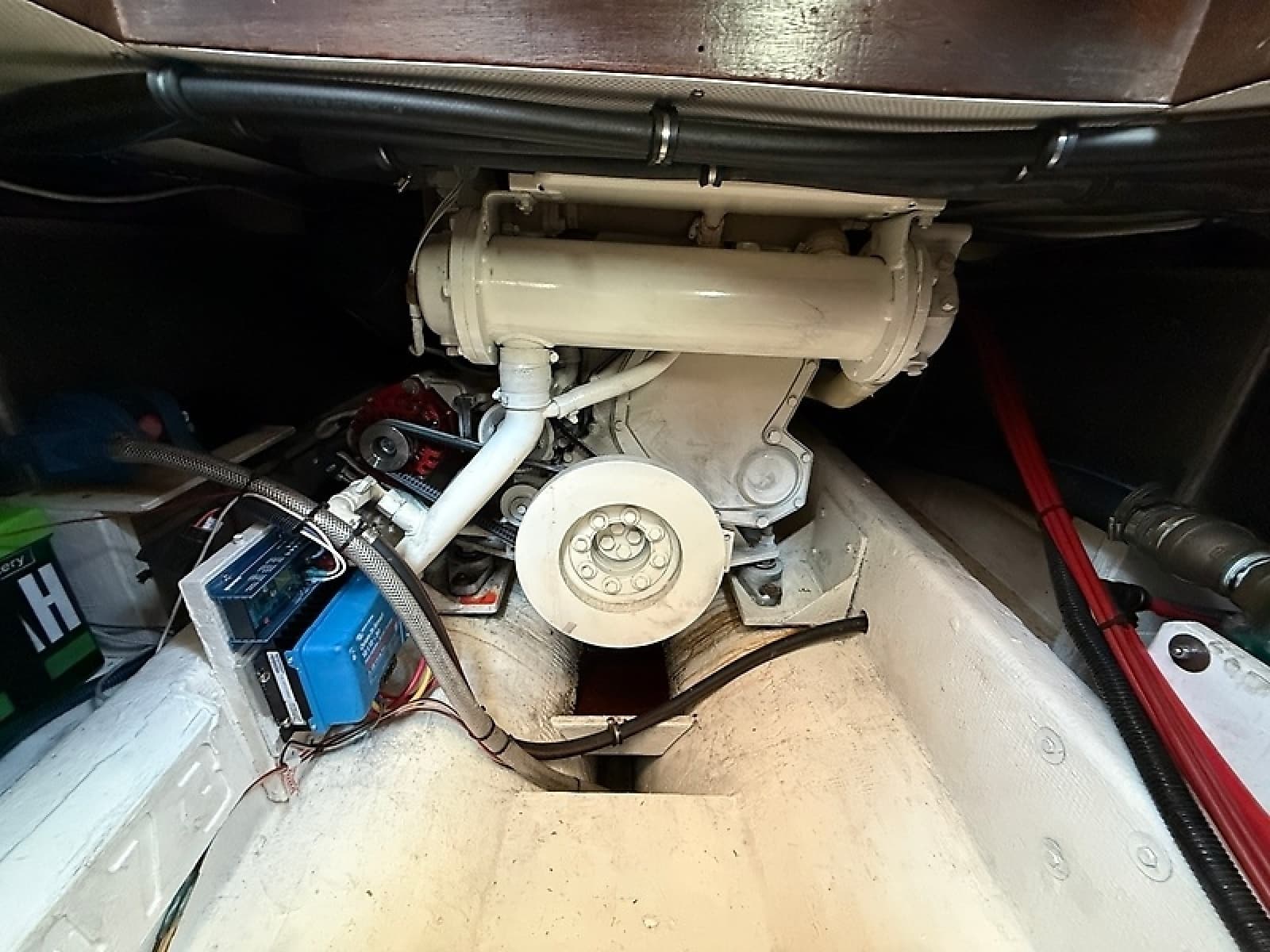

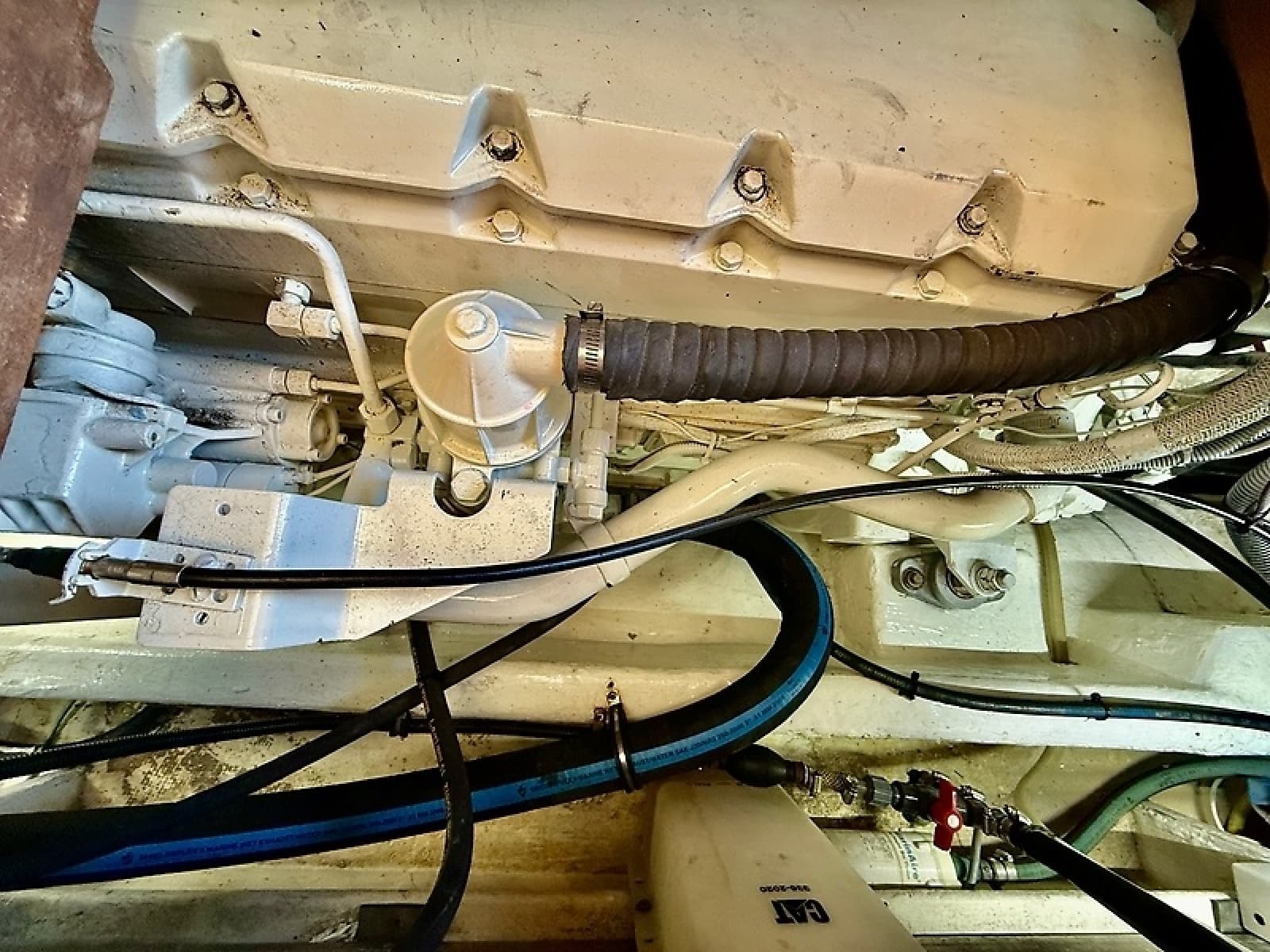

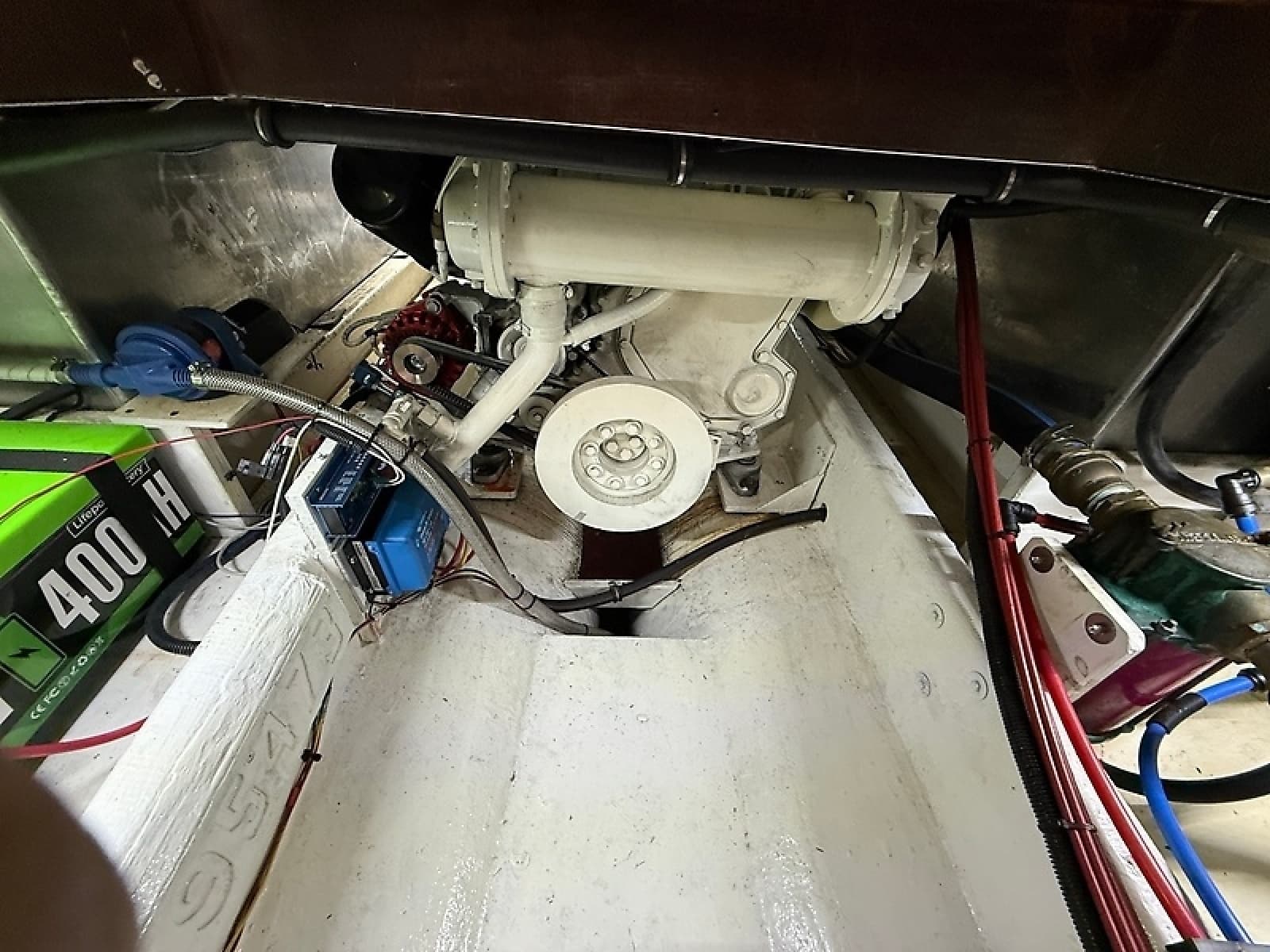

- 2024 Caterpillar 3116 - Remanufactured
- Work performed by T&S Marine, Crisfield, MD
- Engine Hours as of 4/13/26/2026 - 343
- 24x22 Propellor 4 blade - new 2023
- New Shaft - 2023
- New Balmar Alternator 165 amp w/ external regulator 2023

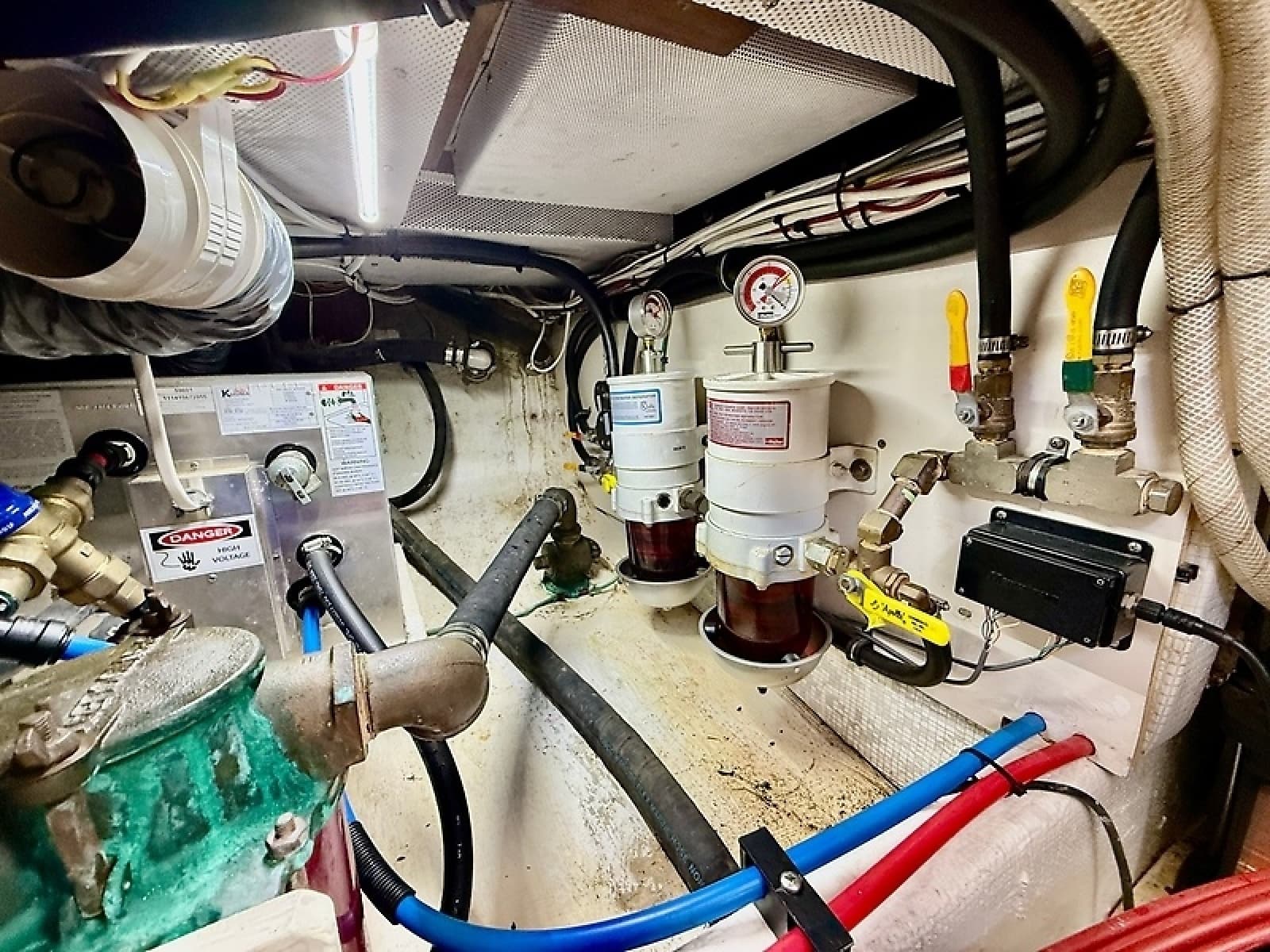

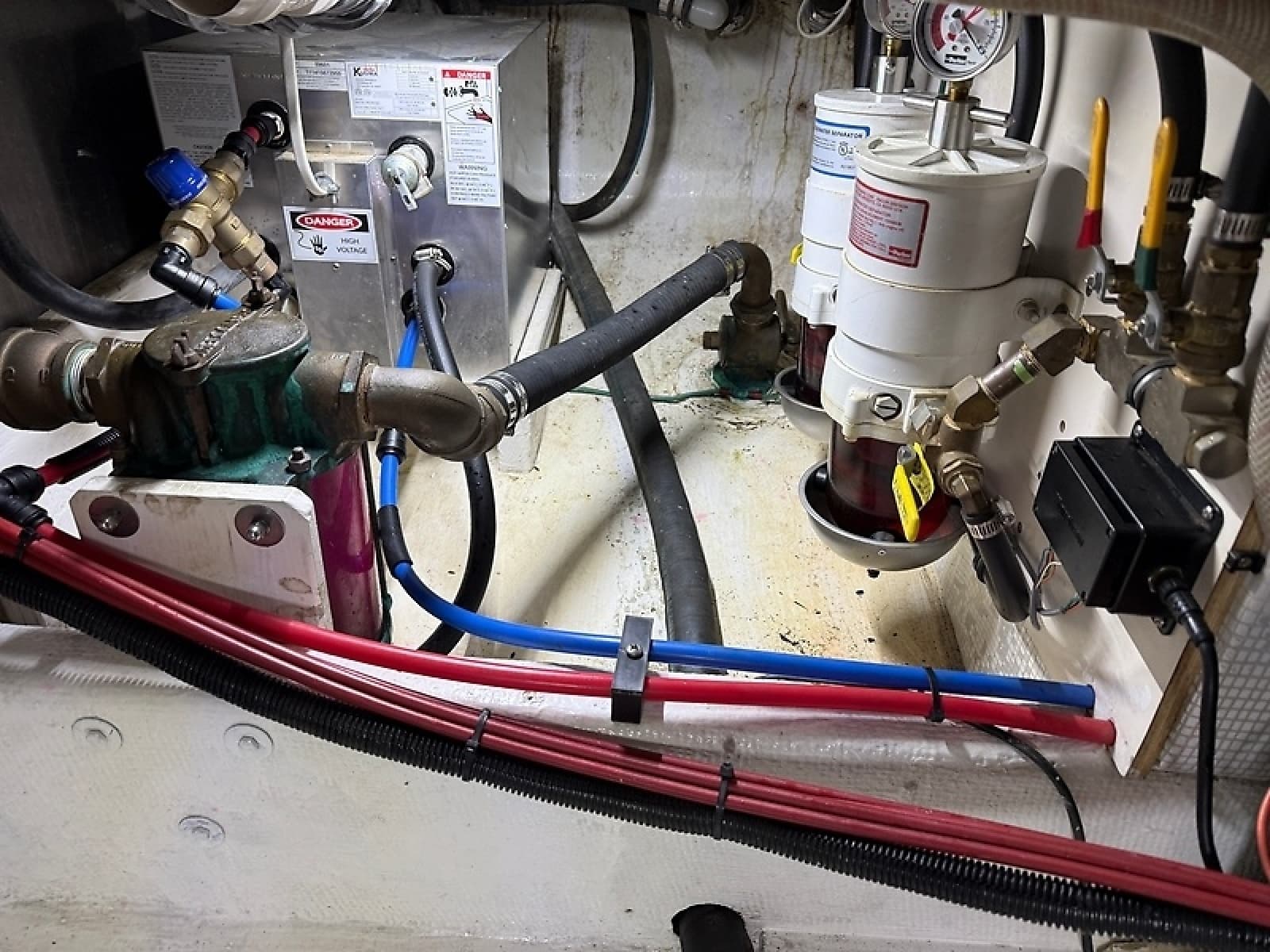

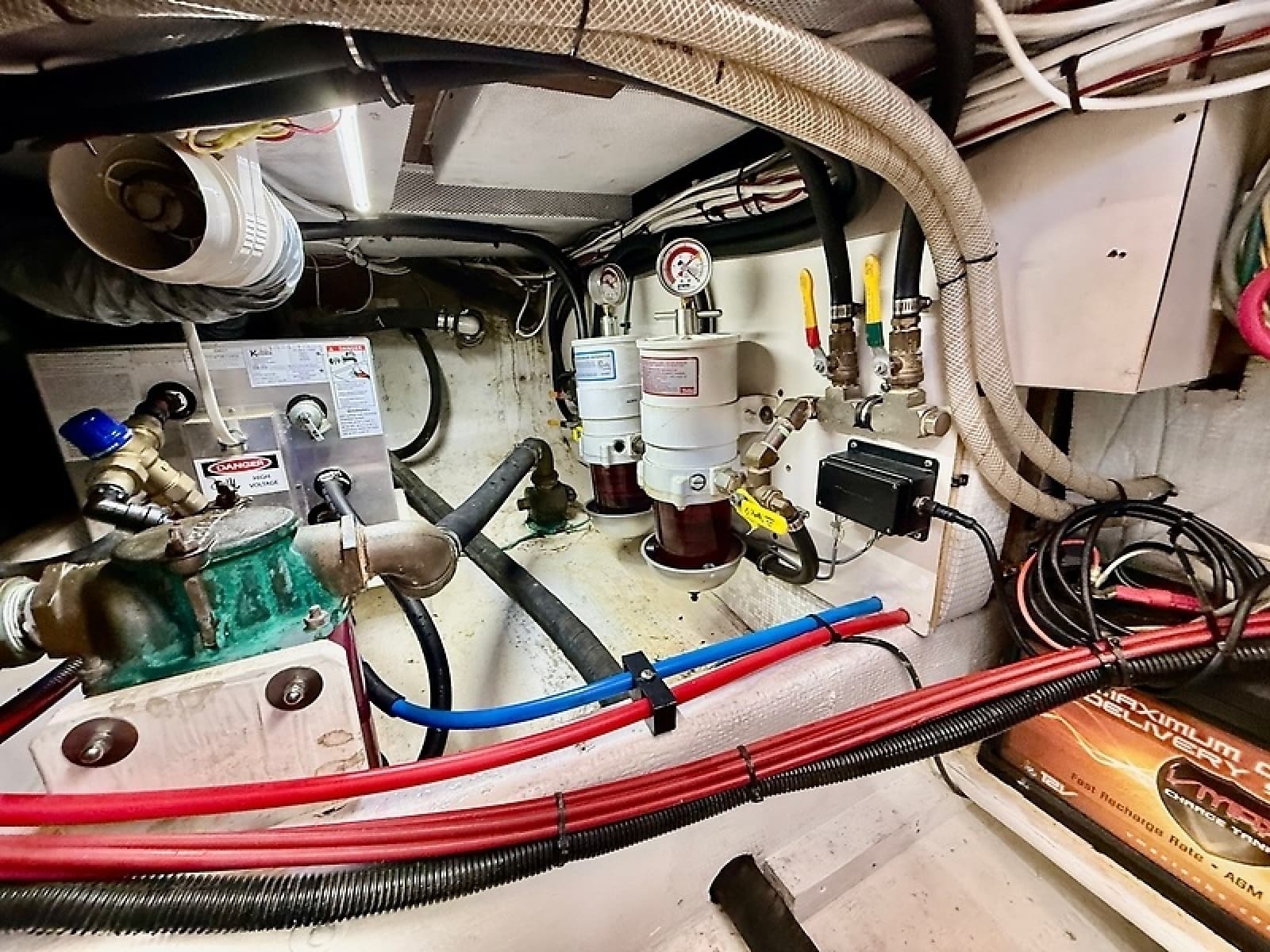

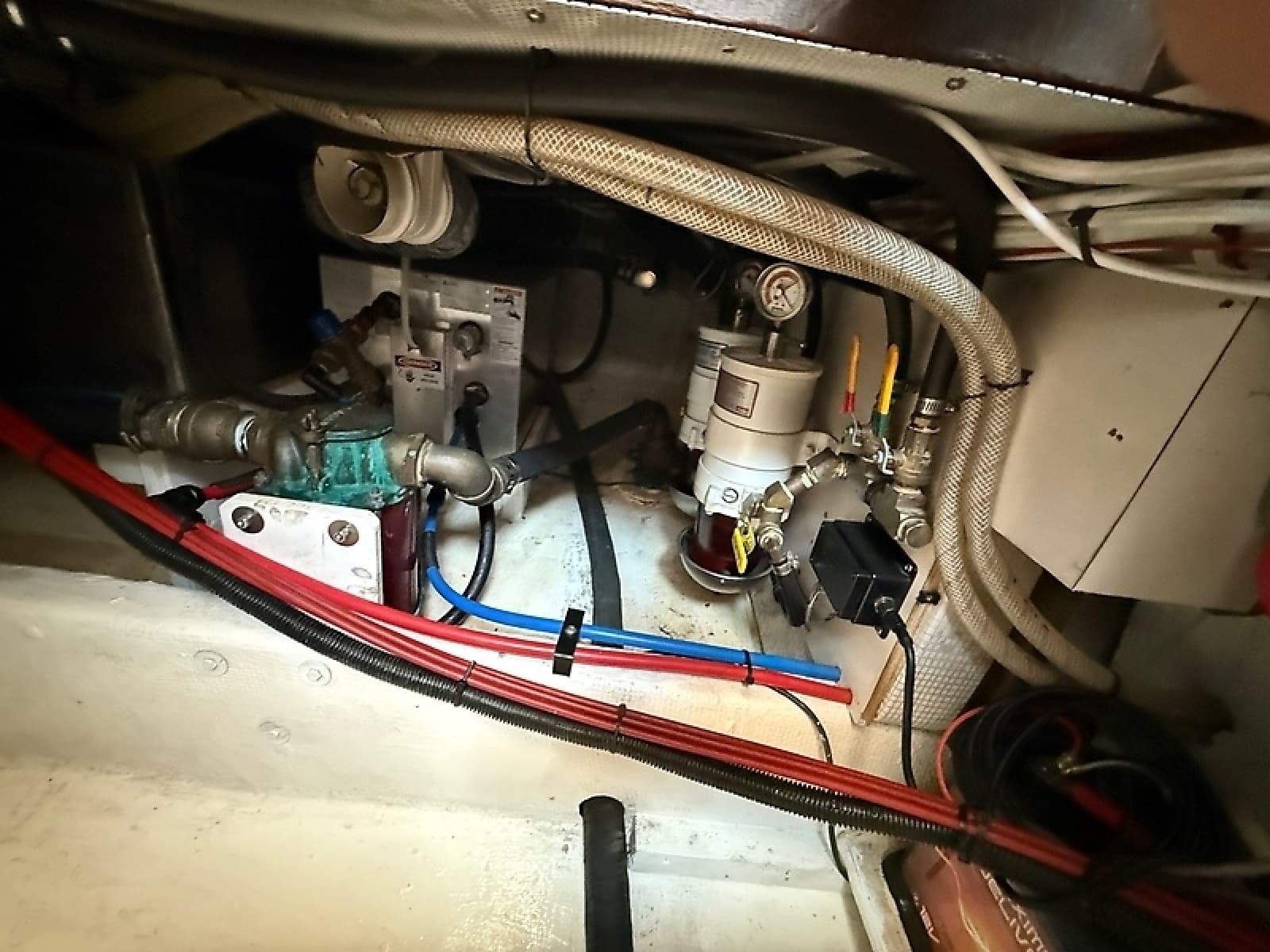

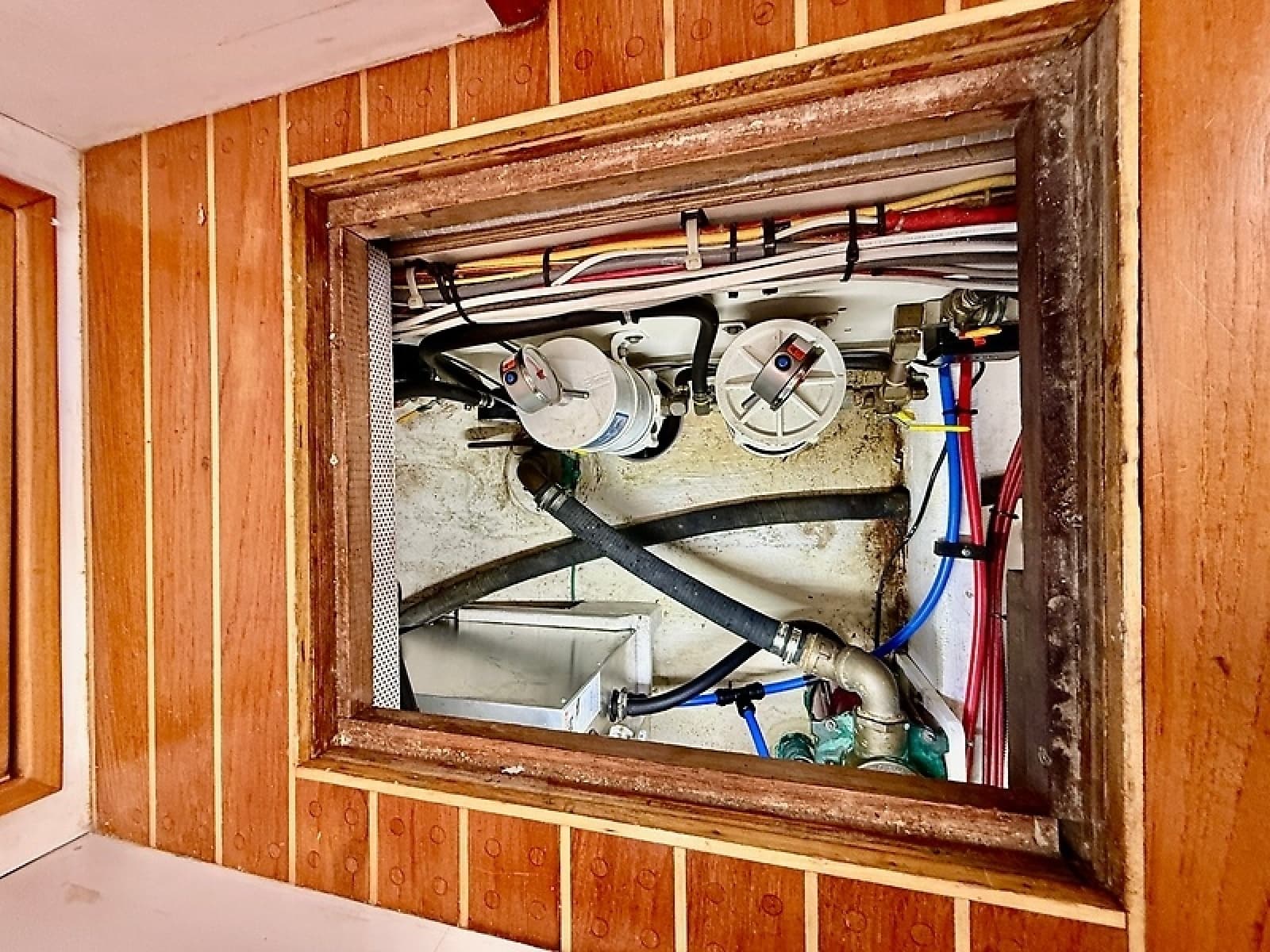

- Dual Racor Fuel Filters w/ gauges and crossover valves
- Maretron Fuel Meters
Crusing Speed - 13 knots at 2400 RPM 1.2 nautical miles per gallon
WOT - 17 knots at 2800 RPM 1.0 nautical miles per gallon

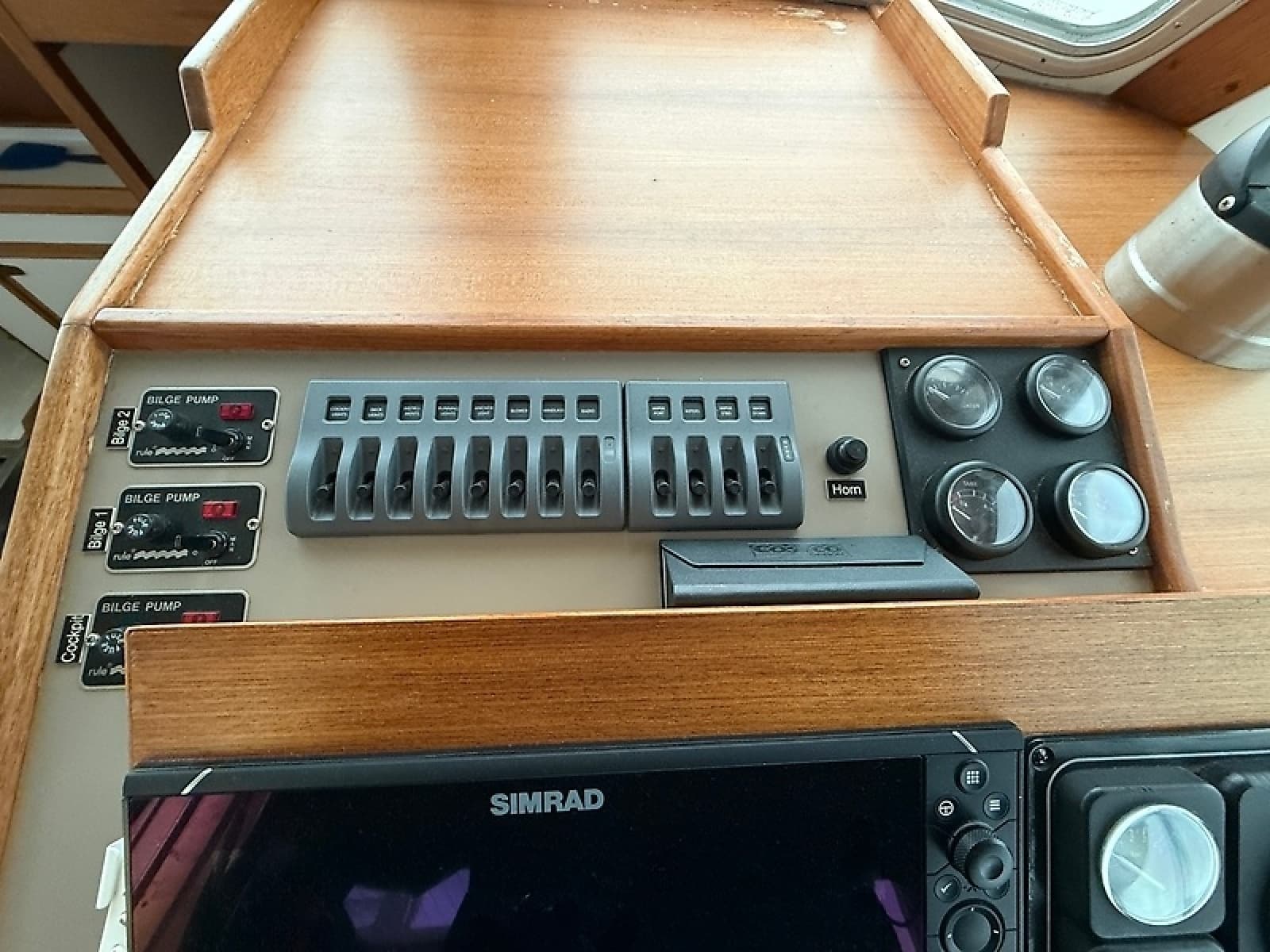

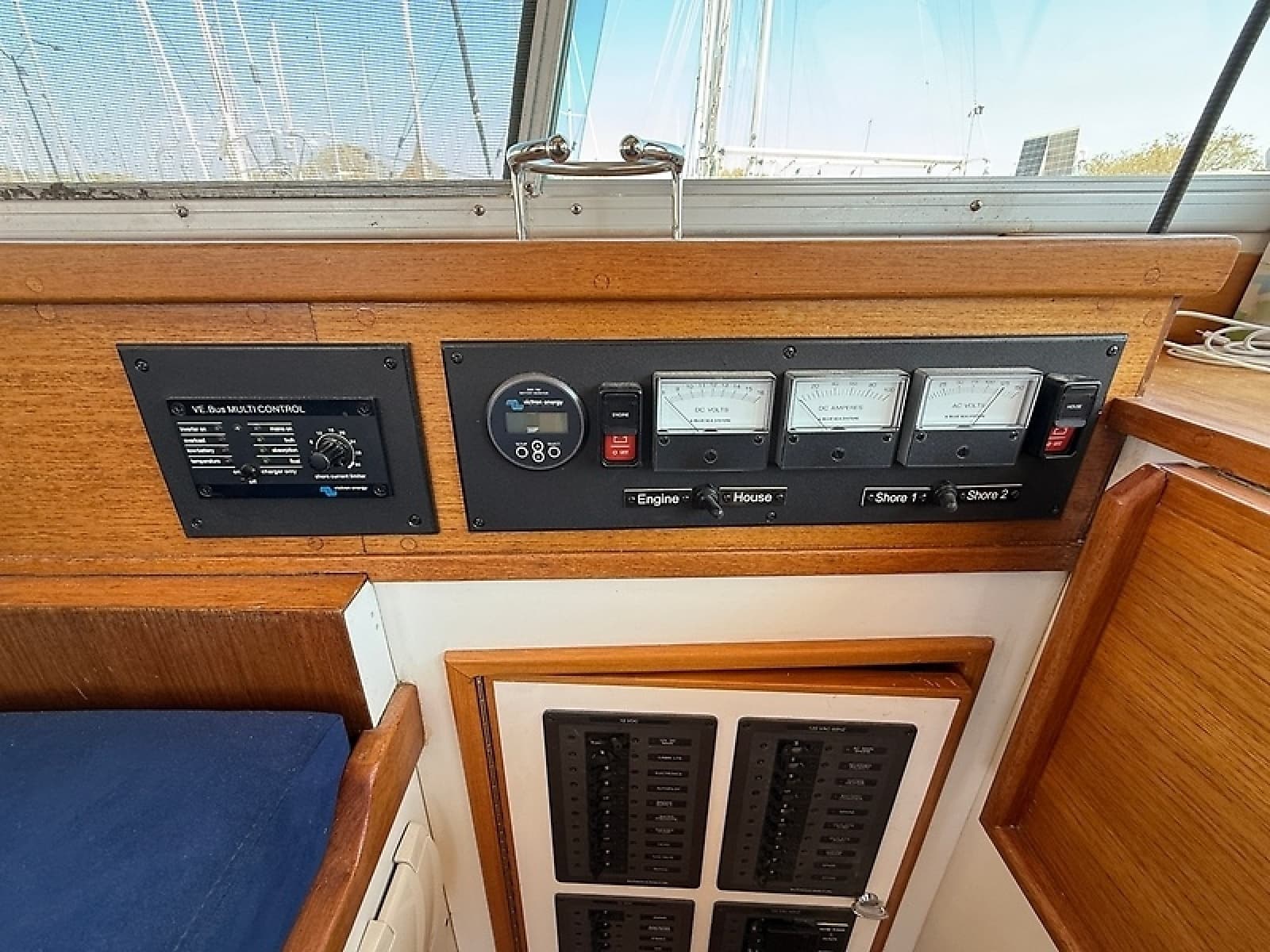

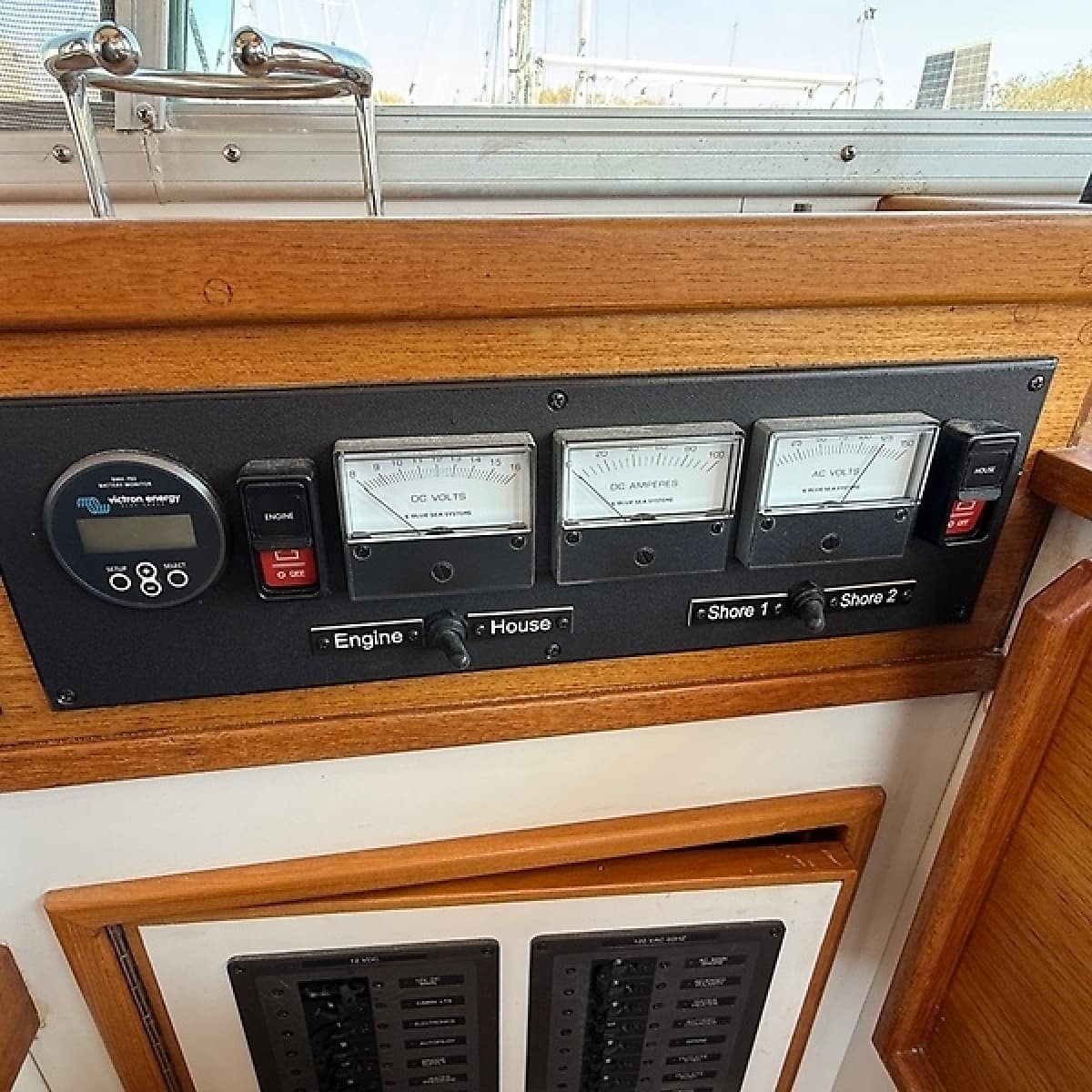

Electrical

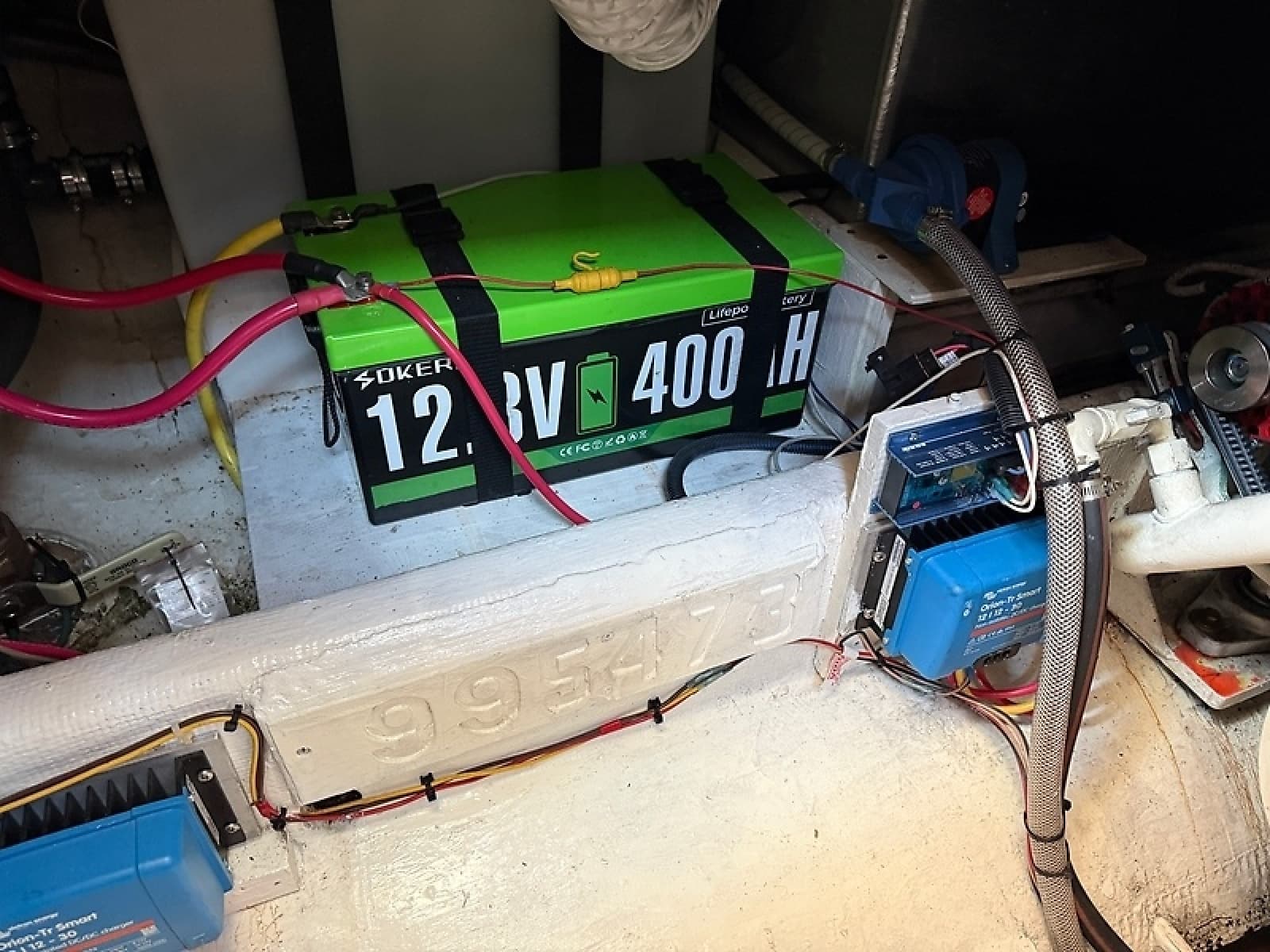

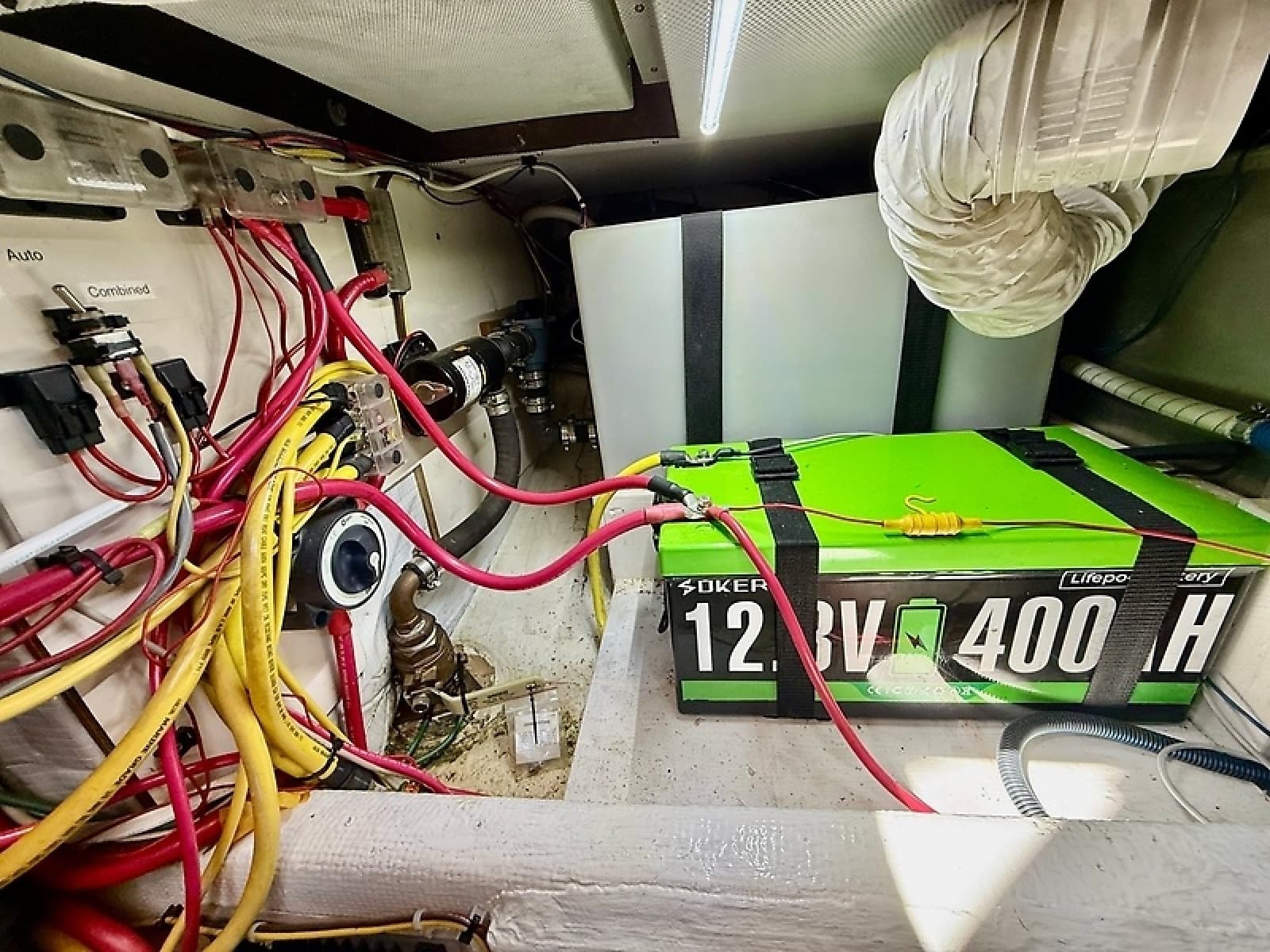

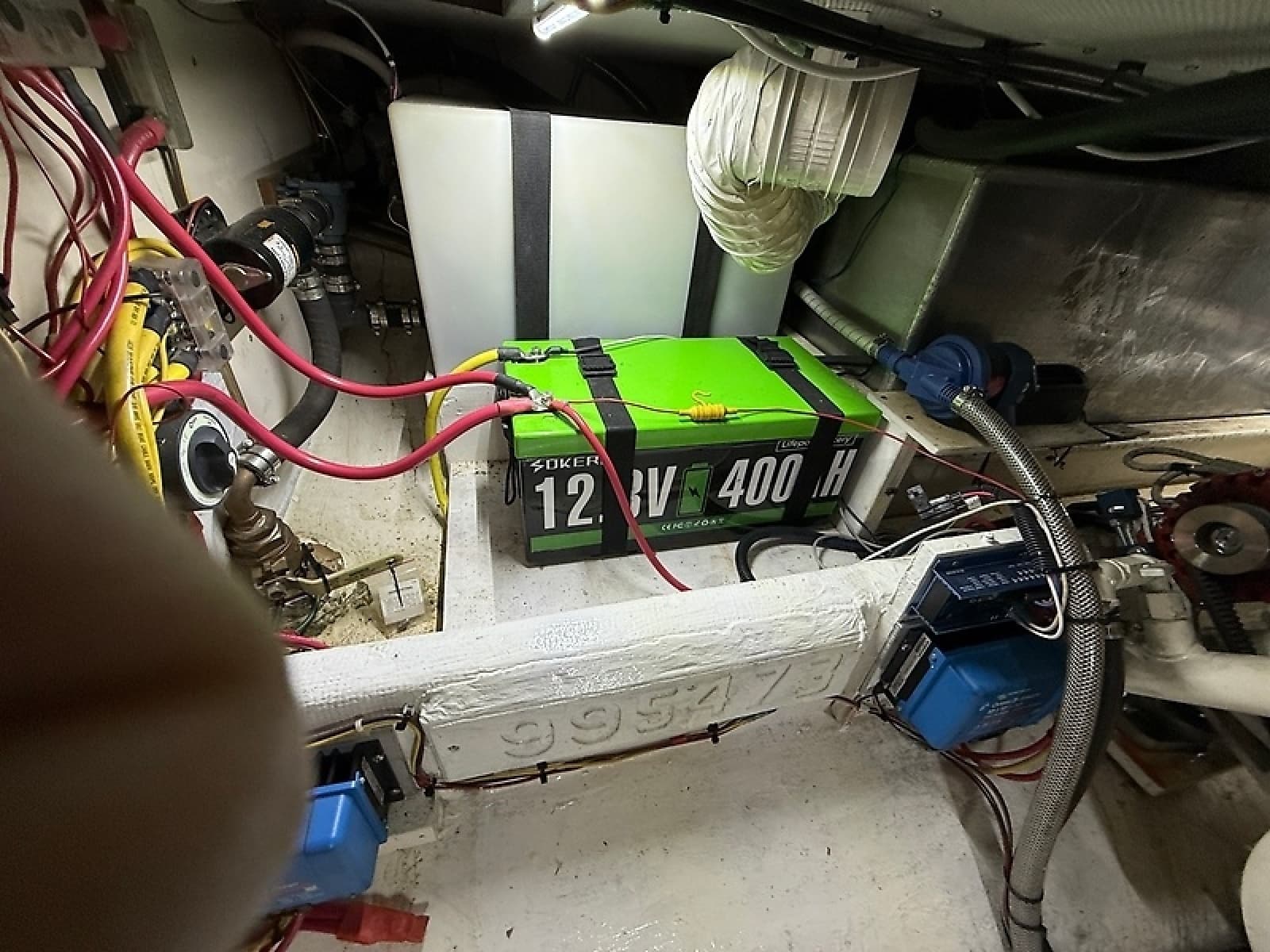

- House Batteries 400 amp Lithium (2023)
- Engine Start (2) Group 31 batteries

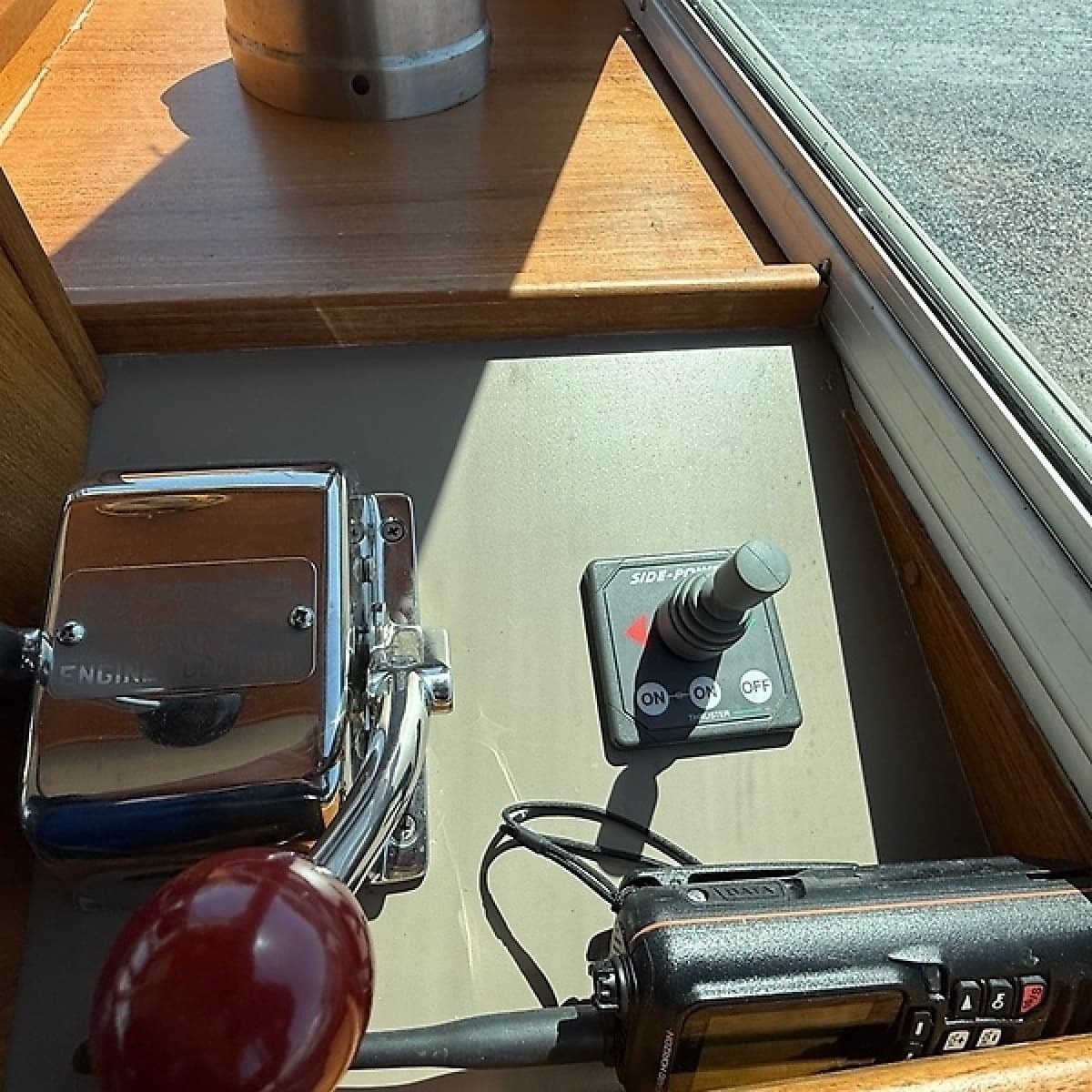

- Bow thruster (1) Group 31 battery

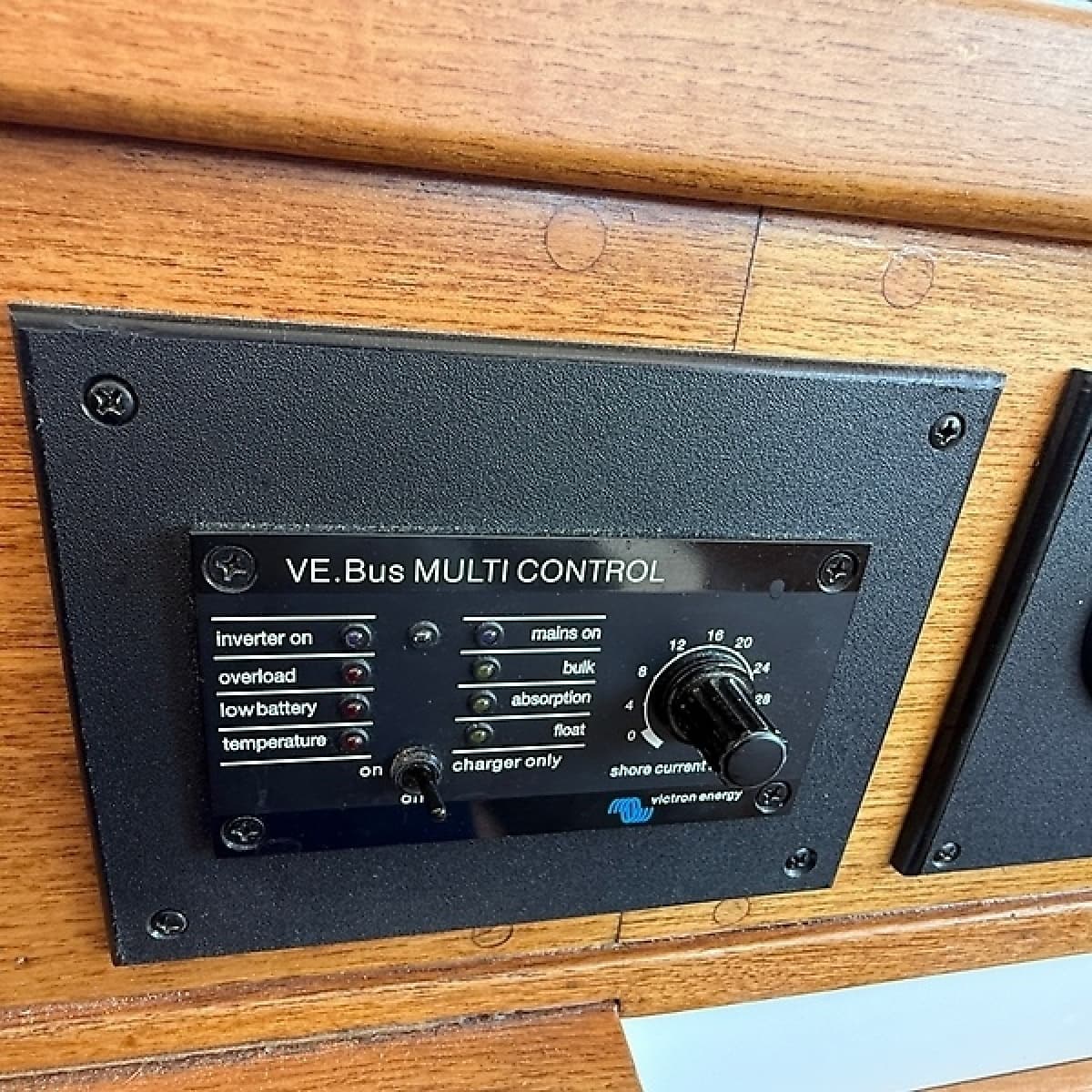

- Victron Controller
- Victron 3000 watt Inverter - Charger

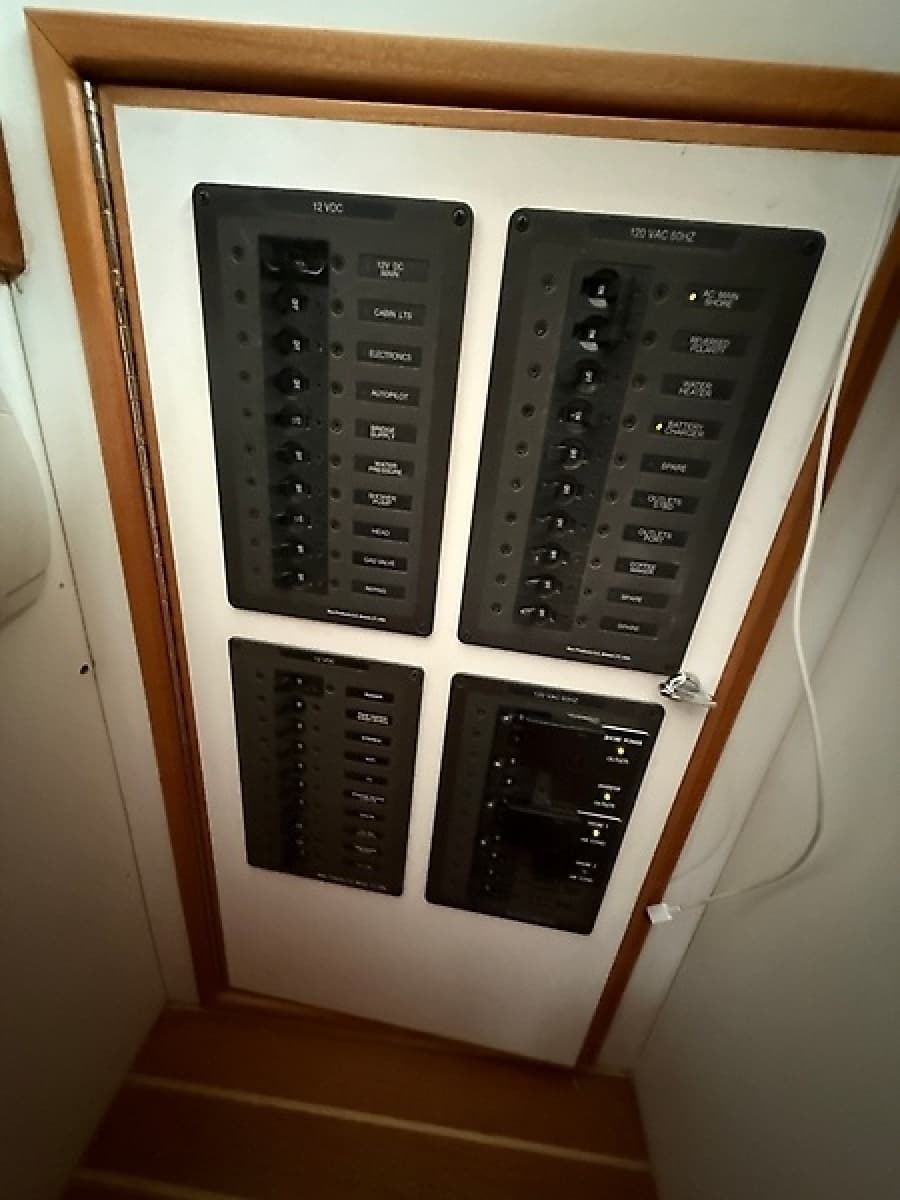

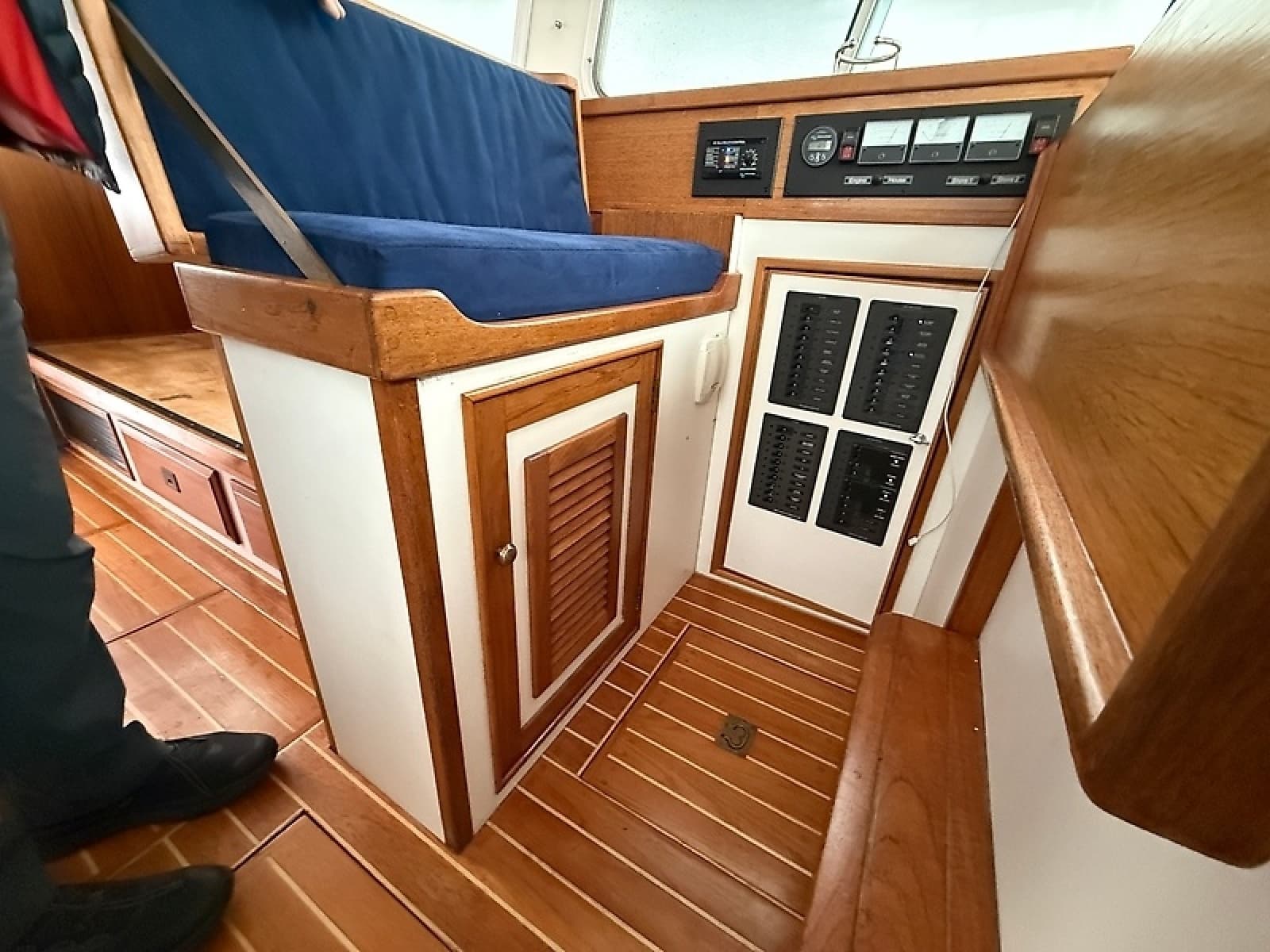

- Updated AC and DC panels and wiring (2017)
- All lighting updated to LED
- (2) 30 amp shore power service w/cords
Electronics
- Simrad MFD - NSS Evo3 plus (1) Lower helm (2) Flybridge helm (2024)
- Simrad Radar (2024)

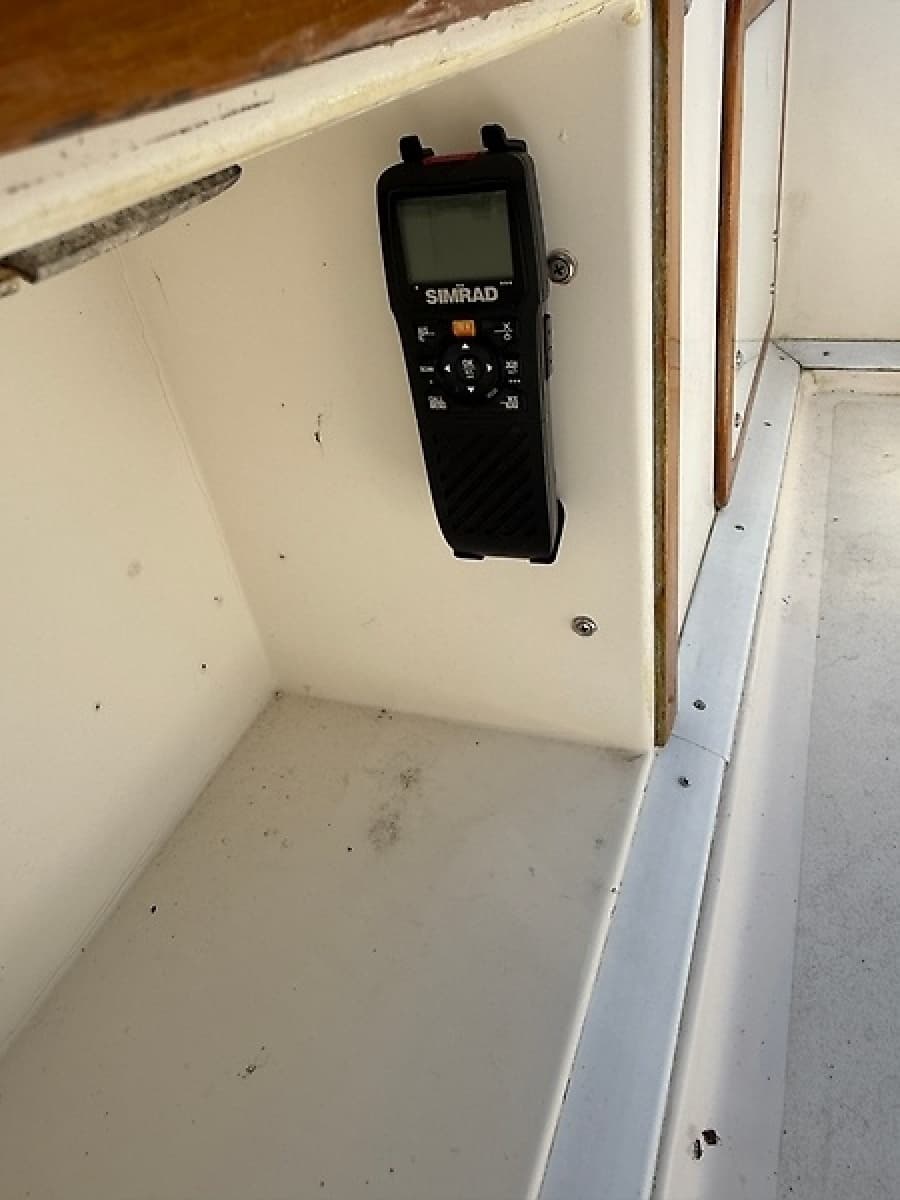

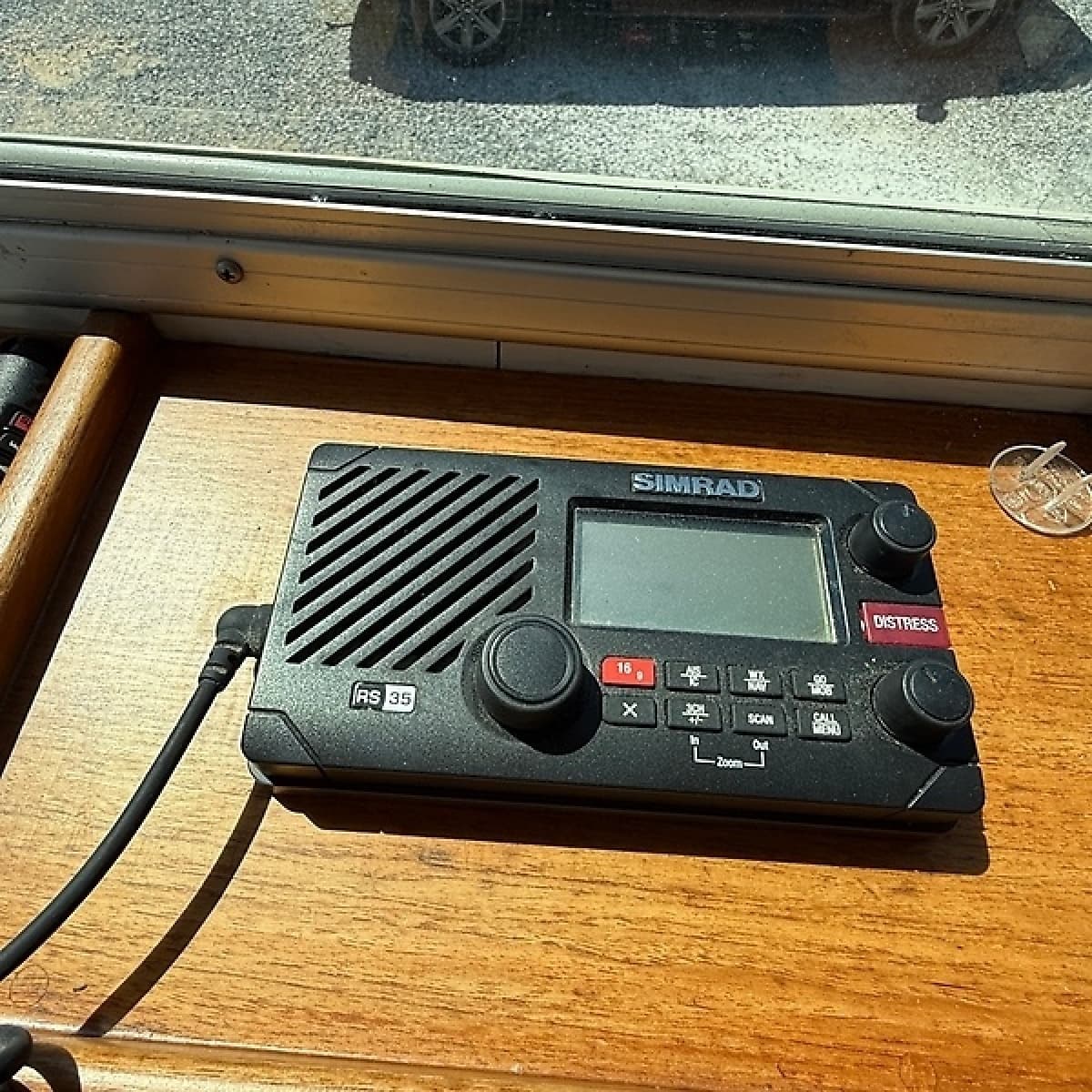

- Simrad VHF - Lower helm w/ remote for Flybridge (AIS) (2018)
- Simrad Autopilot - both helm stations (2024)
- Simrad Wind speed and direction
- Fushion stereo inside and outside speakers (main cabin speakers are Bose) 2024
- USB outlet lower helm
- Ritchie Compass both stations
- Horn
Systems
- Marine Aire Air conditioning 16,000 btu (2018)
- Marine Aire "Soft Start" (2018)
- Wehring Washdown pump (2021)
- Upper Station Hydraulic Steering replaced (2024)
- (2) 5052 Aluminum Fuel Tanks new (2015)
- (2 ) 40 gal Stainless Steel 316L Water Tanks new (2015)
- Raritan 6 gallon Hot Water Heater 110v or Heat Exchanger
- (3) 12v Bilge pumps
- (1) Maual Bilge pump
- Oil Change pump
- Macerator w/ Y valve
- Shower sump (2024)

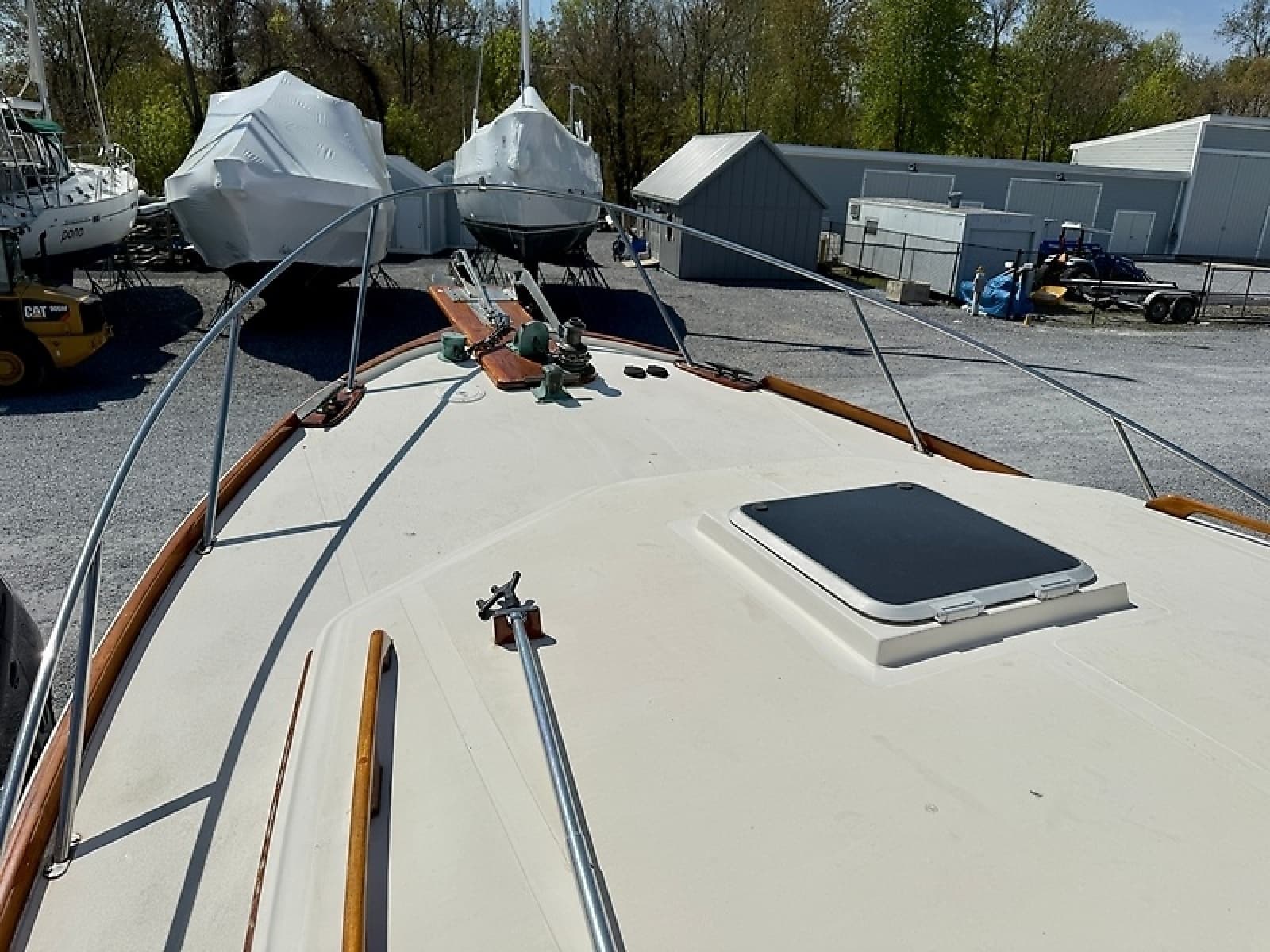

Deck and Hull

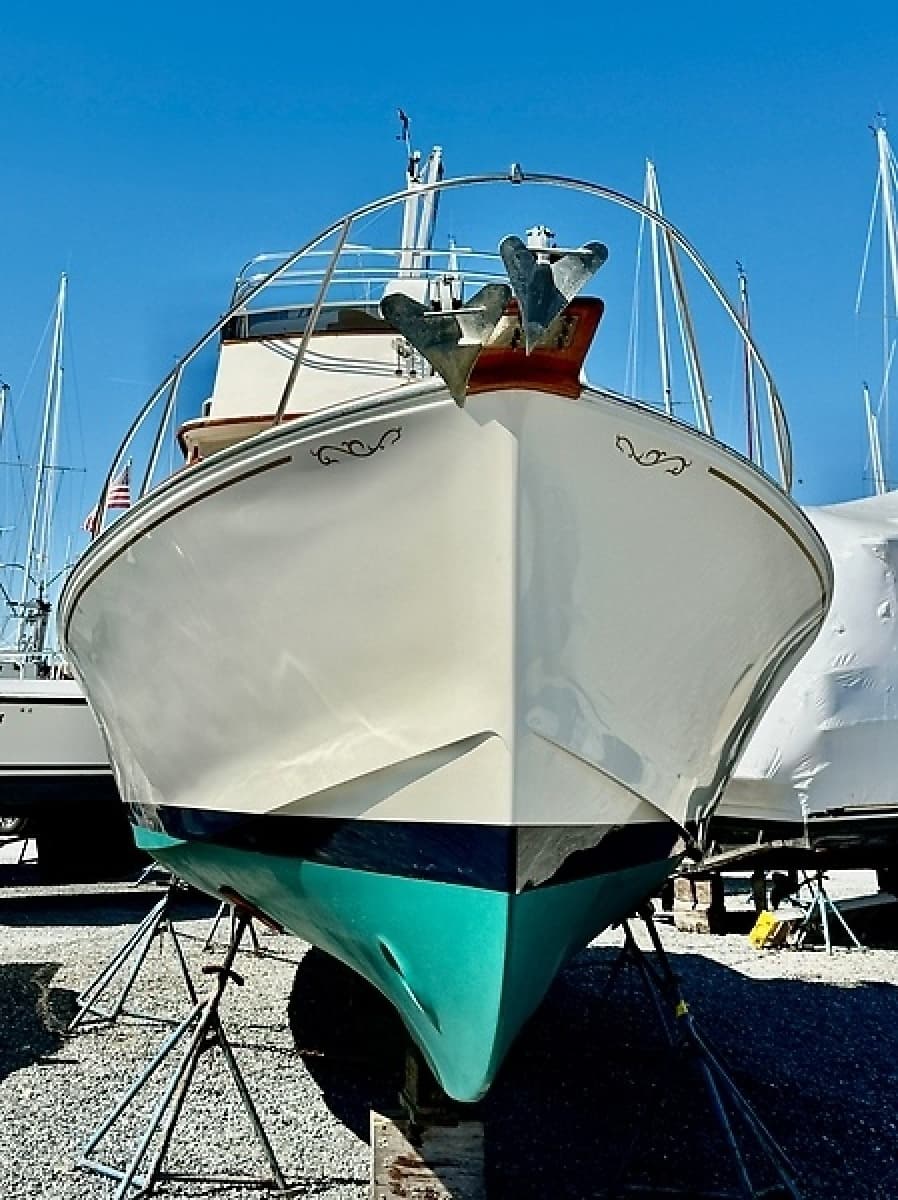

- Hull is finished in Awlgrip
- Bottom painted and zincs changed 4/2026

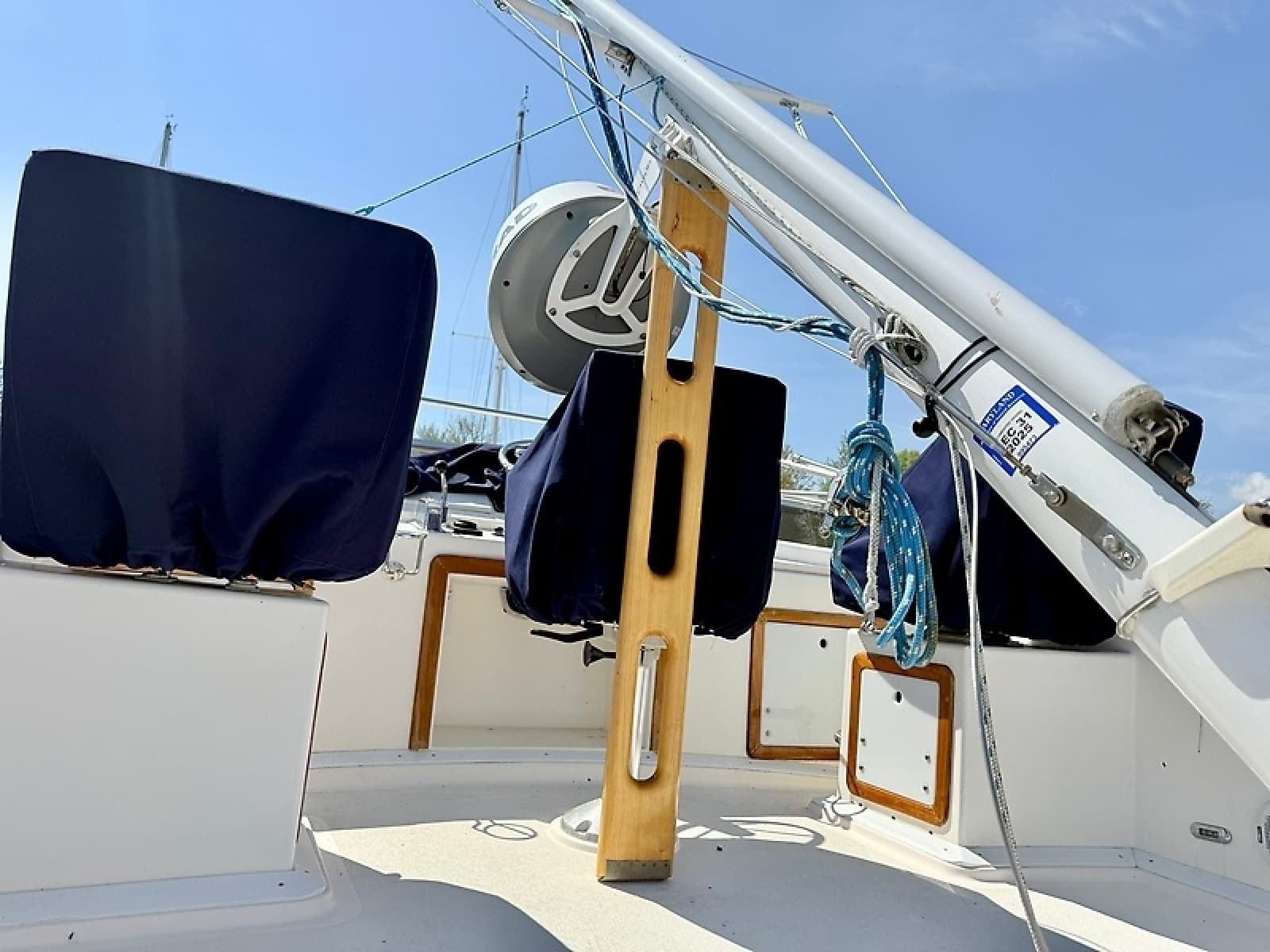

- Hinged mast w/ boom and crutch Height-up 19' - Down - 16'

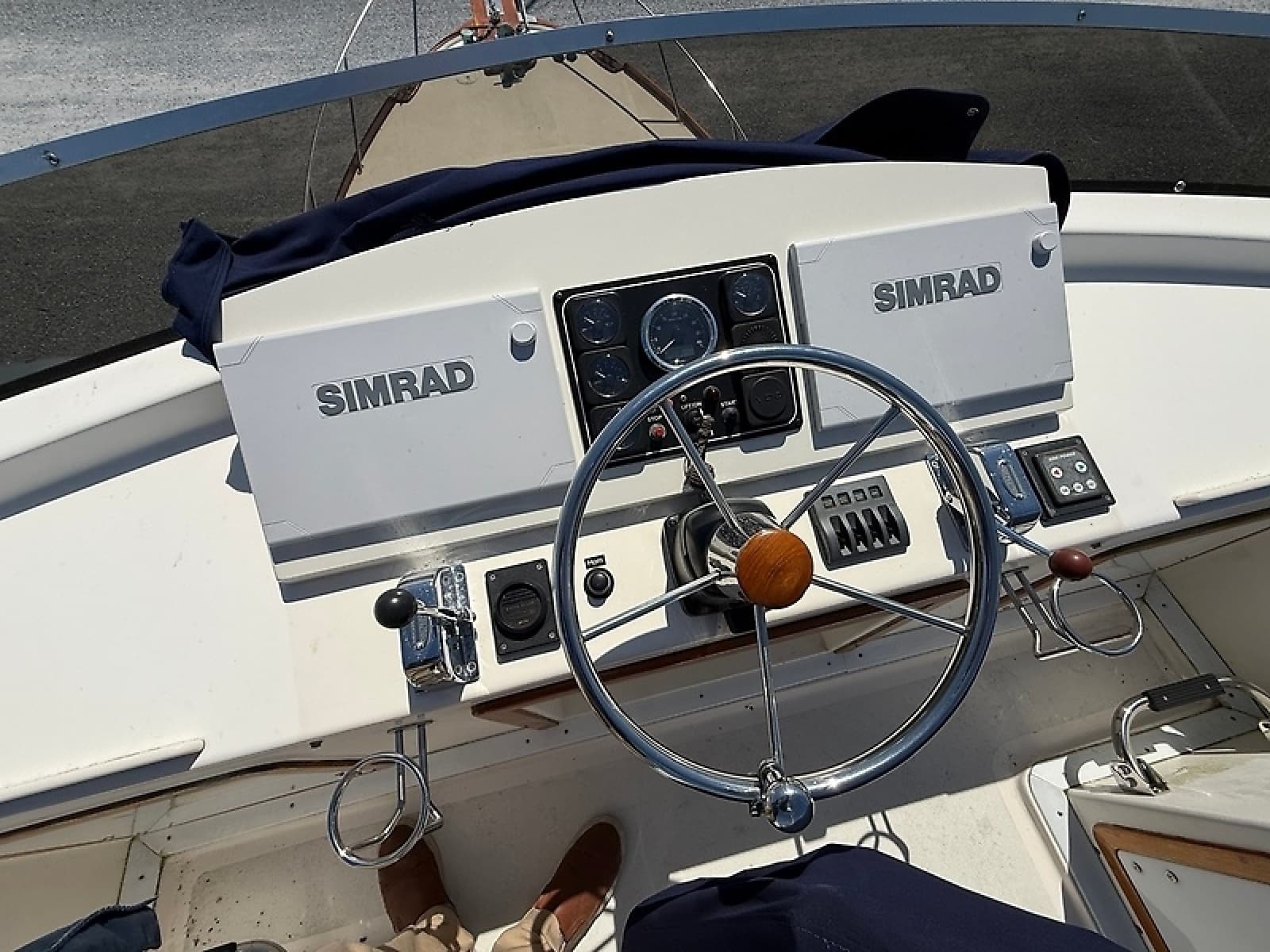

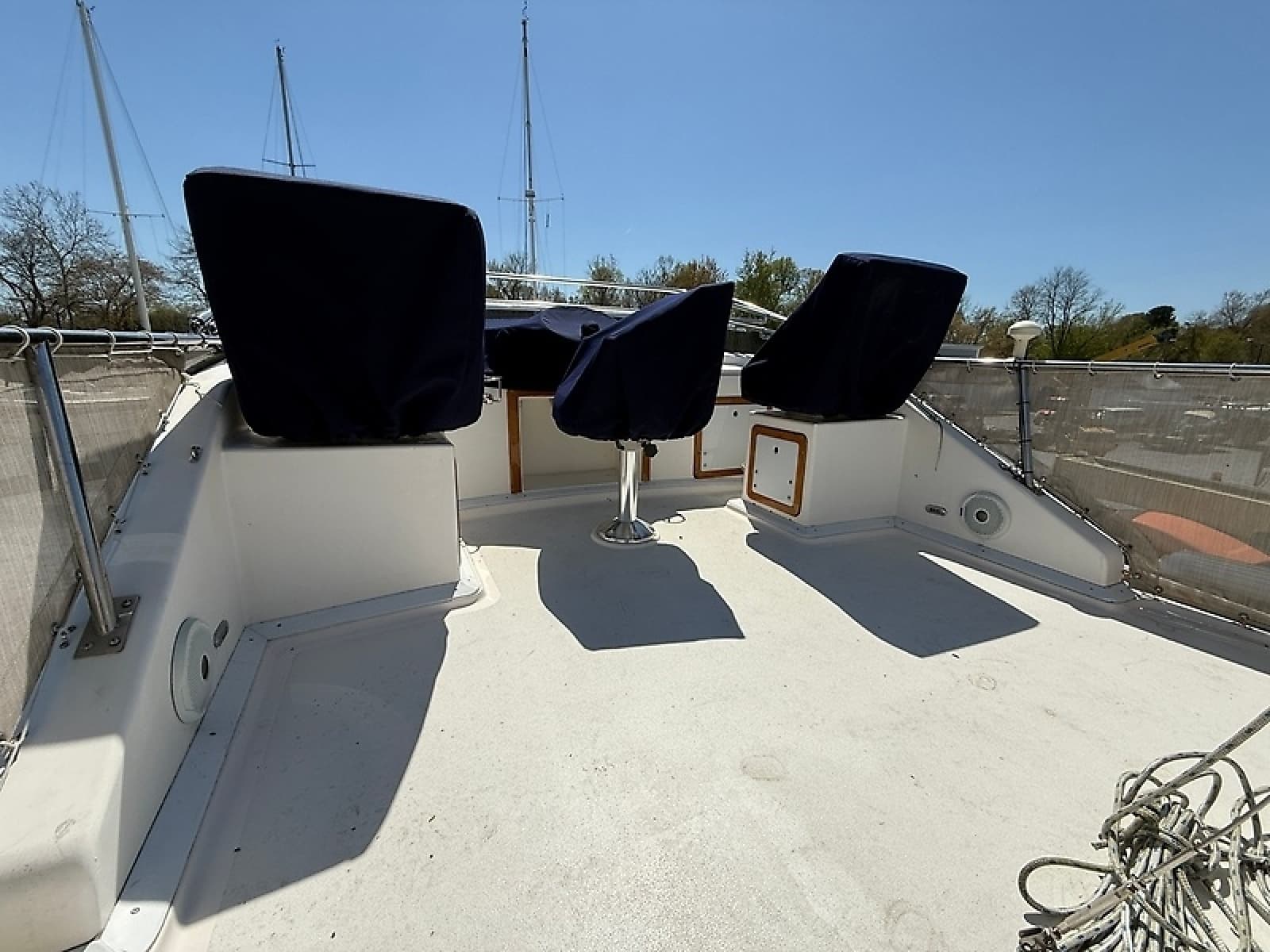

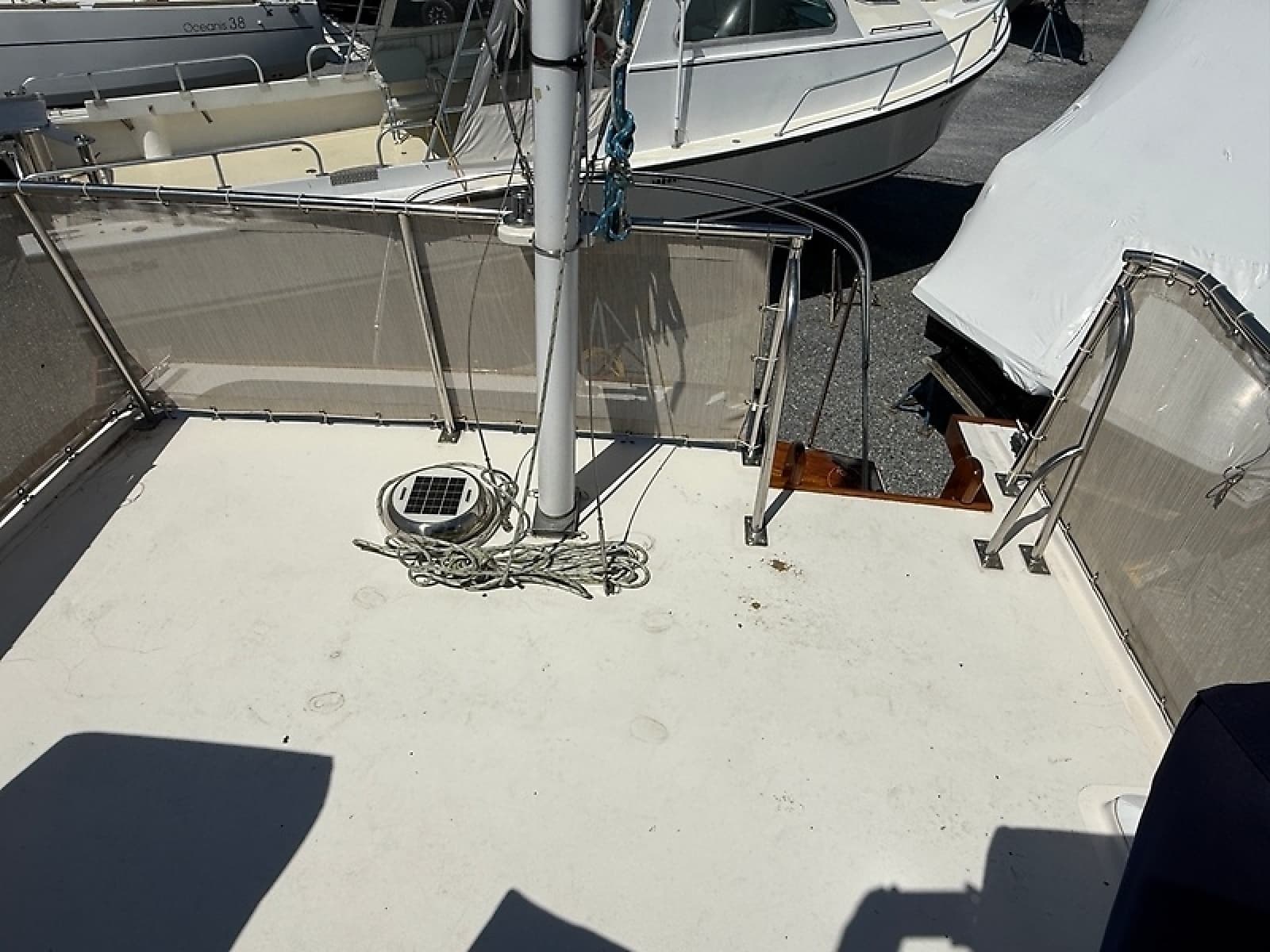

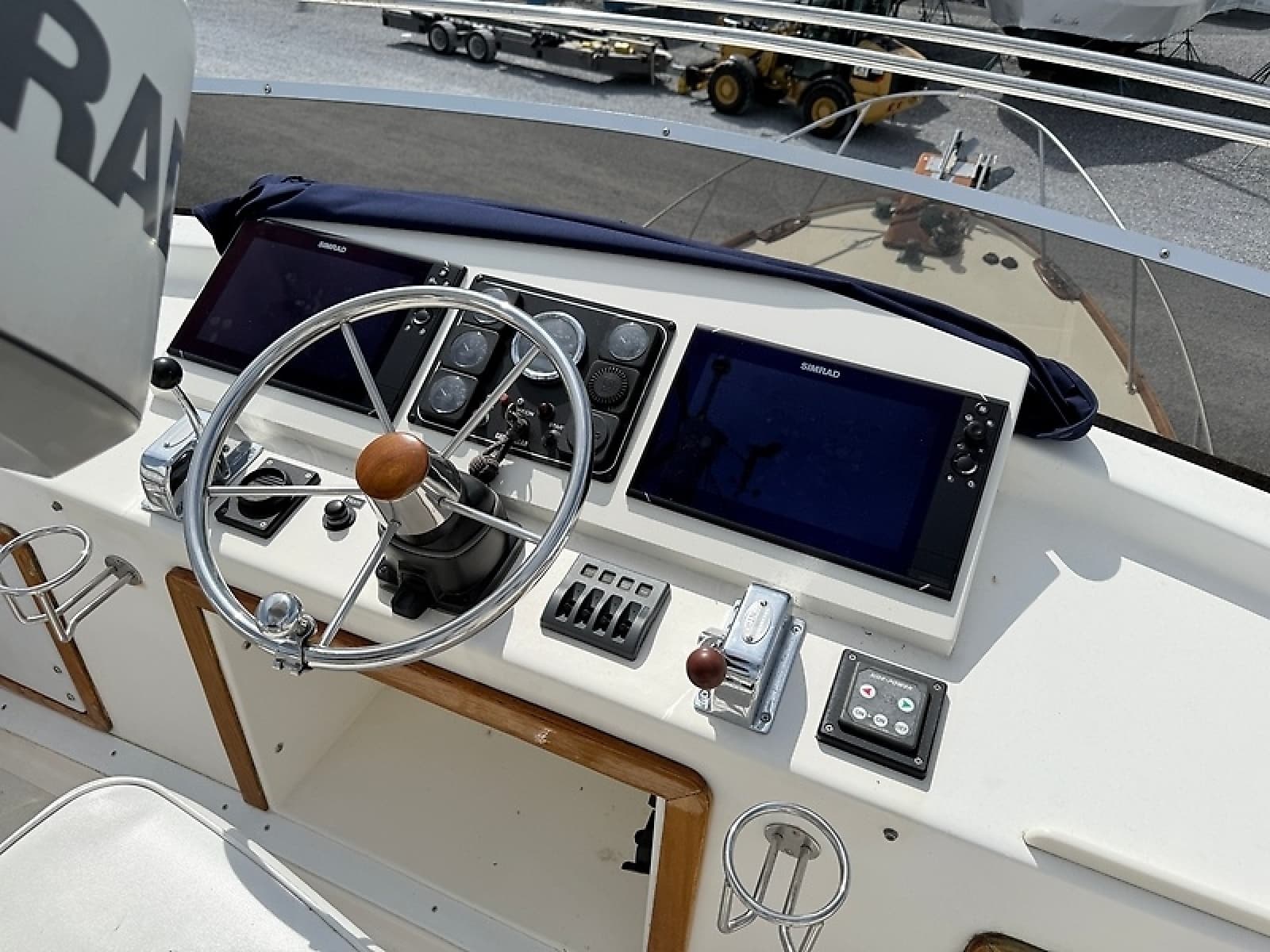

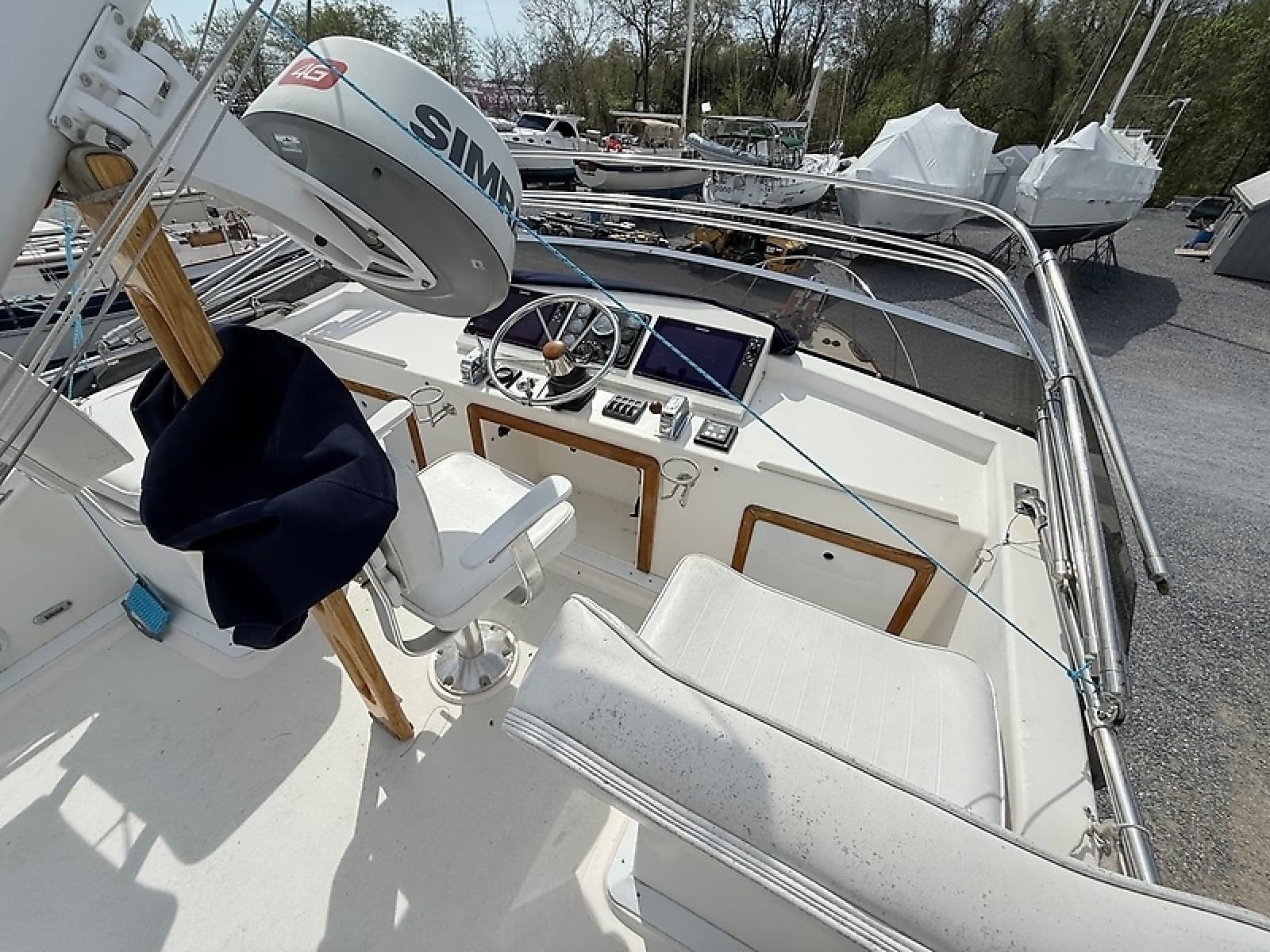

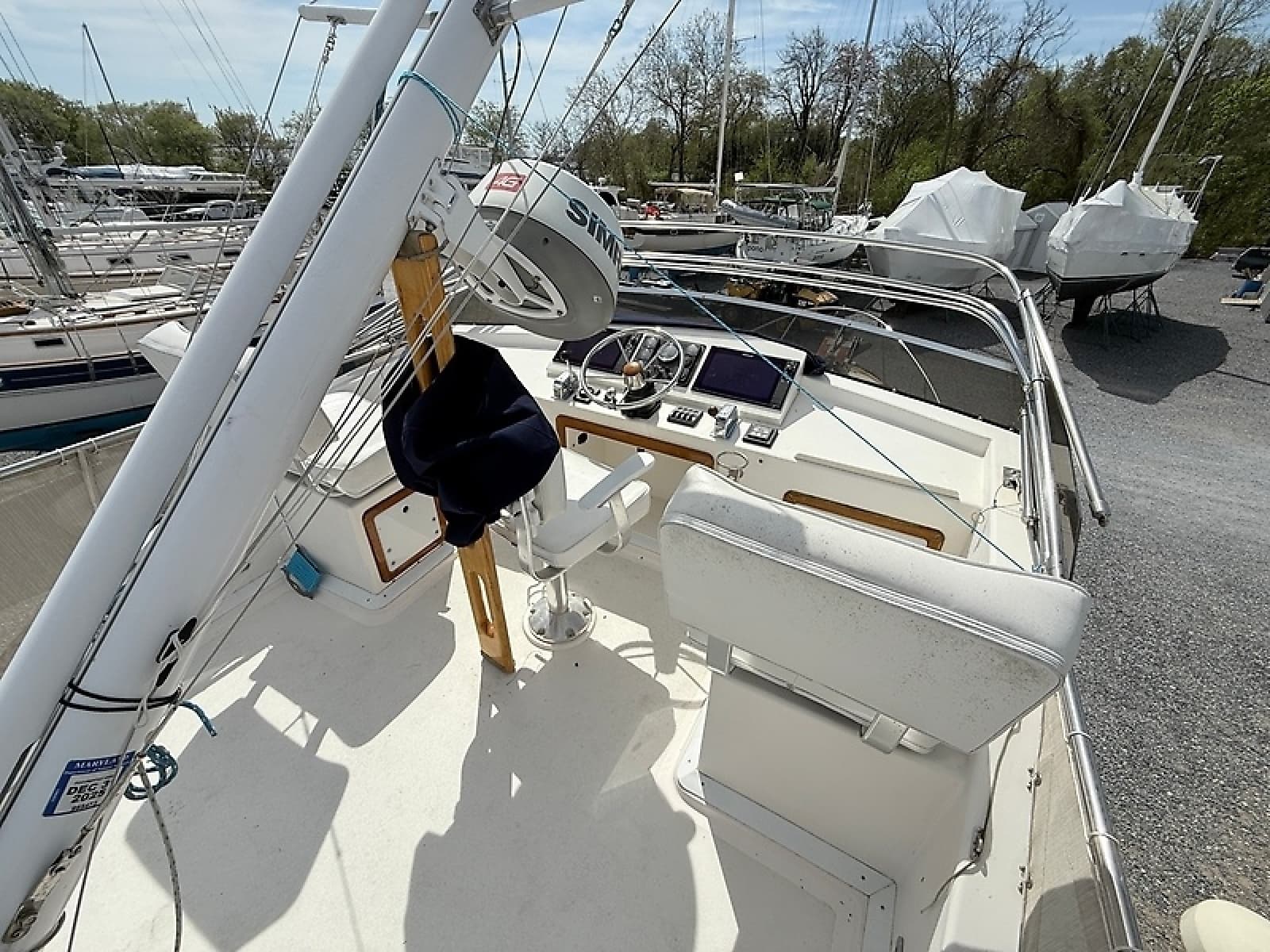

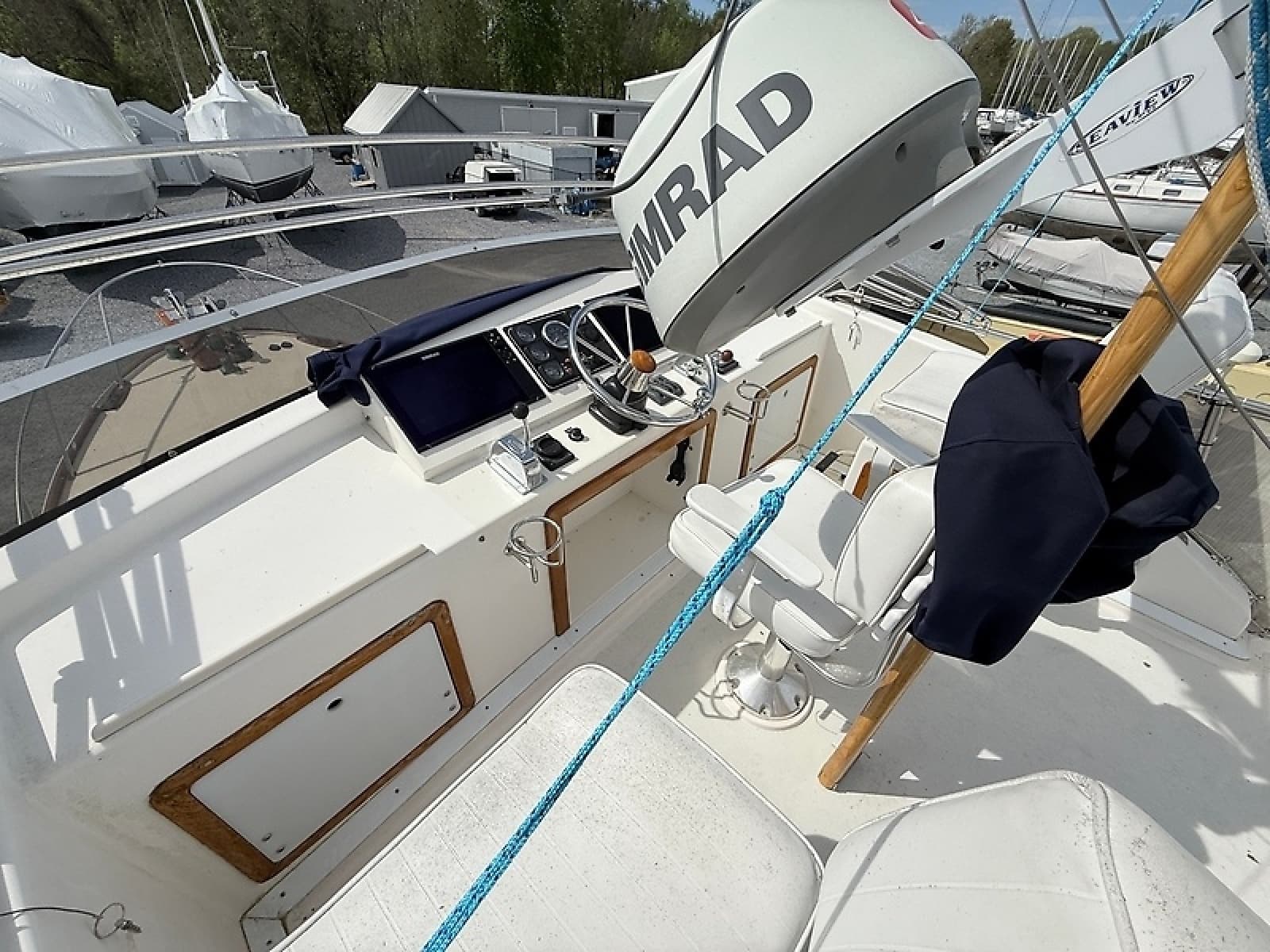

- Flybridge Helm station with 3 seats

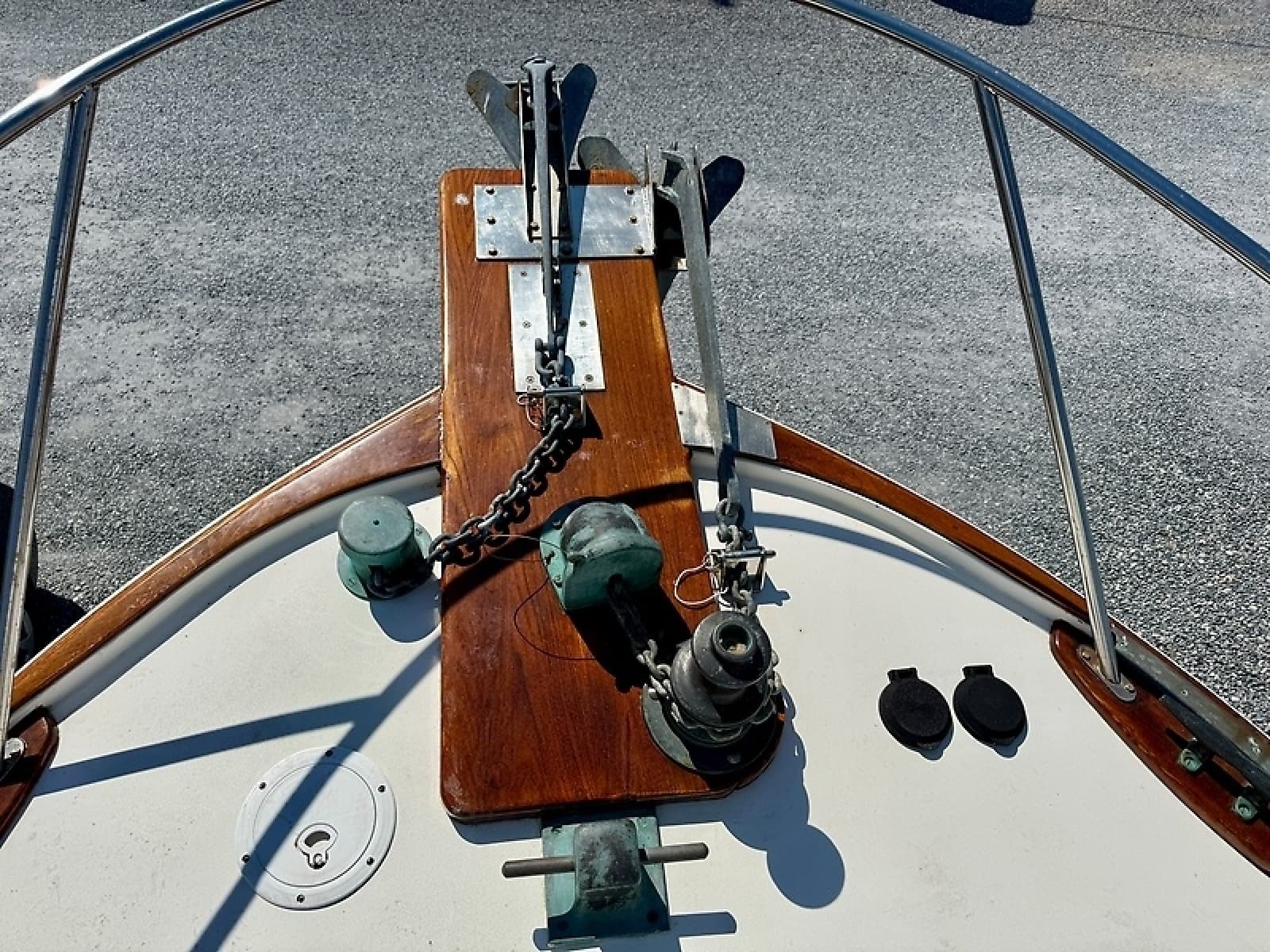

- Electric windlass with foot controls

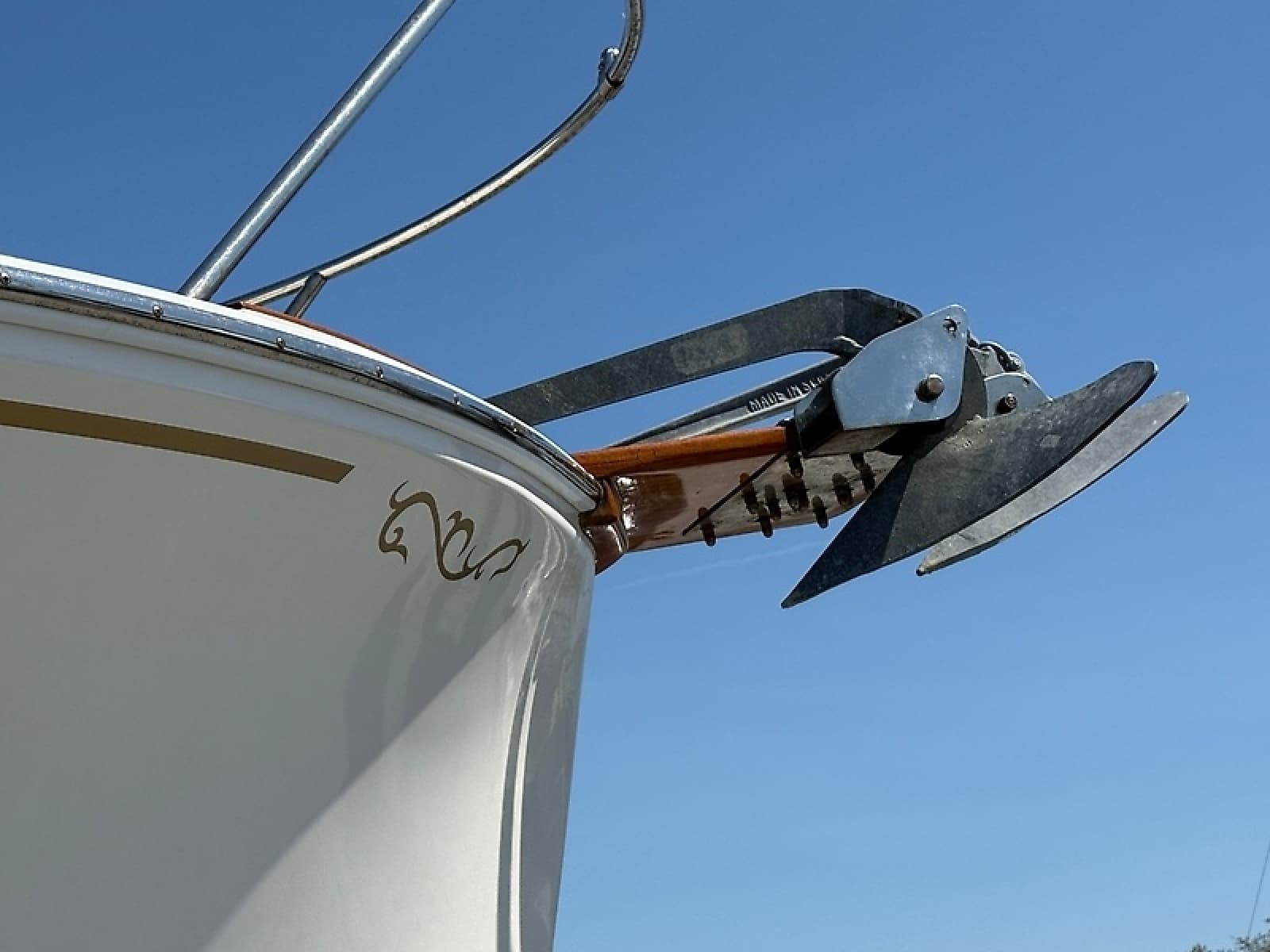

- 35lb CQR with chain & rode
- 25lb CQR with chain & rode

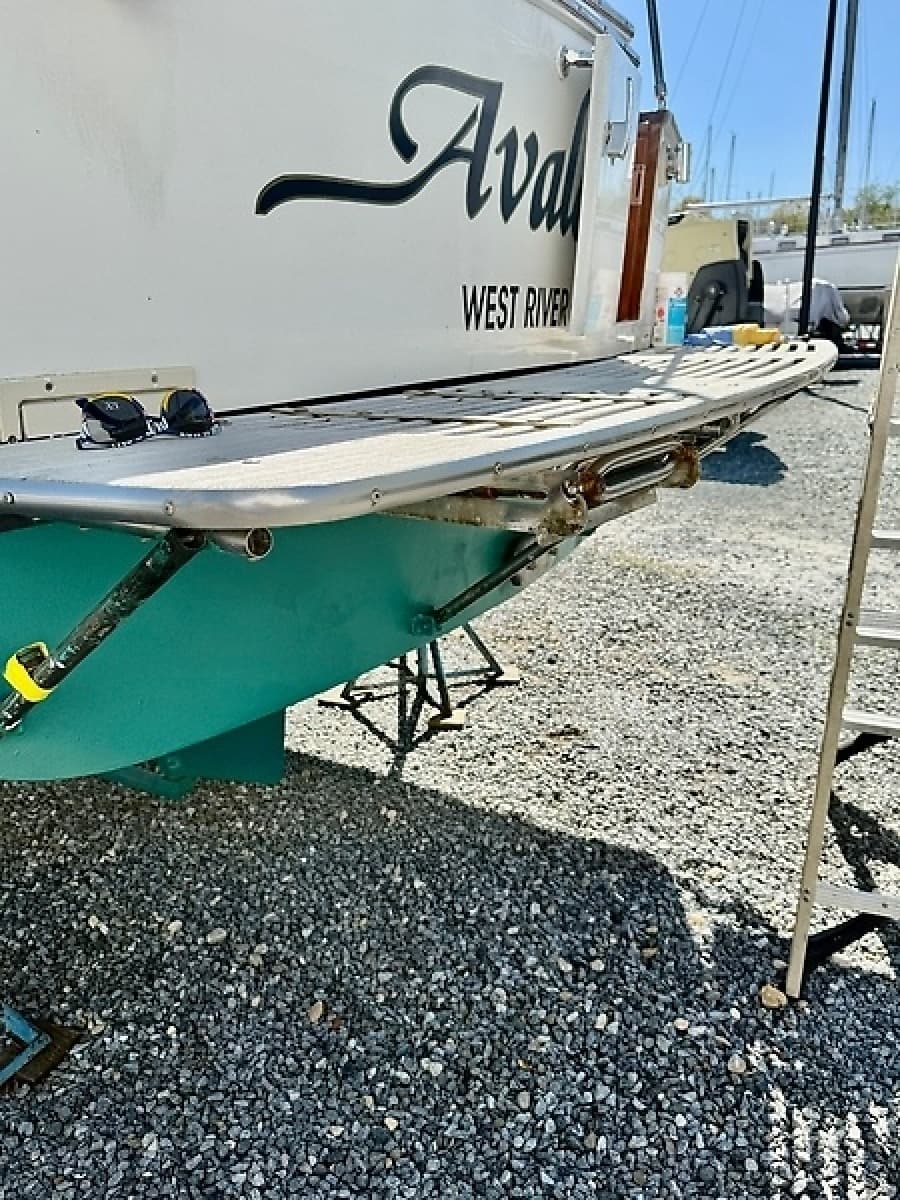

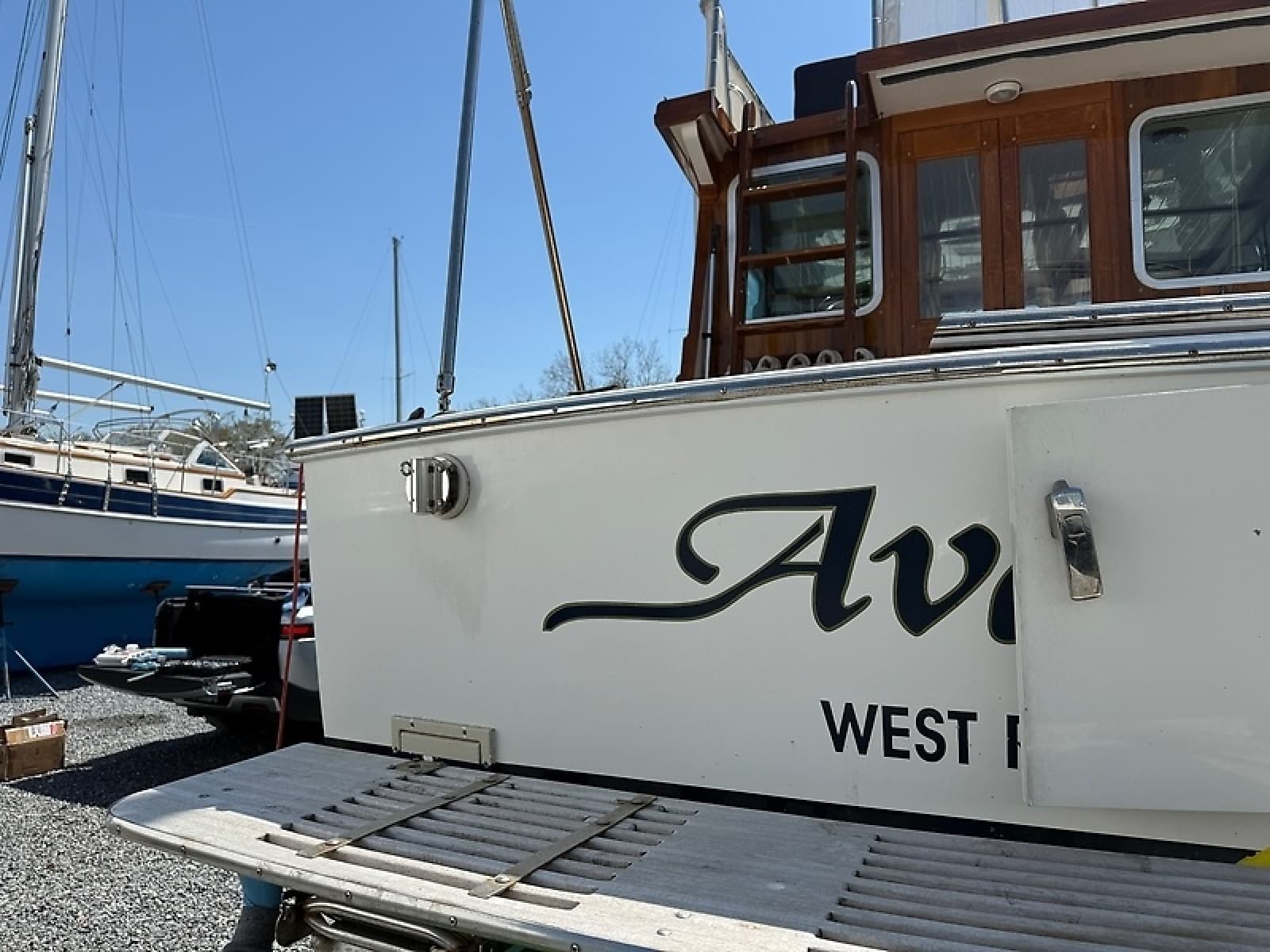

- Swimplatform
- Swimladder
- Fire extinguishers
- CO2 detecter
- Coast Guard Safety gear
- (2) Rod Holders
- Flybridge bimini
- Cockpit bimini

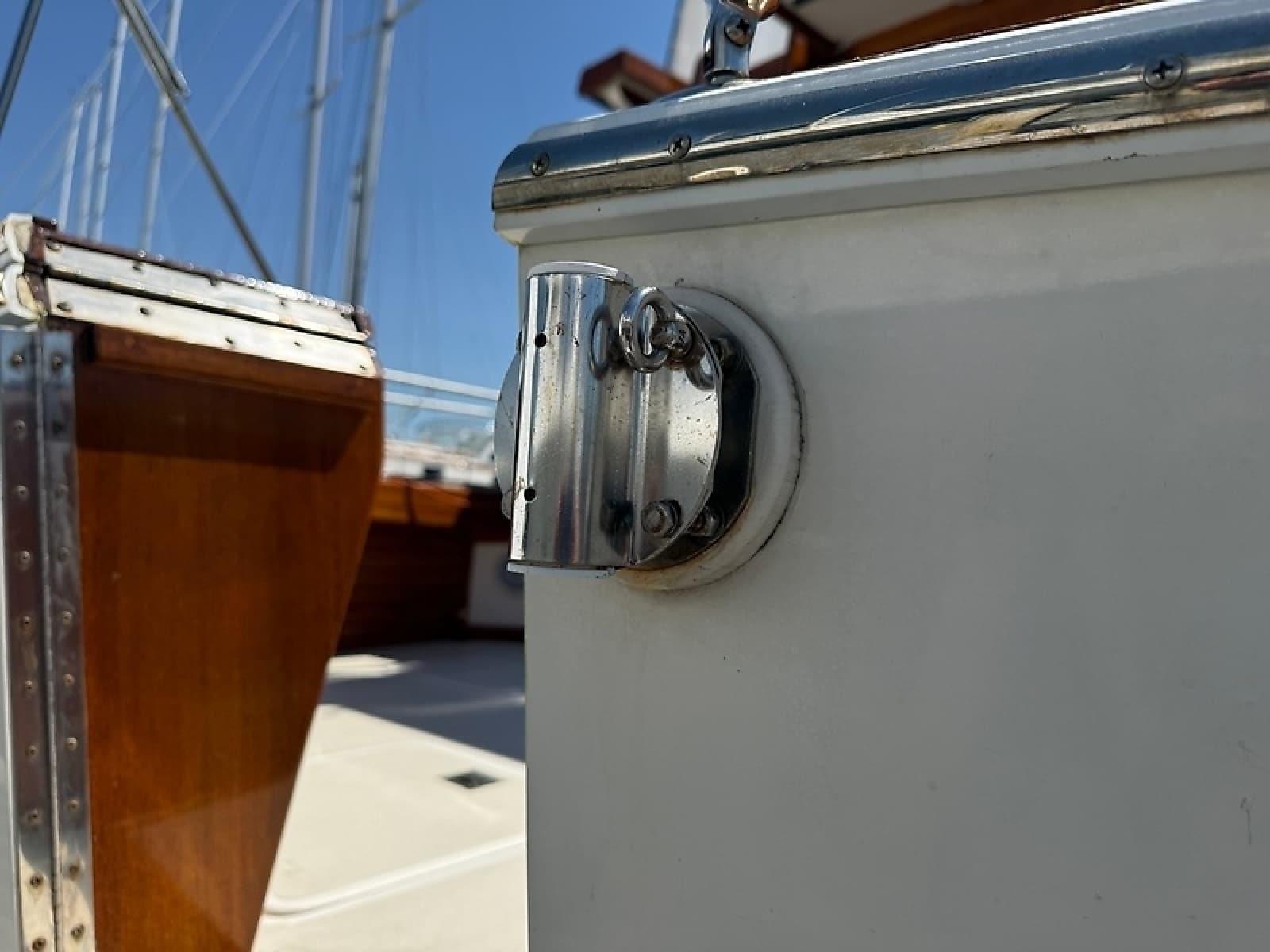

- Removable St. Croix dinghy davits
- Texiline window covers
- FB Helm seat covers and dash cover
- Hinged Mast and Boom w/ storage crutch (Height down 16")
