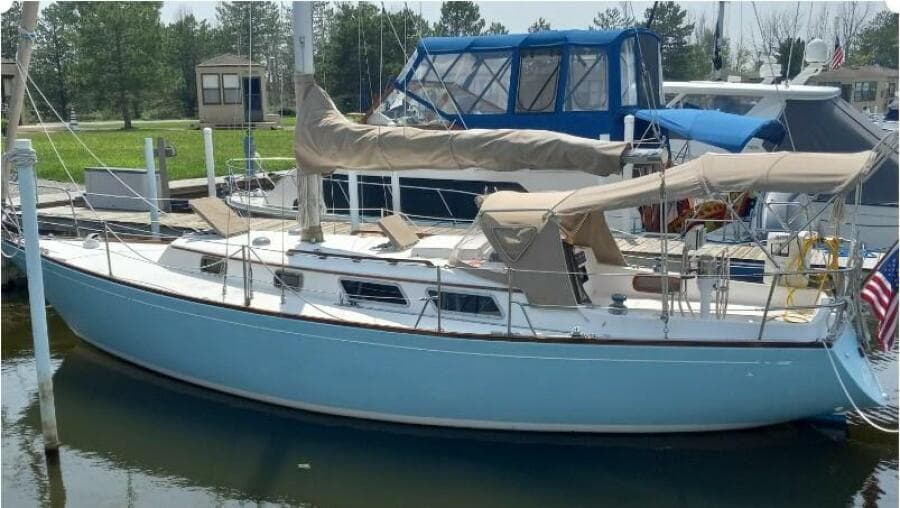

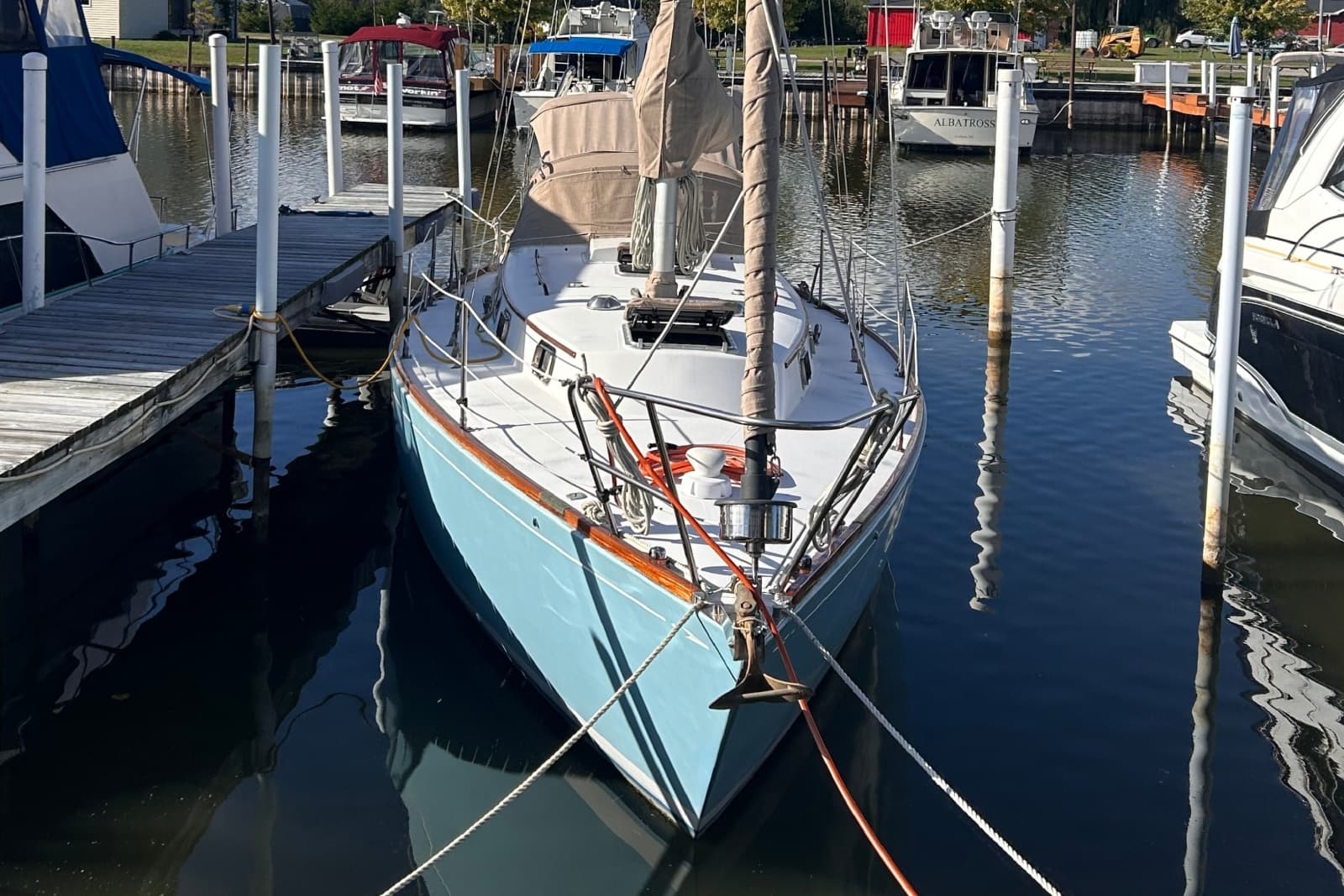

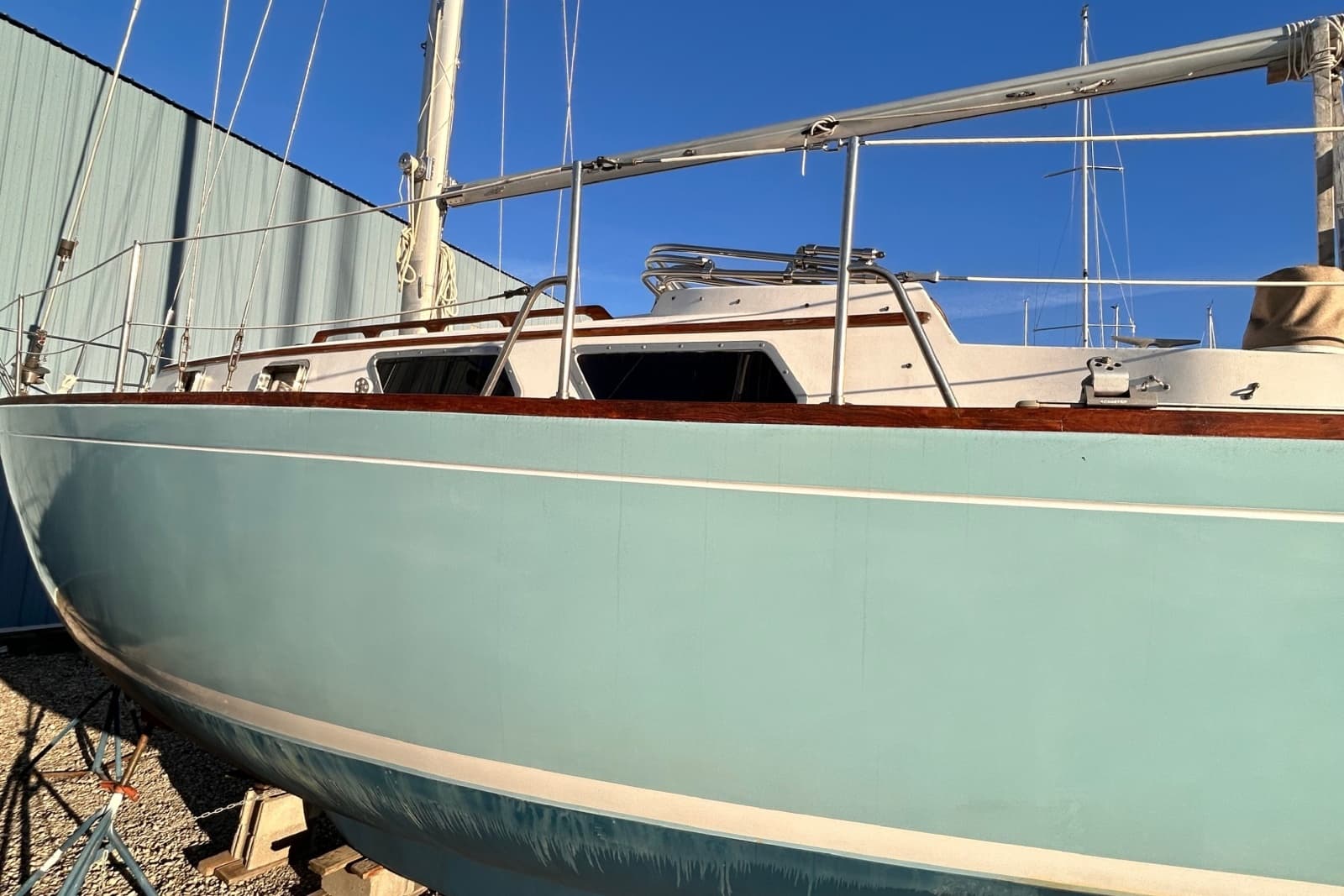

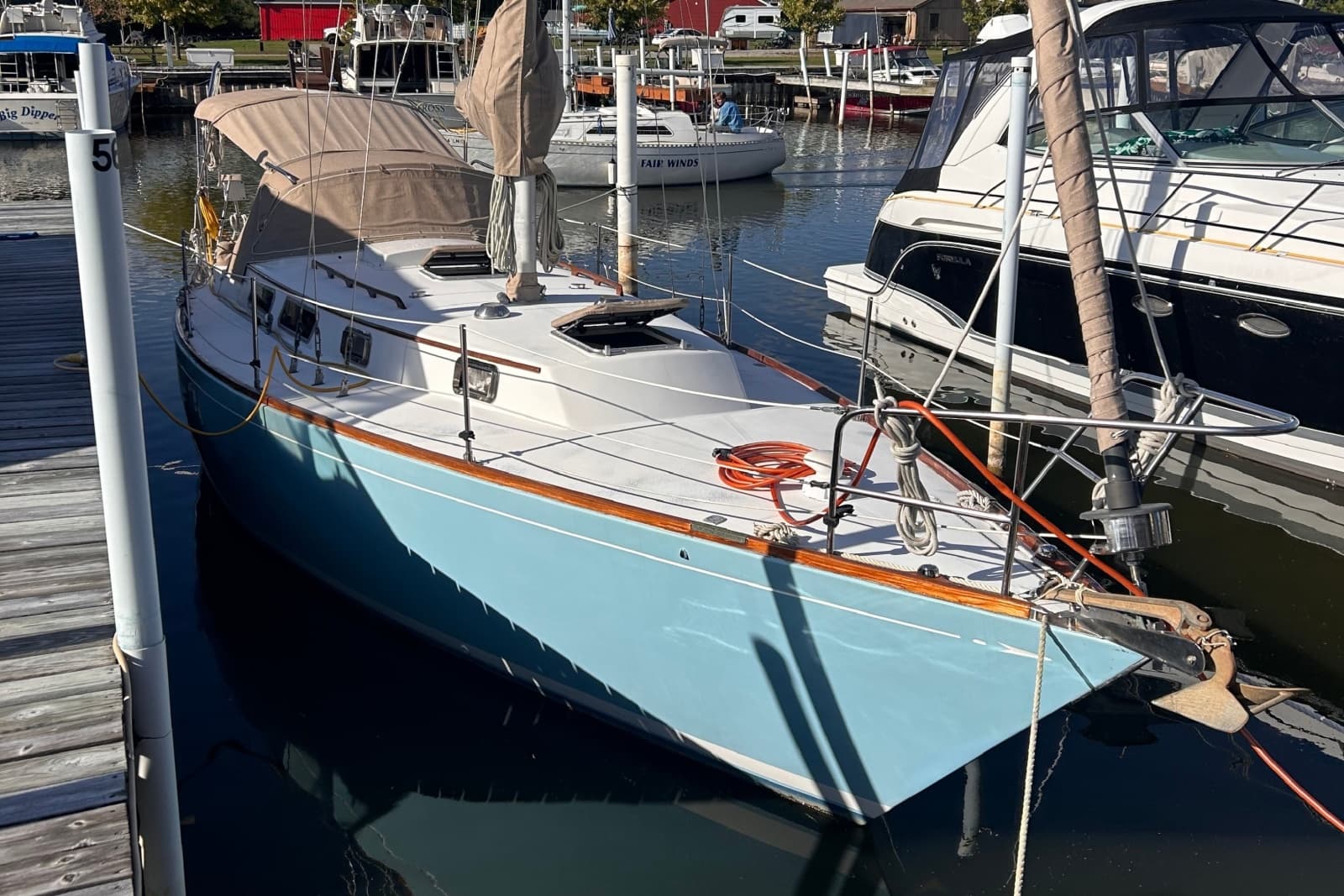

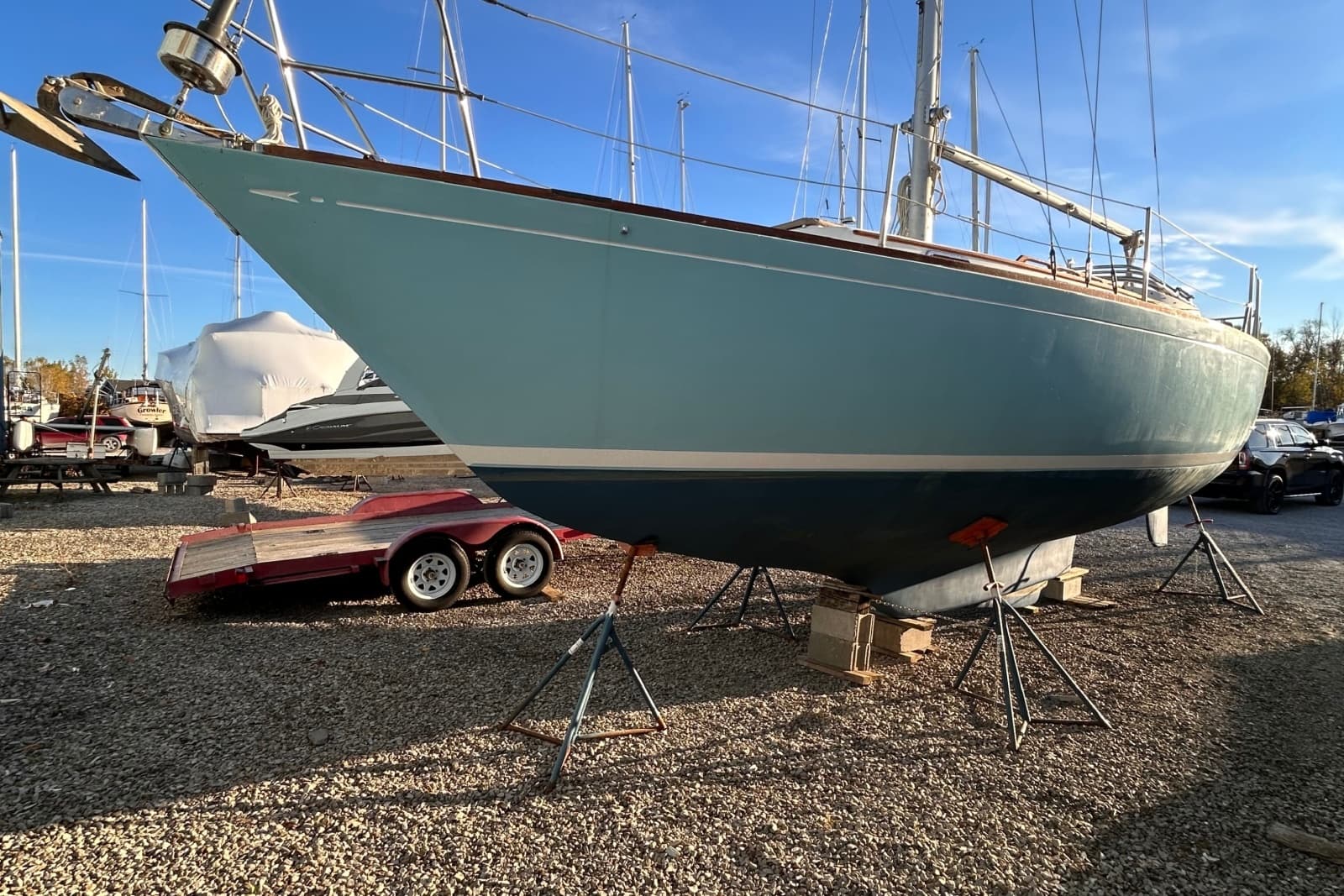

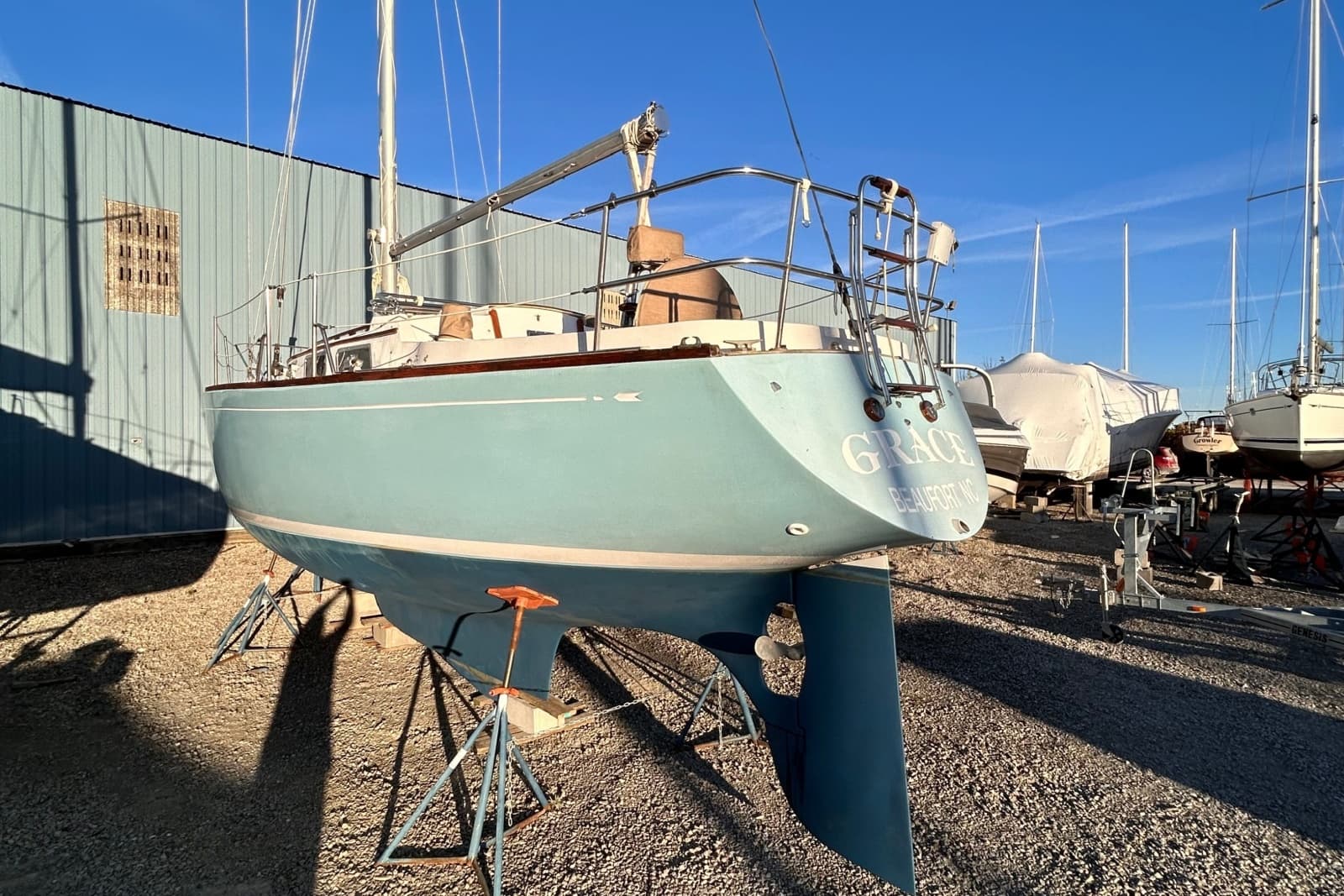

1980 Bristol 35.5

Mast:

• Collar (OD) - 26 3/4", Flange 271/2"
• Mast circumference - 221/2"
• Bast to deck light - 29'
• Base to truck shoulder - 52' 4"
• Light mount 10" from masthead
• Electrical Dissipation - Forespar Lightning Master - masthead mount
• Lighting
• Aqua Signal series 40 tri-color/strobe/anchor
• Tri Color Light - Bay 15d 6W 600lm LED
• Anchor - Bay 15d 3W LED

Boom:

• 13' 4" Boom length - mast to topping lift

Sails:

• 140 Genoa with sacrificial - 21' on the foot R/F
• Sobstad 150 Genoa - 23' on the foot R/F
• Working Jib 8 oz. R/F/37' Luff/33'6" Leech - Hood H54413
• Heavy air jib 12 oz R/F - 14' 6" foot/32'6" Luff/27' Leech (Pendants - L 1"2"/U 12'10")
• Spinnaker
• Roller Furling
• Harken Roll pin fuller dated 1985 - pre MKI (Refurbished by Harken 3/2015)

Winches:

• Genoa - 2 Lewmar Ocean 46 2 2 Speed self tailing
• Halyards - 2 Lewmar 16 2 Speed
• Bridge Deck - 1 Lewmar 16 2 Speed

Electronics:

• Sea View Sail pod SP2S
• GPS Garmin GPS Map 741xs
• Radar - Garmin GMR 18xHD
• Depth - Raymarine i50
• Wind - Raymarine i60
• Speed - Raymarine i50
• VHS - Standard Horizon GX1700 with GPS
• Remote Mic -standard horizon
• Stereo - Kenwood BT-368U

• New Cabin Cushions
• New VHF
• New Raymarine i50 and i60
• New Dodger, Bimini and connector with 1" stainless framing
• New Guest dual bank battery charging system
• (2) 12V Batteries
• Stainless steel Atwood water heater
• Galley and head faucets
• Fresh water pump and accumulator tank and replumb with pex water lines
• Foredeck cowl vent
• Replaced all door and cabinet hardware
• Installed new Raritan PHC manual head
• Partial replacement of running rigging - Main halyard, Spinnaker pole halyard
• Refinish cabin doors
• Refinish 50% of locker doors
• Replace shore power connector
• Polish Binnacle to bright stainless

• Refinish remainder of locker doors
• Garmin Radar GMR 18xHD with mount
• Replace bearings in Harken Furler
• Replace all standing rigging - 316SS
• Replace topping lift and lazy jacks
• Replace all mast wiring
• Replace all mast lighting
• Install new sump pump
• New C-Cushions cockpit cushions..
• Install new LED red cabin floor courtesy lighting
• Install new nav station panel for VHS, Stereo blue-tooth, Switch Panel and USB charger
• Install stereo speakers
• Varnish main cabin starboard and port
• Install Standard Horizon VHF GX1700

• Powder coat and clear coat port frames
• Replaced Universal diesel riser mixing elbow
• Replaced Oberdorfer Raw water pump
• Install Minn Kota MK230PC 30 amp 2 bank charging system
• Install 4 New Found Metal opening ports with screens
• Strip and seal table
• Replace Beckson passive ventilator C-6SS internal components
• Replace cabin lighting with Scandvik chromed brass LED fixtures
• Install Weems and Plath oil lamp
• Install 1 new 120 AC circuit breaker and circuit on starboard interior
• Install 3 new 120 AC outlets
• Strip and refinish cabin sole
• Refinish forward cabin

• Bomar Deck Hatches
•      Removed and refinished (paint and clear coat)
•      Lexan and sealing gaskets replaced
• Toe Rail sanded and finished bright with Interlux Perfection Plus (6 coats)
• Maintenance coats (2) Interlux Perfection Plus on all previously coated exterior surfaces
• Quarter birth refinished – Captains Varnish 1015
• Navigation station removed and refinished – Captains Varnish 1015
• Quarter birth 3 speed Caframo Bora fan installed
• Installed Ocean Marine Systems Outboard Lifting Davit - Model MD20
• Installed 2 - 5 amp 12v circuit breakers for radar and GPS
• Installed Garmin 741xs on temporary fittings

2018:

• Rebuild of 7 Schaefer blocks to include both inboard stand-up cars
• Installed Seaview Sail pod SP2S at helm
•             Moved remote VHF mike to SP2S
• Installed 12V power for spot light in SP2S
• Moved Garmin 741xs to SP2S
• New shelving in port main cabin lockers
• Moved vessel from southern Chesapeake to Sandusky, Ohio - Lake Erie

2019:

• New 30amp 50ft shore power cord
• 100' Stern anchor line ½”
• (2) Super Start Fleet and Heavy Duty AGM Group 24 Deep Cycle 525cca/81ah
•       (purchased from O’reilly Auto Parts)
• New cutlass bearing
• New stainless steel propeller shaft
• Propeller cleaned and balanced
• Magnesium anode propeller lock nut
• Main sail completely cleaned
• Installed new diesel recirculating fresh water pump
• Installed 160 degree engine thermostat replacing 180 degree unit
• Replaced existing with new  Whale Flipper hand pump # GP0418 25’ 5/16" ISO G43 High Test Marine Anchor Chain  WLL 3,900 lb BL 11,600 lb Weight 1.03 lb/ft New Main Sail cover – Sunbrella Silica Dune

2020:

• Hobbs 192.3 - Hurth HB-10 2R rebuilt
• New Damper plate installed with rebuilt transmission
• New Lenco Heat exchanger installed
• Moved vessel from Sandusky, OH (Lake Erie) to AuGres MI (Lake Huron)

2021:

• 150 Genoa cleaned
• All exterior bright work refinished – interlux perfection plus
