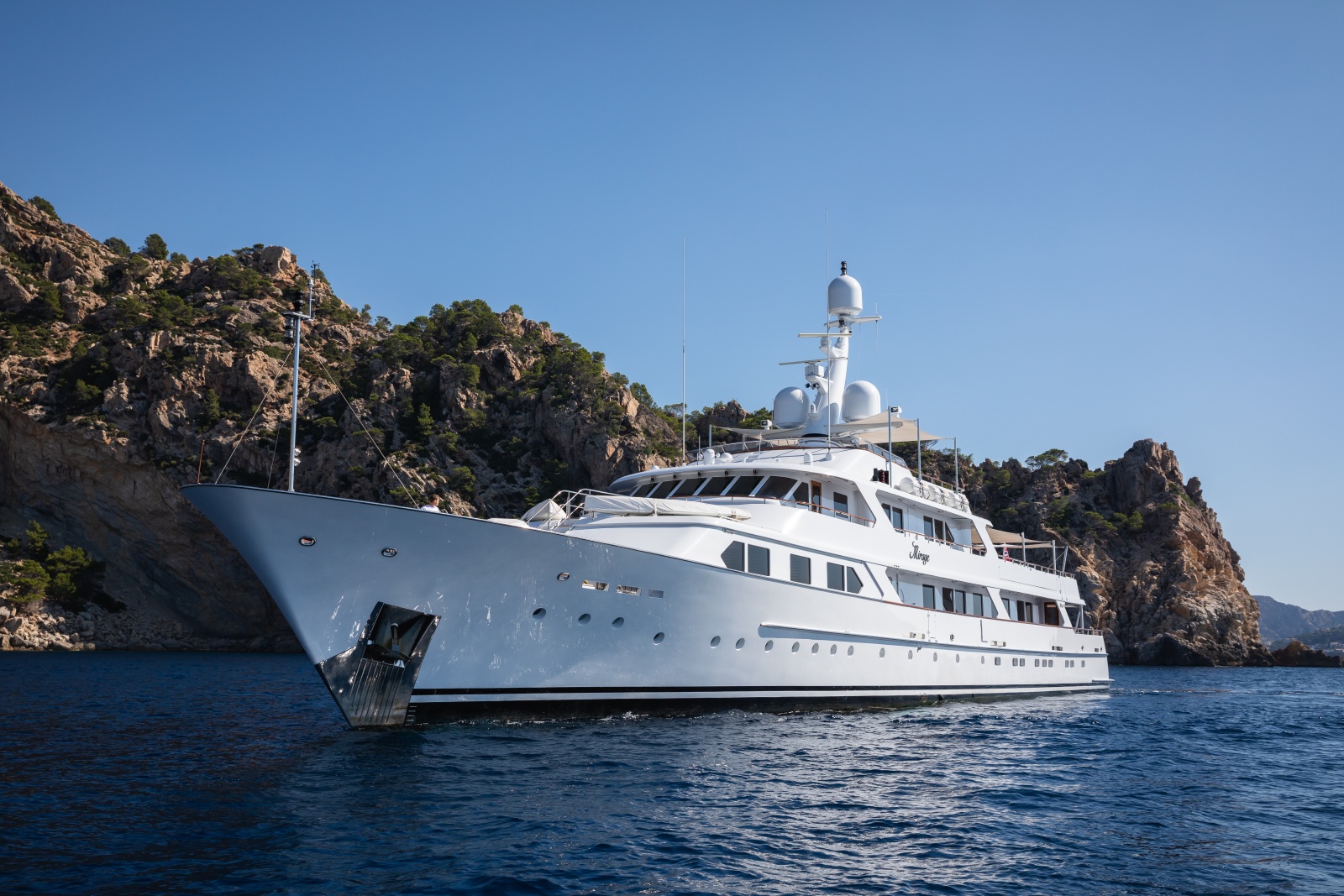

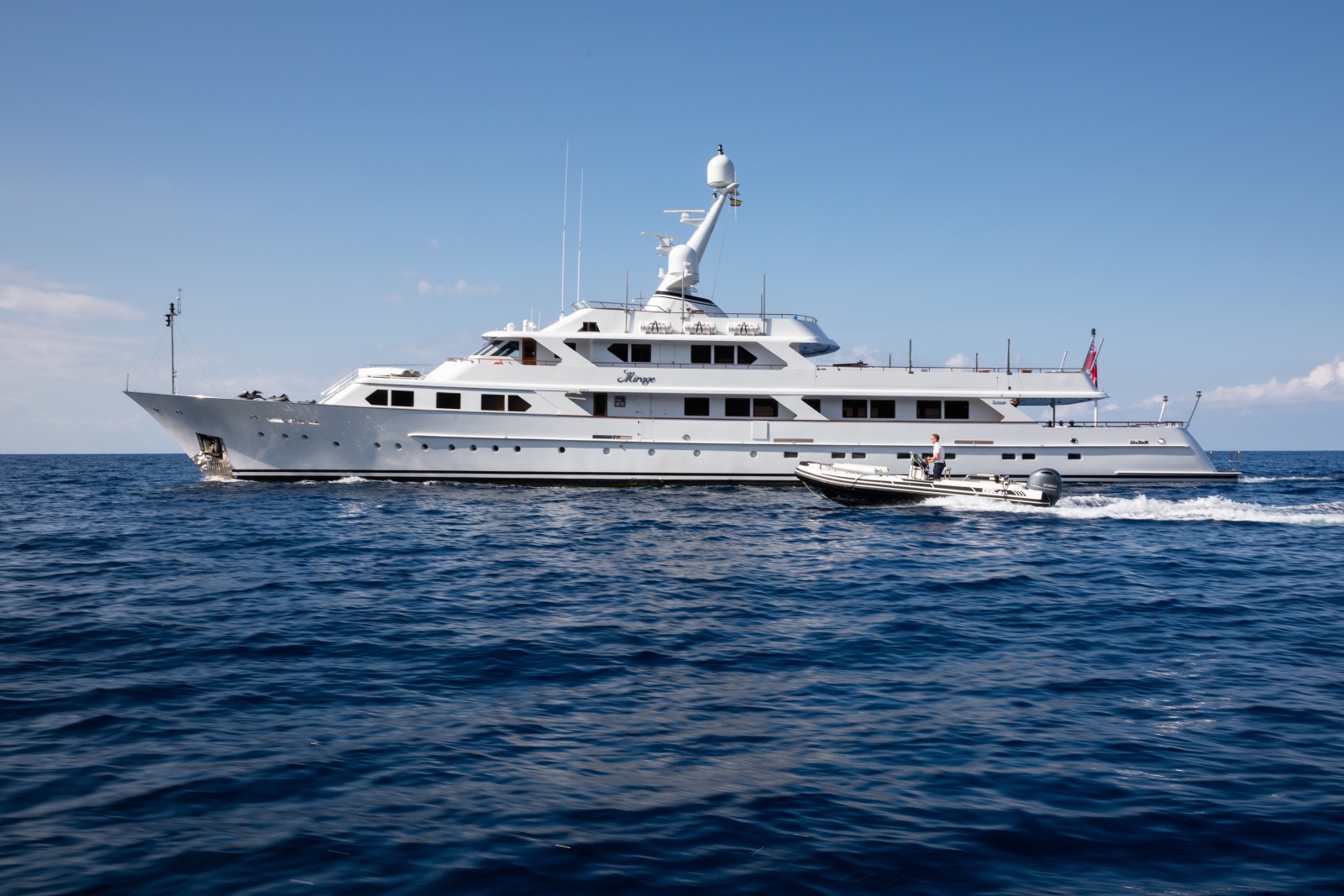

1979 Feadship
“MIRAGE”
Description

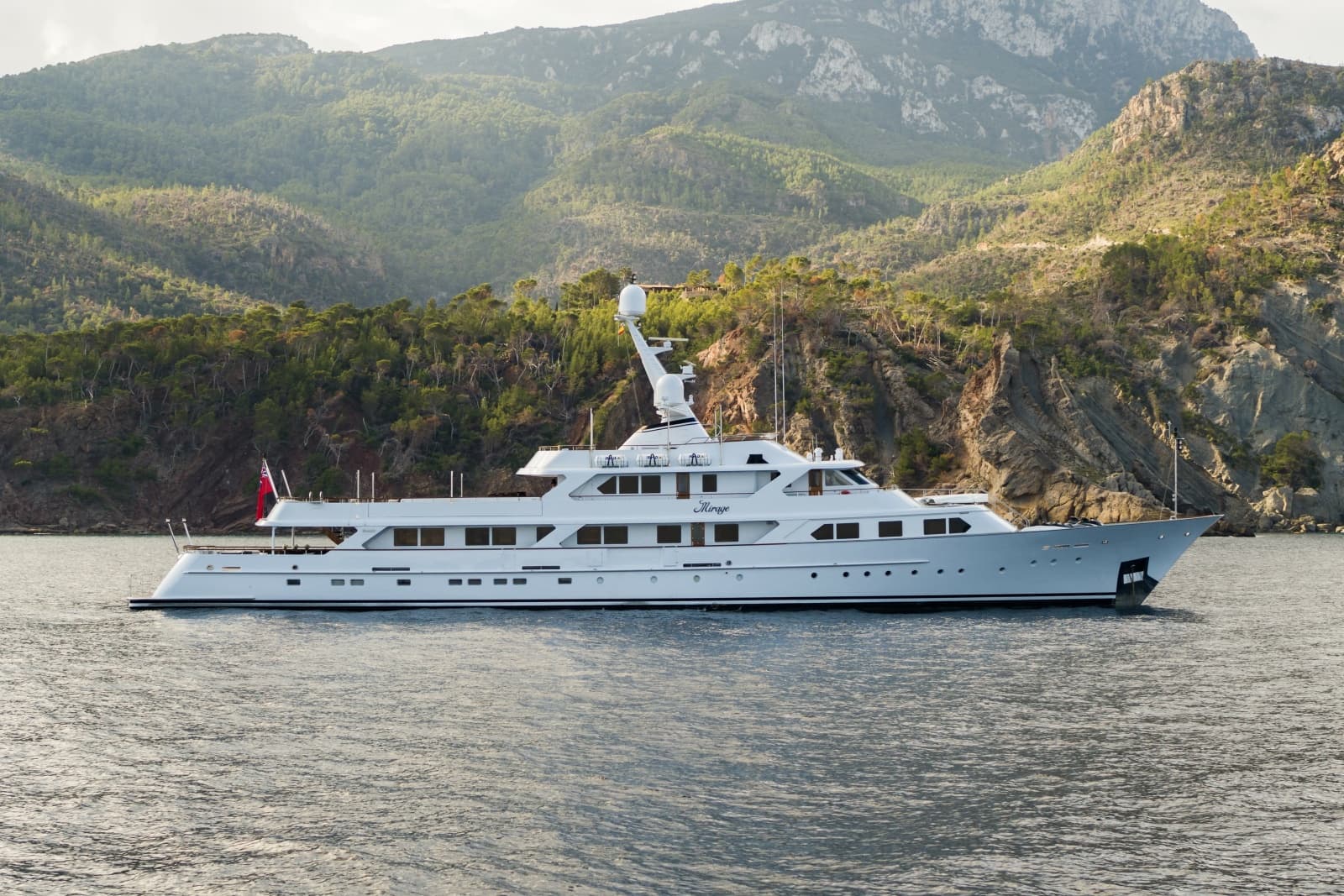

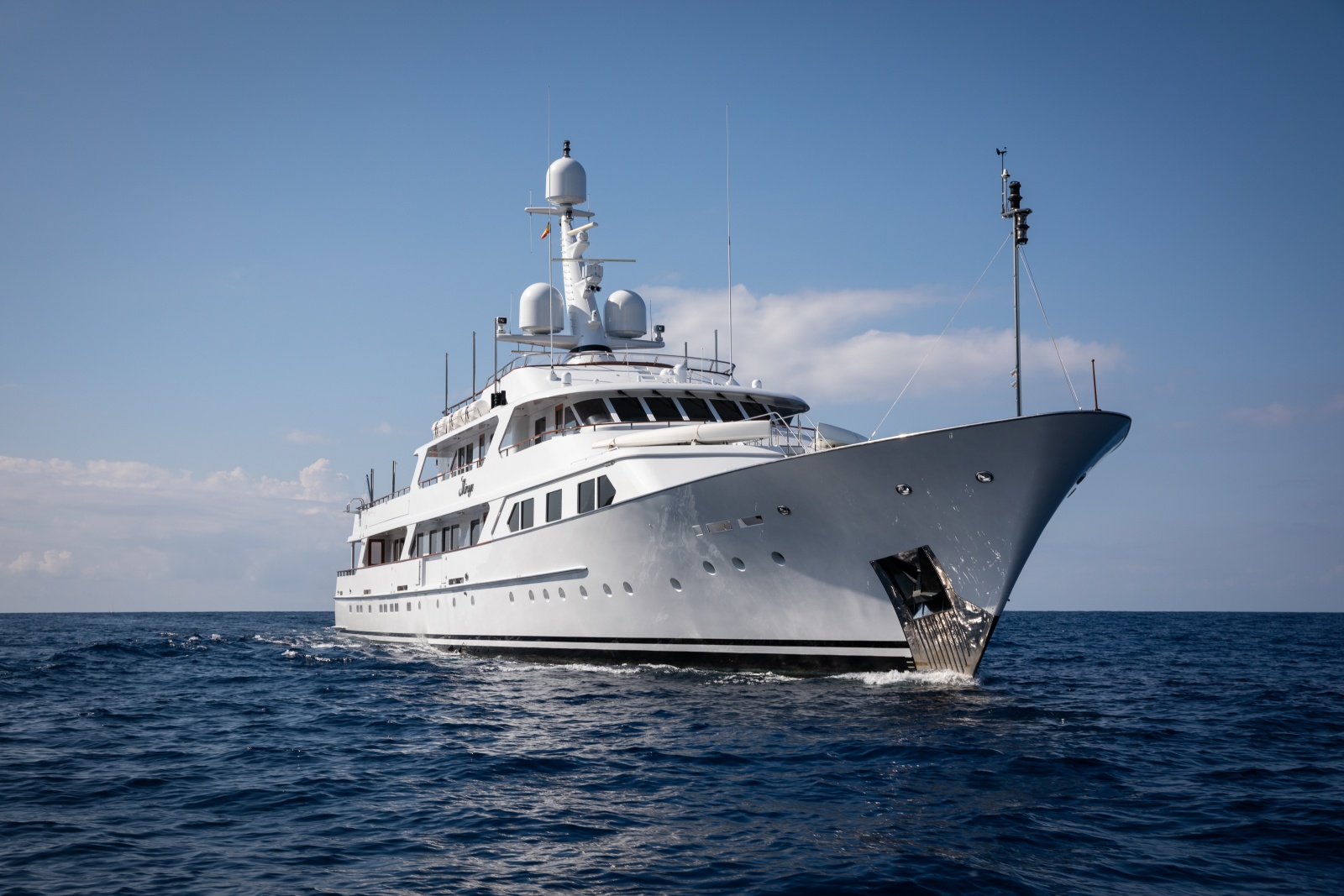

A true pedigree classic yacht built by the legendary Feadship and delivered in 1979, MIRAGE represents the enduring quality, craftsmanship and heritage for which the Dutch shipyard is renowned. Her award-winning Pendennis refit in 2007, and recipient of the 2016 World Superyacht Awards Neptune Trophy, delivered significant structural and technical enhancements and a complete rebuild, followed by a full repaint in 2020 and the installation of a state-of-the-art new bridge. She continues to be upgraded each subsequent winter and is maintained to an exceptional standard by a highly experienced and loyal long-standing crew.
MIRAGE’s exceptional condition is a direct reflection of her Owner, an accomplished and passionate yachtsman whose lifelong dedication to the sea and experience in competitive sailing have guided her development throughout their 14-year ownership. She has been genuinely cherished and meticulously cared for, with no expense spared with her high-quality upkeep, constant updating, and improvement.
The rebuild under the current Ownership introduced a sophisticated contemporary interior by Design Unlimited, combining elegant design with the finest furnishings to create an understated yet luxurious atmosphere throughout. Outside, generous guest spaces are designed for effortless enjoyment of life at sea, with two alfresco dining areas and a large sundeck complete with a Jacuzzi and surrounding sunpads.
Originally intended to accommodate a sailing team on board, MIRAGE offers an impressive eight-cabin layout sleeping up to 20 guests, together with accommodation for up to 15 crew, ensuring an exceptional level of service and comfort.
MIRAGE is a rare opportunity to acquire a true Feadship classic, combining timeless lines and pedigree with modern luxury, substantial refit investment, and meticulous ongoing care. Her successful charter reputation further reinforces her appeal, with an exceptional history of repeat guests returning year after year; a testament to a yacht that is as deeply loved by her charter guests as she is by her Owners.
Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Superyacht Sales and Charter. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Overview
Key Specifications
Weight & Measurements
Accommodation
Tankage
Registration & Documentation
Engines
Generators
Full Details
MAIN SPECIFICATIONS
MAIN SPECIFICATIONS
Length Overall: 173' (53.04m)
Beam: 28' 2" (8.66m)
Draft: 10' 6" (3.22m)
Year: 1979
Refit: Every Winter 2012 to current
Type: Motor Yacht
HIN: 384661
Gross Tonnage: 498
Displacement: 552 MT
Hull Config: Full Displacement
Guests: 20
Crew: 15
CONSTRUCTION
Builder: Feadship
Naval Architect: De Voogt
Exterior & Interior Design/Stylist: De Voogt/Design Unlimited
Hull Material: Steel
Deck Material: Steel
Superstructure: Aluminium
Classification: ABS
SPEED
Maximum: 15 knots
Cruising: 14 knots
Economical: 12 Knots
Range: 4,500 Miles
Consumption @ Cruising: @1000 rpm=250 L.P.H
CAPACITIES
Fuel: 21,451 Gal / 81,200 L
Water: 9,774 Gal / 37,000 L
Grey Water: 1083 Gal / 4100 L
Black Water: 1109 Gal / 4200 L
Lube Oil Capacity: 475 Gal / 1800 L
Waste Oil Capacity: 290 Gal / 1100 L
Sludge Tank: 687 Gal / 2600 L
CLASSIFICATION & CERTIFICATIONS
Flag: Isle of Man
MCA: Yes
ISM: Yes
Classification: ABS
ISPS: Yes
MACHINERY
MAIN ENGINES
Engine Type: 2 x D399 Caterpillar
Horsepower: 2250(1678kw total)
Engine Serial Numbers: Port = 91B1038. Starboard = 91B1037
Main Engine Hours (Port): 24,064 Hours (Mechanical engine driven service meter counters)
Main Engine Hours (Stbd): 23,653 Hours
GENERATORS & ELECTRICITY
Output: 2 x 155 Kw
Generators: Northern Lights MI066H.5IHL x2
Generator Fuel Consumption: Max- 47 L.P.H (each) at full load.
Port Generator Hours: 17955 Running Hours
Starboard Generator Hours: 17936 Running Hours
Shore power: ASEA 100KVA x2.
Generator Starting: 24 Volt.
Emergency: 24-volt emergency battery bank.
BATTERIES
Main Engines Starting: 8 x 225Ah each. Trogan 8D AGM. 24 Volt.
Generator Starting: 4 x Trogan 8D225Ah each. AGM. 24 volt
Emergency: 4 x Trogan 8D 230Ah each. AGM 24 volt.
Radio: 2 x EcoBatt 270Ah each. AGM 24 volt.
House: 4 x Varta 260Ah each. AGM 24 volt.
PROPULSION & STEERING
Drive: 3:1
Gearboxes for Main Engines: Reintjes
Stabilizer: Quantum QC1500 Zero Speed
Stabilizer Underway: Yes
Stabilizer at Anchor: Yes
Steering System: Wills Ridley, UK
OTHER MACHINERY
Water Makers: 2 x HEM series 30
Water Softener: HEM K60
Silver ions dosing plant: HEM SISB40
Bow Thruster: Ocean Yacht Systems, 99KW electric motor.
Fuel Separator and Filtration: Alfa Laval MAB 103B Separator Racor. Micfill ST600
Sewage System: Hamman HLC SLIM 02.
Fresh Water System: Gianneschi pressure pump x4 @4 bar
Oily Water Separator: DVZ 150 FSU.
Air Compressor: Kaiser KCT550-100
Air Conditioning: TITAN- Custom Bitzer plant. X3 compressor 540,000 BTU total. R407c.
COMMUNICATION AND NAVIGATIONAL EQUIPMENT
PILOTHOUSE
SAT COM: 2 x Starlink, 1 x Intellian OW11 (OneWeb), Peplink 5G via E-Hub Ultra
Telephone System: Avaya IP phone system in all crew cabins
SSB /HFMF: SAILOR 6301
VHF: 2 x SAILOR 7224
Cellular Phone System: GSM Cellular System
Intercom: Jotron Phontech 4061
Sat-C: SAILOR 6018
Ships Computer: Dell
Crew Radios: Motorola SL2600
BNWAS: Fitted
Navtex: SAILOR 6004
AIS: Saab R6 Supreme Class A AIS with R6 CDU
NAVIGATION SYSTEMS
Integrated Bridge System: Raytheon Anschütz Synapsis INS
Bridge Displays: 5 x Hatteland multifunction displays
Radar:2 × Furuno FAR-3220 25 kW X-Band Radar (1 × 8t antenna, 1 × 6.5ft antenna)
ECDIS: 2 x Furuno FMD-3200-BB
Gyrocompass: Anschütz STD-22
Auto Pilot: Raytheon Anschütz
Depth Sounder: Furuno FCV-1200L
GPS: 2 x SAAB R6
AIS: SAAB R6
Thermal Camera: FLIR M-Series – Wheelhouse Roof
ENTERTAINMENT SYSTEMS
AV System: Crestron
AV Distribution: Crestron DigitalMedia / DM-NAX
AV Control: Crestron TSR touch-screen remotes throughout guest cabins and guest areas
Media: Apple TV, Sky Stream and Blu-ray
Global HDMI: Vessel-wide HDMI source distribution
AirPlay: Crestron DM-NAX multi-zone AirPlay
Exterior Audio: James Loudspeaker system
TVs: Sony and Samsung TVs throughout guest areas and cabins
AV Integrator: Halo – Beyond AV/IT
Other: Playstation 5 and Karaoke Machine
GALLEY & LAUNDRY EQUIPMENT
MAIN GALLEY EQUIPMENT
Cooktop: Salvis induction hob.
Oven: 2 x SALVIS 611 steam ovens
Microwave: Miele
Refrigerator/ Freezer: Custom built walk-in fridge and freezer 2015
Additional Refrigerator/Freezer: Custom built
Dishwasher: Both by Miele 1 in crew mess and 1 in stew pantry
Galley Potwasher: Hobart
Ice Machine: Hoshisaki x3
Coffee machine: Gaggia
CREW MESS
Fridge: Miele
Dishwasher: Miele
LAUNDRY
Washing Machines: 3 x Miele
Dryers: 3 x Miele
DECK EQUIPMENT
Anchor Windlass: Steen hydraulic YMA 22
Aft Warping Capstans: 2 x Steen electric YMVS12
Anchors: 2 x SEC Pool N types, Lloyds approved approx. 430 kg each
Anchor Chain: Class approved, 192.5 meters long each side 22mm link diameter
Boat Crane and Davits: 2 x Nautical Structures EZ4400 on boat deck, Opacmar on foredeck
Passarelle: Extending and retractable at stern, with call point
TENDER & TOYS
Tenders:

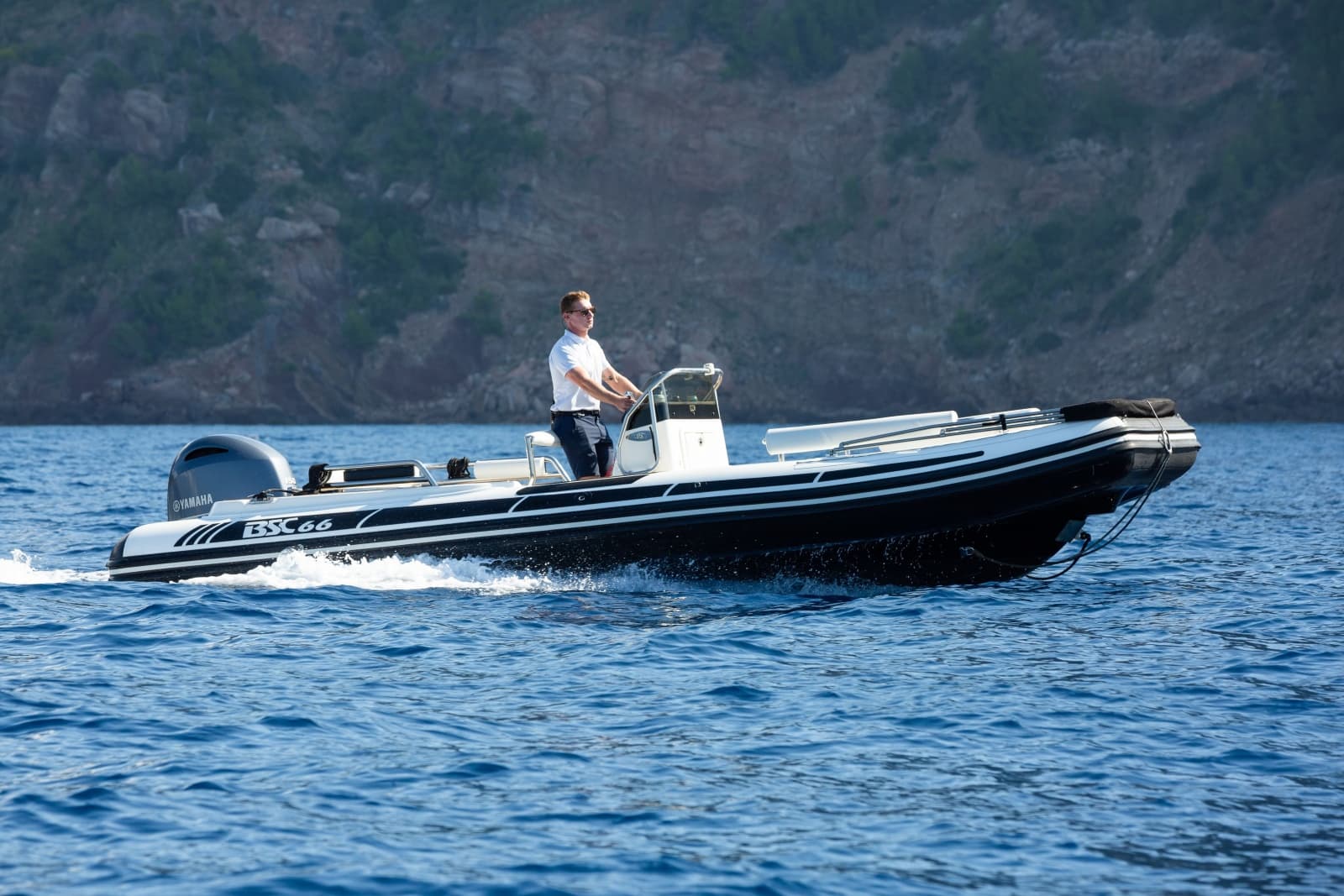

● (1) 2021 - 6.6m BSC with 150hp Yamaha
● (1) 2019 - 6.6m BSC with 150hp Yamaha
Toys:

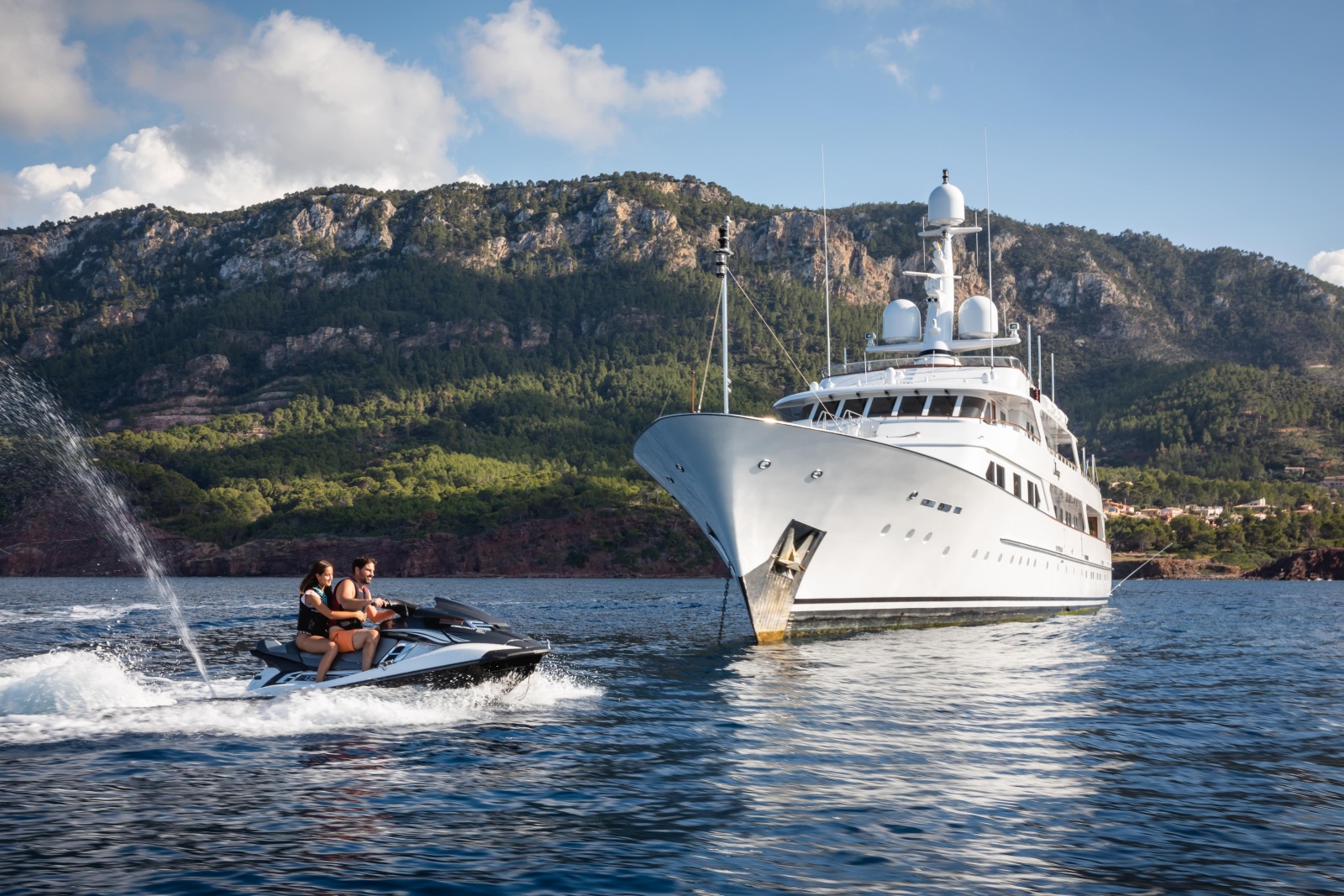

● (2) 2023 Jetskis - Yamaha FX 3-seater HO Cruisers
● (2) FS5 Seabobs including (2) Seabob Fast Chargers and (3) T1500 RAMBSS Lithium Battery Storage Modules
● (1) Awake Ravik S Jetsurf including (2) Batteries and (1) Fast charger unit
● (1) 2 Person Kayak -Inflatable
● (2) Stand Up Paddleboards-Inflatable
● (1) Bamboo Stand Up Paddleboard
● Male, female and child wakeboards, wakeskate, wakesurf, monoski, adult and child dual skis
● Jobe couch, Half-Pipe, Donut, Bandwagon Towable Toys
● (8) Sets of scuba gear (Rendezvous Diving Only)
● Multiple sets of wetsuits & snorkel gear
● Kitesurfing Kit
● Wing-foiling Kit
● Dive Platform off Boat Deck
Gym Equipment:
● NordicTrack Commercial 2450 Treadmill
● Weight bench, weights and dumbbells
● Exercise matts
● Swiss ball
Note: Subject to change and/or negotiation during the buying process.
SECURITY, FIRE FIGHTING AND SAFETY EQUIPMENT
SECURITY
CCTV System: AXIS
Cameras: 6 x external cameras – 2 x Mast (Port & STBD), Port Waist, STBD Waist, Main Deck Aft and Swim Platform
FIRE FIGHTING EQUIPMENT
Fire Control System: Consilium Monitoring
Fire Extinguishers: Yes – Powder, CO2, AFFF
Fire Alarm System: Consillium smoke,heat,flame detectors
● Various hydrants and hoses throughout vessel
● 2 x sets BA gear, with built in Dräger FPS-COM-PLUS comms and 4 tanks
● 5 x EEBD's in various locations
SAFETY EQUIPMENT
Life Rafts: 16-man x 6 rafts
Life Rings: 2 with orange smoke, 2 with strobe
EPIRBS: 2 – 1 in float free arrangement on Sundeck, 1 stored in bridge with LSA grab bags.
Flares: 8 x Red Parachute, 14 x Red Handheld, 8 x Orange Smoke
Medical Equipment: Fully compliant with MCA Notice 1768
ACCOMMODATION AND LAYOUT

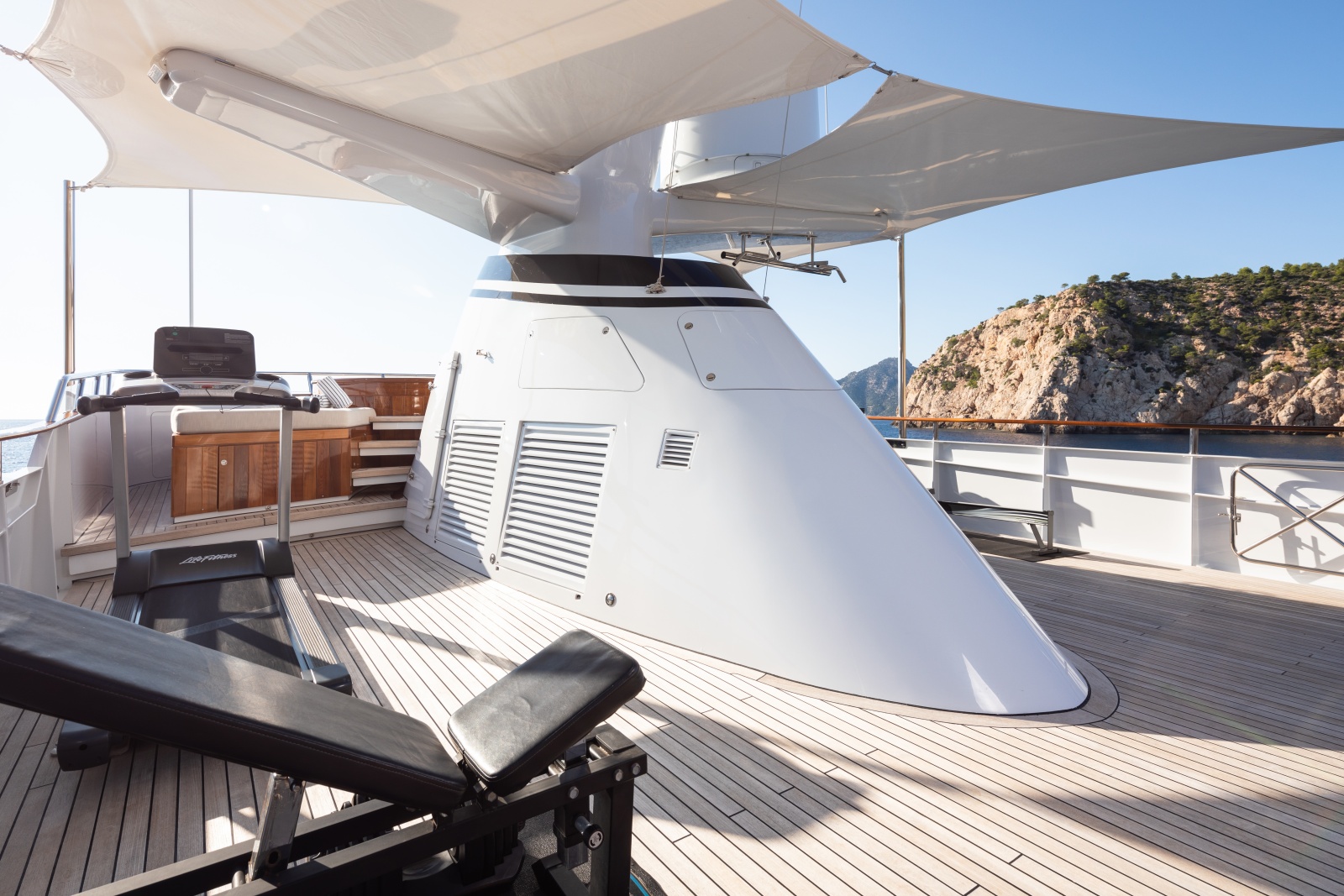

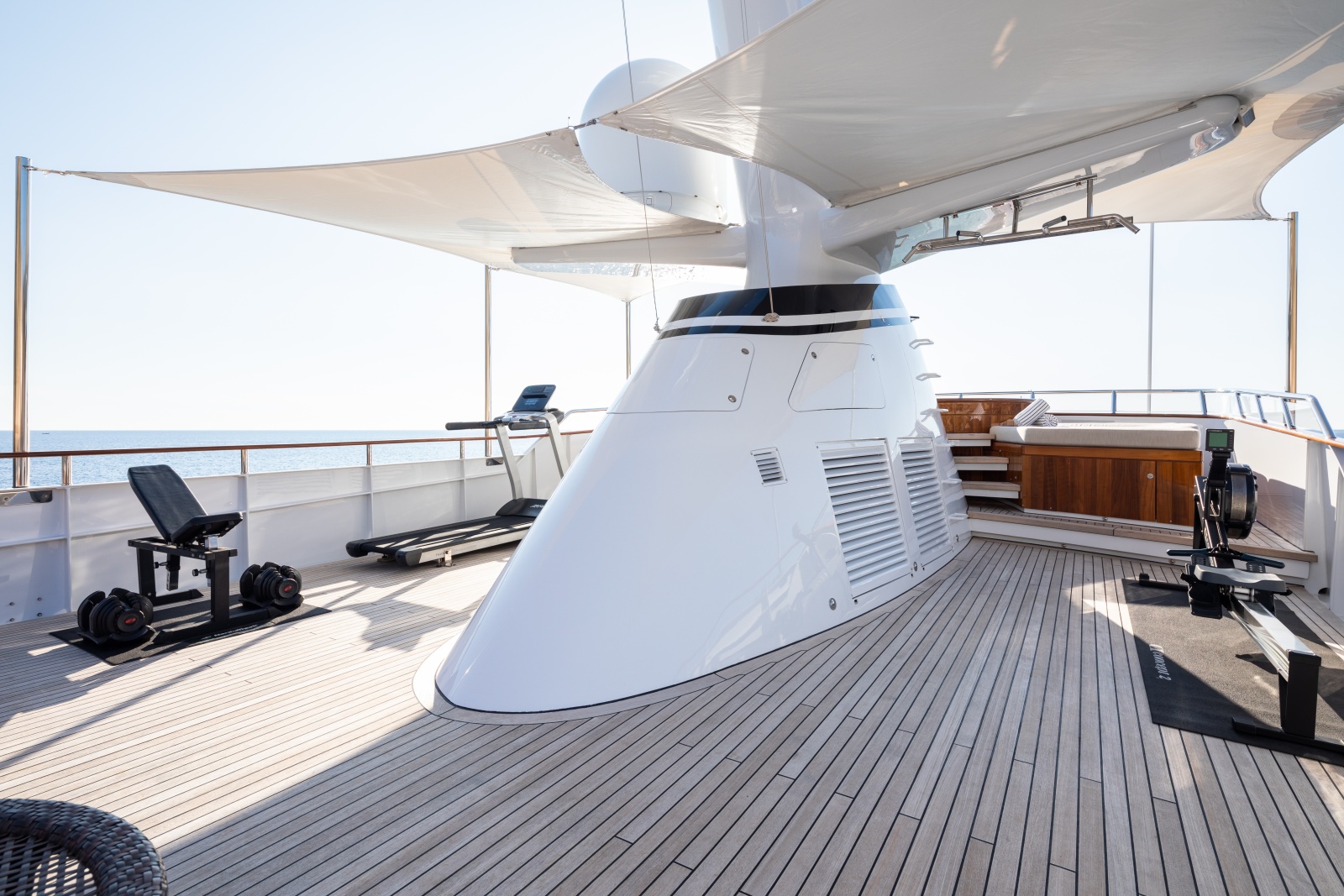

Sundeck
● Sun awning

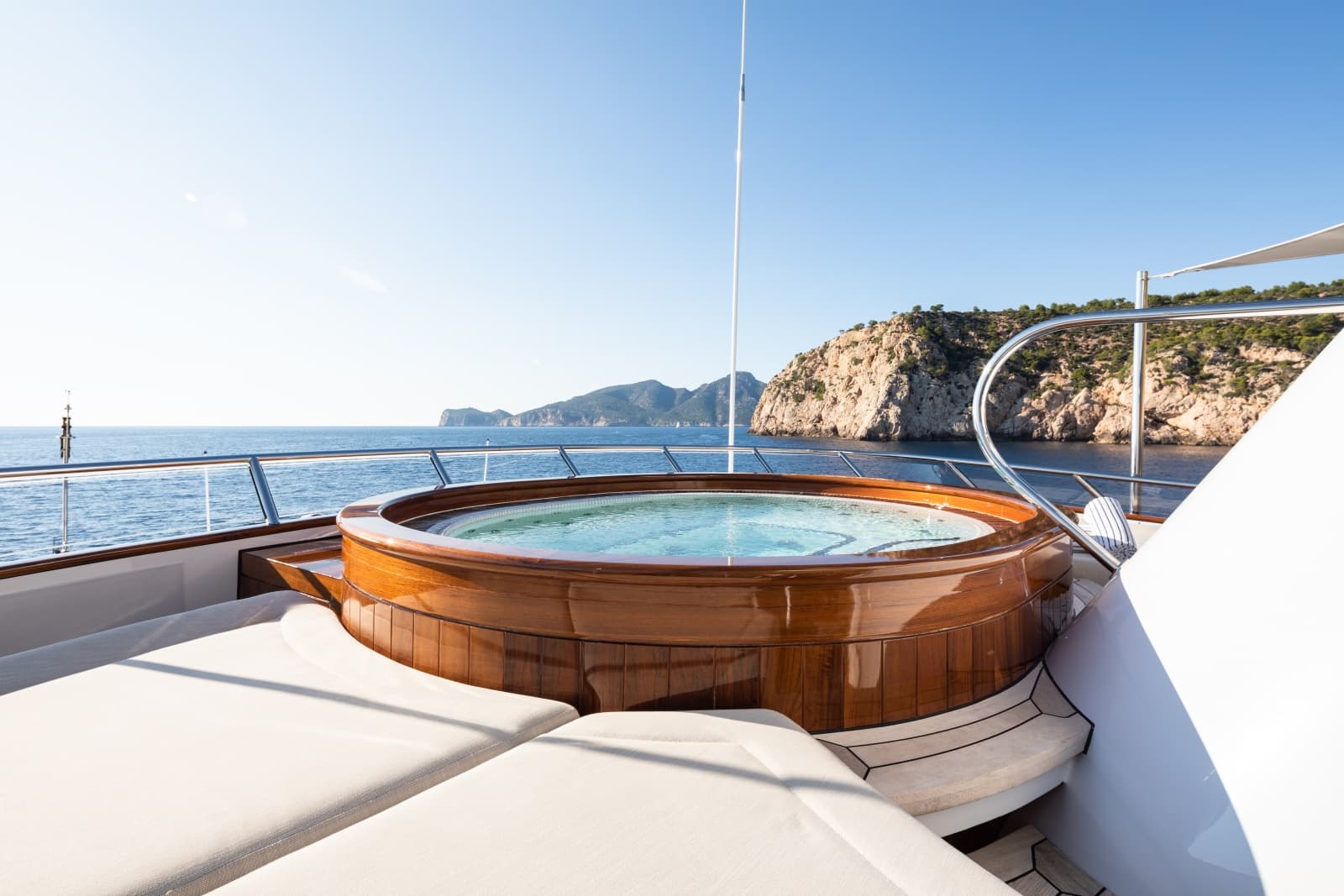

● Jacuzzi
● Treadmill
● Bow flex free weights
● Pull-Up Bar
● Various yoga mats & rollers
● Drinks fridge
● Solid WIFI coverage
● Airplay
● Accessibility to a stewardess call button

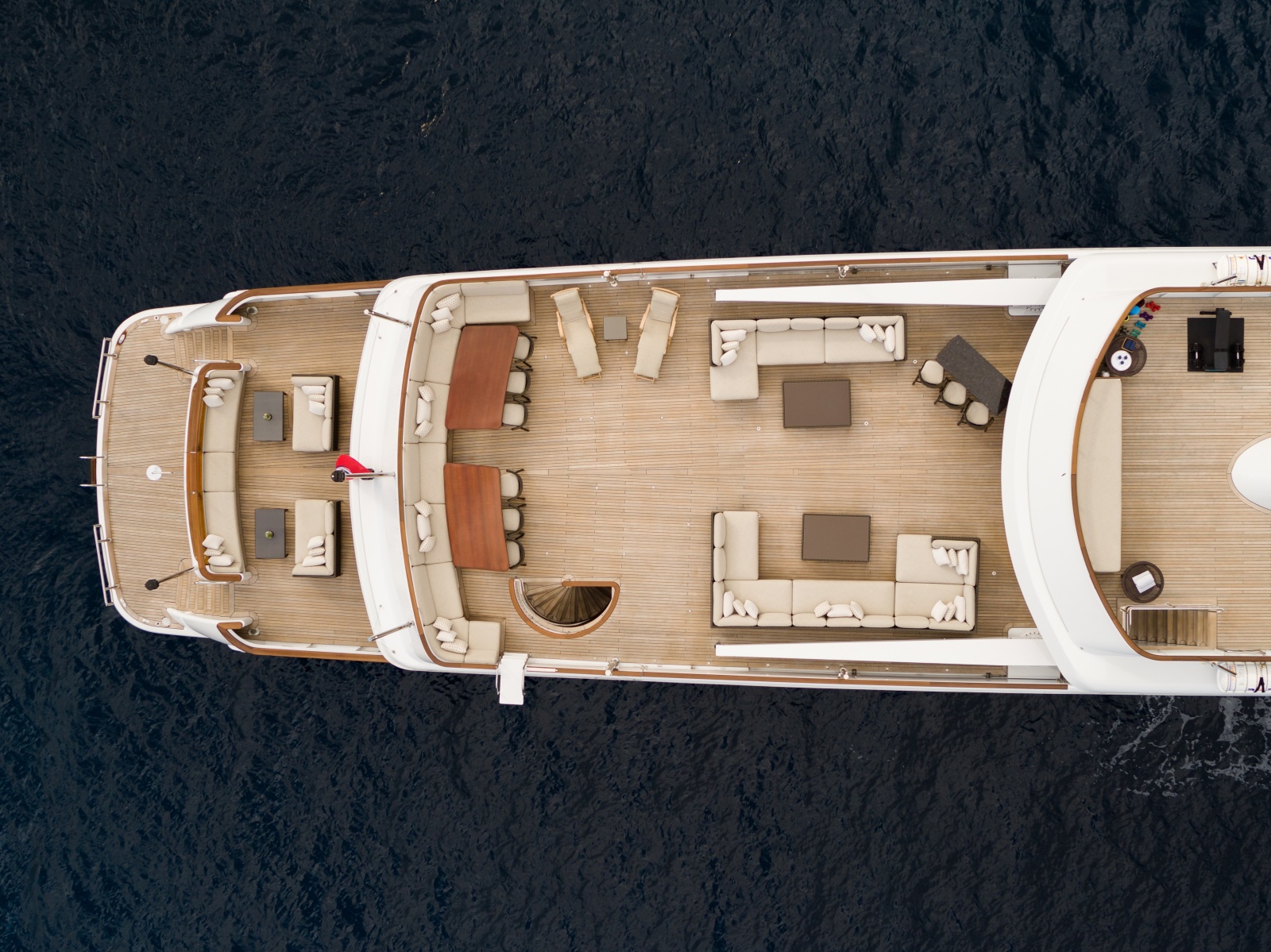

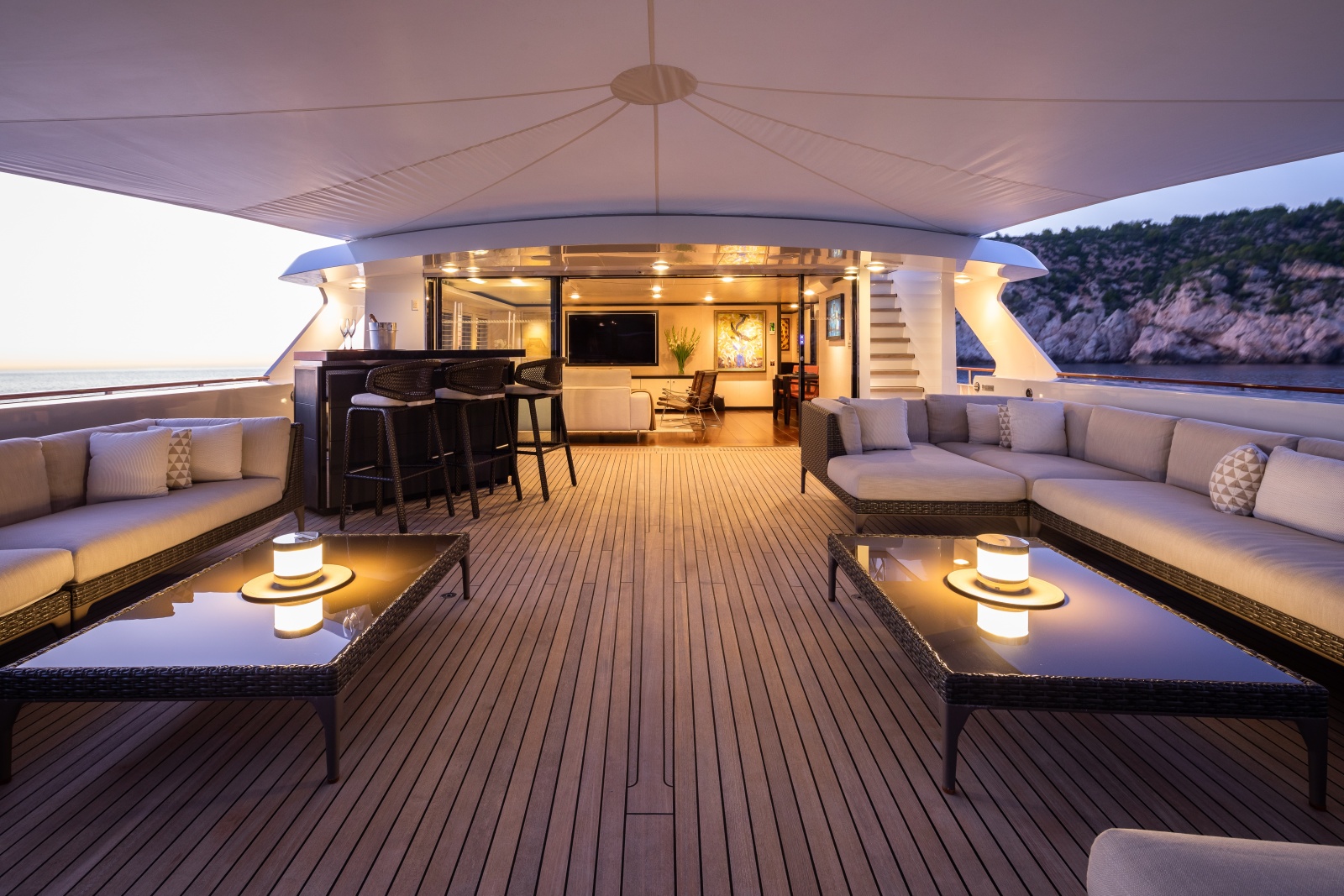

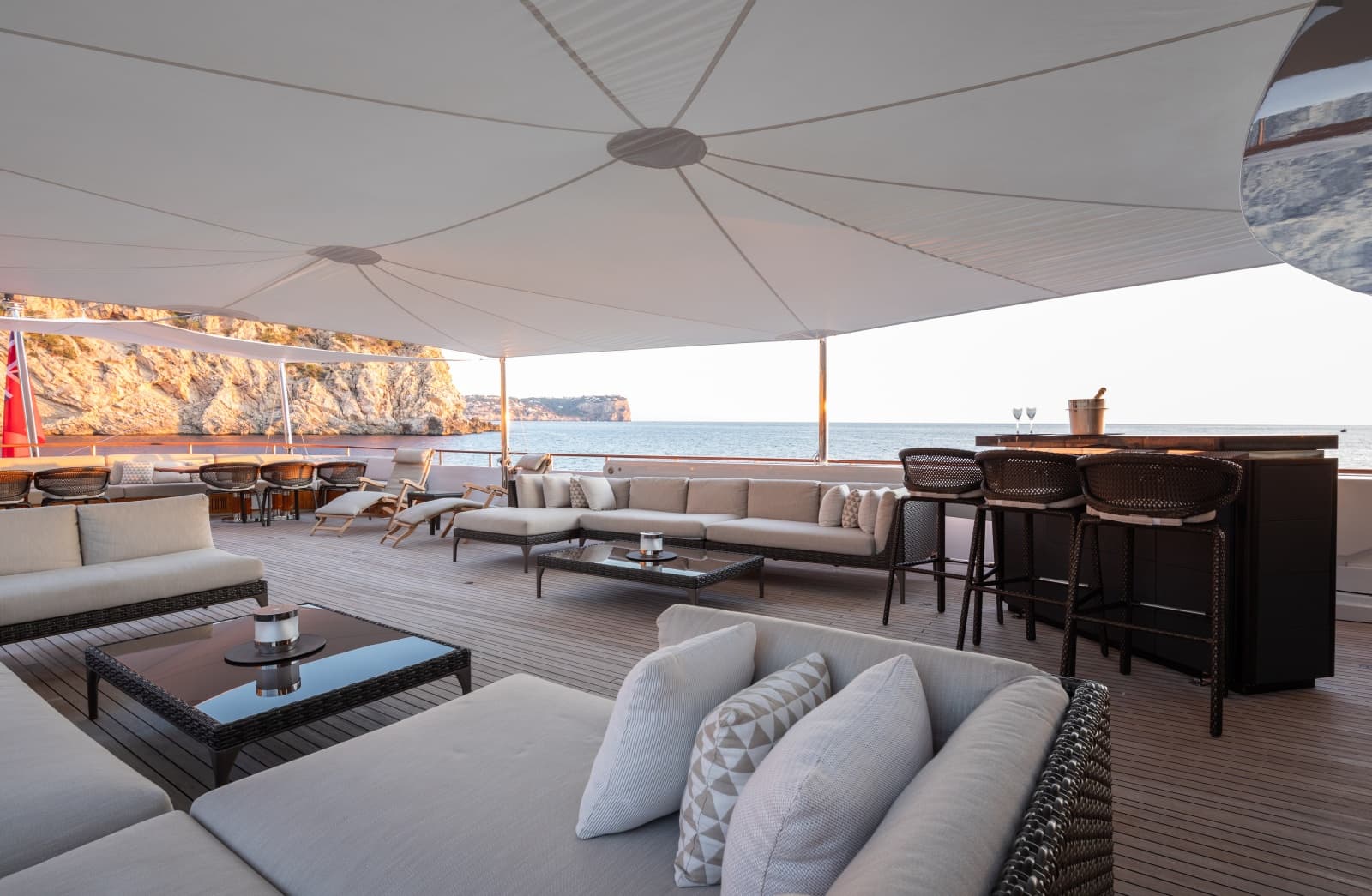

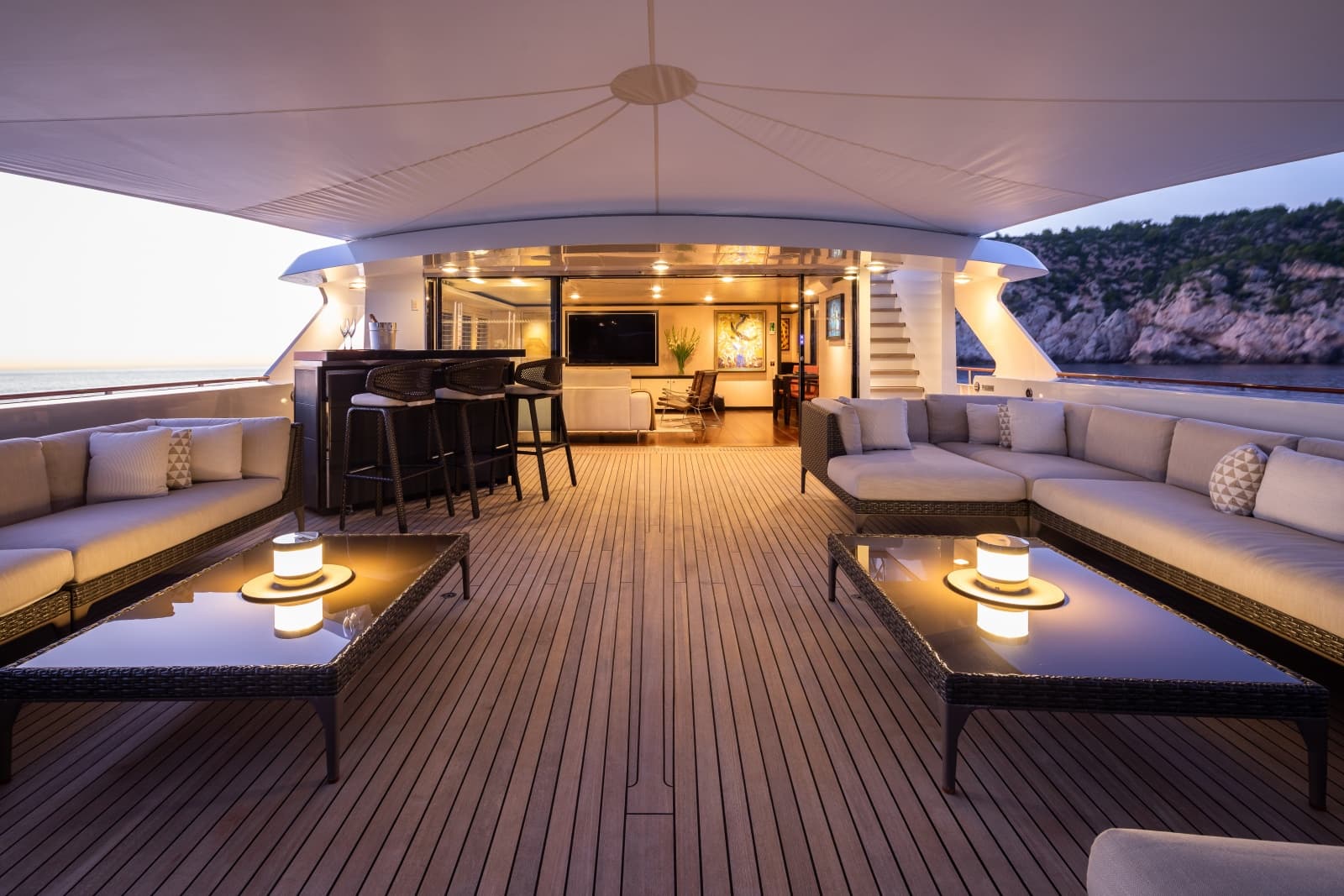

Upper Deck
● 2 x Sun Awnings
● Outdoor formal dining for 20
● Outdoor lounging for 12
● Moveable Bar
● Drinks Fridge
● Electronic Drop-down blinds
● Sky lounge (equipped with a 85´ Sony TV)
● Day head
● Dedicated radio room
● Bridge
● Solid WIFI coverage
● Airplay

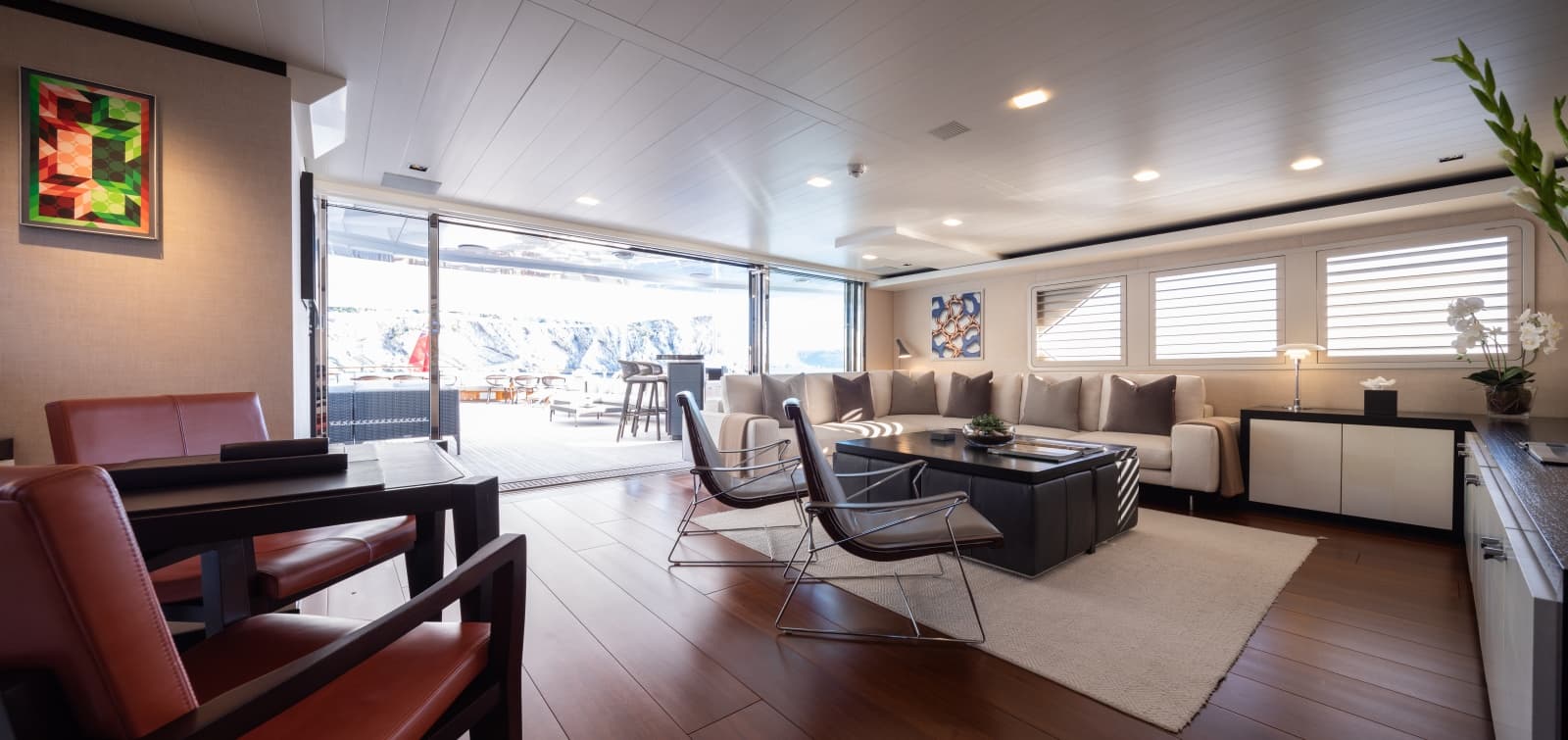

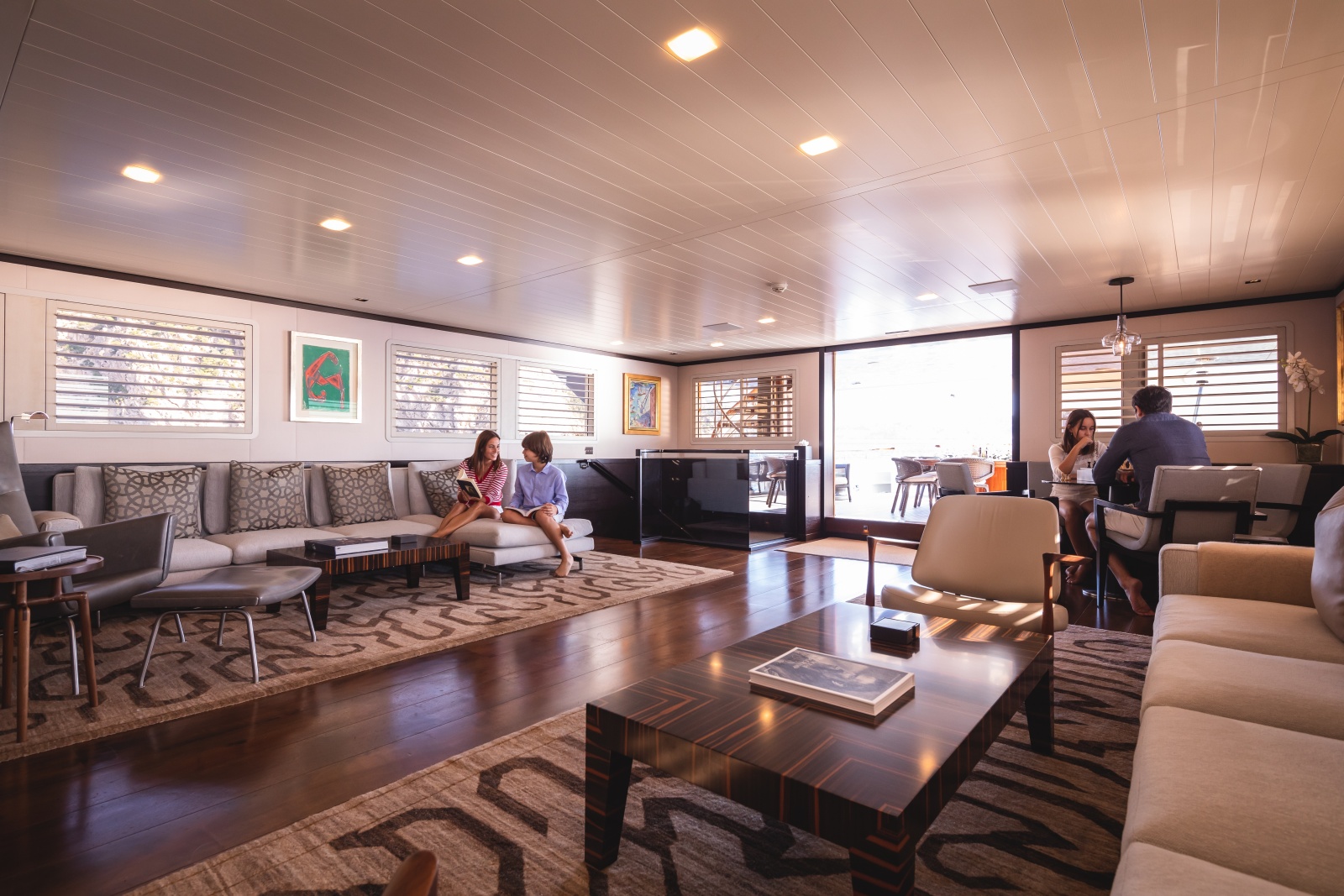

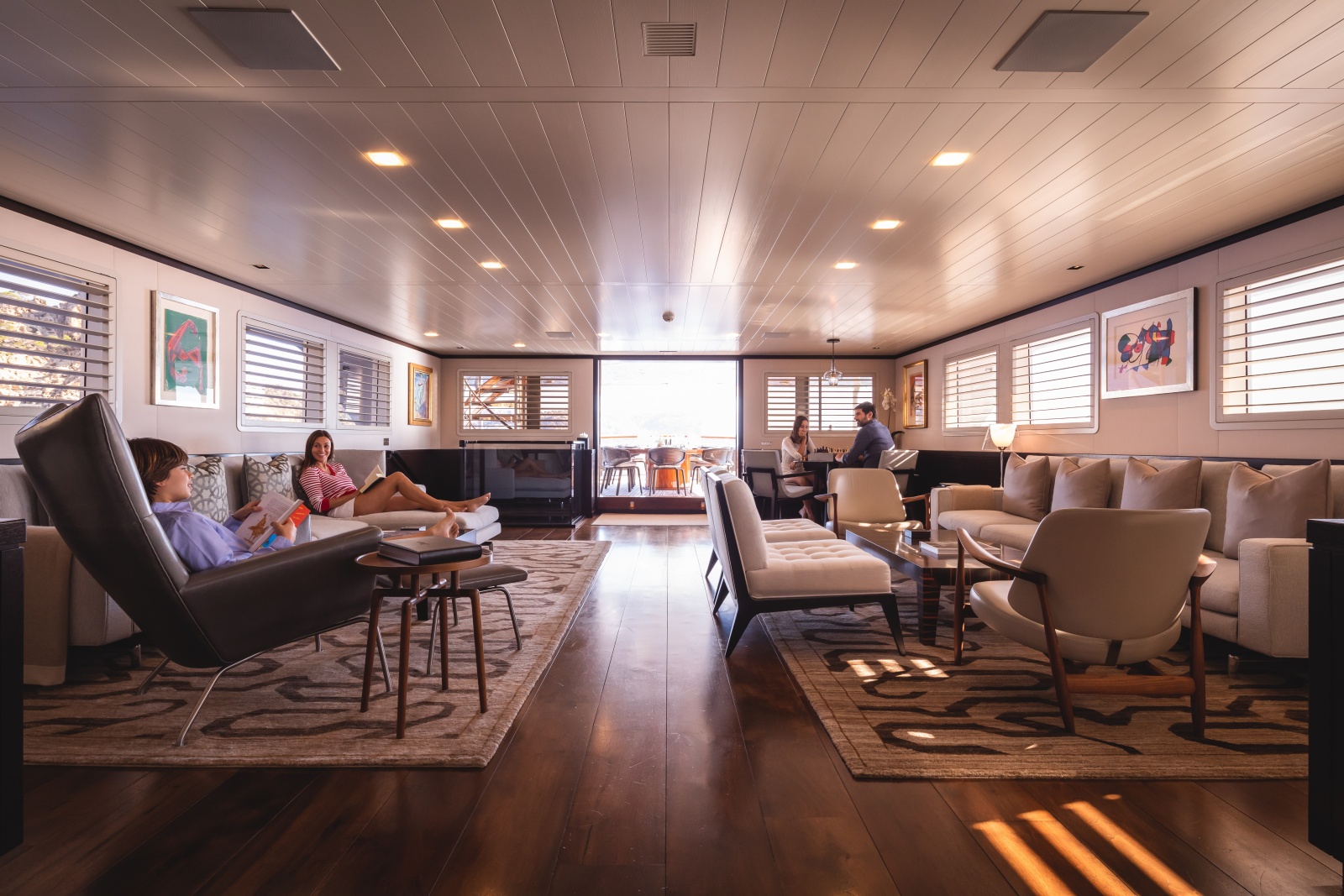

Main Deck
● Sun awning

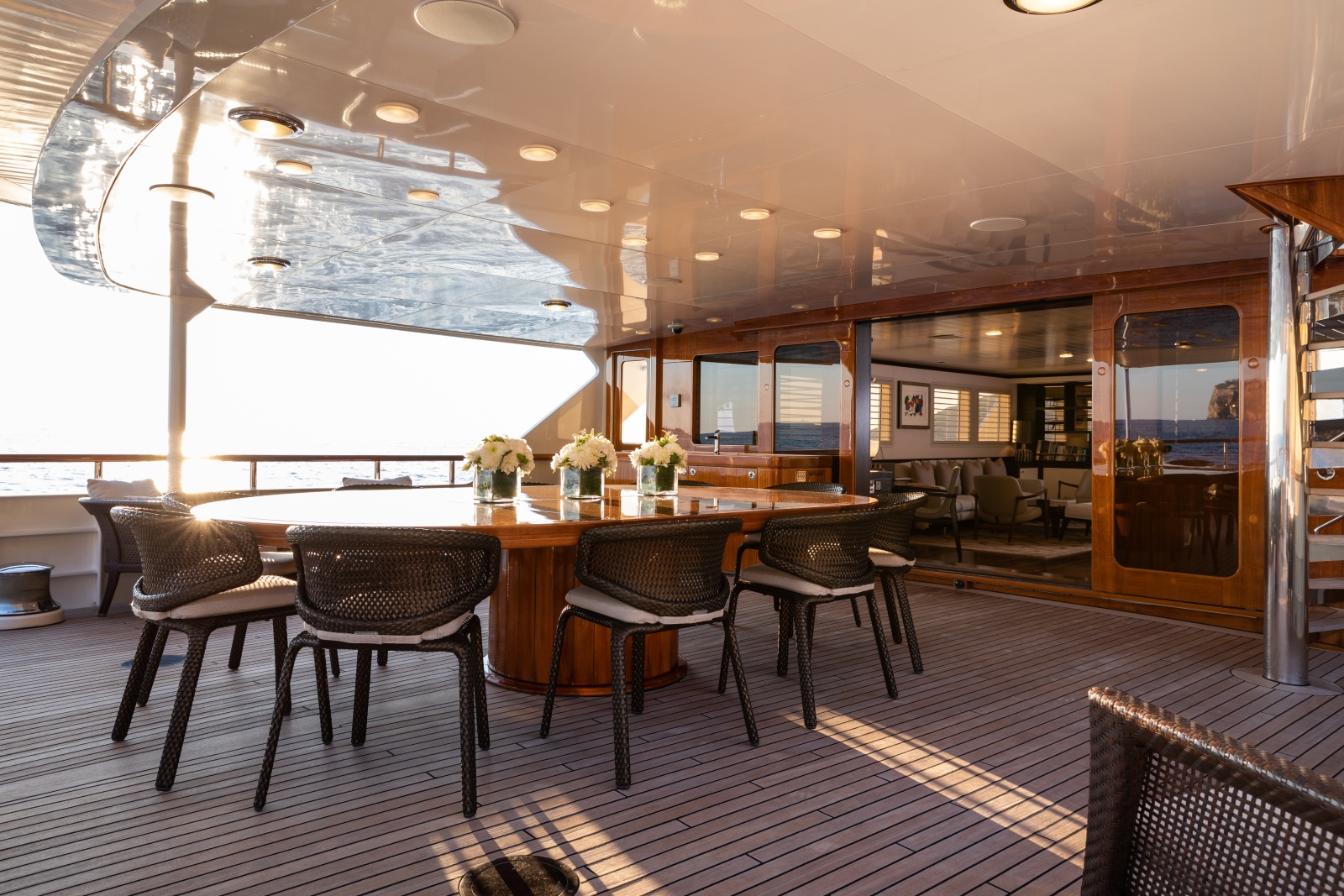

● Formal outdoor seating for 12. Table also changes to intimate 6-seater setting
● Other various informal seating options for 12 inside and outside

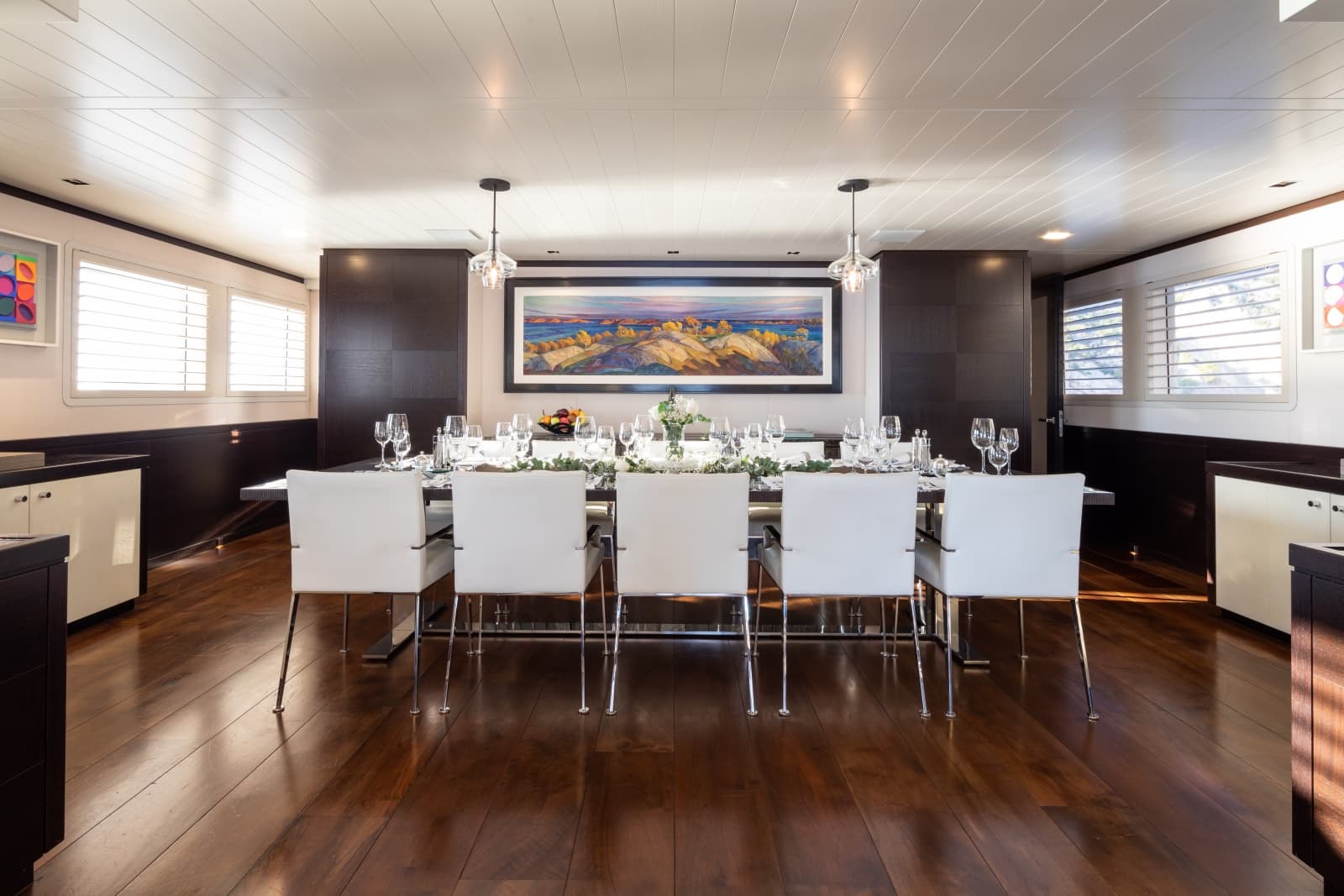

● Formal interior dining for 12

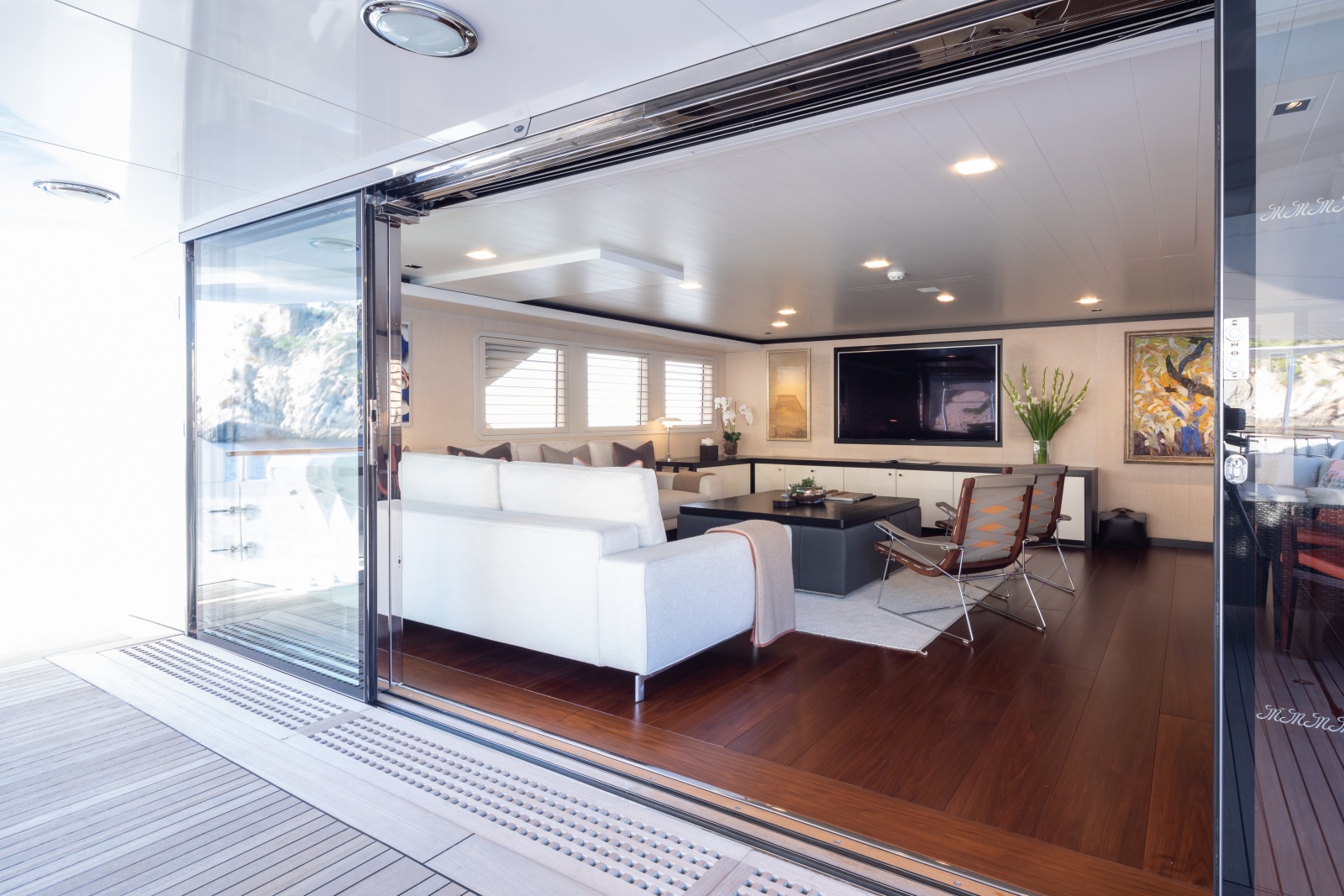

● Main Salon TV 32´ Samsung also powered by TSR Remote
● Solid WIFI coverage
● Airplay
● Exterior Icemaker
● Drinks fridge
● Day head
● Custom fitted wine fridge
● Accessibility to a stewardess call button
● Pantry (interior ice maker, drinks fridge)
● Galley
Lower Deck
● T Cupboard (Decorations storage cupboard)
● Drinks Fridge
● Linen cupboard
● Toiletries cupboard
● Uniform cupboard outboard of the STBD Mid cabin
● Forward Stores – Engineers Cupboard

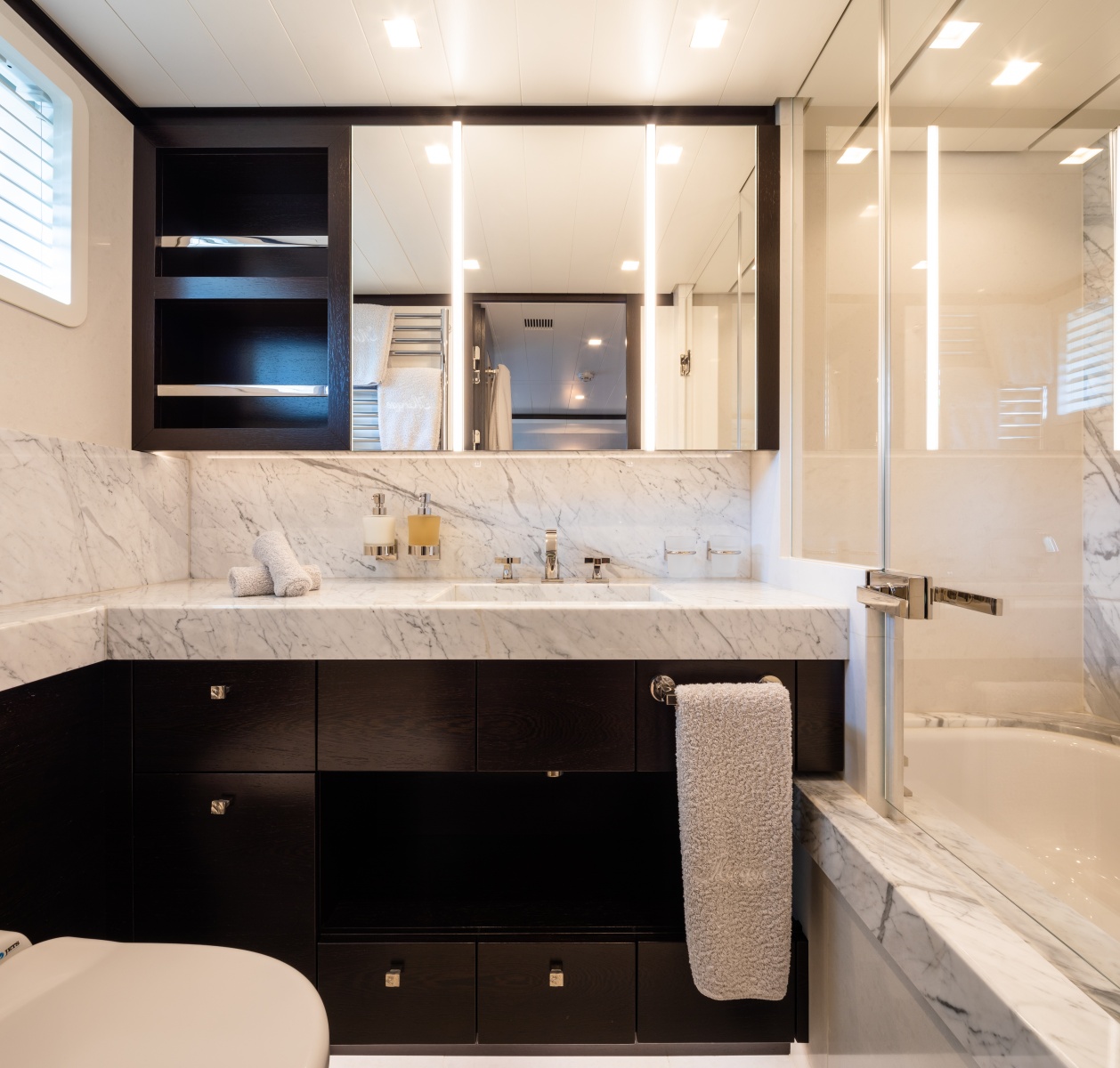

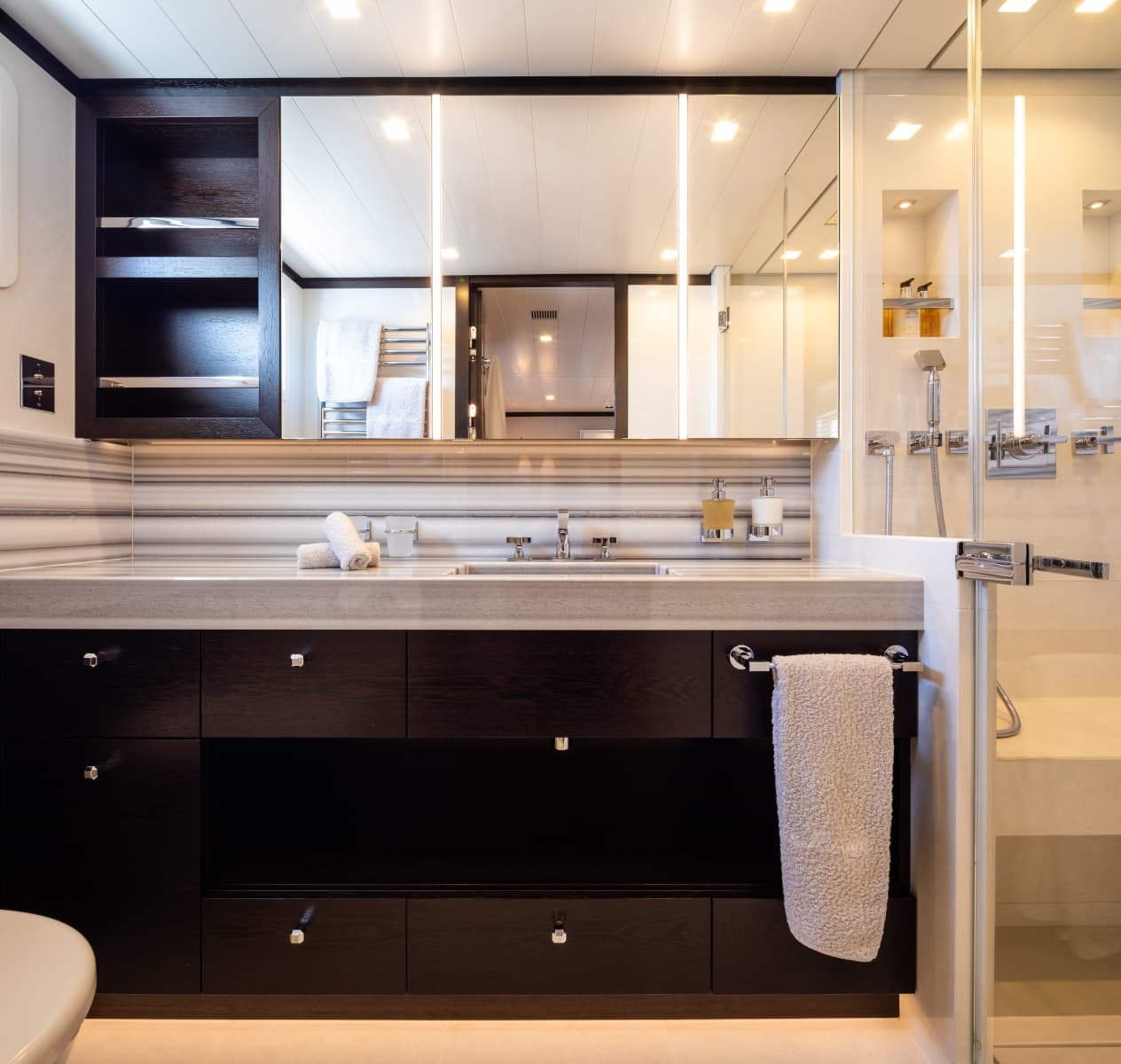

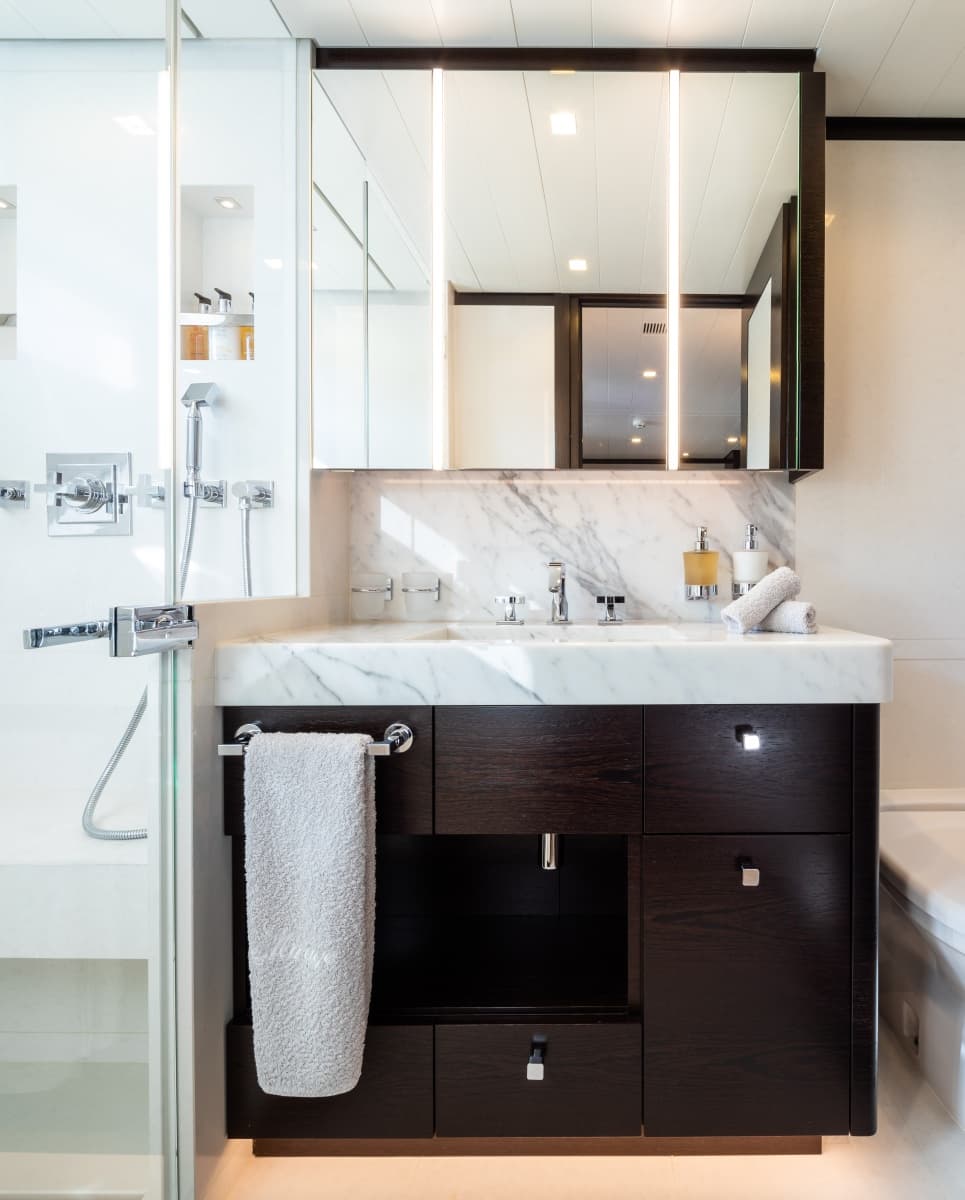

Guest Accommodation
All staterooms have individual climate (heating & cooling) control and are ensuite cabins.
Each is equipped with a custom sound system which accompanies Apple TV, Sky Stream & Airplay this all being used and controlled via the TSR Remotes.
You can also connect your device via the WIFI to connect onto airplay in your cabin as well as in all guest areas. Each cabin has it owns airplay stream.

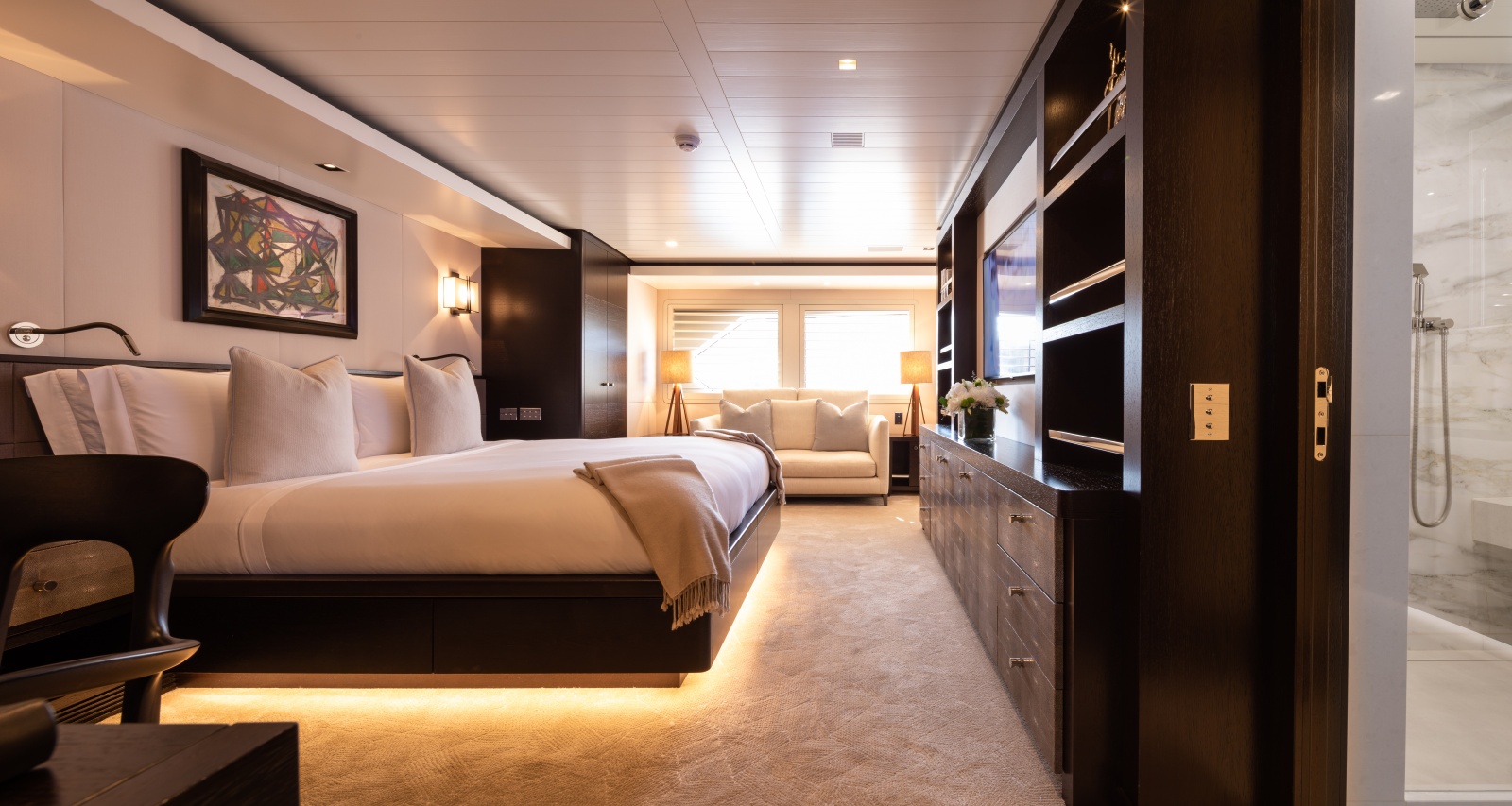

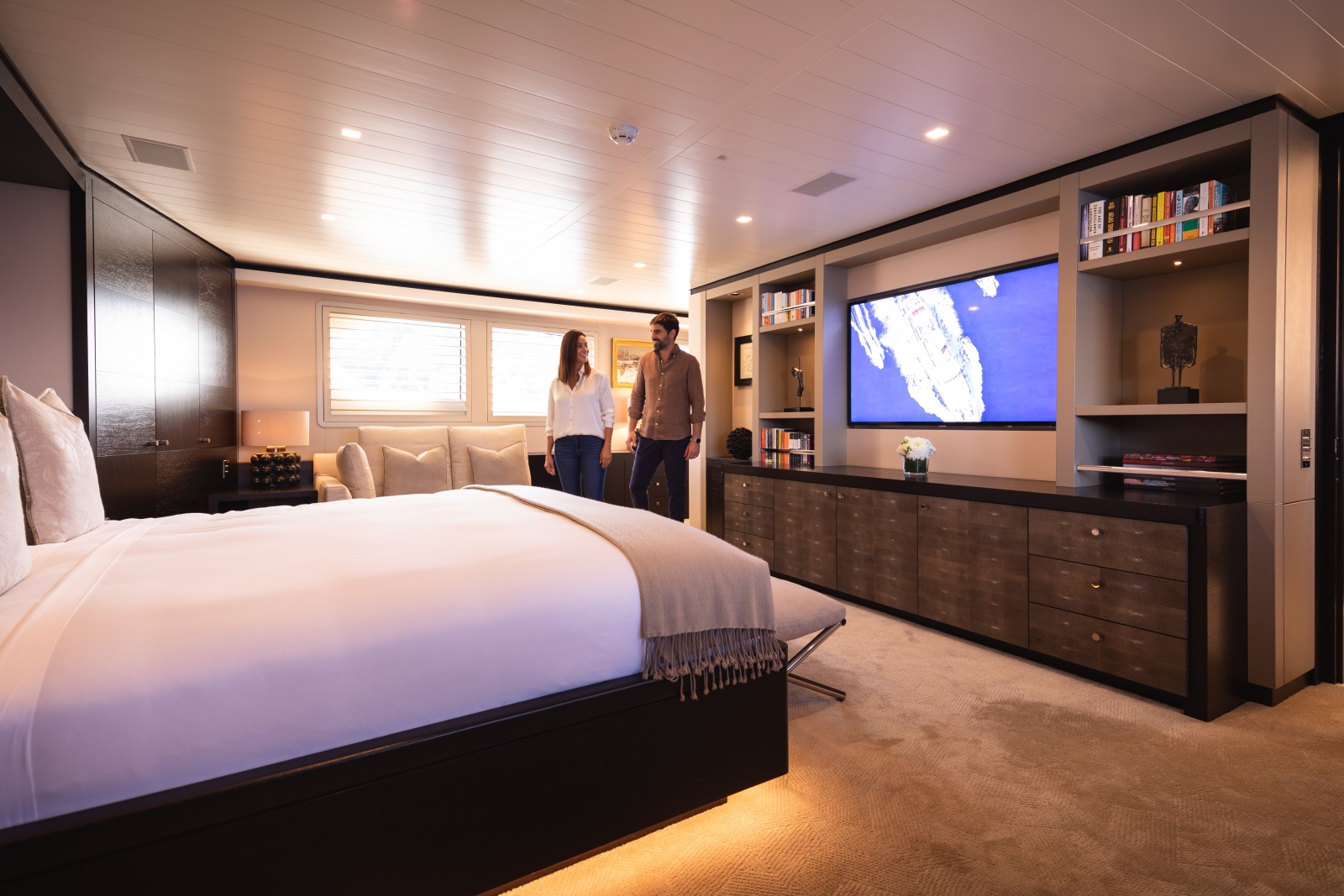

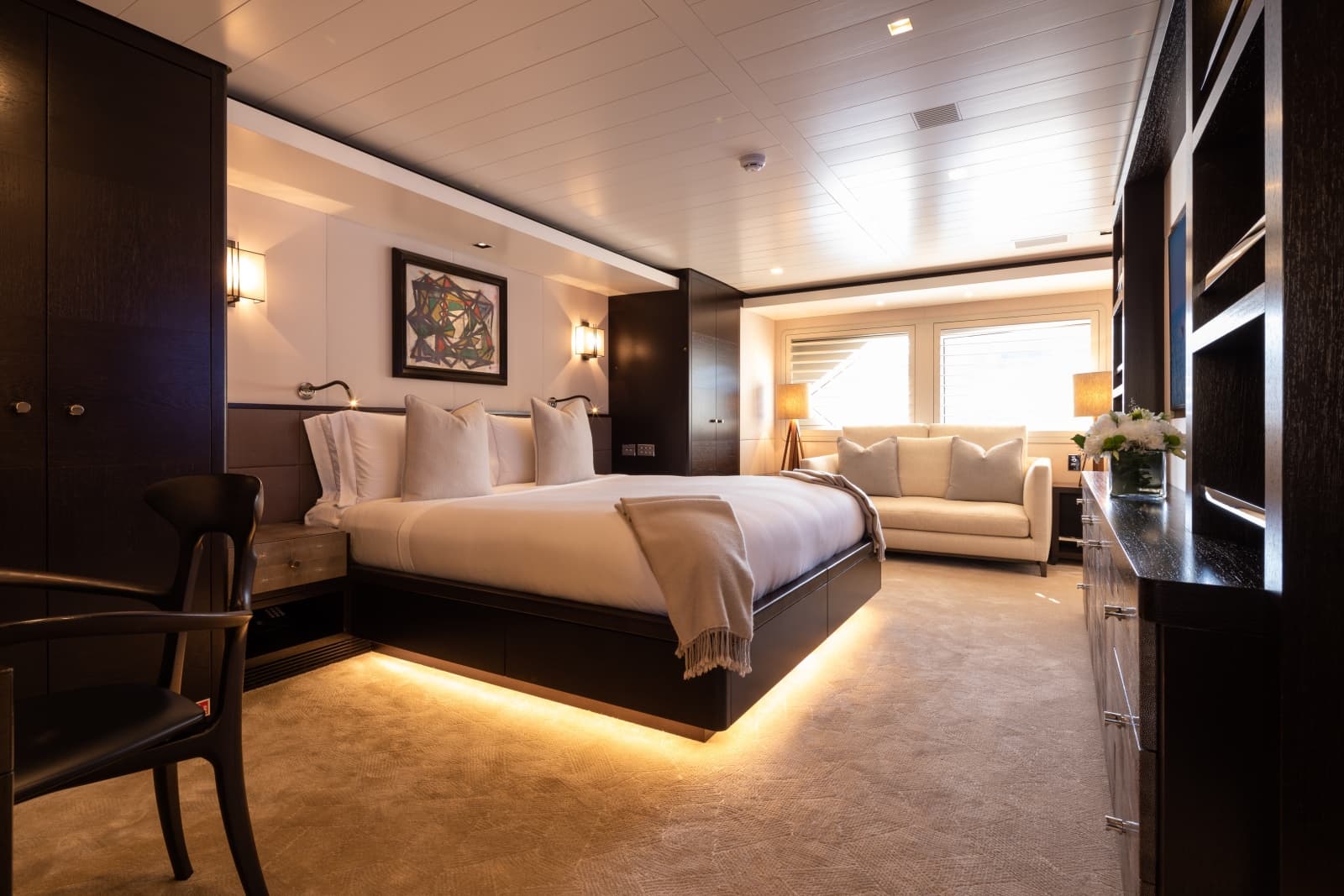

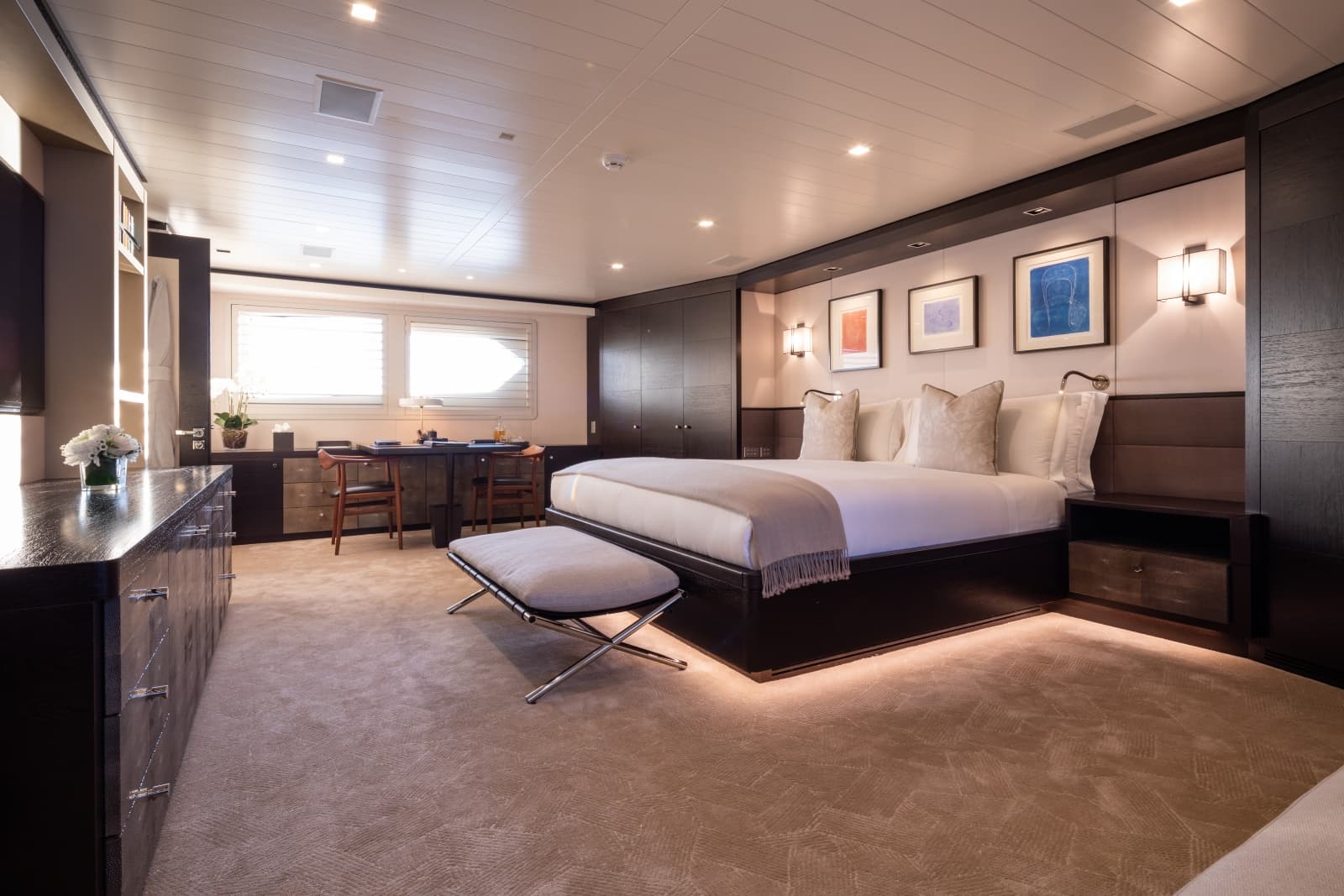

Owner's Suite, Forward - Main Deck:
King size bed with ensuite bathroom with shower and a jet bath, a 65´ Sony 4K TV with a TSR Remote.

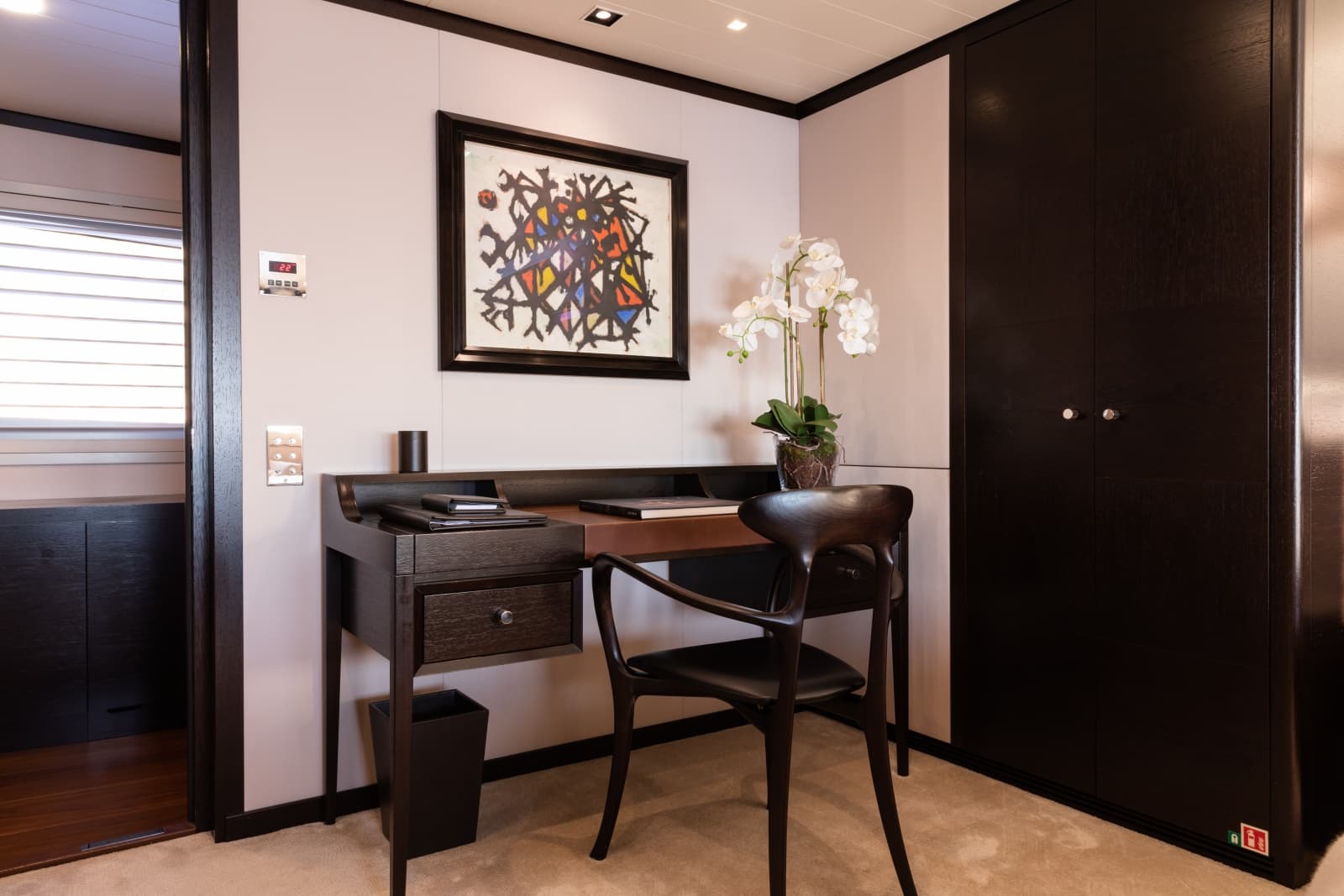

Significant desk for two people to work from

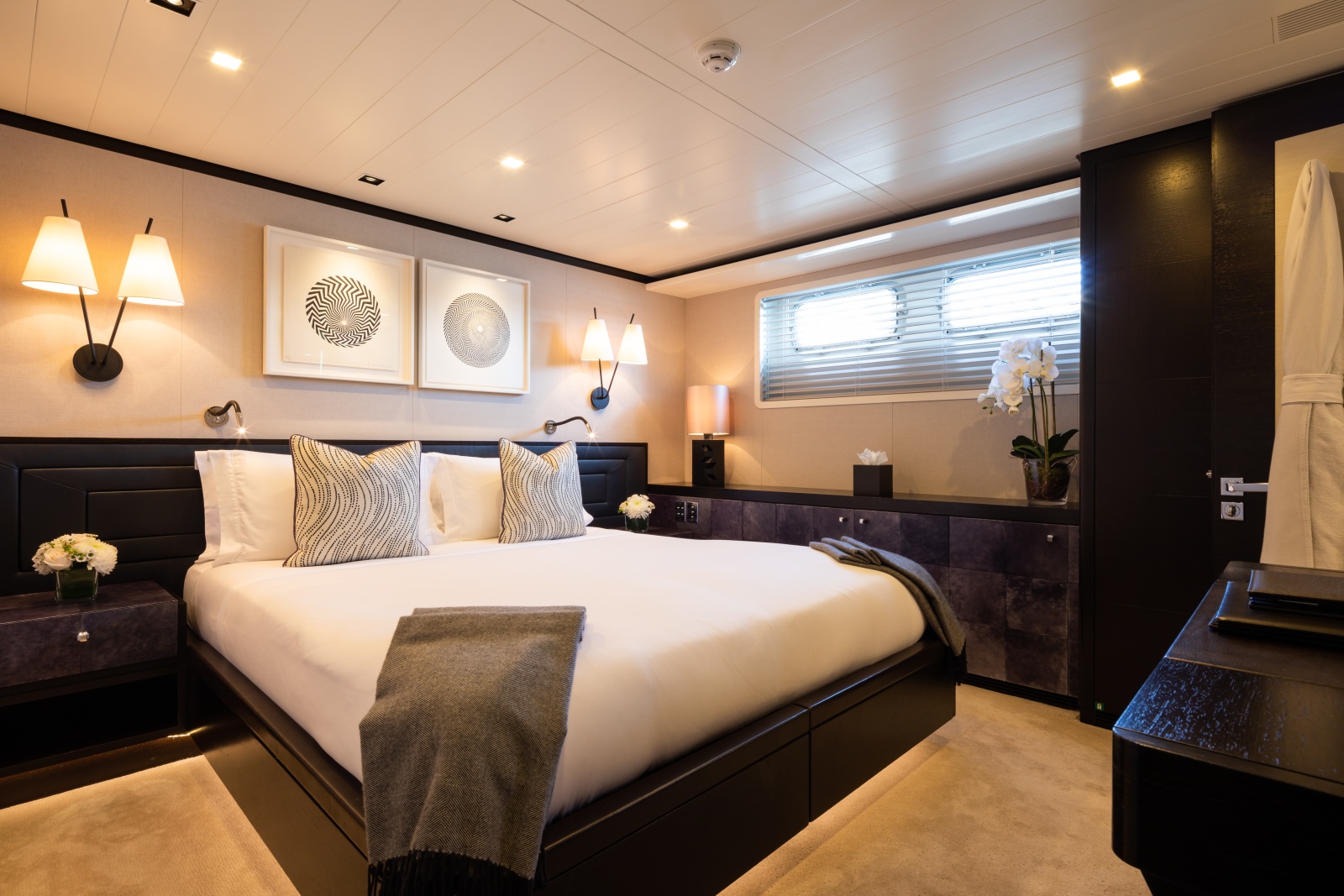

VIP Suite, Main Deck:
King size bed with ensuite bathroom with shower, a 55´Sony 4K TV with a TSR Remote

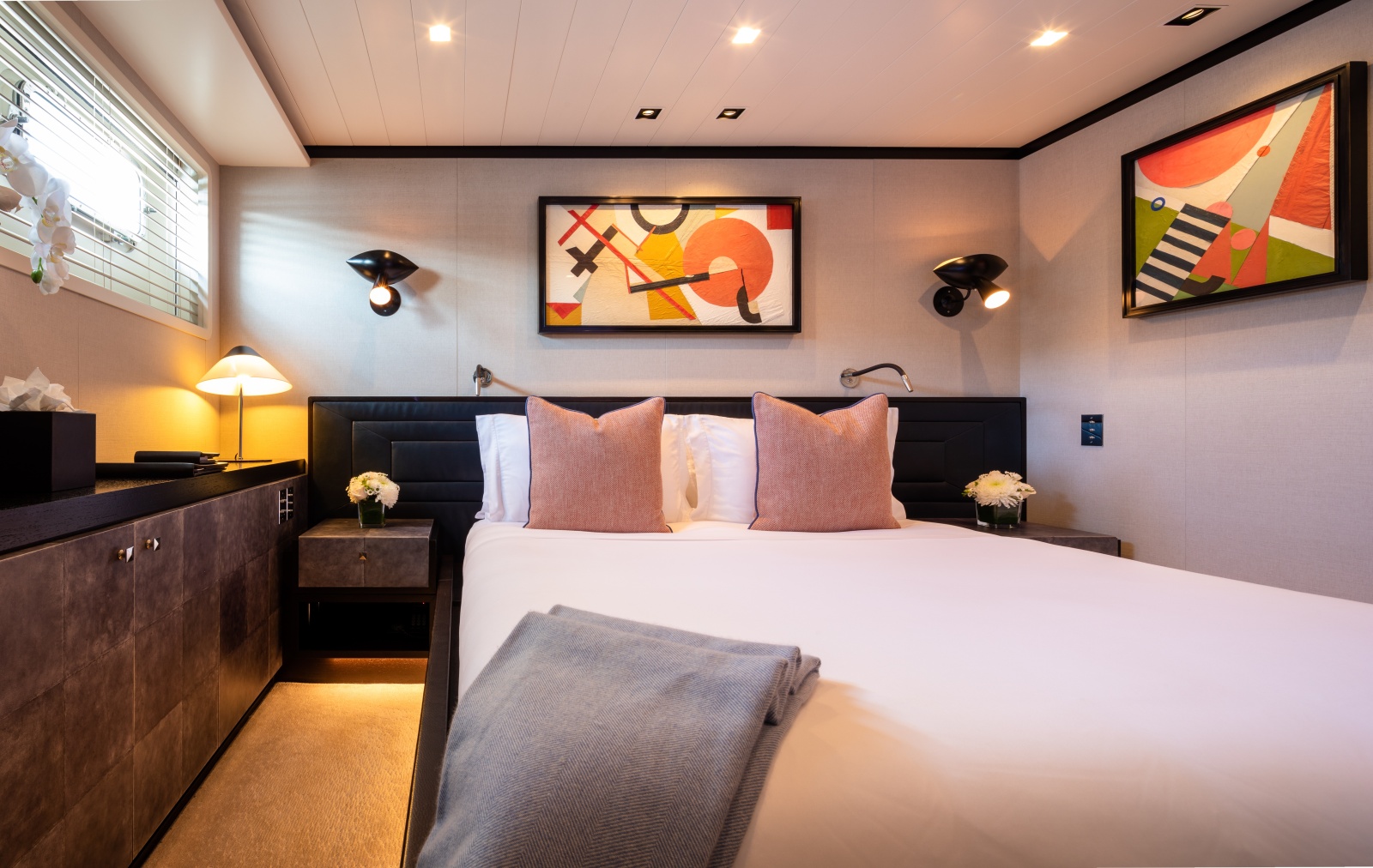

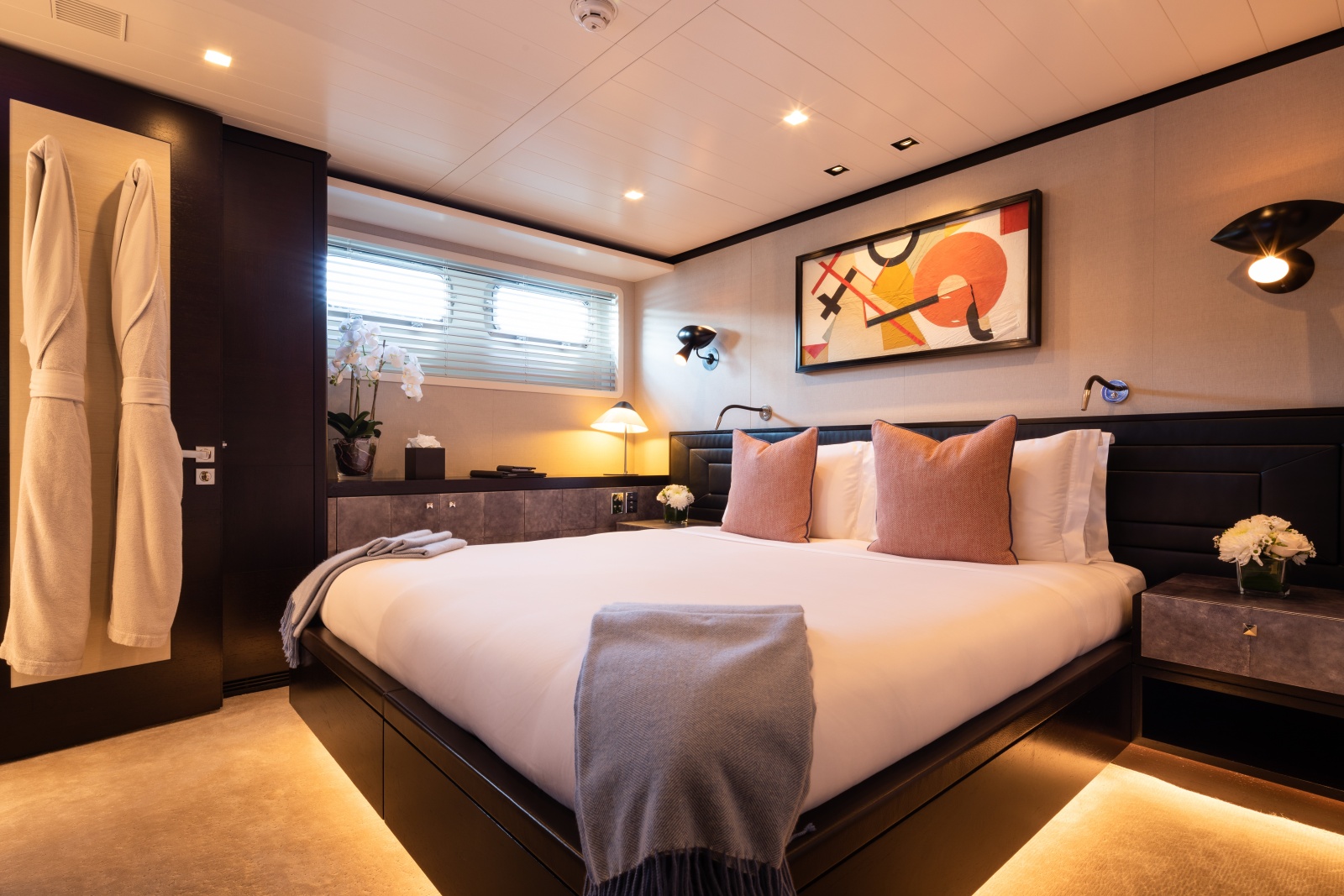

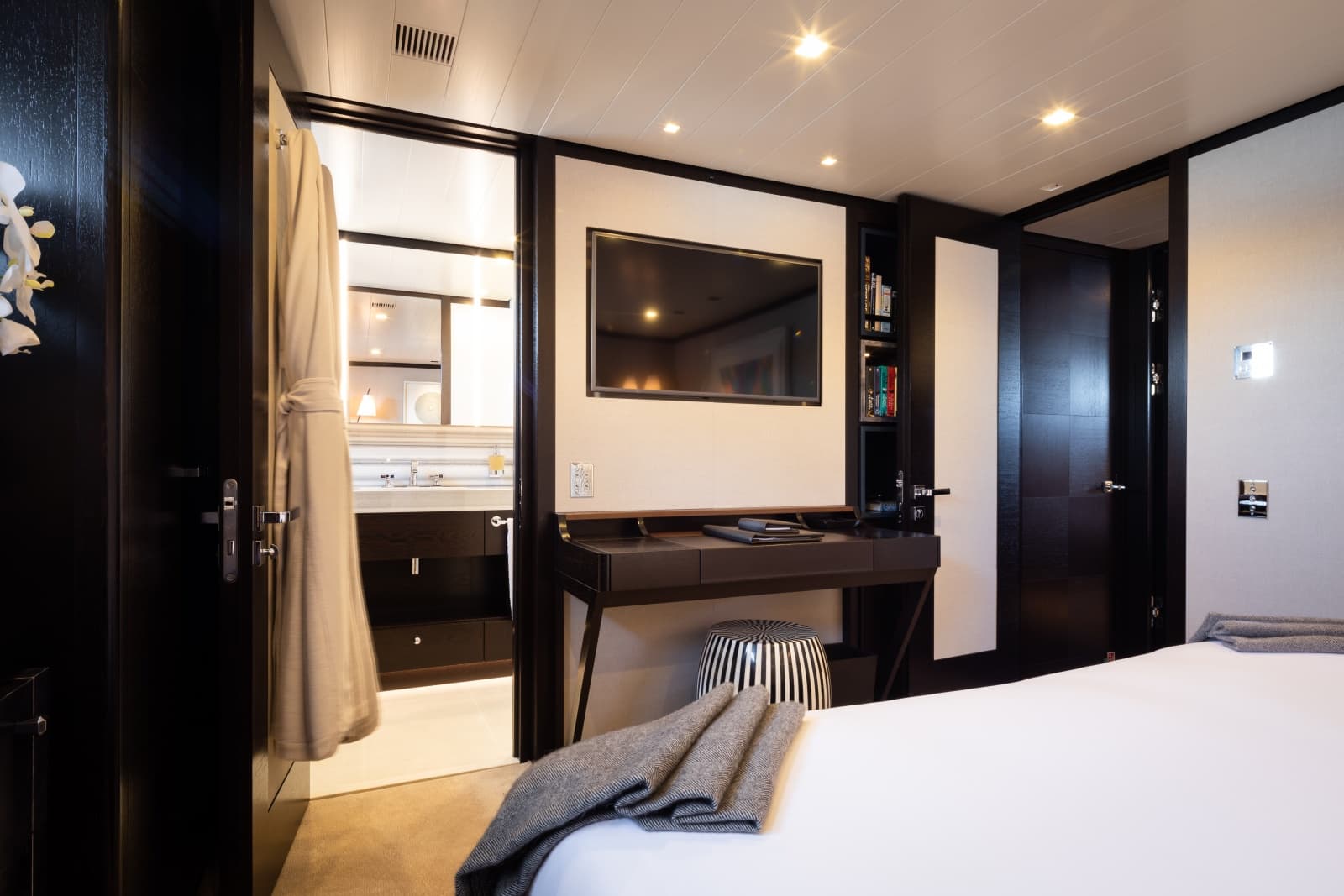

2 Guest Staterooms, Forward - Lower deck:
Queen size bed with ensuite bathroom with shower, an LCD 42´Samsung TV with a TSR Remote

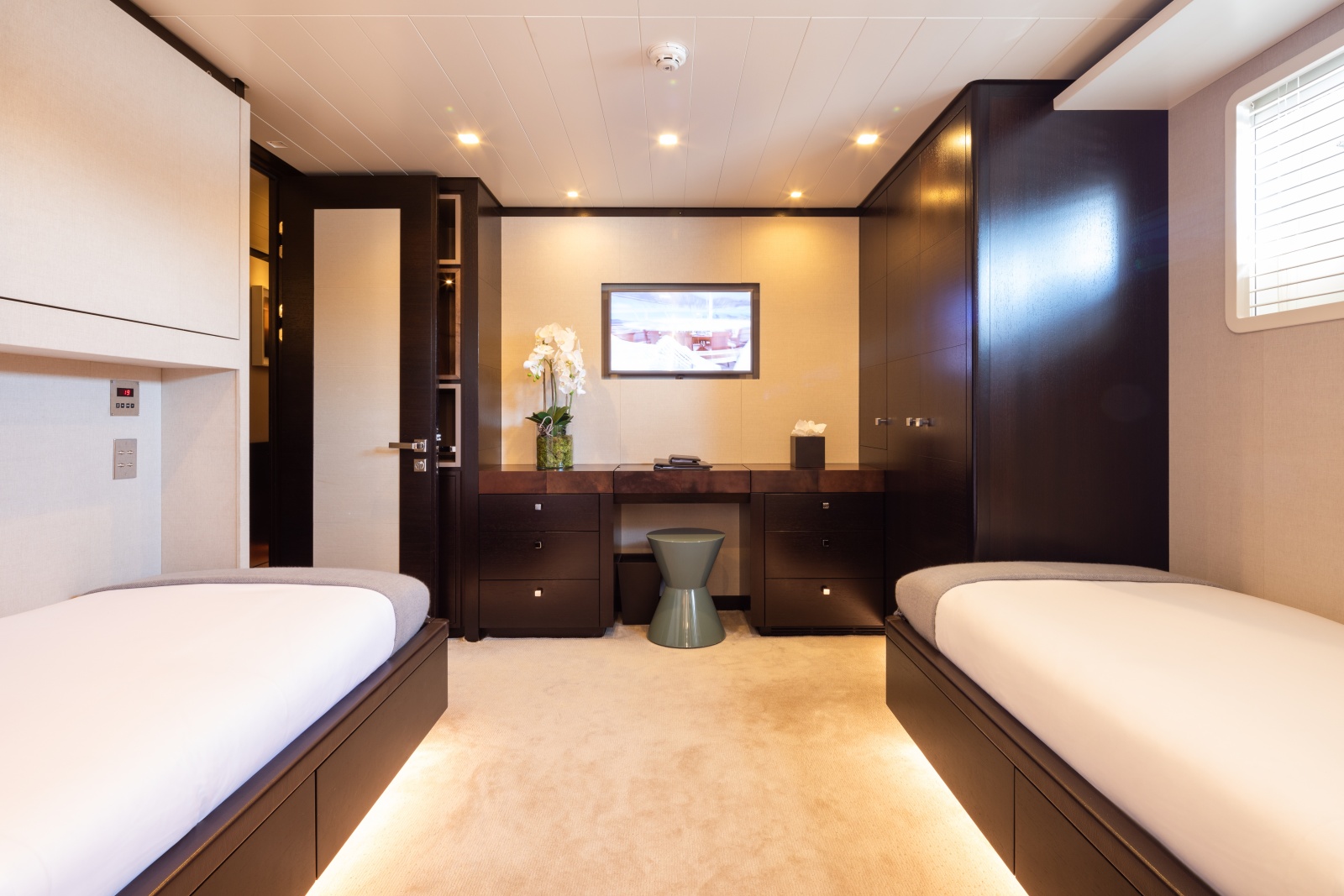

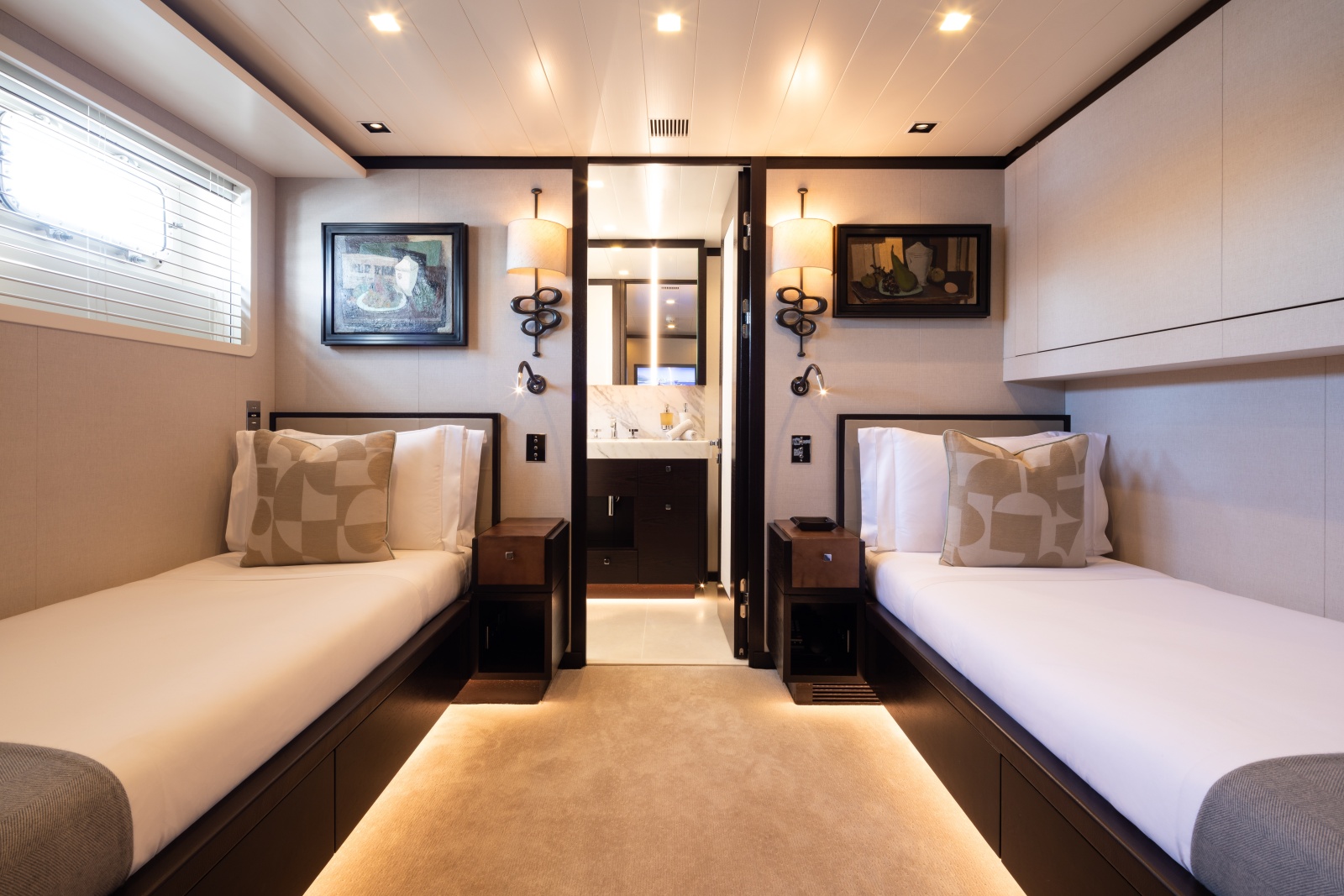

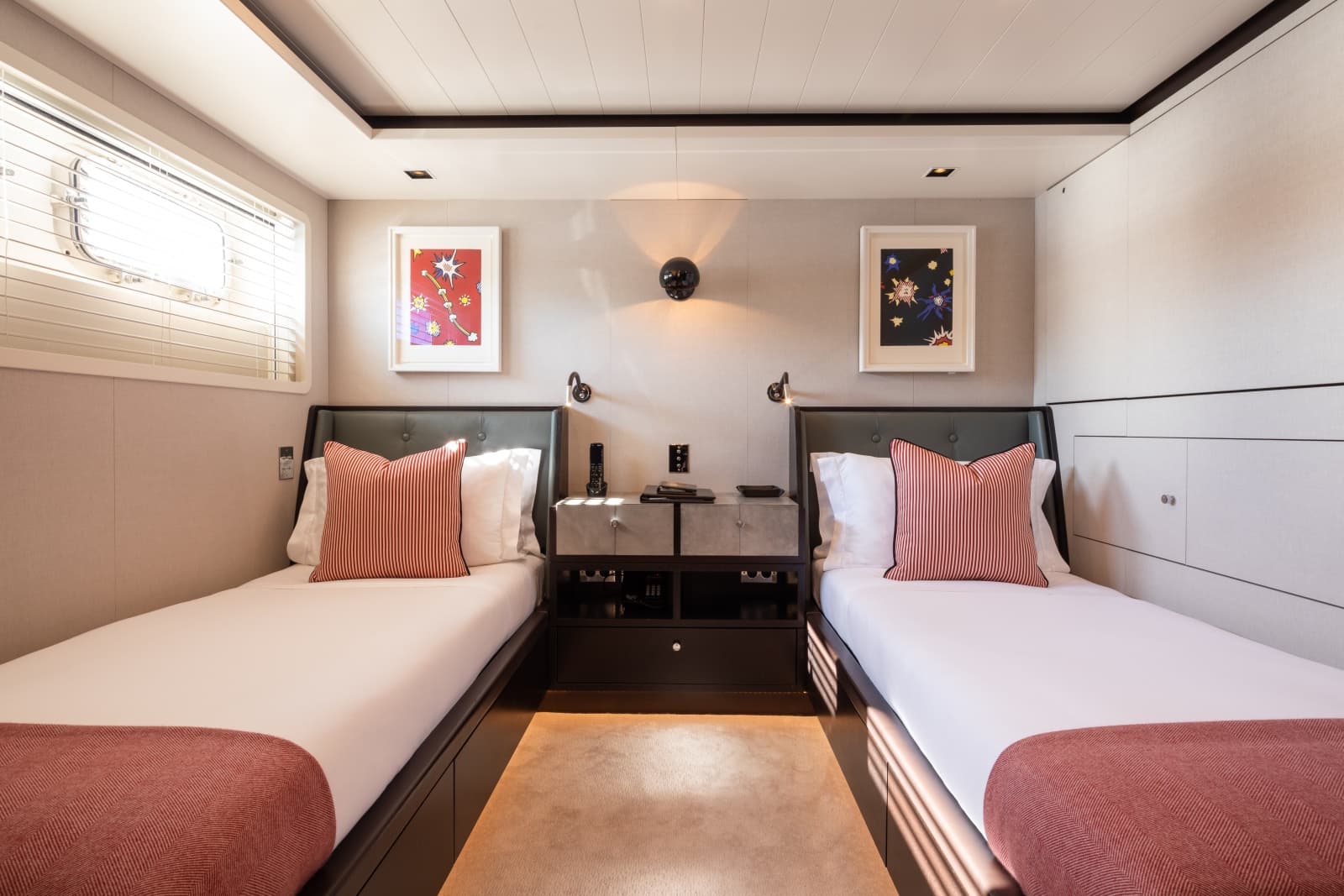

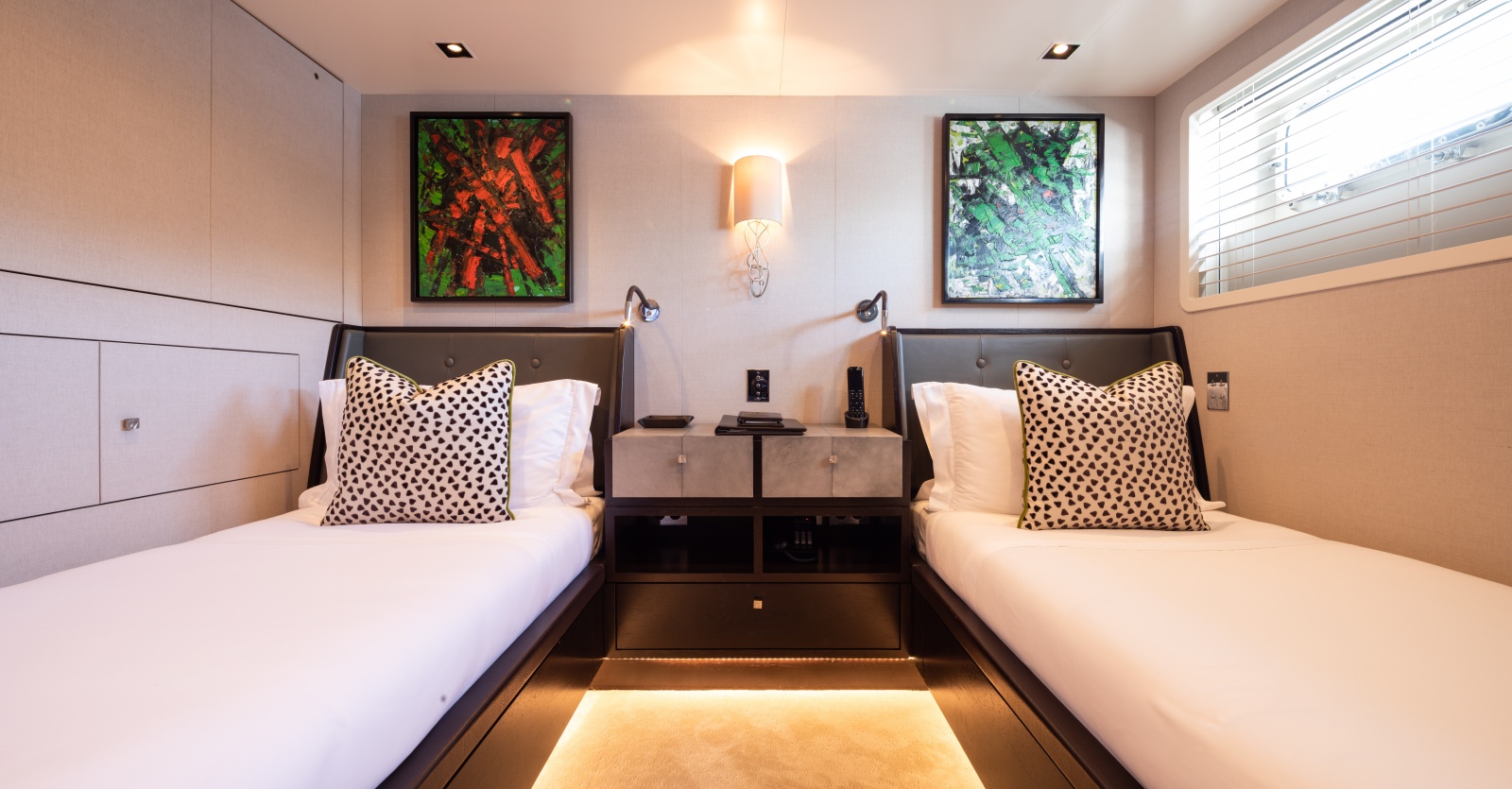

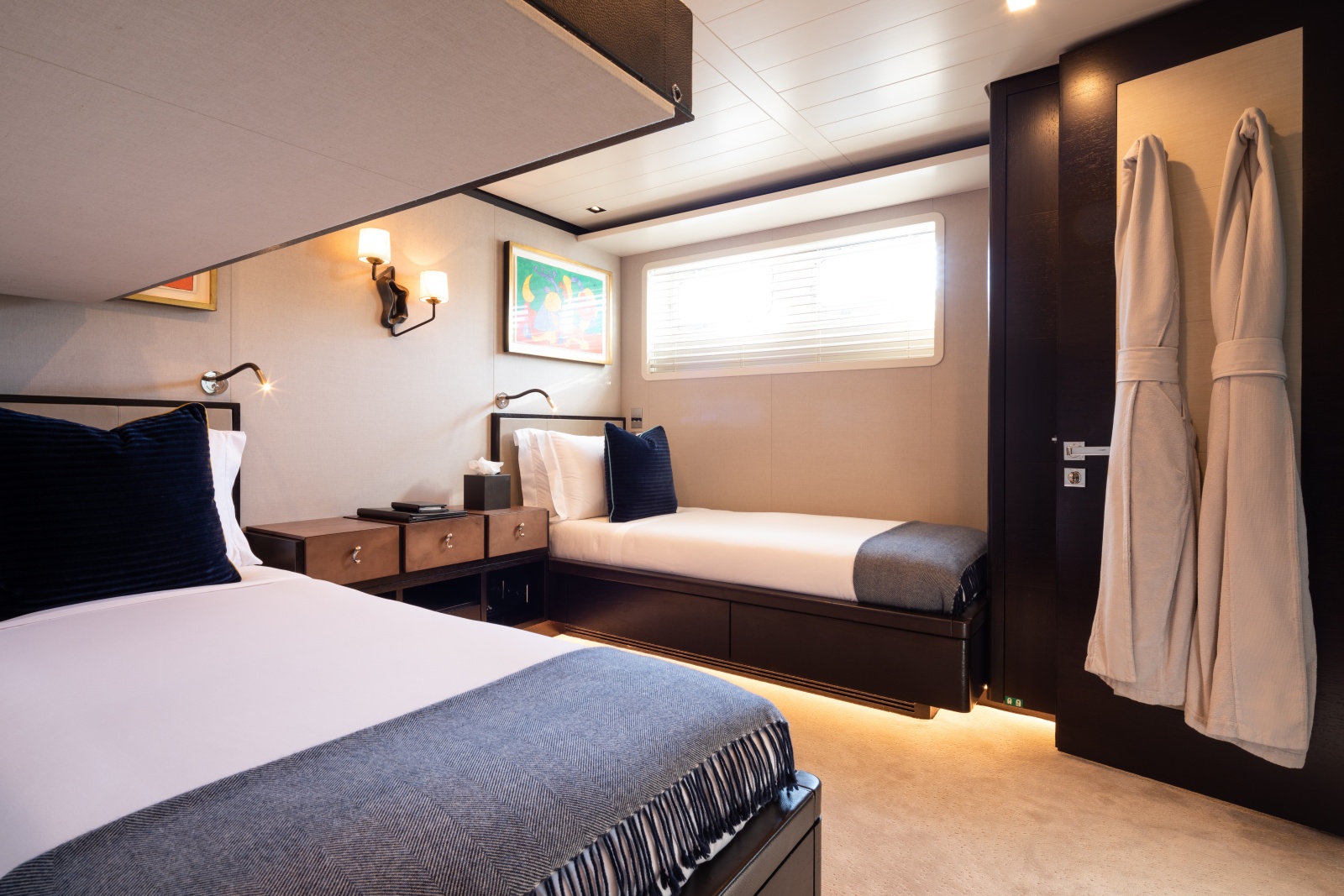

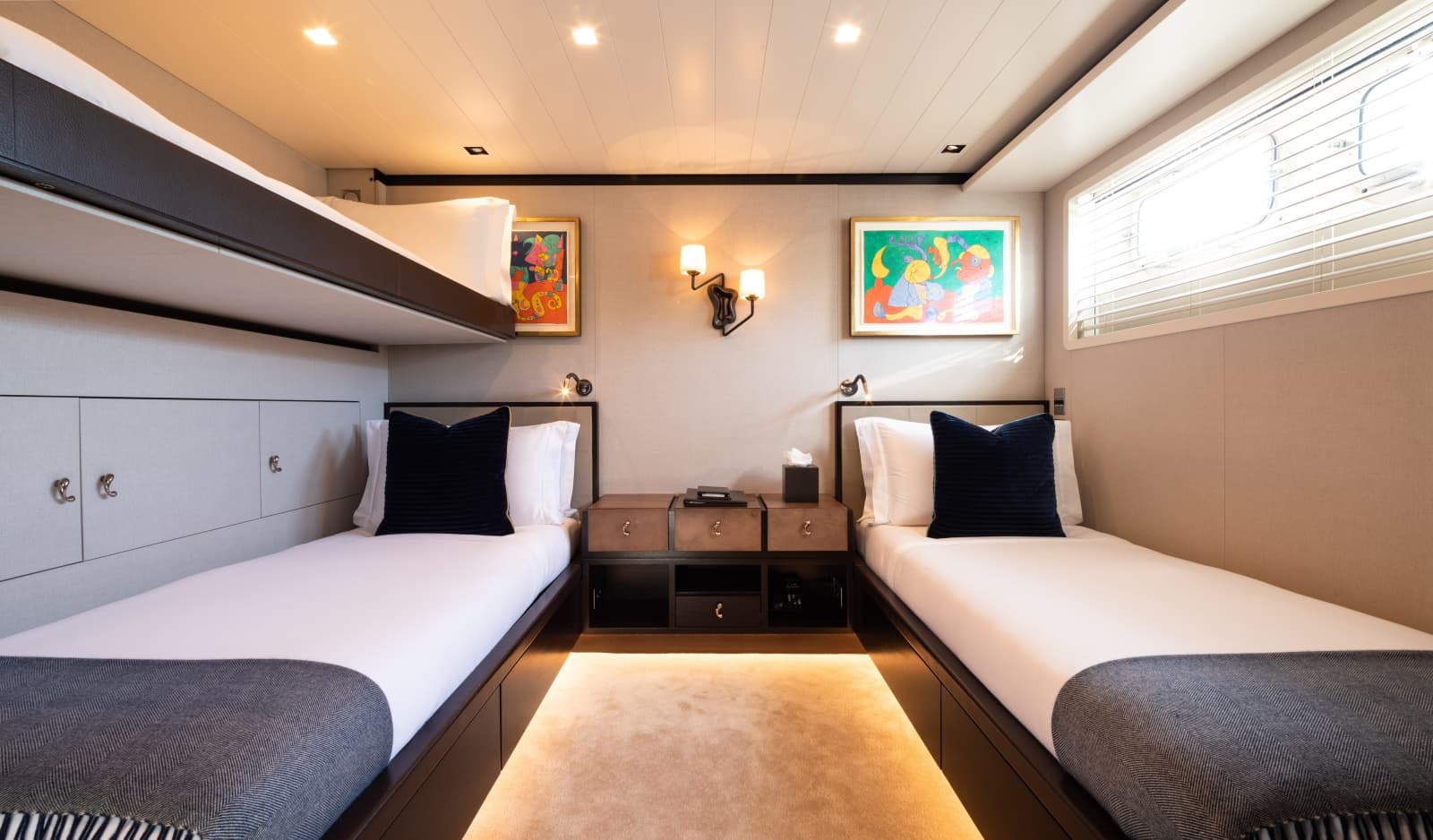

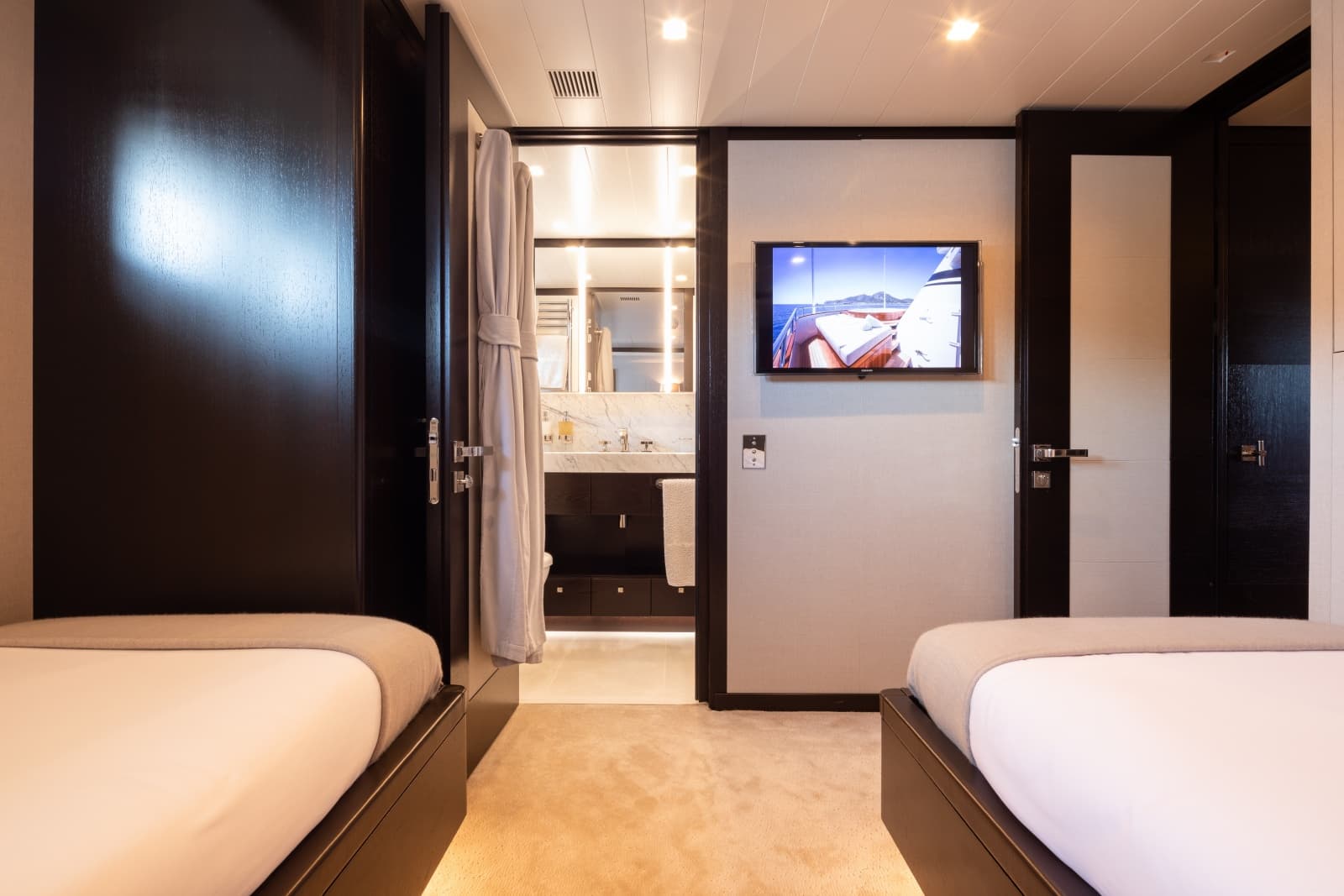

3 Guest Staterooms, Lower deck:

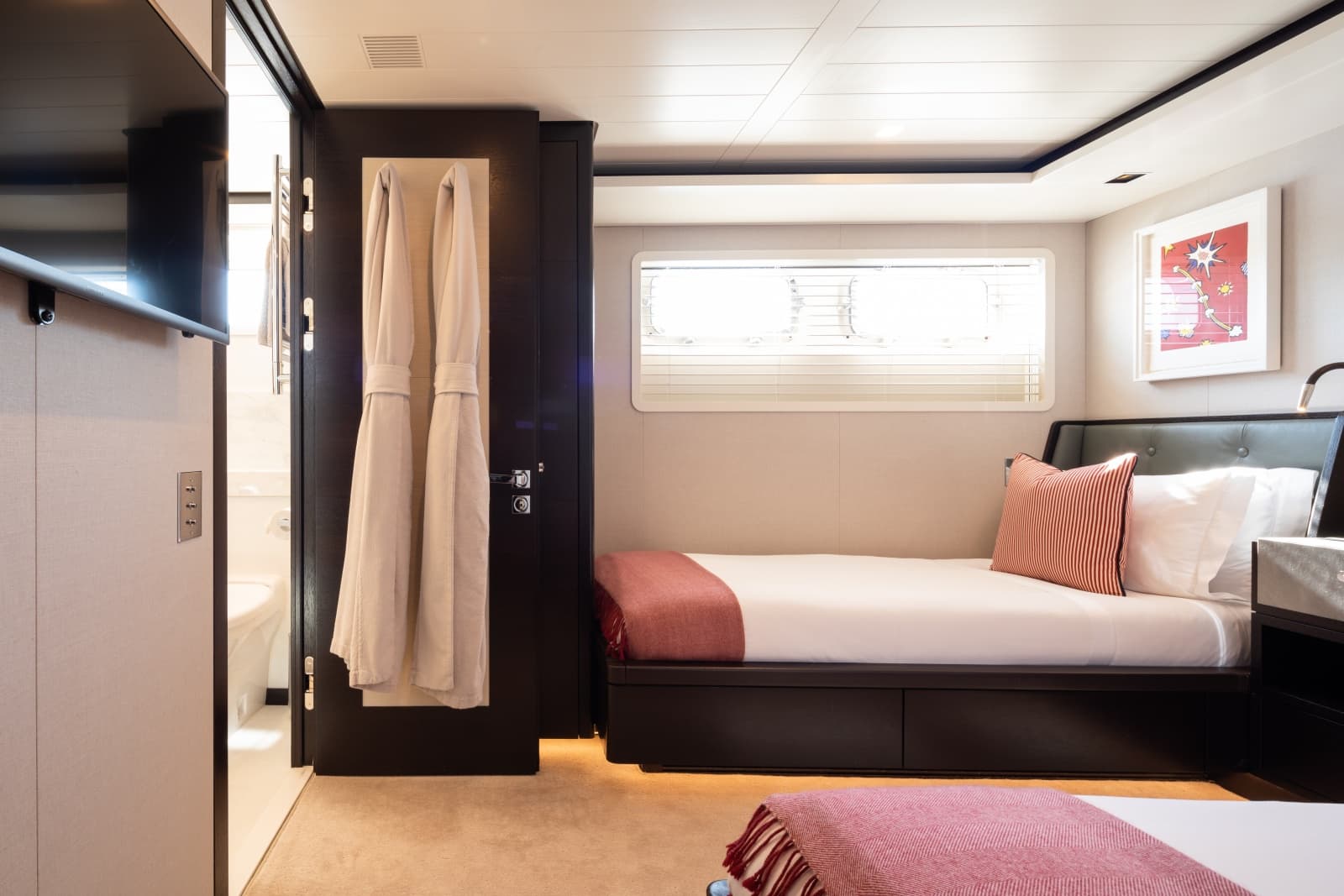

Twin size bed w/pullman with ensuite bathroom with shower, an LCD 32´ Samsung TV with a TSR Remote
1 Guest Staterooms, Lower deck:

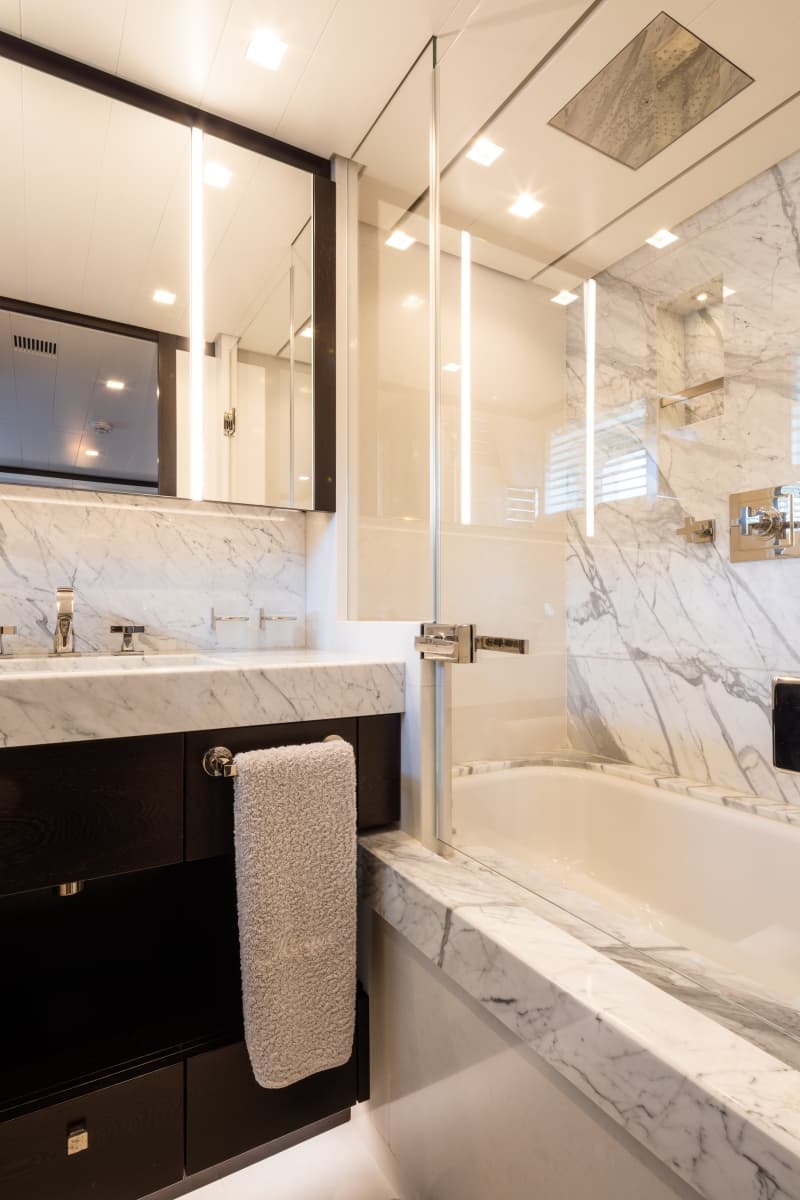

Twin size bed w/pullman with ensuite bathroom with shower & bath, a LCD 32´Samsung TV with a TSR Remote
REFIT / MAINTENANCE DETAILS
2025/2026
● Boat Deck Teak Replaced
● TVRO’s and VSAT domes removed and mast modified for One Web antenna
● Replacement of Sky Lounge Silk Panels
2024/2025
● Sundeck Teak recaulking
● Main engine checks- Turbos, cooler rebuilds, Thermostats replaced. Various gaskets and oil leak prevention.
● Generator 2000-hour servicing by authorized dealer
● AMS complete monitoring system upgrade to Bluewave V.3
● Crew mess: Replacement of Miele dishwasher
● Full deck crane 10-year overhauls: x2 boat deck crane. X1 foredeck crane
● Passerelle overhaul
● Galley pot washer replacement
● Propeller shaft aft oil seal replacements
● Deck winches/windlass overhauls
● HEM water maker overhauls’ pump rebuilds. Membrane replacements
● Master Cabin Carpet Replacement
2023/2024
● Main Deck Aft Teak recaulking
● Complete replacement custom-built air-conditioning plant installed in engine room 540,000 BTU.
● All interior air con fan coils replaced, and heating elements installed for local heat control
● Steering system- Hydraulic Rams overhauls. hydraulic hose replacements
● Crew Area refurbishment
2022/2023
● Swim Platform Teak recaulking
● Generator 2000-hour servicing by authorized dealer
● Stabiliser system: 8000-hour full overhaul
● Laundry- Replacement of x6 Miele washers/driers
● Propeller shaft aft oil seal replacements- Akerboom
● Bow thruster overhaul
● Fresh water tanks: full sandblast and re-paint. Welding repairs.
2021/2022
● Main Engine works- Front and rear crankshaft seals replaced. Cooler rebuilds. Cooling pump rebuilds
● Main engine port engine fuel pump drive rebuilt
● Bow hull plating replacements. Complete new bow thruster tunnel installed
● Special survey (5 yearly) inspection- ABS incl hull survey
● All hull valves overhauled
2020/2021
● Generator 10,000-hour top end overhaul and servicing- Recon cylinder heads installed
Crankshaft seals replaced rear and front. Alternator inspections.
● Galley steam ovens complete x2 replaced- Salvis 611T installed. Induction hob replaced. All Salvis galley equipment inspected.
● Foredeck hatch replacement. Teak replacements foredeck
● Emergency steering system- hand wheel and pump installed lazerette
2019/2020
● Full Paint job
2018/2019
● Main engine alignment checks and vibration analysis. Vulkan Drive coupling replacements.
● Reintjes main propulsion gearboxes: complete overhaul by authorized dealer
● Stabiliser system: 8000-hour full overhaul
● Lazerette ice machine replacement
2017/2018
● Main engine works- Cylinder heads removed and all head gaskets replaced. Governer overhauls. High pressure fuel pump overhauls. Cooler rebuilds. Cooling pumps overhauls.
● Generator 2000-hour servicing by authorized dealer
2016/2017
● Sky lounge full interior rebuild and structural repairs
● Port side lower guest cabin x2 strip out and rebuilds
● Steering system full overhaul power packs and rams- Wills Ridley
● Propeller shaft aft seal replacements
2015/2016
● Generators 4000-hour servicing. Coolers, turbos, injection pumps, cooling pumps overhauls.
● Propeller shaft intermediate shafts removed and inner oil lip seals replaced
● Fuel tank monitoring sensors complete replacements
2014/2015
Rebuild Phase 3
● Complete rebuild of the bridge, master stateroom and sundeck.
● Complete new mast with all comms/antennas installed.
● Circular 8 person Jacuzzi and surround seating installed on sundeck.
● Complete new AVIT system installed throughout the vessel.
● Replacement 5-blade fixed pitch propellers installed.
● Hull and superstructure paint works completed.
2013/2014
Rebuild Phase 2
● Completed rebuild of all 8 guest staterooms.
● Extensive engine room and equipment refit including complete replacement Northern Lights M1066H generator x 2.
● Main switchboard and vessel power distribution replacement including complete rewire
of vessel.
● Replacement shore power convertors installed.
● Complete replacement Zero Speed Quantum stabilizer system.
● HEM Reverse Osmosis plant installed with 20,000 liters per day production capacity.
● Engine room sound insulation upgrade.
● Complete new vessel SIMON monitoring system installed.
● Replacement foredeck Opacmare jet ski lifting crane installed.
● Complete replacement Frigomar air conditioning chilled water system installed throughout vessel including room fan coils.
● Replacement stainless steel clad walk-in
● fridge and freezer cabinets complete installed.
● Galley equipment refit including replacement steam ovens, induction hob, Salamander and fryer.
● Main engine inspections- Main and big end bearings inspected.Turbos, coolers, injectors, oil pumps, cooling pumps rebuilds.
● Main engine compression testing
2012/2013
First works under the current Owner consisted of complete rebuild in 3 phases.
Rebuild Phase 1
● Complete rebuild of:
o Crew Area
o Skylounge
o Main Saloon and Dining Area
o Guest Lobby
o Upper and Lower Dayheads
Winter 2008/2009
● Completely new air conditioning system throughout the yacht.
● New larger Jacuzzi with 15 sqm. sunbed for top deck.
● New independent Bose entertainment system in all guest staterooms.
● 2012/2013
● Extensive refit of sky lounge and main salon/dining.
2006/2007
● Complete refit at Pendennis Shipyard.
● Stern extension with air-conditioned guest lazarette and dayhead.
● Complete new main deck (salon, day head, VIP and Master stateroom) and skylounge with outdoor cinema.
● All guest bathrooms with new fabrics, fillings, floorings and AV.
● New interior floors on every deck. Aft deck 50% new teak and Bridge completely new teak and furnishing.
● New bar on aft deck. New spiral staircase from aft deck to bridge deck.

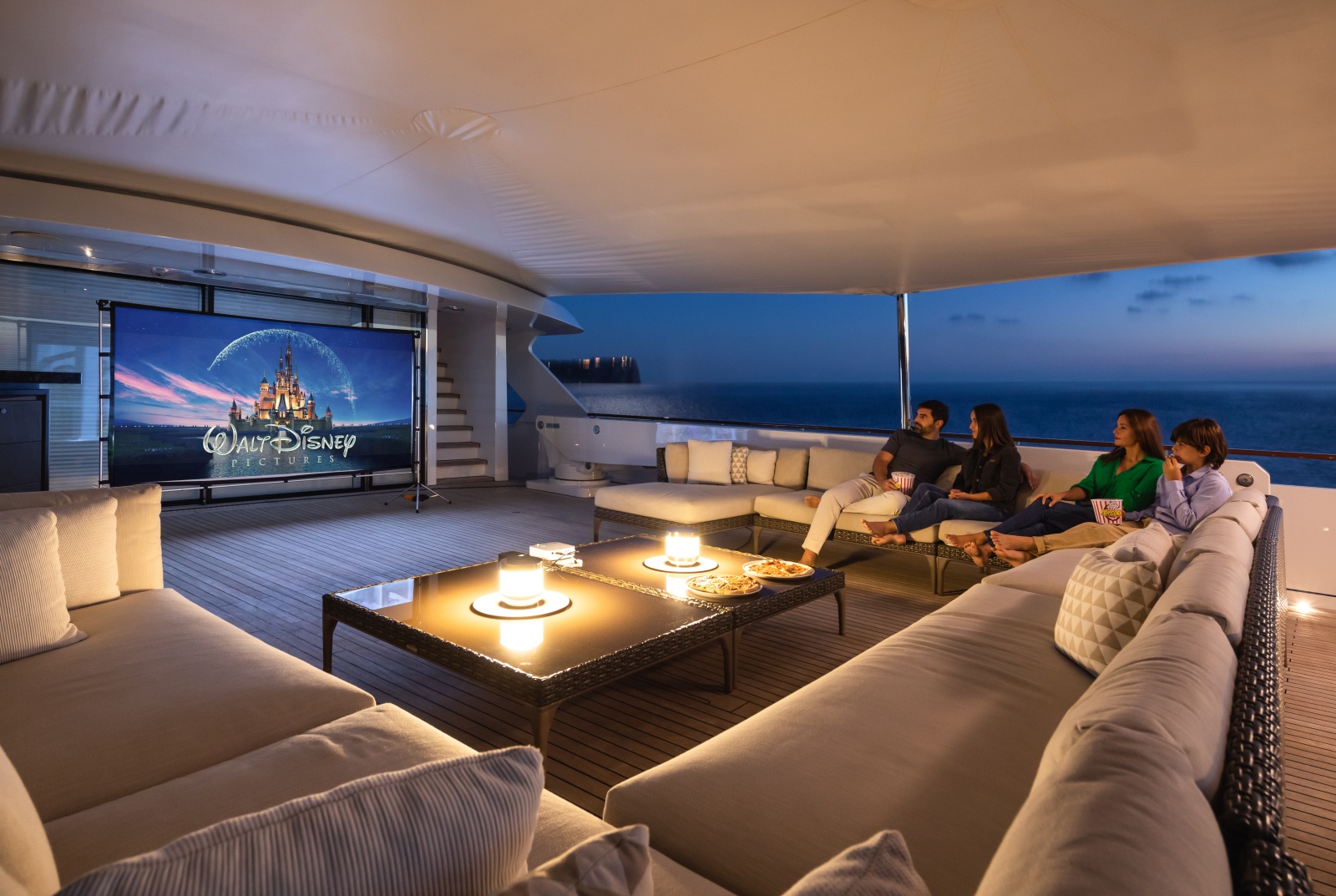

● VSAT with Wi-Fi throughout the yacht, Sonos sound system and outdoor cinema on skylounge.
● Complete Caterpillar main engine and generator rebuilds.
● Completely new CCTV system throughout.
● Complete hull overhaul with completely new paint job of the whole yacht .
● Upgraded to MCA standards.
DISCLAIMER
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Listing MLS by Yachtr.com
Listing Contact
Interested in This Boat?
Send us a message and our team will get back to you promptly
