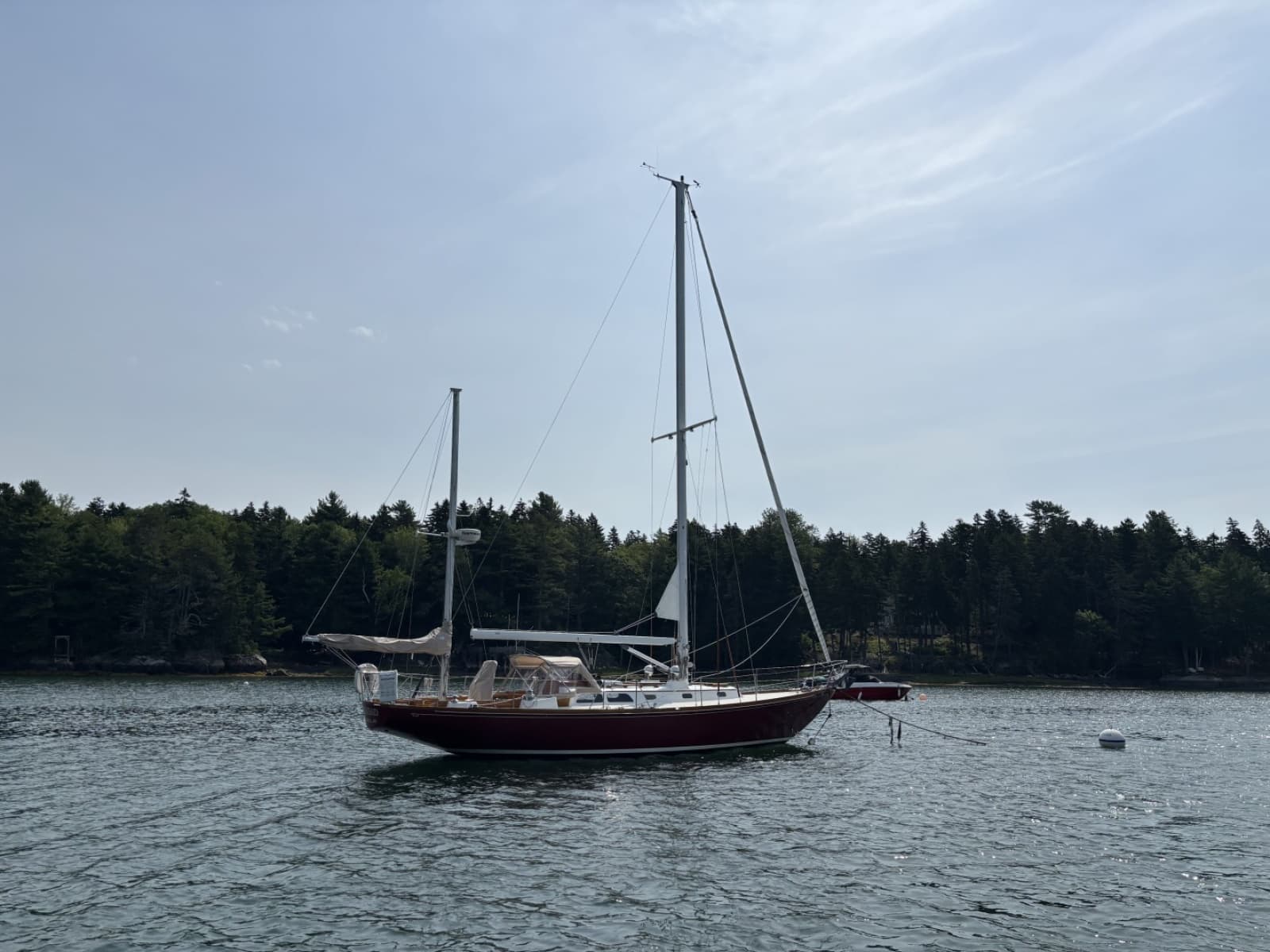

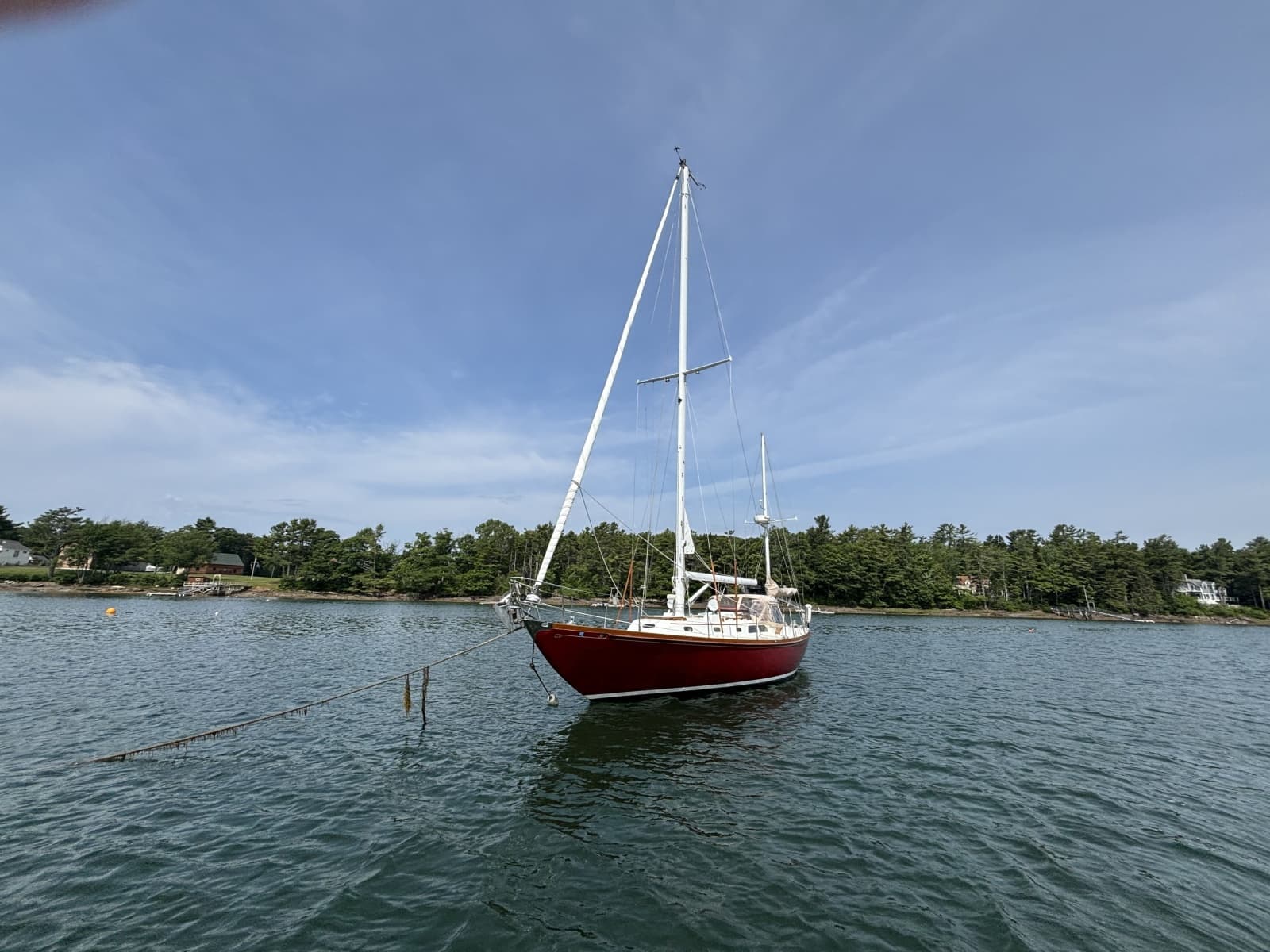

1974 Hinckley B-40

Accommodations

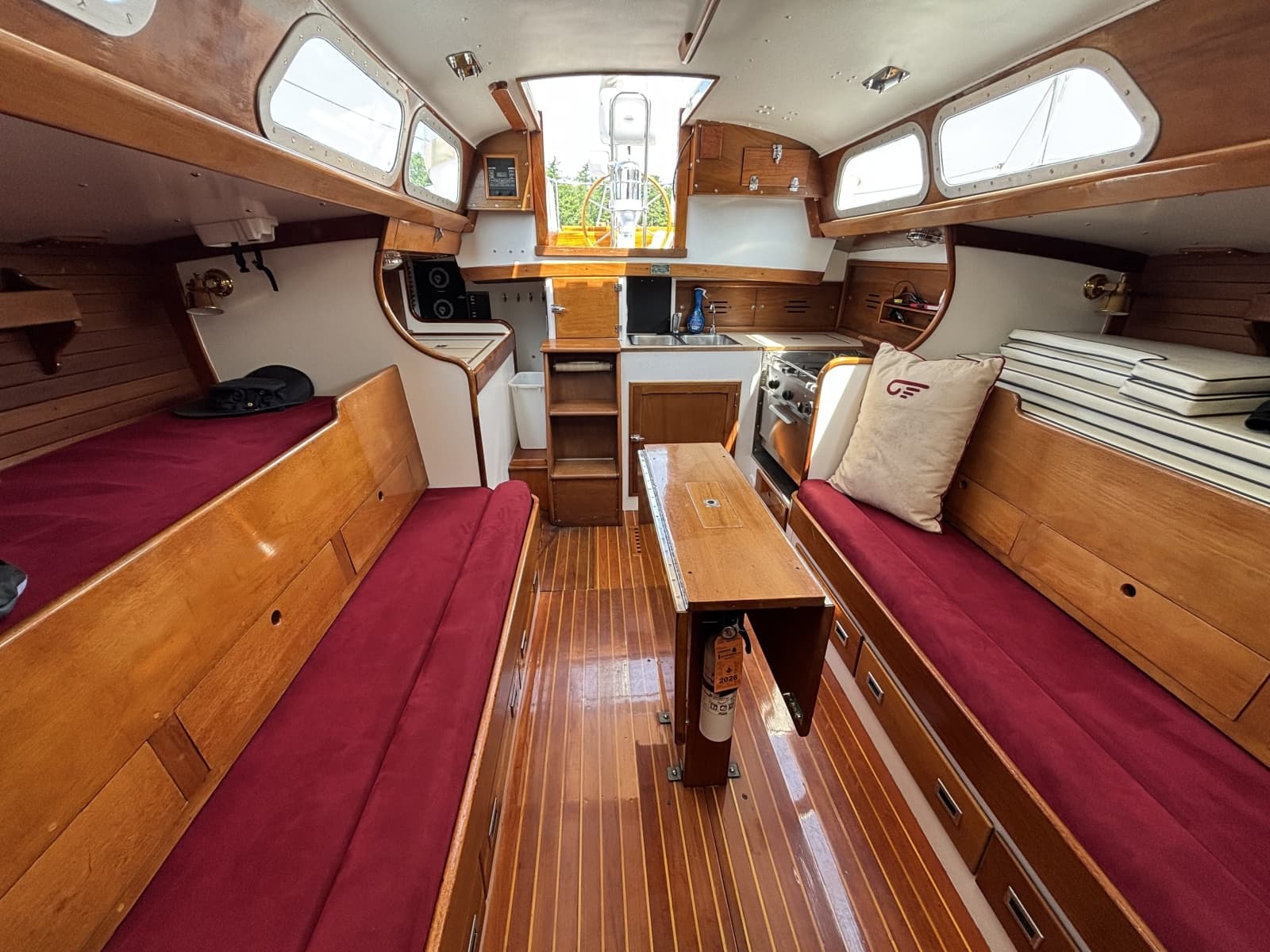

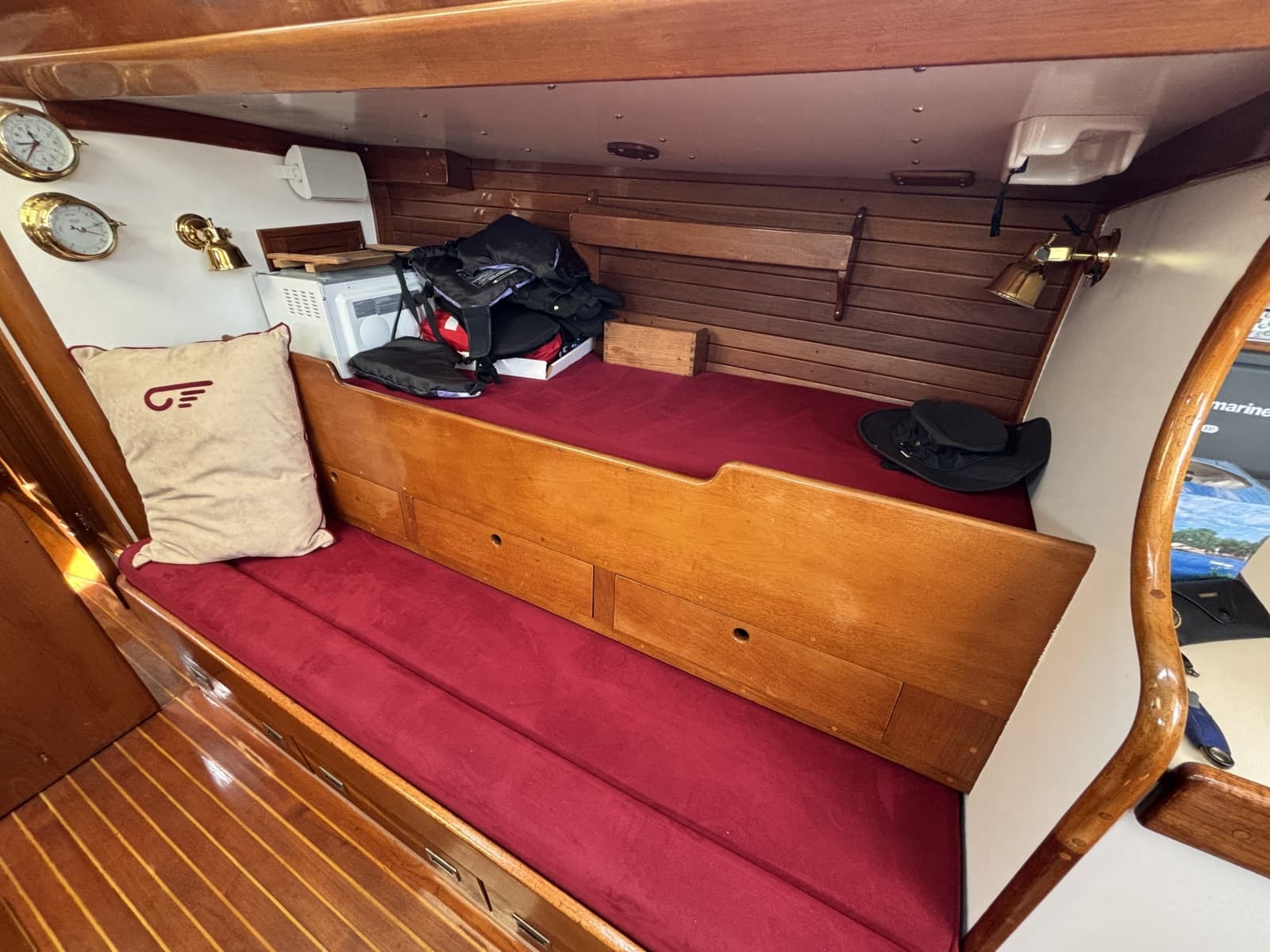

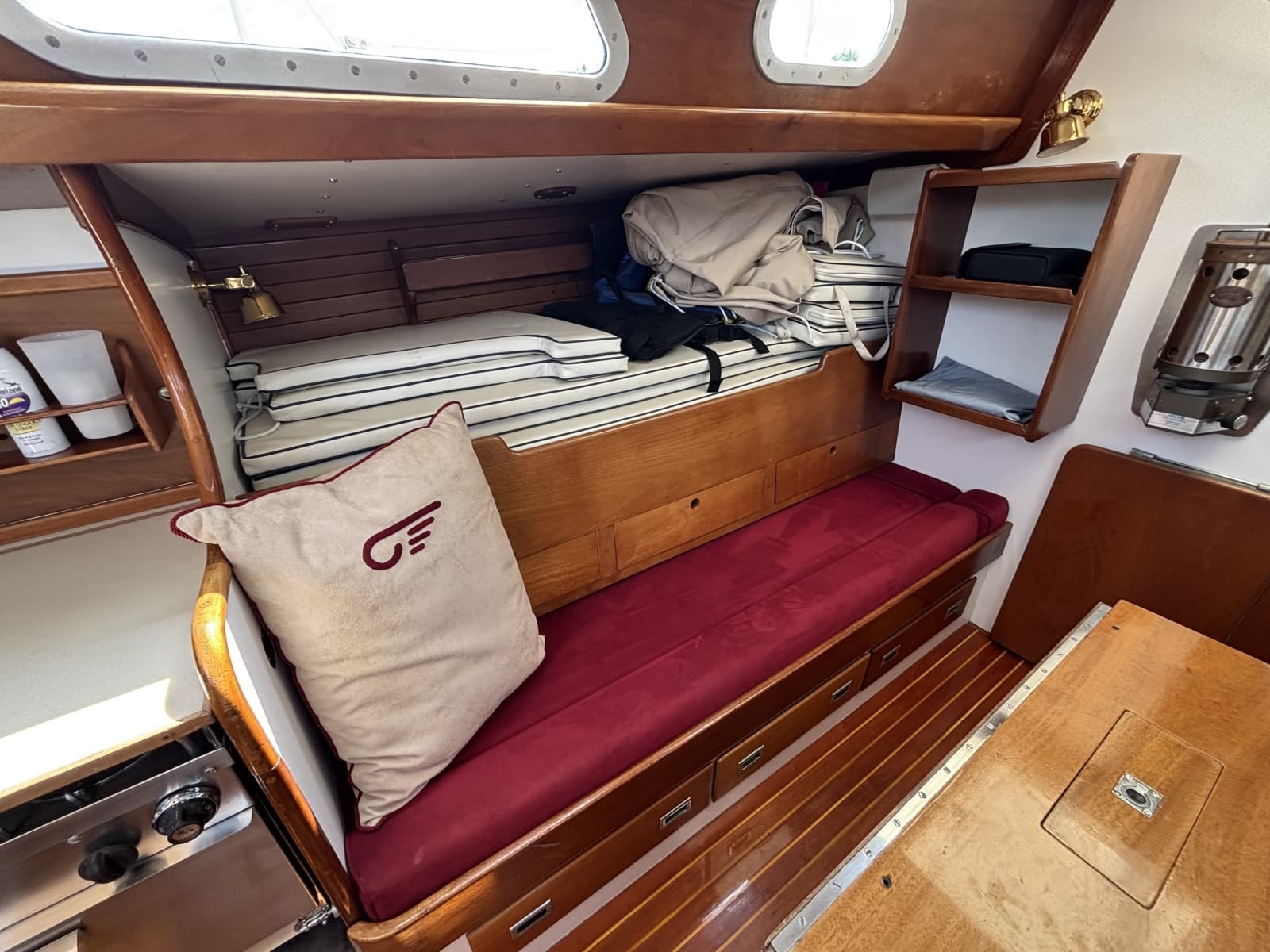

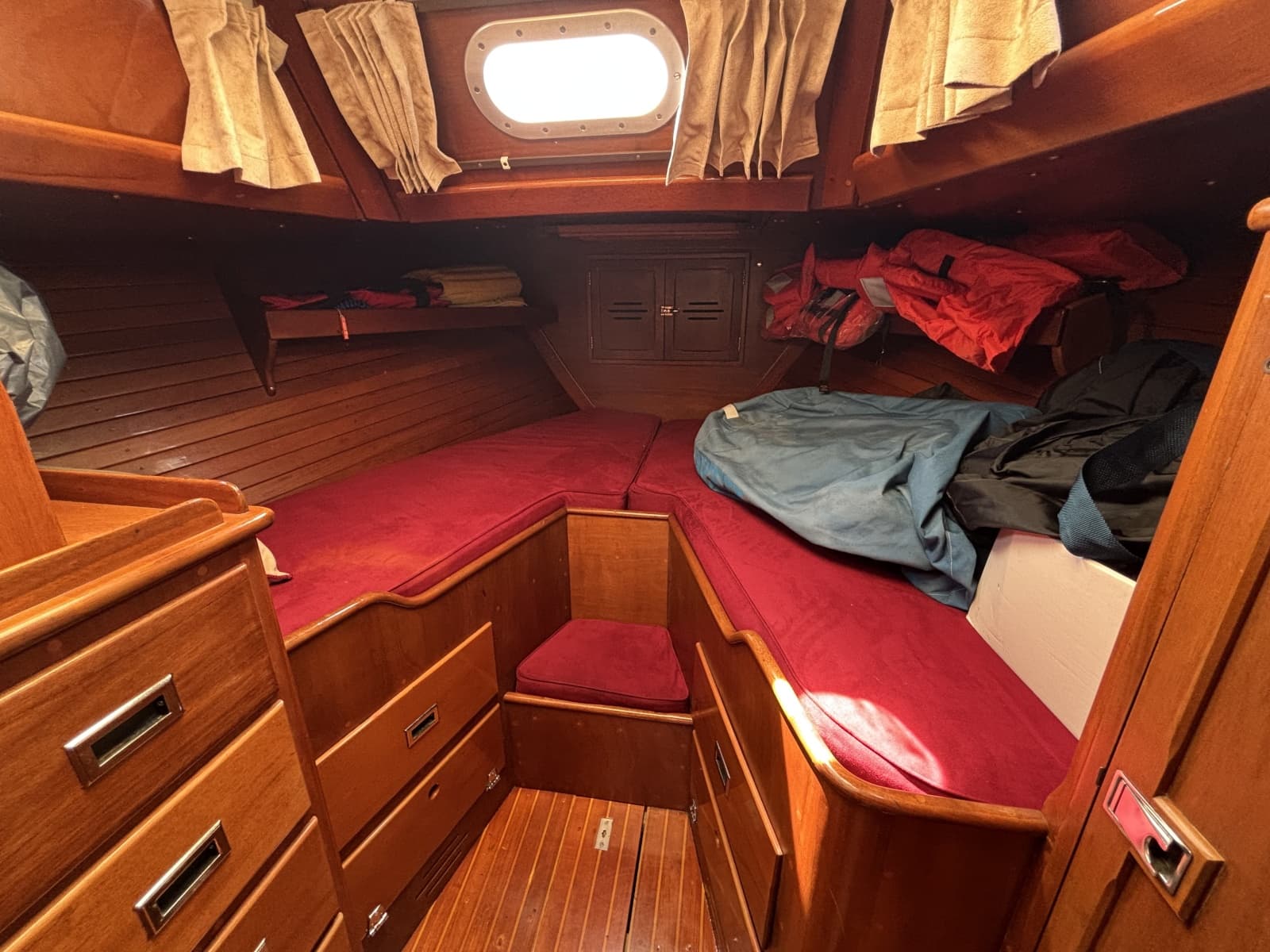

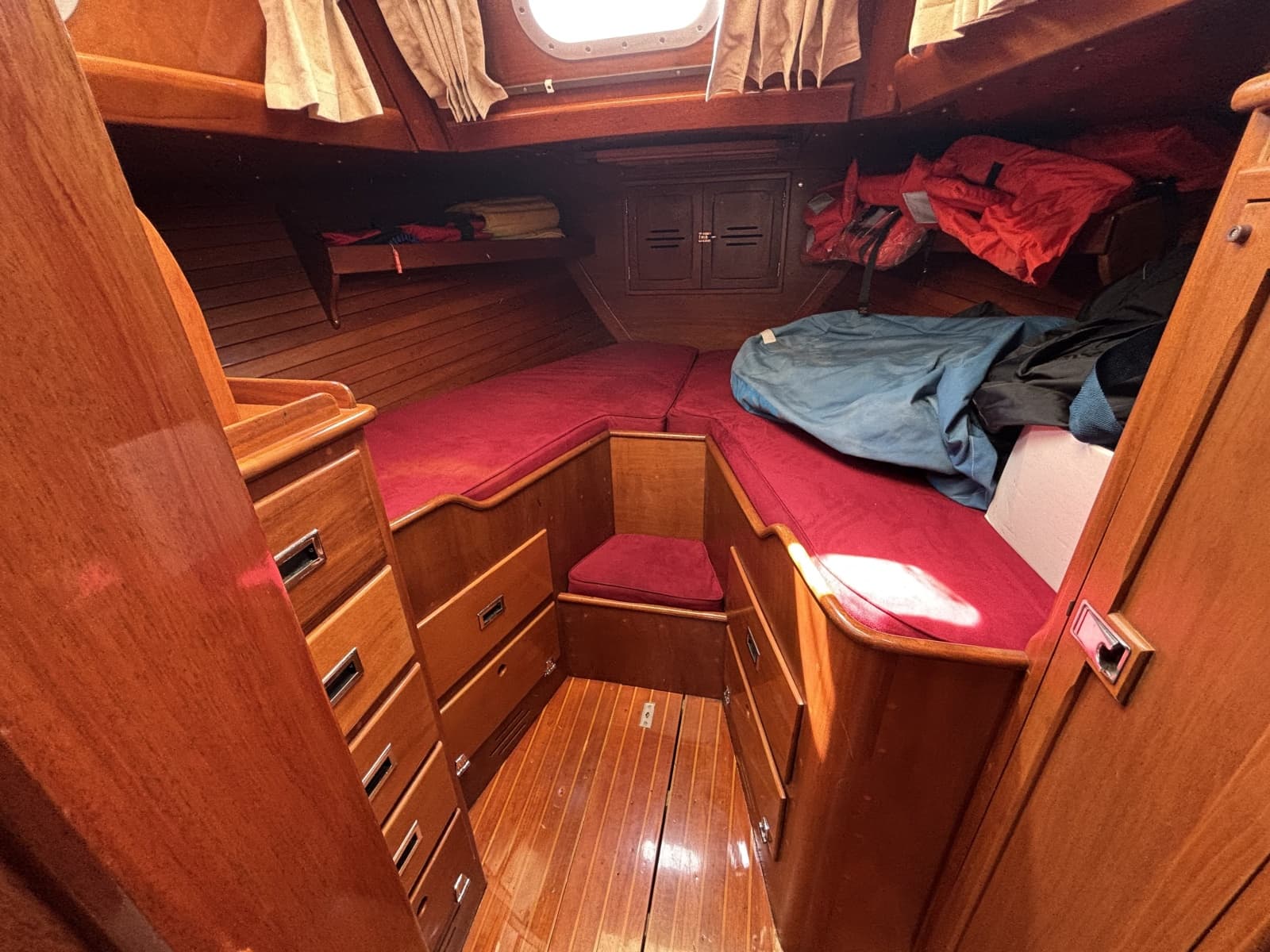

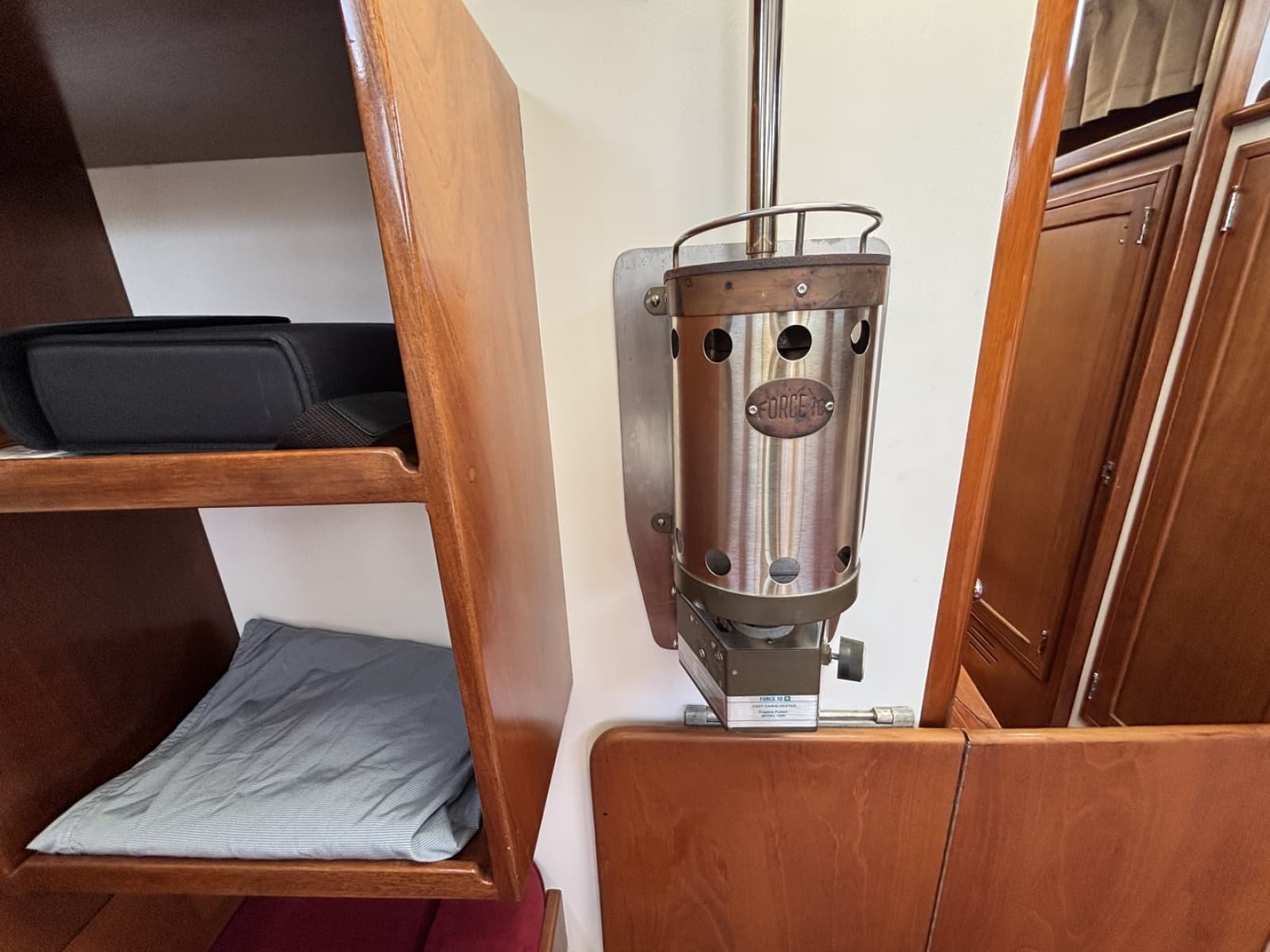

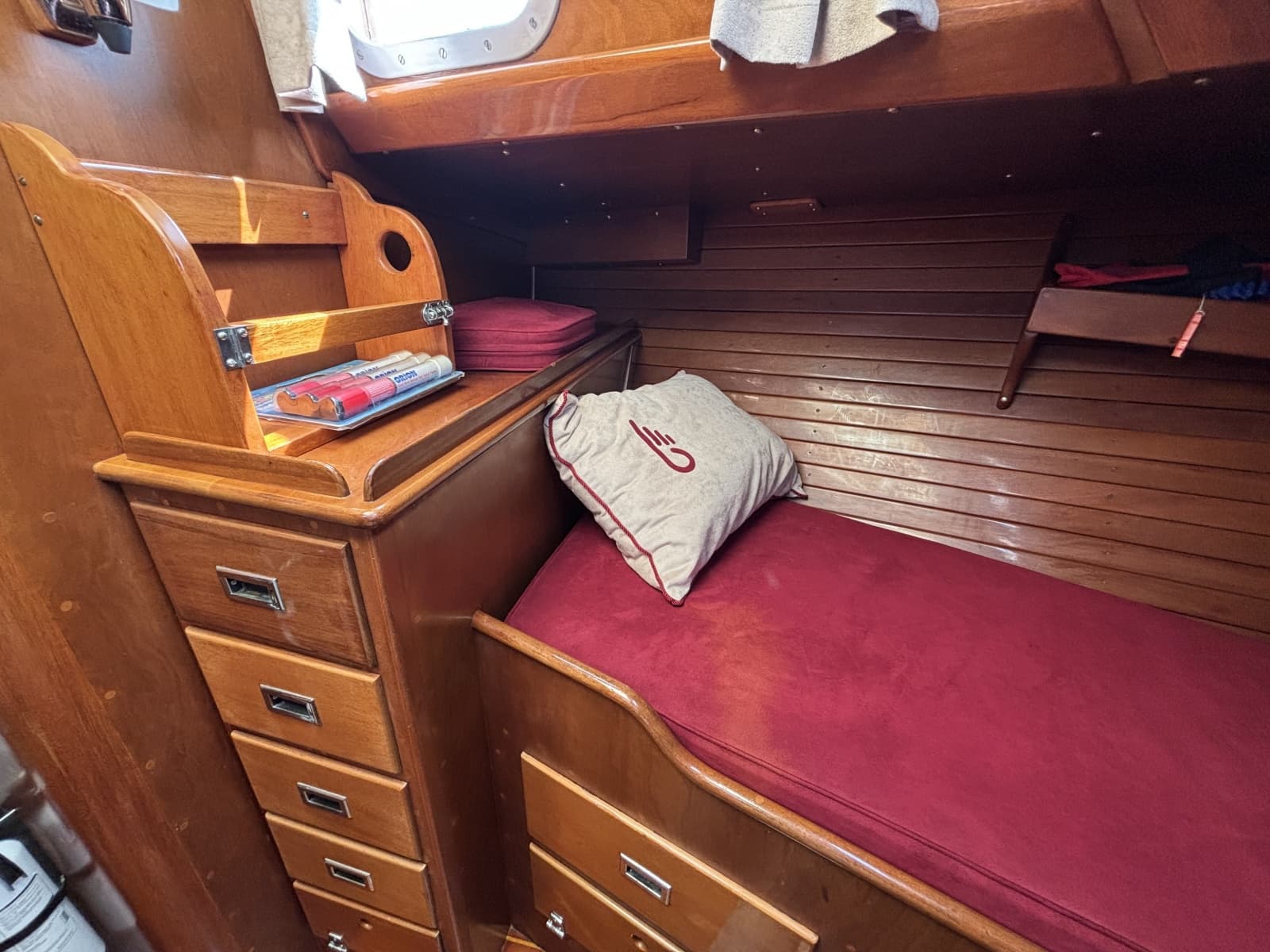

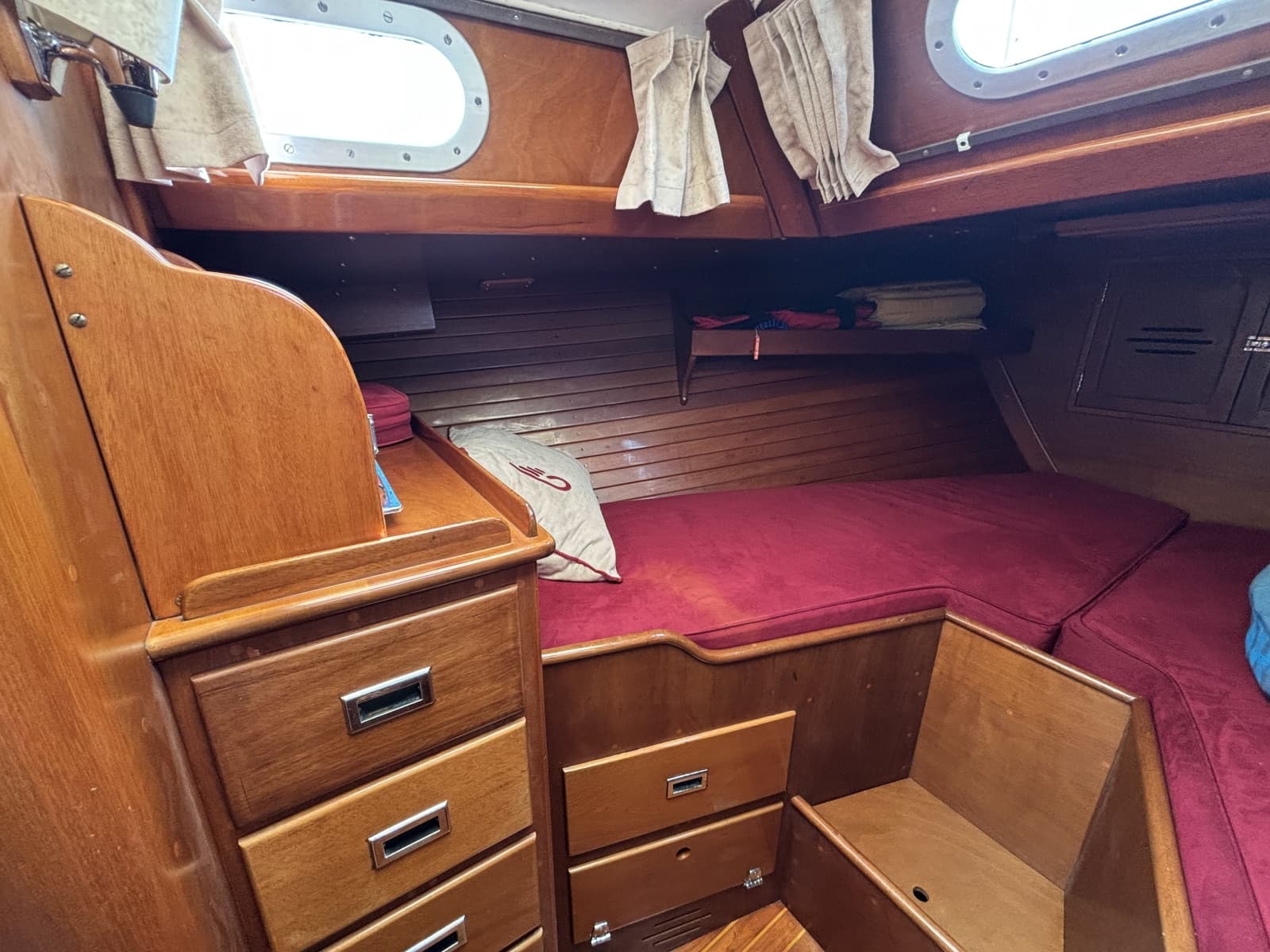

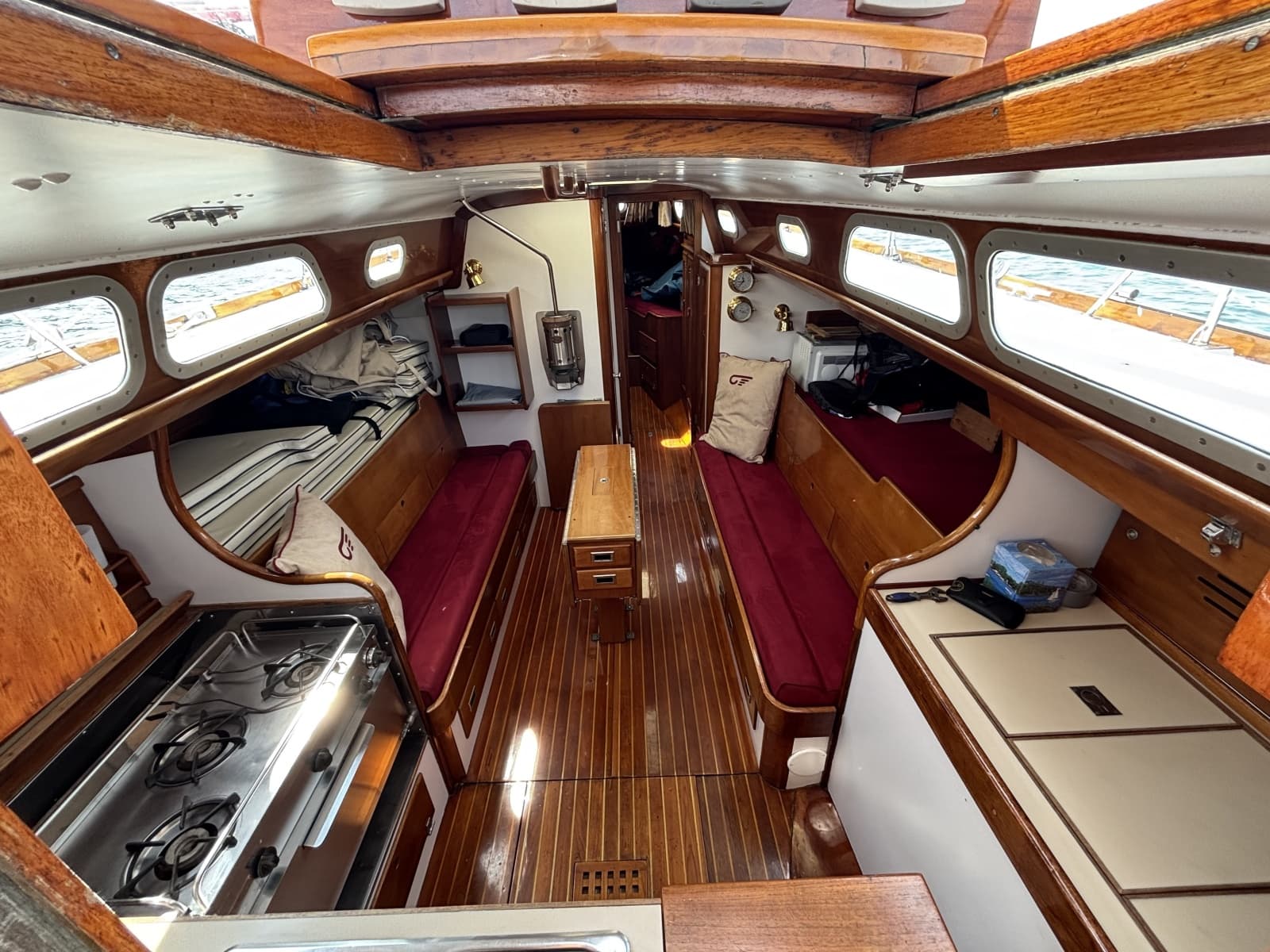

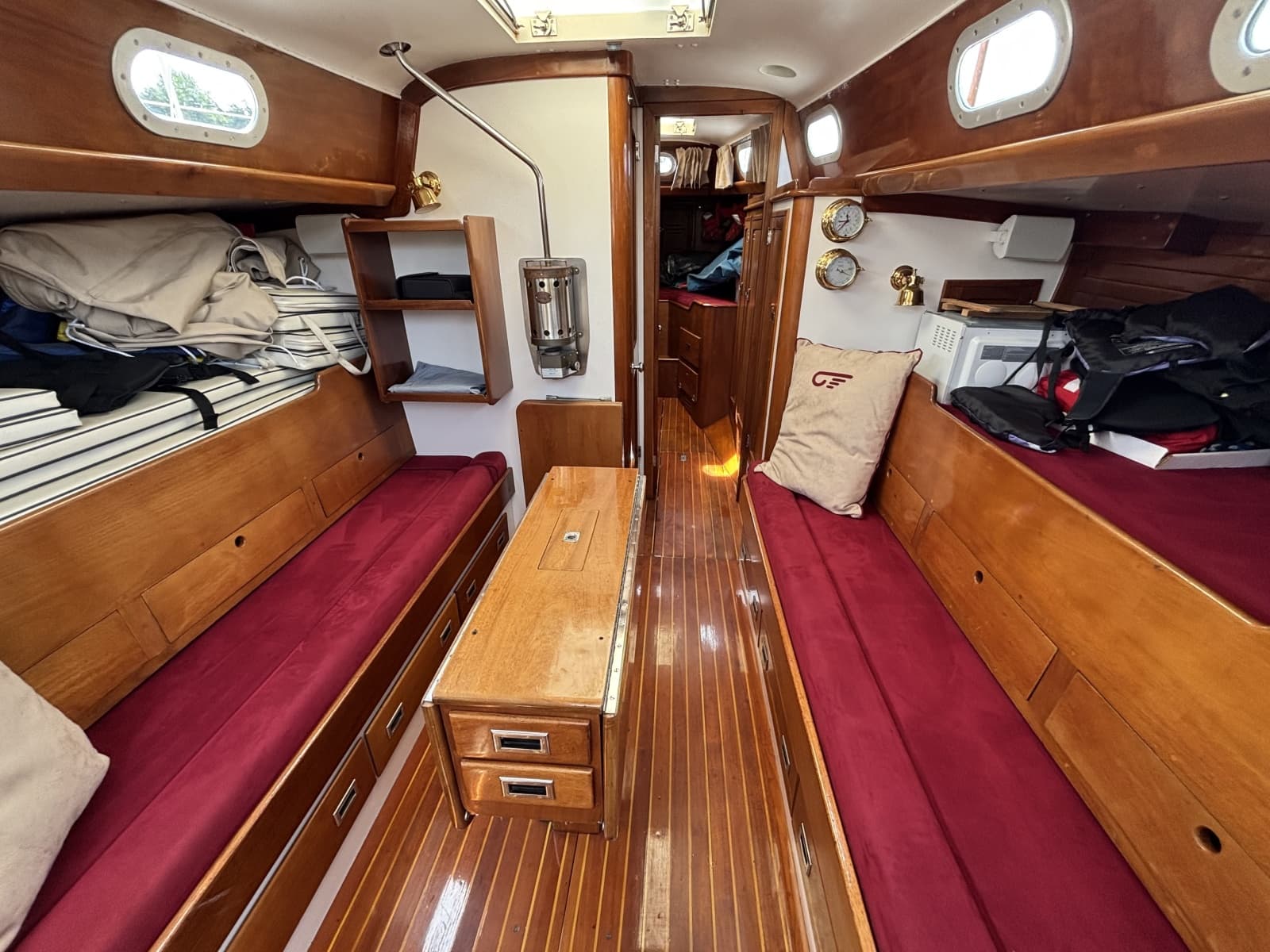

Redhead sleeps six in two cabins with a separate head and galley. A private owner's stateroom is the forward cabin with a 6'8" vee berth. Forward of the vee berth is access to the forepeak via varnished, vented mahogany doors. Varnished mahogany cabinetry throughout includes 2 hanging lockers, dresser set and mahogany ceiling boards. There is varnished mahogany shelf storage above and outboard the berths. Next aft on port is an enclosed head with shower. Across to starboard, in the main cabin, is a hanging locker with shelf storage above and outboard. Next aft is a 6'6" pullout settee/transom berth with a pilot berth above and outboard. The main bulkhead across to port has a Force 10 cabin heater and varnished mahogany book shelves. The port side pull out settee/transom berth is 6'3" and there is also a pilot berth of the same length above and outboard. The dining table is center line with a drop leaf table that seats six comfortably. It has a bulkhead stored extension, two built in silverware drawers and removable fiddles. Next aft is the galley and companionway access to the cockpit.

• Teak and holly sole throughout
• Mulberry Ultrasuede cushions throughout '06
• Ultrasuede curtains in forward cabin and head '06
• Ultrasuede Pillows '06
• Two opening hatches w/screens
• Hot & cold pressure water

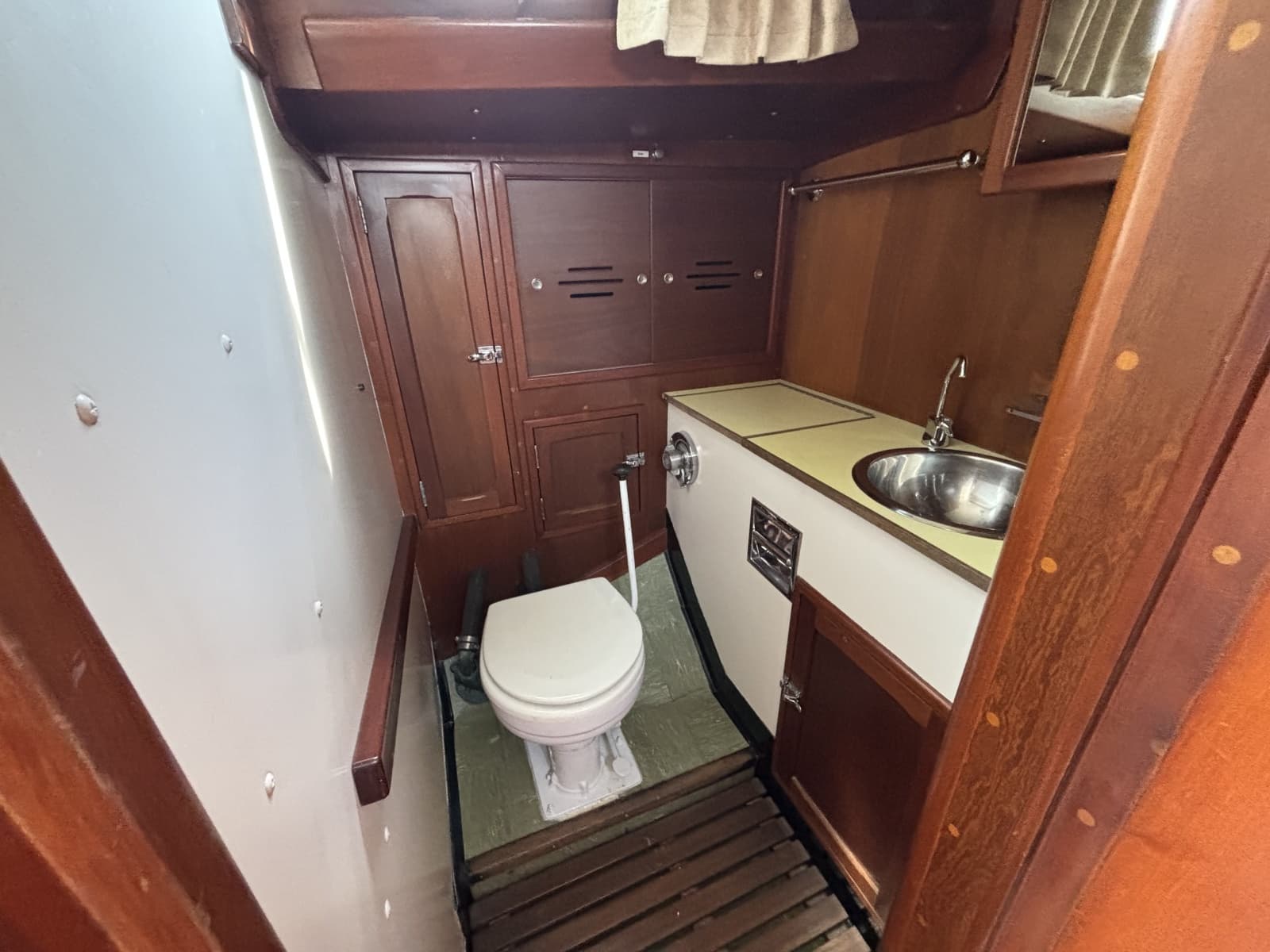

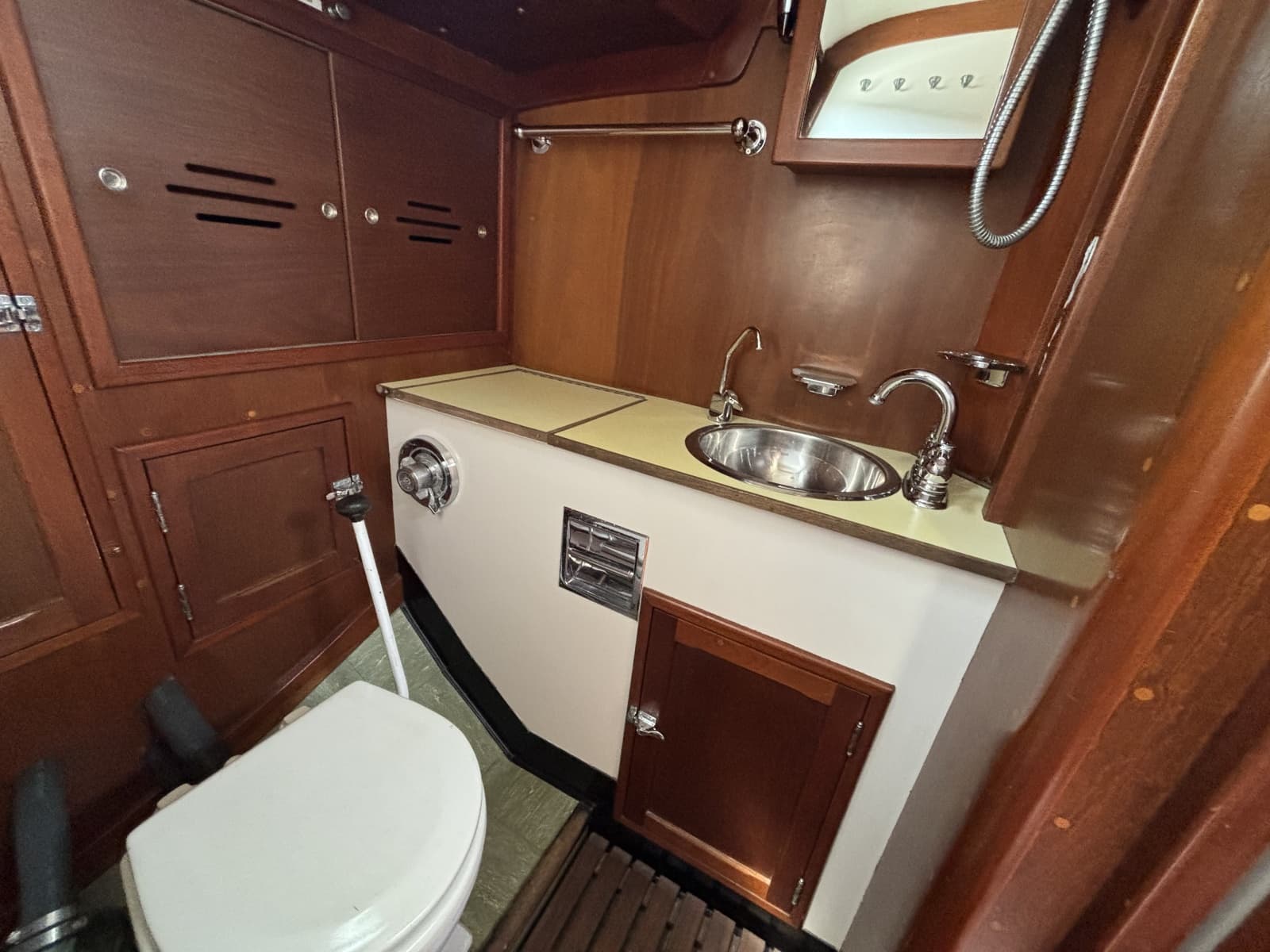

Head

• SS sink
• Pressure hot & cold water
• Skipper toilet w/holding tank & Y-valve
• Seagull IV water filter '06
• Built in clothes hamper
• Linen storage
• Medicine chest w/mirror
• 6 drawer built in toilet article drawers

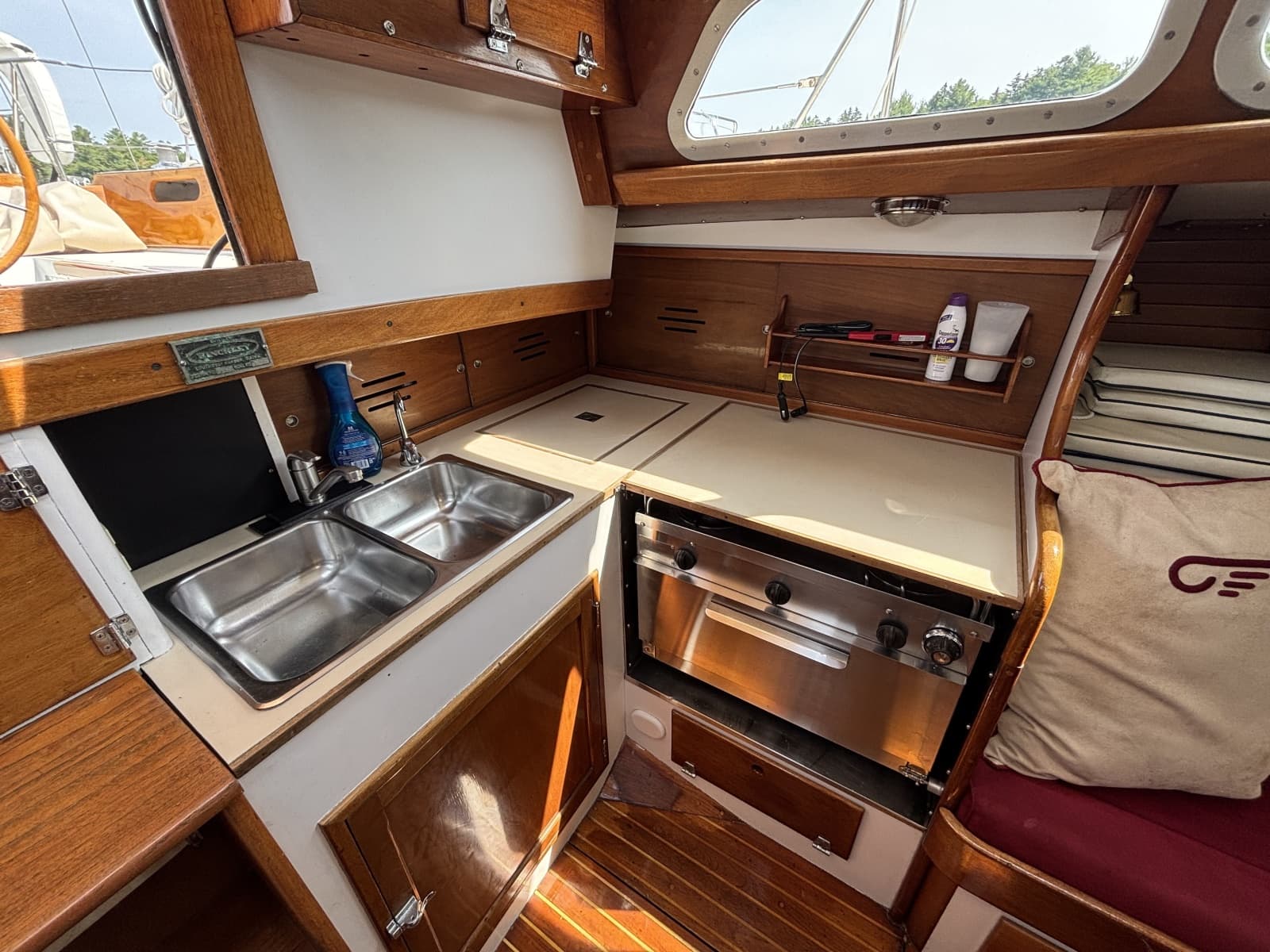

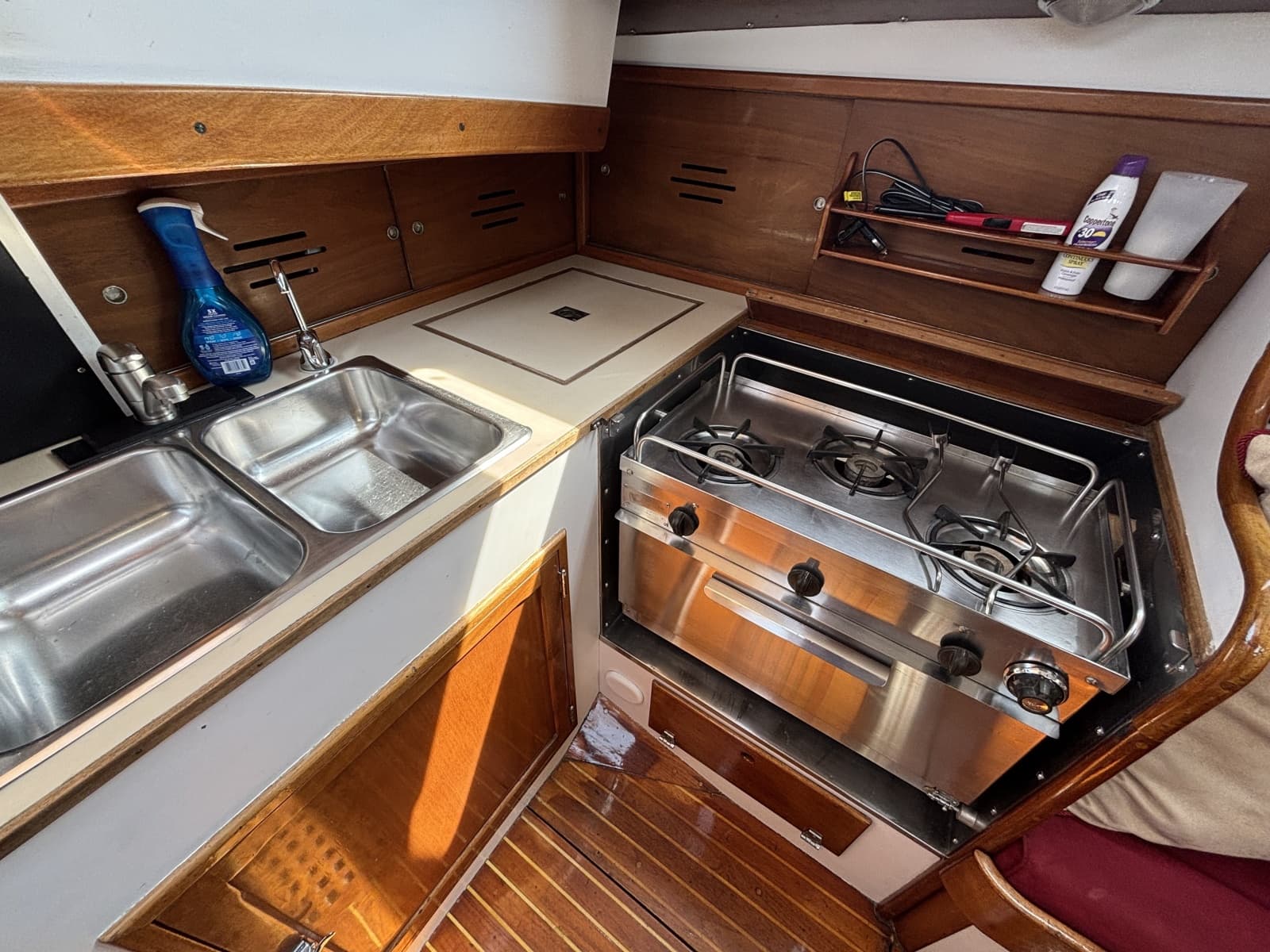

Galley

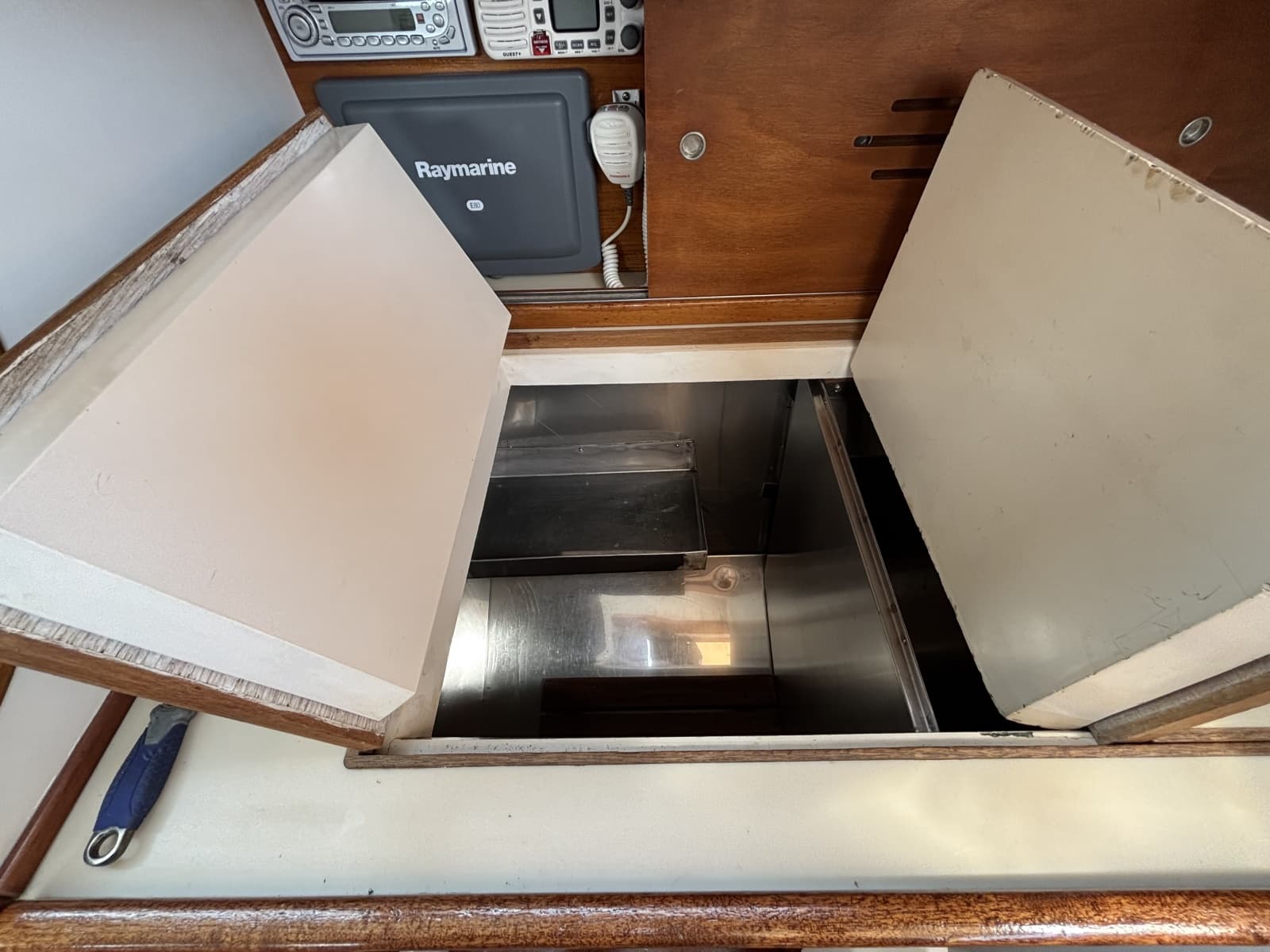

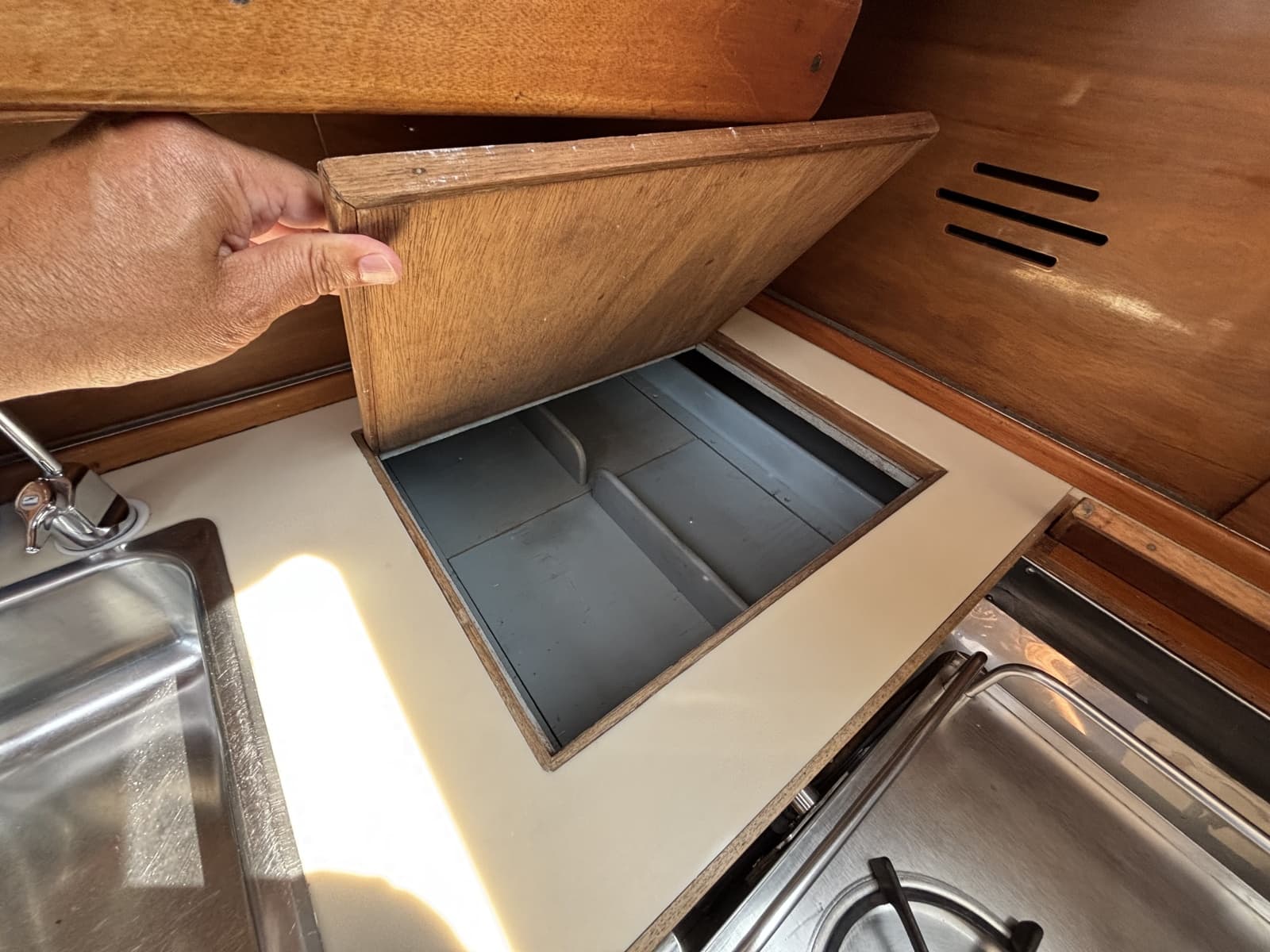

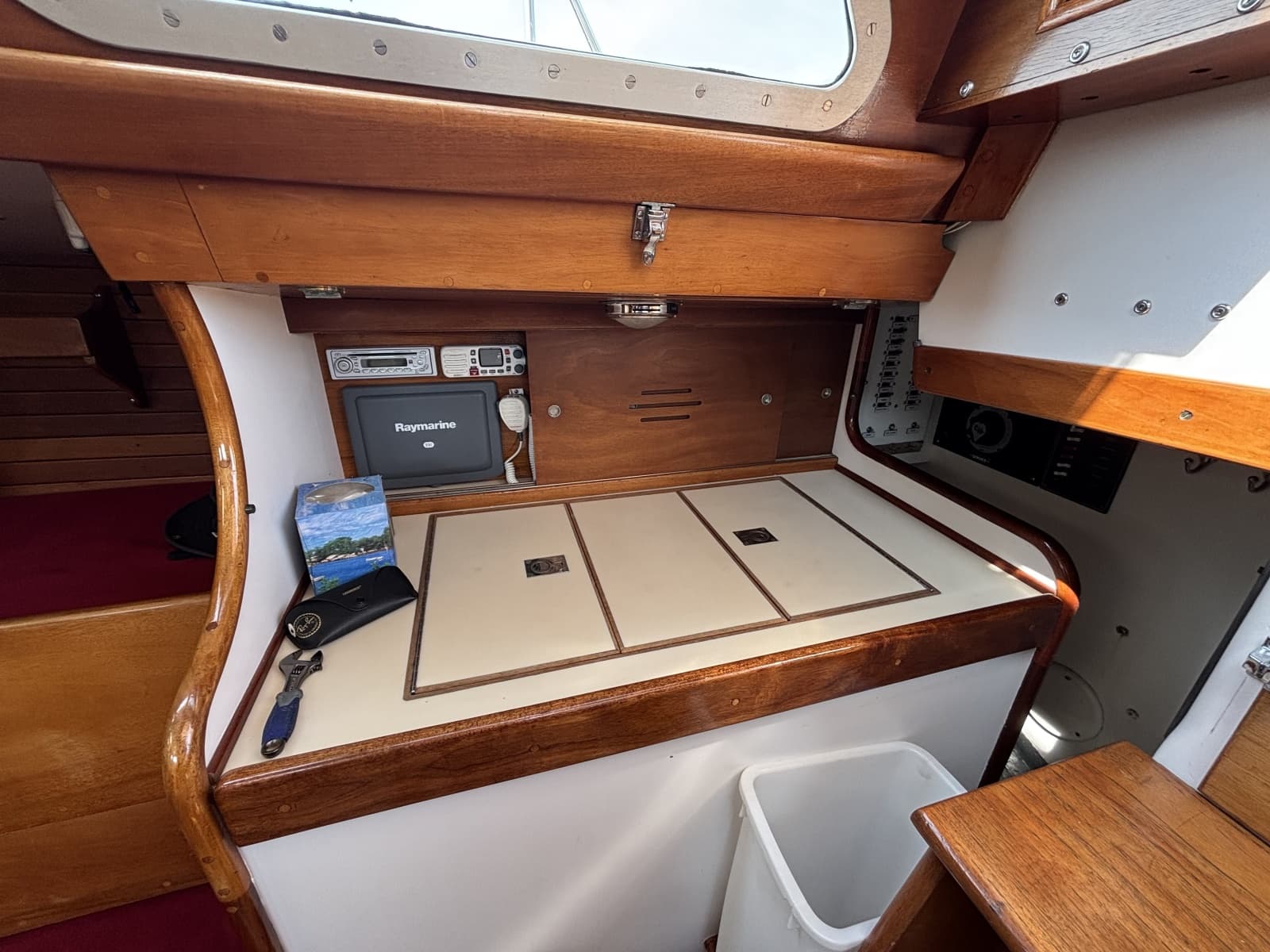

The galley is located aft and is convenient to the cockpit especially where the refrigerator counter top doubles as the nav station. The full galley is across the companionway on port.

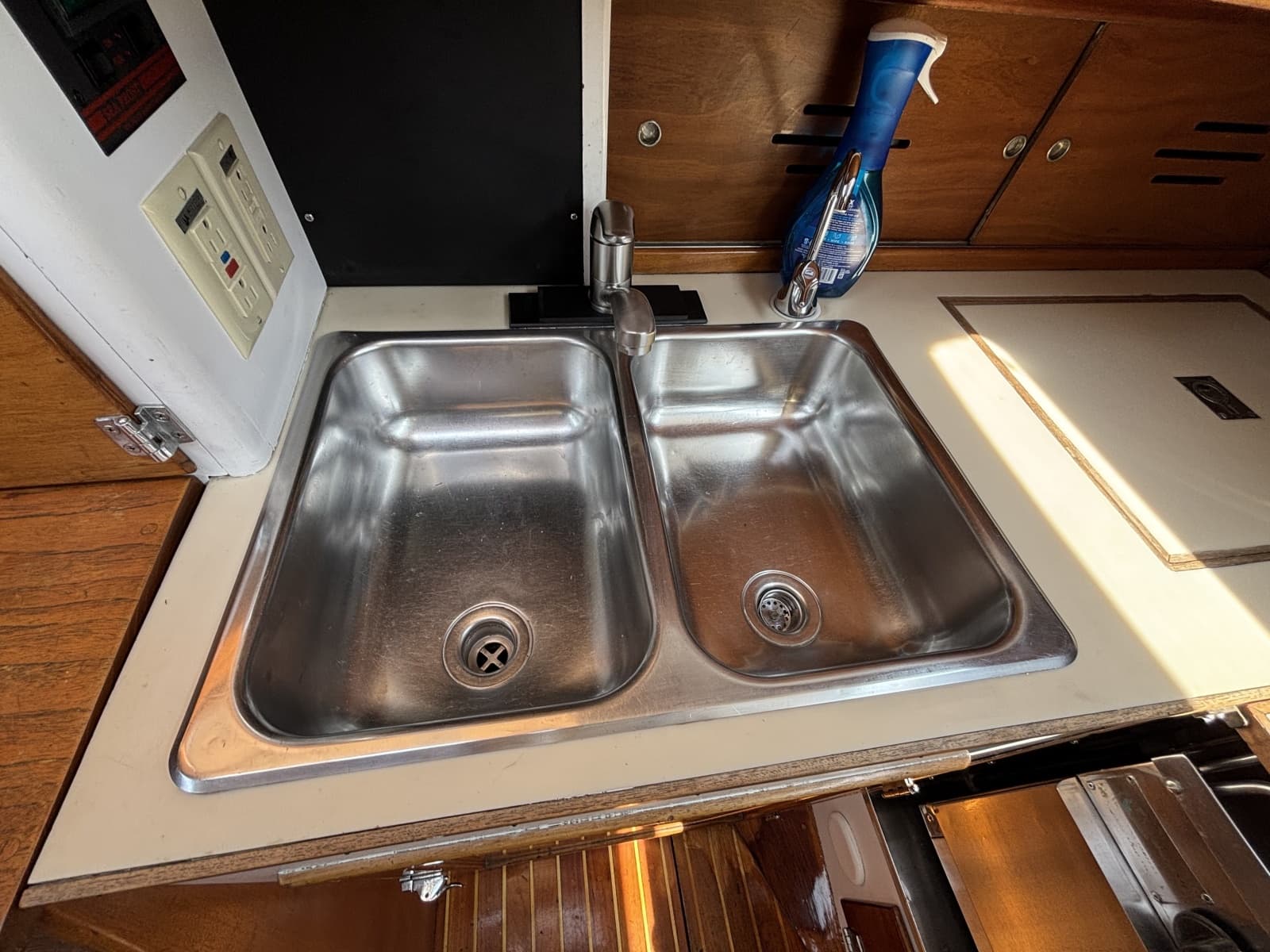

• SS double sink
• Seagull IV water filter

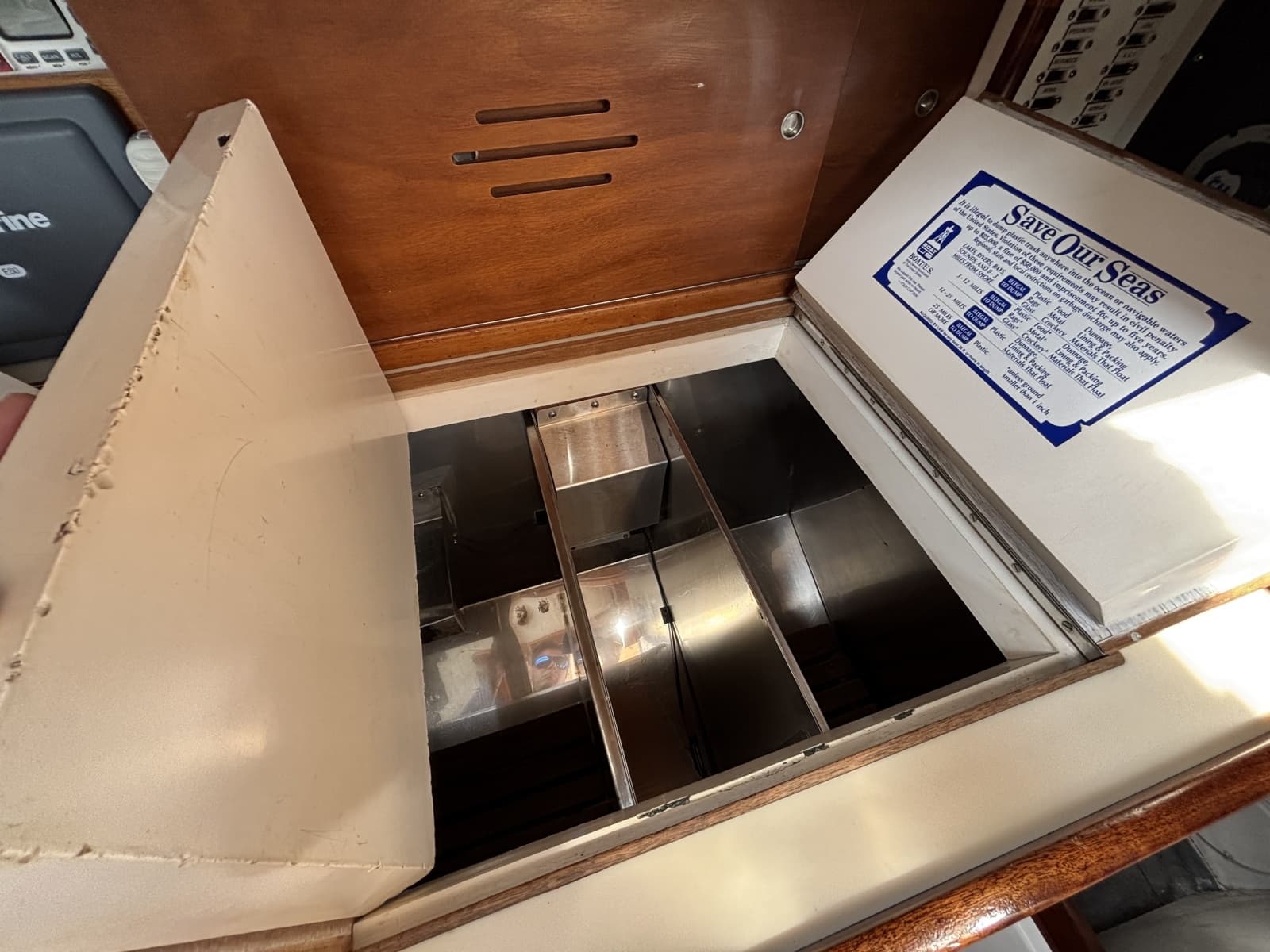

• Grunert 12 VDC refrigeration
• Hot & cold pressure water

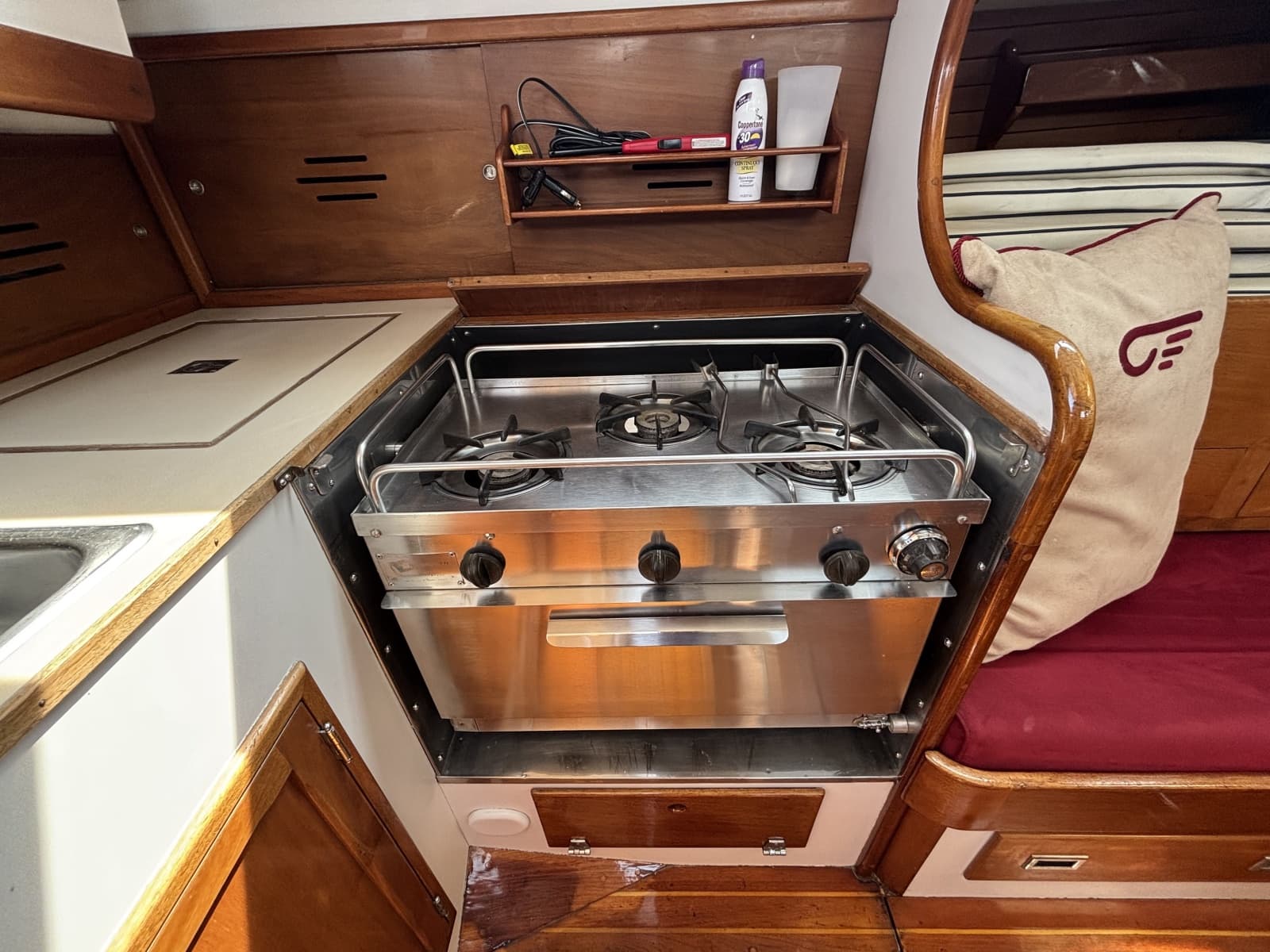

• Shipmate 3 burner propane stove w/oven

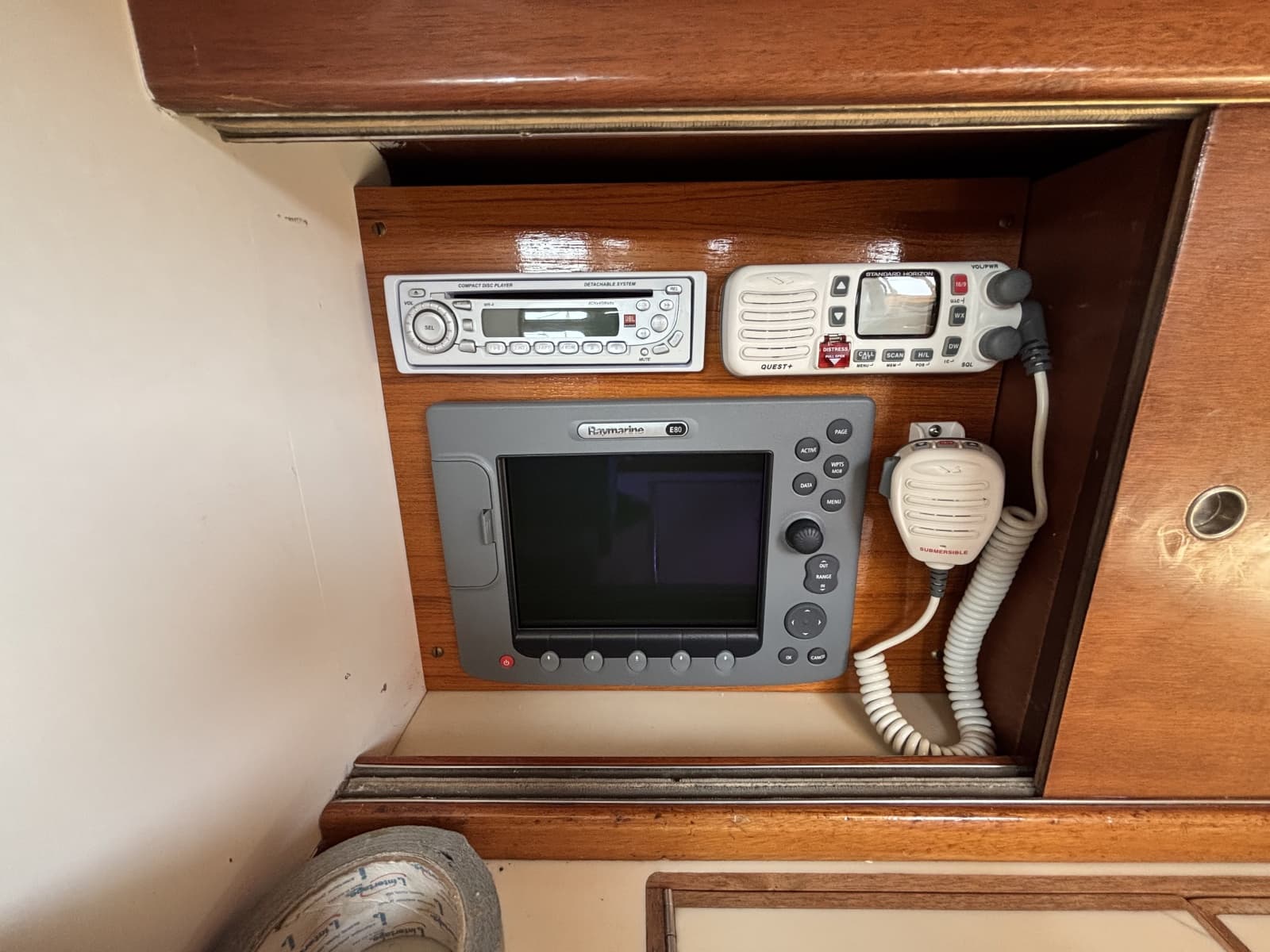

Electronics

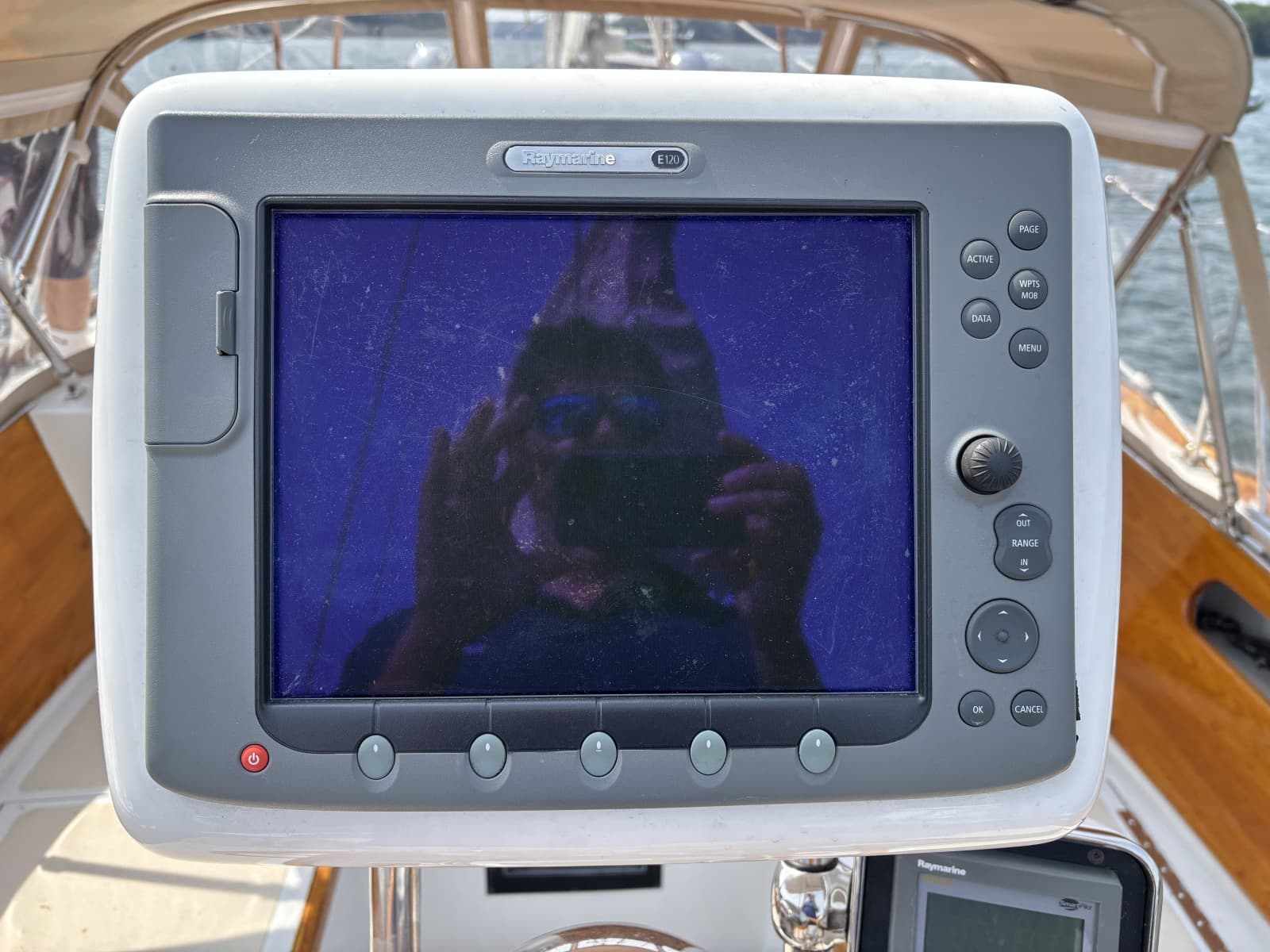

• Raymarine E120 at helm in Nav Pod
• Raymarine E80 at nav. station
• Raymarine Radar

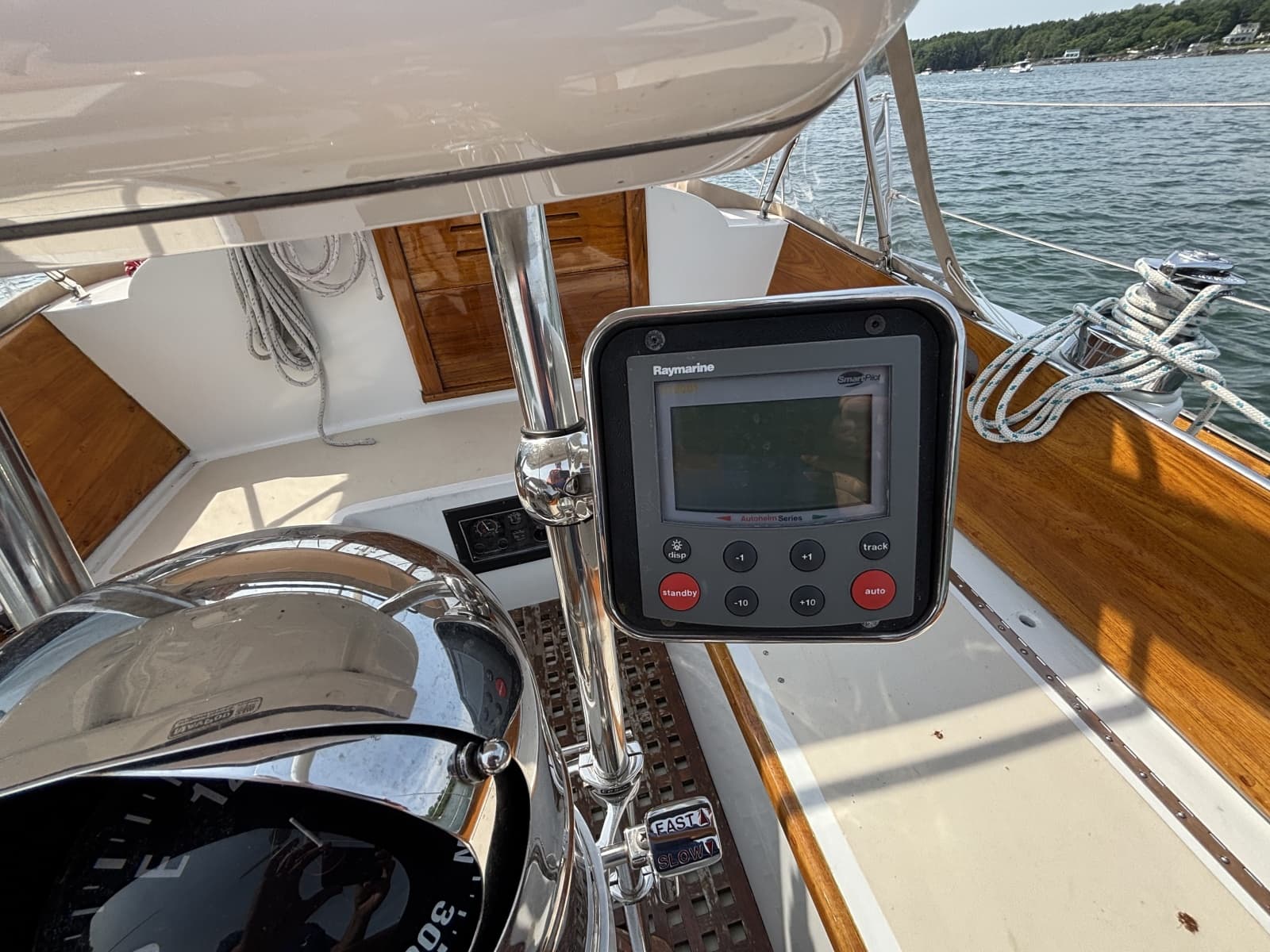

• Raymarine Smart Pilot Auto pilot 150G/S2G linear type 1

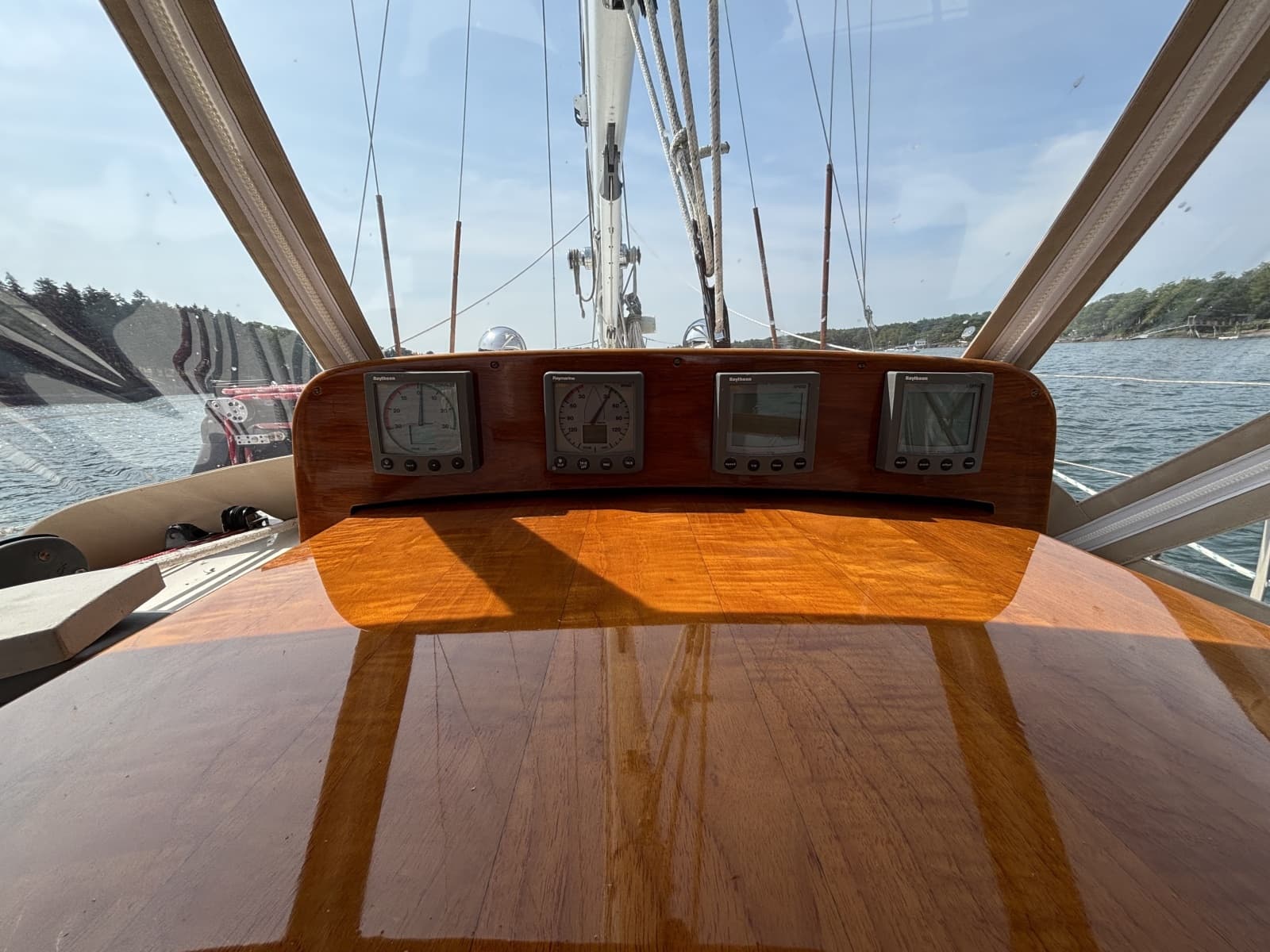

• Raymarine ST-60 wind, speed, depth & steering compass in teak display under dodger
• VHF Standard Horizon Quest
• AM/FM radio CD JBL
• Stereo cabin speakers
• Danforth Constellation Compass

Mechanical

Fuel tank (monel) removed, cleaned, pressure tested, painted and reinstalled '05.

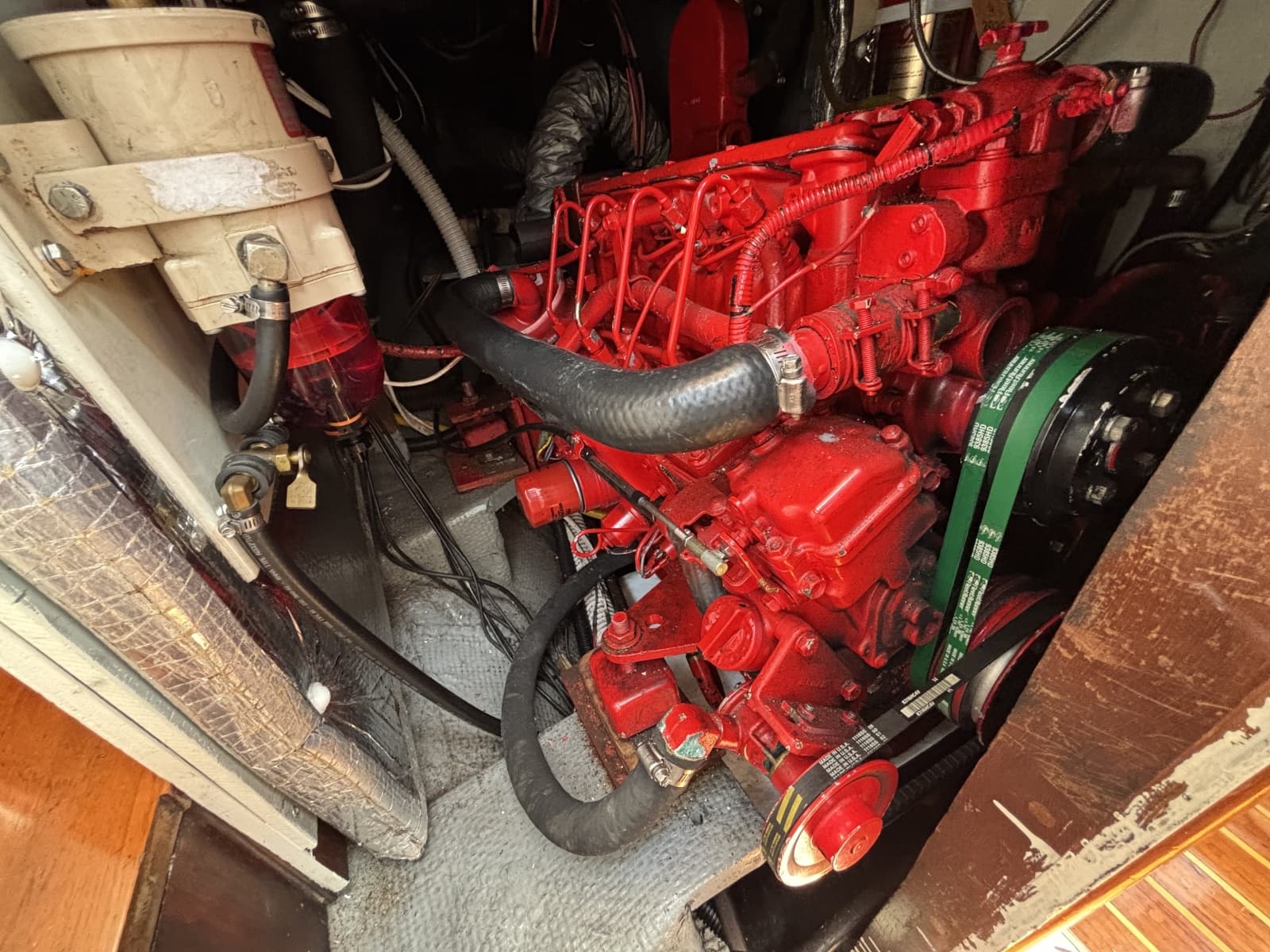

• 2005 Westerbeke 55B-Four diesel
• Shaft w/cutlass bearing & spurs '05
• 3 blade 16" Max prop '05

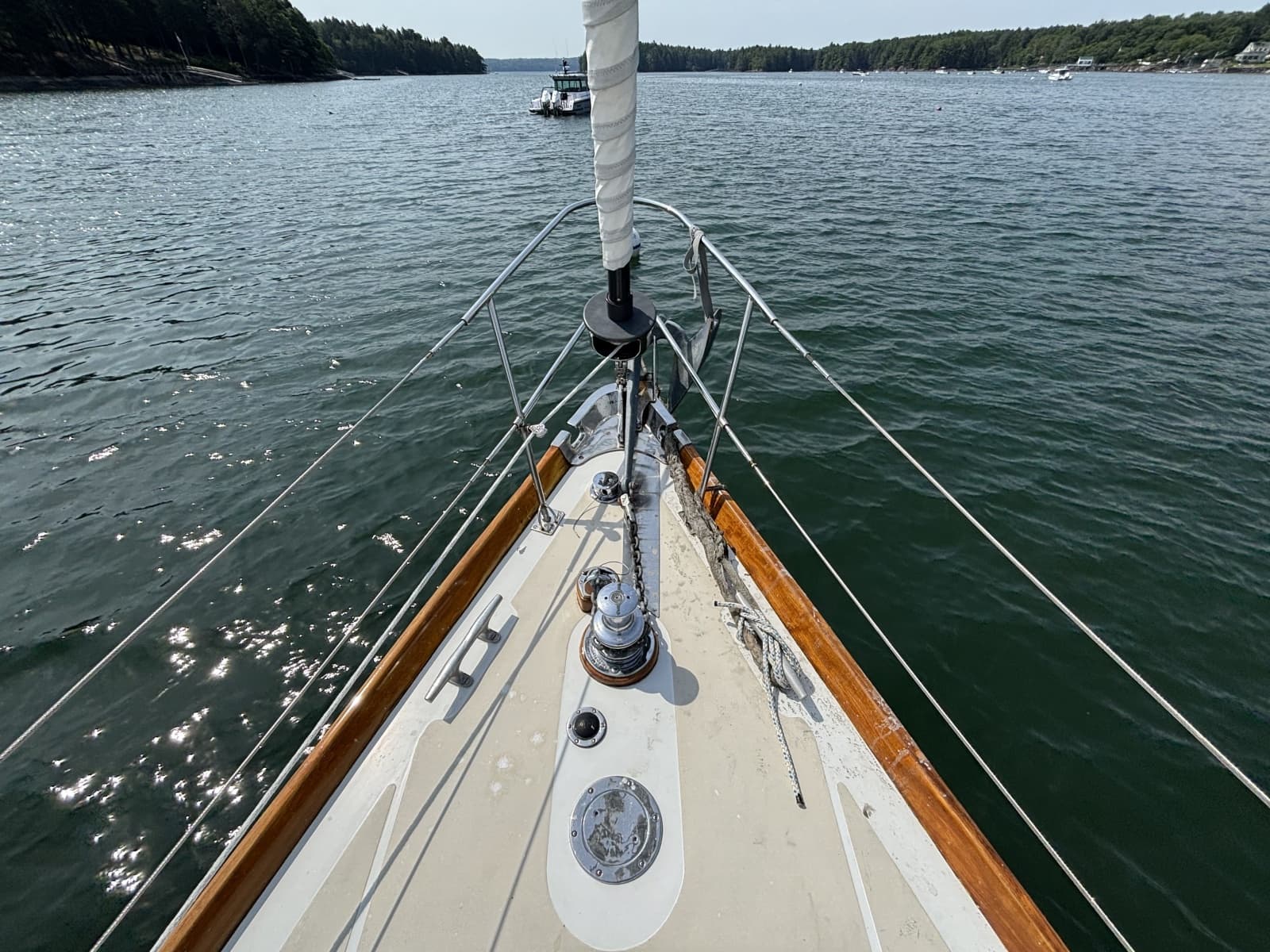

• Windlass-Ideal vertical MCW w/foot switch
• Grunert refrigeration
• 12V auto bilge pump

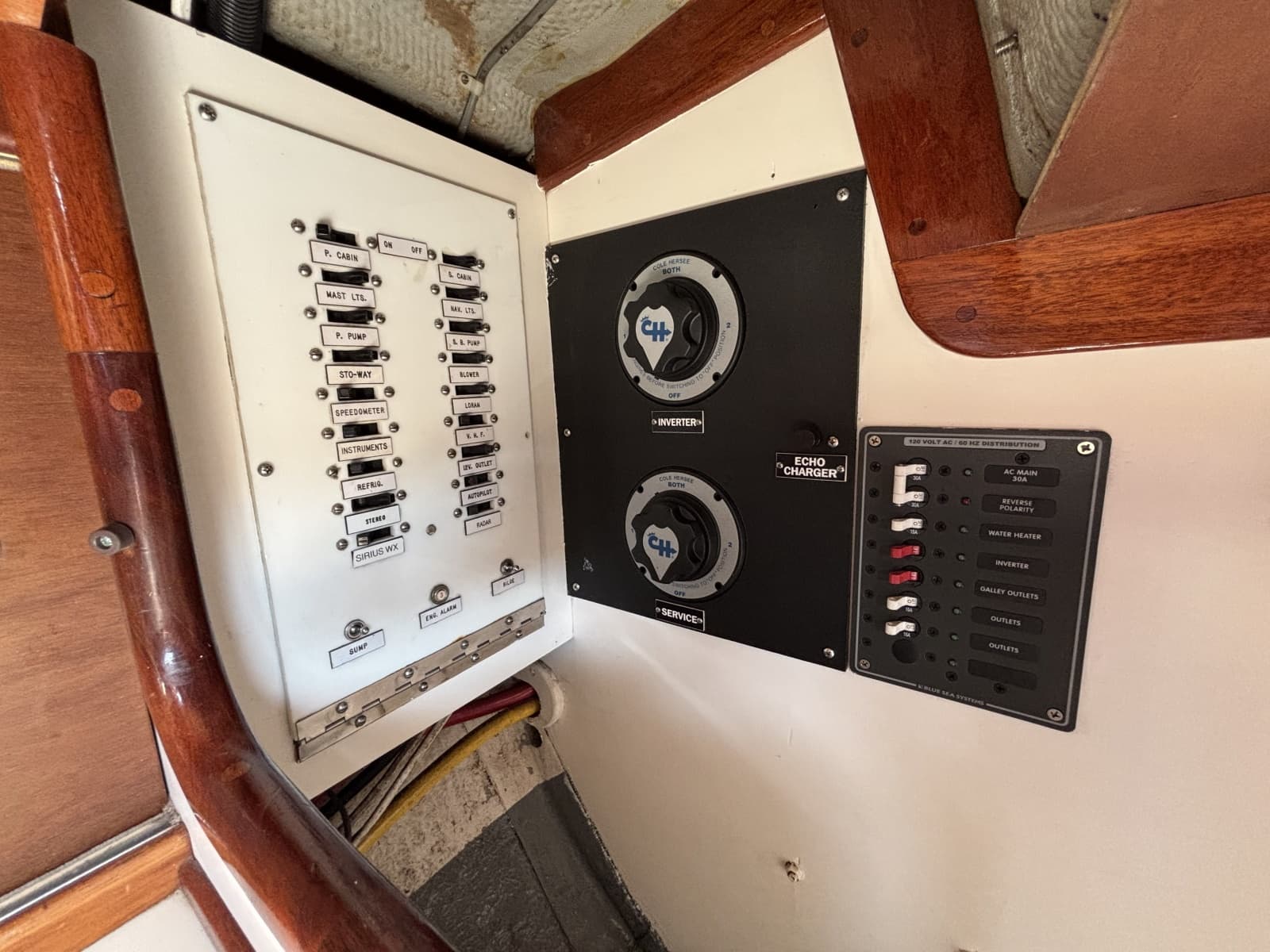

Electrical

• 110VAC 30 amp shore power
• Galvanic isolator
• GFCI outlets
• Inverter/charger Freedom Marine 25 '05
• 12 VDC
• 12V lighting
• 1 group 27 battery '05
• 4 6V Rolls batteries connected in series 4000/225M '03
• Balmar 160 amp alternator
• Balmar MC-612H regulator

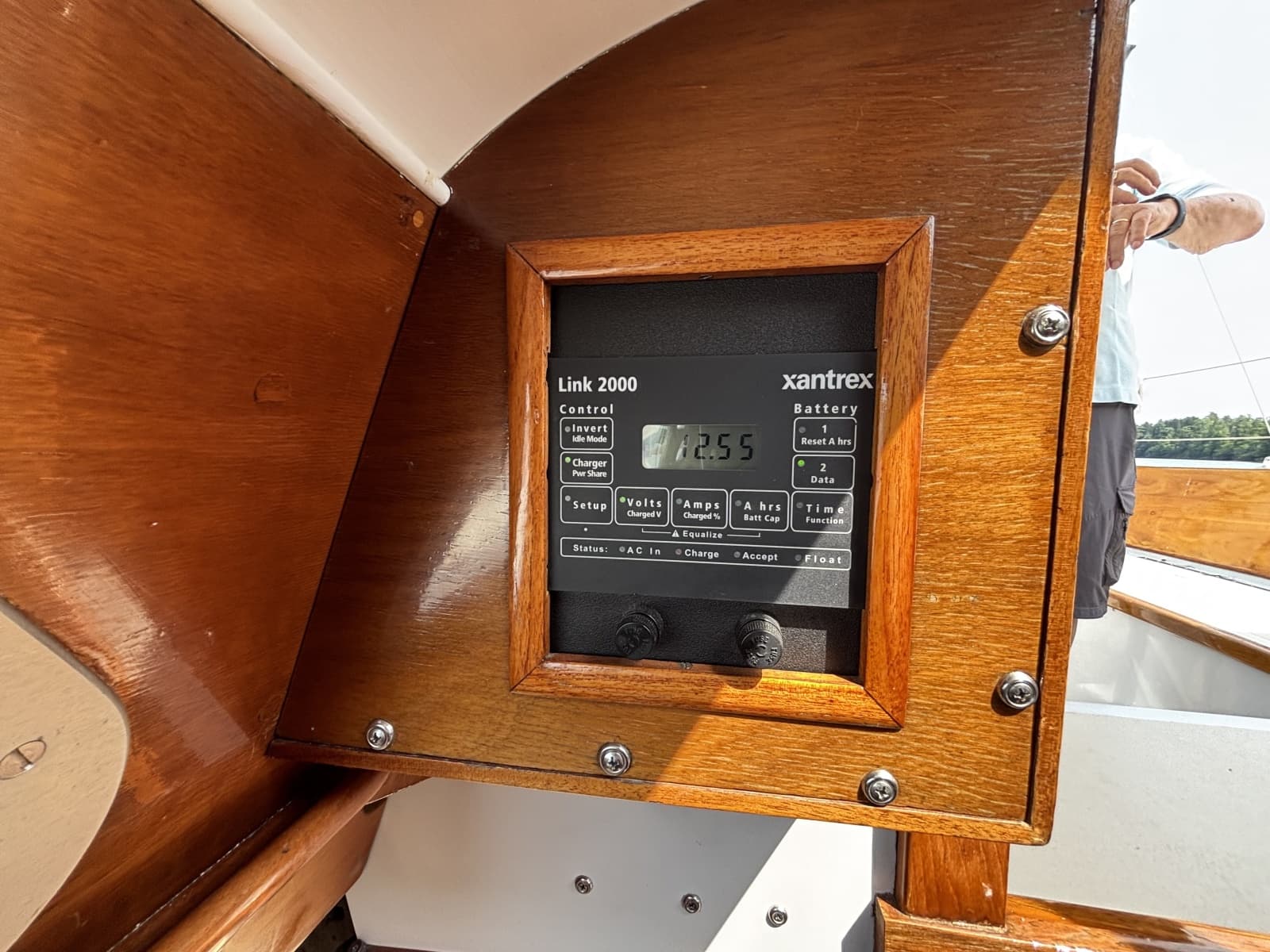

• Link 2000 inverter control & battery monitor

Sails and Rigging

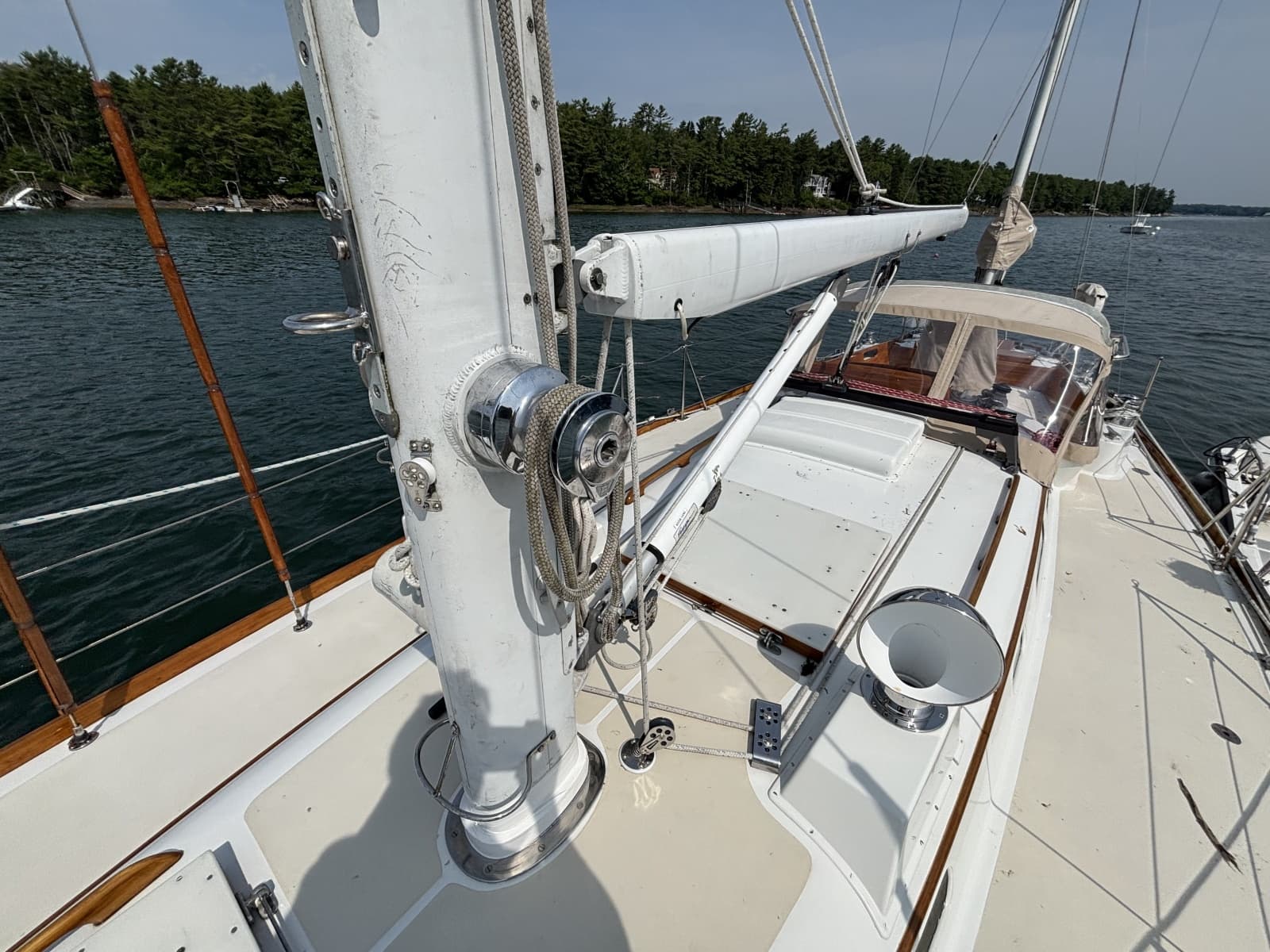

• Main mast-Forespar in mast electric furling (2001)
• Harken mid boom sheeting traveler w/bridge '05
• New standing rigging '05
• New running rigging & blocks '05
• Forespar boom vang
• Backstay adjuster Navtec-17
• Mizzen mast-original
• Jib furler-Harken Mk1, series 2
• Mainsail-Hallett Sails Triradial (2024)
• Genoa 150%-Triradial (2022)
• Jib-Hood
• Mizzen sail by Hallett Sails (2024)
• Gennaker-North
• Reacher

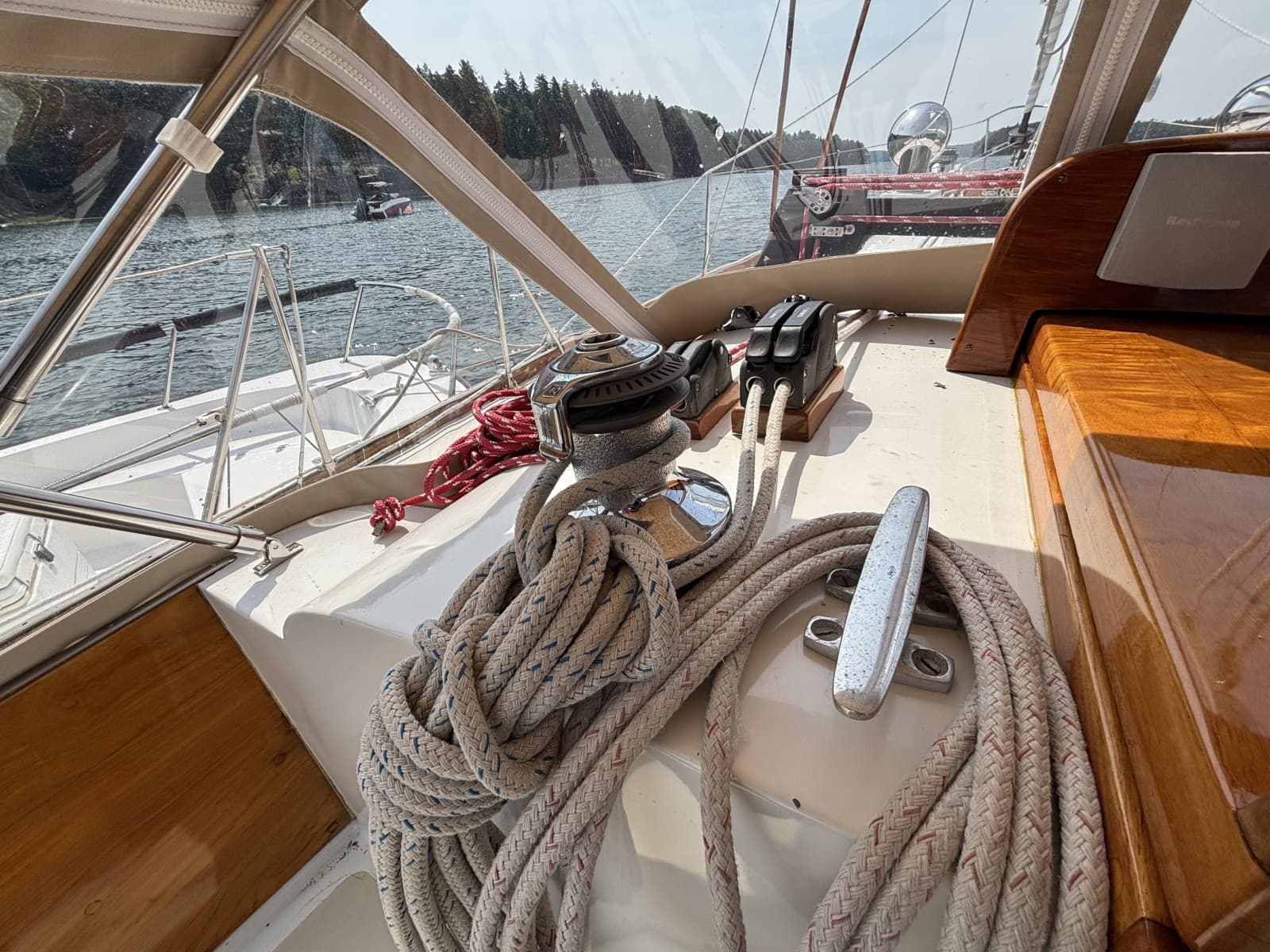

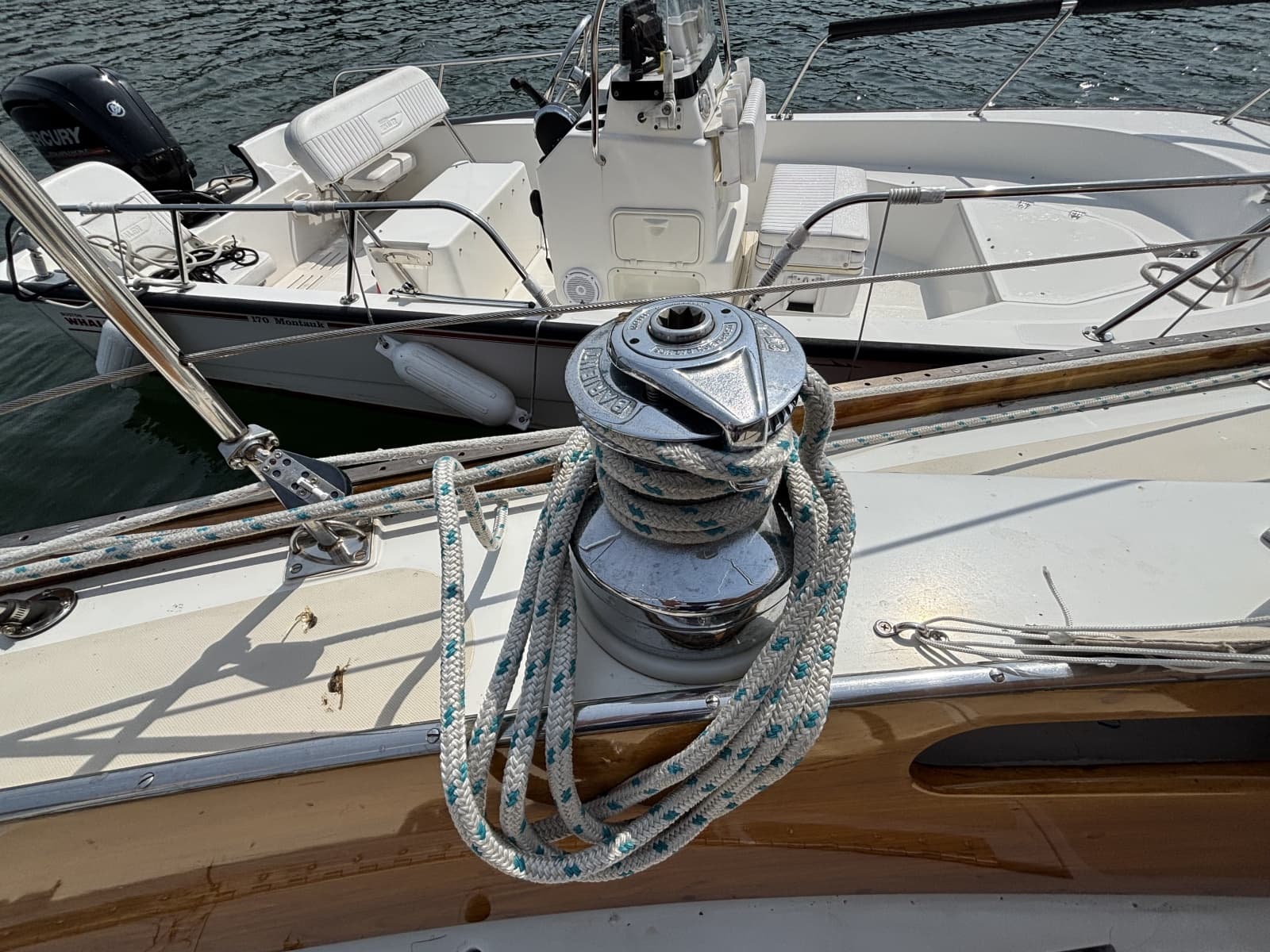

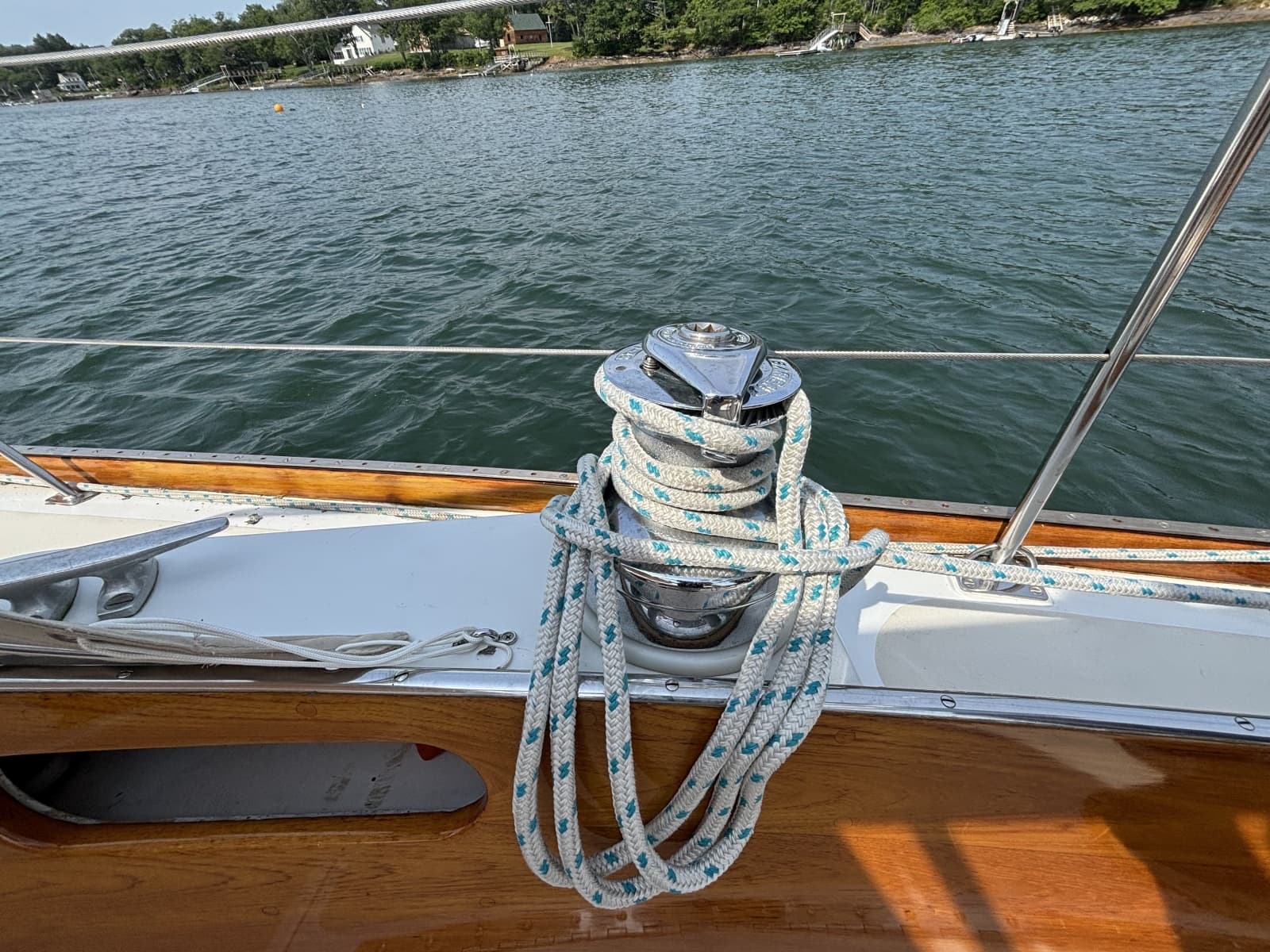

• WINCHES:
• Mast-main Lewmar 40
• Mast-Jib Barient ST 21-33 2 spd
• Primaries: 2 Barient 27-48 ST
• Secondaries 2-Barient 20
• Mizzen Barient 10H
• Cabin top-Lewmar 40ST
• Spinlock stoppers

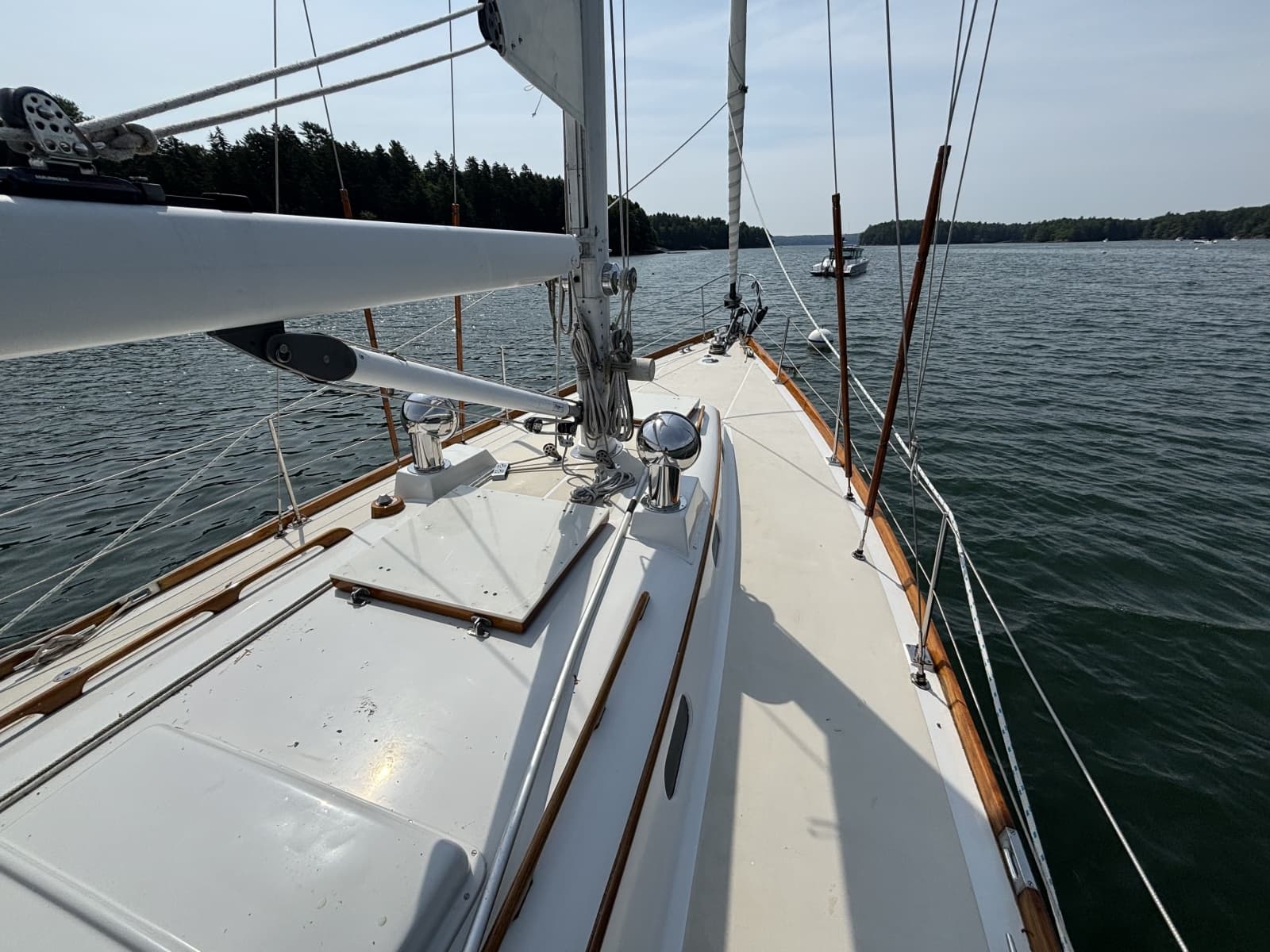

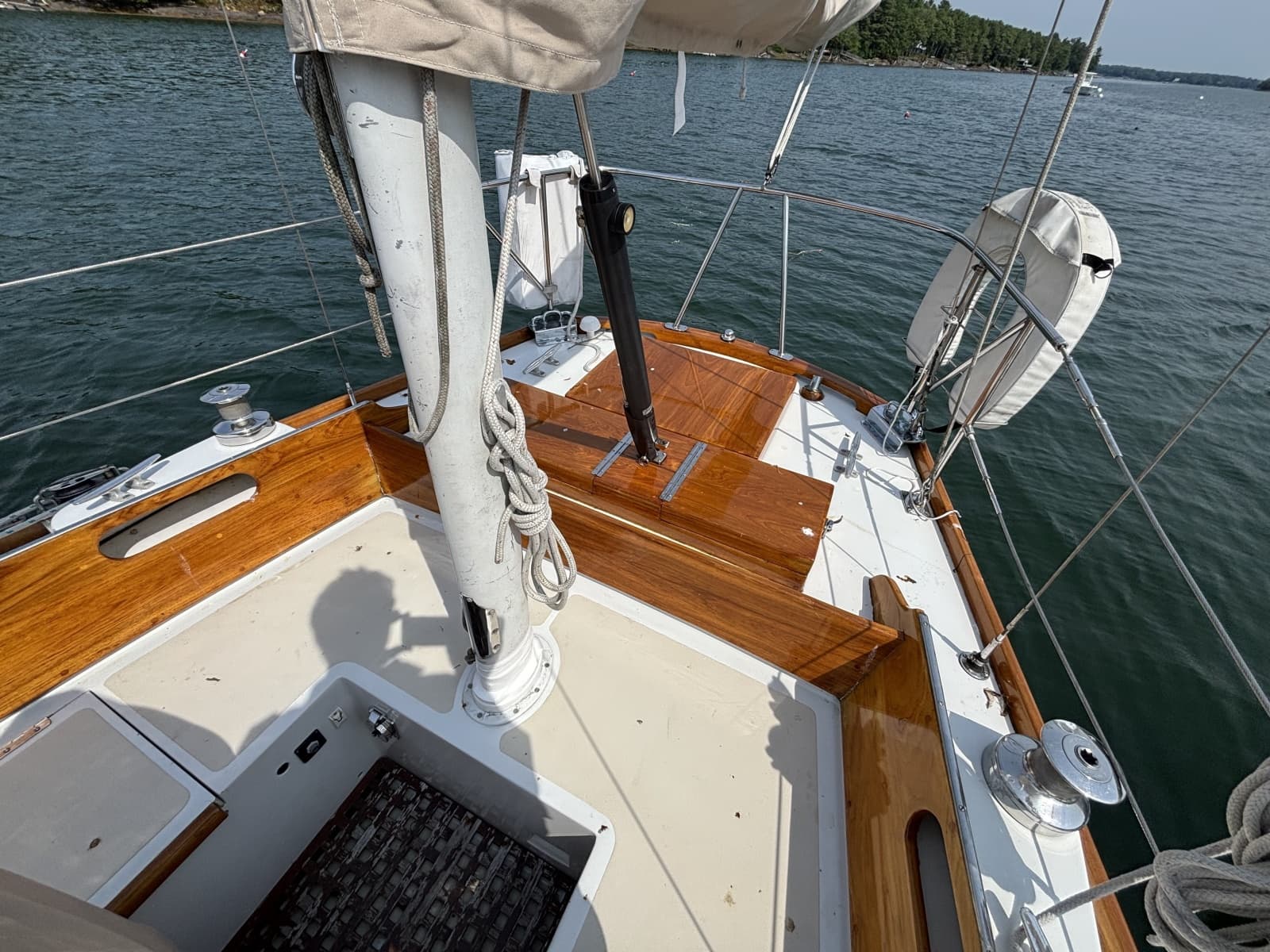

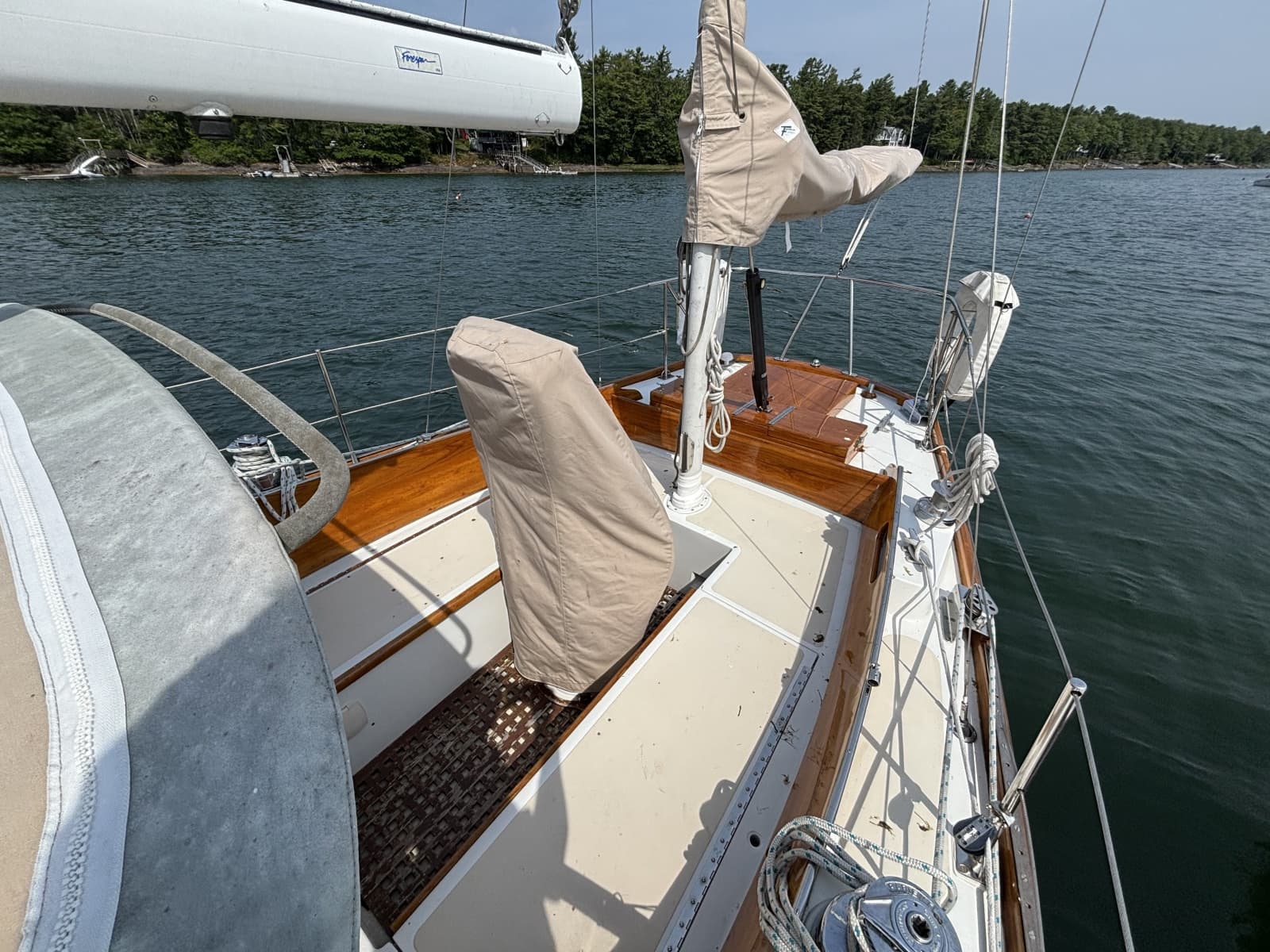

Deck & Construction

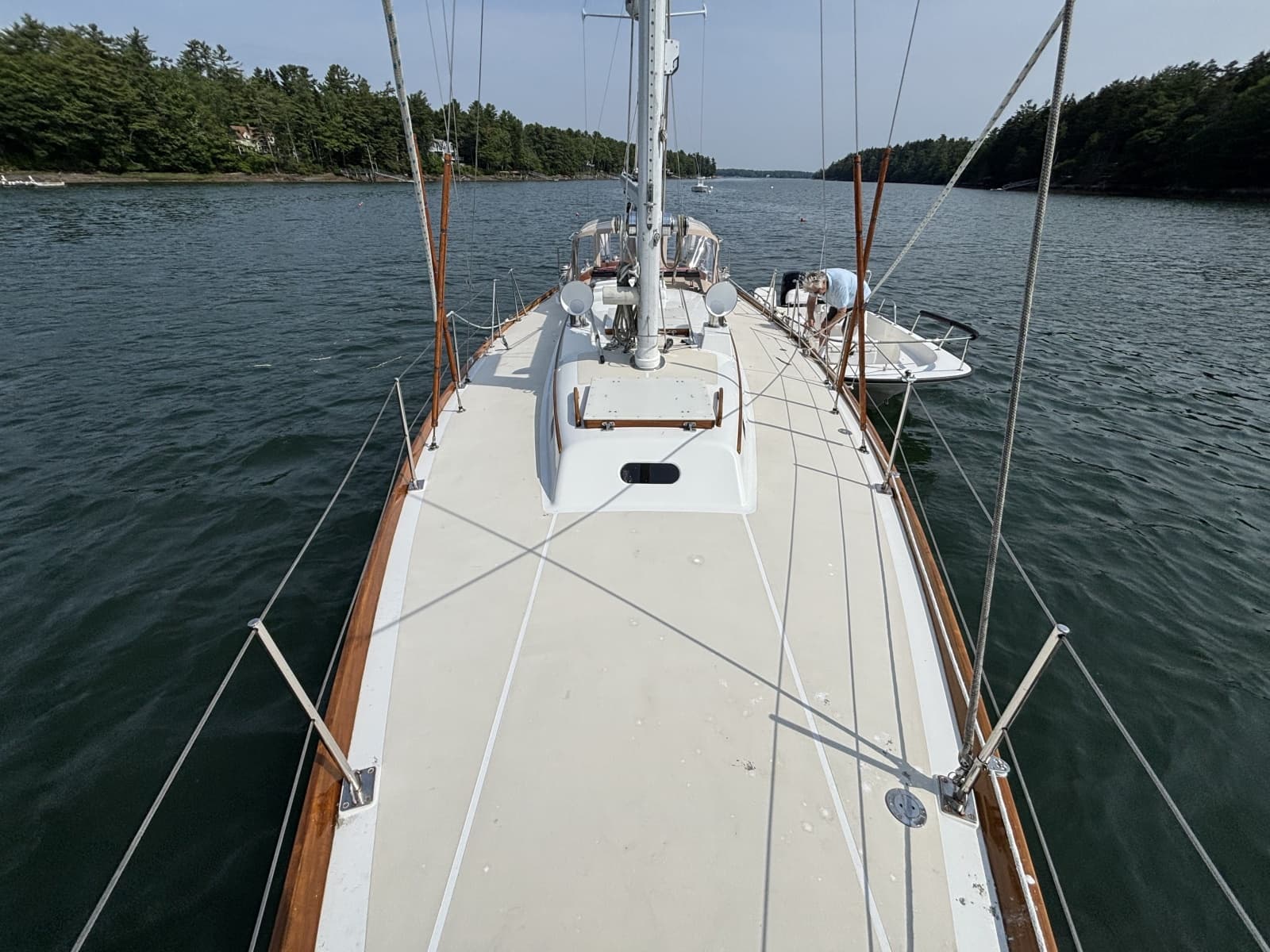

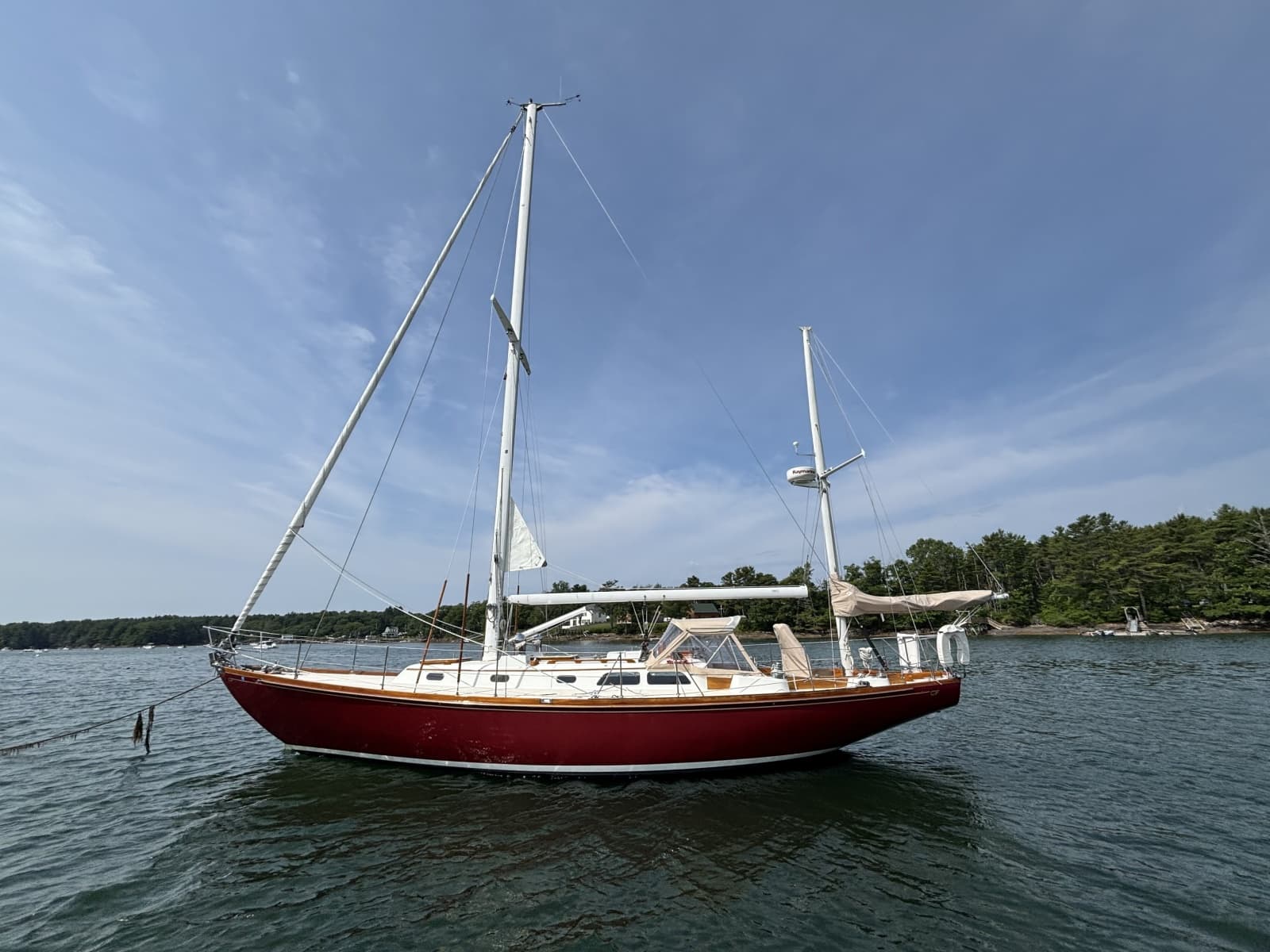

New Awlgrip hull, deck and non-skid '05. Hull sprayed Claret with the deck Insignia white and Moon Dust non-skid.

• Bow pulpit
• Stern rail
• Double lifelines w/gates '05
• SS genoa tracks mounted on toe rails port and starboard
• Varnished teak toe rails, exterior trim, hand rails, hatch boxes, aft lazarette tops, cockpit coamings, and companionway hatch
• Aft deck lazarette hatch storage
• 2 Dorade SS ventilators
• 7 Smaller portlights
• 4 Larger portlights
• 2 Opening deck hatches w/screens
• Screens for companionway
• Stowage rack for companionway hatch boards
• Edson 28" teak rim wheel w/brake

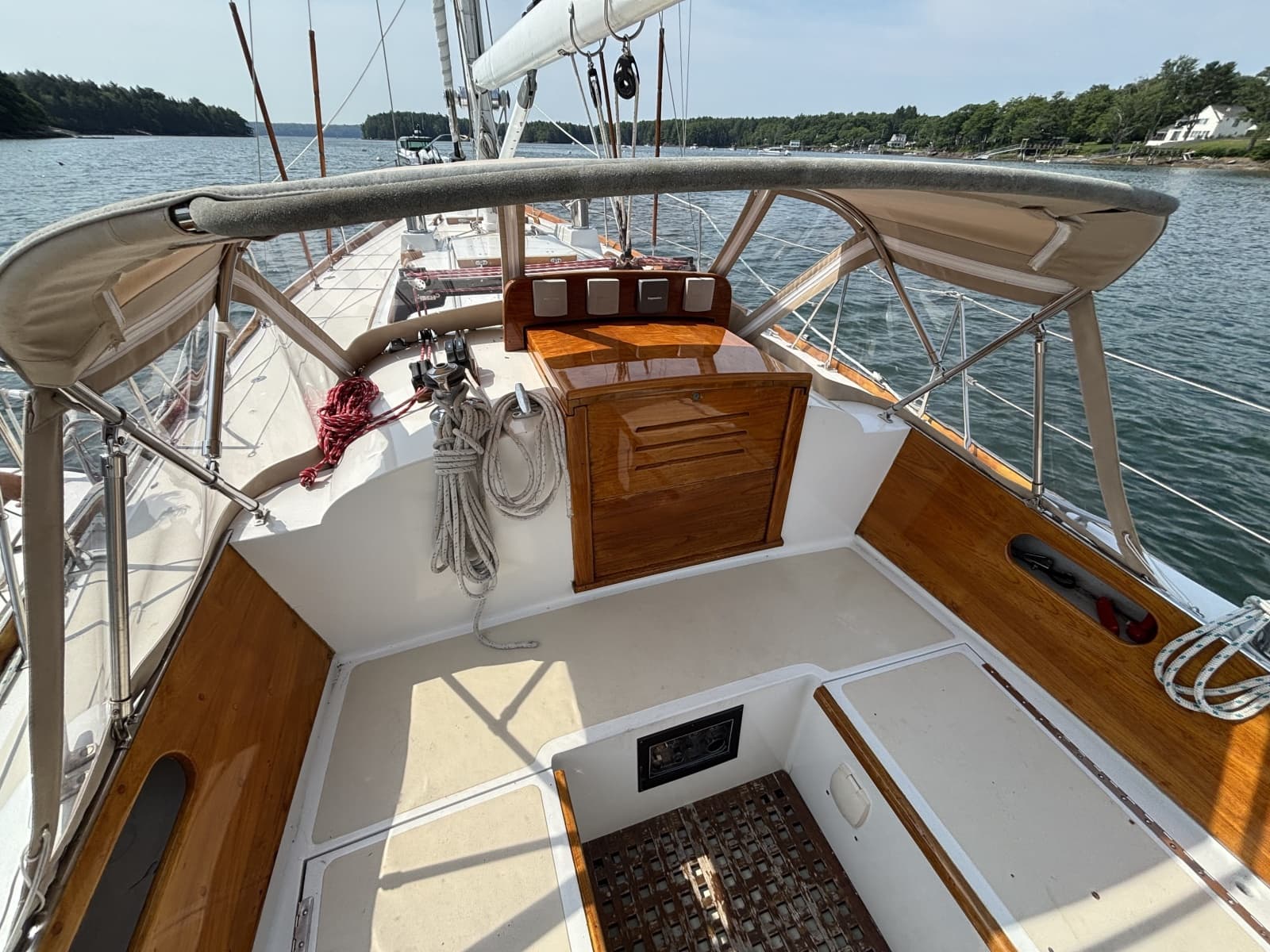

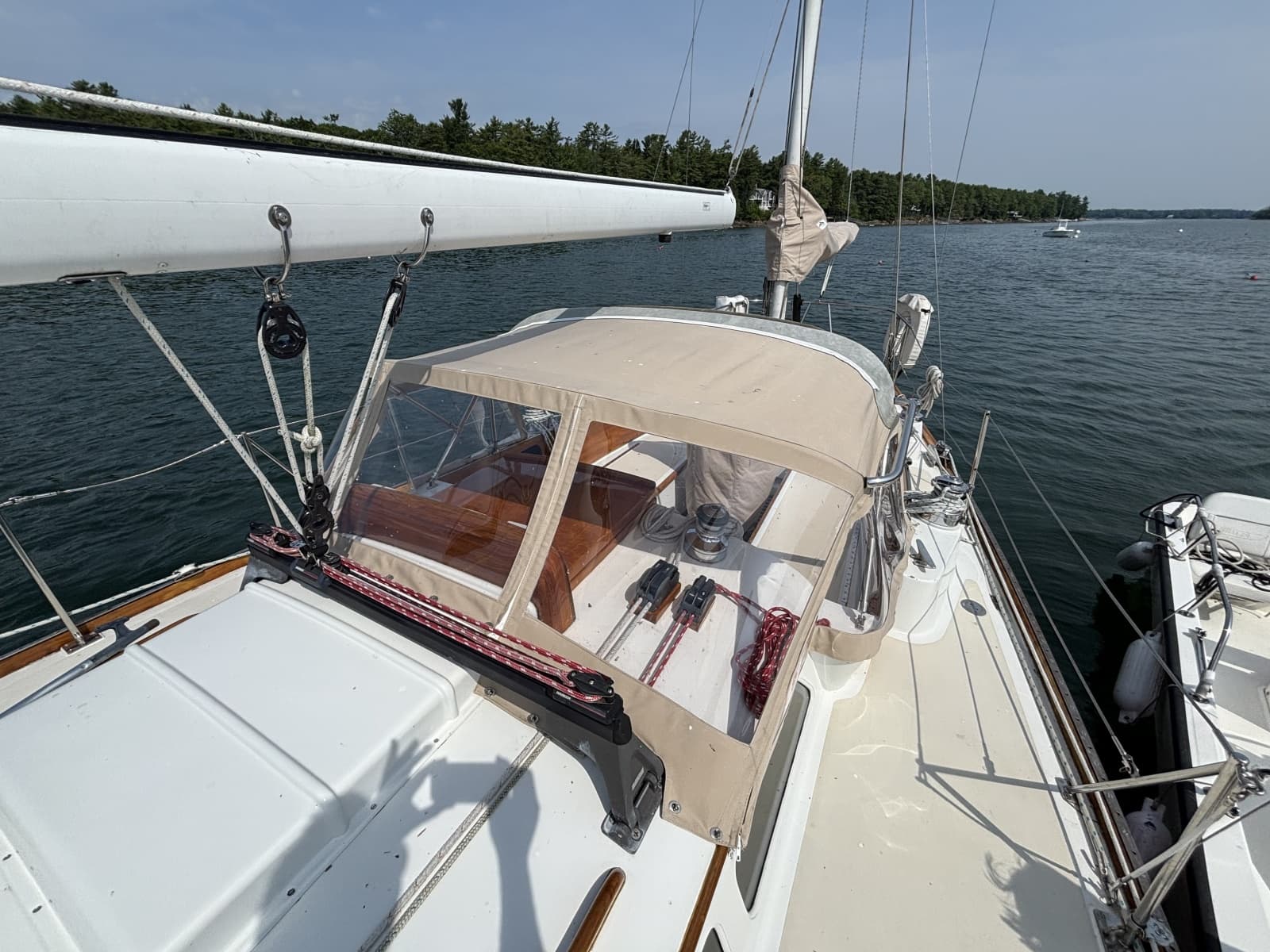

• Linen Sunbrella spray dodger and wheel & instrument cover
• Mizzen folding helm seat

Additional Equipment & Features

• Primary anchor-45 lb. CQR anchor w/BBB chain rode
• Secondary anchor-Danforth w/rode
• Reserve anchor-Fisherman w/chain
• Fireboy halon system in engine room
• 3 Fire Extinguishers
• CO Alarm
• EPIRB - ACR Satellite2 406
• Winslow 60SLOR life raft in valise
• 4 fenders with covers
• Dock lines
